I notice you've a less than one yr old new radiator. Was the: "single worst time I had fuel boiling out of my filler neck was without any after market skids" with the old radiator?. Did you happen to monitor engine temp during that time period?

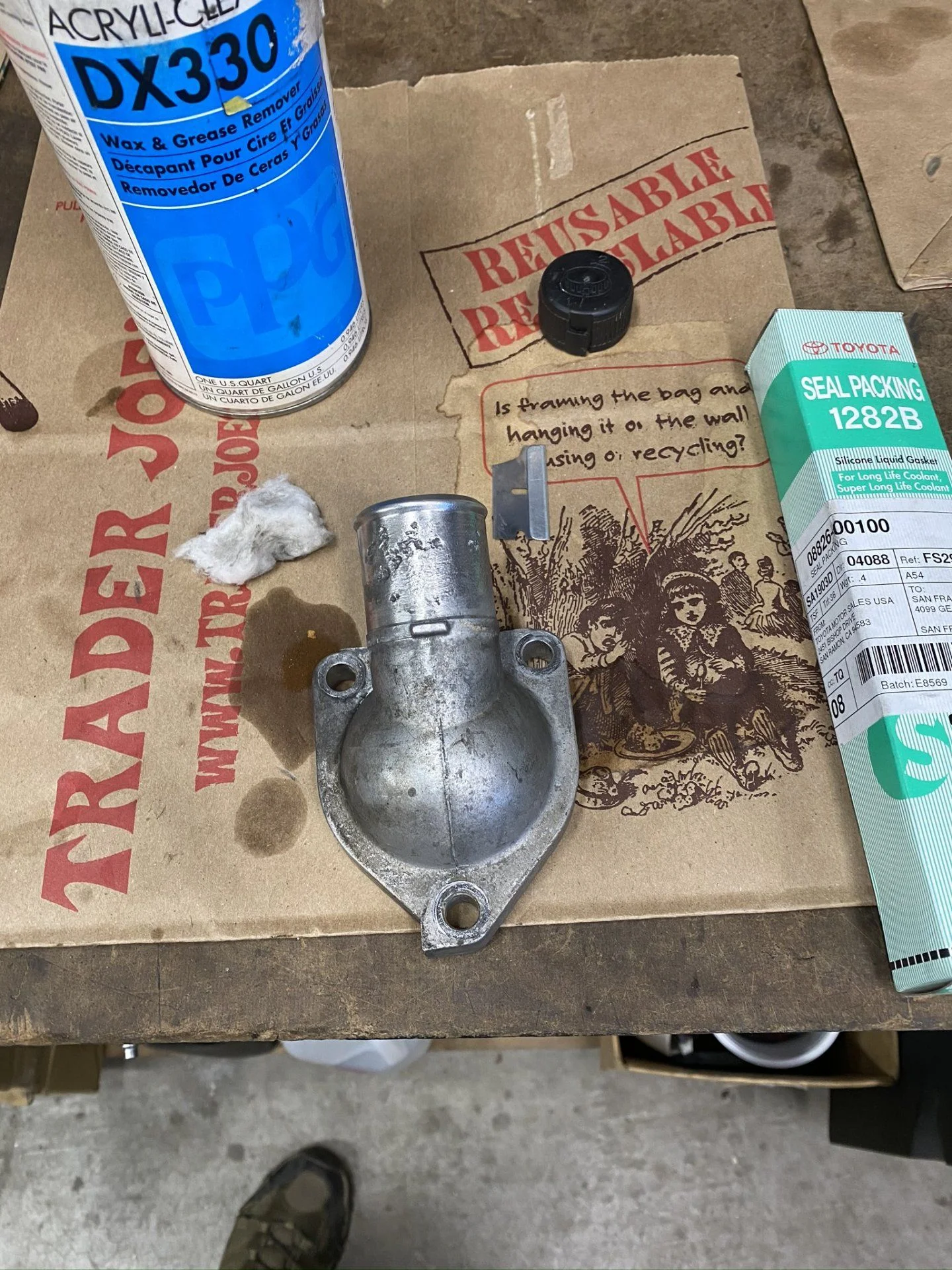

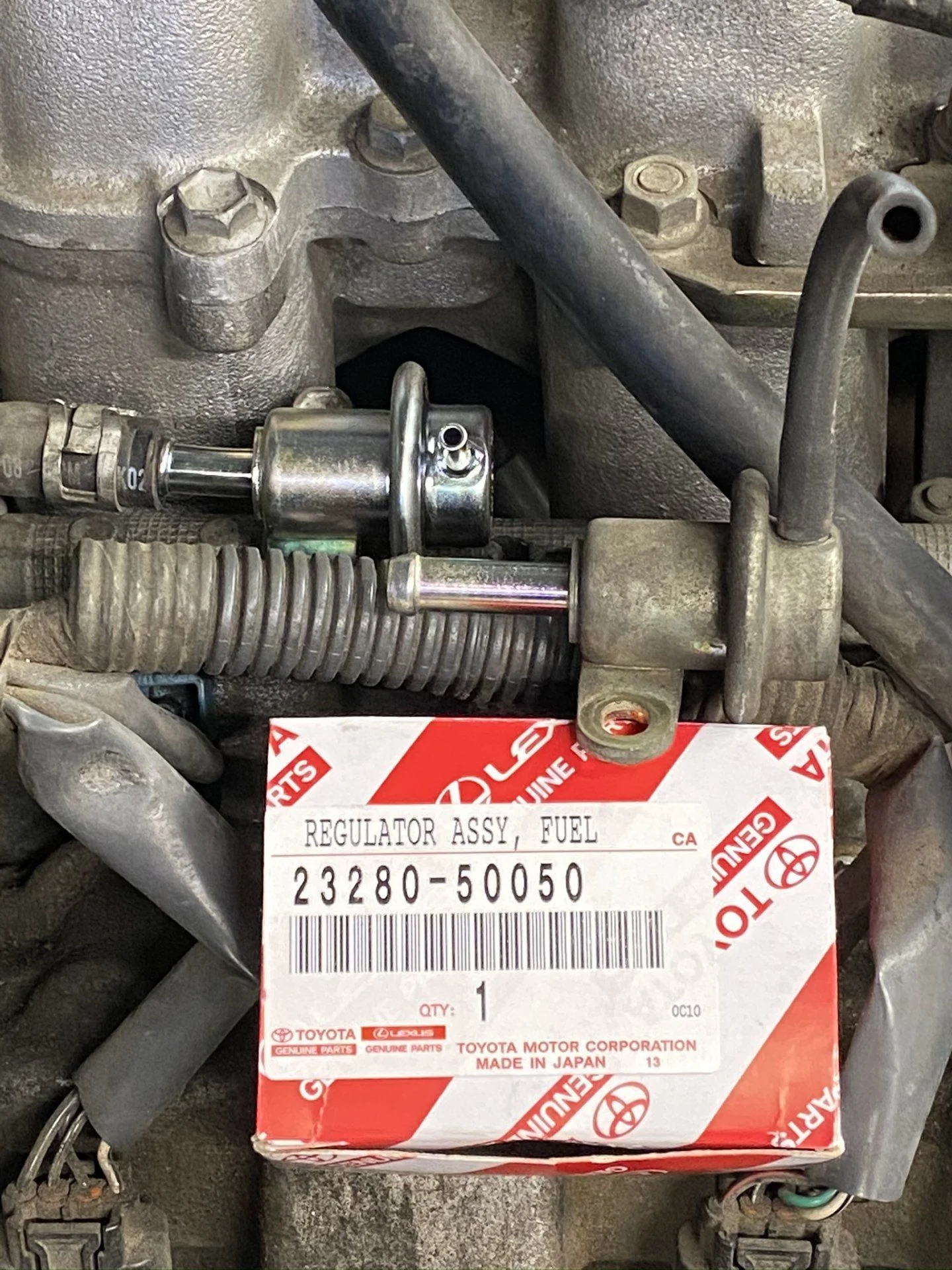

Were you seeing the same "Truck runs cool. Never see it get above 190." before doing above list of PM and heat shield build? Or did you monitor ECT!
I was under my truck doing some more mods. And since I have a fuel temperature sensor, I can tell what works and what doesn't. If you want to argue with me then just put me on ignore, please. If you want to prove me wrong, get your own fuel temperature sensor. Here's two good ones: Amazon.com: Innovate Motorsports 3904 MTX-D Dual Gauge Kit -Ethanol/Fuel Temp, 1 Pack: Automotive and Amazon.com: Zeitronix ECA-2 Ethanol E% Content Analyzer Kit with Blue Display Gauge: Automotive If you have constructive criticism, please post it.
Reminder, this thread is about boiling fuel. Your #1 point of reference should be the fuel's temperature. Everything else is secondary. No, I do not expect everyone to have fuel temperature because it's not available stock or without some elbow grease but I've got one.
The following are my mods to combat fuel temperature in order of their effectiveness. I have also done lots of work on my evap system which I've detailed in this thread: 100 Series Charcoal Canister Replacement Truck is well maintained and has many new parts over the last 1-2 years, too many to list but if you are thinking "but did you replace your _____" the answer is probably YES!
#1: Extensive heat shielding. Earlier in this thread there was talk about extra shielding on the catalytic converters, but I found recently over the past few weeks that there are far more important areas to add heat shielding. I've been doing this by driving a lot and then scooting under the truck on my creeper and feeling around with my hands and figuring out where things are hot and where they aren't and then doing it again.
There is an area here on the fuel tank where the stock metal guard doesn't cover and there is no heatshield between it and the exhaust pipe.
Bare fuel tank exposed within 12" of exhaust pipe (darker tank shield seen below exposed tank side with rough texture):
Here and on the tank shield itself I used adhesive backed heatshield material: This stuff blocks the radiant heat with the silver metal barrier but also insulates with a cloth layer underneath and sticks with adhesive which makes it easy to put anywhere. I use this small roller to help get a good bond: Amazon.com: LUMITECO Automotive Car Audio Sound Deadening Application Wheel Roller, Heat Abatement Mat Wallpaper Application PU Smoothing Tool Seam Roller: Automotive
I did the whole side of the fuel tank. I also extended the factory heatshield in a few more places:
Lastly, I used some embossed heatshield material to shield the front crossover y-pipe from the front of the fuel tank: Amazon.com: Design Engineering 050503-16 Floor and Tunnel Shield: Automotive This stuff is really lightweight and easy to bend and and cut and work with but also extremely effective at blocking radiant heat.

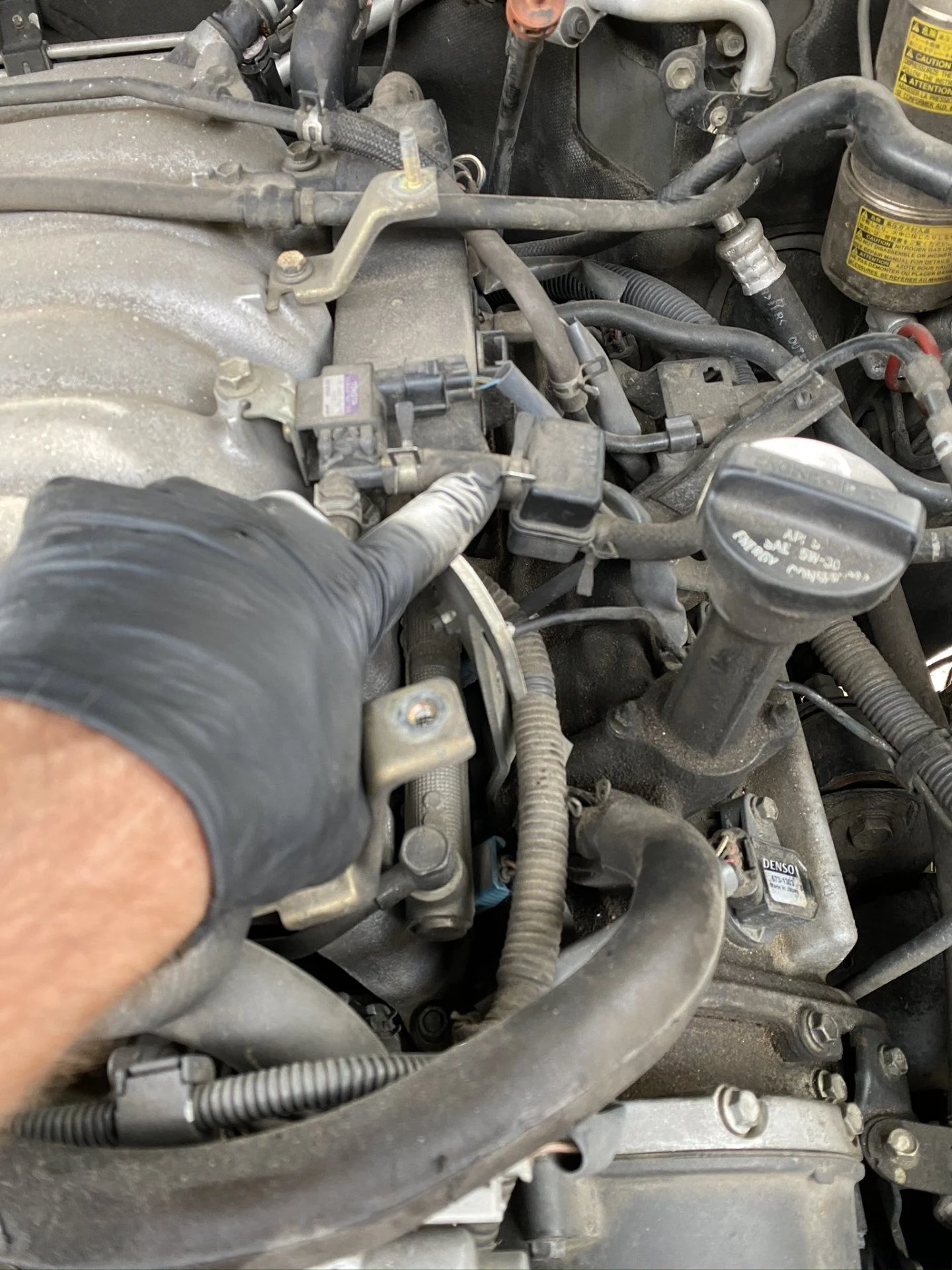

#2: Moving return fuel line off the engine to the firewall. This just eliminated the steel return fuel line that is bolted directly to the engine cylinder heads on the rear of the engine reducing the amount of heat returned to the tank from the fuel rails. I also covered the fuel line as well as the rest of the lines with heatshield: https://amzn.to/2ZZs0ds
#3: Catalytic converter and fuel line shielding: These were the first mods I did to try and combat fuel temperature, but I would only rate them #3 on my list. Every other mod was more effective at lowering the fuel temperature. I have no doubt this mod is effective in some way, but not as much as the others. If doing heatshielding under the vehicle, then this should be done no matter what anyway IMO. It's also the easiest of all the mods. I used this heatshield for the fuel lines: https://amzn.to/2WYqZjS
#4: Passive dual-pass finned fuel cooler. More of an experiment than anything I bought this inexpensive multipurpose cooler and plumbed it to the return line right before the fuel tank. I used quick connect fuel connectors so that if there is ever a problem with the cooler I can simply disconnect it and return the lines to stock without any tools. I placed it in the rear area above the frame rail. This area is always cool to the touch compared to the rest of the vehicle when I have been poking and probing for the last few weeks, it gets a surprising amount of air flow.
First I set it up to pressure test:
It passed.
I
Looking inside:
Mounted above the frame rail by the evap canister away from danger.
I used this 12" fuel cooler: https://amzn.to/2WYwxe4
Some 5/16 Gates fuel hose: Amazon.com: Gates 27348 Barricade MPI Fuel Line Hose: Automotive
and 1/4 NPT to 5/16 fittings: https://amzn.to/3044yMe
Before doing these mods my fuel temperature would routinely get to be 30-40F higher than ambient and sometimes even 50F or more if the tank was low and/or it had been hours on the trail etc. After doing these mods the fuel now stays between 10-20F above ambient even when low, though I have not done a long offroad trip with the newest mods.
This is about the hottest fuel temp I've recorded to date (127F), though I would bet it gets even hotter. This was before mods. This was at 1/4 tank of fuel driving home in 95F ambient temperature probably 3-4 hours running non-stop. I'm waiting for similar conditions to record a snapshot of the temperature now after all of the mods.
I was under my truck doing some more mods. And since I have a fuel temperature sensor, I can tell what works and what doesn't. If you want to argue with me then just put me on ignore, please. If you want to prove me wrong, get your own fuel temperature sensor. Here's two good ones: Amazon.com: Innovate Motorsports 3904 MTX-D Dual Gauge Kit -Ethanol/Fuel Temp, 1 Pack: Automotive and Amazon.com: Zeitronix ECA-2 Ethanol E% Content Analyzer Kit with Blue Display Gauge: Automotive If you have constructive criticism, please post it.
Reminder, this thread is about boiling fuel. Your #1 point of reference should be the fuel's temperature. Everything else is secondary. No, I do not expect everyone to have fuel temperature because it's not available stock or without some elbow grease but I've got one.
The following are my mods to combat fuel temperature in order of their effectiveness. I have also done lots of work on my evap system which I've detailed in this thread: 100 Series Charcoal Canister Replacement Truck is well maintained and has many new parts over the last 1-2 years, too many to list but if you are thinking "but did you replace your _____" the answer is probably YES!
#1: Extensive heat shielding. Earlier in this thread there was talk about extra shielding on the catalytic converters, but I found recently over the past few weeks that there are far more important areas to add heat shielding. I've been doing this by driving a lot and then scooting under the truck on my creeper and feeling around with my hands and figuring out where things are hot and where they aren't and then doing it again.
There is an area here on the fuel tank where the stock metal guard doesn't cover and there is no heatshield between it and the exhaust pipe.
Bare fuel tank exposed within 12" of exhaust pipe (darker tank shield seen below exposed tank side with rough texture):
Here and on the tank shield itself I used adhesive backed heatshield material: This stuff blocks the radiant heat with the silver metal barrier but also insulates with a cloth layer underneath and sticks with adhesive which makes it easy to put anywhere. I use this small roller to help get a good bond: Amazon.com: LUMITECO Automotive Car Audio Sound Deadening Application Wheel Roller, Heat Abatement Mat Wallpaper Application PU Smoothing Tool Seam Roller: Automotive
I did the whole side of the fuel tank. I also extended the factory heatshield in a few more places:
Lastly, I used some embossed heatshield material to shield the front crossover y-pipe from the front of the fuel tank: Amazon.com: Design Engineering 050503-16 Floor and Tunnel Shield: Automotive This stuff is really lightweight and easy to bend and and cut and work with but also extremely effective at blocking radiant heat.
#2: Moving return fuel line off the engine to the firewall. This just eliminated the steel return fuel line that is bolted directly to the engine cylinder heads on the rear of the engine reducing the amount of heat returned to the tank from the fuel rails. I also covered the fuel line as well as the rest of the lines with heatshield: https://amzn.to/2ZZs0ds
#3: Catalytic converter and fuel line shielding: These were the first mods I did to try and combat fuel temperature, but I would only rate them #3 on my list. Every other mod was more effective at lowering the fuel temperature. I have no doubt this mod is effective in some way, but not as much as the others. If doing heatshielding under the vehicle, then this should be done no matter what anyway IMO. It's also the easiest of all the mods. I used this heatshield for the fuel lines: https://amzn.to/2WYqZjS
#4: Passive dual-pass finned fuel cooler. More of an experiment than anything I bought this inexpensive multipurpose cooler and plumbed it to the return line right before the fuel tank. I used quick connect fuel connectors so that if there is ever a problem with the cooler I can simply disconnect it and return the lines to stock without any tools. I placed it in the rear area above the frame rail. This area is always cool to the touch compared to the rest of the vehicle when I have been poking and probing for the last few weeks, it gets a surprising amount of air flow.
First I set it up to pressure test:
It passed.
I
Looking inside:
Mounted above the frame rail by the evap canister away from danger.
I used this 12" fuel cooler: Amazon.com: HotRod99 12" Satin Aluminum Finned Dual Pass Transmission Cooler Black: Automotive
Some 5/16 Gates fuel hose: Amazon.com: Gates 27348 Barricade MPI Fuel Line Hose: Automotive
and 1/4 NPT to 5/16 fittings: TUOREN 5/16" Barb to 1/4" Brass Hose Barb Fitting Male NPT Adapter 2Pcs: Amazon.com: Industrial & Scientific
Before doing these mods my fuel temperature would routinely get to be 30-40F higher than ambient and sometimes even 50F or more if the tank was low and/or it had been hours on the trail etc. After doing these mods the fuel now stays between 10-20F above ambient even when low, though I have not done a long offroad trip with the newest mods.
This is about the hottest fuel temp I've recorded to date (127F), though I would bet it gets even hotter. This was before mods. This was at 1/4 tank of fuel driving home in 95F ambient temperature probably 3-4 hours running non-stop. I'm waiting for similar conditions to record a snapshot of the temperature now after all of the mods.
I share a similar line of thinking. I live in PHX and have never experienced the fuel boiling or extreme pressurization. I’ve no doubt that heat plays an important role, but there is malfunction somewhere in the fuel venting/EVAP system that I suspect is the primary culprit of problems described in this thread.
I've been wondering about the vent line from the tank to the canister. I think there's a rollover valve on that line, isn't there? I'm wondering if that gets stuck closed or something? There's the vent line going from the canister to the wheel well (at least I think that's what it is), but I'm guessing that has an overpressure valve that needs to open before it all vent. I've noticed the same thing with my '99, that there is always some pressure on hot days. Even when I changed my fuel pump the other day, I reinstalled the lid on the fuel tank without the lines connected, and immediately started getting fuel flowing out the return line fitting. It was a hot day, but it doesn't seem like the take should be pressurizing. Makes me wonder where the vent line restriction is occurring.
There is a valve at the top of the fuel tank. This is where the canister connects to the tank. When I installed the 40 gallon LRA tank I replaced that valve and the vent line at the tank since they had more than 300k miles on use.
On a 100 series, that I just cured of fuel boiling. I did not replace that rollover valve. Which is on 98-02 tanks IIRC. But I do have some concern, it may be or was gunked up. That when fuel tank filled and climb a hill. Fuel sloshing around may push up valve into shut off position. It was something I was going to look at. To see if it had gunk build up and sticking. But since the client has is happy, as fuel not boiling any longer. I'll not likely get a chance to pull it and see.There is a valve at the top of the fuel tank. This is where the canister connects to the tank. When I installed the 40 gallon LRA tank I replaced that valve and the vent line at the tank since they had more than 300k miles on use.

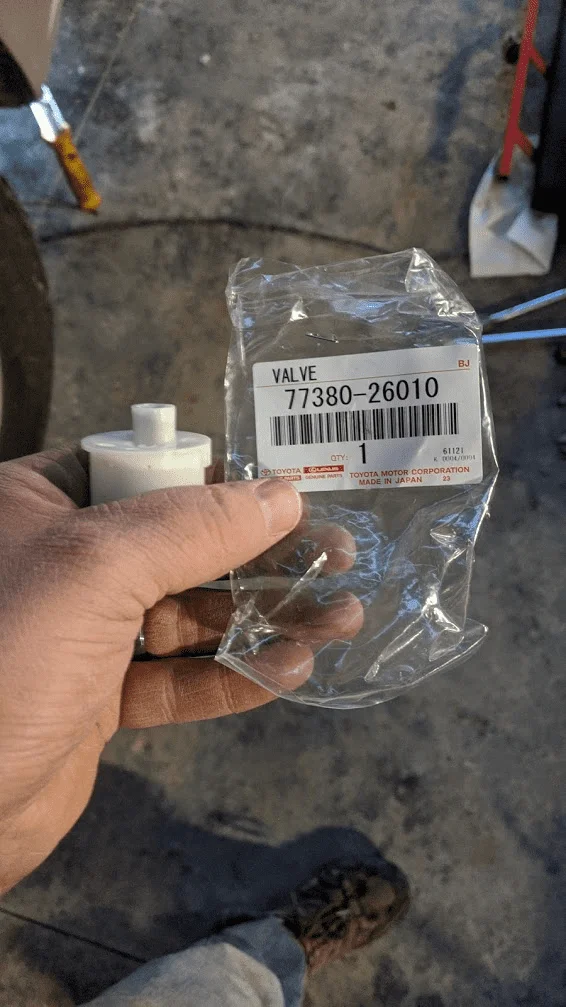

View attachment 2385649

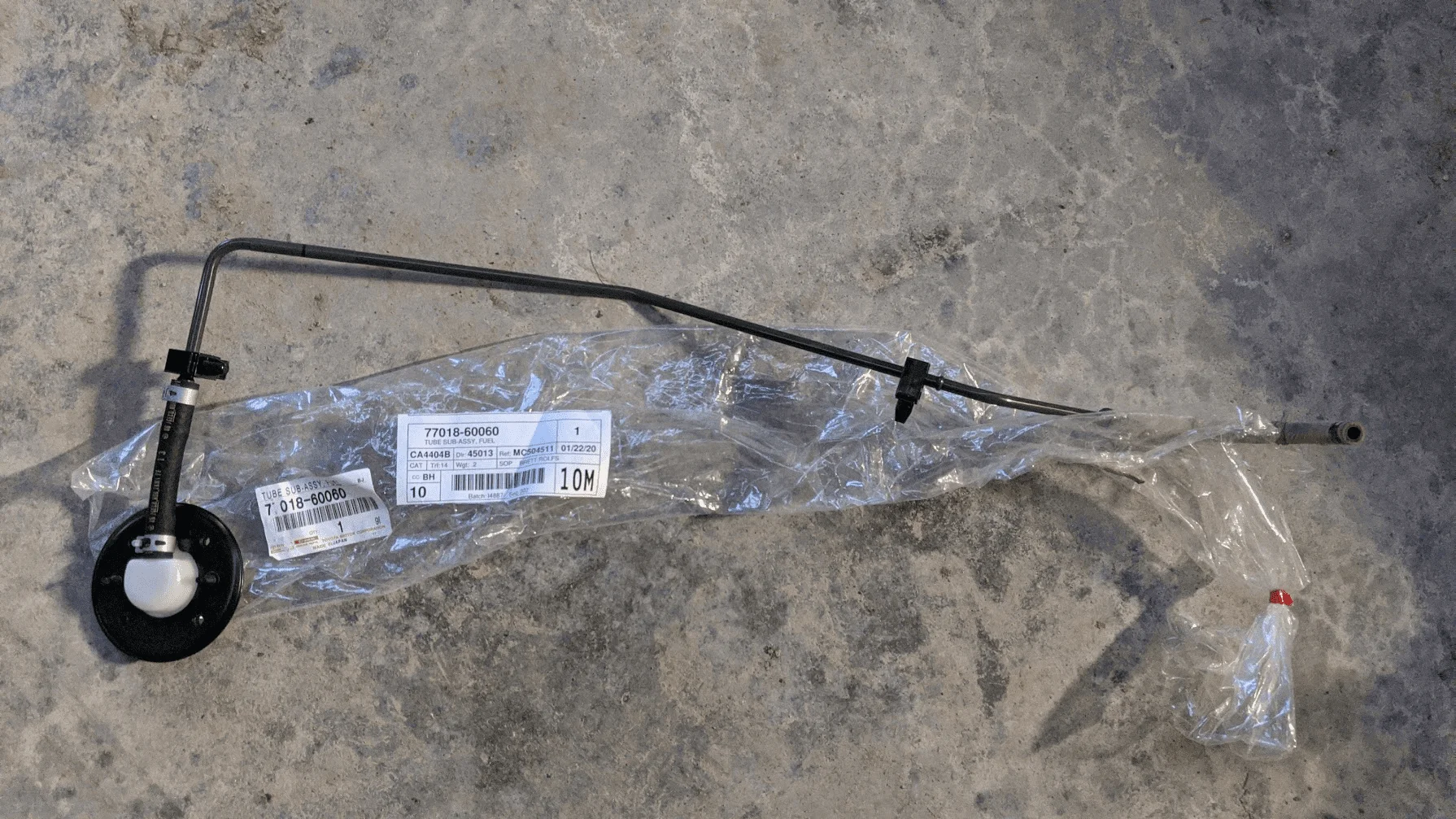

View attachment 2385650
My fuel tank is still pressurized and my charcoal canister still makes groaning noises after a hot drive
I do not believe this valve is worth replacing to solve this issue.
That's good info. Thank you for sharing it.There is a valve at the top of the fuel tank. This is where the canister connects to the tank. When I installed the 40 gallon LRA tank I replaced that valve and the vent line at the tank since they had more than 300k miles on use.
View attachment 2385649
View attachment 2385650
My fuel tank is still pressurized and my charcoal canister still makes groaning noises after a hot drive
I do not believe this valve is worth replacing to solve this issue.
I was wondering about the purge valve also, and the ECM logic for triggering it. There's the pressure sensor on the canister (on my '99), but I think that's only used during the self check. I need to look at the schematic again to see if there's also a pressure sensor on the tank. Those differential pressure gauges are comparing atmospheric pressure to the sensed pressure, do they will vary with elevation. I think it would read higher pressure at higher elevation though, so should be more inclined to open the purge valve I would think. I would guess that the purge valve would be open whenever the engine is running to clean out the canister, unless the system is running the self check, but I'm really not sure.
No, I did not. I did go in tech stream and turn off and on. I could hear one on CC. But can't say I learned anything.
