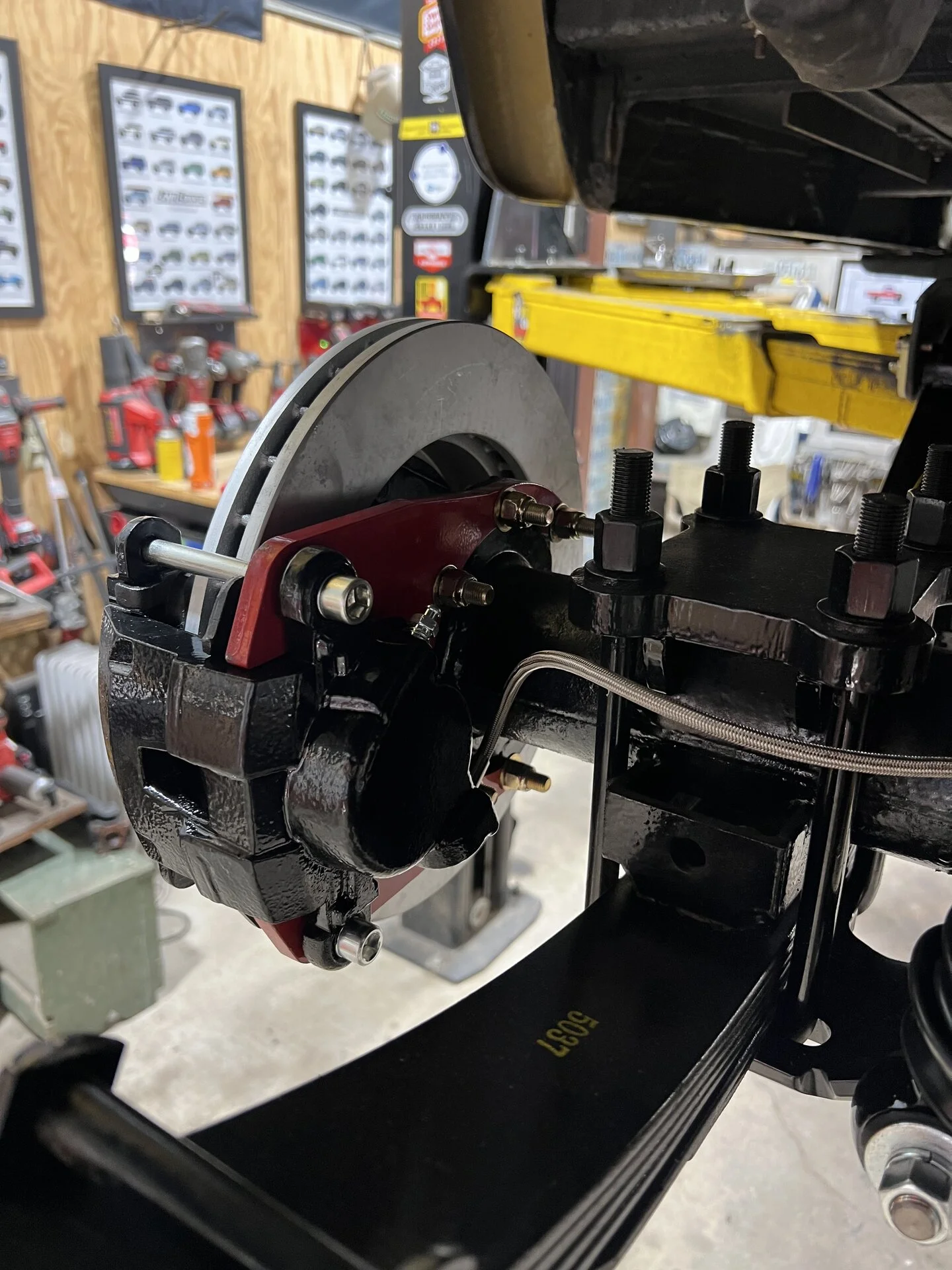

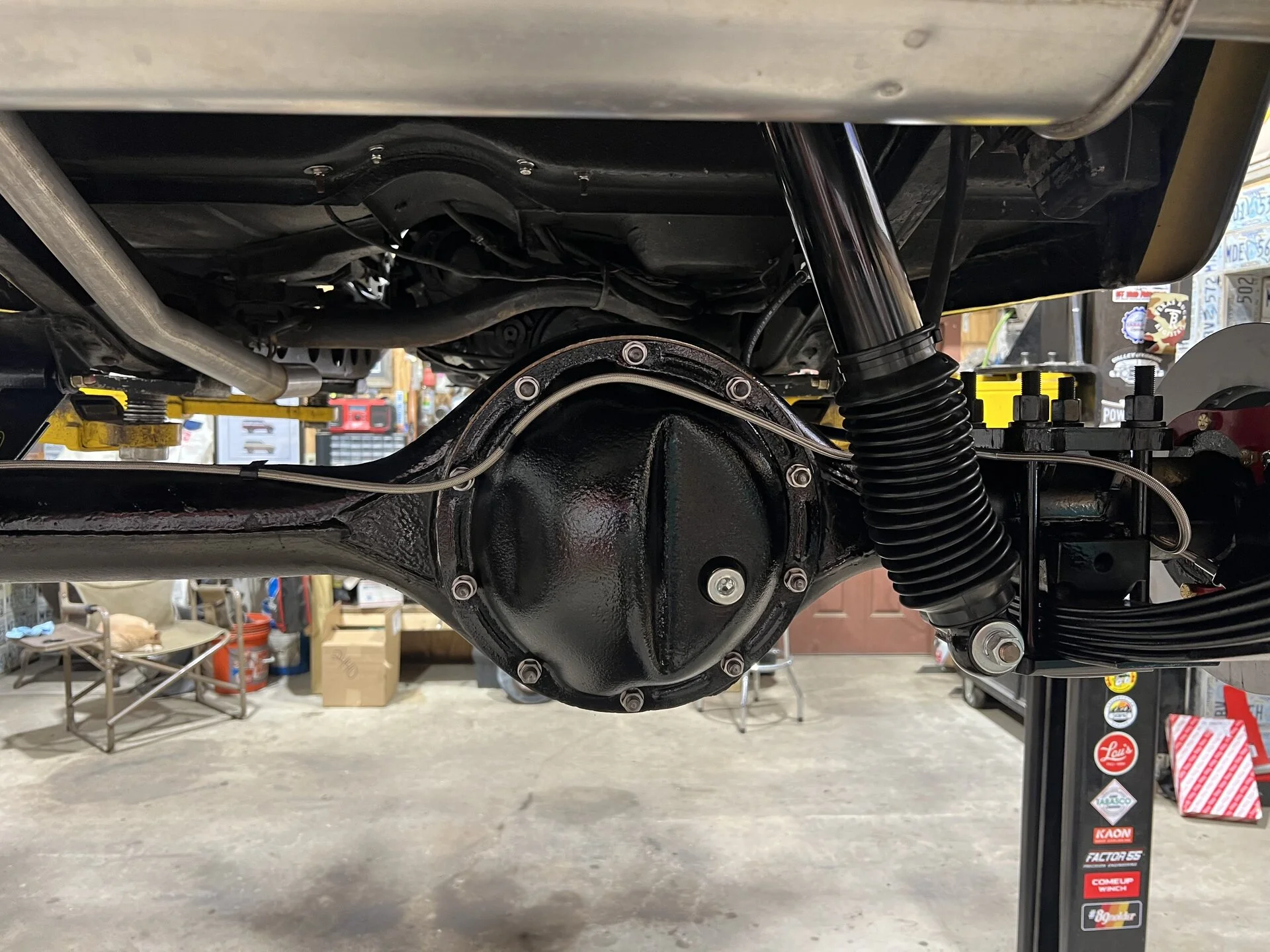

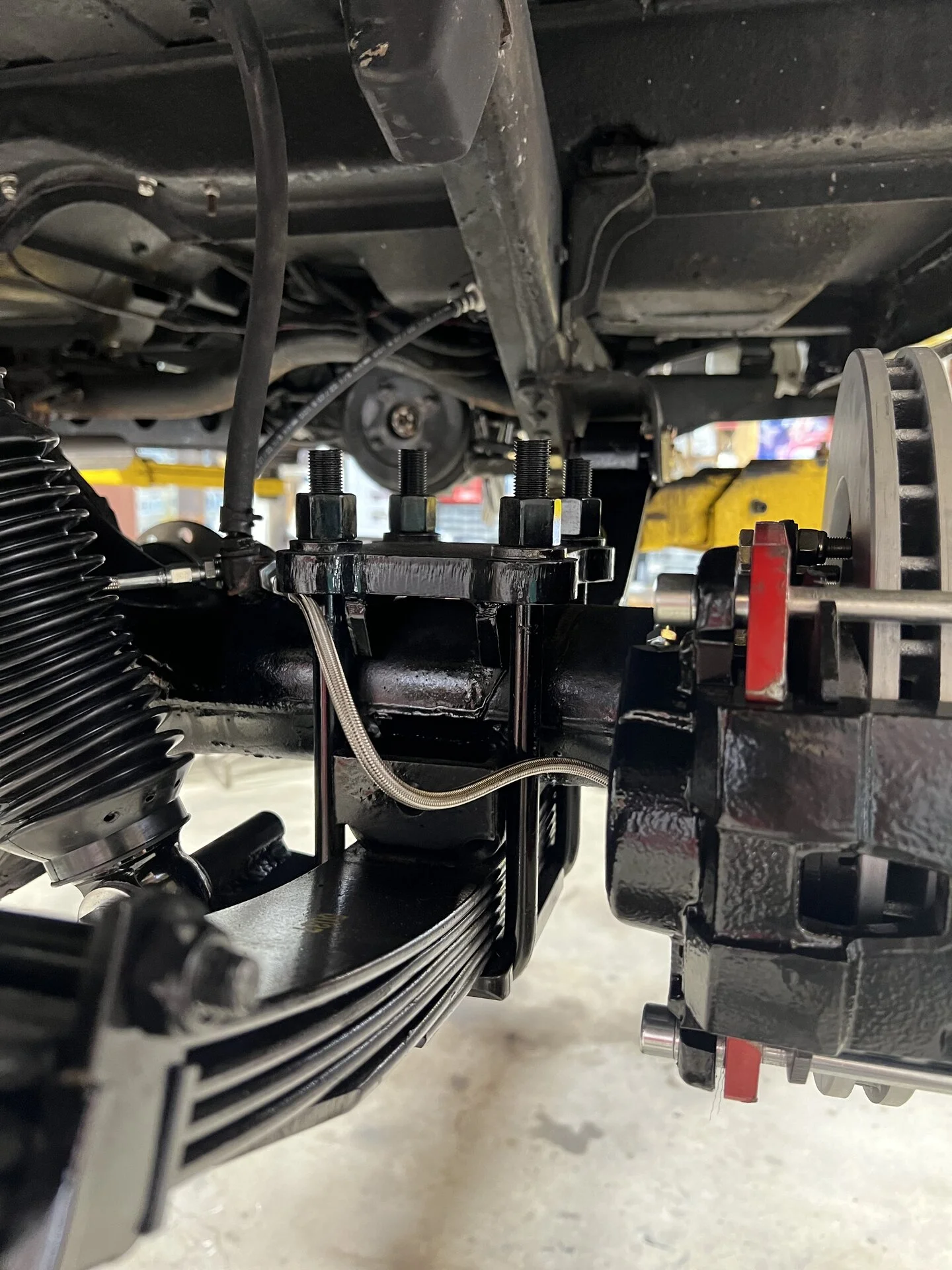

Was thinking earlier about the irony of this statement. Pretty sure the shackle reversal was a BTB mainstay. Truly a one stop shop. 🙂

Yeah, funny. Still is. Them and Profitt crank them out still.

I like your taste in alternators Nolen; I have had one on mine for 13 years and it has been flawless and reliable. Powers everything no matter what the load, headlights do not dim at idle, etc.
Can you share how yours is wired?

Can you share how yours is wired?

Let me go look and take some photos Nolen; it has been 13 years since I installed mine, but it worked great from the get-go.

Your ouput cable to the battery is correct.

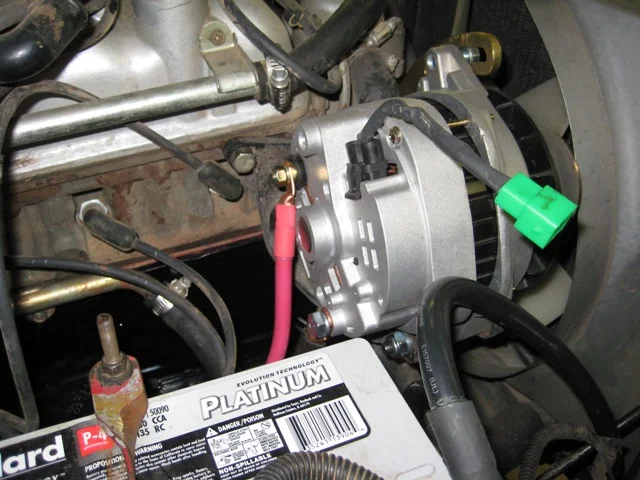

OK, here goes:

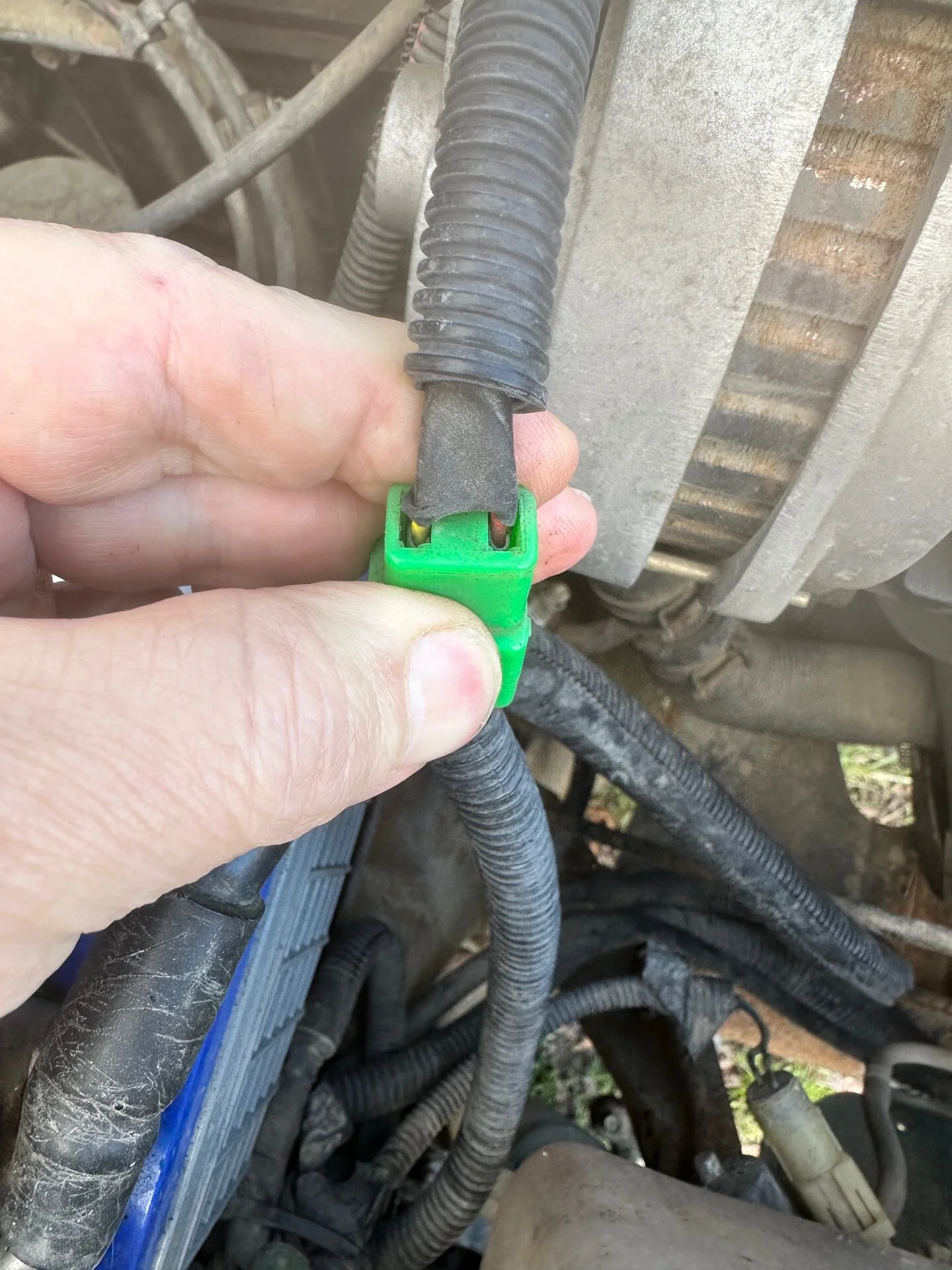

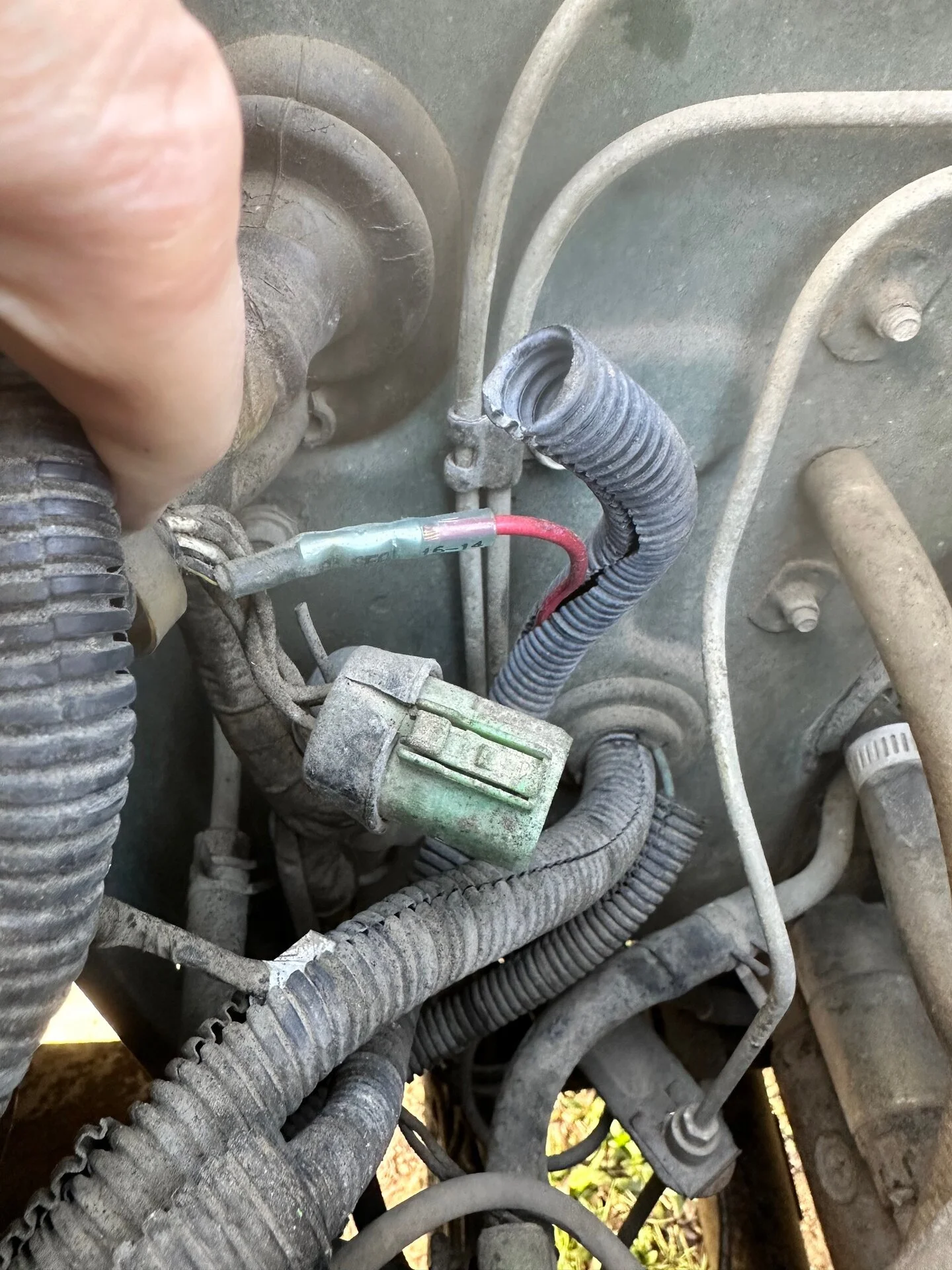

The red wire from the Mean Green is connected to the black wire with a yellow stripe (BY) that used to be attached to the voltage regulator at terminal "IG" on my 12/79-build 40.

Heavy cable from the output terminal direct to the battery, and a heavy ground cable to the frame and battery.






Attachments

They are worlds better than the standard 45 year old bulbs.

I like them. Great looking. Koito, a pack of zip ties. Best bang for the buck for $50

That said, I have tried multiple other bulbs in the Koito housings to get white light. The LEDs I have used completely splash out the light. No direction

These Holley lights were designed around the housing with white LED light.

Let me find where I did the bulb test. Stand by.
Ah, LED in there. Gotcha.
I paid $46 and change for 2 sets.

I prefer warmer light, at night at least.

Thanks for the explanation.

Hey Nolen, That looks like a AC Delco CS130 alternator. The plug should have 4 terminals that match the alt side. They will be labeled SFLP or SILP. The large, usually red colored wire on the S terminal should be connected to the battery + terminal, or the large + output on the back going to the battery +. That is the "sense" wire. The F or I wire should go to IGN switched 12V +. This is what "turns on" the alternator, to start charging. Note, you must use a diode on this if connecting to the IGN circuit, or it will back feed the IGN circuit, and you won't be able to turn off the engine. The L terminal also "turns on" the alt. If you want to use the L terminal to "turn on" the alternator, this one uses a charge warning light, or you will need to put a resistor in, or it won't turn on the alt. The P terminal is generally used for a tach signal, and is not used. Hope this helps.

Hey Nolen, That looks like a AC Delco CS130 alternator. The plug should have 4 terminals that match the alt side. They will be labeled SFLP or SILP. The large, usually red colored wire on the S terminal should be connected to the battery + terminal, or the large + output on the back going to the battery +. That is the "sense" wire. The F or I wire should go to IGN switched 12V +. This is what "turns on" the alternator, to start charging. Note, you must use a diode on this if connecting to the IGN circuit, or it will back feed the IGN circuit, and you won't be able to turn off the engine. The L terminal also "turns on" the alt. If you want to use the L terminal to "turn on" the alternator, this one uses a charge warning light, or you will need to put a resistor in, or it won't turn on the alt. The P terminal is generally used for a tach signal, and is not used. Hope this helps.

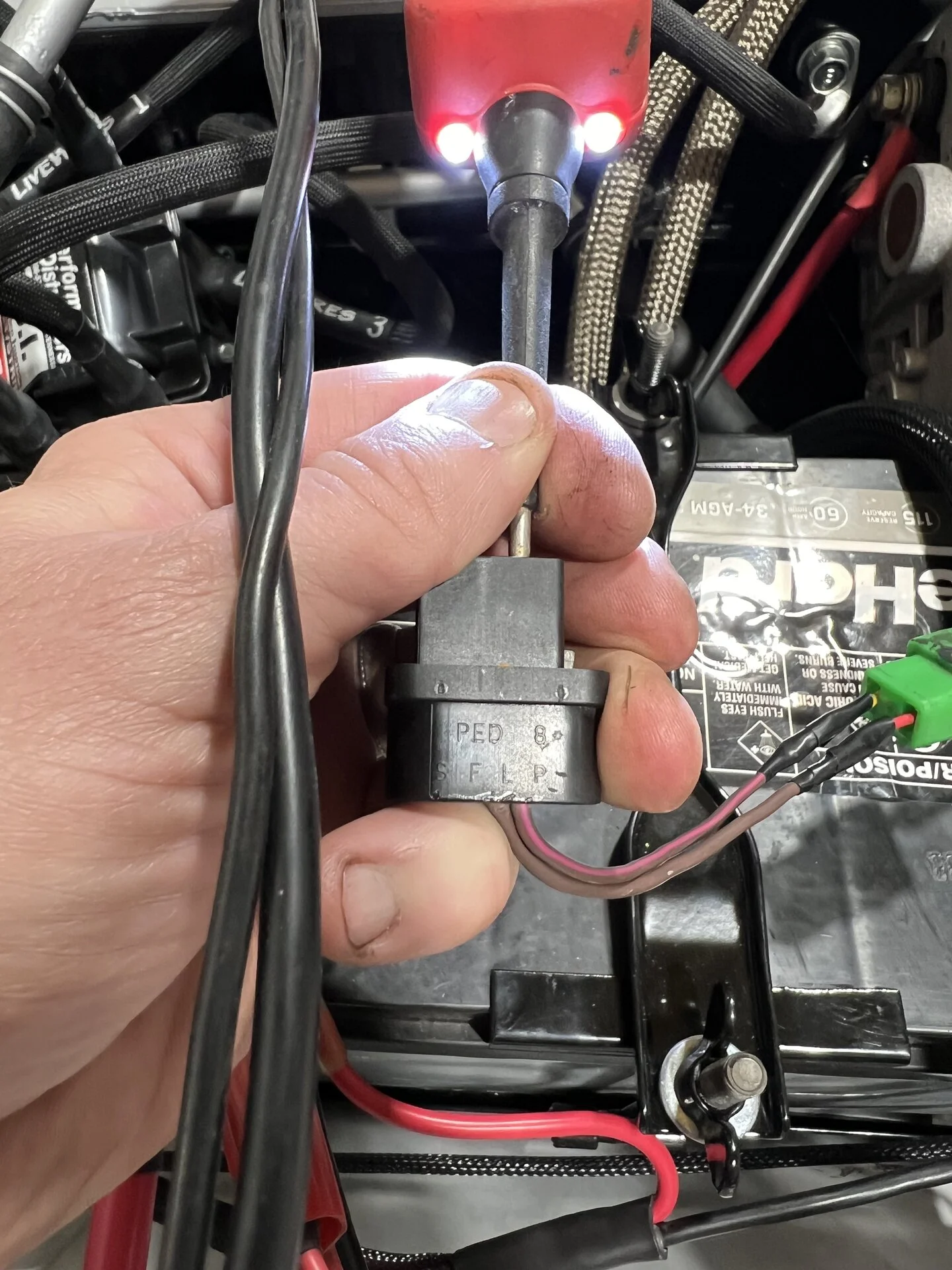

Great. I think I’m following. This plug does not have the S or P … just the F and L

Right now I’m direct from the old BY to L on the Alternator plug.

(For the record this is all I’ve ever had to do on a FJ60 internal regulator alternator)

So, if I’m reading this right to make this setup work I need I need a charge warning light or a resistor.

I honestly don’t know exactly what either of those for this configuration looks like. Do you mind posting a link?

Great. I think I’m following. This plug does not have the S or P … just the F and L

Right now I’m direct from the old BY to L on the Alternator plug.

(For the record this is all I’ve ever had to do on a FJ60 internal regulator alternator)

So, if I’m reading this right to make this setup work I need I need a charge warning light or a resistor.

I honestly don’t know exactly what either of those for this configuration looks like. Do you mind posting a link?

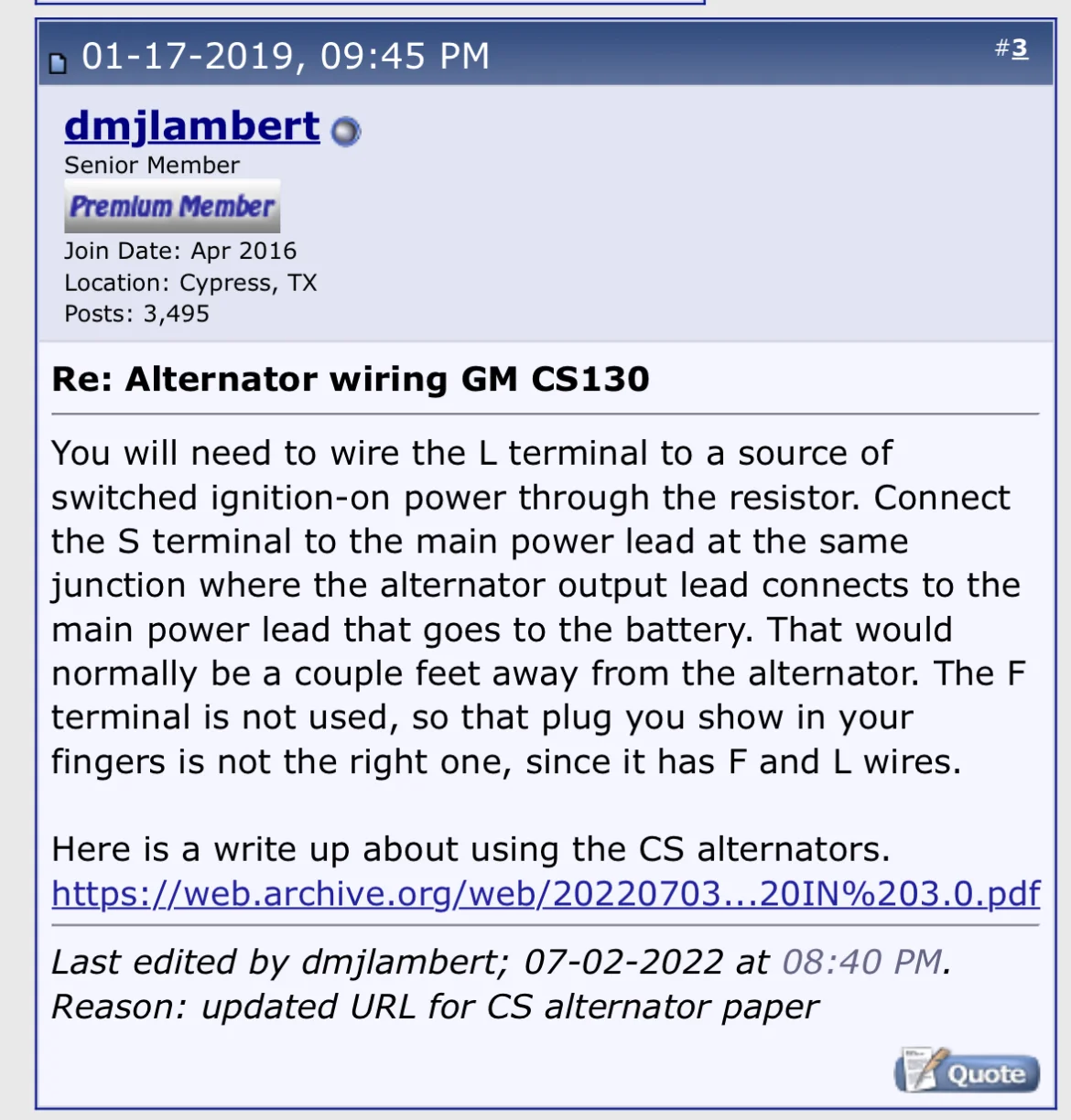

I would love to know how mean green got rid of the S connection. They must have done some rewiring inside, so all it needs is an "excite" wire. Since you aren't running a "charge light" in the dash, you will use the F terminal to excite the alt. Connect your black wire / yellow stripe IGN circuit wire to the F terminal to excite. If you find the truck won't turn off, but is now charging, you will need to put a diode on that wire so it does not back feed. If you want to run a charge light in the dash, you would use the L wire. This thread has good info, and post 4 has a pretty good description I think. Alternator wiring GM CS130 - The 1947 - Present Chevrolet & GMC Truck Message Board Network - http://67-72chevytrucks.com/vboard/showthread.php?t=779710

When I put one of these CS130s in my FJ40 it took me awhile to figure out how to wire it. I debated about using the F or L. In the end I chose L on my install, and run a "charge light" on the dash. I've found I really like having the charge light. Lights up with key on IGN and does not go out until the alternator is excited and charging.

Last edited:
Thanks for the link.

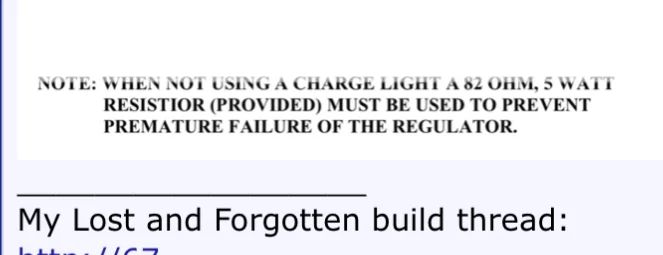

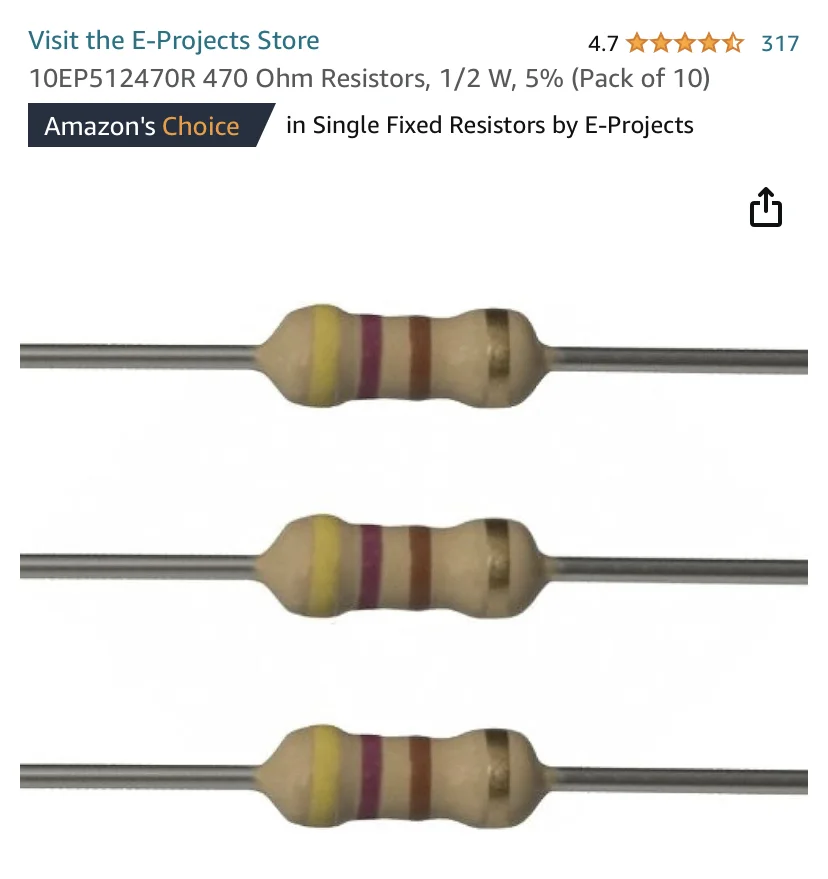

I tried to google this resistor and it brings up little things that look like you use in a house. Any help on what I buy at Auto Zone is appreciated.


That said, the resistor should only be there as a protection from the internal regulator over charging ? Would its absence keep the


from kicking on when its getting proper 12v?

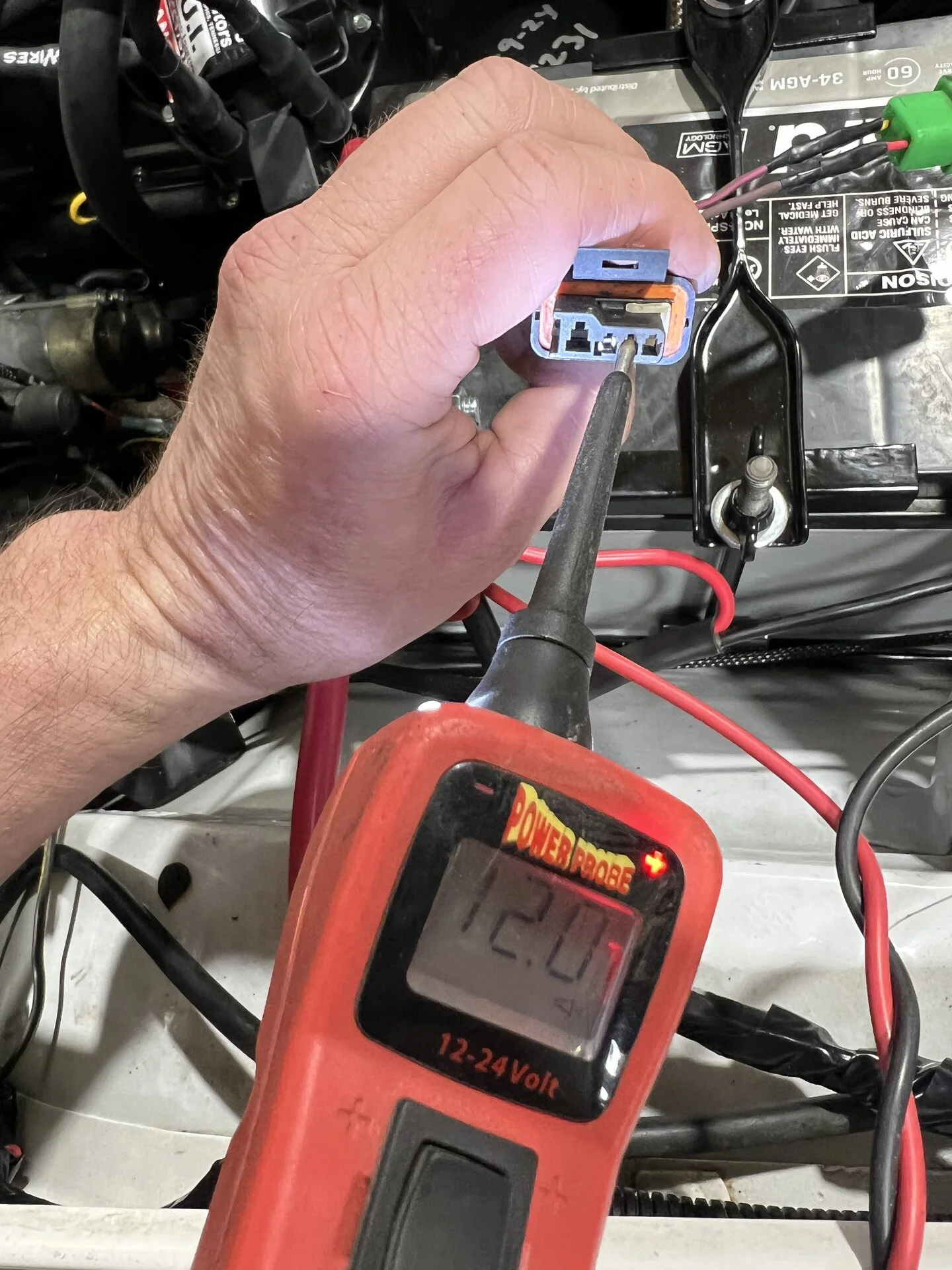

My L wire is confirmed getting switched 12 all the way to the plug.
Still no charge


Alt was working correctly previously?

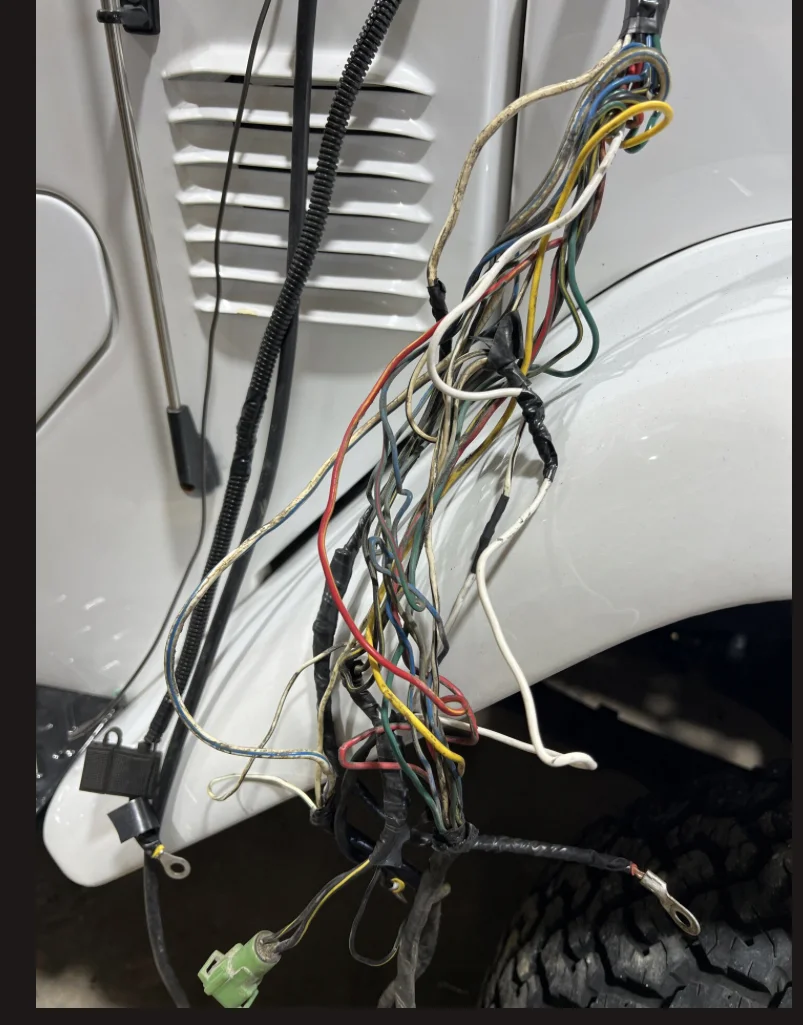

Maybe look in this bundle of wires that was removed🤷🏻‍♂️

View attachment 3579606

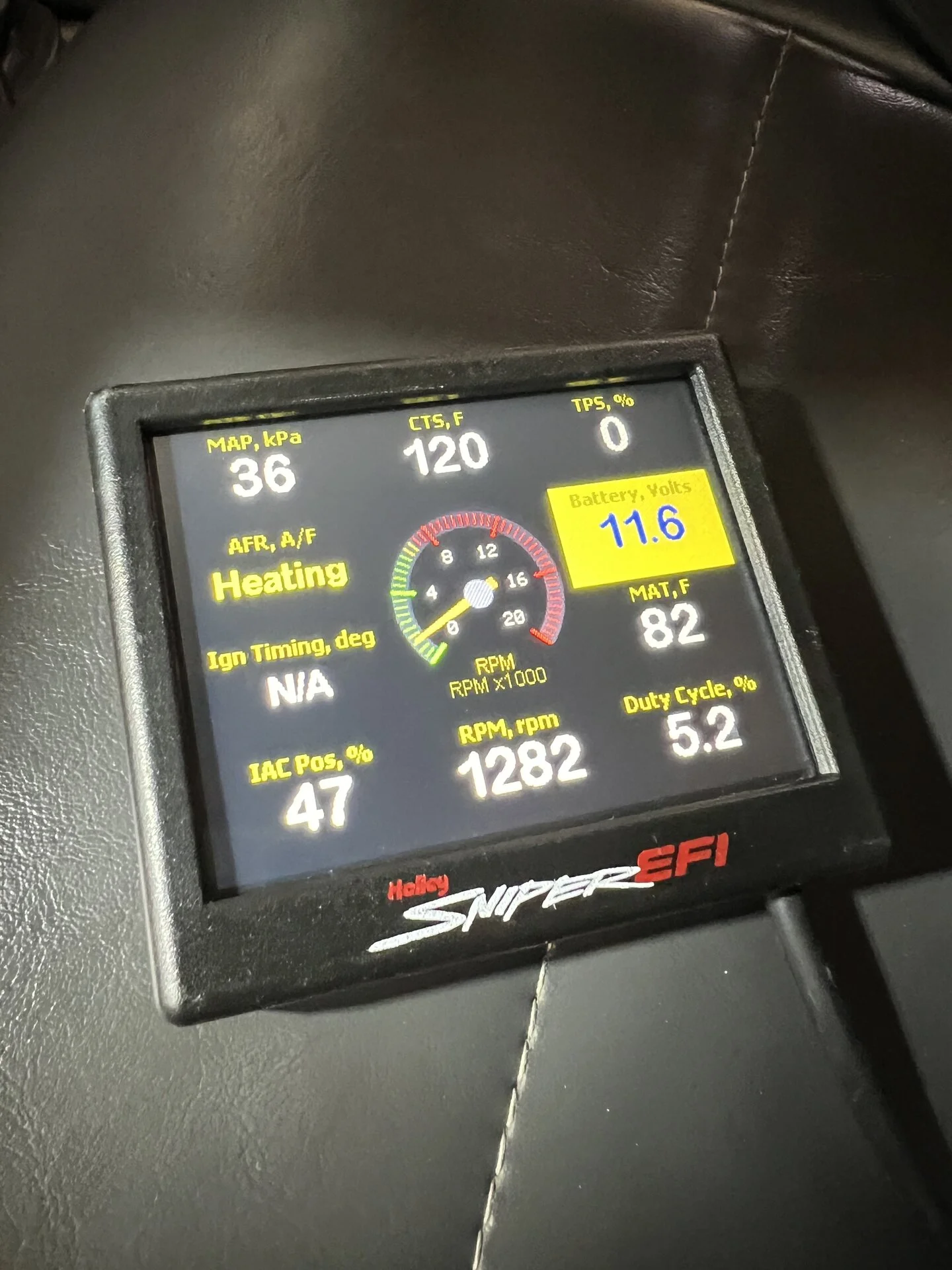

That’s the problem. With this one wire thing, the stock ammeter does not work. It has the sniper LCD now but before it didn’t have it.

He did drive it up here at night. I guess the alternator could have not been working but I just don’t know.

I think I’ll have to take this one off and have not tested to rule that out.

Are the rear fenders trimmed under the flares?
