For comparison, here is a wrench next to the shock bracket. The whole thing is made out of 1/4” flat bar and is by far stronger than the factory cast bracket that held the shock and steering box.

The old single shear debate.....good times.

I agree that shock mount looks week in the middle. Shocks should never be the bumpstop.

The old single shear debate.....good times.

I agree that shock mount looks week in the middle. Shocks should never be the bumpstop.
Looks are deceiving. The bracket is 1/4” carbon steel, the hangers that hold the leaf spring on are only 3/16” thick. I assure you this will not bend. The space above where the gusset stops is were the metal bends back. @wngrog would need a built LS engine, and a lot of beer to bend this thing! He’s not building a rock bouncer! :rofl:

The middle of that shock mount, where it's only a piece of flat 1/4, will bend. You should at least put a spine gusset on the back side.
That's all I have to say about that. Seems plenty of others agree with me too.

I have dibs it bends on the first test drive. One could almost bend that by hand. Just the tension on the shock with bend that over a few good bumps. I was hoping to see a spine on the backside of it as well and was hoping it had one there, just not seen in the photos.

I understand your concerns with the bracket. If you can bend that 1/4 plate bracket by hand I’d really like to see it... I will go back and rework the bracket so all of the welder/engineers on this page will be able to sleep tonight.

I understand your concerns with the bracket. If you can bend that 1/4 plate bracket by hand I’d really like to see it... I will go back and rework the bracket so all of the welder/engineers on this page will be able to sleep tonight.
I don’t have an opinion or knowledge enough to argue but please don’t stop posting pics though. I enjoy seeing the fabrication skills.

I understand your concerns with the bracket.
I’m not trying to debate or criticize your work just trying to further my own knowledge. I believe my original questions/concerns centered around if you took the potential shock loading the two attachment points for those shocks will see if used as a bump stop on a 5000 lb vehicle into account when you came up with this mounting option?

I assure you this will not bend.

I’m not familiar with the pirate single shear debate so please forgive my ignorance. When I’m referring to the lower shock mount bolt in single shear my concern isn’t that the bolt will shear as much as the small tab it’s welded to will bend putting the shock shaft into a bind compounding the problem.

Again please don’t take these comments as criticism, this is just friendly conversation between a couple guys enjoying our hobby bouncing ideas around.

Last edited:
I’m not sure if the shocks are being used as bumps to be honest. They are designed to handle some load but I’m sure they would not take a constant pounding from jumps and whoops.

Once I get it back I’ll make sure it all gets flexed fully and make sure the shocks are not taking the full load.

I’m sure they would not take a constant pounding from jumps and whoops.
Agree and I’m guessing you’re not planning on taking this pig on the racecourse so jumps and high speed whoops should be kept to a minimum.

We have similar front suspensions (cruiser outfitters OME 55 lift spring) and similar front weight, I have King bumps in the front on mine and they take a beating on fast fire road rips or anytime I’m following @fj55-100 at a pig party.

I would cut those oversized bumps off the shocks, make spacers for the factory bumps and leave the Shaw Fab Co. shock mount alone. They look clean and should be more than strong enough for just the forces your shock valving will generate.

I’d actually be shocked (see what I did there?) that these springs will flatten out enough to bottom anything out.

When I installed the Iron Man Pro Foam I took it and fully stuffed the drivers side to make sure the MUCH larger shock body did not whack the drag link.



You can’t see it in this photo but there was about 2” of room from the OEM bump to the axle. Also, the upper shock shaft had 1” showing before the rubber bump.

The thing limiting my uptravel at this point is that springs have reached full flat length.



It’s no ramp champ!


I’m a rookie, just thinking thru this, but full flat springs won’t stop the upward travel. On your stuff test I think you just ran out of gravity. Add some inertia to the equation and there will be more upward travel. I think I would want to know for sure what’s going to hit first when you truly max out the suspension..

I understand your concerns with the bracket. If you can bend that 1/4 plate bracket by hand I’d really like to see it... I will go back and rework the bracket so all of the welder/engineers on this page will be able to sleep tonight.
Please do not do anything with them and prove us wrong. It is easy to bend a 2-3" wide 1/4 plate steel with a 12" lever. Put a piece in a vice and see what happens. The stock mounts where thinner but had bracing on either side to make it stronger.

Nolan, I understand that flexing the suspension does not get it close to bottoming out. Take a ditch or bump at 10-15 mph and see what happens. Physics do a lot of weird things at speed. The faster the shock tries to move the harder it is to push and the more resistance it has to push on the mounts.

I want to make sure you do not mess up your shocks.

Rob

I’m a rookie, just thinking thru this, but full flat springs won’t stop the upward travel. On your stuff test I think you just ran out of gravity. Add some inertia to the equation and there will be more upward travel. I think I would want to know for sure what’s going to hit first when you truly max out the suspension..

I agree. The bumps were at the top of the shocks when I was smashing this dune But it really felt smooth doing it. Never felt anything jarring.


Last edited:
I’d actually be shocked (see what I did there?) that these springs will flatten out enough to bottom anything out.
I’m not trying to be argumentative and I’m not implying you’re building a rock bouncer but I’ve seen your hill climb video and know you will use the skinny pedal on occasion.

You are correct it’s not possible to flatten out your springs by flexing on a dirt mound, but if we add some kinetic energy into the equation everything changes. Just to pick some real world fire road bashing numbers 35MPH = 31FPS, 5000LBS traveling @ 31FPS can generate 202103 foot pounds of kinetic energy give or take. Not to get too enginerdy but we should agree it is conceivable that your springs could flatten out more in real world driving than possible parked on a dirt mound.

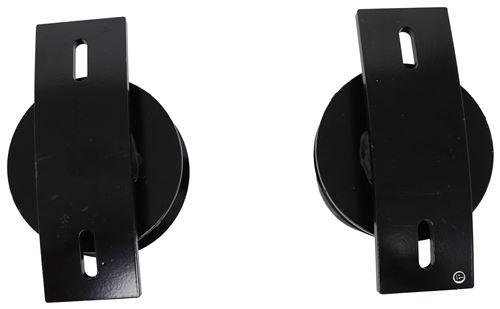

If we agree that 35 miles an hour is a reasonable speed to drive on a dirt backroad and we also agree that backroads have unavoidable potholes then I would say a bump stop designed to make contact with a sturdy suspension component with some form of energy absorption would be a benefit.

Last edited:
