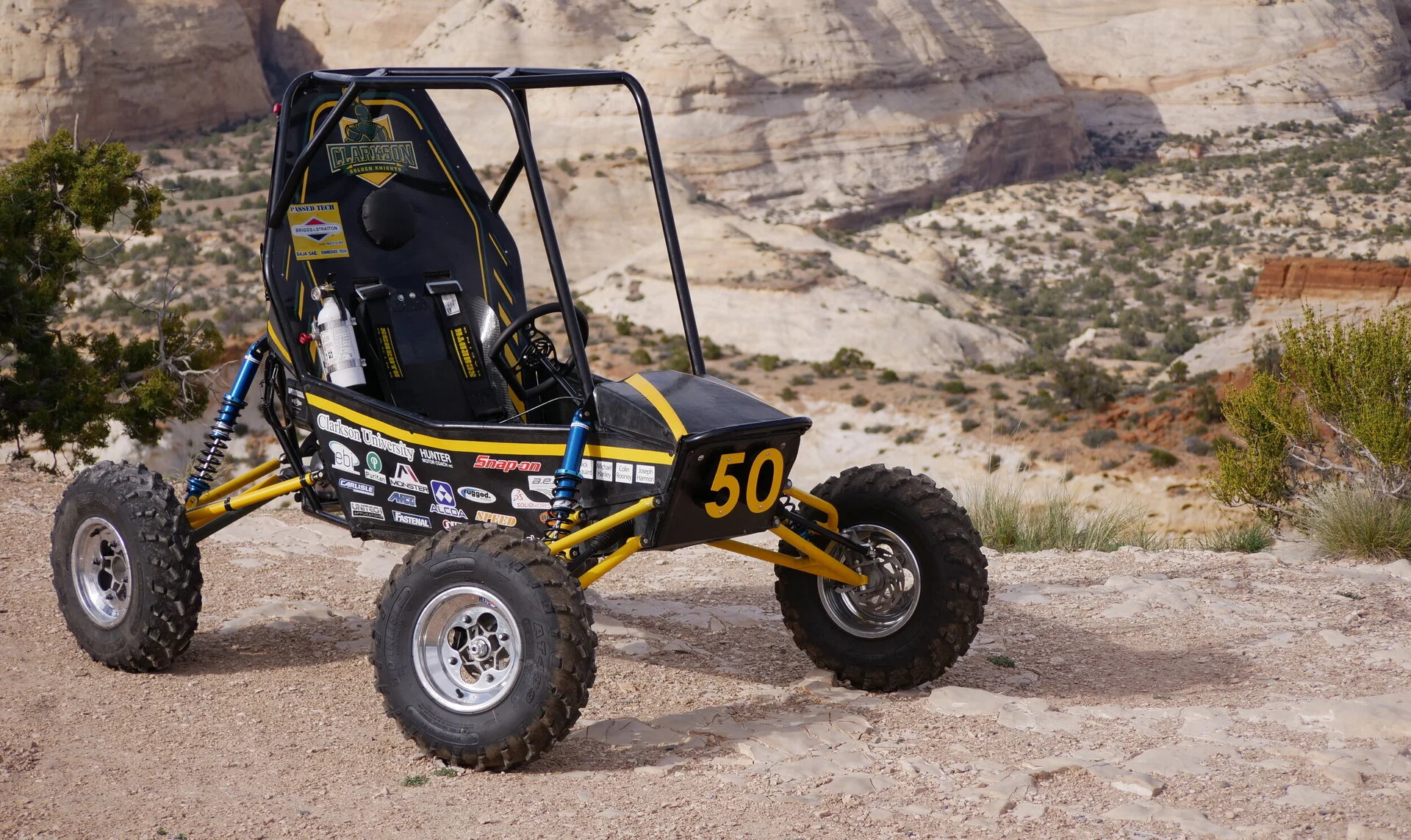

I have not a single clue what the Baja sae is But why is the cage so tall looks like you will have Feet of head room ?
Builds The LF40 Wheeler Build - Twin Turbo & 8 Speed Auto FJ40 (3 Viewers)
- Thread starter DangerNoodle
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
Pura Vida
What an absolute noob

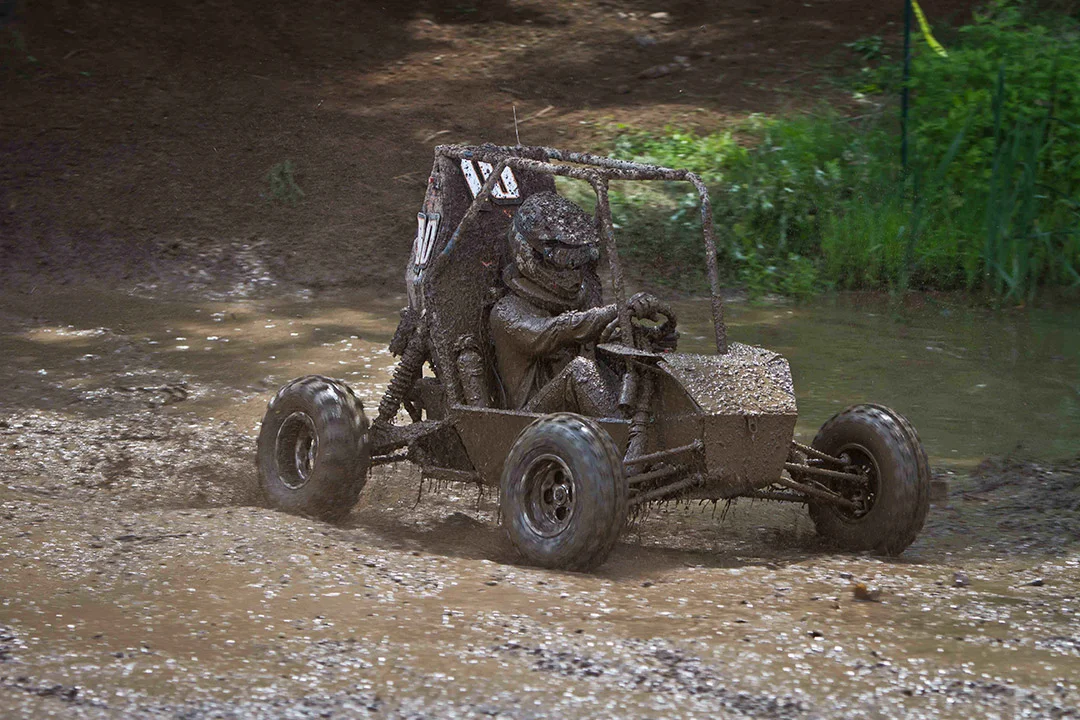

They come out like this. They are aquatic and buoyant and need to protect you if it rolls over
I would be interested in your DXF as well.
We use Solid works here. I was a long time Autocad/ inventor user and switched to solid works with my latest job, we do alot of small part and machine design so it works well in solid works.
Maybe we should start a Ih8mud cloud for cut files? I wonder if we could get everyone on here to just save them in the same place? could make a cool library to pull from.
- Thread starter
- #1,244
95th percentile males and 5th percentile females must fit in the cage, and have 6" min of headroom to bars with a helmet on. Makes them super tall.
They supply a cardboard cutout we use to determine fitmet.
- Thread starter
- #1,245
We should start it. I have a lot of parts I have run, and that fit well and are correct for a 40 frame.
Pura Vida
What an absolute noob
Imagine one day an open source full 40 with every part available on CAD for anyone to take to a machine shop to machine whatever part they need. That would be epic.
Aluminium bodies cut from a block.
- Thread starter
- #1,248

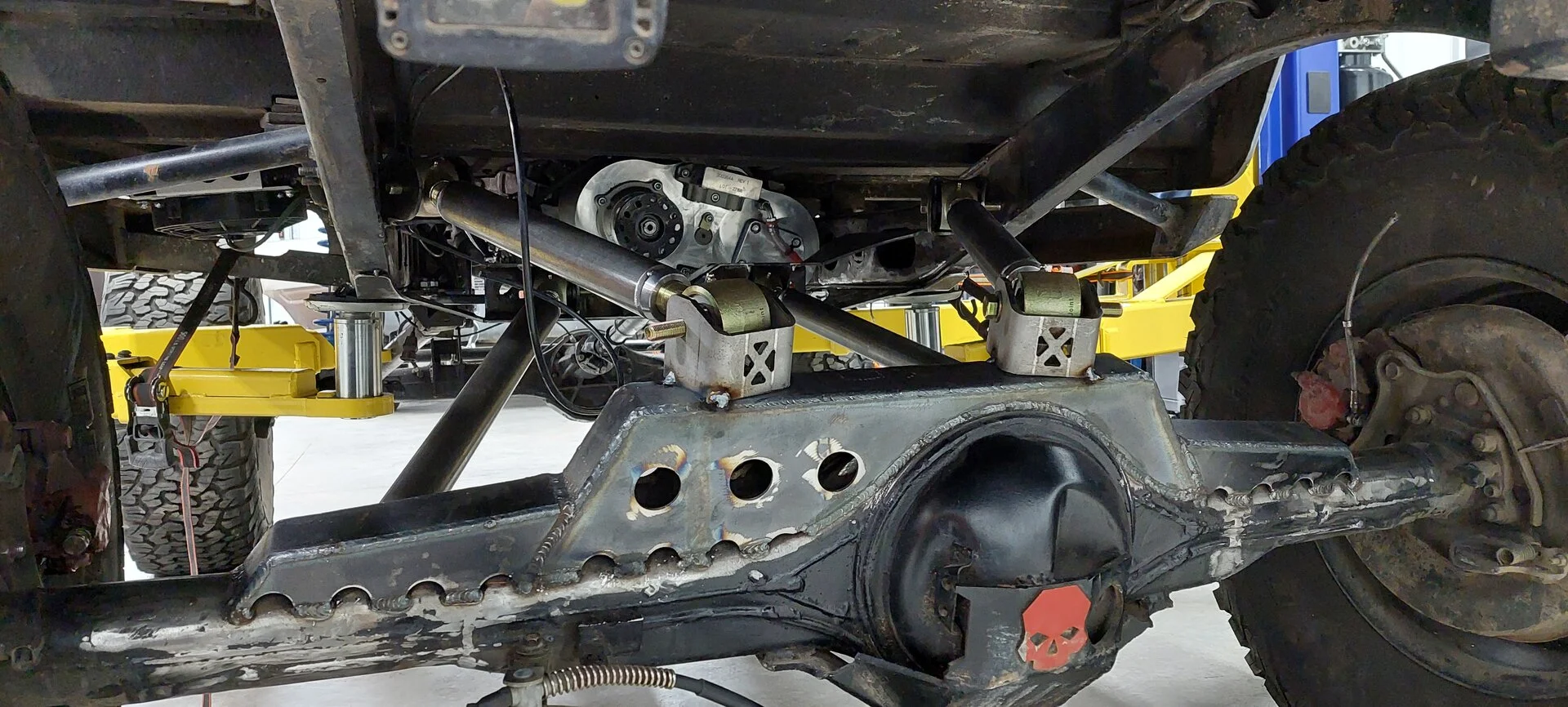

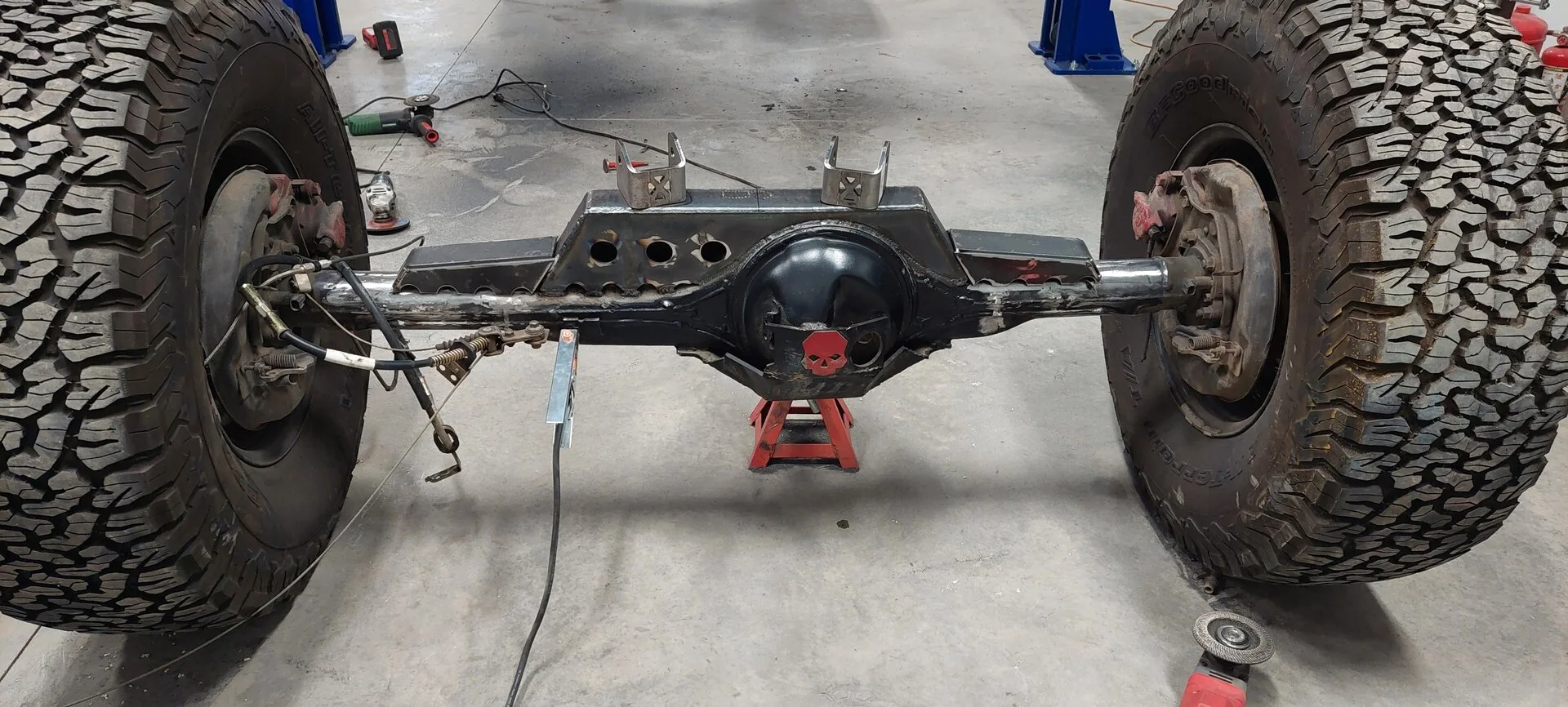

The mini truss was bugging me looks wise, so I had to fix it.
Made some extra little wings. I think it looks better.
Welded up.
Link time.
I'm building at full stuff-ish. Max bump will probably be around here, max articulation will probably be close to touching.

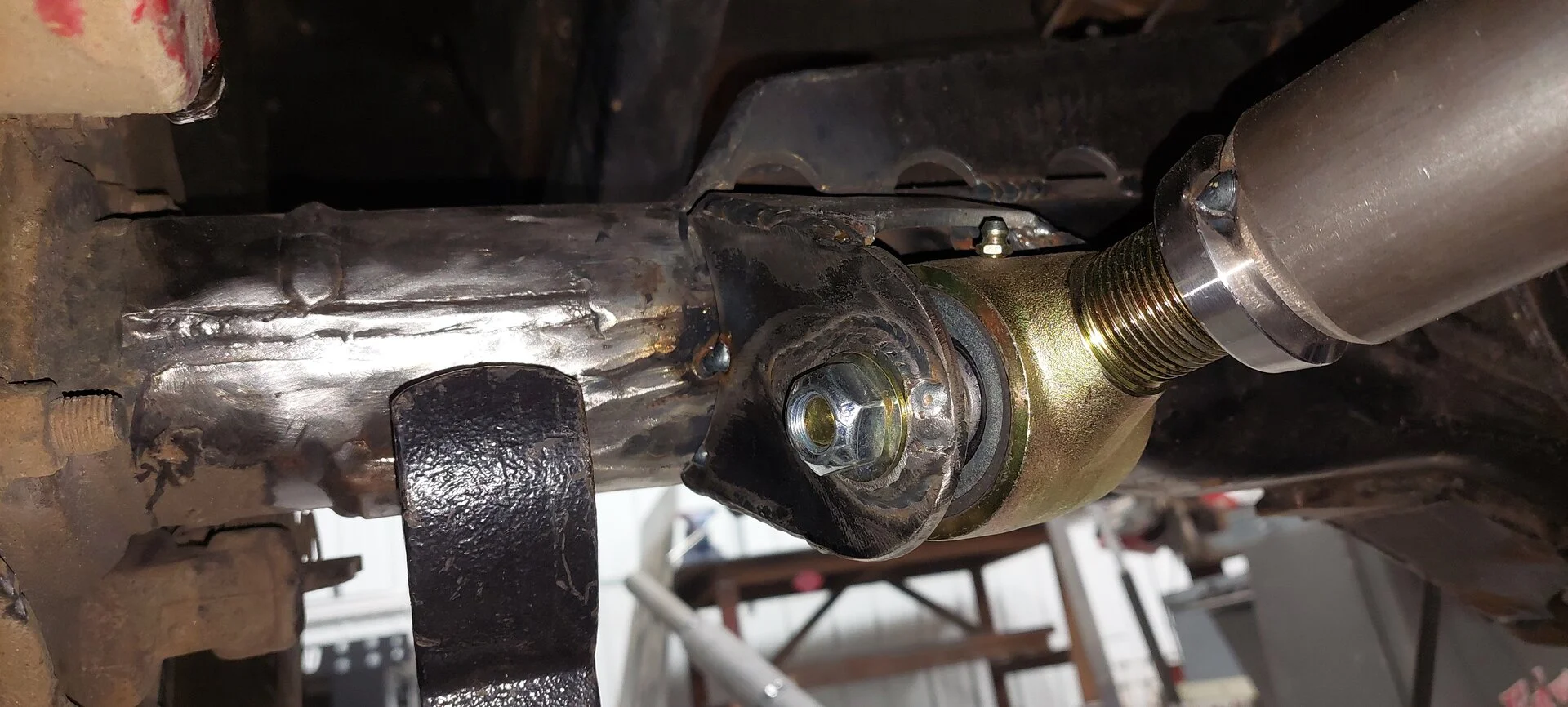

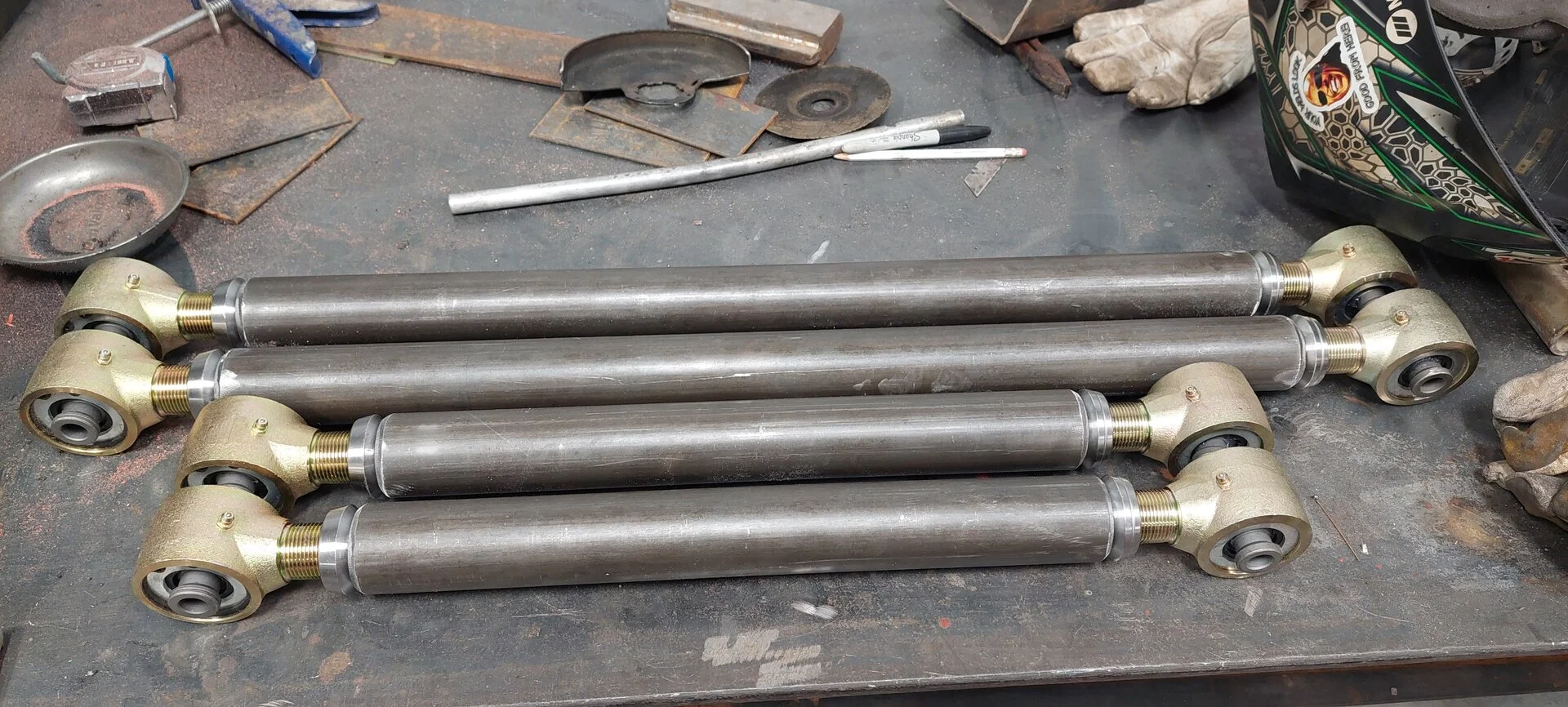

Got the lowers in today, had to make some new more angled axle side brackets. Oh well.
Had some weld washers lying around so I used them, why not, I guess.
Need to trim the uppers, they ended up about an inch long.
New truss looks way better in my opinion.
Anyways, i'll get the uppers finished tomorrow.
Made some extra little wings. I think it looks better.
Welded up.
Link time.
I'm building at full stuff-ish. Max bump will probably be around here, max articulation will probably be close to touching.
Got the lowers in today, had to make some new more angled axle side brackets. Oh well.
Had some weld washers lying around so I used them, why not, I guess.
Need to trim the uppers, they ended up about an inch long.
New truss looks way better in my opinion.
Anyways, i'll get the uppers finished tomorrow.
mrboatman
GOLD Star
Looking dam good
Looks good. Can you do mine next? Hehe
- Thread starter
- #1,251

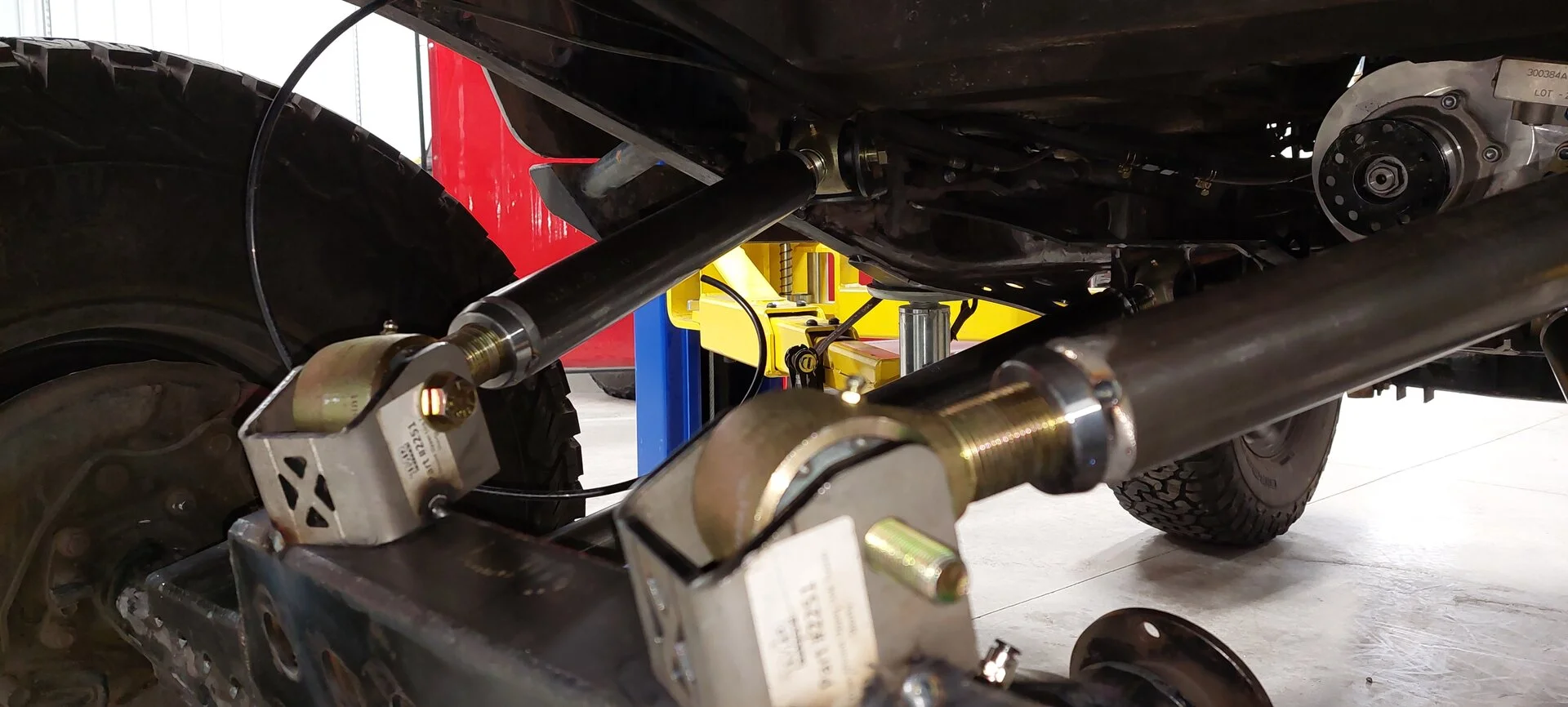

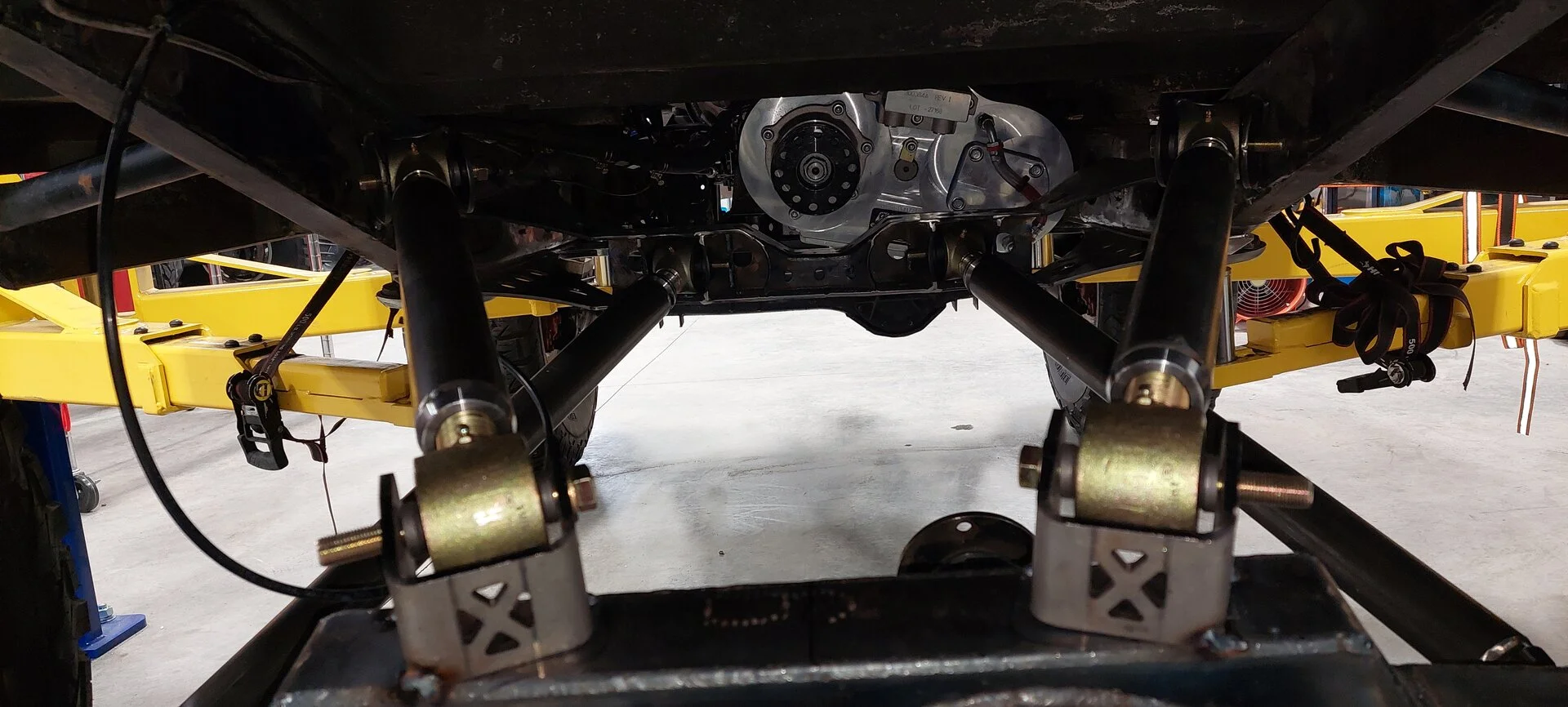

Spent about 2 hours at the ahop today and got the uppers in.

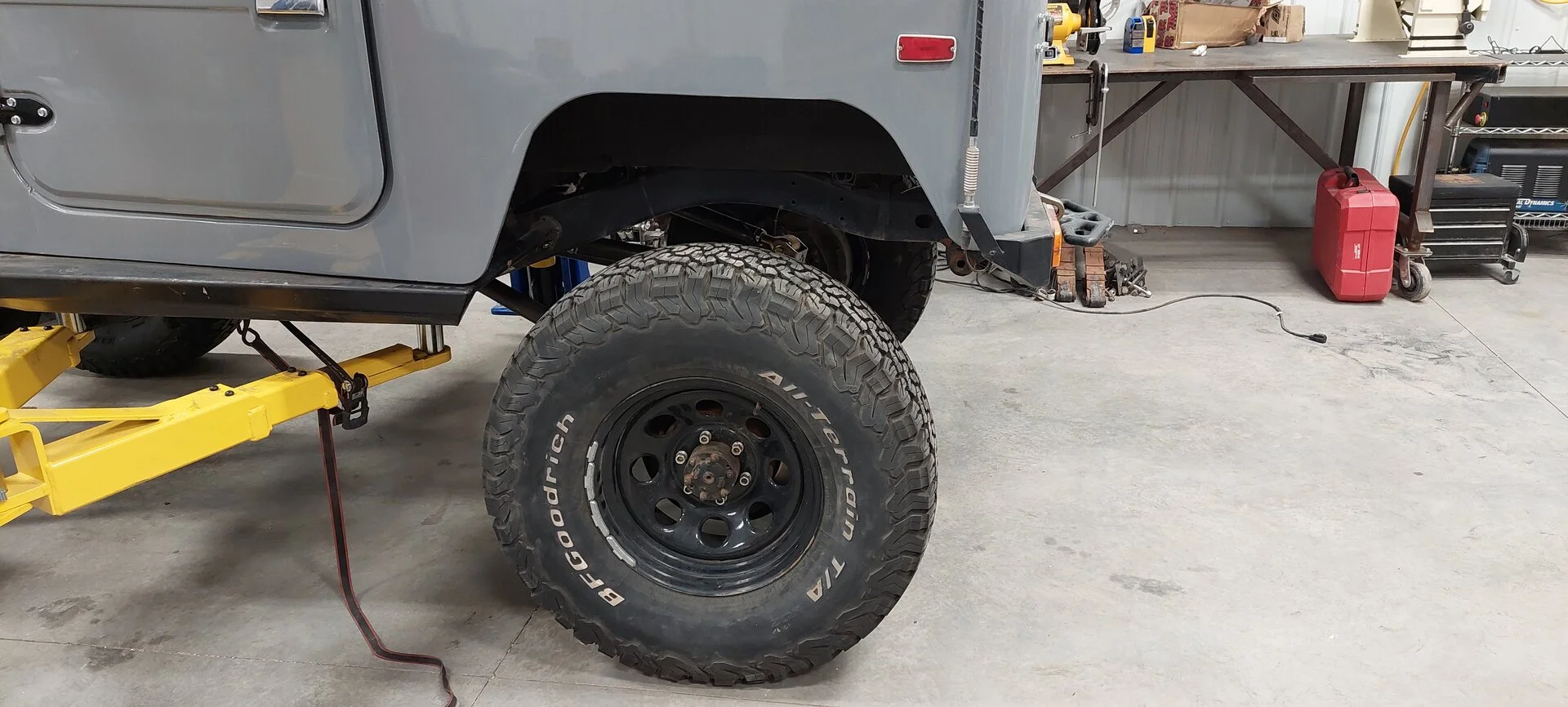

Drooped out.
Drooped out.
Wait a second you have a center t case and a off set rear
lol. i have the flipped version
lol. i have the flipped version
- Thread starter
- #1,253
Yep, lol. Cant get an atlas offset, I believe.Wait a second you have a center t case and a off set rear
Mine is fine. i was worried but its working fine. my samurai was the same way when i put in toy axles from what i understand the early 40 where the same also
- Thread starter
- #1,255
I'm barely using any of my joint angle, so i'll be good.
- Thread starter
- #1,256
On a different note are you going to Cruise Moab this year ? My friend is friends with the Proffits so i guess we are staying at a condo next to them ? I am Leading Fri Poison Spyder and Sat Hells Revenge . . i can do Cliffhanger on Thur also but think i am going to be a passenger for a day
Last edited:
- Thread starter
- #1,258
Oh, I'm going one way or the other. Dunno if it will be in my rig or a customer rig. Depends on how hard I work over spring break lol.
Thank you for doing all the hard work so i can copy it when i get to doing mine. hahaha I have a slightly more centered rear on my FF 80 though with the short side lengthened.
- Thread starter
- #1,260
Nice. Hopefully the geometry is good.
