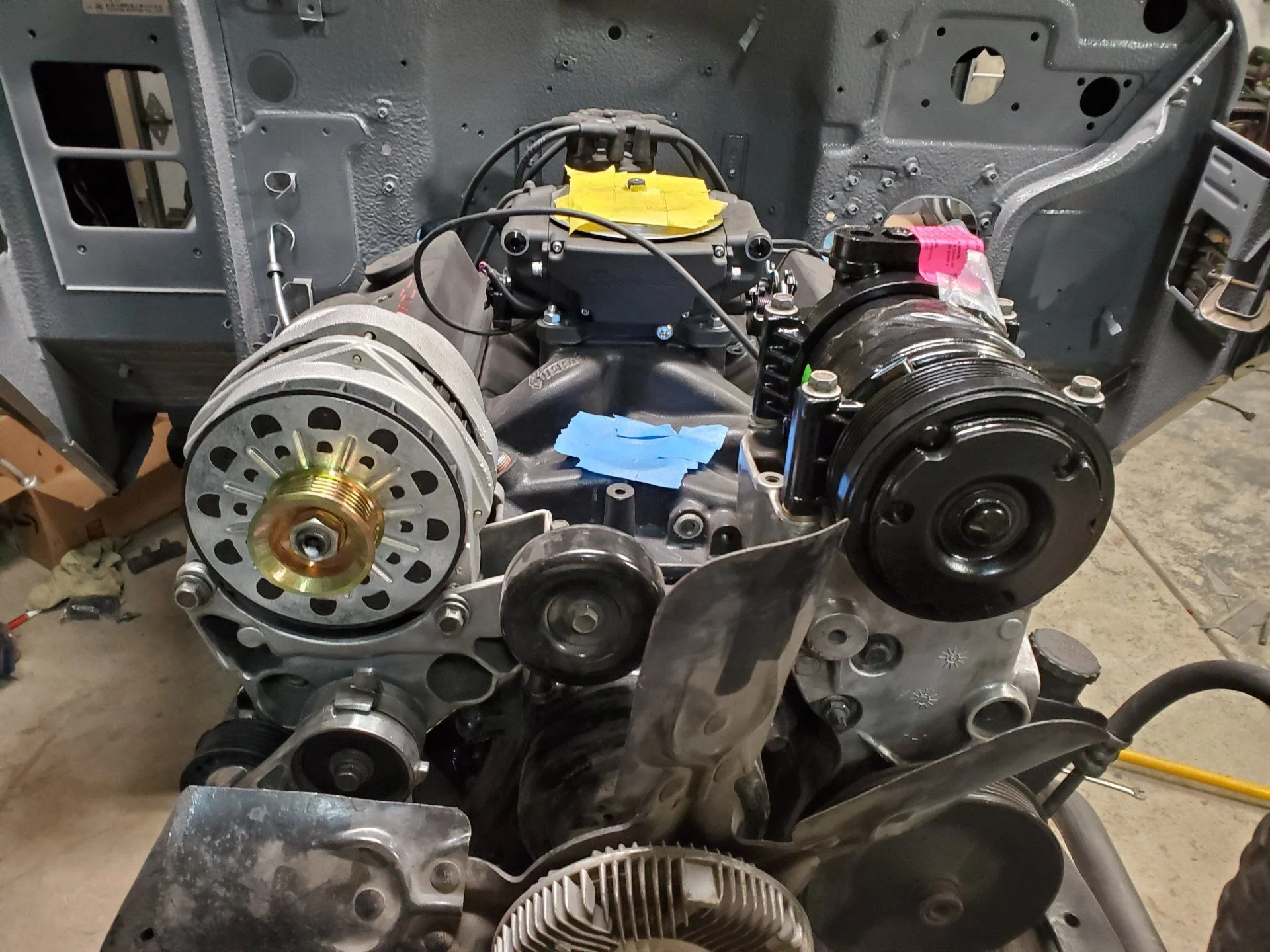

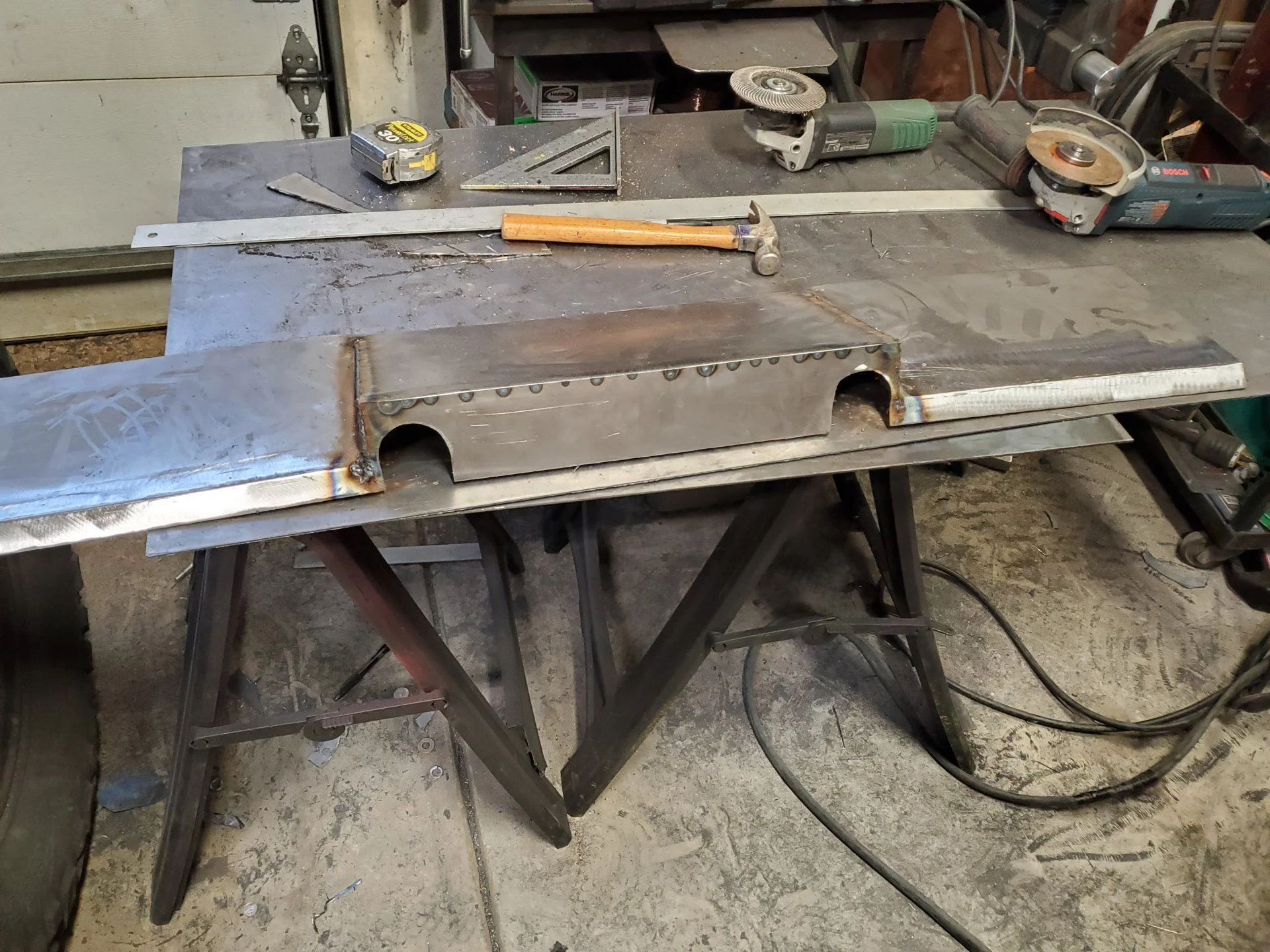

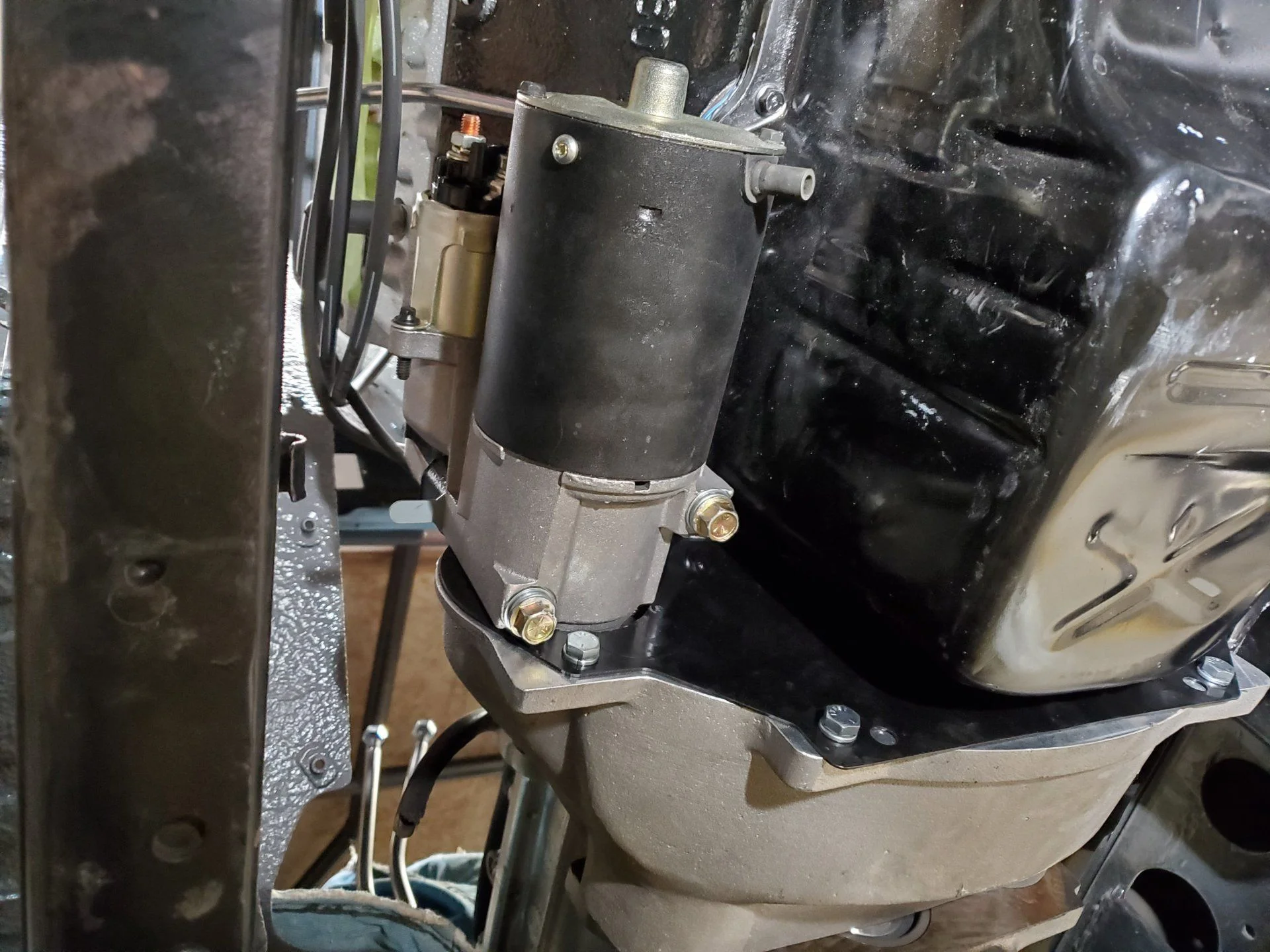

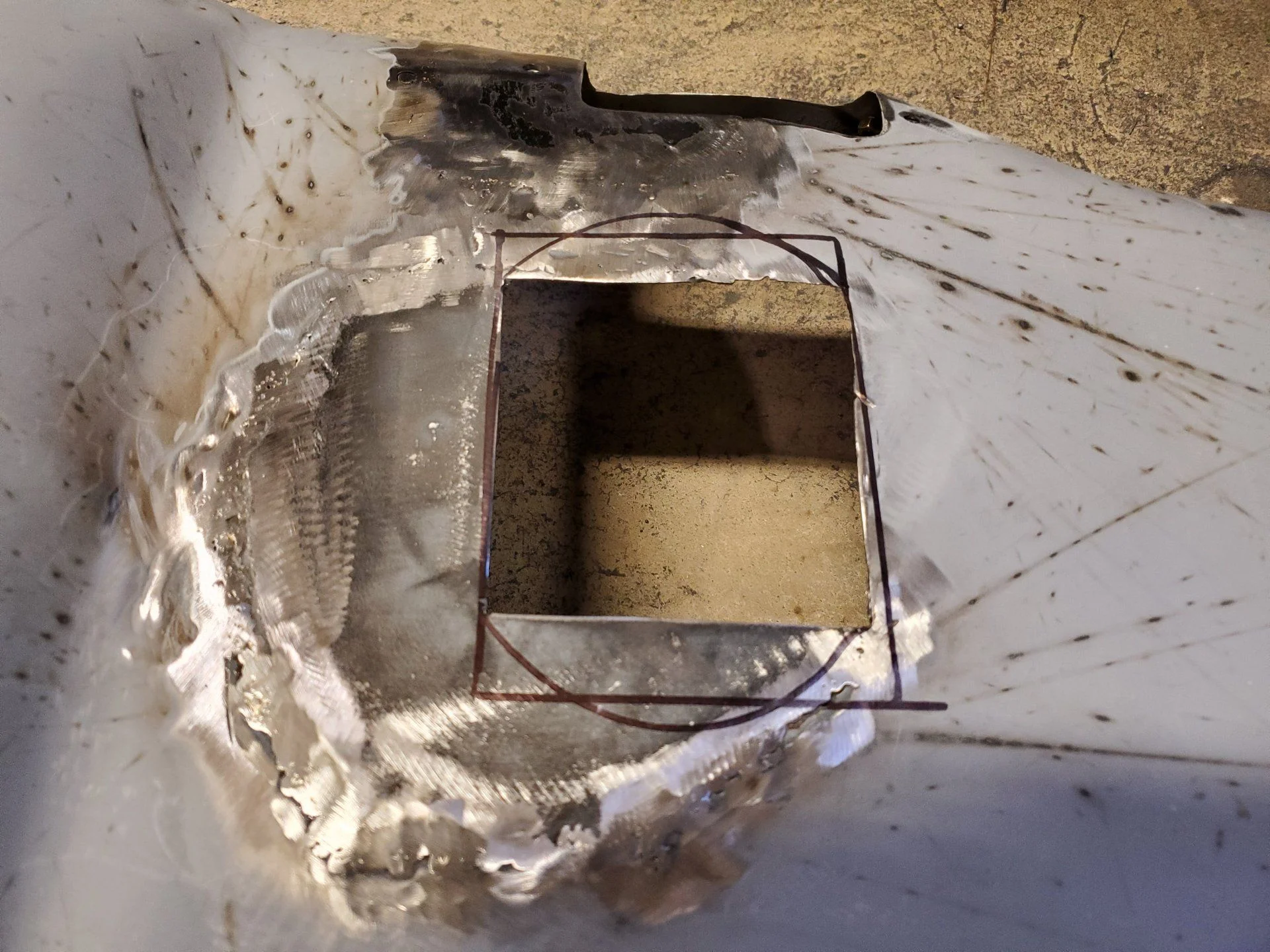

I finally got the hump welded up. It was a pain, as it was pretty thin. Oh well.

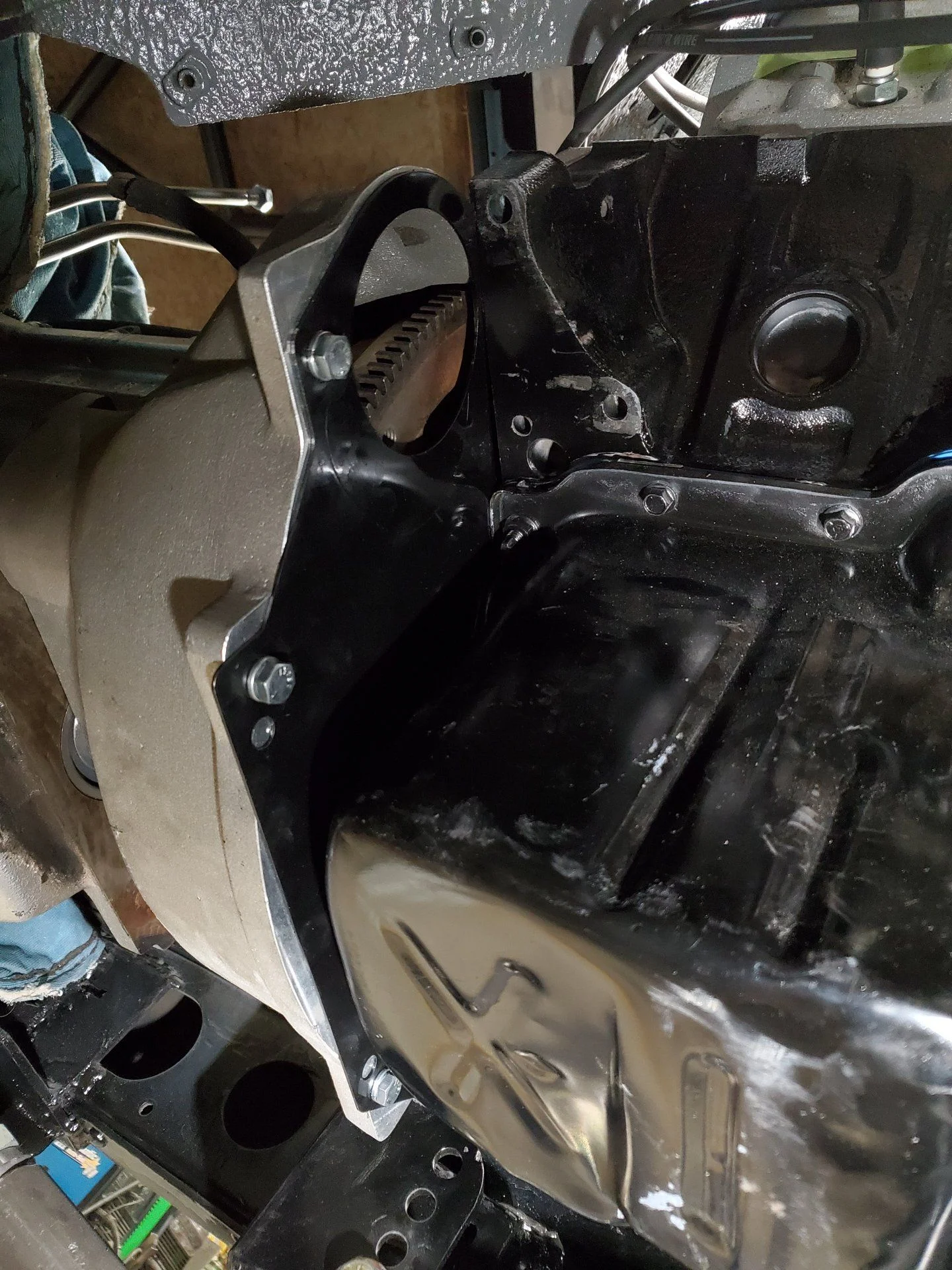

I widened the NV hole, per @cruisermatt 's suggestion.

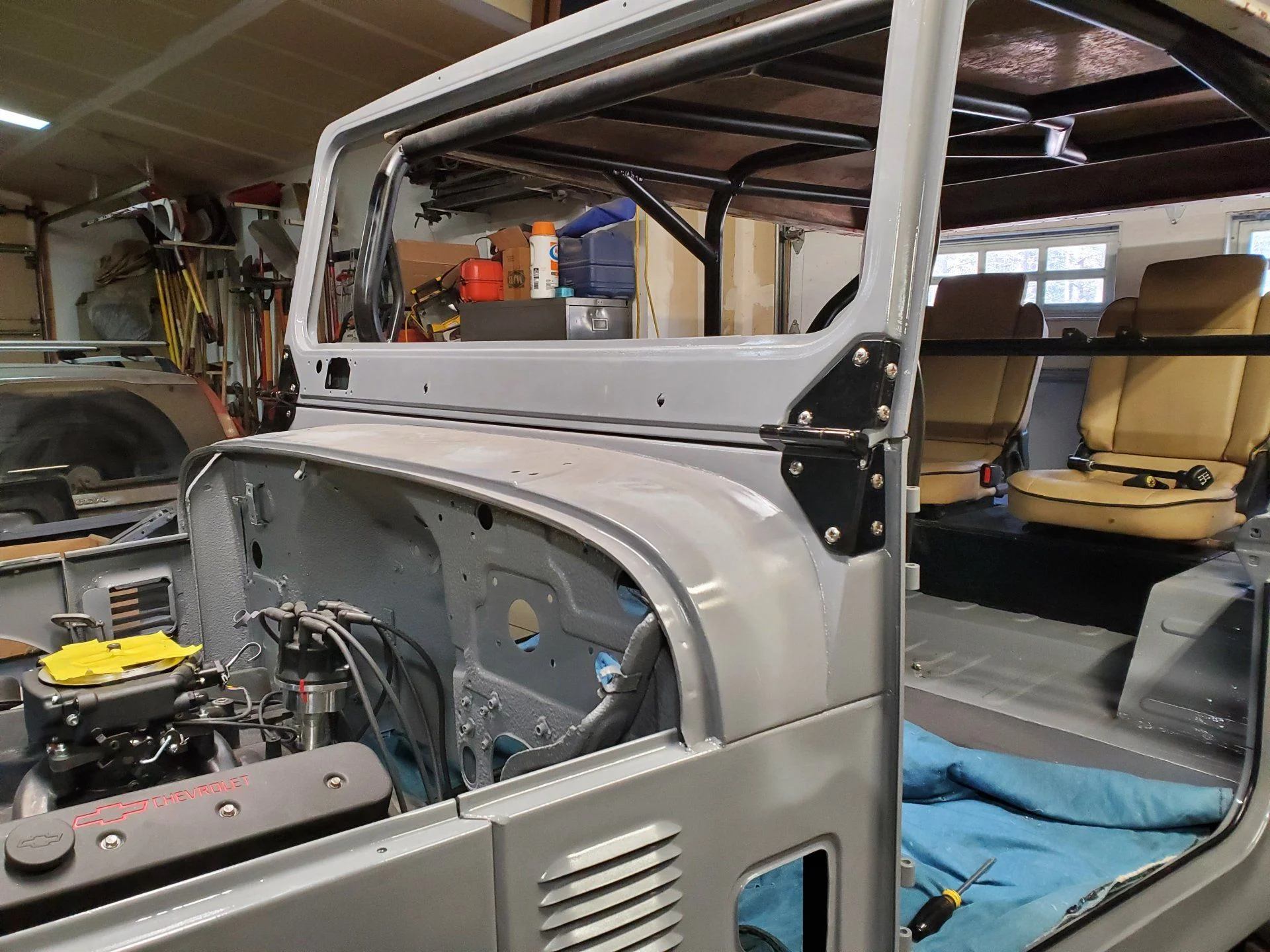

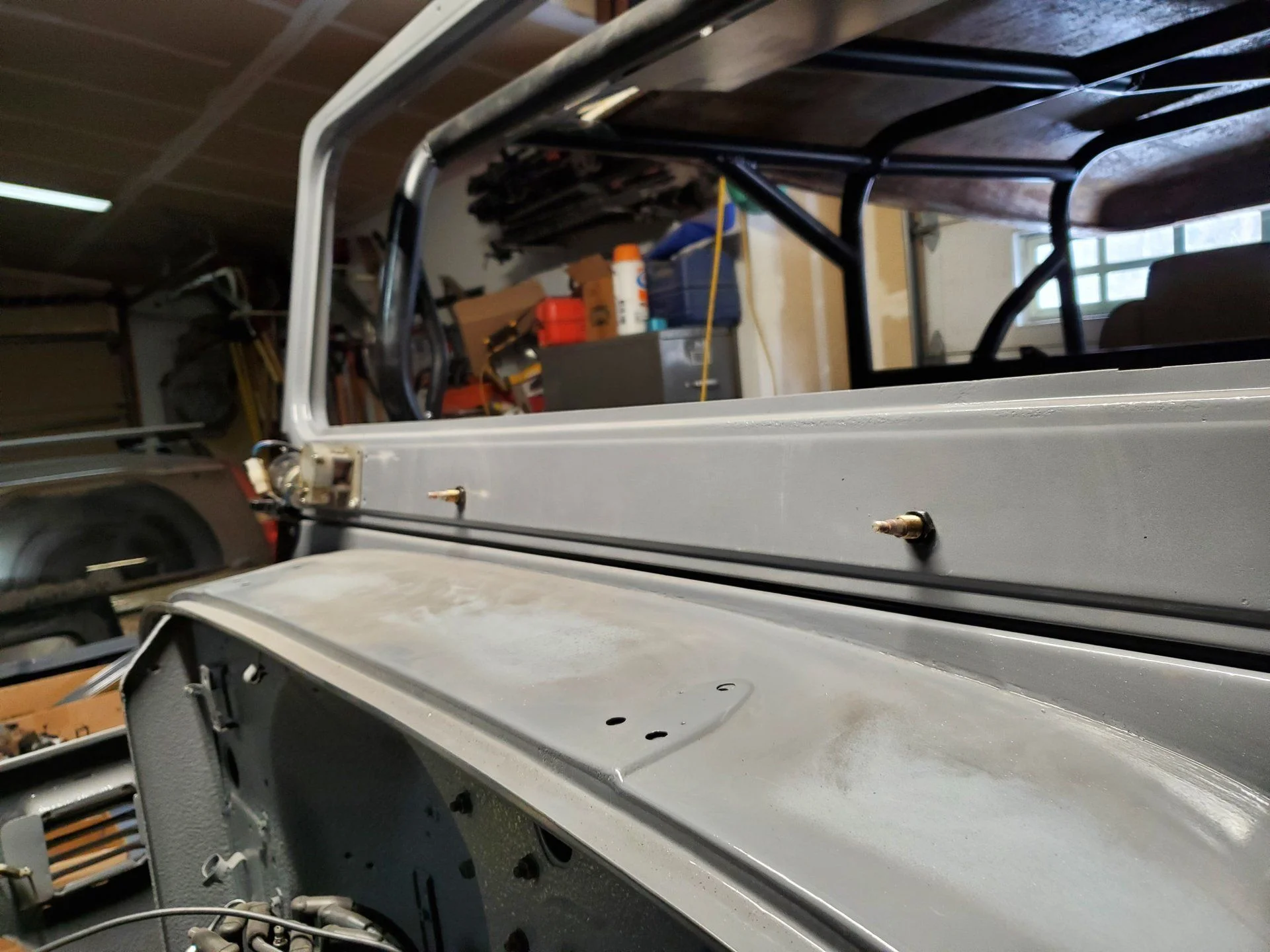

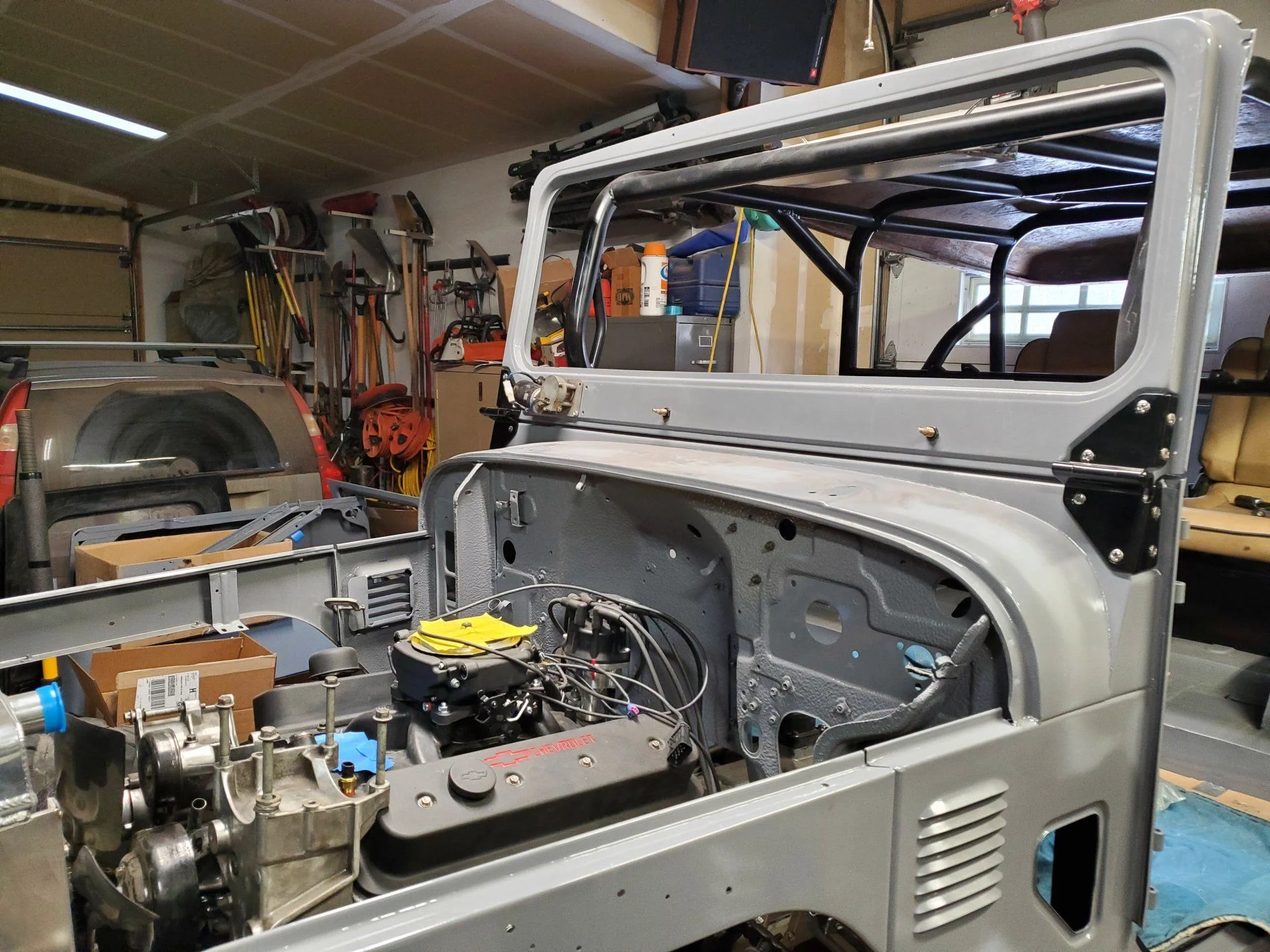

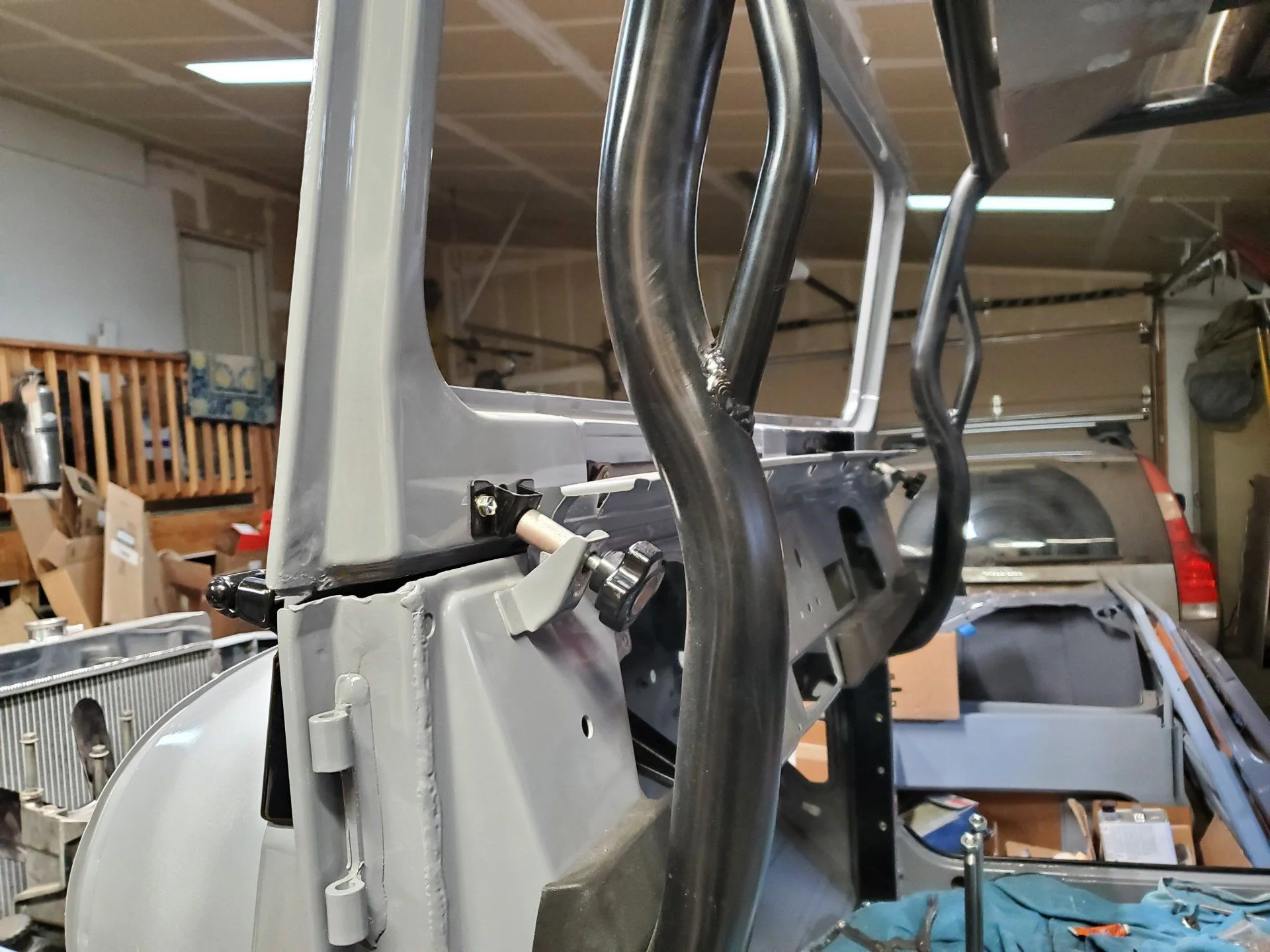

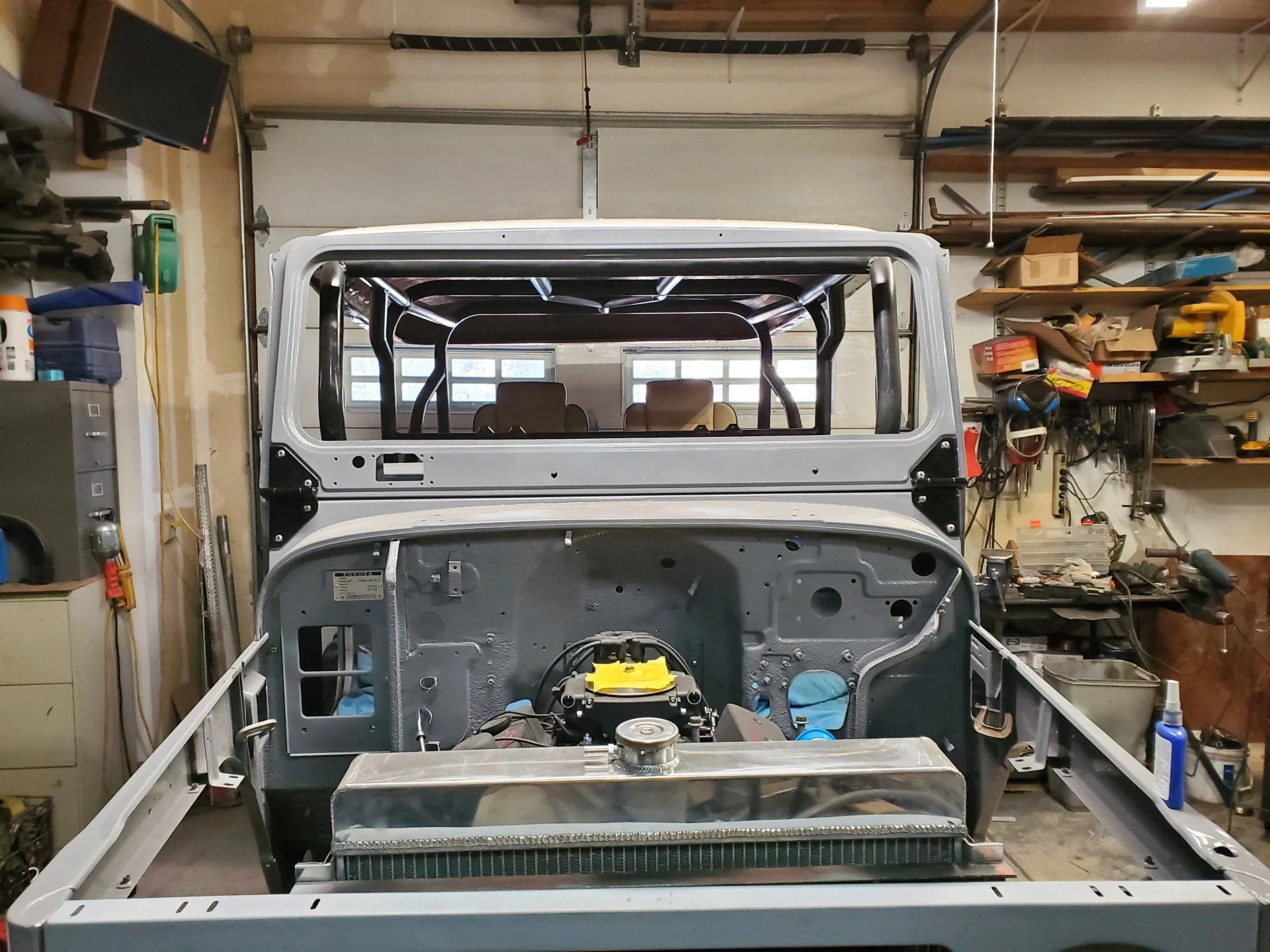

I got the windshield installed with some new stainless from CCOT. I'm really liking the black accents with the gray. Pictures don't do it justice.




Last edited:
Overhead Console Build

DangerNoodle

Essentially a fire wielding monkey.
SILVER Star
Joined
Oct 25, 2019
Messages
2,087
Location
Divide, Colorado
Website
www.instagram.com
I started working on the overhead console that will store most of my electronics.

Here is the rough plan:

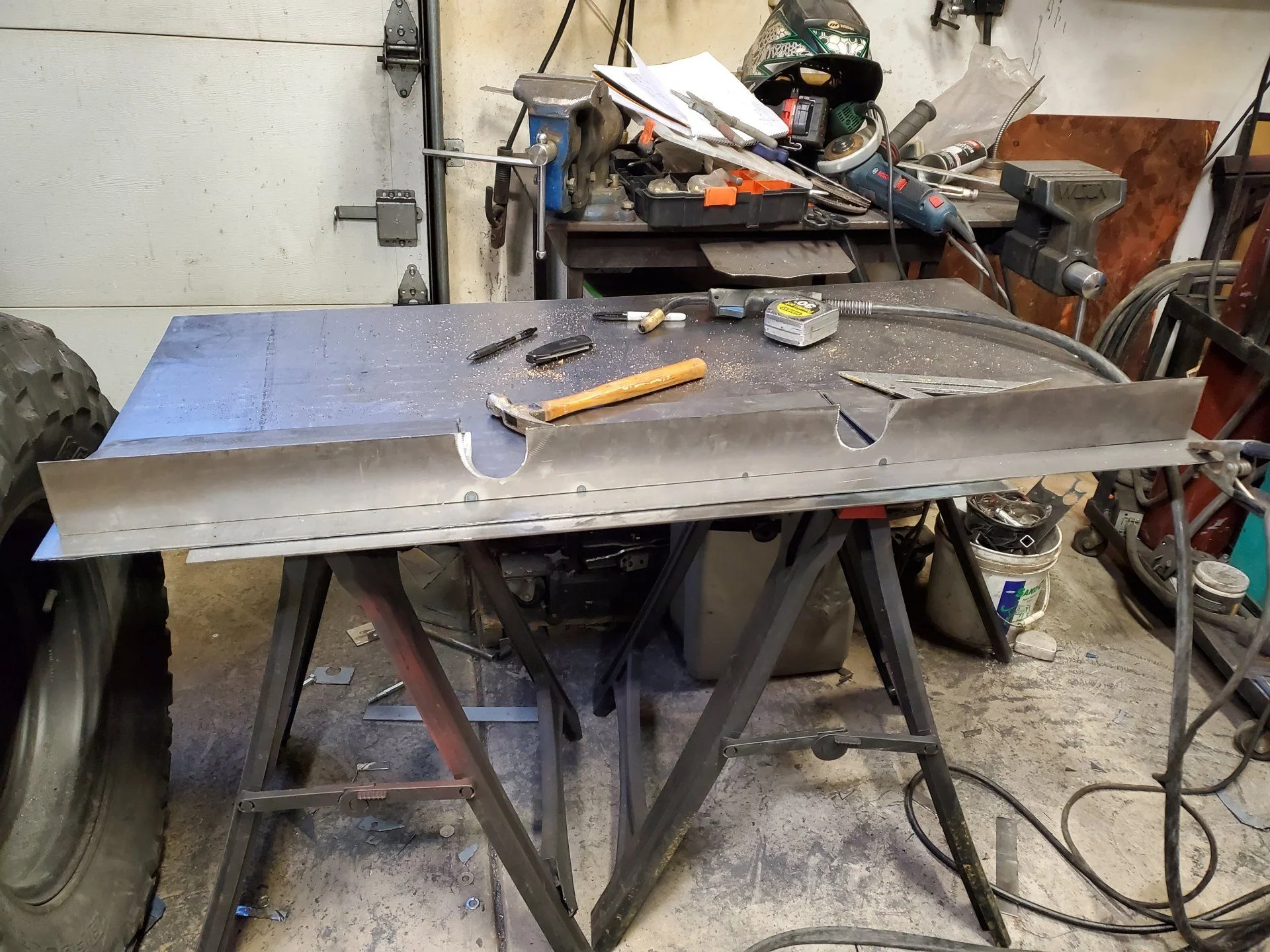

Starting with some 16 ga.



Formed a little.

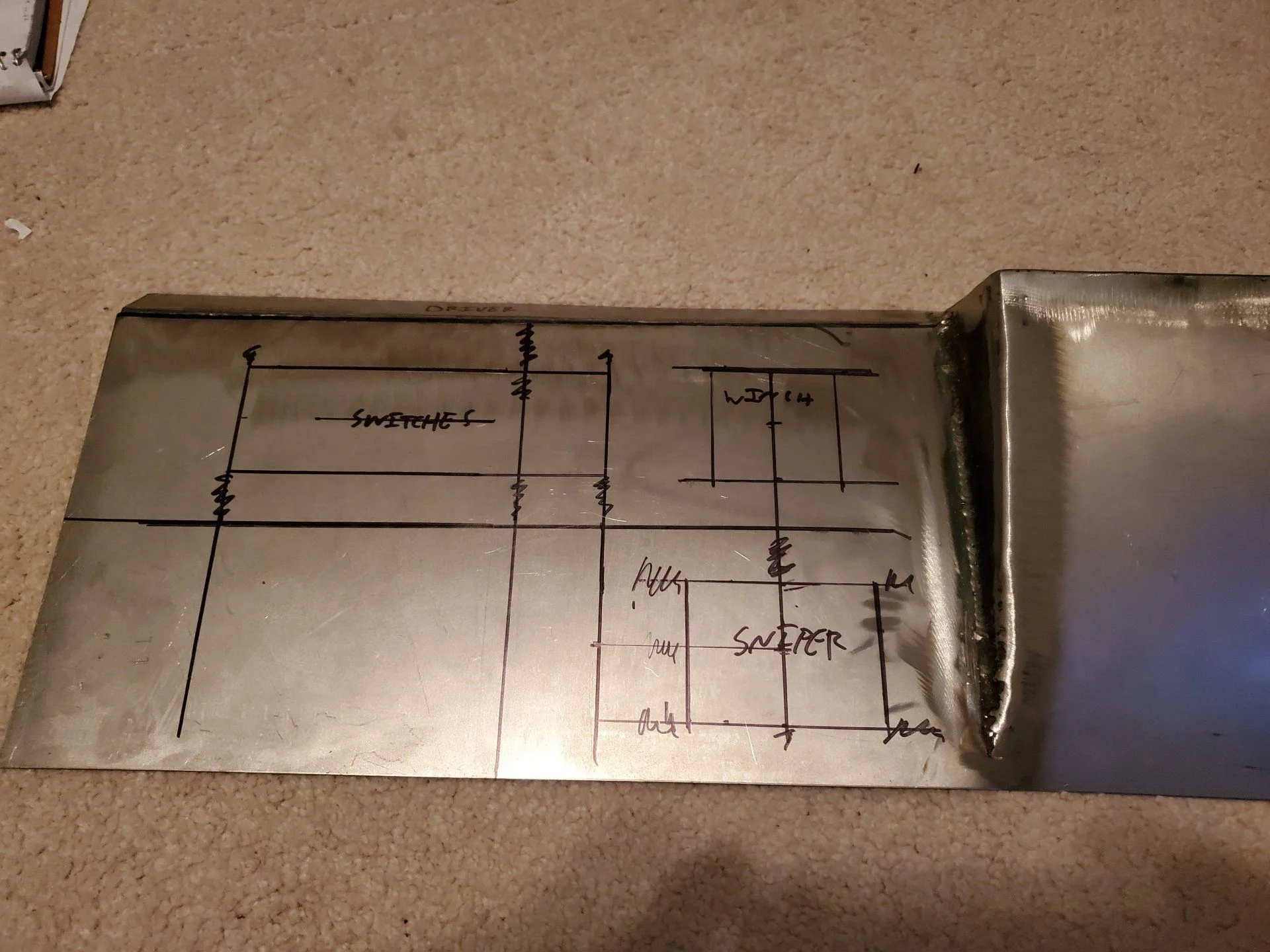

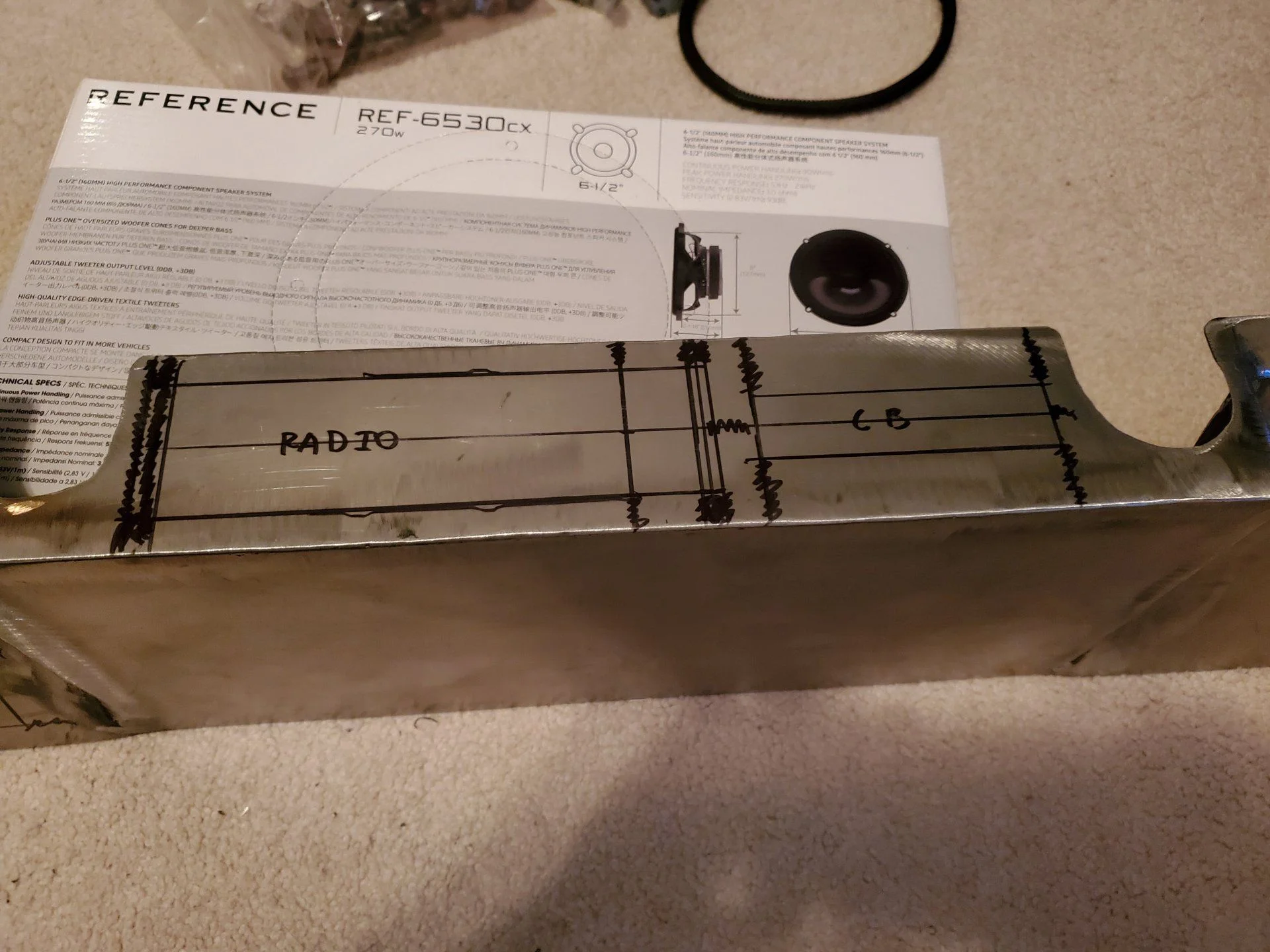

Measurements for the cutouts.






I think I am going to use hose clamps to secure it to the cage. I'll fugure that out later, though.


DangerNoodle

Essentially a fire wielding monkey.
SILVER Star
Joined
Oct 25, 2019
Messages
2,087
Location
Divide, Colorado
Website
www.instagram.com

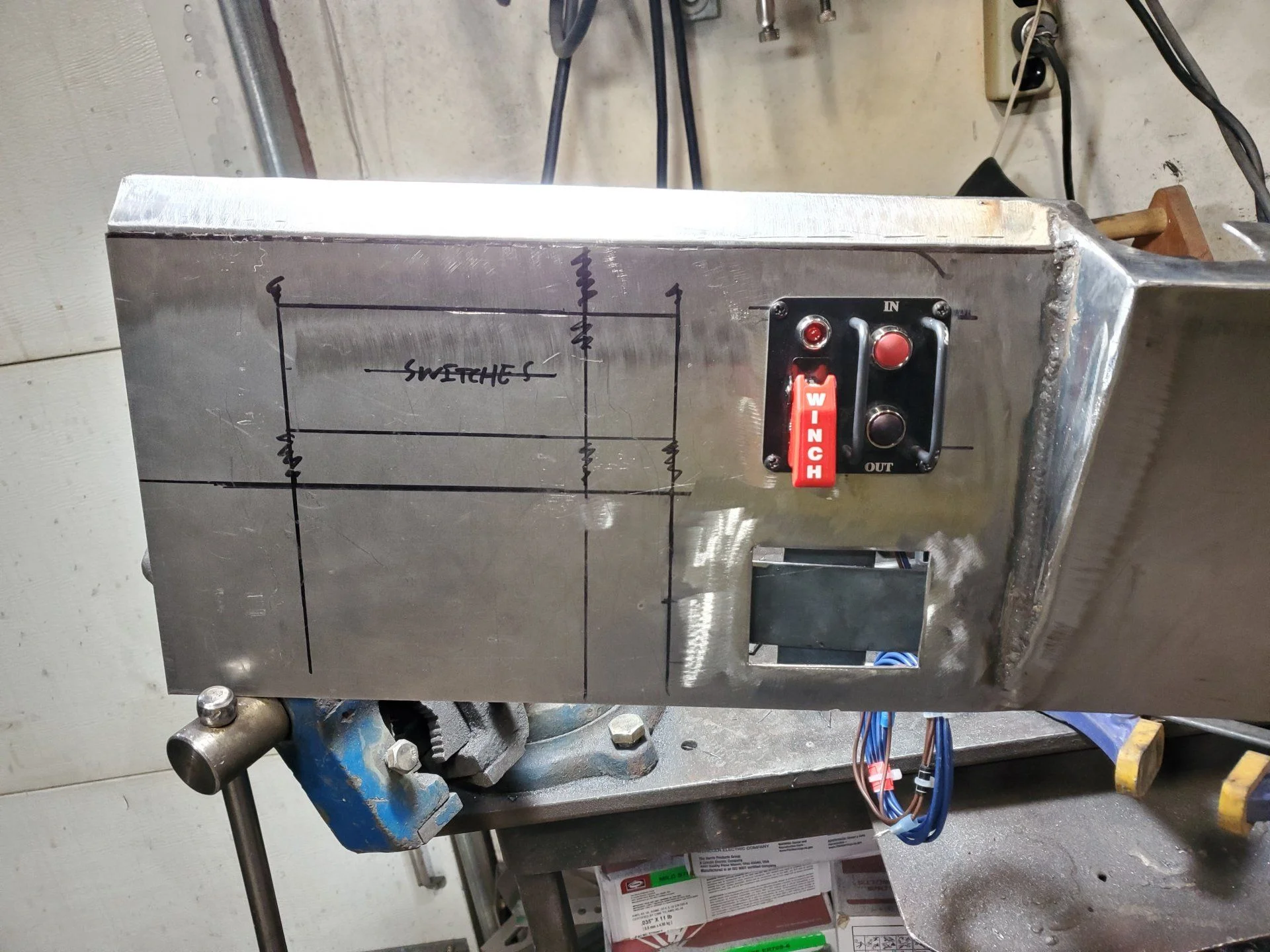

I got all the holes cut out today, and started mounting the console.

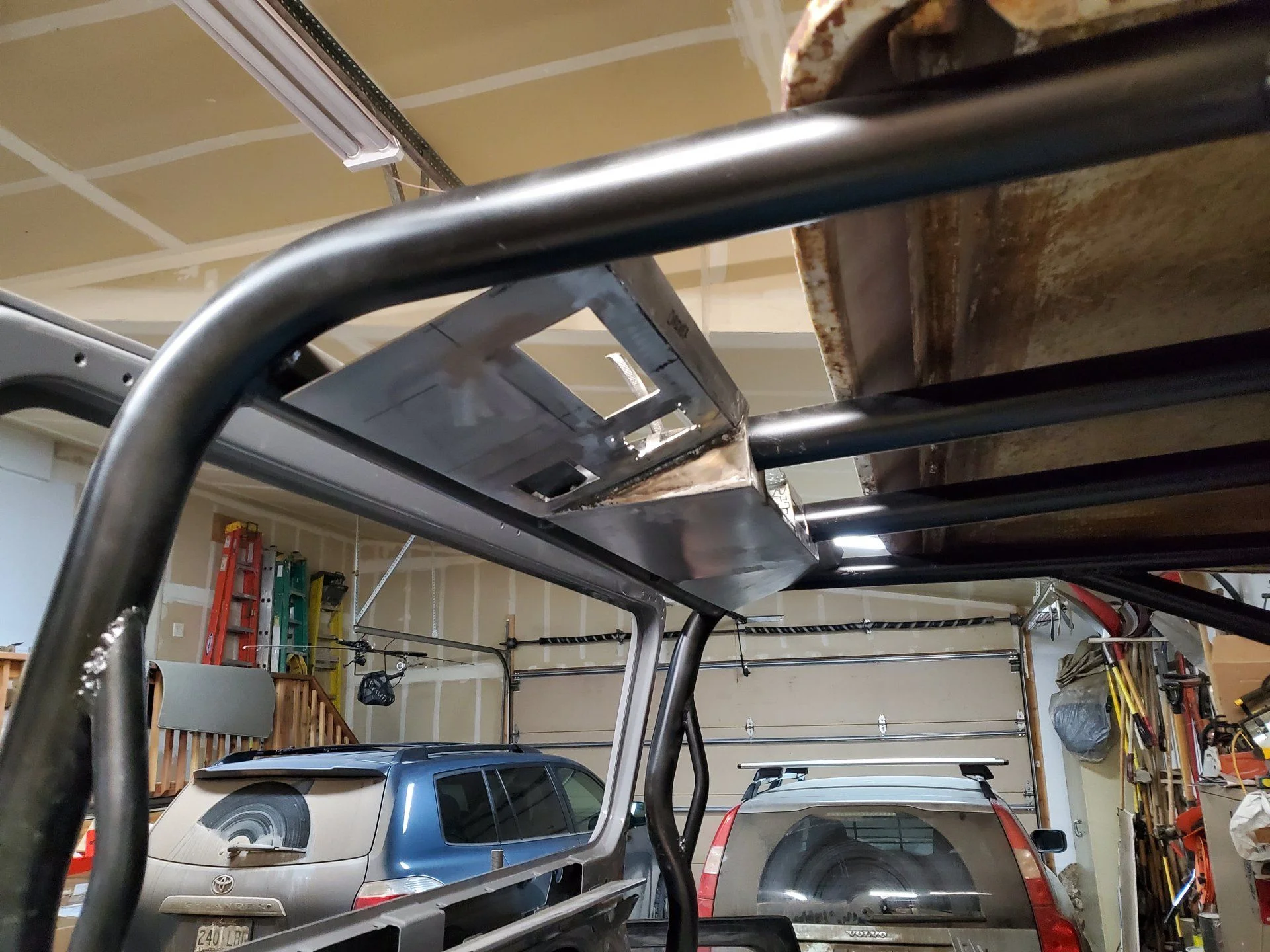

Mounted. I still need to add two more hose clamps to mount to the outer crossbars.

I like how tucked up the radios and the switches will be.



It's a little plain on the passenger side, but I think I will run circuit breakers on that side so the passenger can do something if everything goes wrong.


Last edited:
Joined
Aug 29, 2015
Messages
1,077
Location
Idaho does any other place matter

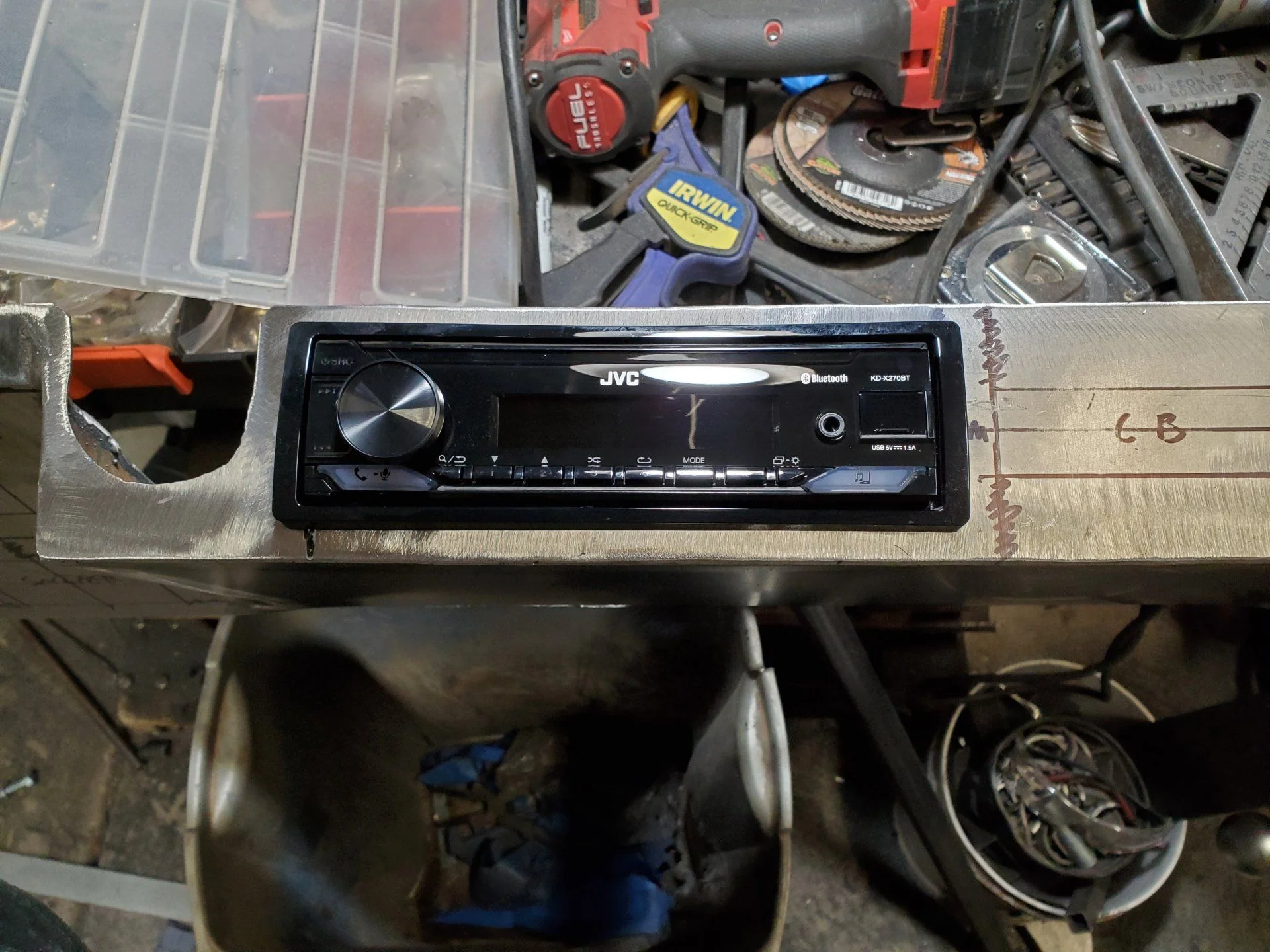

I got all the holes cut out today, and started mounting the console.

View attachment 2563248

View attachment 2563249

Mounted. I still need to add two more hose clamps to mount to the outer crossbars.

I like how tucked up the radios and the switches will be.

View attachment 2563250

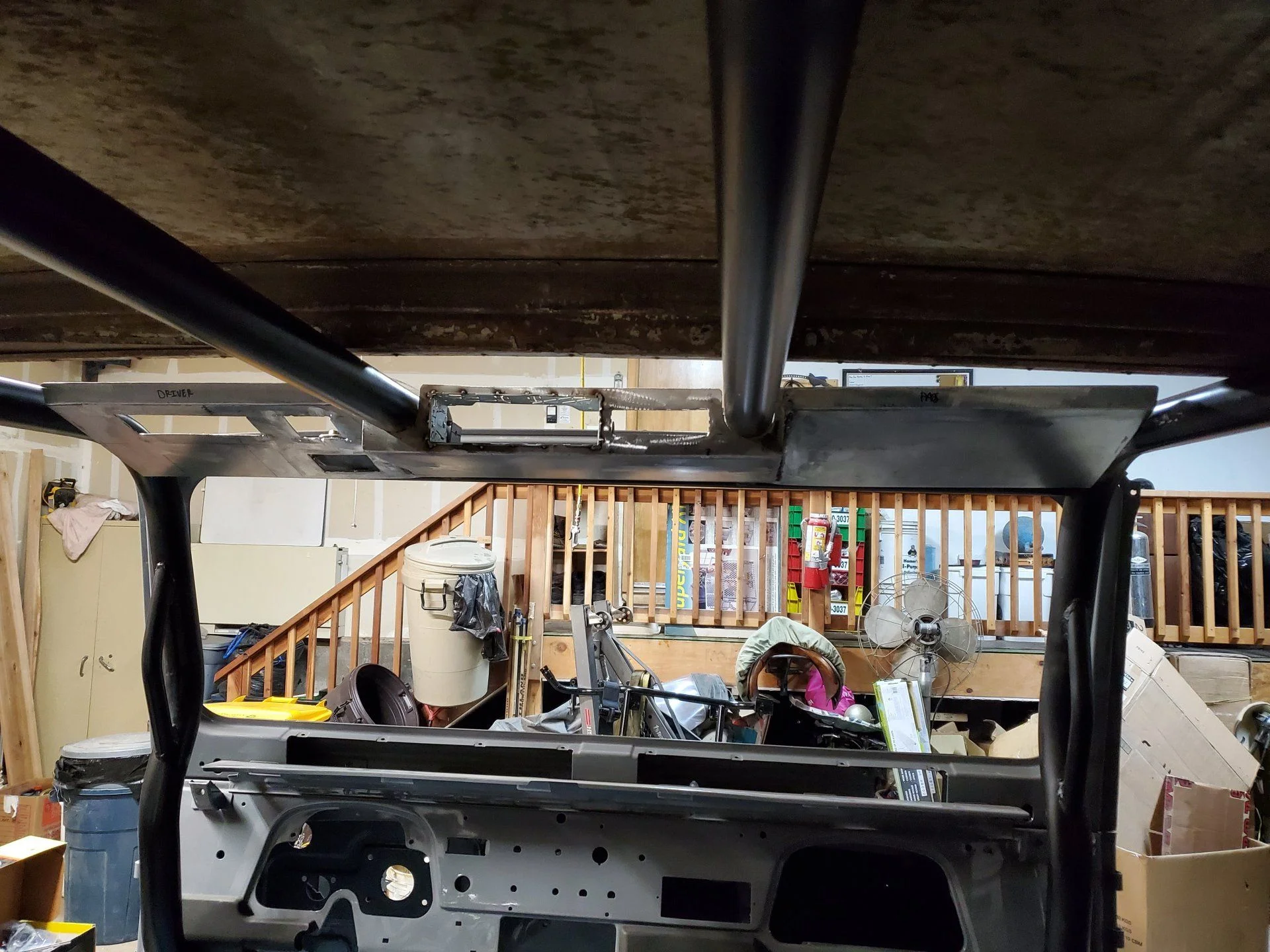

It's a little plain on the passenger side, but I think I will run circuit breakers on that side do the passenger can do someting if everything goes wrong.

View attachment 2563251
Only thing I’ll add is when I looked at running a bikini top- space above the rollcage wasn’t as much as I thought. I figured I could sneak an overhead console in between my spreaders to house a few switches- it would have hung down to low or interfered with the bikini top. I ended up with a Bluetooth speaker and switches in the center console. Your experience may vary...


DangerNoodle

Essentially a fire wielding monkey.
SILVER Star
Joined
Oct 25, 2019
Messages
2,087
Location
Divide, Colorado
Website
www.instagram.com
Only thing I’ll add is when I looked at running a bikini top- space above the rollcage wasn’t as much as I thought. I figured I could sneak an overhead console in between my spreaders to house a few switches- it would have hung down to low or interfered with the bikini top. I ended up with a Bluetooth speaker and switches in the center console. Your experience may vary...

I think I will probably add a top to it. The upper lip barely sticks up past the bars, maybe an 1/8 inch. I think I should be able to stick a bikini top on ok.


DangerNoodle

Essentially a fire wielding monkey.
SILVER Star
Joined
Oct 25, 2019
Messages
2,087
Location
Divide, Colorado
Website
www.instagram.com

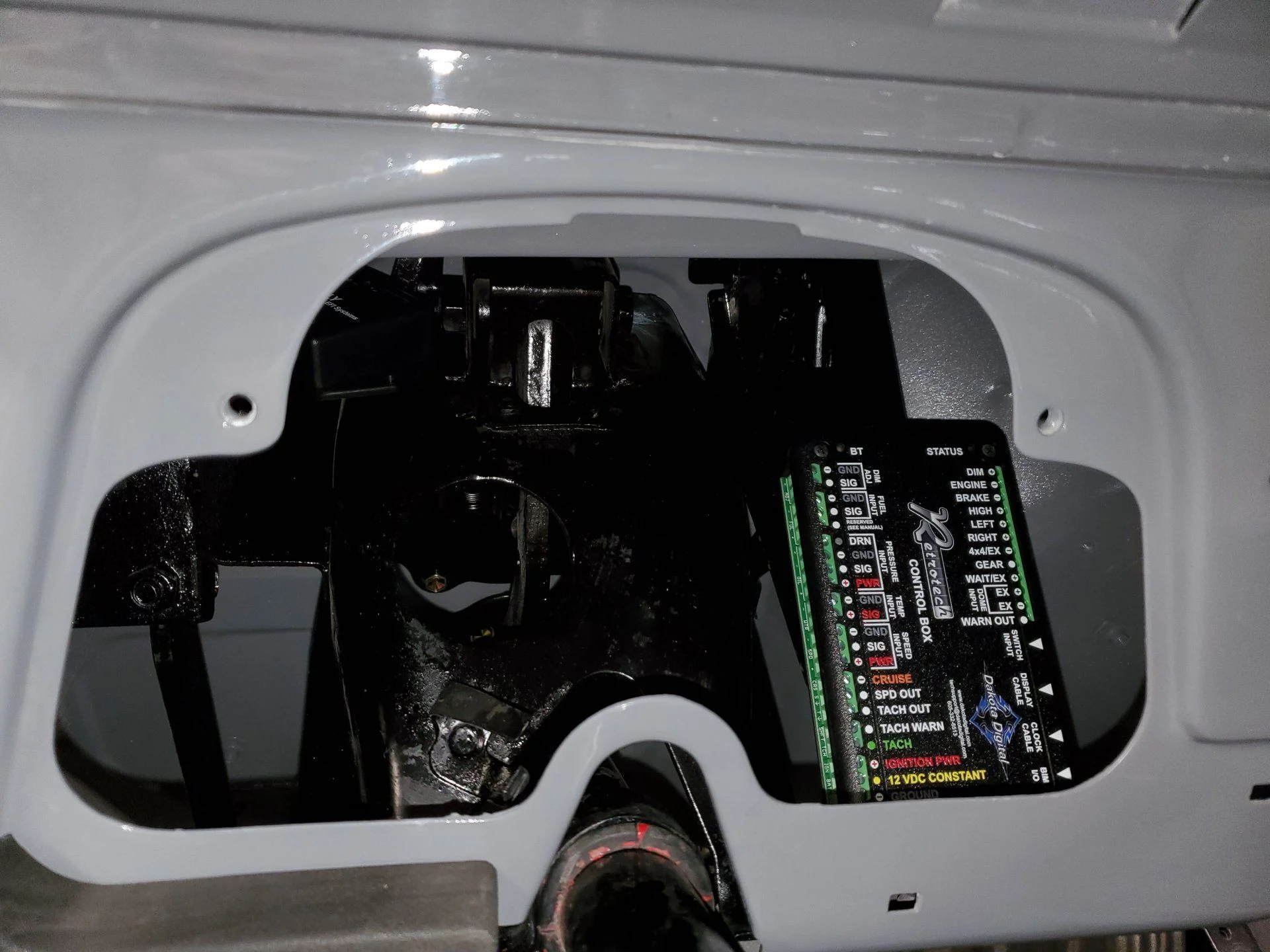

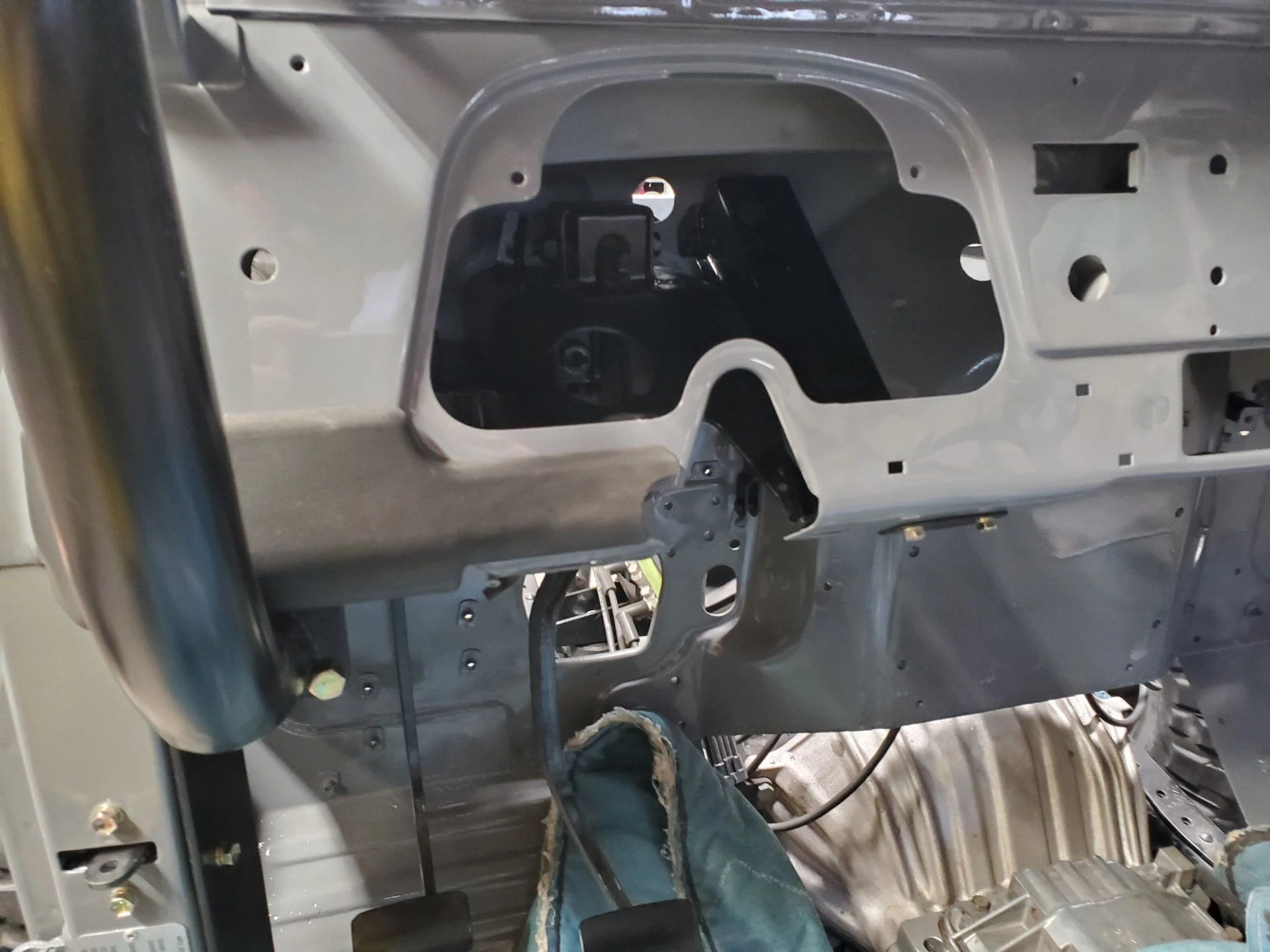

I started looking at computer mounting. I am thinking I want to put the Dakoda Digital computers on a bracket built around the top of the pedal mounts.

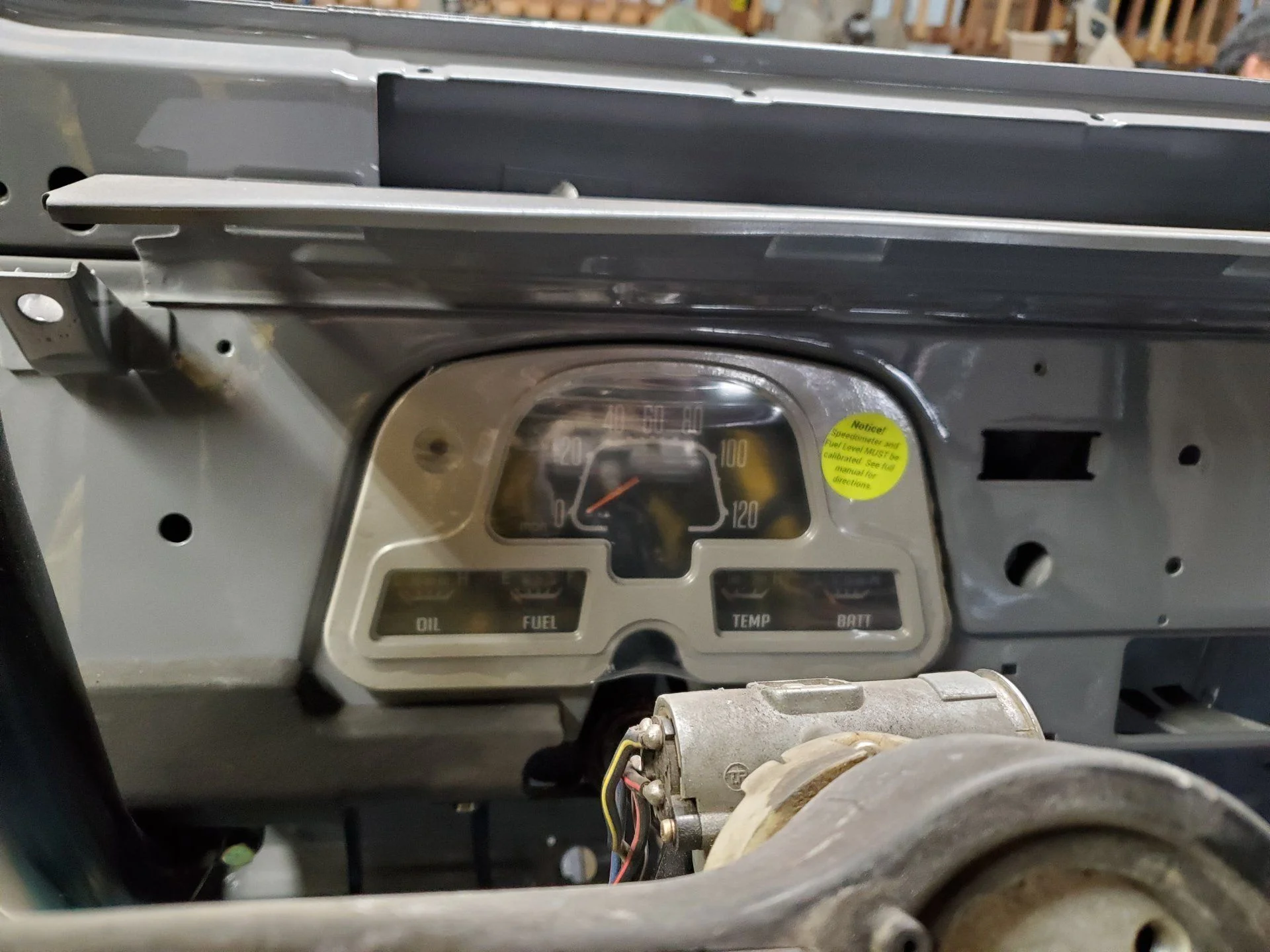

Anybody see any problems with this? There is enough depth for the gauge cluster, and I see that it is easily accessable if you just pop the cluster off.





And the cluster in, just for funsies.



I stuck on the booster and clutch master to check clearances. Its tight, with less than a 1/16 of space in a few places.



DangerNoodle

Essentially a fire wielding monkey.
SILVER Star
Joined
Oct 25, 2019
Messages
2,087
Location
Divide, Colorado
Website
www.instagram.com
I am slowly working on getting the hump lizard skinned, as it takes a while to dry with the cold.

2 coats of ceramic and it will be done.



I've been slowly getting some small stuff out of the way, like reinstalling the wiper linkage and motor, and the knobs to keep the windshield up.





I got the door latches in.



Its finally starting to look like the brick it is susposed to be. Yay!



DangerNoodle

Essentially a fire wielding monkey.
SILVER Star
Joined
Oct 25, 2019
Messages
2,087
Location
Divide, Colorado
Website
www.instagram.com
Quick update: it's snowed about 4" in the past few hours, but I got the first coat of ceramic lizard skin down just now. It's back inside drying, so hopefully I'll be able to get the last coat down tomorrow.



DangerNoodle

Essentially a fire wielding monkey.
SILVER Star
Joined
Oct 25, 2019
Messages
2,087
Location
Divide, Colorado
Website
www.instagram.com

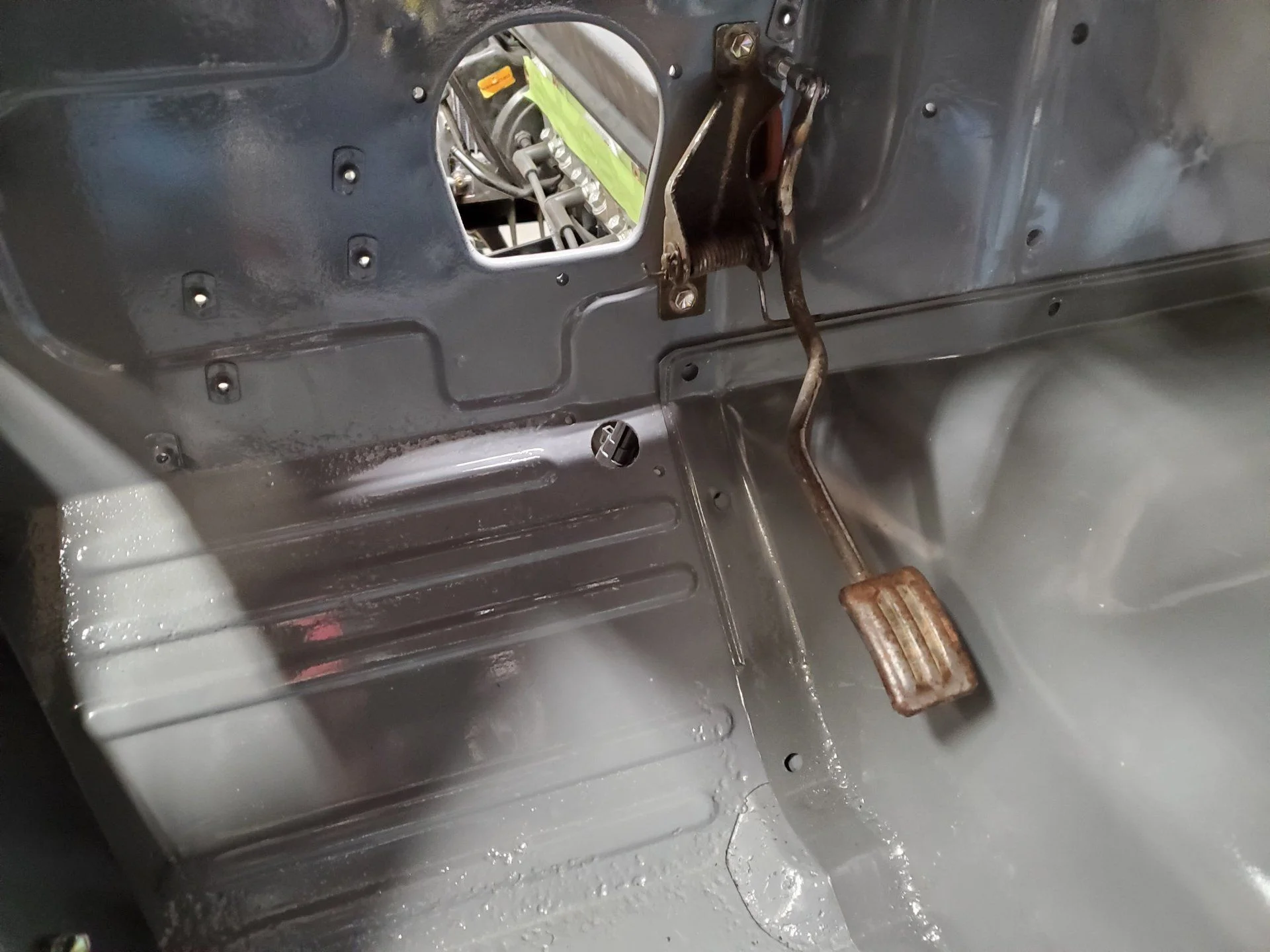

I got the throttle cable installed today.

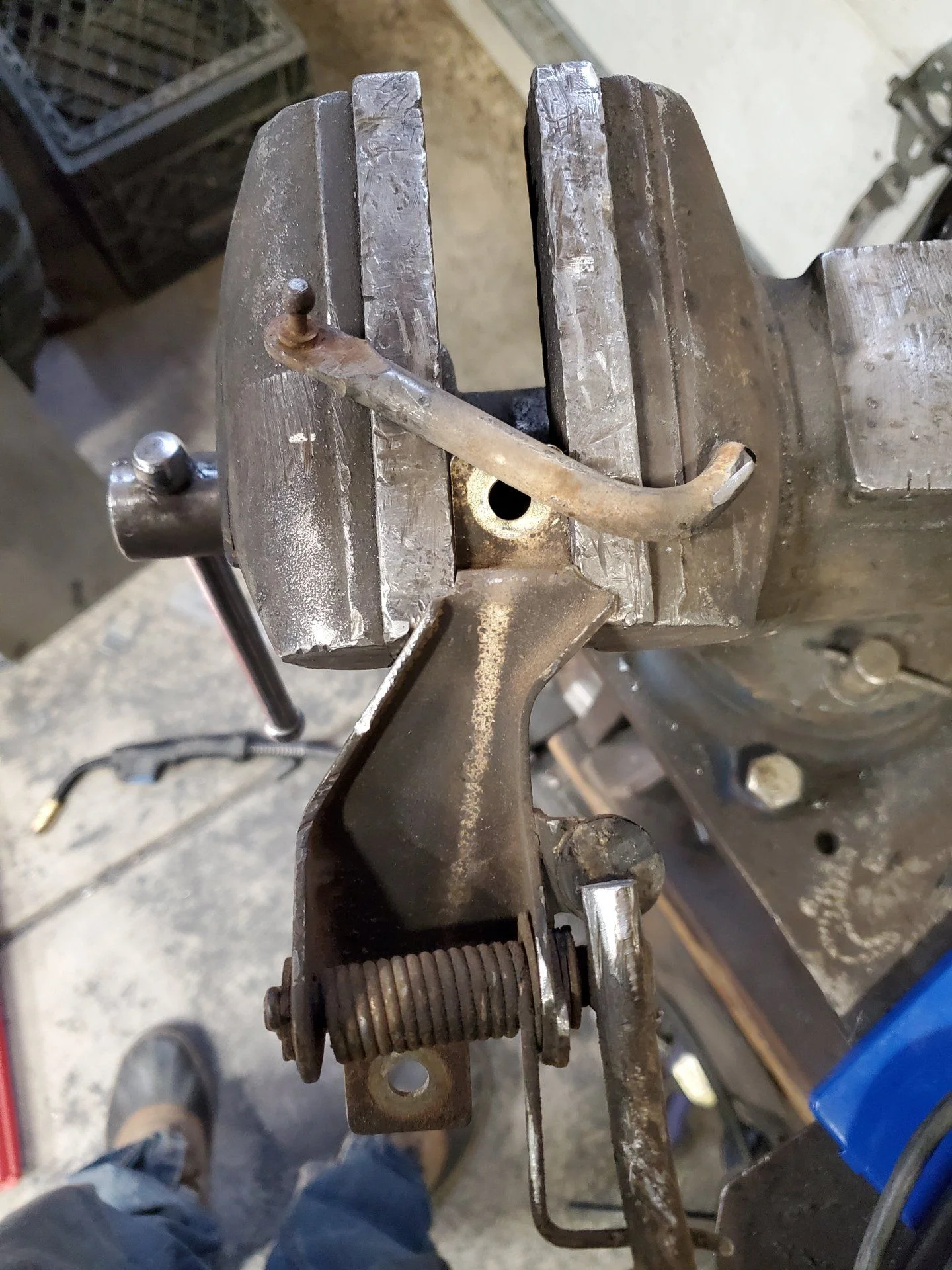

Some trimming of the stock pedal.



Installed.

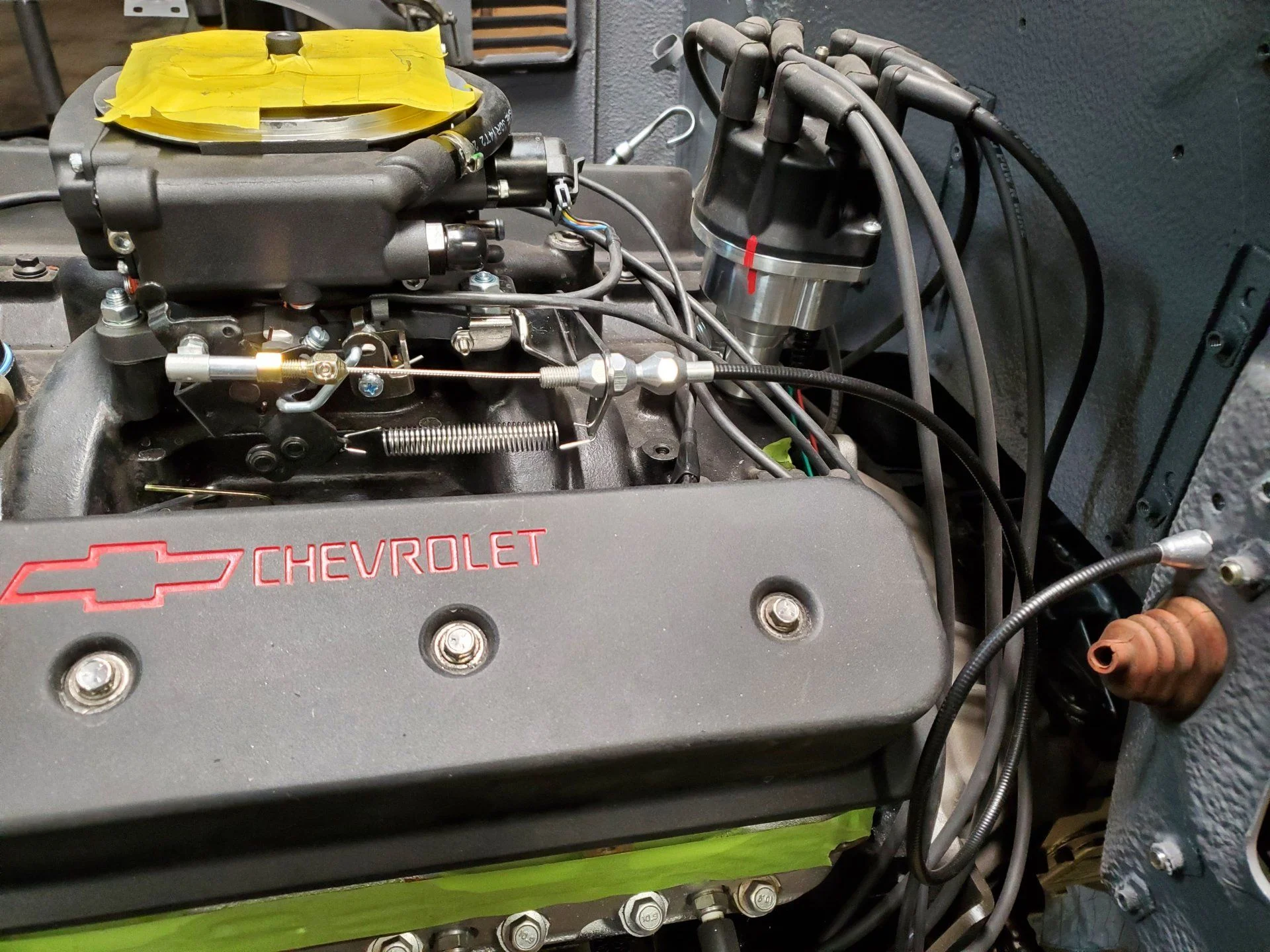

Throttle cable to the sniper. It is a lokar sniper bracket and universal 24" cable. I have the pedal positioned about where I want it, and have about 95% of the total throw of the sniper linkage. I don't think that I need that last 5% though. 🙃

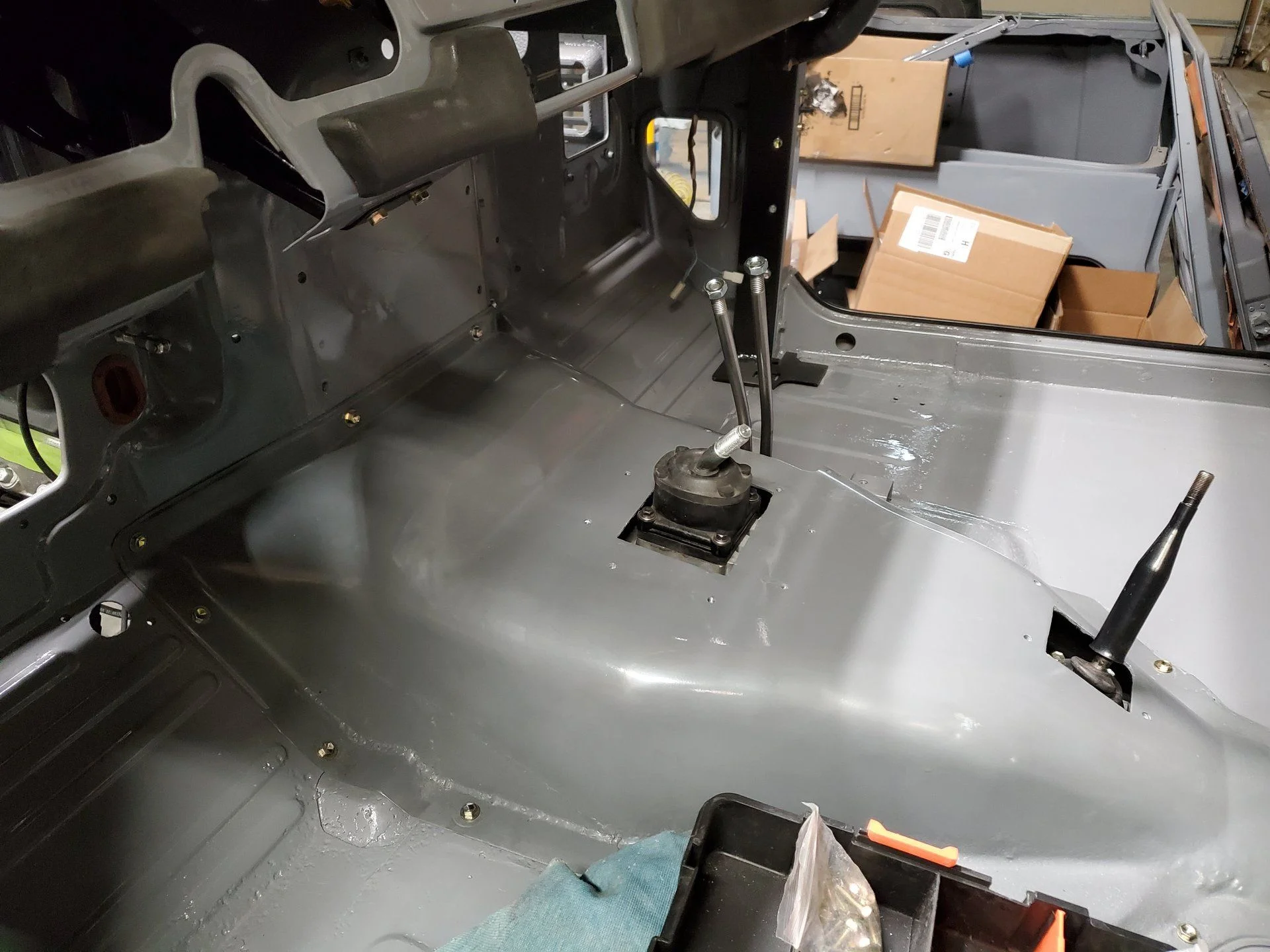

I also got the hump installed. I used some NAPA matched paint, and it turned out a little dark, but I cut and polished it with some 3M Perfect-it and it lightened up quite a bit.

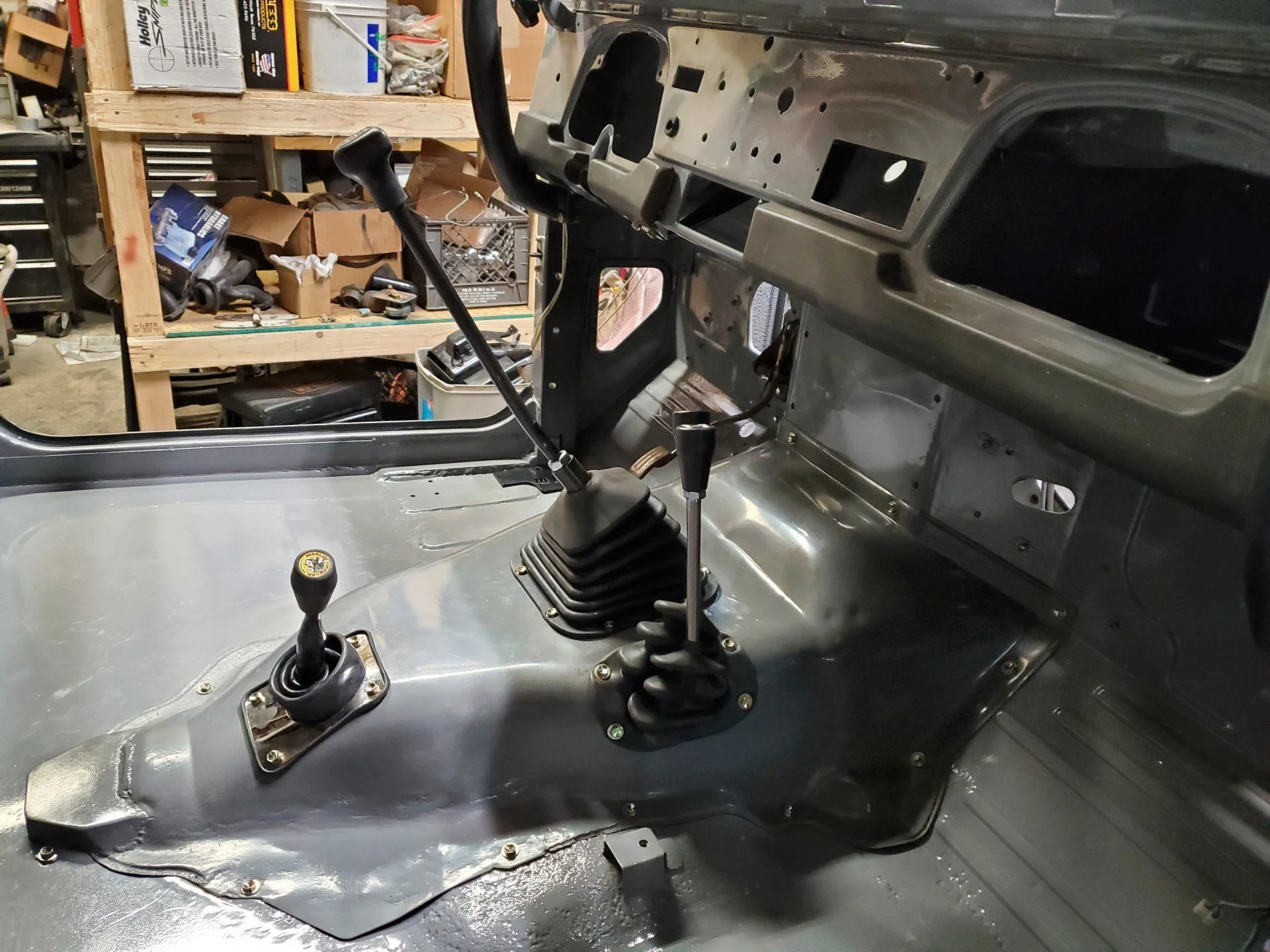

Boots installed. It's starting to look like a car.


Last edited:
Wiring

DangerNoodle

Essentially a fire wielding monkey.
SILVER Star
Joined
Oct 25, 2019
Messages
2,087
Location
Divide, Colorado
Website
www.instagram.com

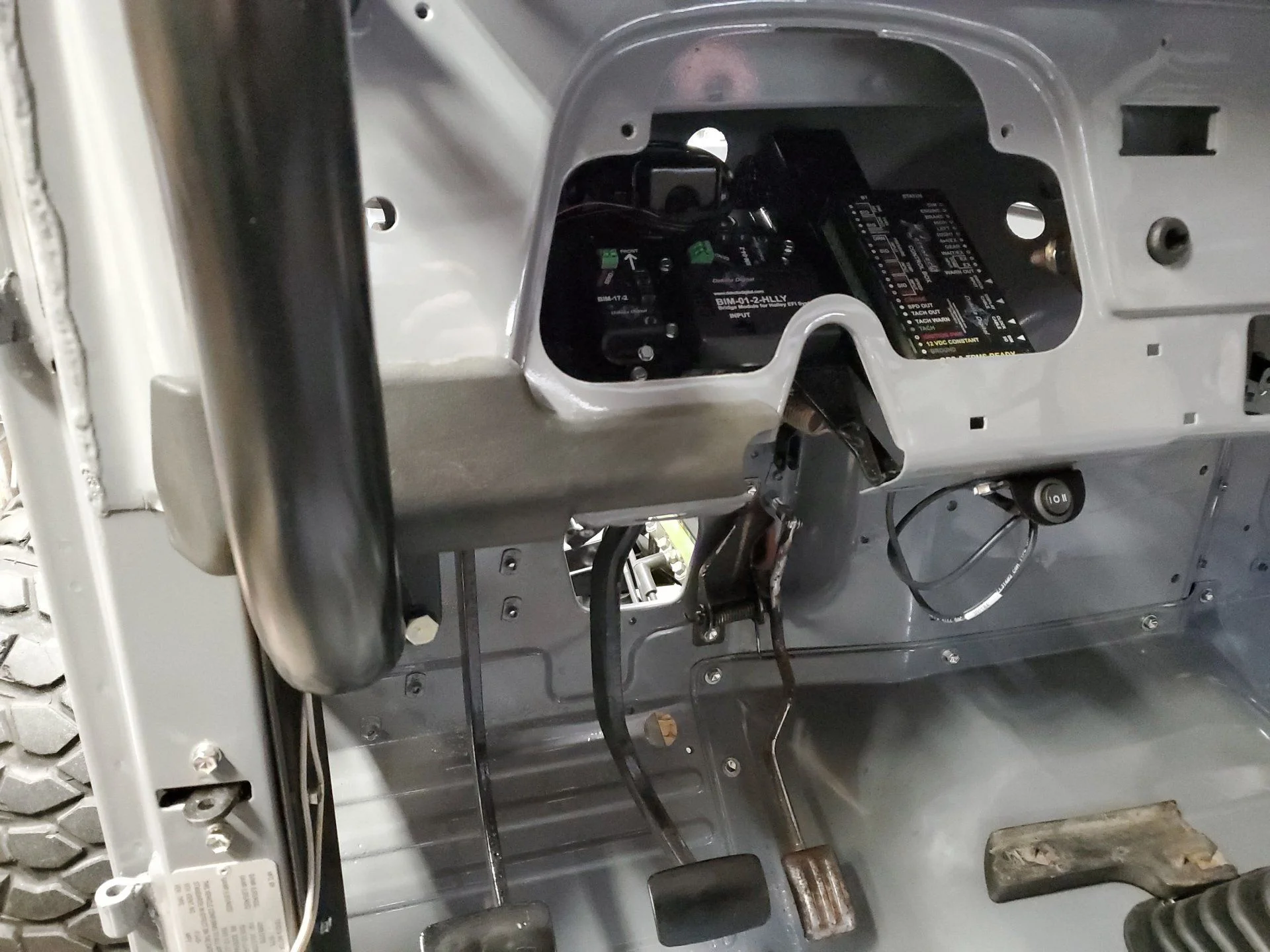

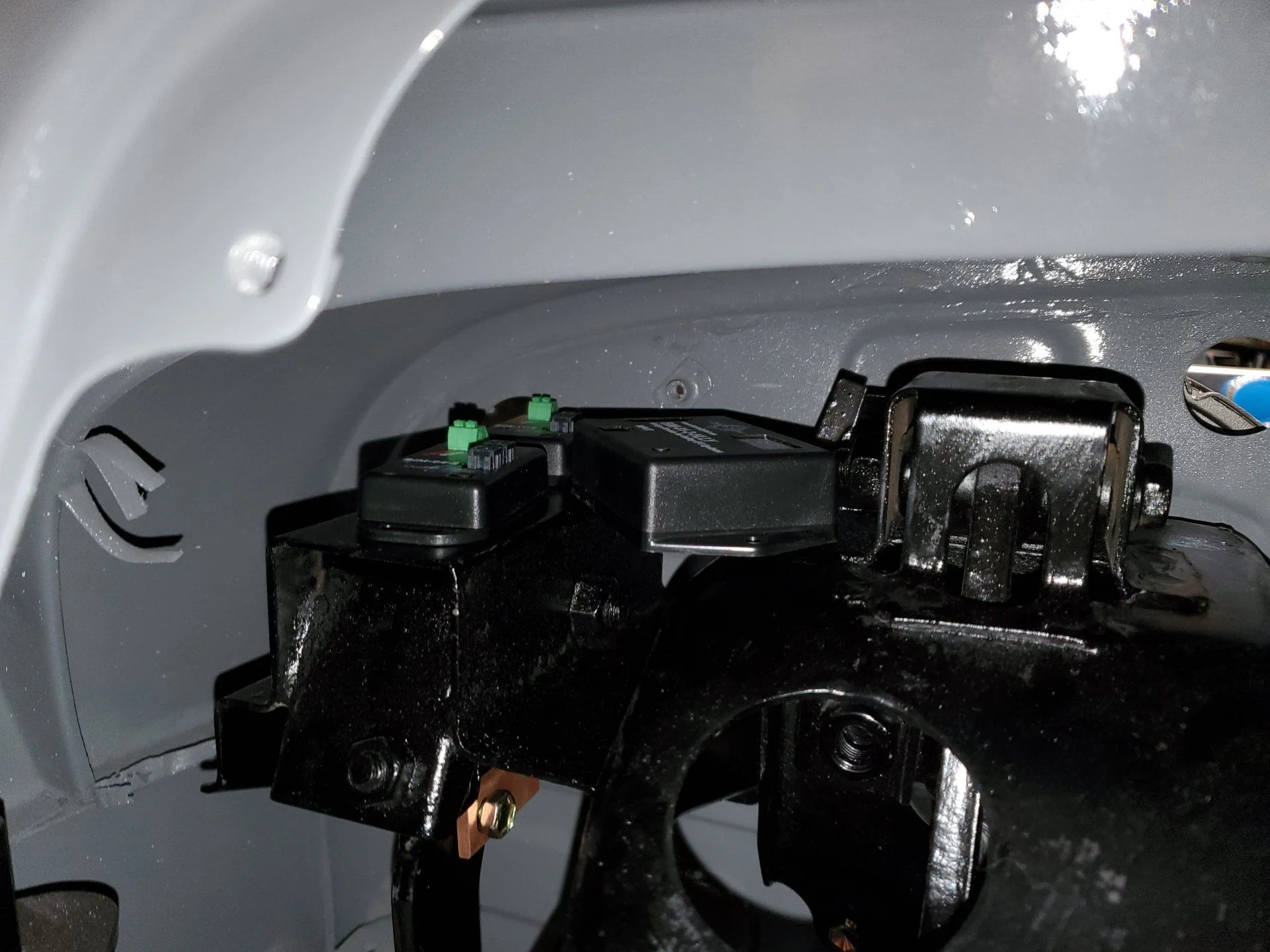

I started mounting the computers today. They fit really well on the stock pedal assemblies.

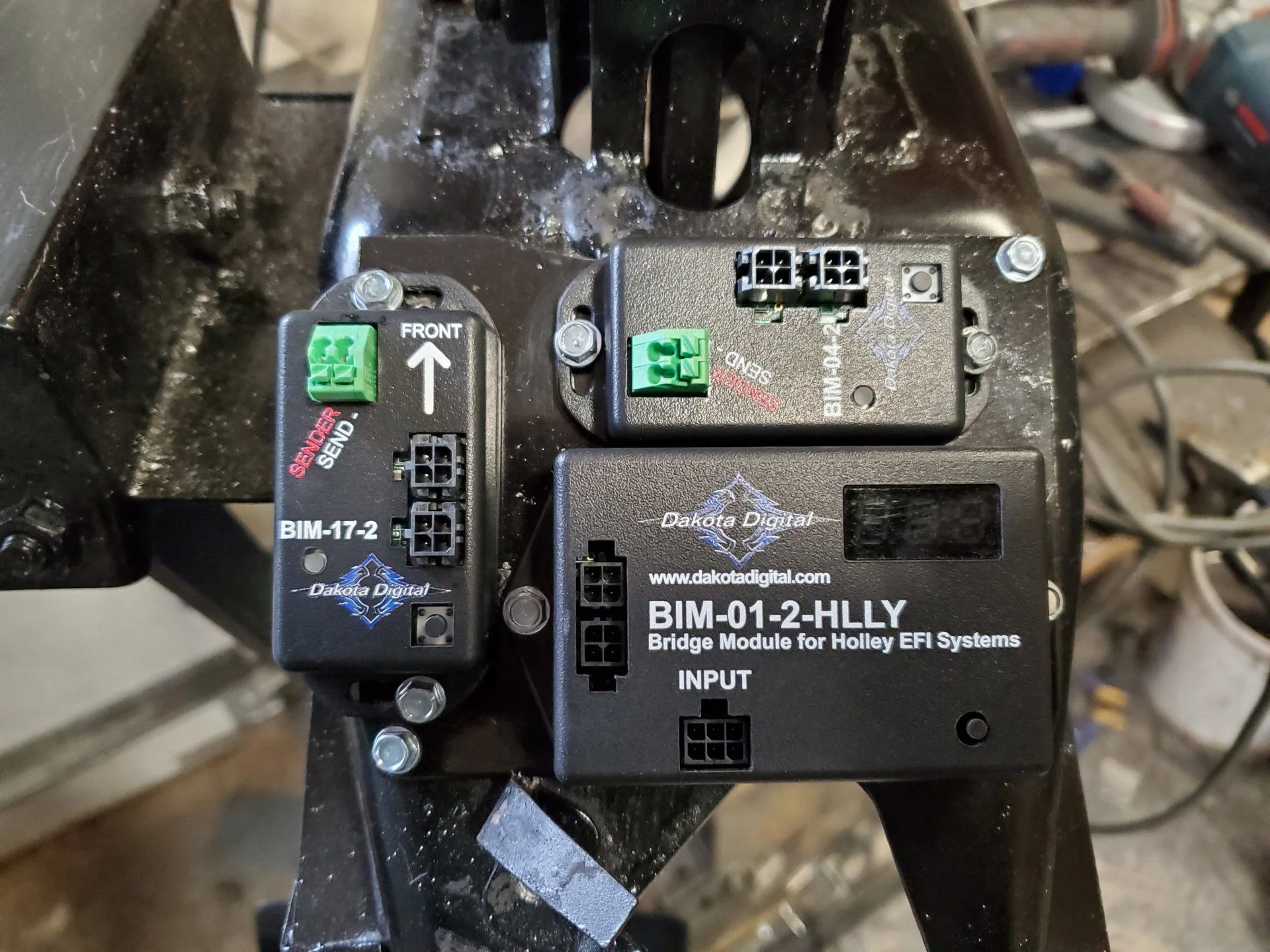

BIMs mounted



Main computer



Installed.

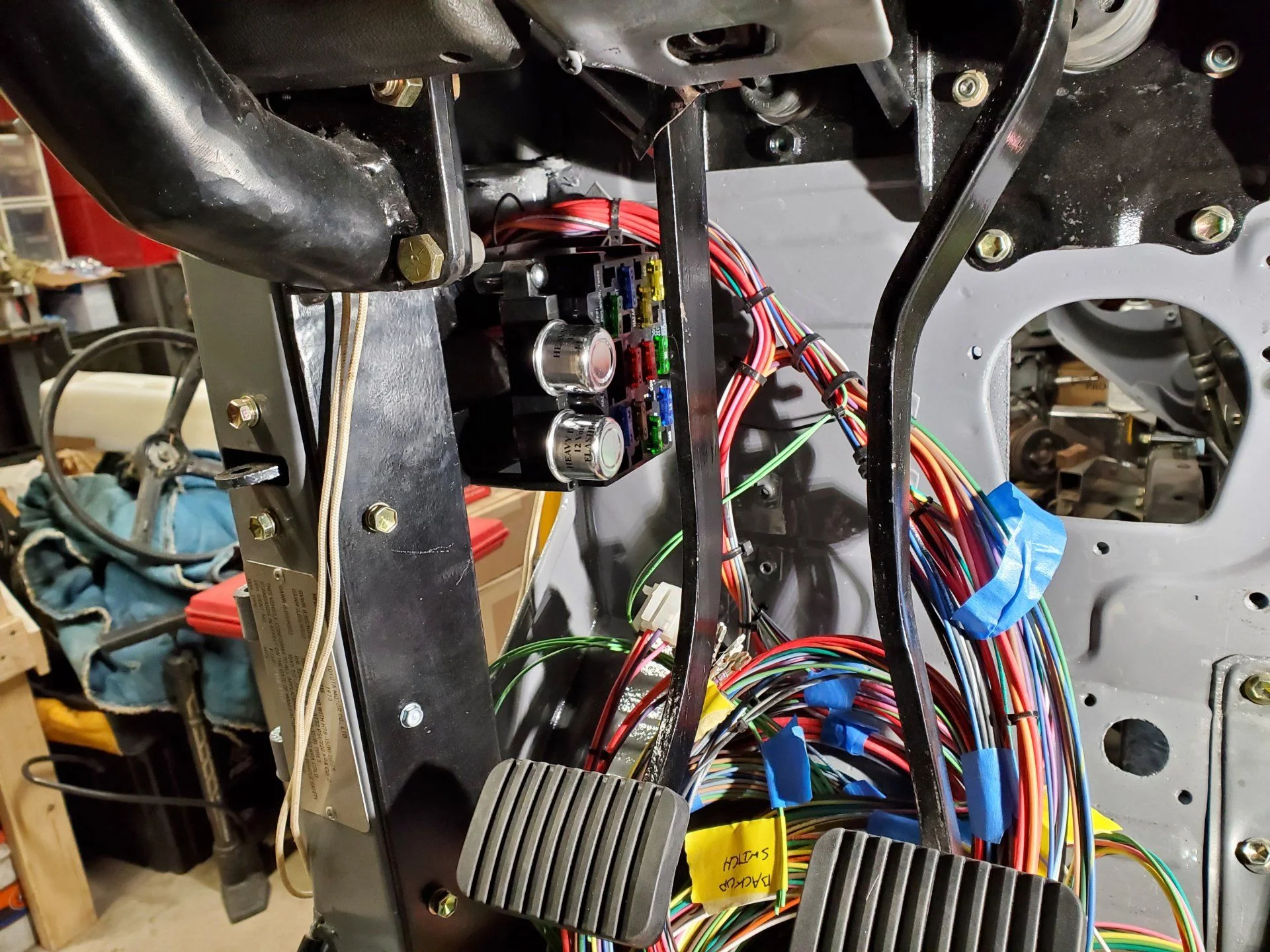

I got the fuse box in, as well as getting some City Racer bling installed on the clutch and brake.

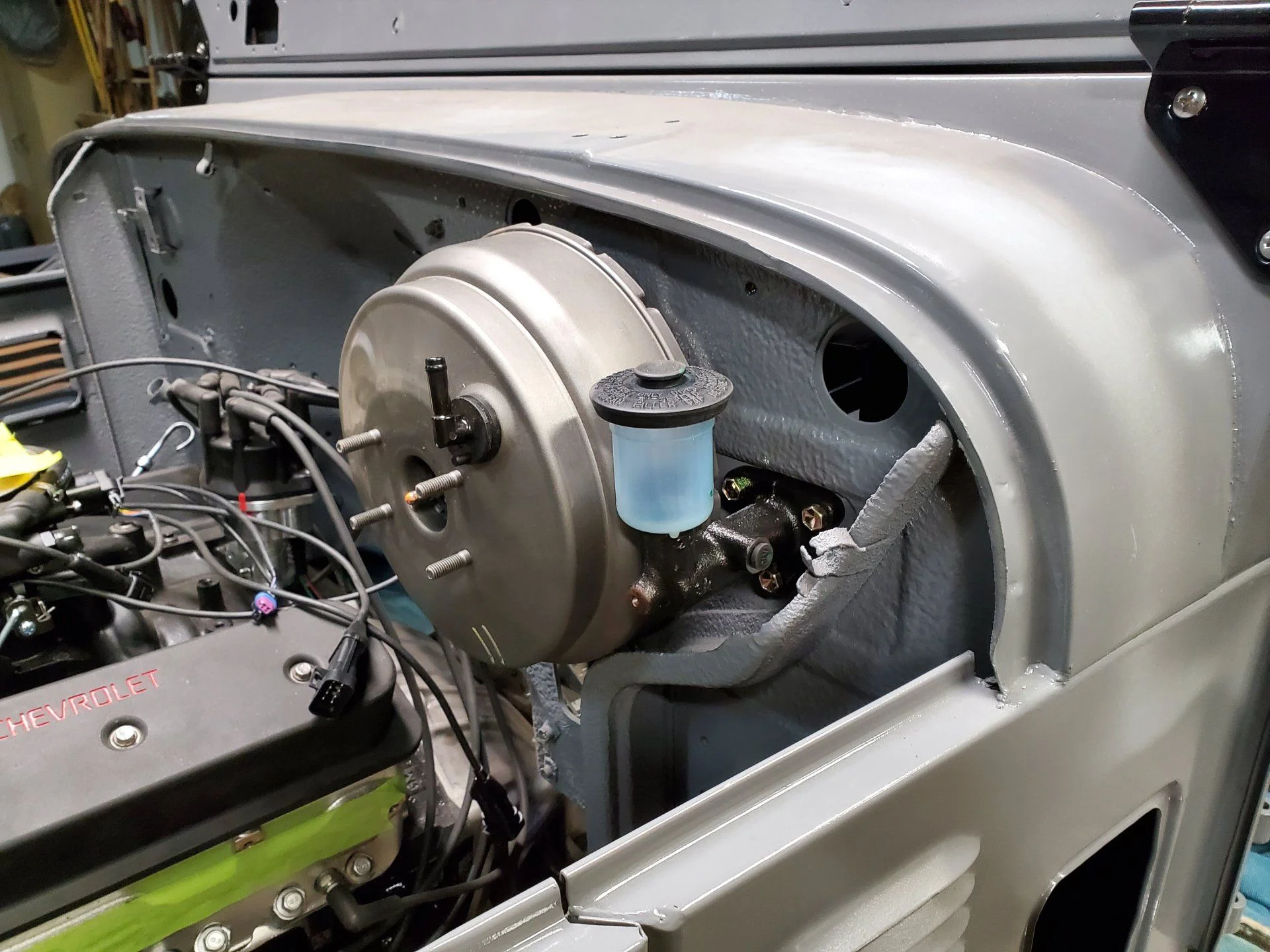

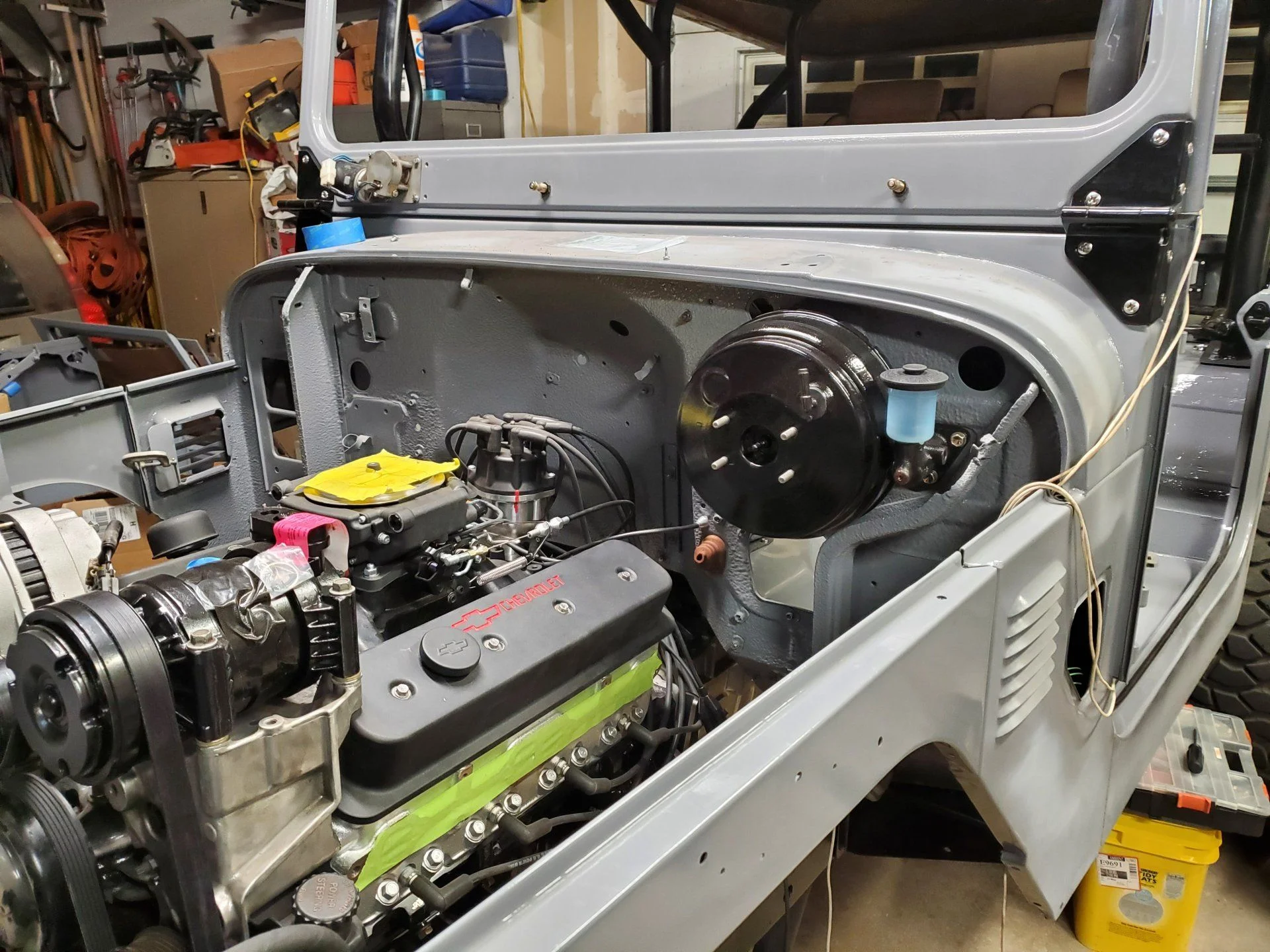

Brake booster and clutch master installed. I'll get around to bench bleeding the brake master bench bled and installed soon.


Last edited:

DangerNoodle

Essentially a fire wielding monkey.
SILVER Star
Joined
Oct 25, 2019
Messages
2,087
Location
Divide, Colorado
Website
www.instagram.com

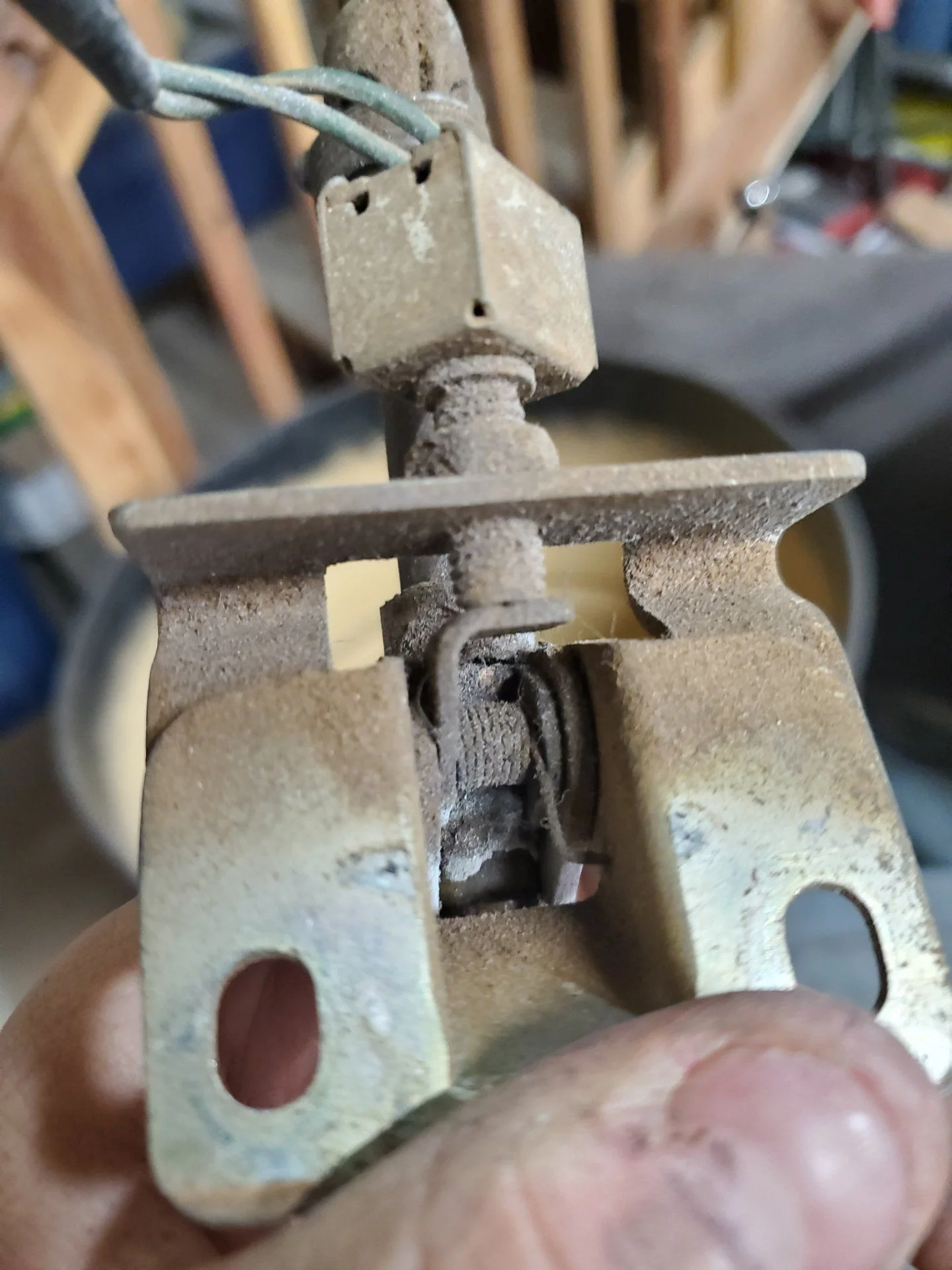

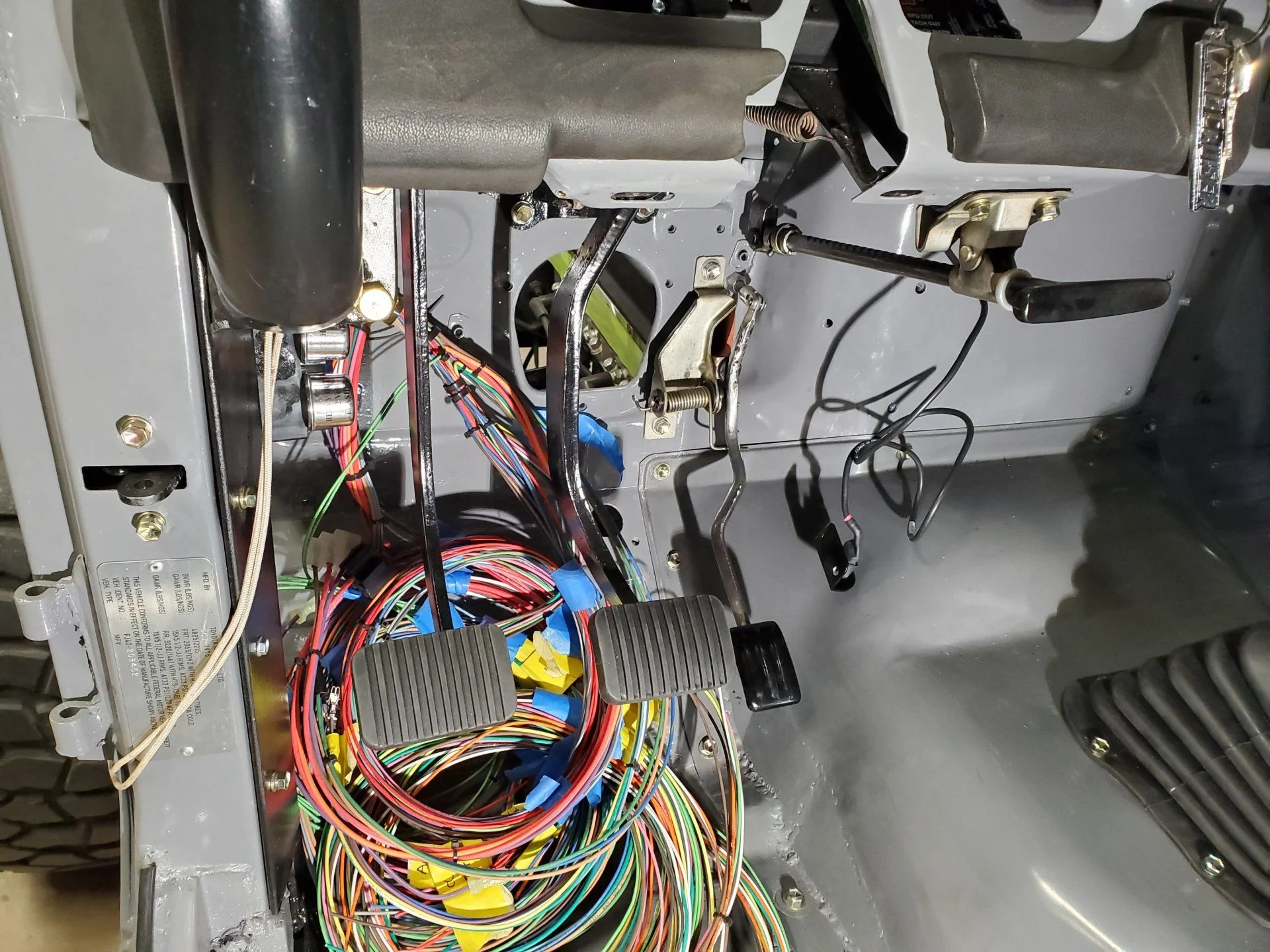

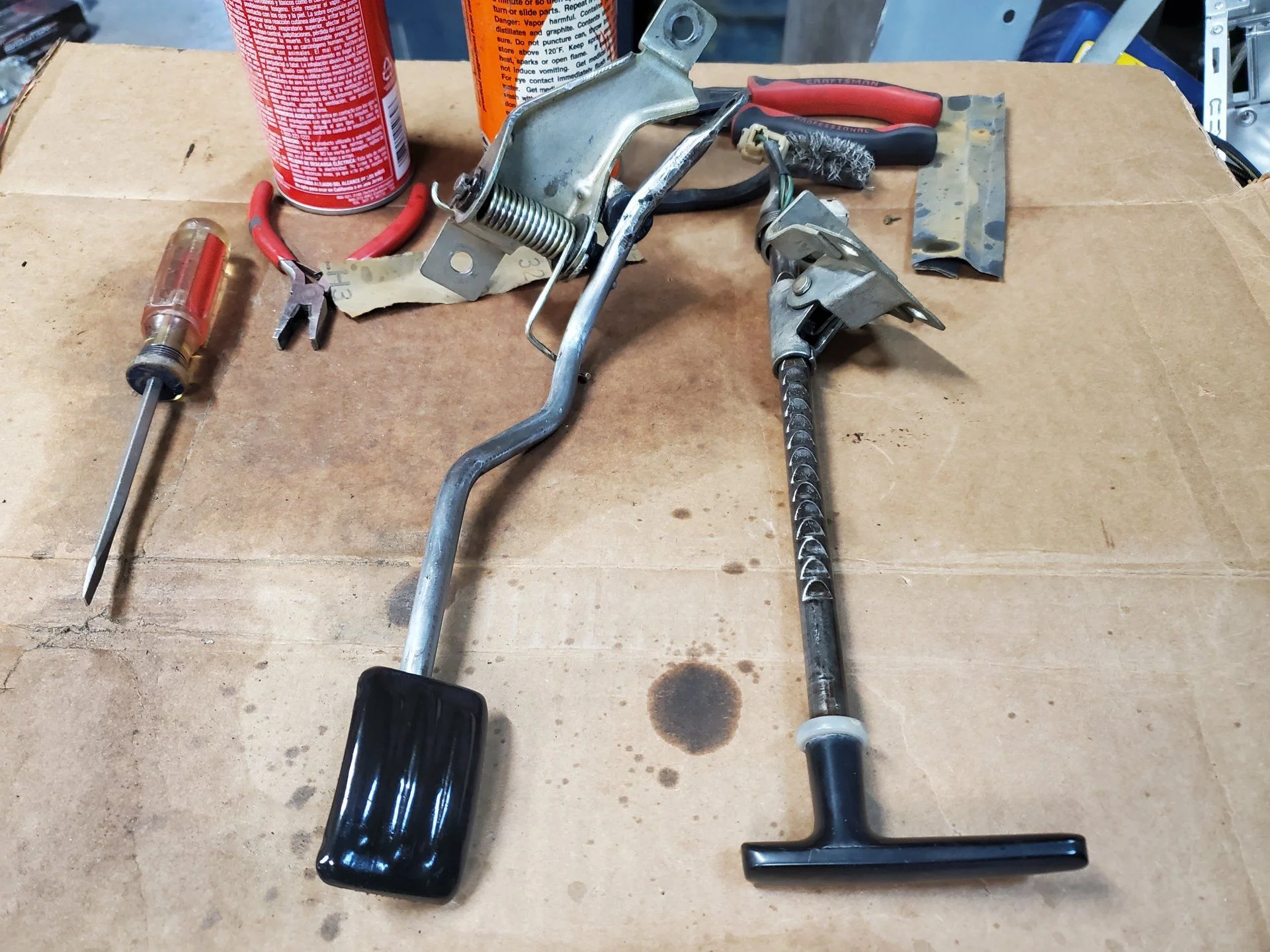

I started today by cleaning off the gunk from my parking brake lever and throttle.



Cleaned up.



Installed.

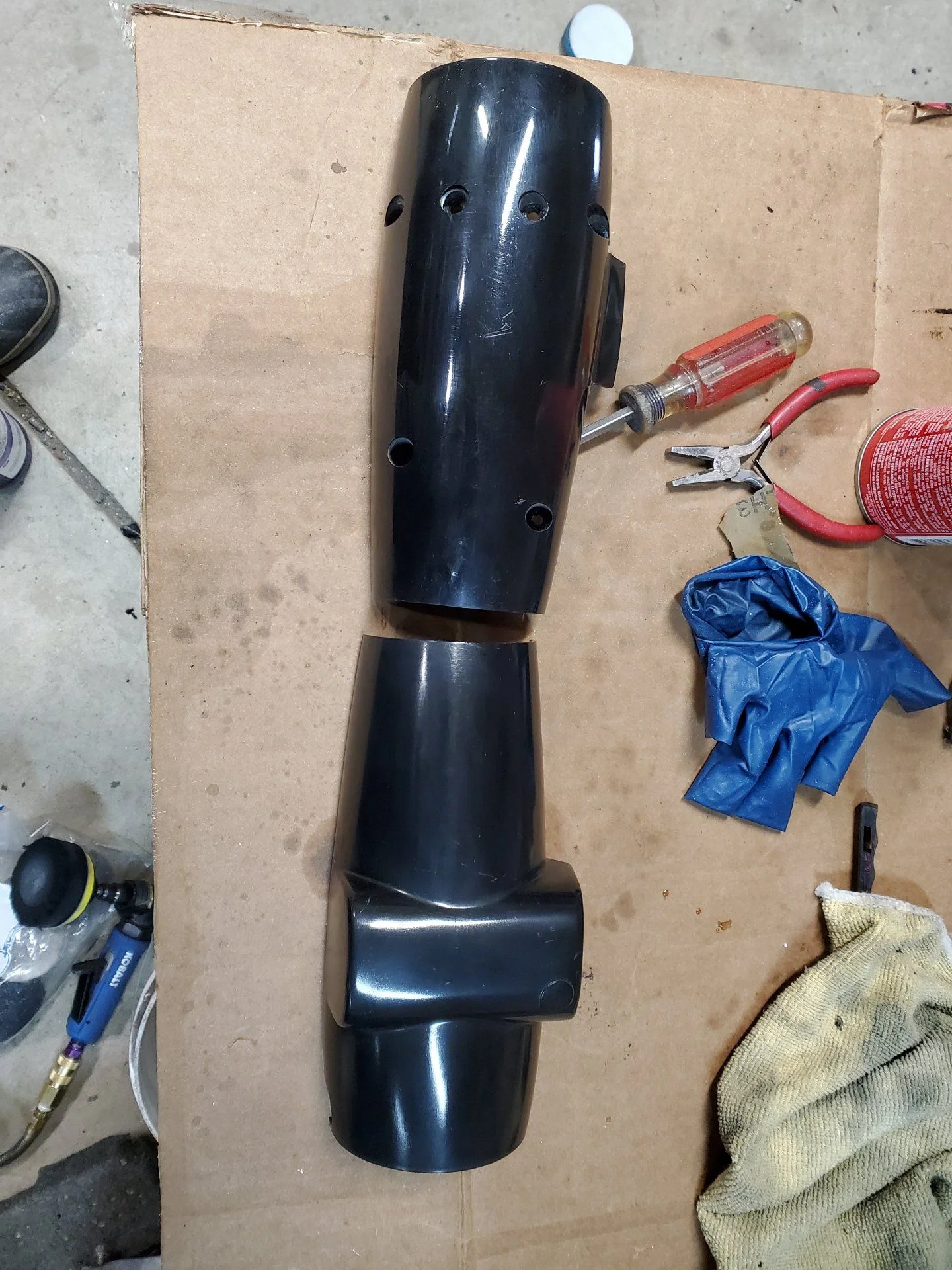

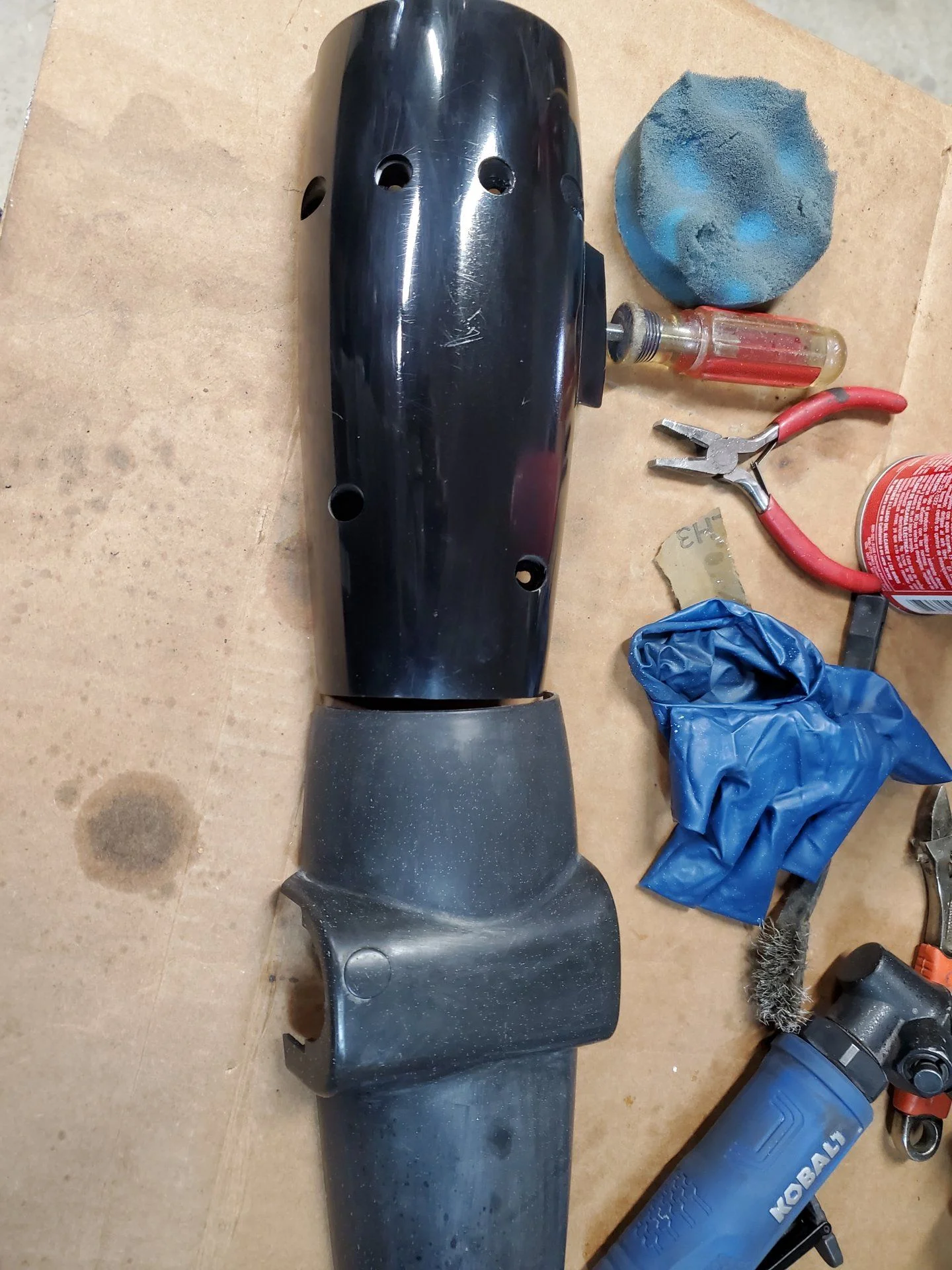

I started cleaning up my steering wheel housings. I cleaned them off with soap and water, then used the first stage of the 3M Perfect-it to buff. I think it turned out great.



Other side done.



DangerNoodle

Essentially a fire wielding monkey.
SILVER Star
Joined
Oct 25, 2019
Messages
2,087
Location
Divide, Colorado
Website
www.instagram.com

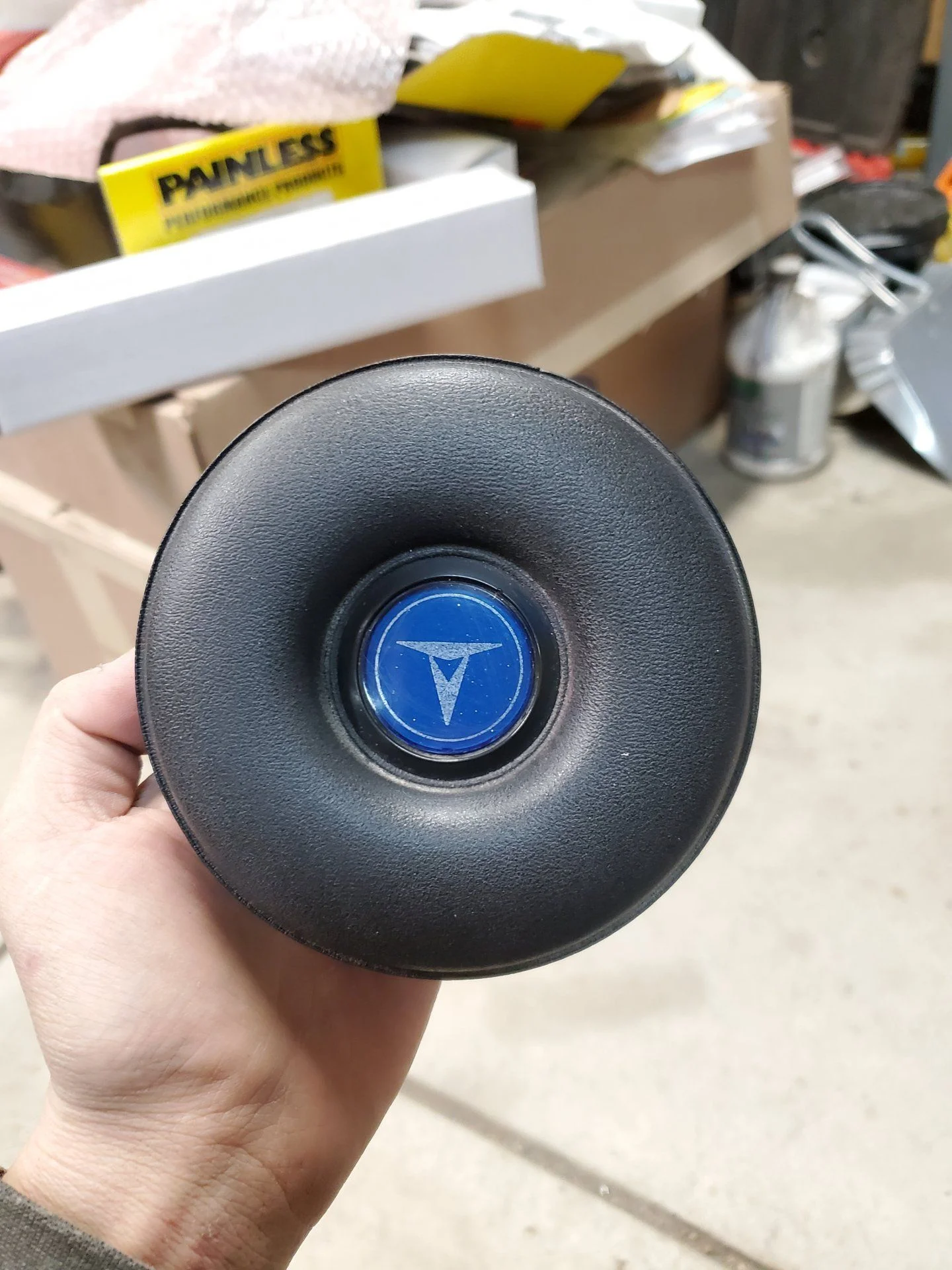

I also buffed the wheel pad.

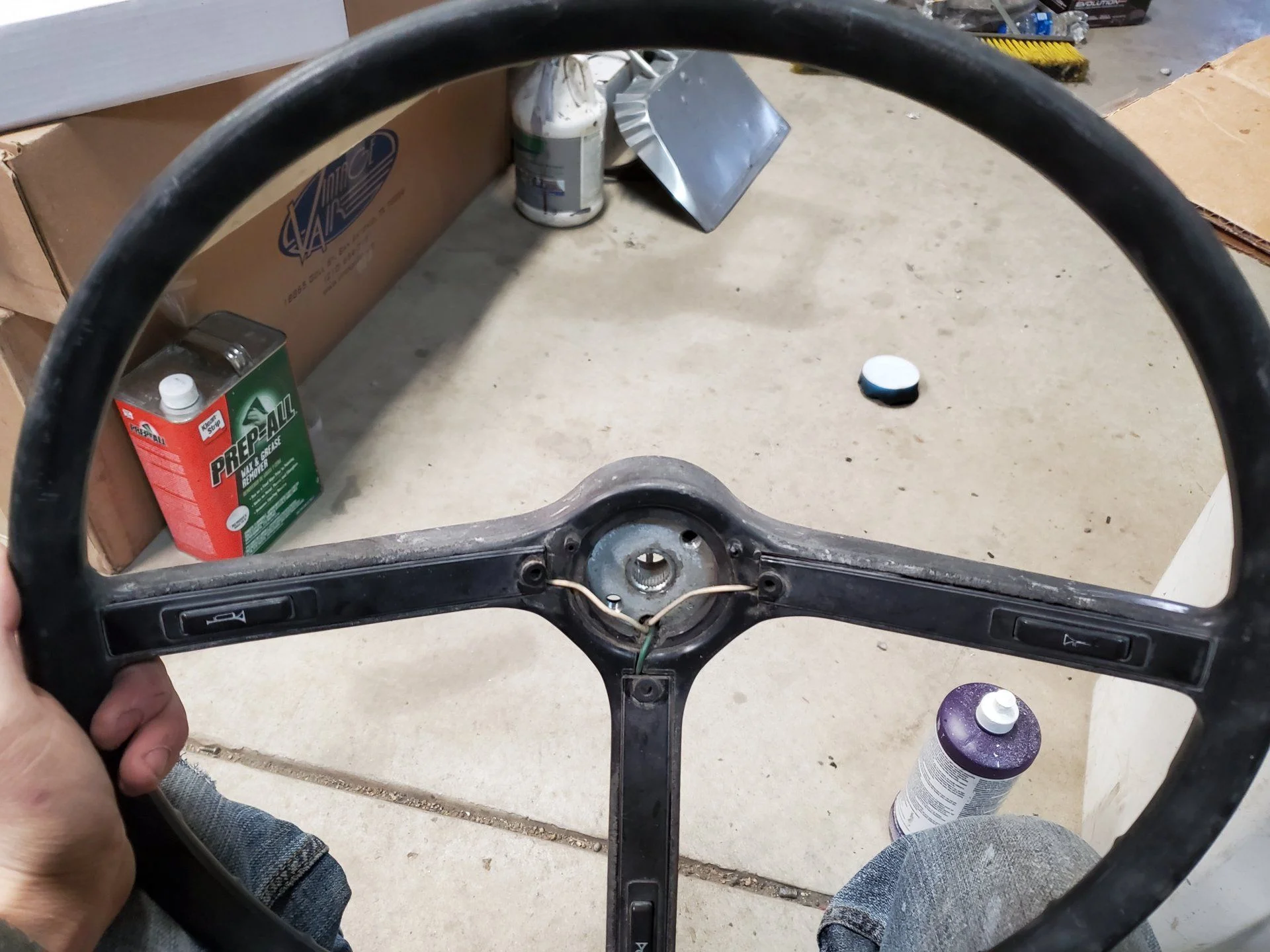

Here is how the steering wheel started.

The upper half was pretty sun baked, but it's more than good enough for this build.

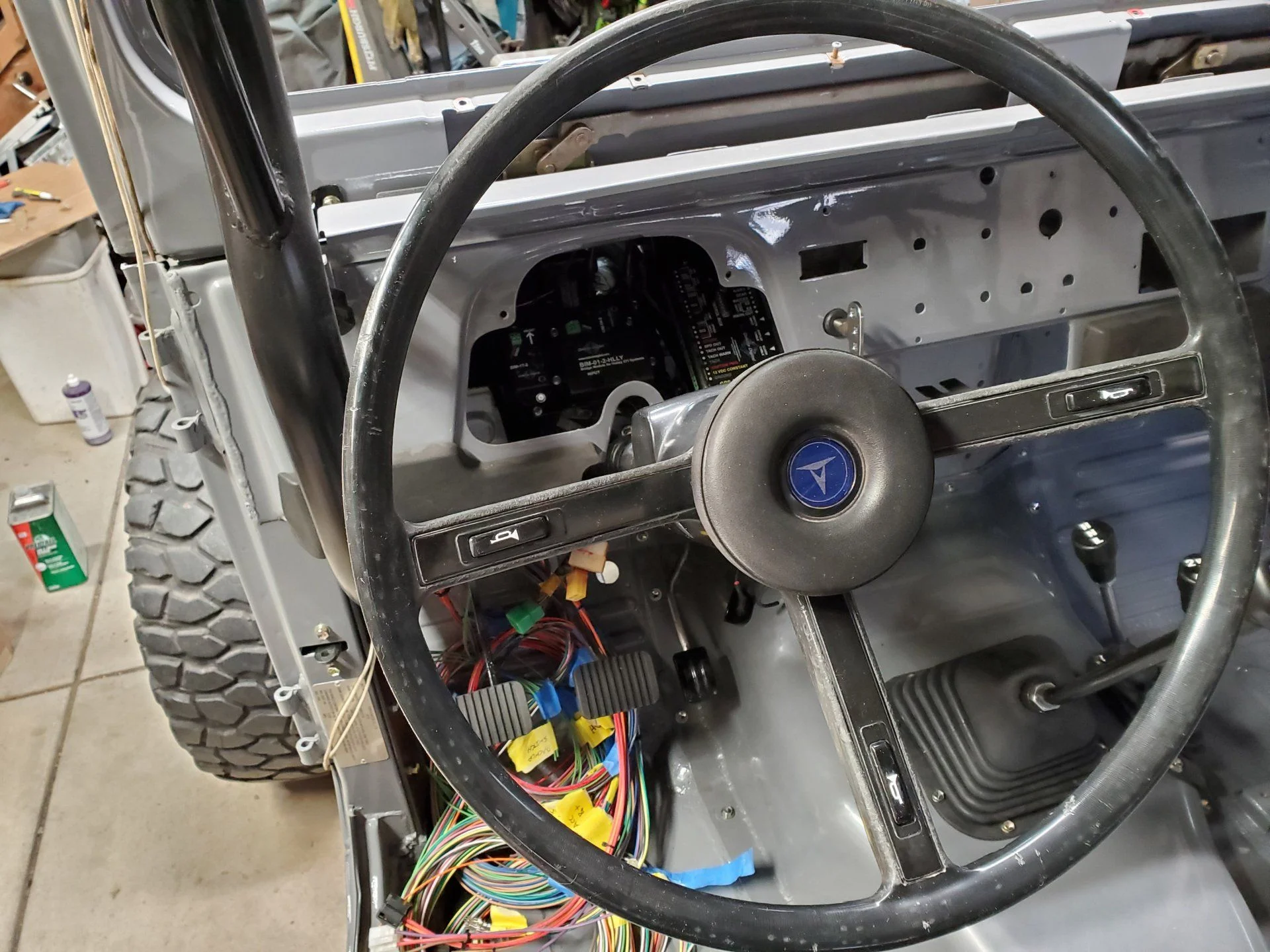

Buffed and reinstalled. I guess the PO had a wrap around it at some point, cause you can see all the bleached circles on it. Oh well.

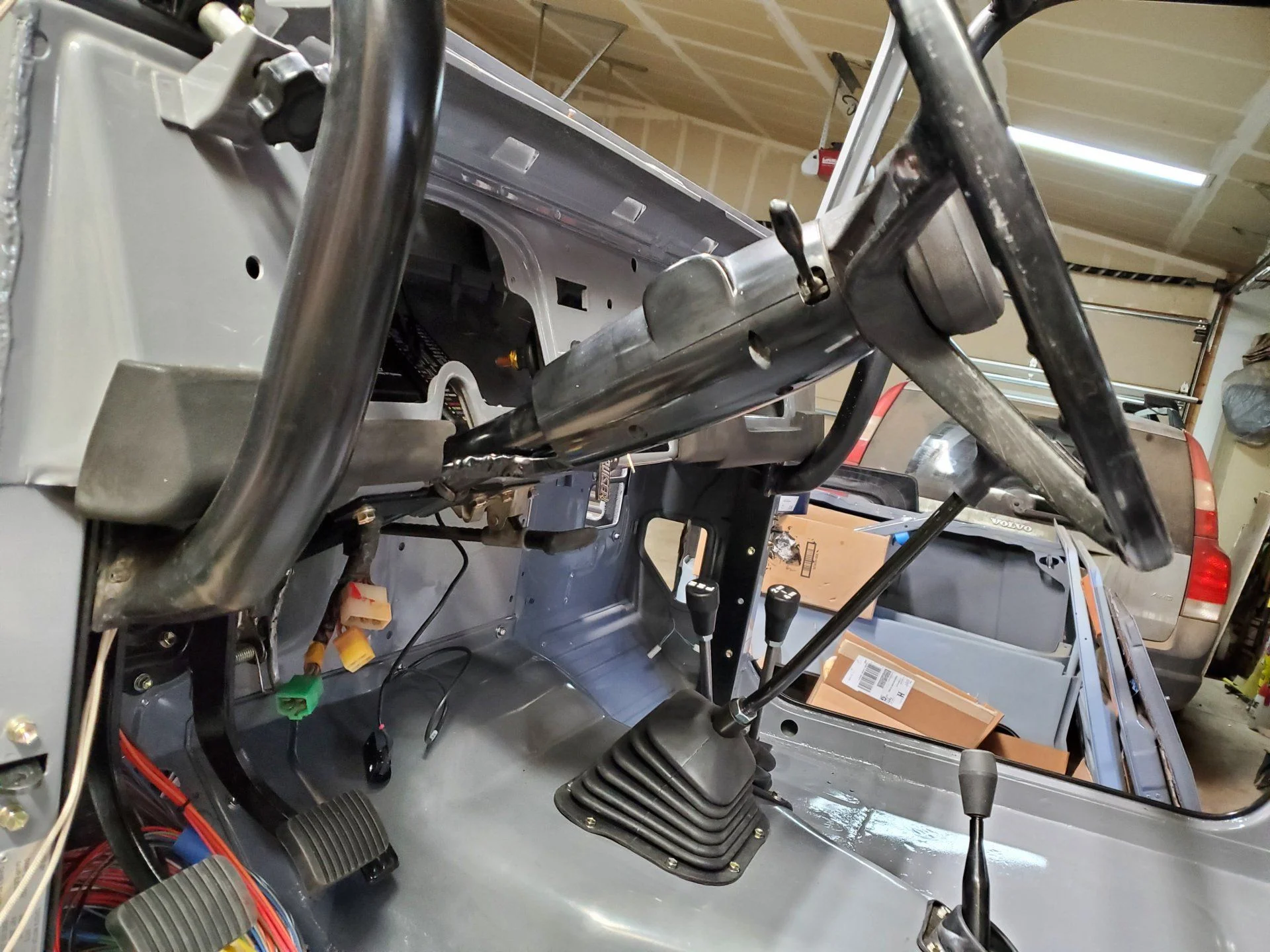

Covers reinstalled.

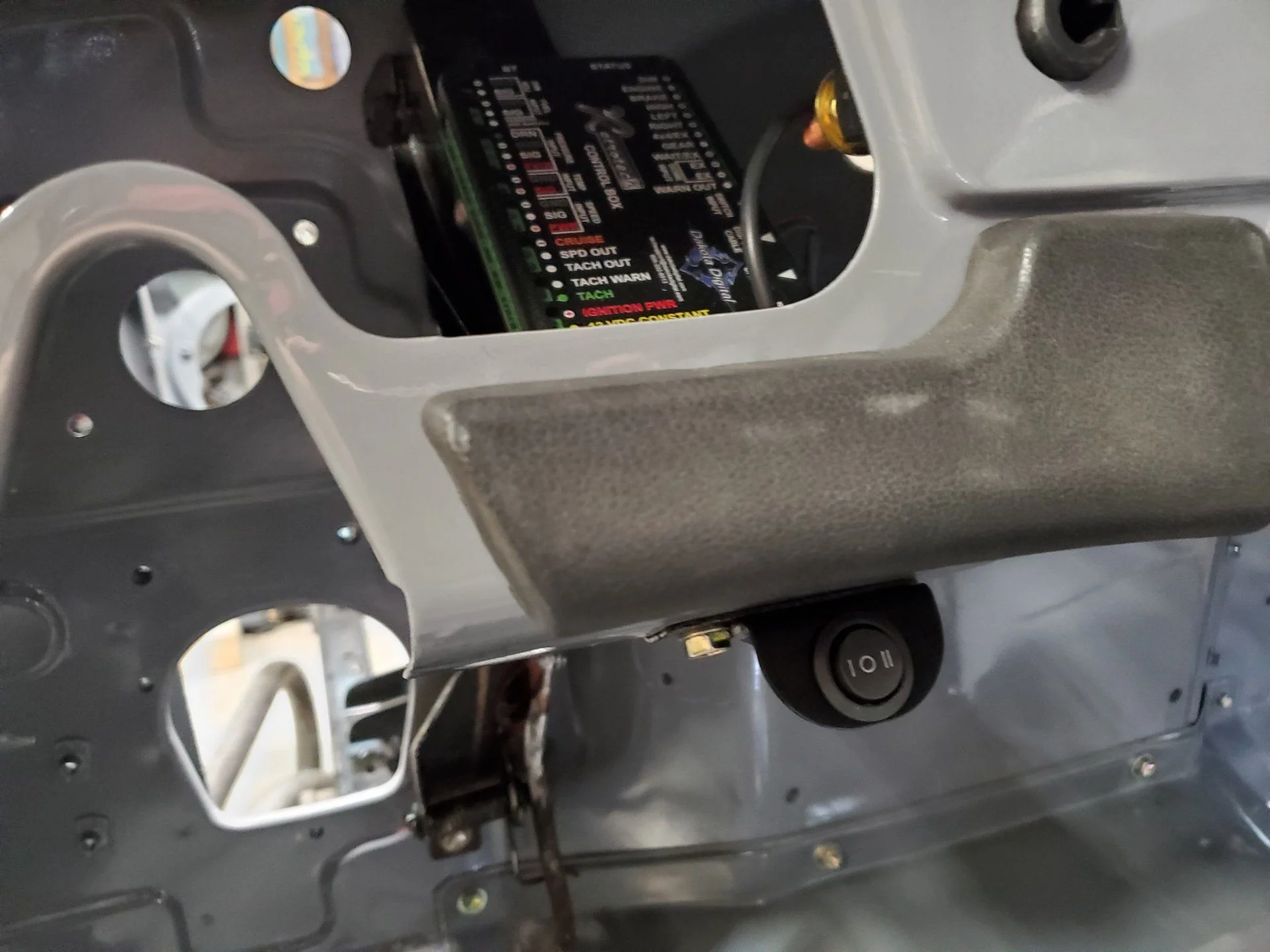

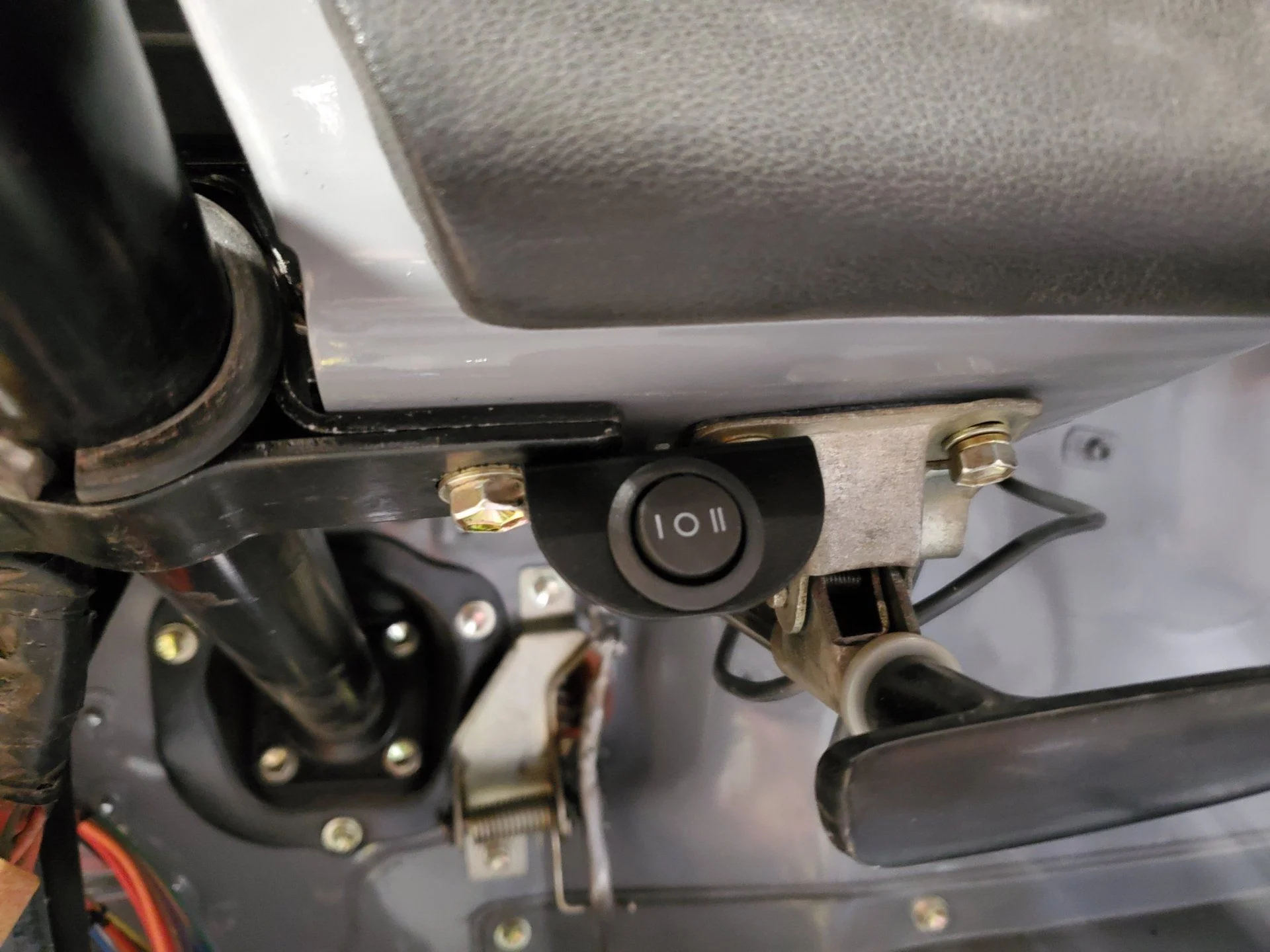

And I got the Dakoda Digital switch mounted. I think it will be a good place for it, and it is easily accessable.


Last edited:
