[GW Nugget]

It's 105° on bloomin June 1st UGG!
Well, have you ever not wanted to do something, but you gotta?
I have 3 trips planned this month & I blew a Birfield in my local creek here near my house.
So here we go....

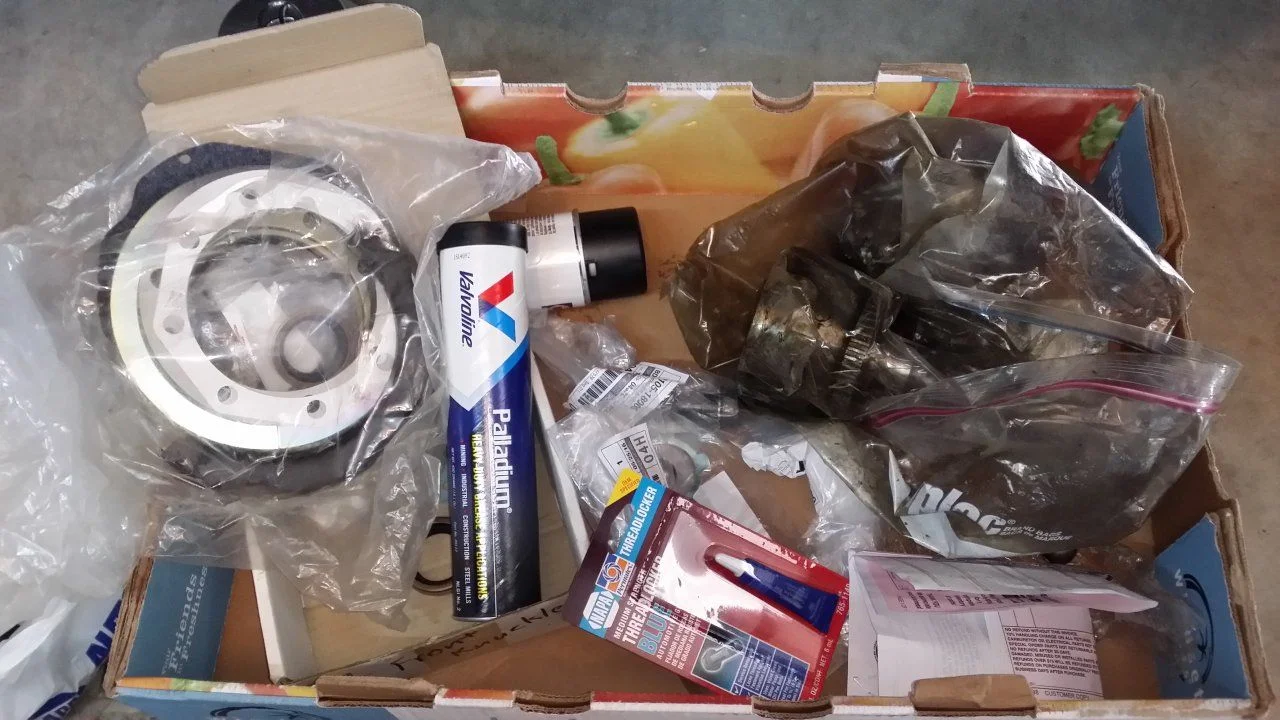

Thanks to @ToyotaDon he had some spare parts to get me out of my delima.
I owe Don bigtime... thanks.

Does anyone else's toolbox look a messy as mine.



[silverhorse]

so did you have the wheel turned when you blew the birf? Thats the only way to break one!



[GW Nugget]

Well, i guess i need to tell the story.
Yep, Elocked front & rear, driver side tire completely stuffed in fender touching front top & firewall at full lock to left on two tires climbing some sand ditch... what was I thinking? Oh yeah, full air preasure. Another thing the axle seal just started leaking about a month ago & when I got in there it was just soup in there... I'm sure this wasn't good for the birfield either.

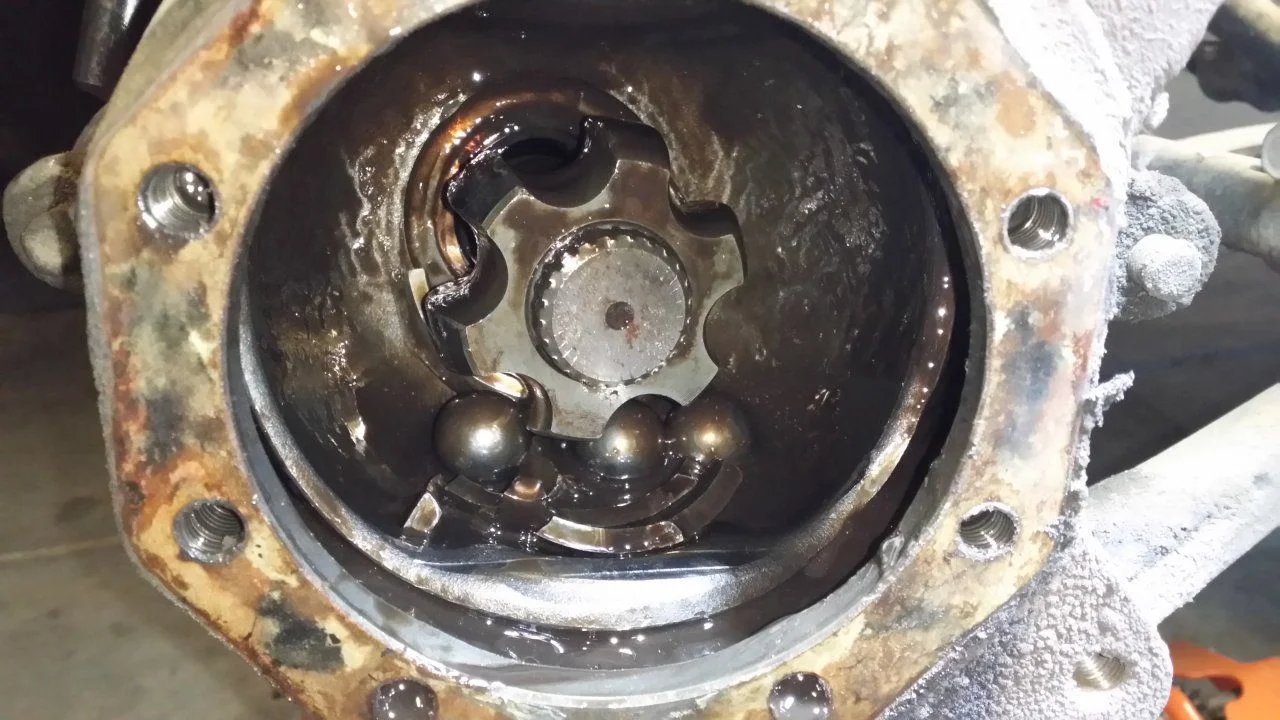

Now that I just got this apart, this might be a full rebuild rather than a quick birfield field replacement. The birfield inner cage is destroyed.

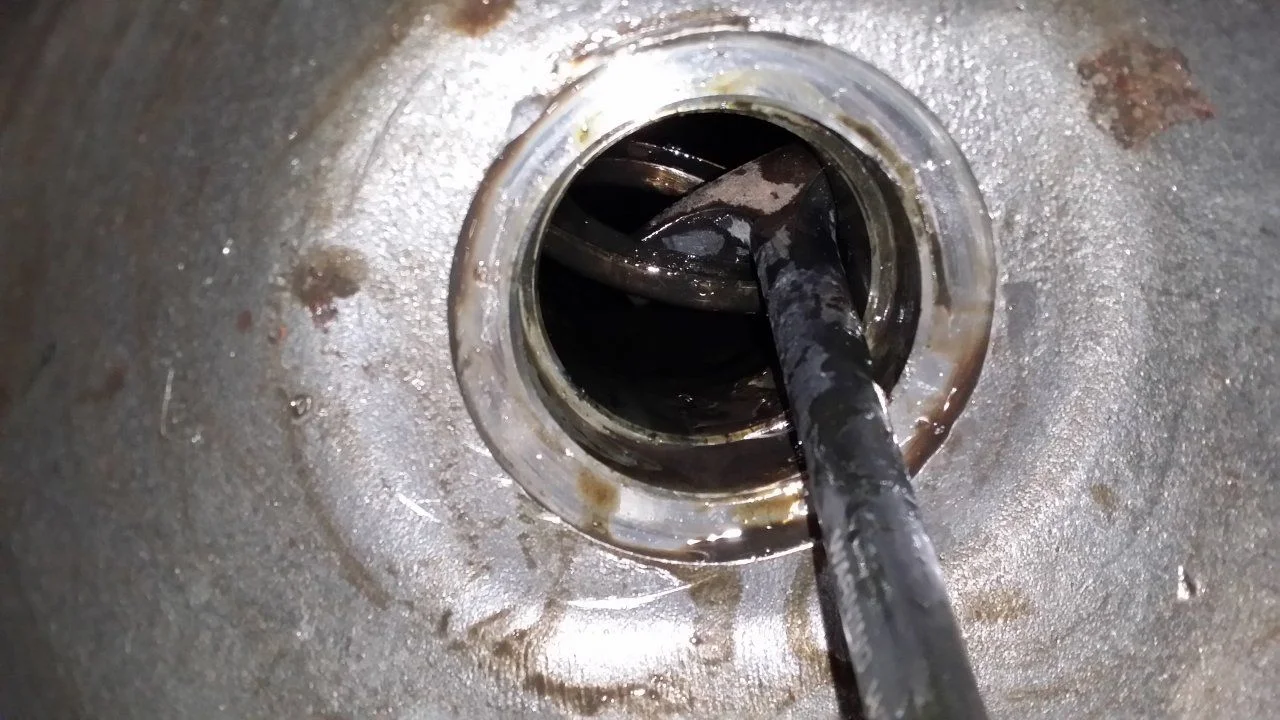

At this very moment I'm trying to figure what this un expected thing is in my axle housing. I didn't see this in any of the axle rebuild videos & I don't have a factory manual. Any guesses?

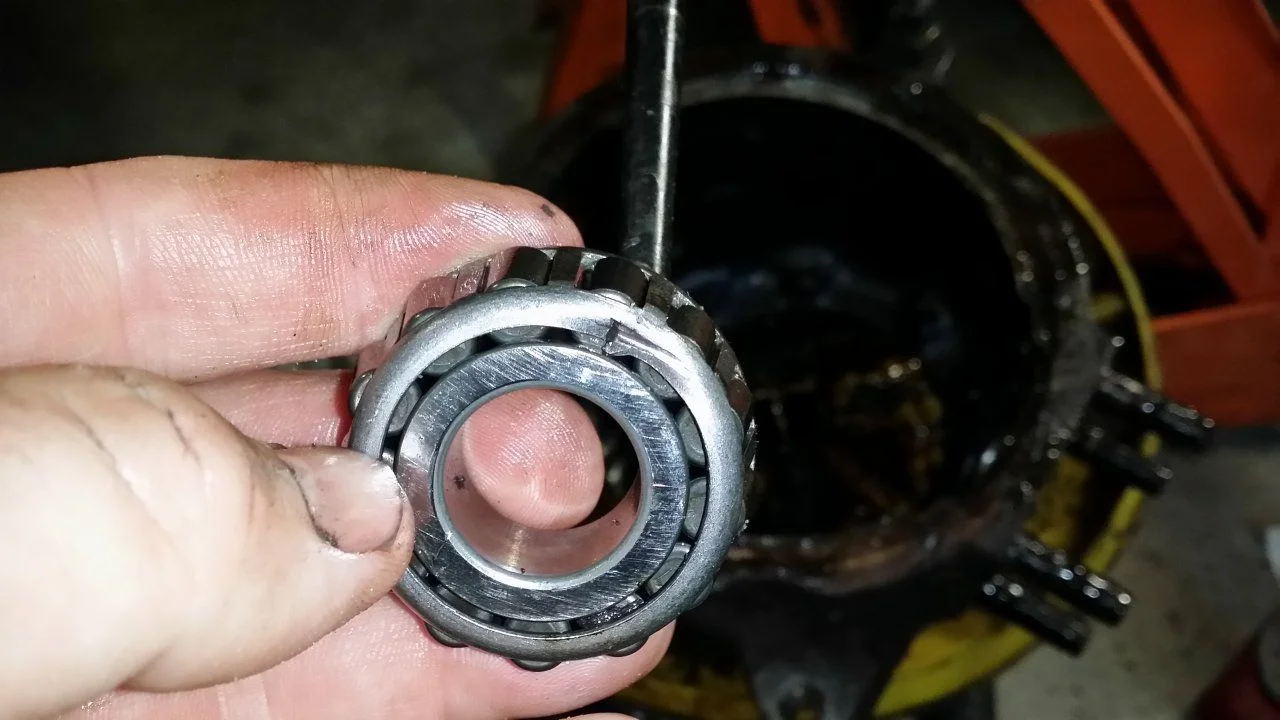

Also I'm thinking I need to go ahead & replace the bearing since it's got a gouge in it.

Yeah, silly birfield slash axle rebuild action coming to you live... stay tuned.



[silverhorse]

yep might want to do a check / rebuild while your there....



[BlueCruiser84]

Huh. So it just broke in that scenario? No throttle or anything crazy?

Maybe it was just it's time.



[ewillis]

Dang! No bueno!



[GW Nugget]

Just enough gas to get the tire to turn.

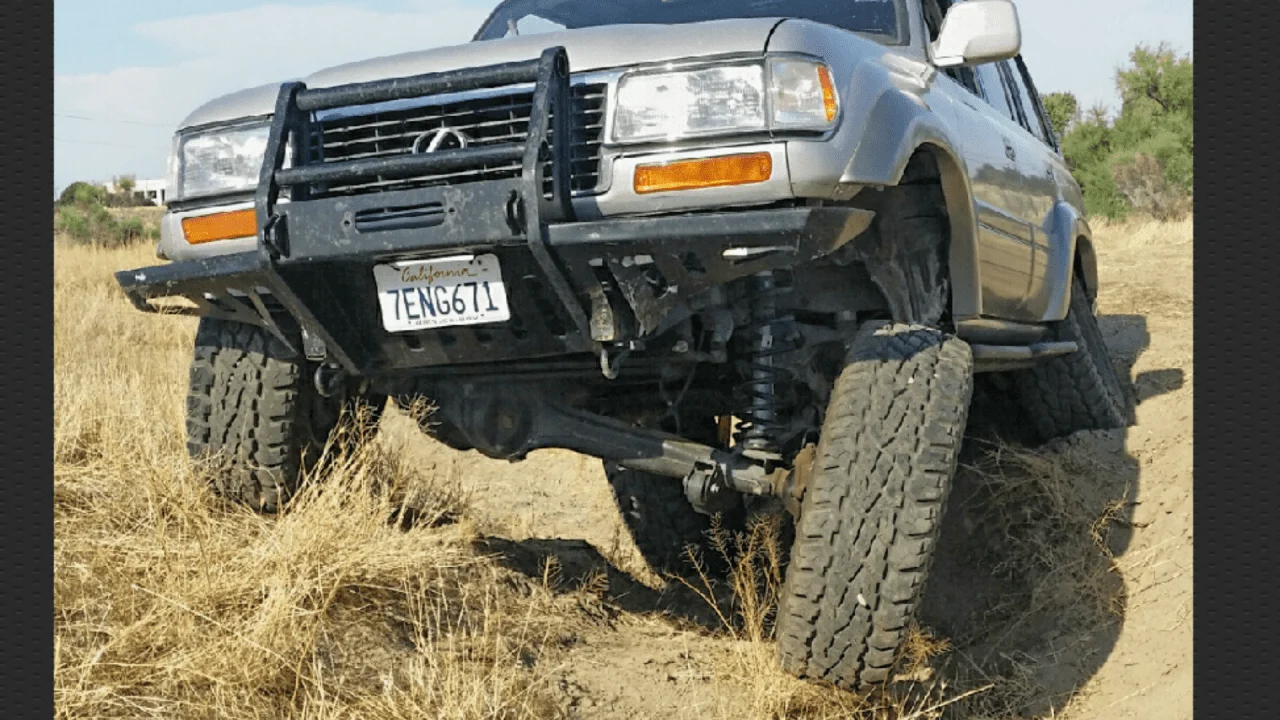

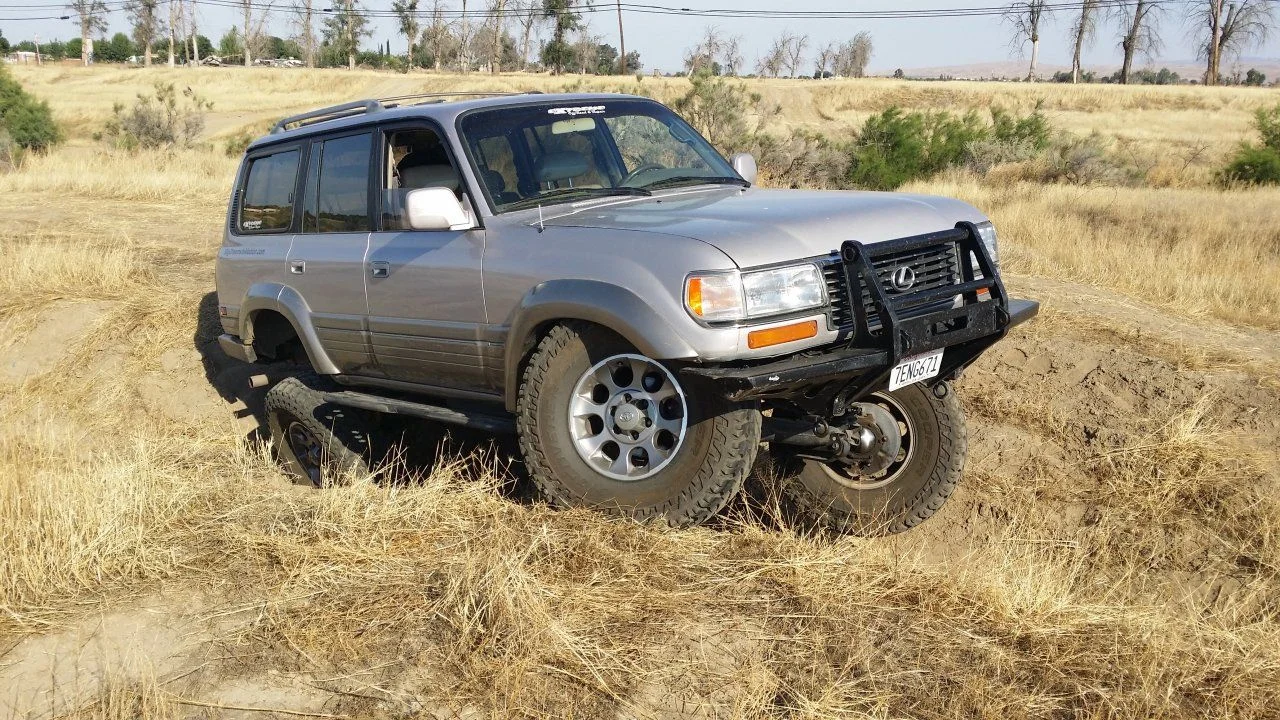

Well, I was flexing to cut my flares out of they way. Here was the pass. side action.
Also I heard it clicking once at full lock when I was at Pismo last month.



[1973Guppie]

sounds like it was just it's time, especially if you heard clicking, mine are probably due to follow suit here soon, hopefully I am wrong.....



[scottryana]

Check your bumpstops. I doubt your birfield just died and blew apart if the tire was free to roll. I am sure it was bound up in the fender in some way.

The thing inside your axle is kind of a guide to get the axle shaft to slide in. It was tacked inside the tube but a lot of guys have seem them break the tack and floating around like yours. Most usually end up cutting it out as I think it's too hard to get back in and get it welded.



[ToyotaDon]

Check your bumpstops. I doubt your birfield just died and blew apart if the tire was free to roll. I am sure it was bound up in the fender in some way.

The thing inside your axle is kind of a guide to get the axle shaft to slide in. It was tacked inside the tube but a lot of guys have seem them break the tack and floating around like yours. Most usually end up cutting it out as I think it's too hard to get back in and get it welded.

From the pictures on my phone, it looked like an old seal. Your explanation makes sense.



[GW Nugget]

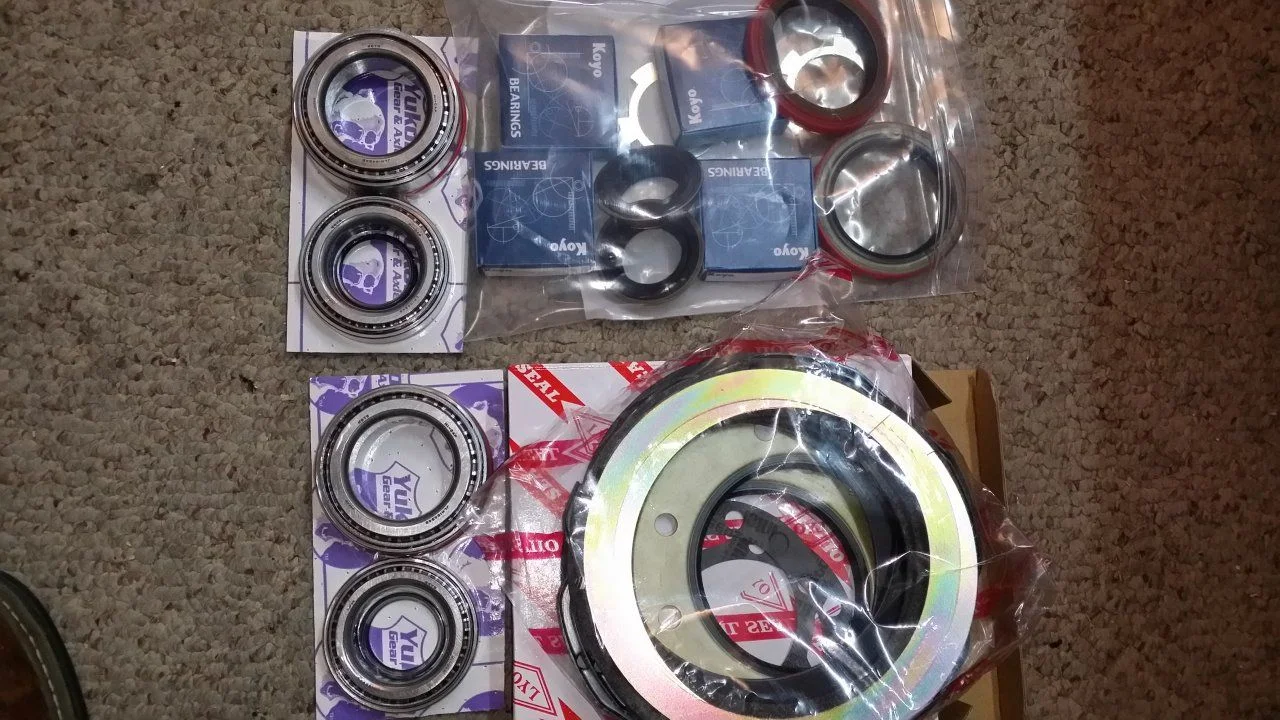

Alright, I just got back from Marlin Crawler in Fresno to get a rebuild kit with bearings. I need do it correctly rather than a cheap quick & dirty birfield replacment. Besides my outer bearings are looking burnt brown.

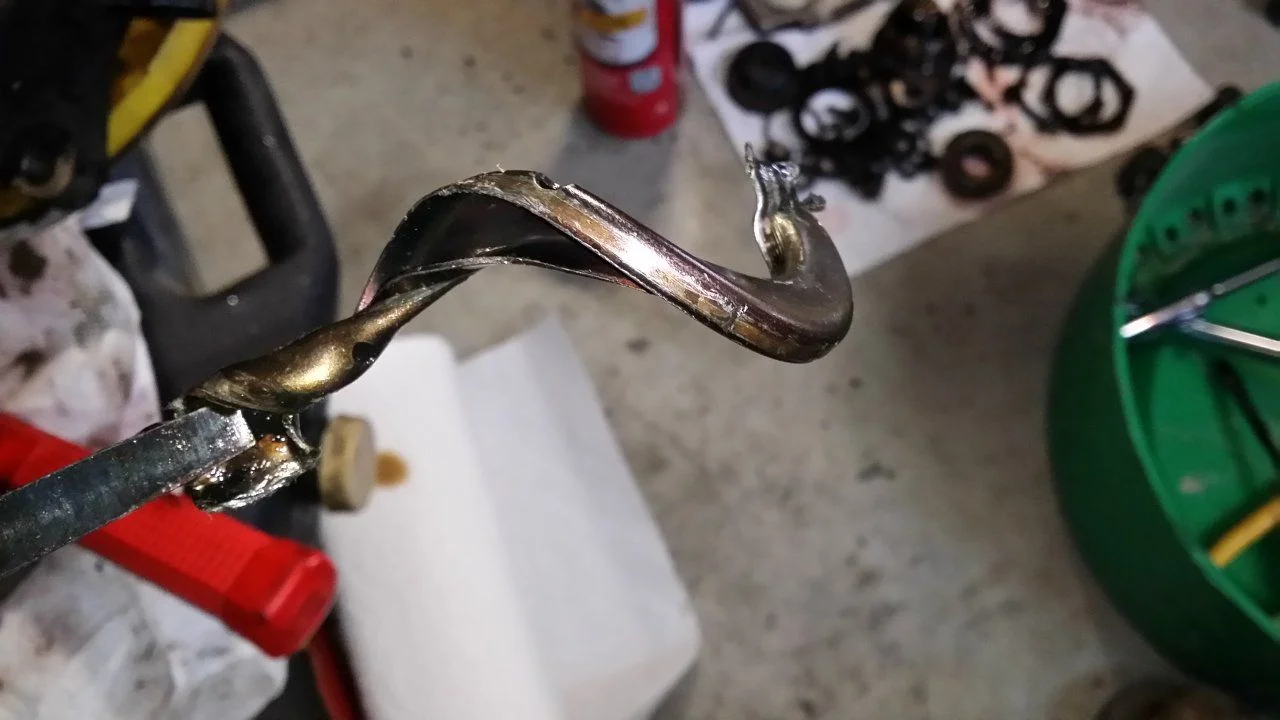

What ever it is... its not in there anymore.



[schradec]

Isn't there a seal that sits inside the axle tube that can sometimes fall and need putting back in place?

"Shine a flashlight into the axle housing and look around. There should be nothing visible loose in the

housing and there should be an index ring about 2 inches from the oil seal flush against the inner lip

of the machined surface (it may look like part of the housing). This ring can occasionally come

loose. If it has it will likely be lying in the housing and you will need to reseat it"


From those previous posts though maybe all is well without it?



[tweeek]

I dont think removing the ring hurts anything other then making it a little more difficult to seat the axle after your rebuild.



[GW Nugget]

Well, you three that posted are correct.
In the axle rebuild FAQ it's plain as day.
Now that it's out im wondering how im going to get the axle in with out damaging the seal? Hmm? Some folks learn the hard way...
Here is a copy snip from FAQ:
Pic below is a good view of the index ring inside the axle tube:

I didn't get it all in last night. It took way longer than I thought to clean parts.
I'm just ready to slide in the axle. The C clip gave me some fits...

The messed up thing is I'm scheduled to leave today to go camping. Im just here at work burning day light spinning my wheels.
I just need get a can of Get-R-Done opened & Get it Done when I get home.



[megolfer]

Landcruisers and mini trucks dont have a index ring. Just dont let the axle rest on the seal



[schradec]

You got this!



[scottryana]

Yeah, grease the back of the seal to hold the spring in. Guide the axle as best as you can, you can get it almost all the way in before you need to let it ride the seal. It will be ok.



[GW Nugget]

The Cruza is back on all 4s...
Thanks all for all the helpful comments.
We got the trailer hooked up &now can get out of this 100° degree heat, go have some fun, relax & eat some good food.
