I would run #2 to the back of the truck and hook up an inverter as well.Pure copper welding cable, I have been advised to use # 4 Gauge AWG. I well be testing some #6 Gauge if i don't get satisfactory result #4 gauge it well be.
Curious minds want to know.
Builds Broski's Adventure Rig build thread (18 Viewers)
- Thread starter Broski
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
Loving this design. I will be copying. Ordered my PUMA this week after my Viair pooped out when trying to fill up the 37s. It was a little one so I was pushing it and expected he outcome.
- Thread starter
- #323
I run a group 31, so definitely not going to fit. Ha ha
My extreme air kit came with 4 ga copper welding wire and an 80 amp bussmann c/b. Your motor appears to be similar in size to mine, I’d go with 4 ga from the start.Pure copper welding cable, I have been advised to use # 4 Gauge AWG. I well be testing some #6 Gauge if i don't get satisfactory result #4 gauge it well be.
Curious minds want to know.
Remember that my compressor was cutting out periodically as we aired up after running the Dusy Ershim? I tracked it down to a failing c/b. I sent it back to extreme air, he tested it and agreed that it was popping too soon and he sent me another. If this same issue arises again in the future I’ll go up to 2 ga wire and a 100 amp c/b.
I'm running
Edit: That should read #8 AWG
Last edited:
a
There is a direct relationship between amp draw and performance. In most cases higher amp draw will result in higher performance.
The Extremeaire is an excellent compressor and much faster than a Puma with higher amp draw but the price reflects that.
The Puma maxs out at 50A prior to shutting off.
I have seen guys run Pumas with #10 to #2 I recommend #4 for most.
Me I set my RPM at ~1400 use #4 and my compressor is under 2' from my battery. I see almost 13volts at the compressor when airing up.
Extremeaire Magnum pulls 82amps so easy to see why you were tripping.
There is a direct relationship between amp draw and performance. In most cases higher amp draw will result in higher performance.
The Extremeaire is an excellent compressor and much faster than a Puma with higher amp draw but the price reflects that.
The Puma maxs out at 50A prior to shutting off.
I have seen guys run Pumas with #10 to #2 I recommend #4 for most.
Me I set my RPM at ~1400 use #4 and my compressor is under 2' from my battery. I see almost 13volts at the compressor when airing up.
He says 80 amps. Seems like he would send the kits out with bigger wire and breaker if he was having an appreciable number of warranty issues with this. I will expect this to happen again. I took a little over one year for the problem to begin.
Specs:
-1.5 HP Motor
-82 amps draw @ 100 psi
-Continuous Duty Rating @ 150 psi, 200 psi max pressure
-6 CFM @ 0 psi
-2.6 CFM @ 100 psi”
-Weight: 20 lbs.
-Dimensions: 16″ long x 6″ wide x 9.5″ tall
- Thread starter
- #329
No I don't remember, what I do remember is my Viair was not doing anything and and I drove down the mountain loaded with gear and only 12 to 14 PSI in each tire. That's the best I could do with my setup. With the group ready to go and the impending Danger I would have rolled on the rims if I had too to get off the mountain.
And the main reason for the upgrade.
I was unaware that you have the EA please post pics of you setup and how you have it mounted
- Thread starter
- #330
On board Air is done
Air line and power switch
50 Amp CB for the power
The mounting bracket
installed
Air line and power switch
50 Amp CB for the power
The mounting bracket
installed
- Thread starter
- #331
I ran a #4 wire 2' long from the battery to the 50 amp CB, I ran a #6 wire 15' long from the CB to the switch. At start up I have 13.78 volt at the motor running, non stop by the third tire it droped to 13.7 volts. aired up all 4 tires and the wire was still cool to the touch. The Puma was warm but not to hot.

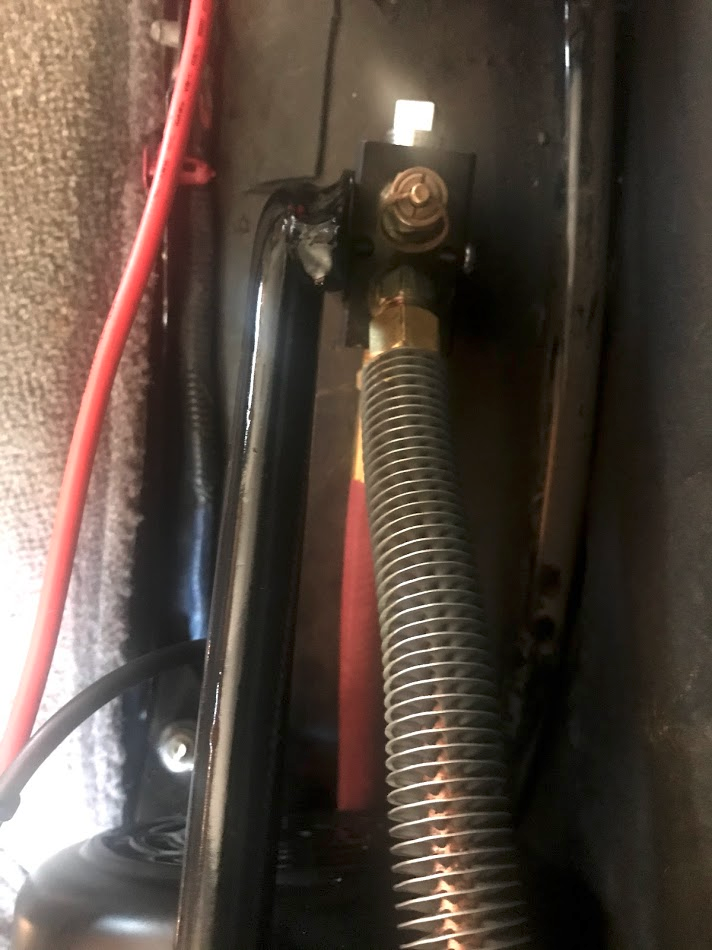

The system is tank less and free flow with a Jaco Lightning S-Series Air chuck, I utilized the copper pipe with the cooling Finns and the blow off valve.
And then plumed to the rear bumper.
Theirs no pressure Gauge in the system. Just hook the chuck to the first tire start the Puma wait 1 minute 45 seconds, pull it go to the next tire do the same tell and 4 tires are done turn the puma off. All 4 39s aired up from 12 PSI to 25 PSI in under 8 minute. not bad
The system is tank less and free flow with a Jaco Lightning S-Series Air chuck, I utilized the copper pipe with the cooling Finns and the blow off valve.
And then plumed to the rear bumper.
Theirs no pressure Gauge in the system. Just hook the chuck to the first tire start the Puma wait 1 minute 45 seconds, pull it go to the next tire do the same tell and 4 tires are done turn the puma off. All 4 39s aired up from 12 PSI to 25 PSI in under 8 minute. not bad
I ran a #4 wire 2' long from the battery to the 50 amp CB, I ran a #6 wire 15' long from the CB to the switch. At start up I have 13.78 volt at the motor running, non stop by the third tire it droped to 13.7 volts. aired up all 4 tires and the wire was still cool to the touch. The Puma was warm but not to hot.
View attachment 2679240
The system is tank less and free flow with a Jaco Lightning S-Series Air chuck, I utilized the copper pipe with the cooling Finns and the blow off valve.
View attachment 2679242
And then plumed to the rear bumper.
View attachment 2679244
Theirs no pressure Gauge in the system. Just hook the chuck to the first tire start the Puma wait 1 minute 45 seconds, pull it go to the next tire do the same tell and 4 tires are done turn the puma off. All 4 39s aired up from 12 PSI to 25 PSI in under 8 minute. not bad
