what is this? (1 Viewer)

Joined
Apr 22, 2007
Messages
501
Location
on the road
Website
www.landcruising.nl

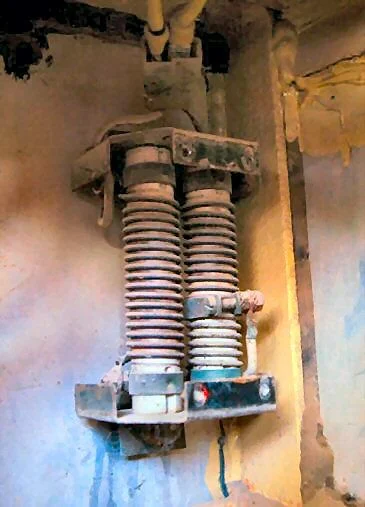

Yesterday I installed new batteries and came across something weird...

Anybody a clue?



it was covered by a small grill...


dgangle

total rice
Joined
Nov 24, 2004
Messages
4,013
Location
Heart of Dixie
Electrical something or the other. How about some more info like it's application, what country, type of building? And what, if any, is 40/55 Tech about it??

Joined
Apr 22, 2007
Messages
501
Location
on the road
Website
www.landcruising.nl
I bought this car used, and came with a whole load of things installed. Just came across it yesterday. And I don't have a clue. Otherwise I would not have asked it. Wouldn't I. Somebody in Germany made this adaptation I guess, that's where I bought it.

Joined
Apr 22, 2007
Messages
501
Location
on the road
Website
www.landcruising.nl
you guys are quick. hmmm.. No pictures anymore, because the batteries are in this bay now. The size is about the length of a dollar bill.


Colorado Boy-74-FJ40

I may grow older but I refuse to grow up!
Joined
Aug 5, 2005
Messages
1,462
Location
Windsor Colorado
I agree that it is some kind of adjustable resistor

Joined
Mar 14, 2003
Messages
16,103
Location
Gig Harbor WA
maybe some old trailer brake set up, see it before....kinda rings a bell

its not OEM i know that ;)


UltraFJ40

ที่นี่และมี
SILVER Star
Joined
Sep 1, 2003
Messages
1,230
Location
Dito loob ng kubo kubo ko
Are both of those lines coming in electrical? It's kind of hard to tell.


Poser

Oh...Durka Durka Durka.
Supporting Vendor
Joined
Oct 1, 2003
Messages
20,465
Location
MN
I bought this car used, and came with a whole load of things installed. Just came across it yesterday. And I don't have a clue. Otherwise I would not have asked it. Wouldn't I. Somebody in Germany made this adaptation I guess, that's where I bought it.






Lighten up Francis.





No one out here knew that this was a Land Cruiser you were working on.


No one out here knew that this was a Land Cruiser from Germany.





Posting a picture of something does not automatically guarantee that someone will have any idea about what is pictured. Further, you give ZERO back-story about the year/make/model of vehicle you are working on, which does NOTHING to help anyone provide useful information.


Just because you post something up in the 40 tech section does not automatically mean we should assume that you are working on a Land Cruiser. There have been MANY threads started in the 40 section that do not have anything to do with a Land Cruiser.



If you want the people out here to help you, provide as much information about the situation or issue as possible.


Where do the wires lead to?
















:wrench:

Joined
Apr 22, 2007
Messages
501
Location
on the road
Website
www.landcruising.nl
first off: I am just curious and I appreciate all the nice feedback.

I took a picture, covered the grill again, and installed my new batteries. Now the bay is packed.

Our BJ45 year 1984 came loaded with extras. I took me 5 years to discover this weird looking thing in the extra [non standard] battery bay the previous owner build.

As far as I can see both yellow cables lead to a row of relays.

not far from this is a regulator box or something from a Webasto diesel heater, a extra fuel pump for the same heater, a 24-12 dc/dc converter [or do you say inverter?], a bunch of fuses and a row of relays.

Joined
Jan 30, 2005
Messages
543
Location
Atascadero, CA
in my opinion it almost looks like a transformer. or maybe some sort of cold start since its a diesel?


bajaphile

Boojum Hugger
SILVER Star
Joined
Apr 6, 2008
Messages
2,191
Location
Solana Beach, CA
Flux capacitor?!!


inkpot

SILVER Star
Joined
Jan 30, 2003
Messages
13,795
Location
All over Arizona
I agree that it is some kind of adjustable resistor
Howdy! Yup, I have a similar setup on some machines at work. For me, I can slide the metal band up or down to control how fast a large magnetic clutch takes a roll of paper from zero up to about 200 rpm. You'll probably have to trace some of those wires to see what they connect to. John
