[metalshaper]

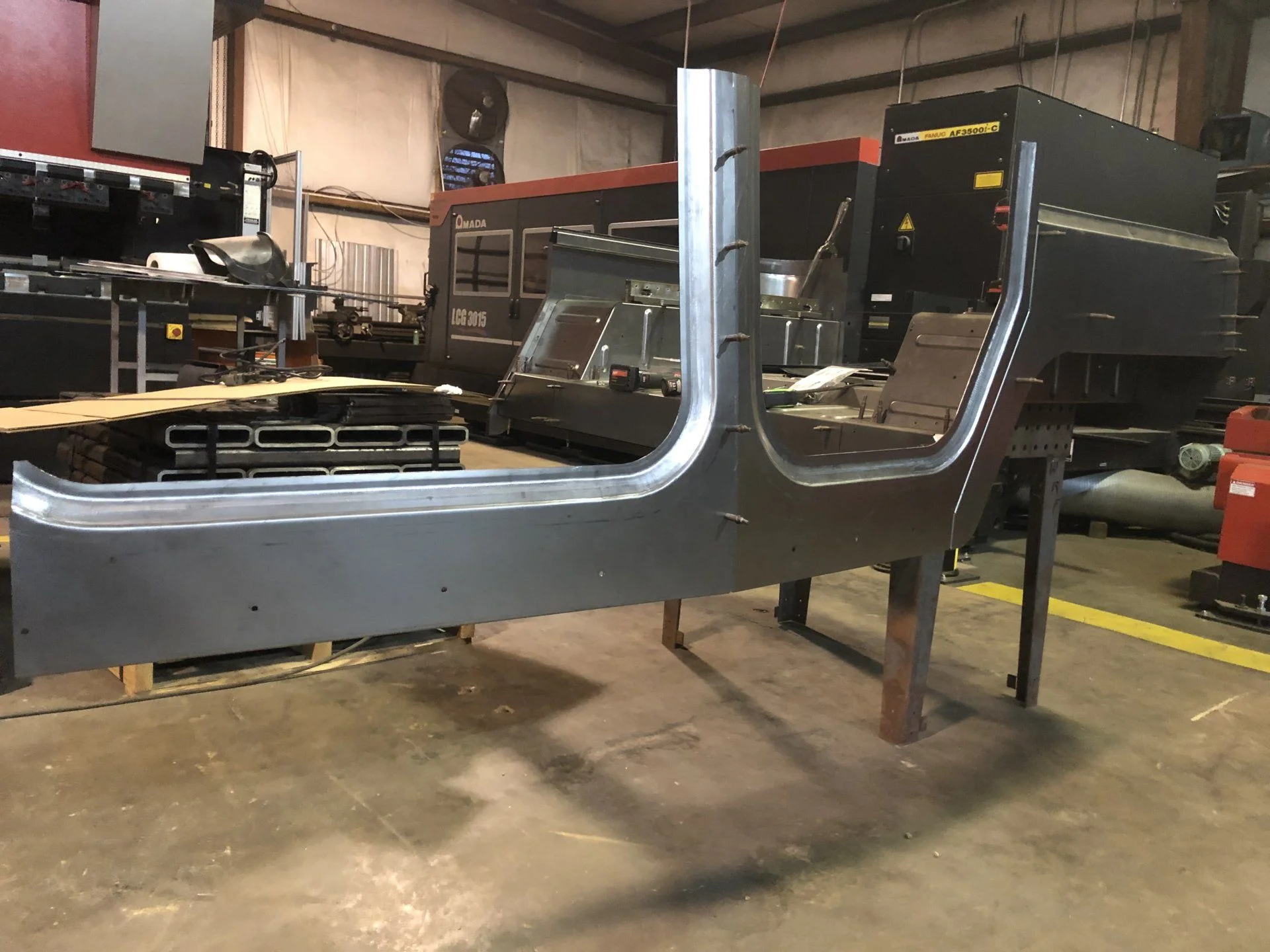

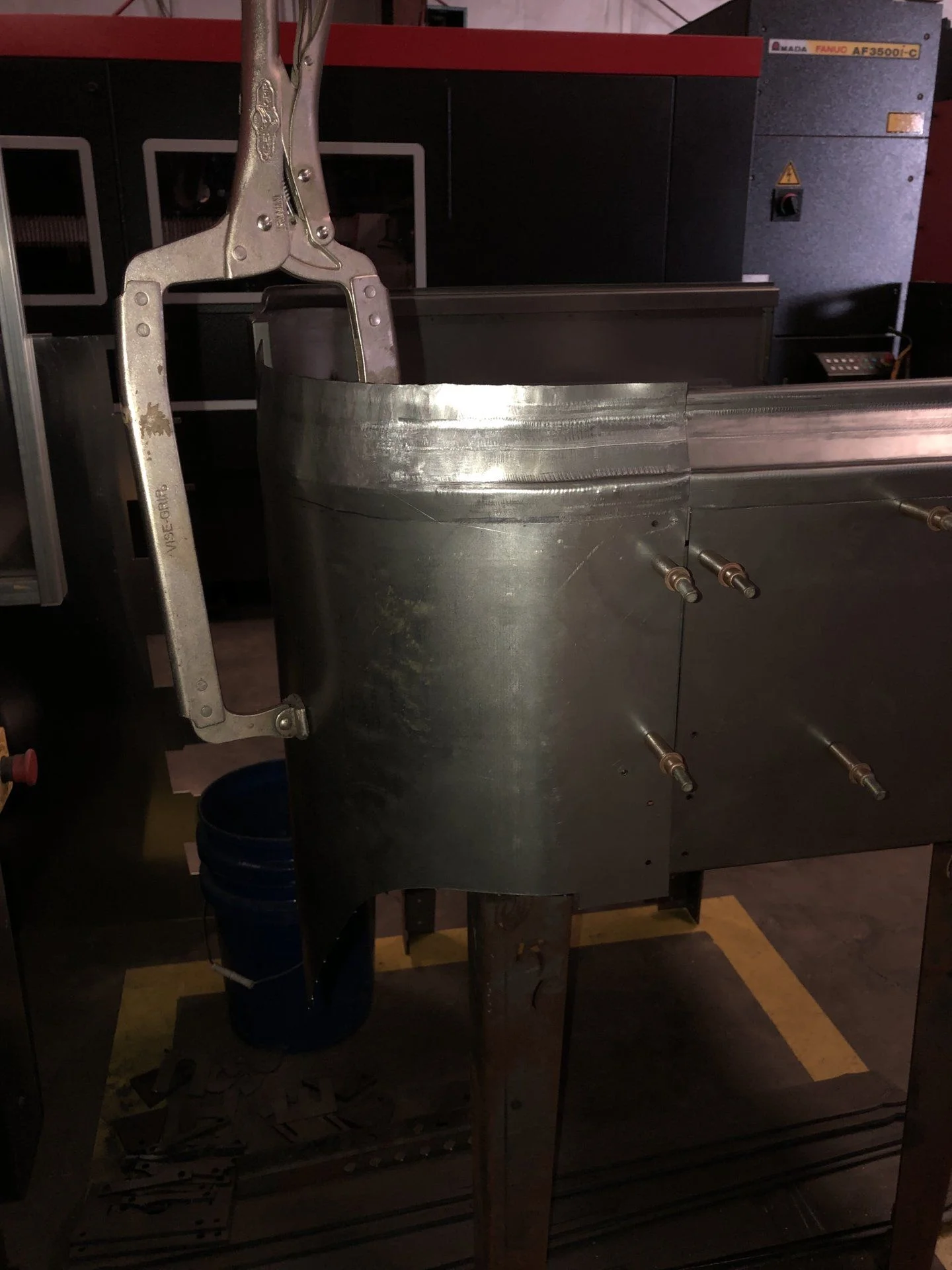

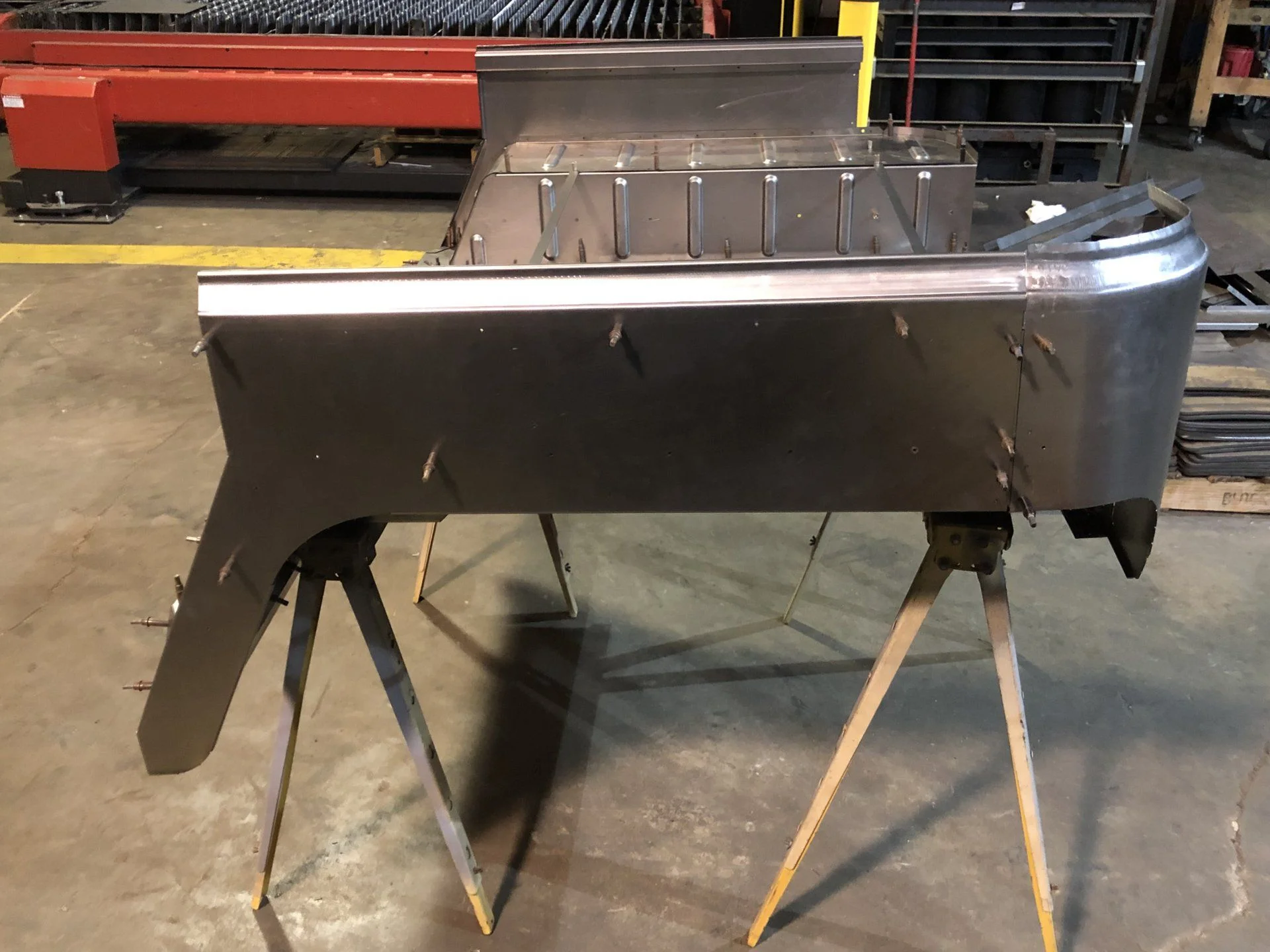

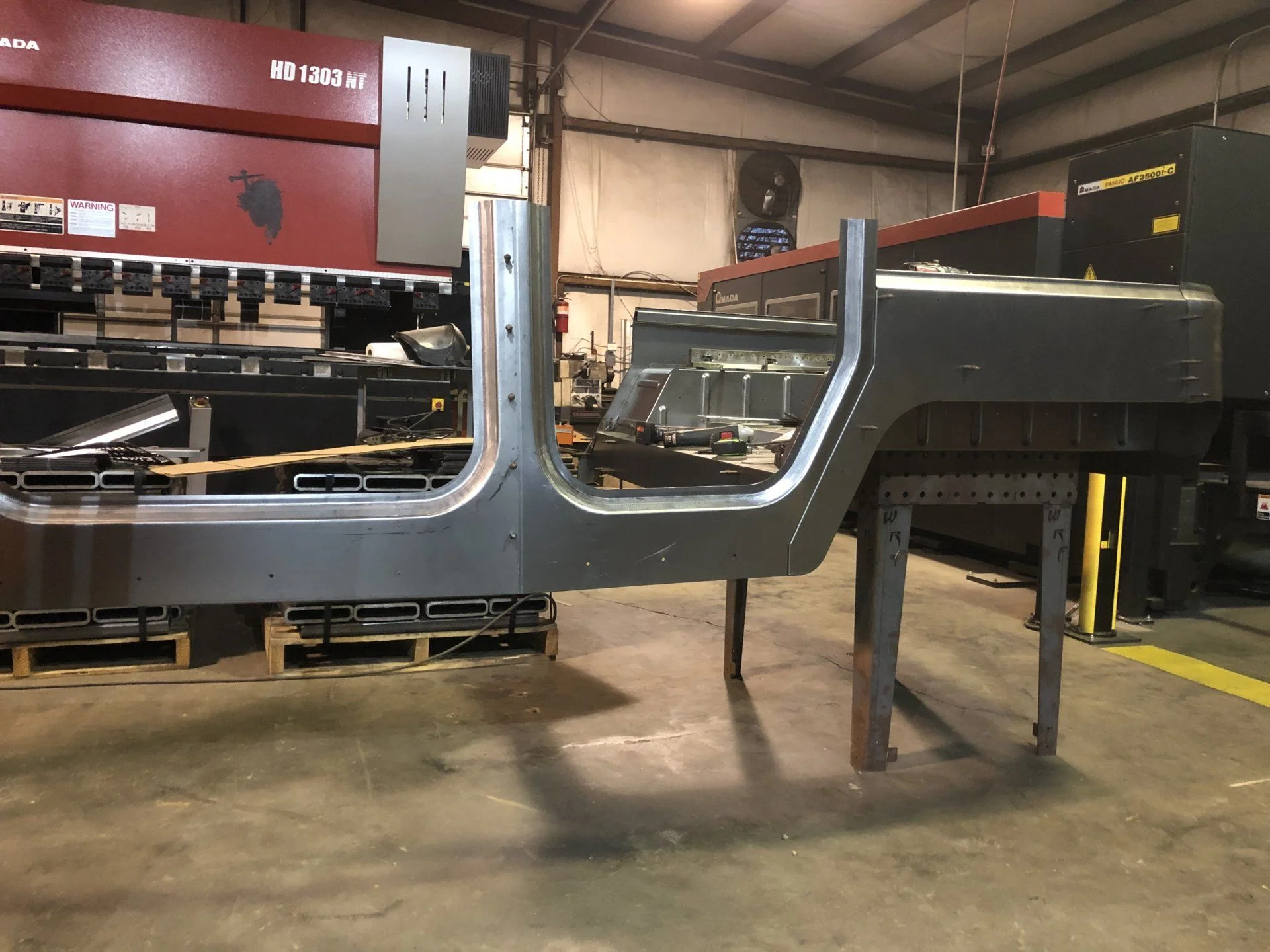

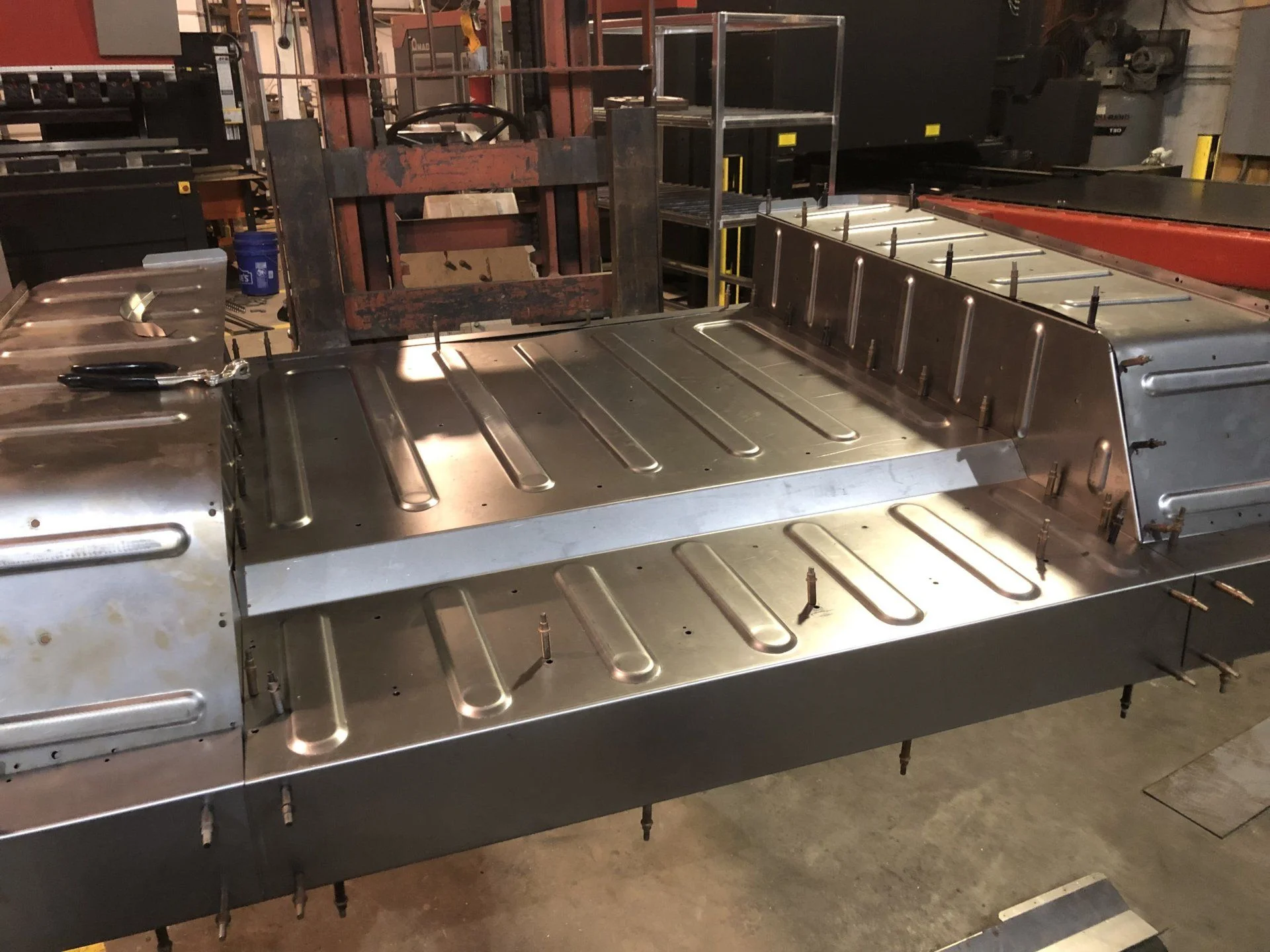

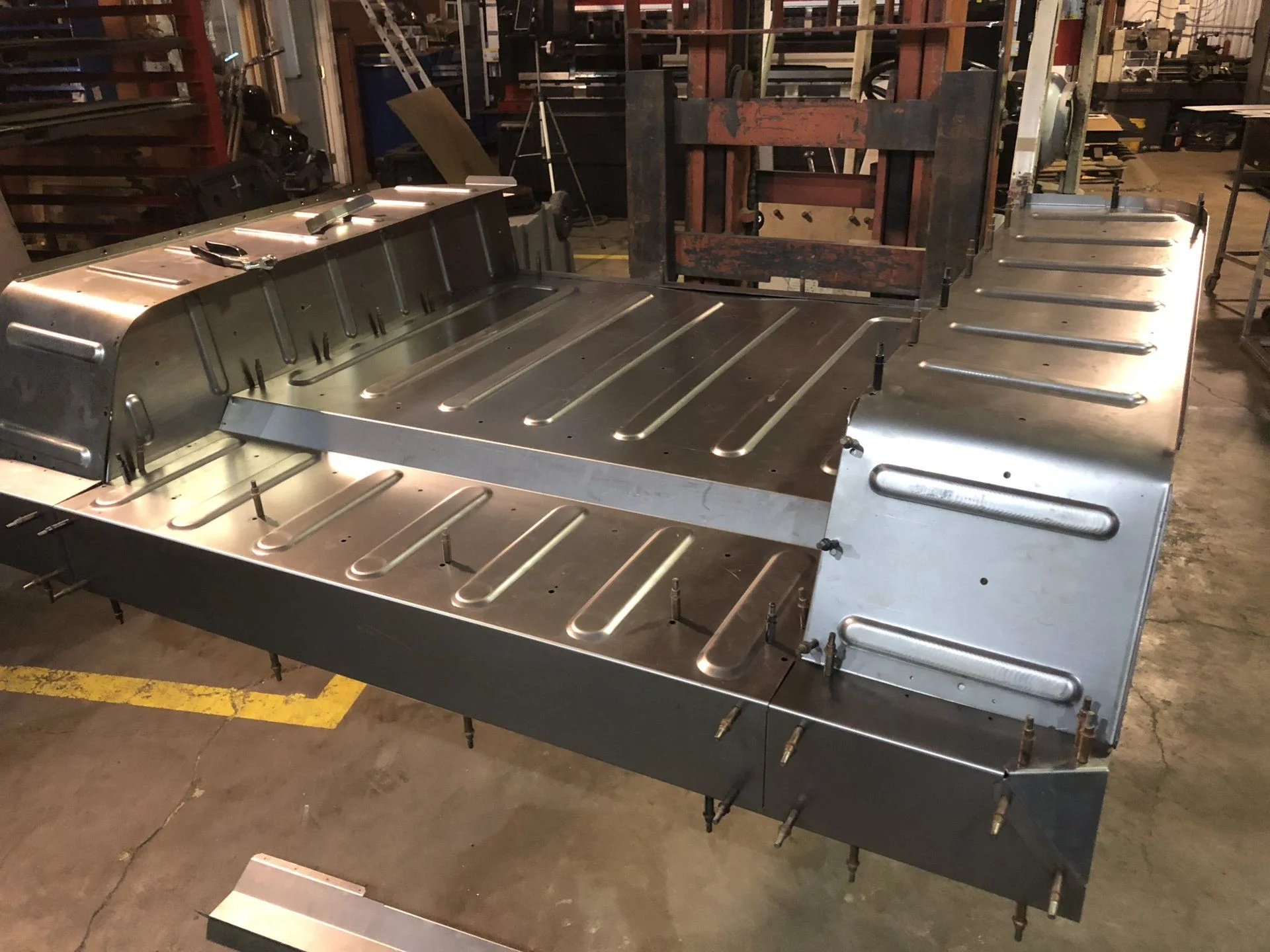

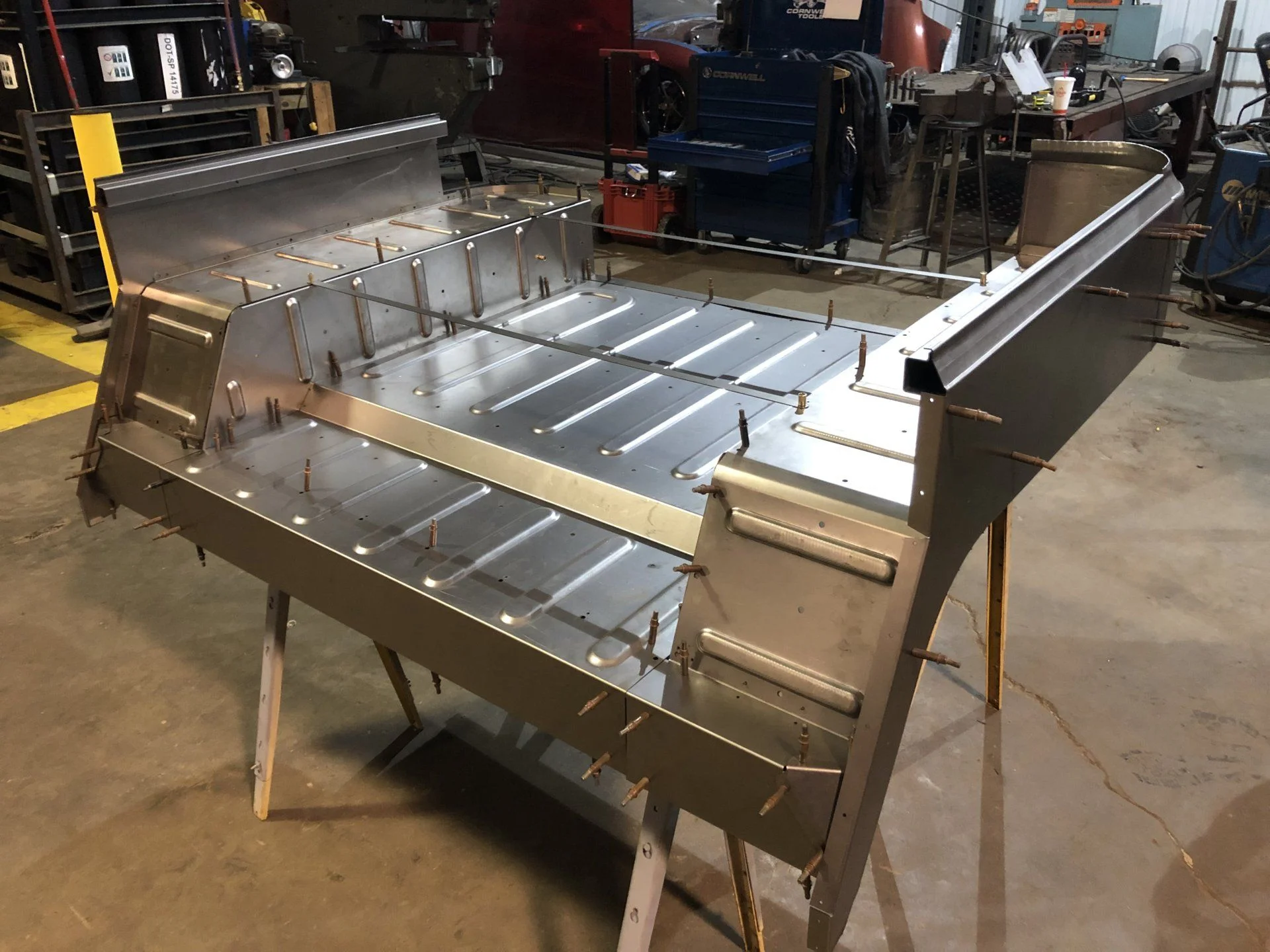

Well, after 2 years of starting this project I’m finally back on it. A lot has changed. I spent almost 400 hours redesigning this body in solidworks so I could assemble these bodies pretty quick. I also changed a from the thinner sheet metal I was using to 16 ga cold rolled sheet metal. I wanted the body to outlast me and not be a tin can like newer cars are. I wanted it rugged, strong and good looking. On the next part of this journey you will get to see me start completely over and have a far better body. Also, if you will notice, you will see a ton of clecos being used. In my CAD file I added the holes for them so I don’t have to drill a single hole. Then as I run it through the laser, the holes are cut perfectly every time. Then I run it through the CNC press break to get my bends perfect every time. As you can see from the two pictures if coming together... again.



[metalshaper]

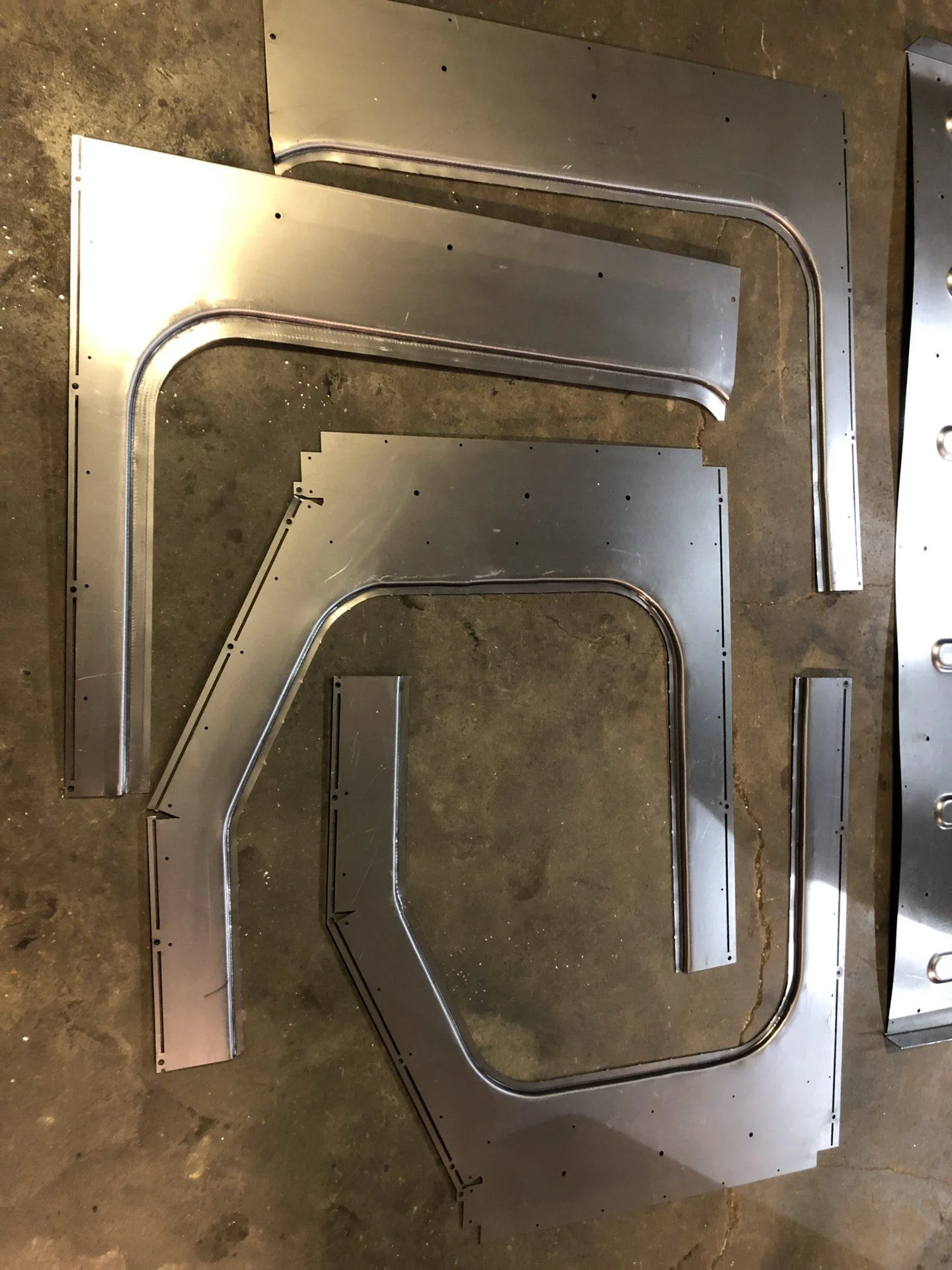

These next pictures I’m working out the quarter panels. Remember this will be a 4 door so adding in a rear door needs to look good. So I took inspiration from the Jeep JK and that is where I got the door shape from, partially.

Also I was testing if I should make the rear corner completely formed like a Jeep or go with stuck. The Jeep style is actually harder to make them the stick corner so I’m going with the stock corner.



[metalshaper]

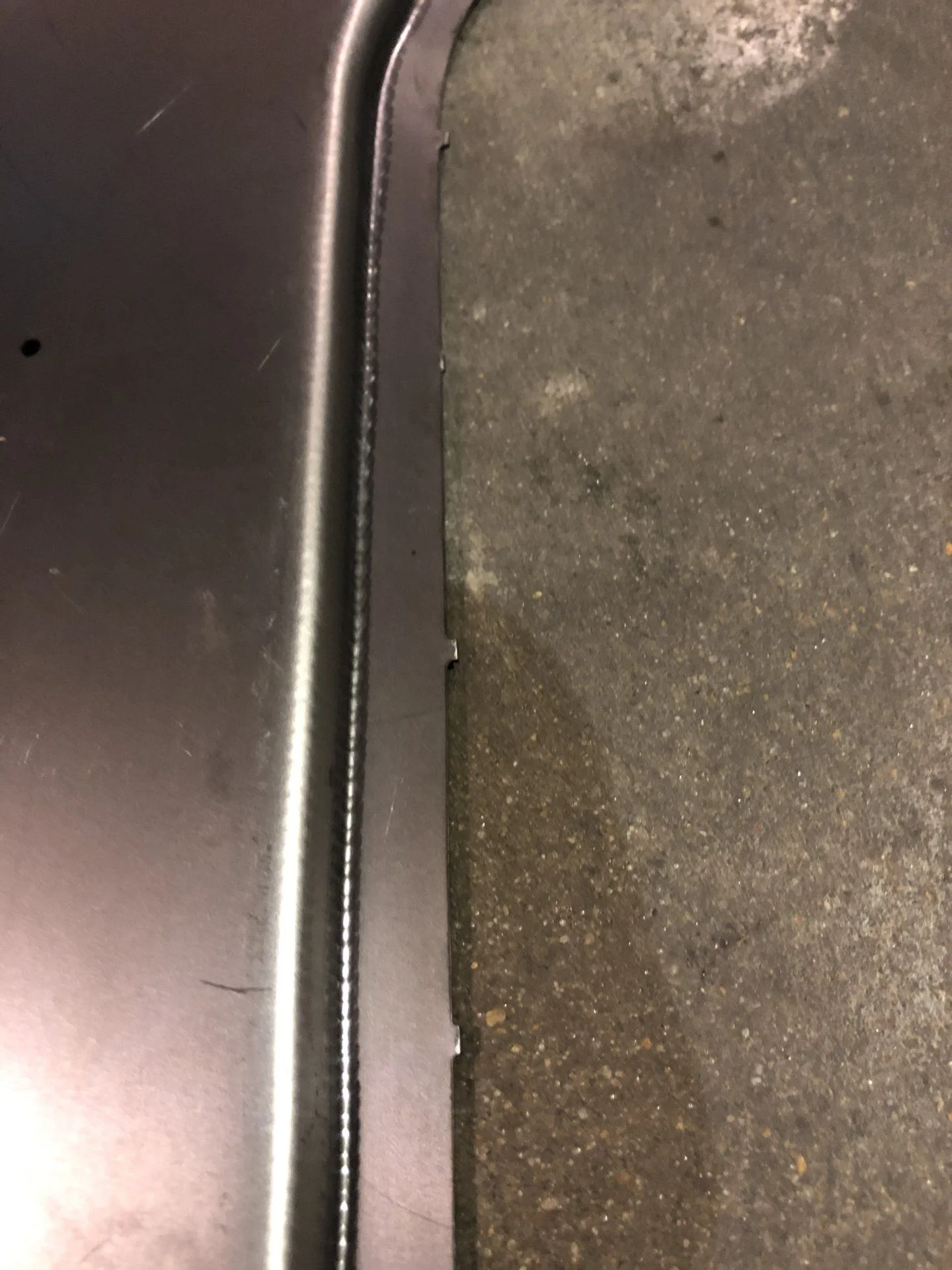

Here is a picture of the stock style corner. It looks a lot better than the Jeep style also.

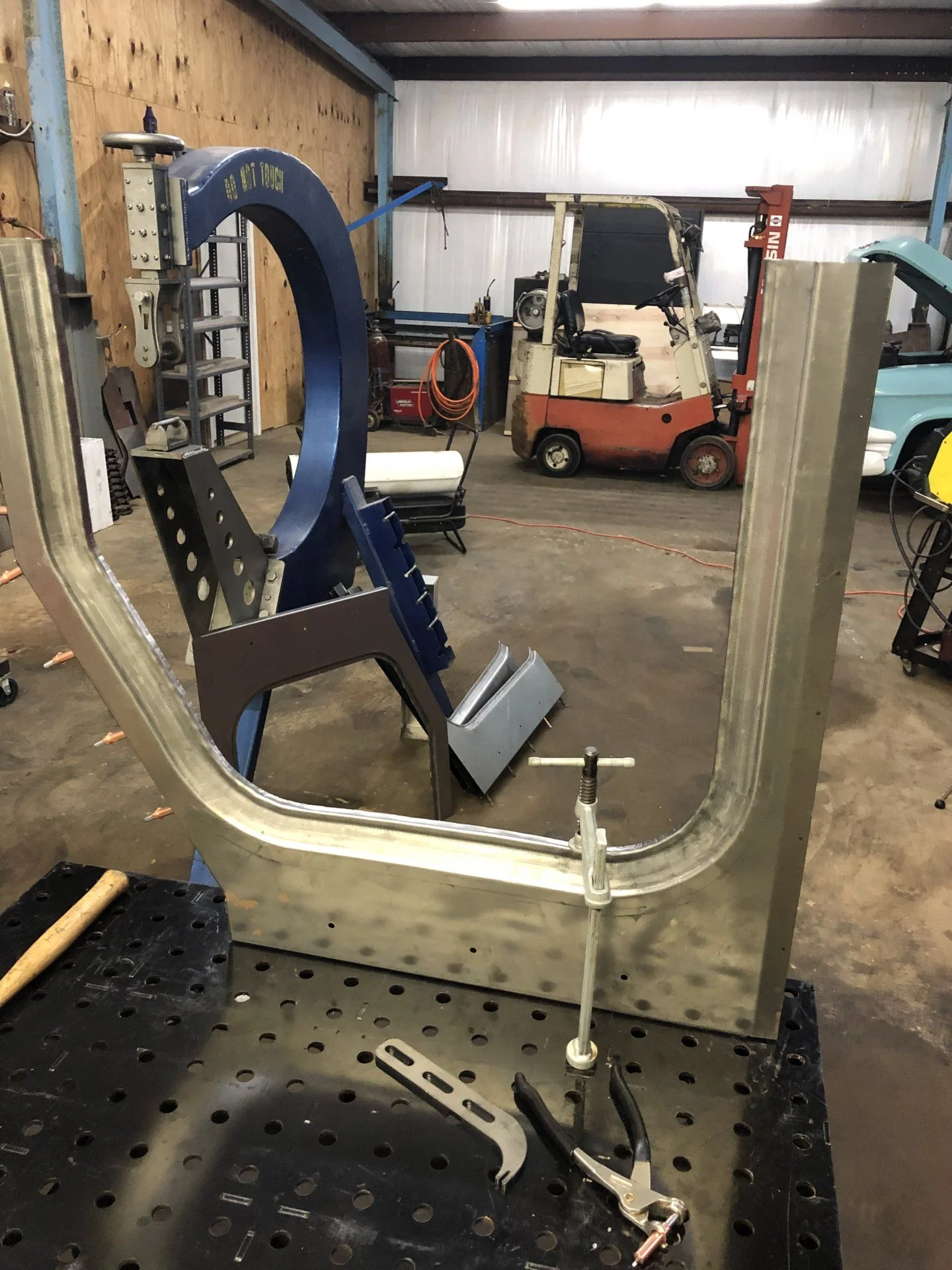

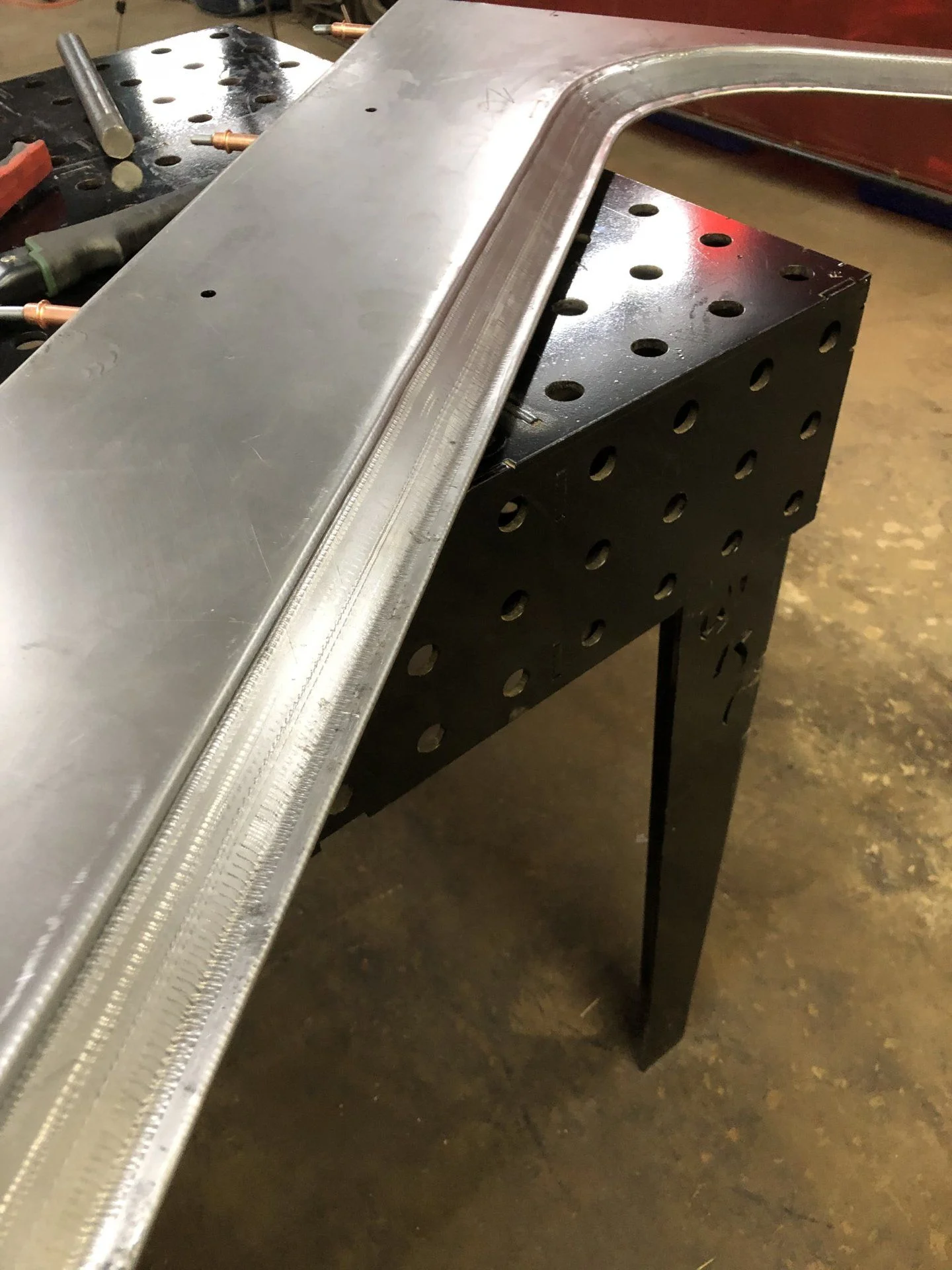

Now on to the door opening. I start with the outside opening and work my way in. Here are a couple pictures of it loosely attached to the rear tube.

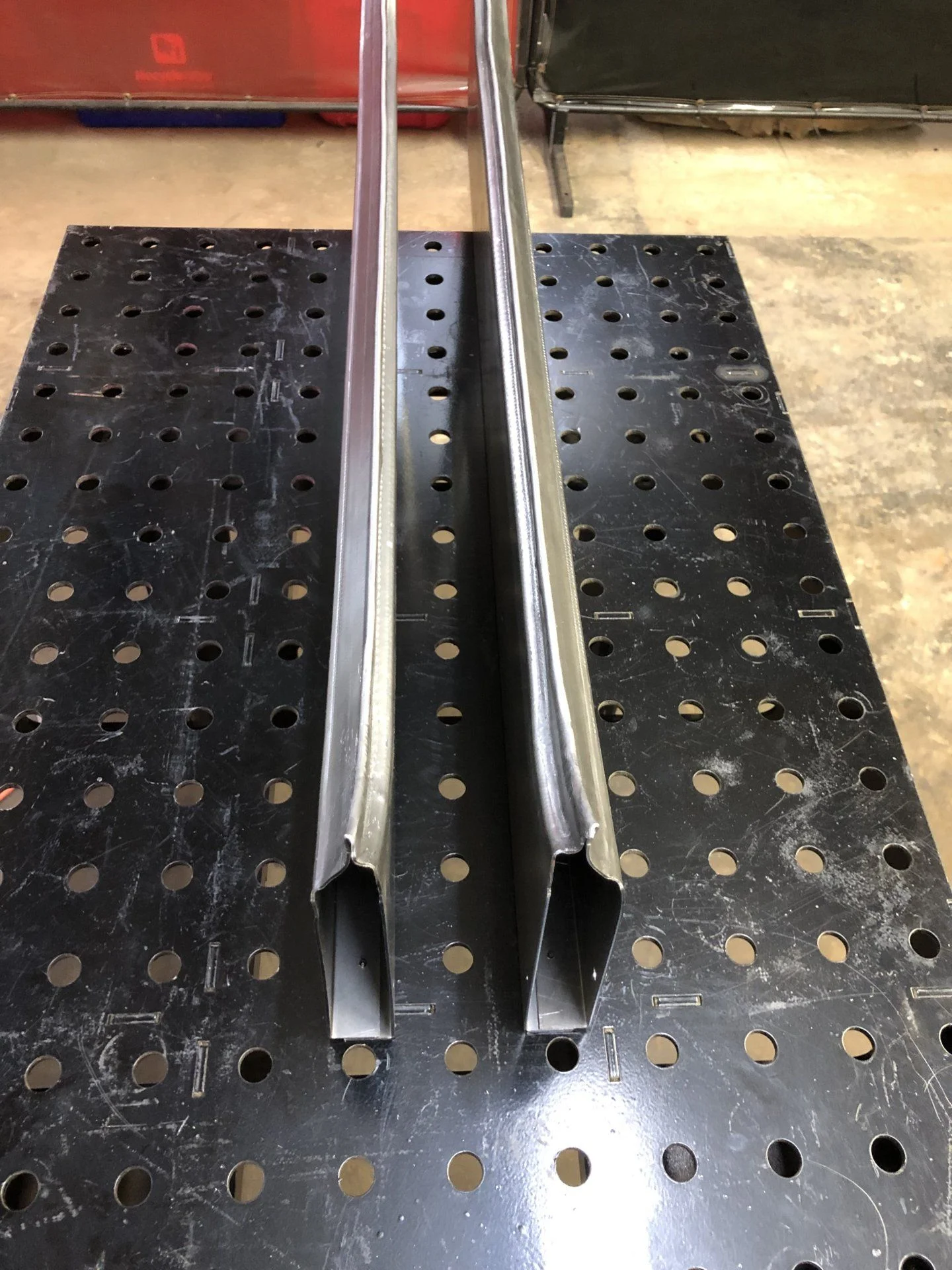

Also, if you notice the pillars stick up taller than the rear of the tube. This is so I can run it through the tooling and cut off the extra.



[metalshaper]

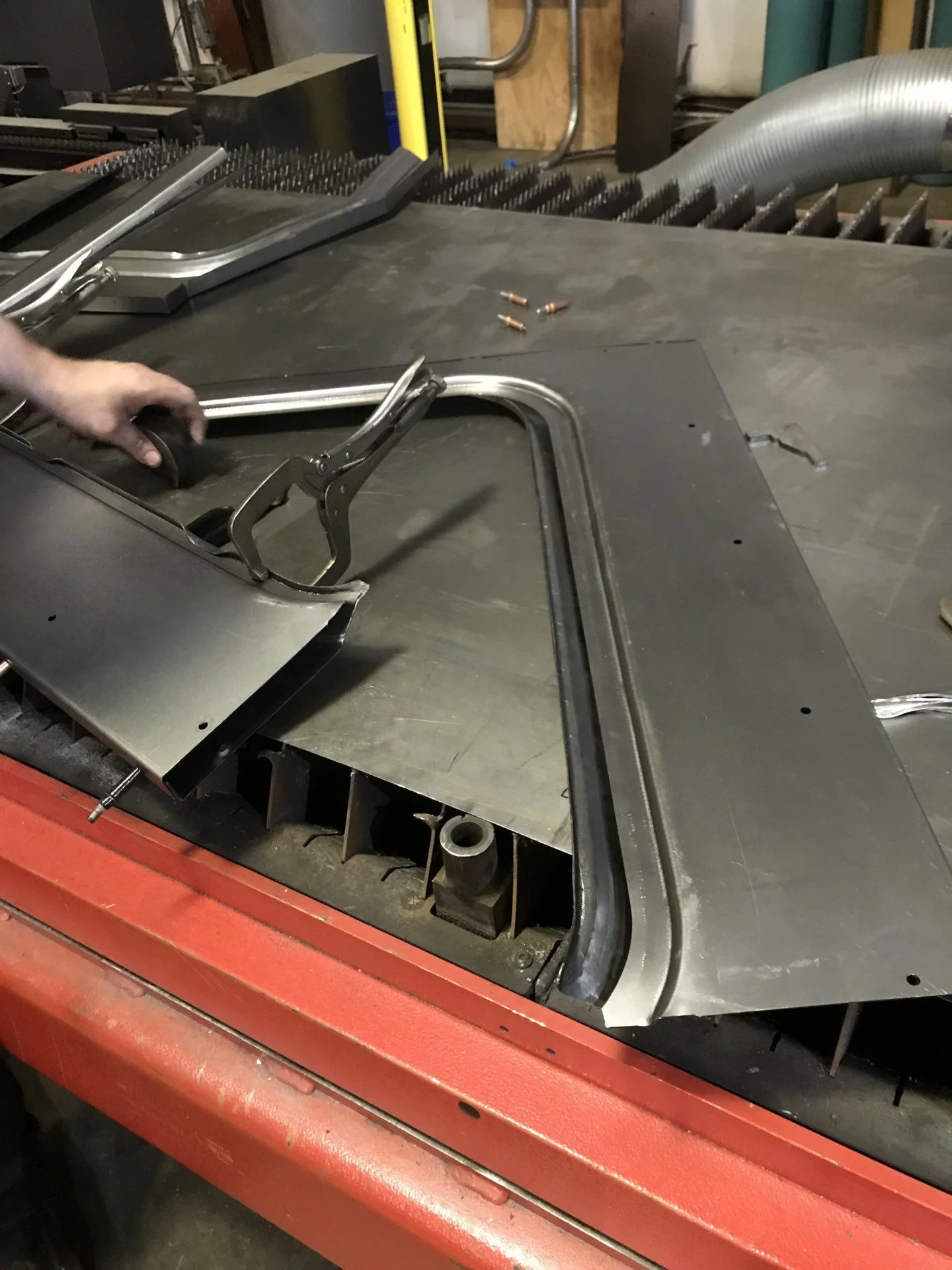

On to the inner door assembly. As most of you know this gets put on the back side of the outer door skin. Unlike a Jeep this is double walled so it makes it crazy strong. I like it. I’m using clecos to attaché and test fit everything.



[metalshaper]

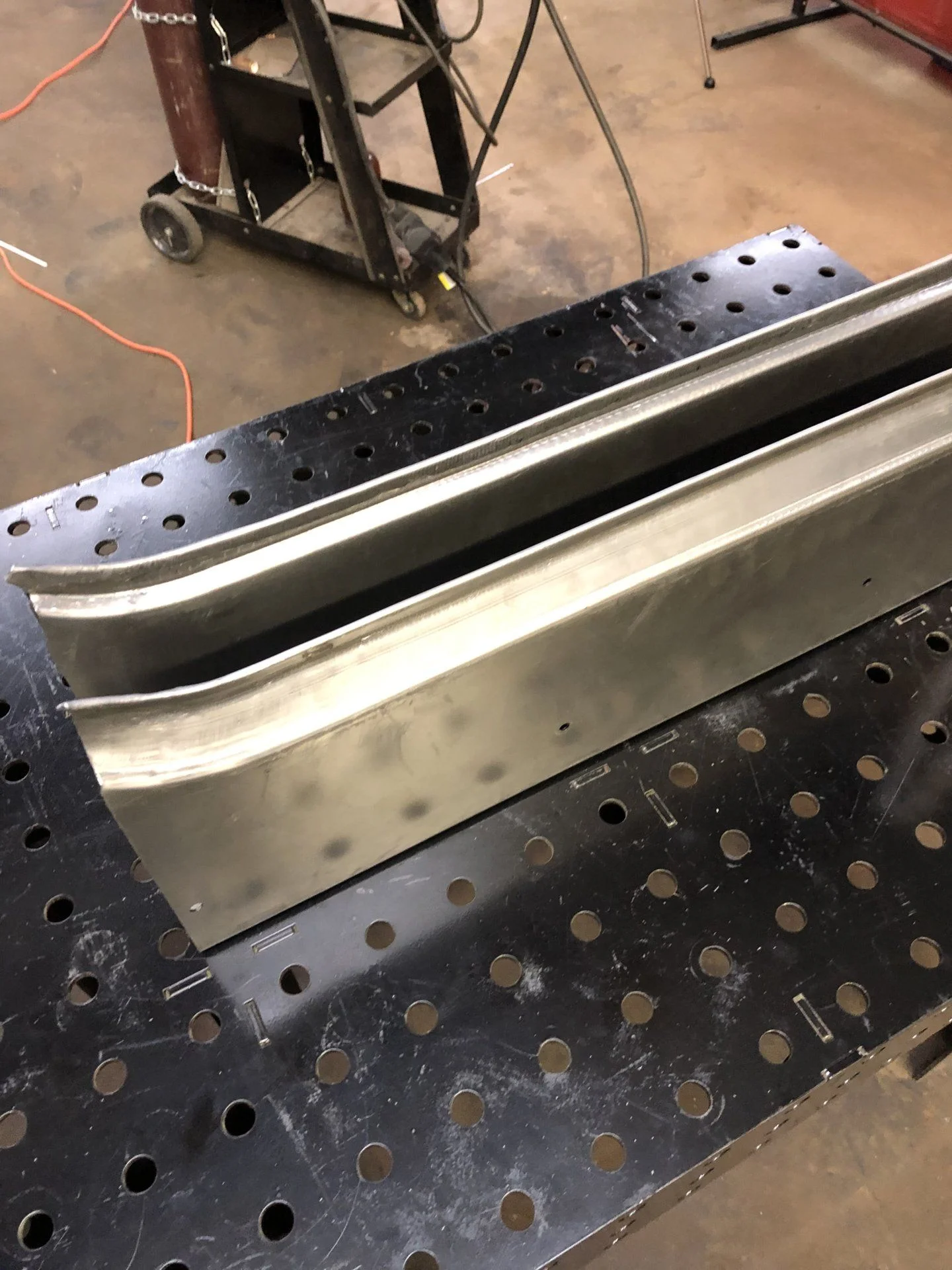

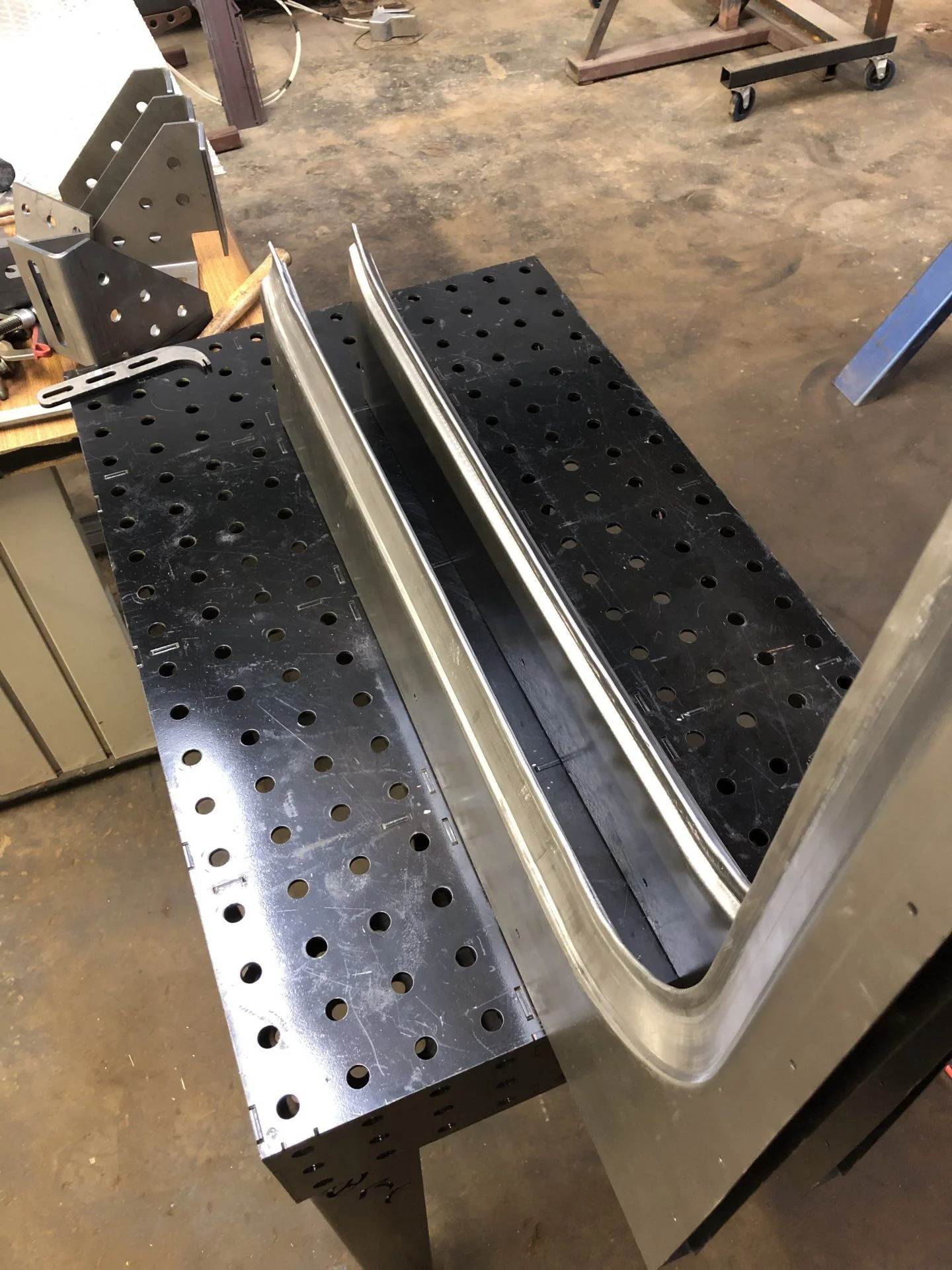

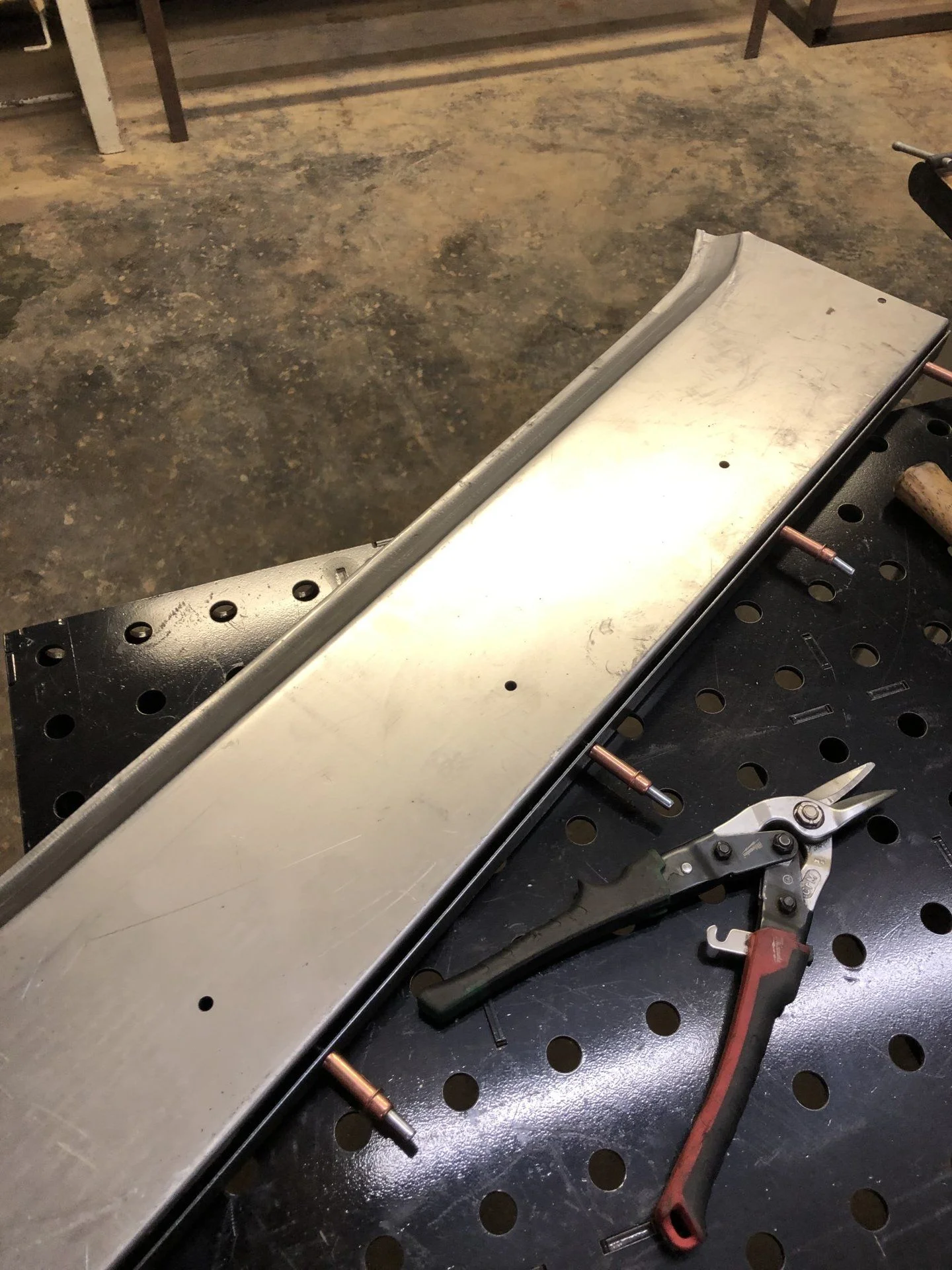

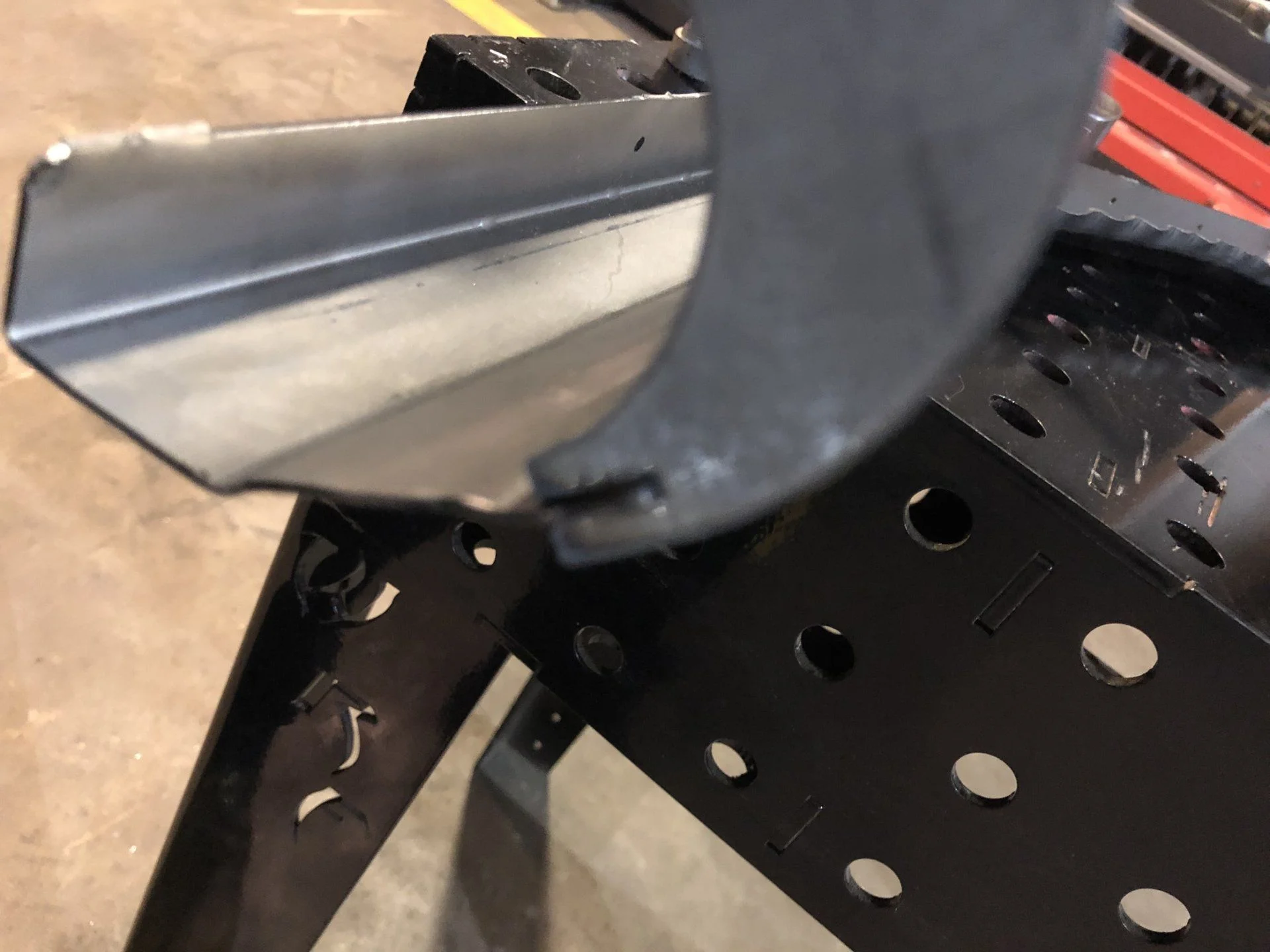

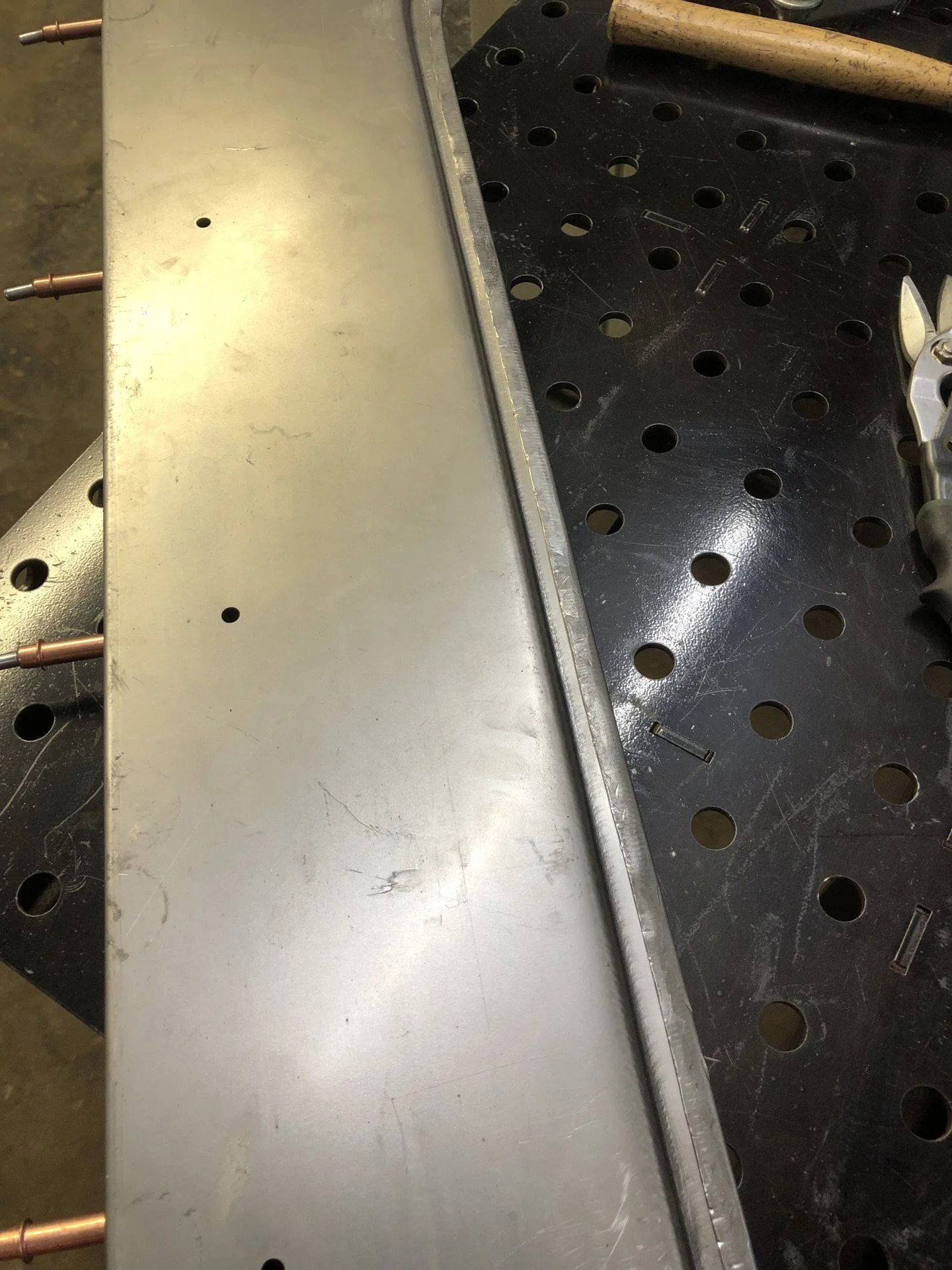

I had a problem turning the edge back so I could create the pinch seam. So I drew up this tool and cut it on the laser. Man this was a life saver because let me tell you, using a hammer and dolly of 16 ga cold roller is beast mode.

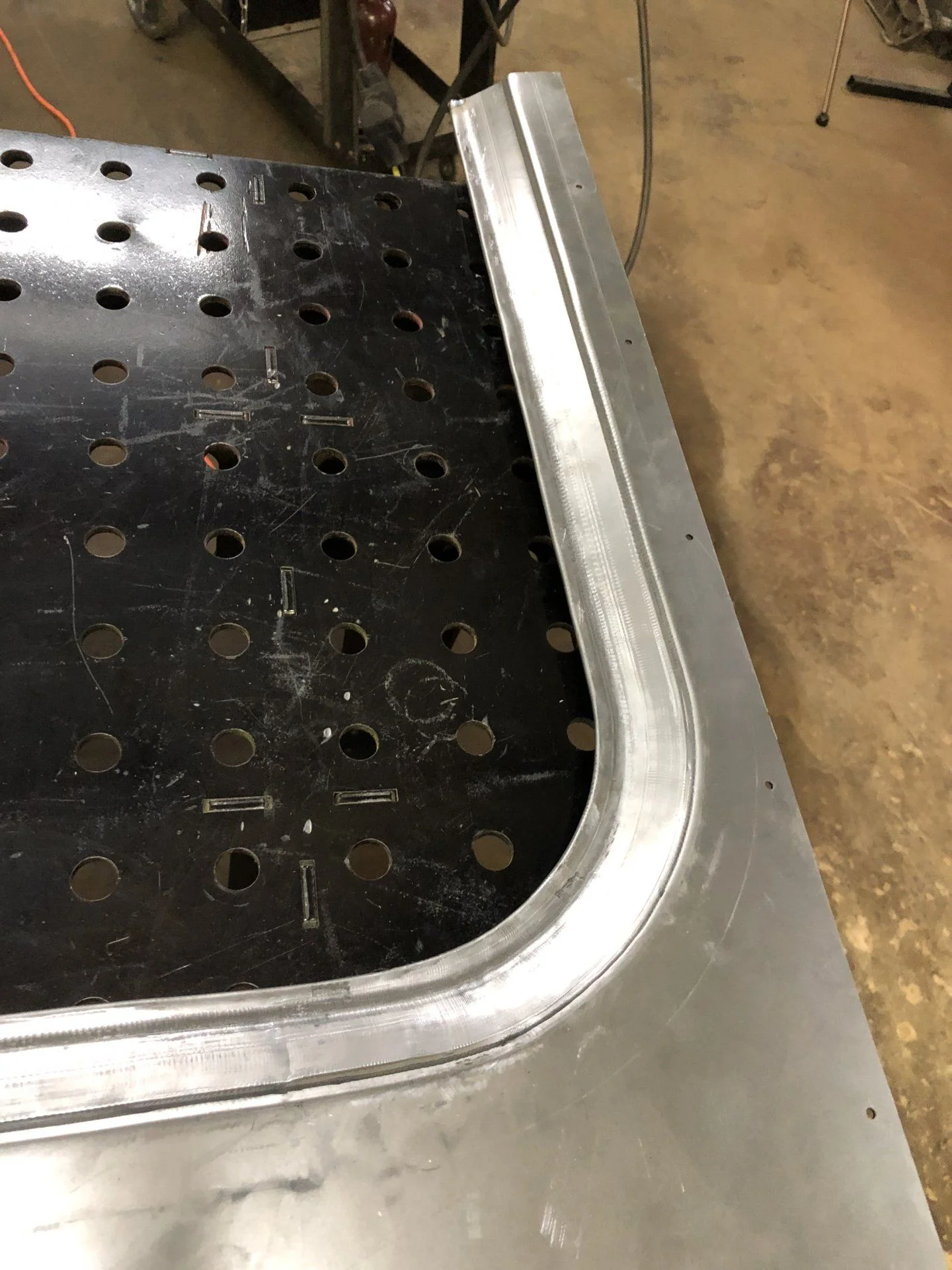

I’m getting ready to mate the two door skins together.



[metalshaper]

Work getting done



[metalshaper]

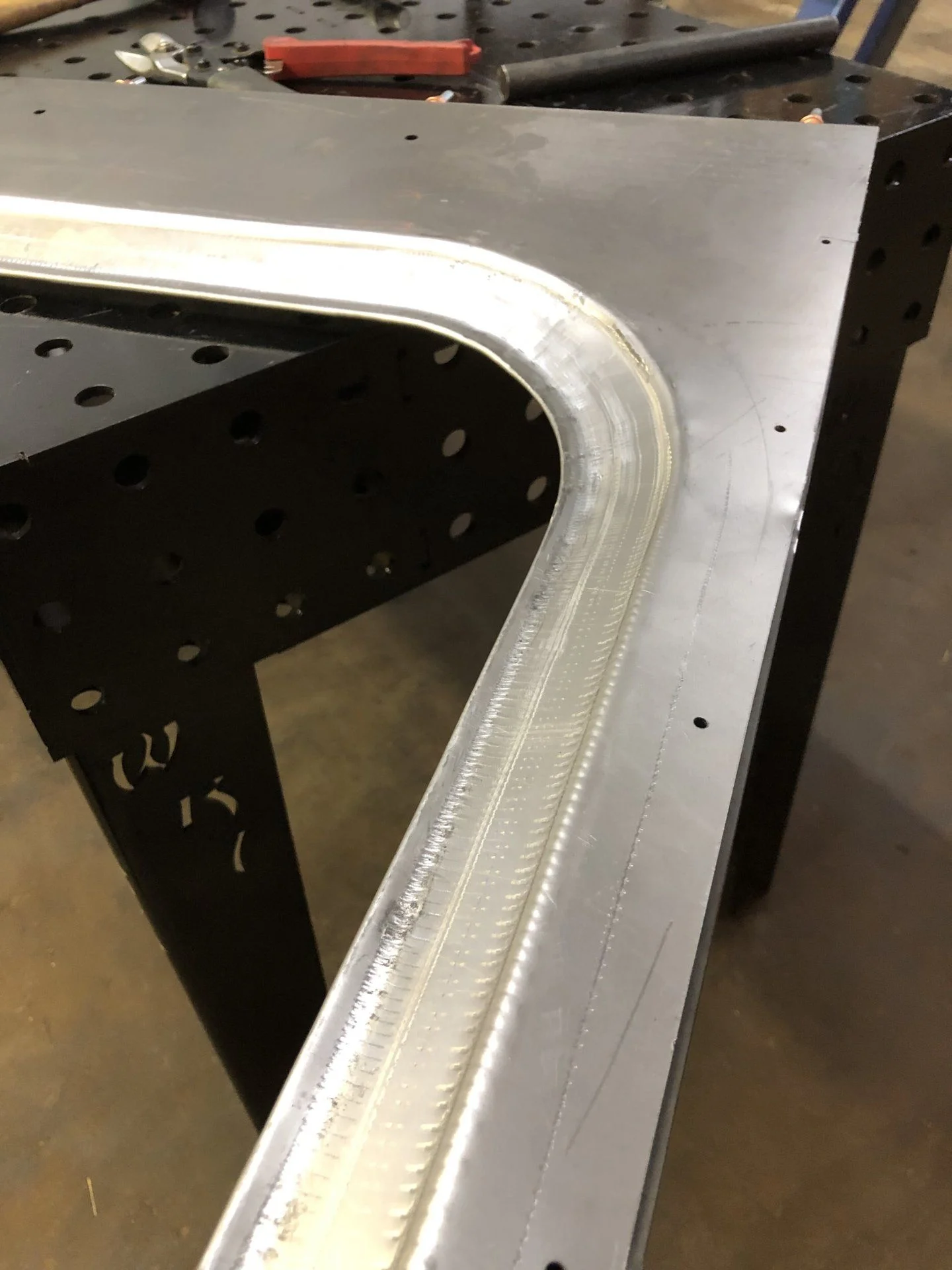

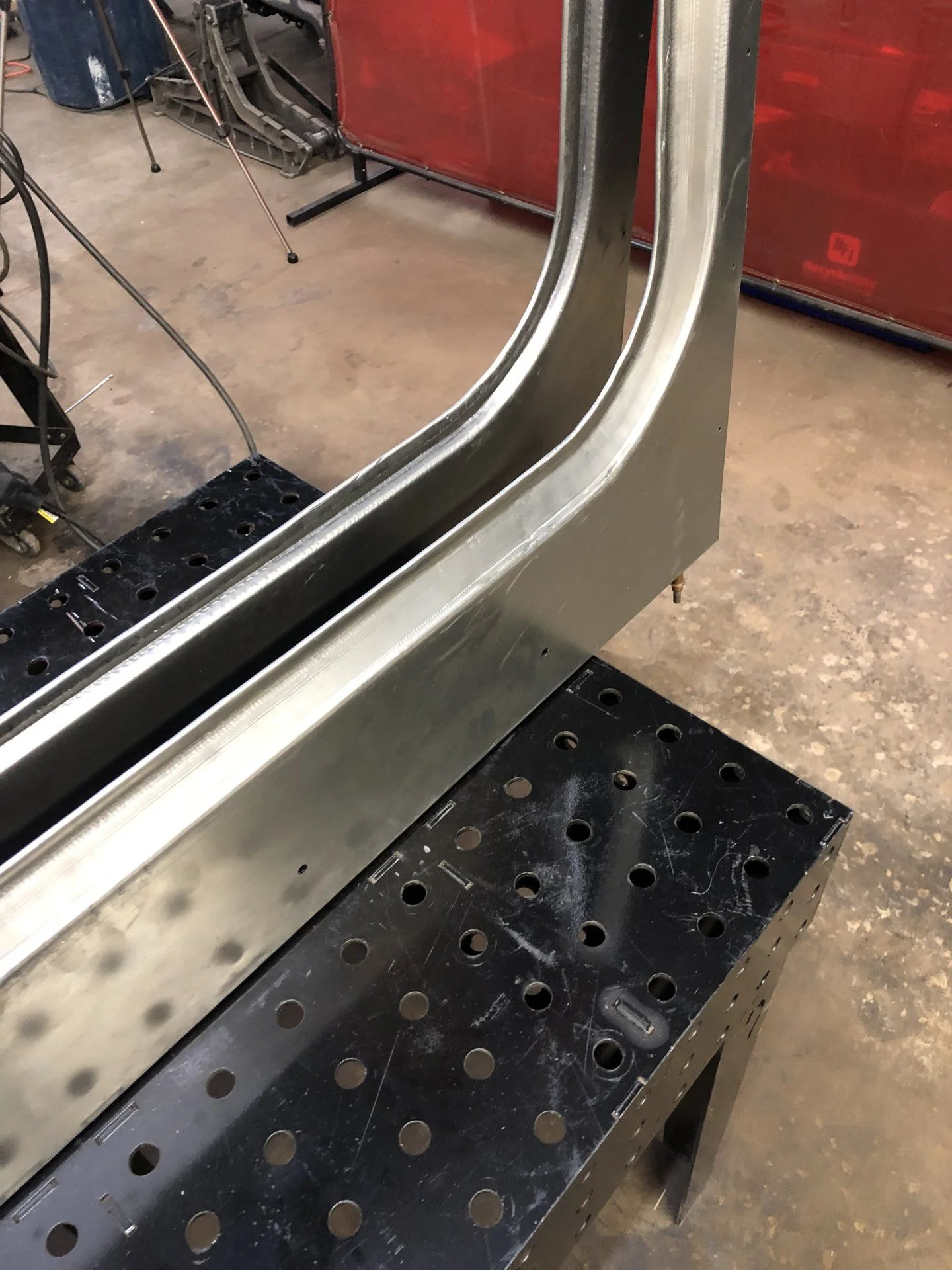

Got the two front door openings finished up so now I can start the rear.



[metalshaper]

Starting on the rear door opening. Should have that done tomorrow.



[boots4]

Awesome work!



[metalshaper]

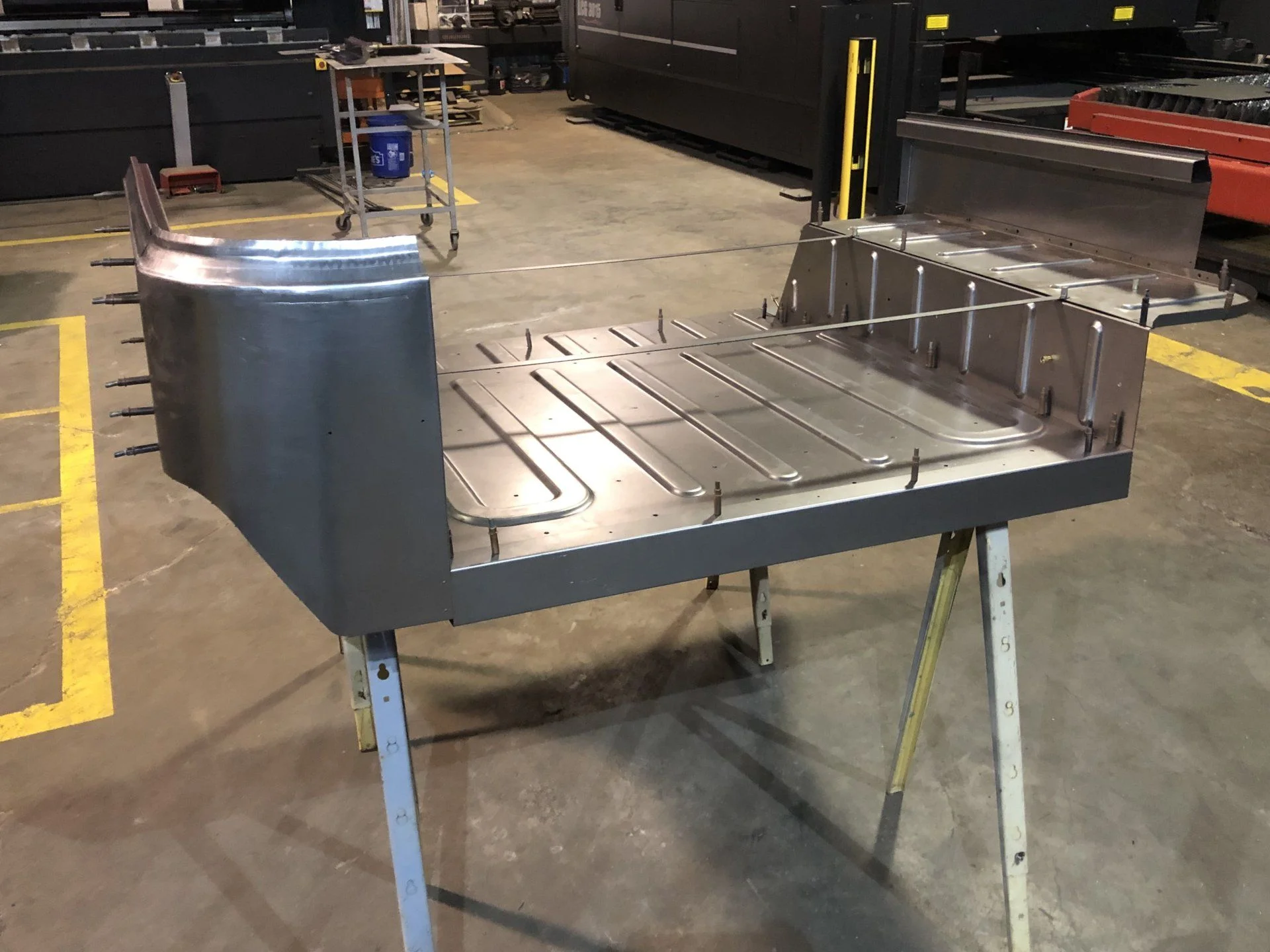

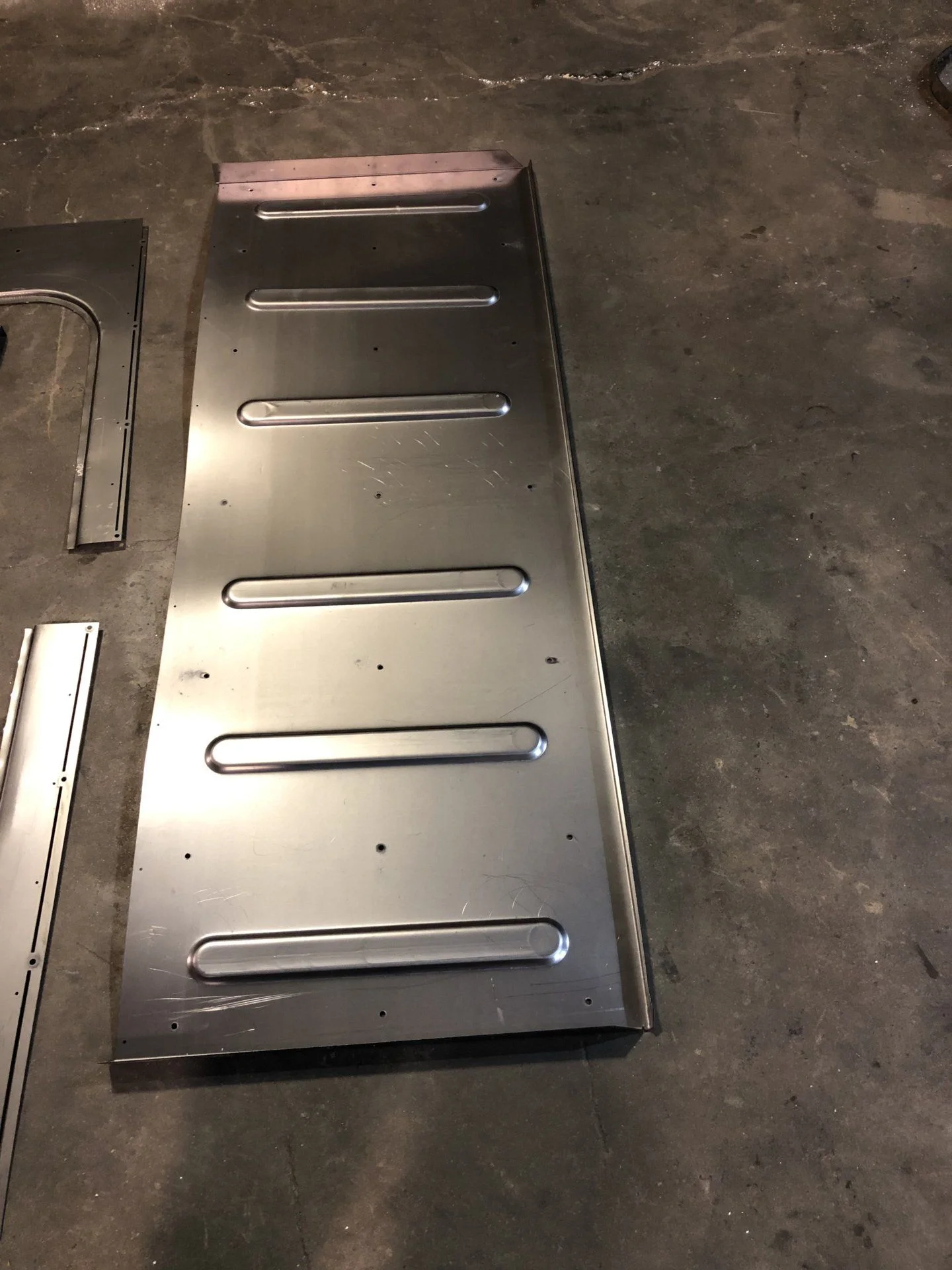

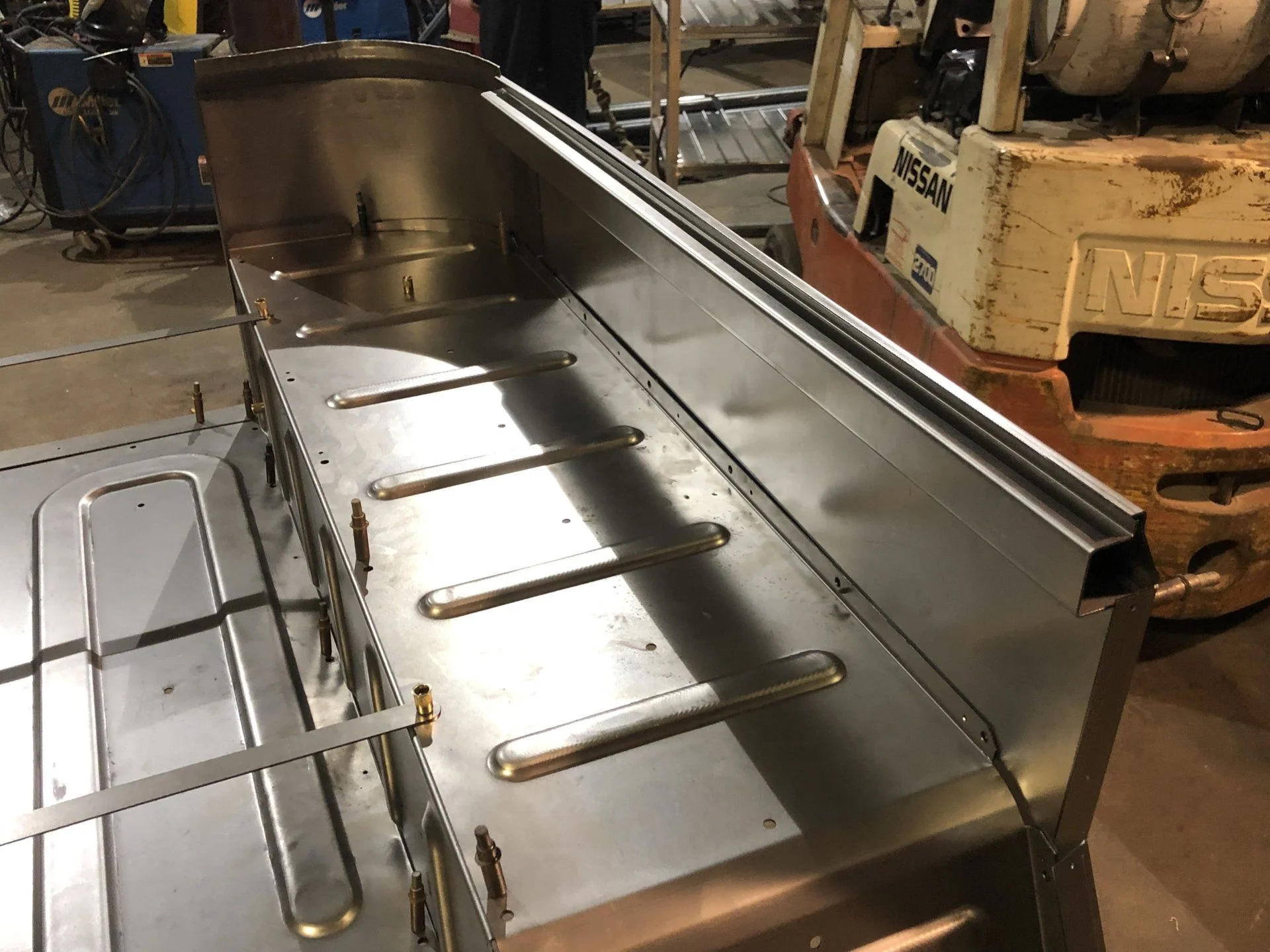

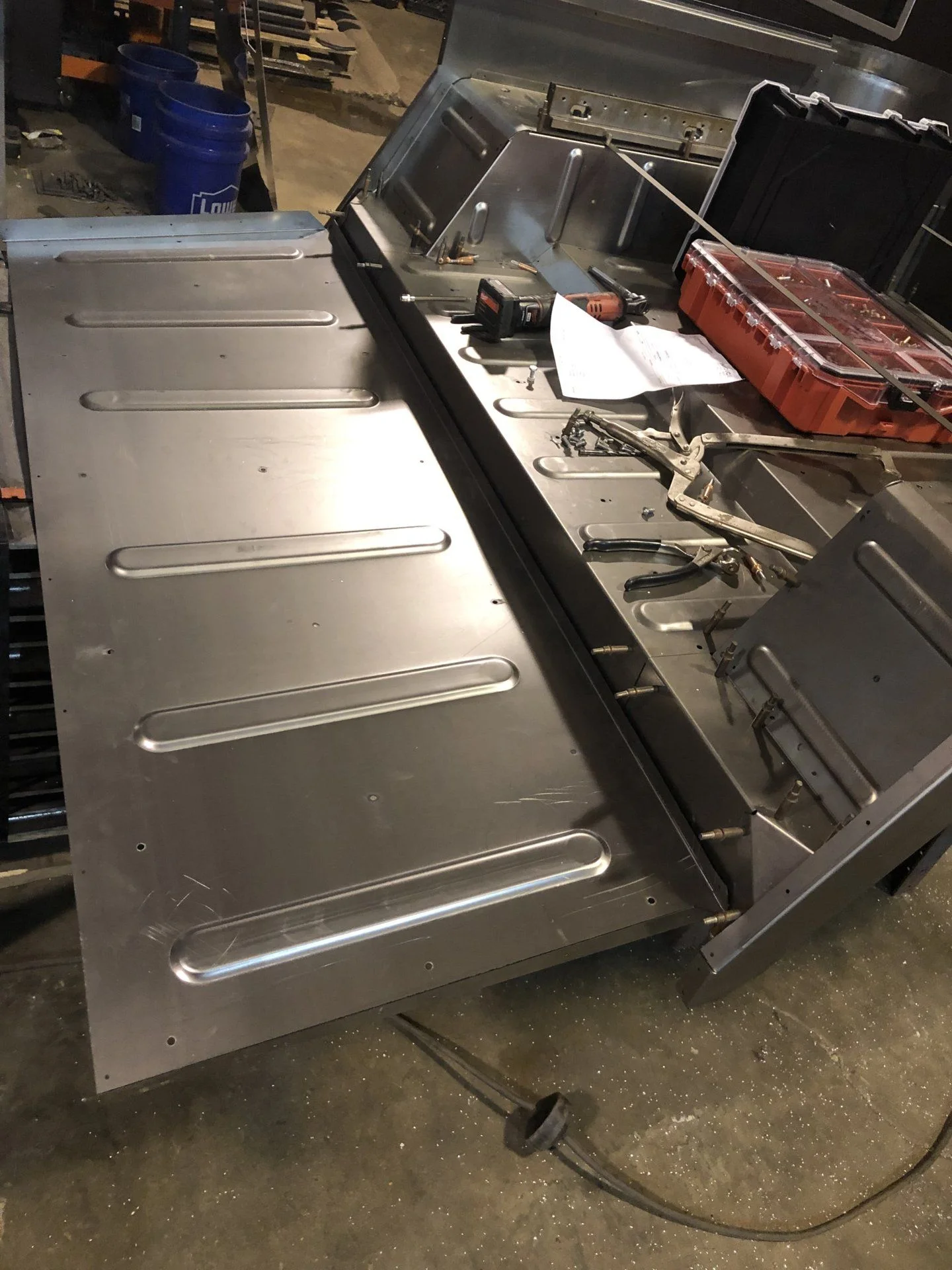

Also got the rear door floor pan made.
