Builds Pua'a Tua’h (5 Viewers)

This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

  • 2nd gen 1fz-fe w/coilpacks
  • Spool rods / Ross Racing pistons (0.5mm over)
  • @Cruisers and Co 1FZ Turbo Kit
  • ARP Head Studs / Cometic MLX Gasket
  • Haltech UC10 Dash in custom CNC dash
  • ECU Master EMU Black
  • H55F (new)
  • NWF Black box doubler
  • Split case with 3:1 & twin stick
  • Scheelmann front row
  • 35x10.50r17 Kanda MT2, but maybe 37s
  • FZJ80 frame; Dobinsons lift

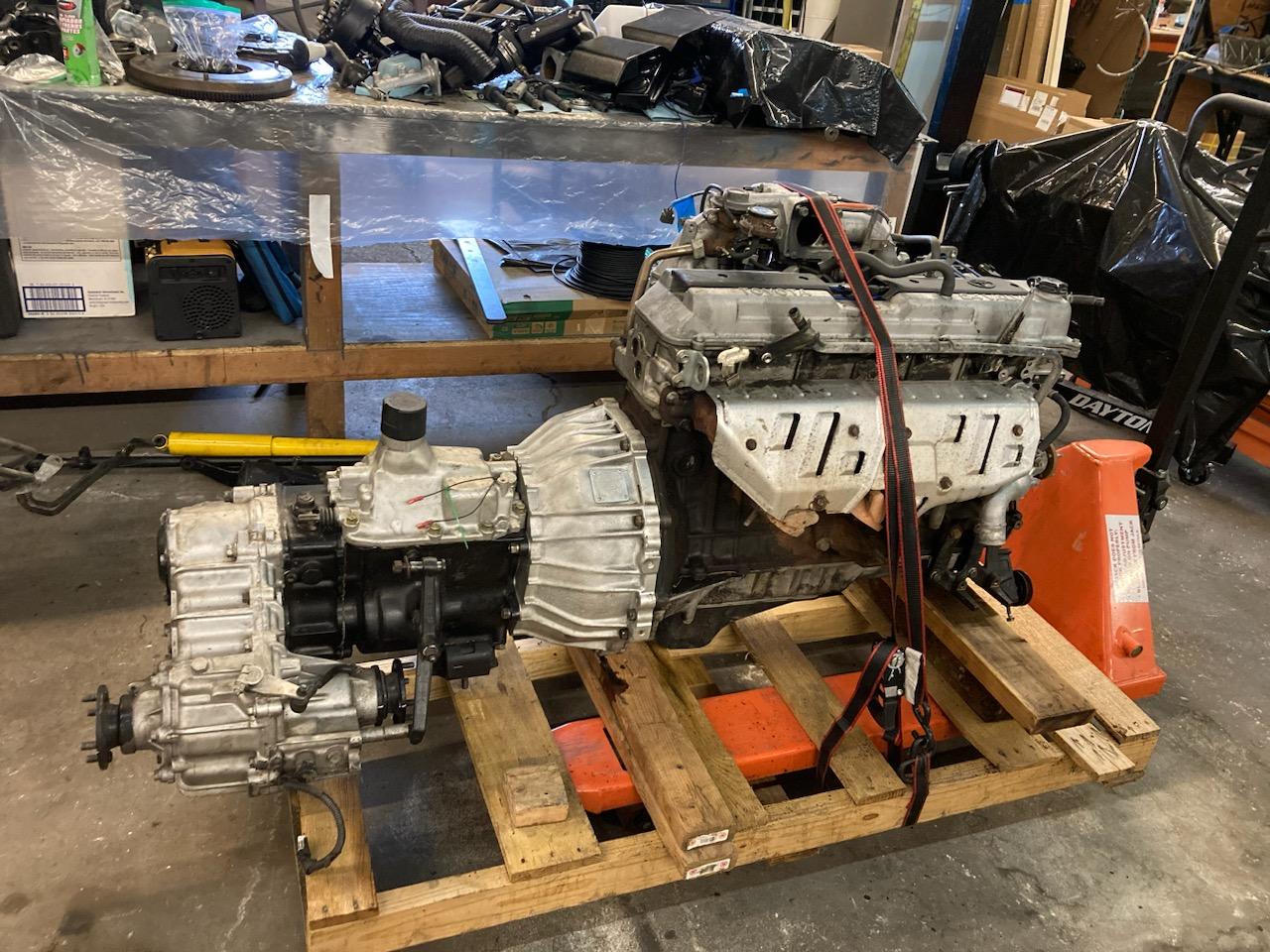

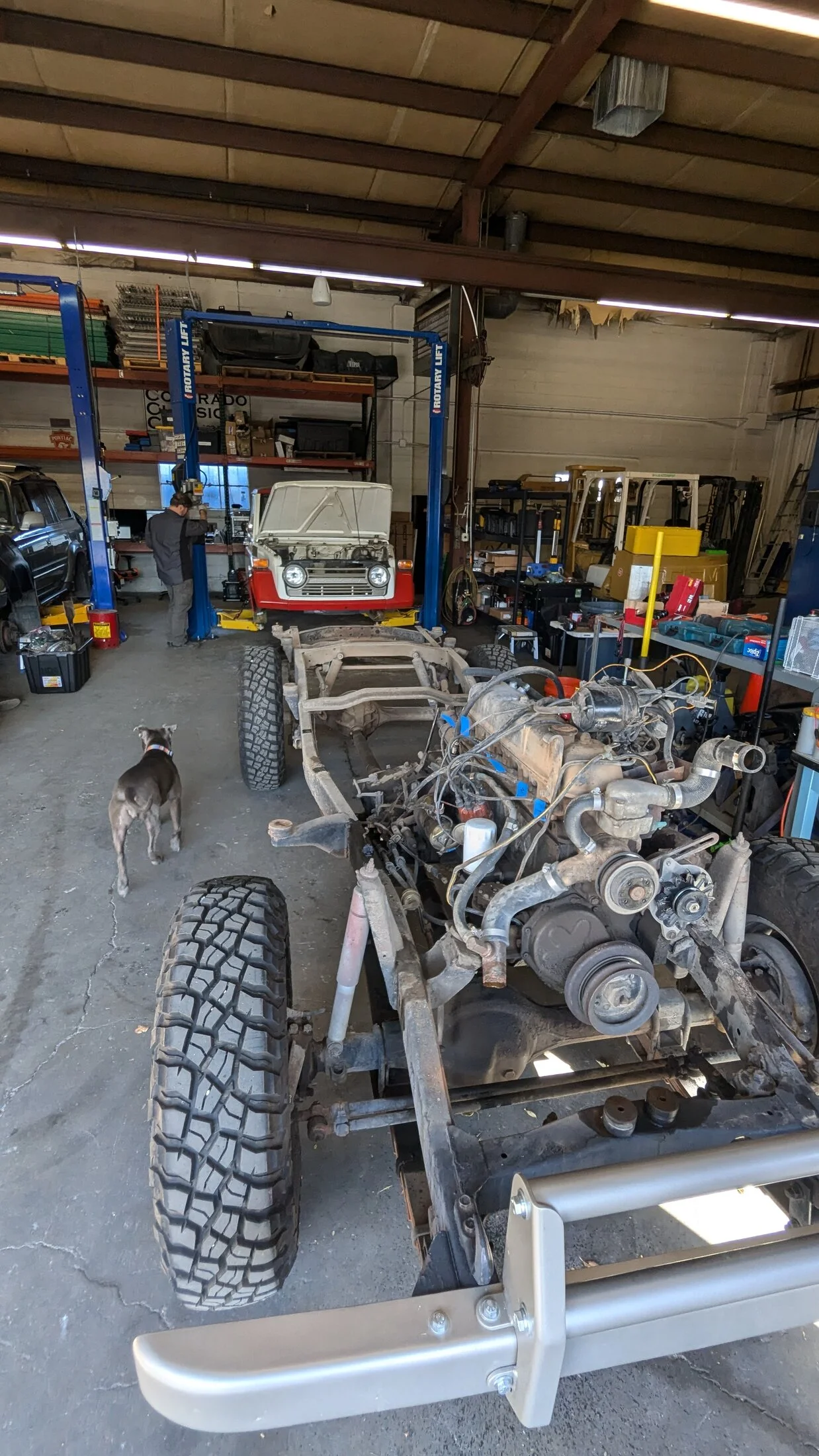

Drivetrain mockup without the NWF blackbox.

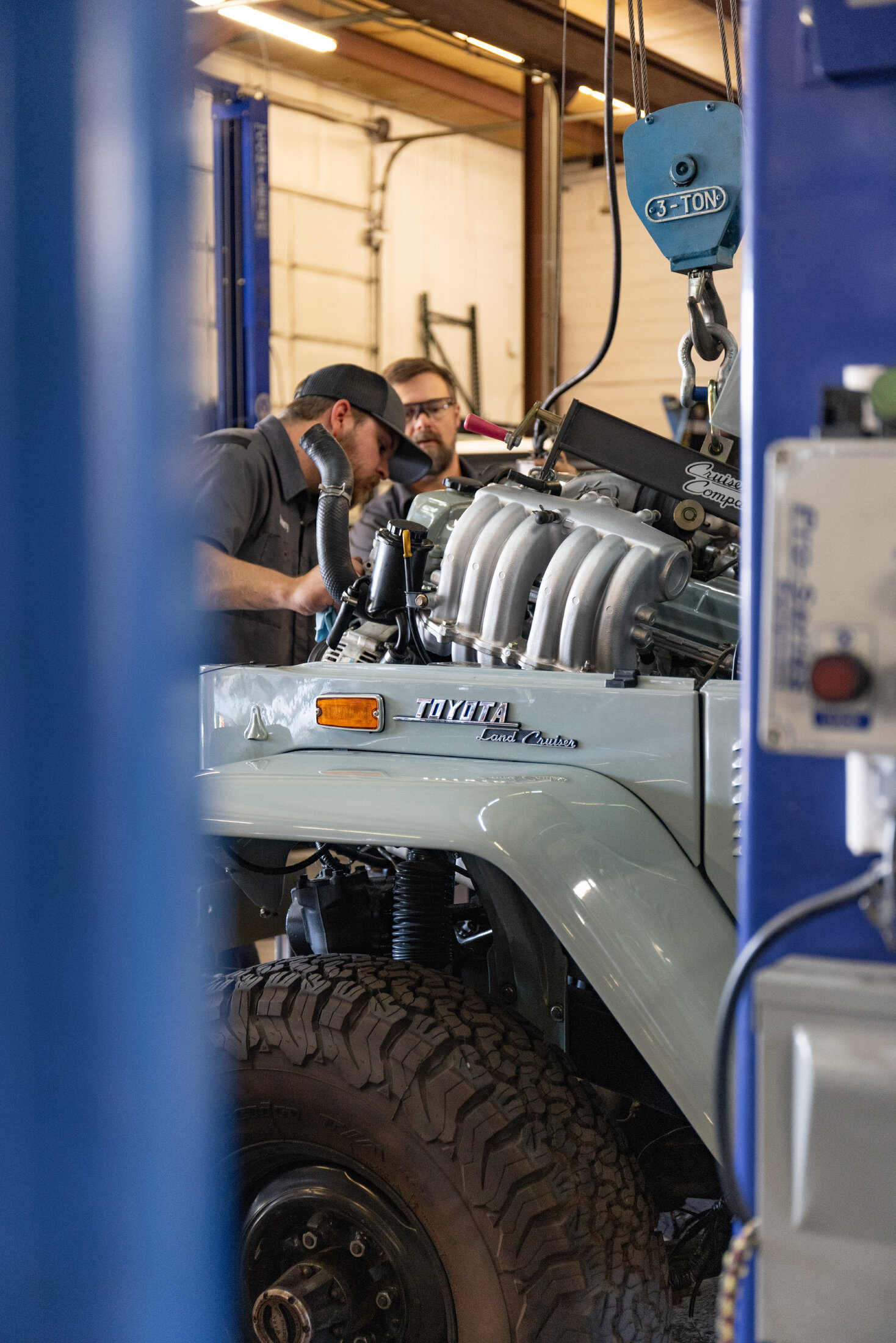

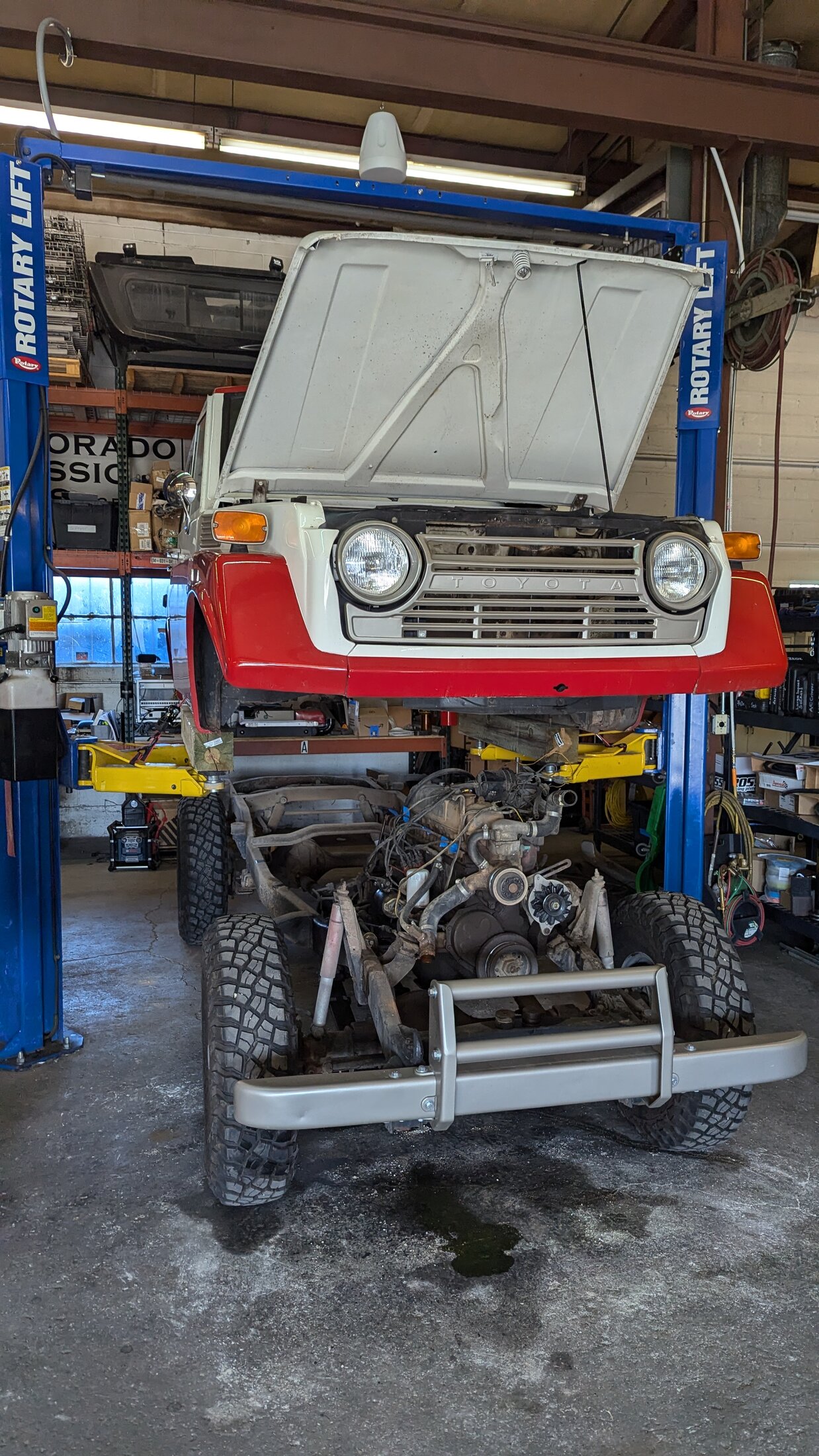

Actual engine coming out of the 72 FJ40

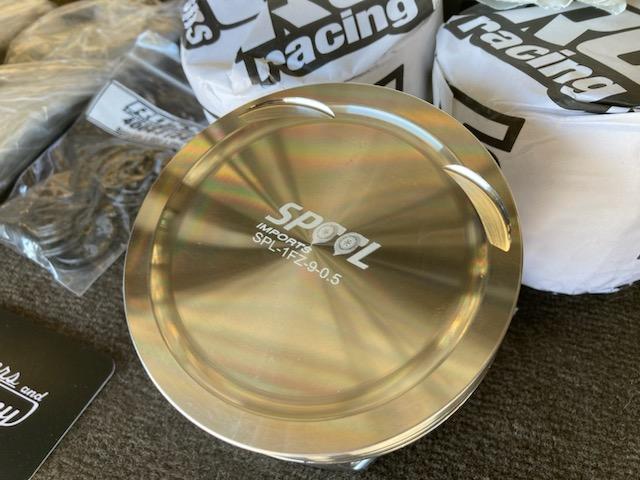

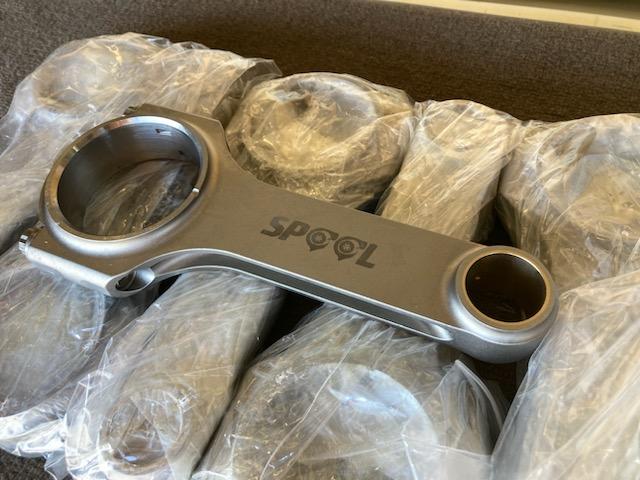

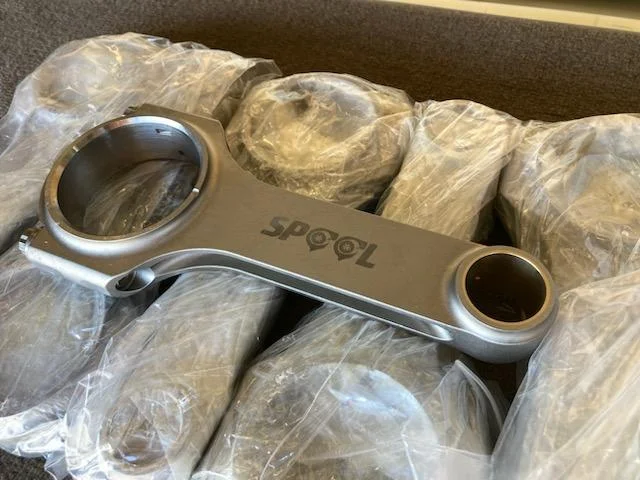

New spool rods and pistons



Last edited:
"Some is good, more is better, too much is just about right." Words to live by for my brothers and me.

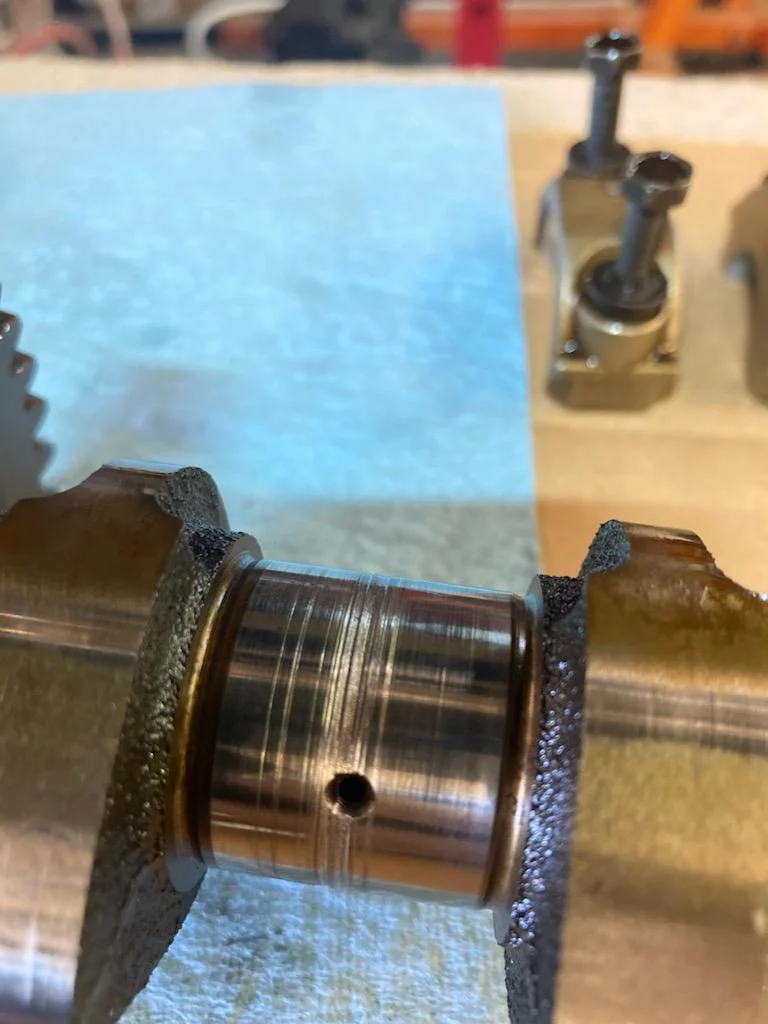

how do those rods go on the crank shaft?

how do those rods go on the crank shaft?
You take the rod bolts out, split the cap off the rod, insert the bearings, pre-lube (spit on that thang) carefully assemble the rod around the journal, re-install the rod bolts and torque to spec.

I know it doesn't look like there is a parting line, but it's there. You can see it just to the side of the notch for the bearing tang.

Re the NWF blackbox, earlier versions had an overheating challenge that I think they overcame some/most of that with the later boxes. To add more cooling, some folks have added an extra reservoir, pump and finned cooling loop. NWF says yes they run hot and recommends changing the oil whenever you do an engine oil change. I haven't got mine out on the road and where I live, temperatures are cooler so I haven't done additional cooling, but will monitor.

Re the NWF blackbox, earlier versions had an overheating challenge that I think they overcame some/most of that with the later boxes. To add more cooling, some folks have added an extra reservoir, pump and finned cooling loop. NWF says yes they run hot and recommends changing the oil whenever you do an engine oil change. I haven't got mine out on the road and where I live, temperatures are cooler so I haven't done additional cooling, but will monitor.
This is known to us and I have extensively played with and set up cooling for a BB setup before. Won't be an issue even with tons of highway driving. @MountNGoat ran his 1700 mile round trip almost dry the entire time and all it did was melt the nylon shift fork bushing. Really strong units.

Last edited:
This is known to us and I have extensively played with and set up cooling for a BB setup before. Won't be an issue even with tons of highway driving. @MountNGoat ran his 1700 mile round trip almost dry the entire time and all it did was melt the nylon shift fork bushing. Really strong units.

That's reassuring!

What’s the plan for the old 2F?

my thoughts have generally been to package the entire frame/axles/2f/4speed with the 74 body off the OG Pua'a and sell someone an all-but-running project, but the body is in Houston with @samc2447 (and I've not even mentioned it to him yet) and the rest of it is in Westminster, CO.

This is known to us and I have extensively played with and set up cooling for a BB setup before. Won't be an issue even with tons of highway driving. @MountNGoat ran his 1700 mile round trip almost dry the entire time and all it did was melt the nylon shift fork bushing. Really strong units.

That's reassuring!
And that was with the gen 1 box, with the gen 2 box there's quite a bit of extra room.

  • 2nd gen 1fz-fe w/coilpacks
  • Spool rods / Ross Racing pistons (0.5mm over)
  • @Cruisers and Co 1FZ Turbo Kit
  • ARP Head Studs / Cometic MLX Gasket
  • Haltech UC10 Dash in custom CNC dash
  • ECU Master EMU Black
  • H55F (new)
  • NWF Black box doubler
  • Split case with 3:1 & twin stick
  • Scheelmann front row
  • 35x10.50r17 Kanda MT2, but maybe 37s
  • FZJ80 frame; Dobinsons lift
Drivetrain mockup without the NWF blackbox.
View attachment 3761221

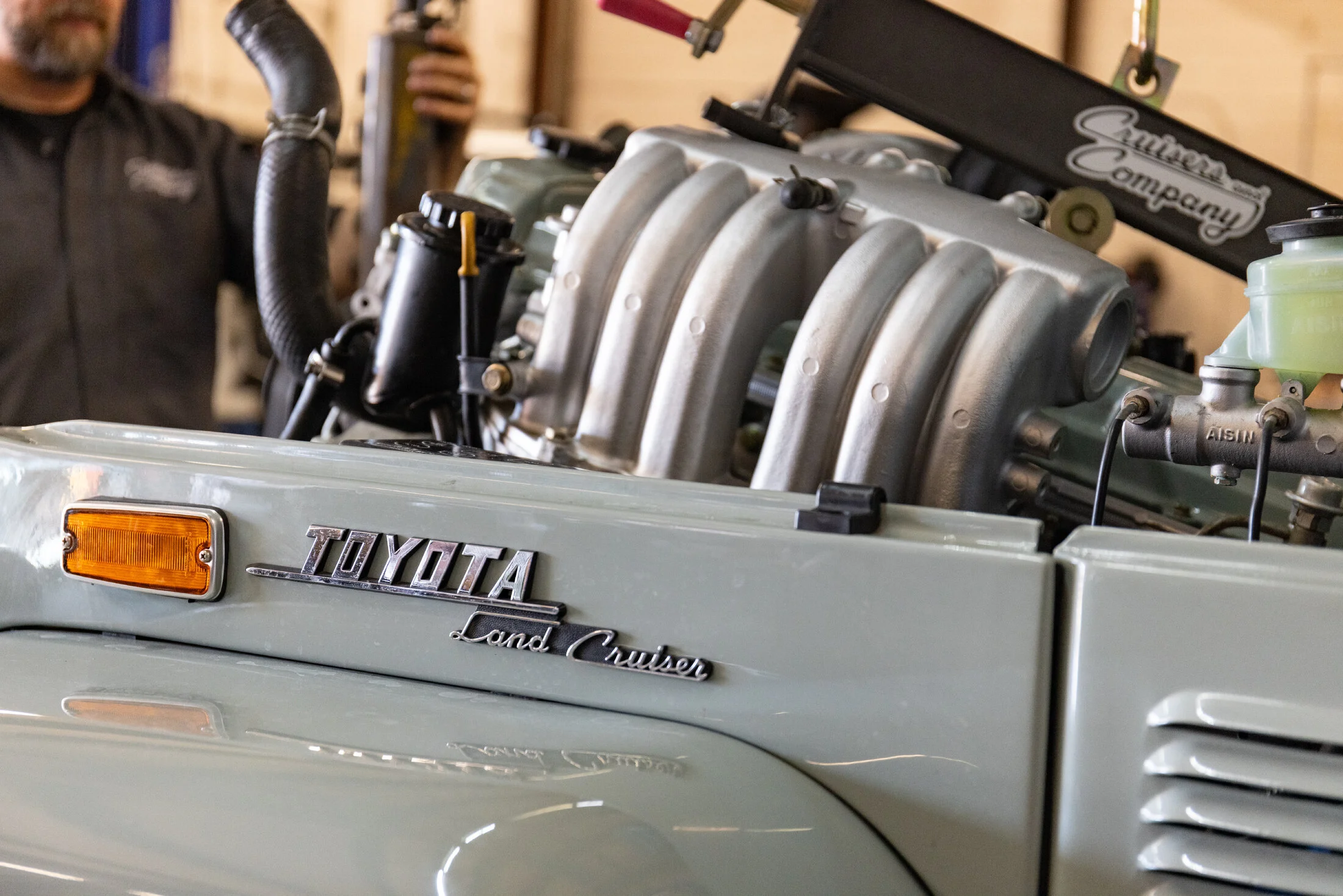

Actual engine coming out of the 72 FJ40
View attachment 3761282
View attachment 3761280

New spool rods and pistons
View attachment 3761219

View attachment 3761225
I am looking forward to seeing the @Cruisers and Co turbo kit go on!
