How can I figure out why I have death wobble? (1 Viewer)

[bjp]

I have a 1993 with death wobble that I've tried to fix and it's still not fully gone. I'm sure there are many things I could blindly try if I had infinite money, but how can I figure out which one is actually likely to fix the issue?

I know this is a bit long, so to encourage responses: I'd be excited to send $50 to whomever first describes a diagnostic procedure which leads to diagnosing an issue that, when fixed, solves the problem. Just throwing out things it could be doesn't count unless accompanied by some test I can perform to confirm or deny whether that thing is actually the main problem before spending money and time addressing it.

When it started
I'm completely new to Land Cruisers and vehicle maintenance in general. I bought this LC in March with 163k miles and I've been baselining it ever since, so I've put less than 1k miles on it. I thought I had the minimum set of stuff done in September so I took it to an offroad picnic about an hour away by paved roads. Just before hitting dirt, I got my first death wobble around 30 mph. I thought "that was crazy", but the pavement was a little rough and I hadn't heard about death wobble before, so I did a bit of light offroading then started home. A fire forced me to take (paved) back roads for 23 miles and I got probably 8 or 9 wobbles. By the end, I was trying to intentionally trigger them to figure out what the trigger was, and I was trying various things to mitigate them instead of just braking hard, but I couldn't find any reliable patterns.

Behavior
The wobbles always started between ~20 and ~55 mph -- I took it carefully on the freeway on the way home after the wobbles on the back roads and got zero wobbles on 28 miles of freeway, then one more wobble on the 1.5 miles between the freeway and my house. The wobbles seem to be more likely to happen while on a slight curve (especially when the curve direction changes), when hitting small bumps (but larger bumps don't seem to do it), and when slightly braking, but even a combination of all these factors doesn't guarantee a wobble, and not all factors are necessary to produce a wobble. Again, I could never figure out when they would or wouldn't happen.

Initial investigation
When I got home, I found the jam nut of my front adjustable panhard rod completely disengaged, so I tightened that jam nut. I could grab the drag link or tie rod and rotate them on their axis by hand fairly easily, but I didn't feel any play. I jacked up each front wheel one at a time and tried to wiggle the wheel while grabbing at 12 and 6 and I didn't feel any play. I tried to wiggle while grabbing at 3 and 9 and did turn the wheels a bit, but didn't notice any play. I took off the mud guard of the driver front wheel and looked at the frame and panhard tower around the steering box and didn't see any cracks. I measured 30.15 PSI in front passenger tire and 30.65 PSI in front driver tire, and both wheels still had balancing weights attached (though I can't rule out some falling off). The two of four knuckle nuts I could easily access with my torque wrench were still torqued to at least 71 ft-lbs and the other two were "tight" (both sides).

After tightening the panhard jam nut, I took it back out on a 45mph street and got 2 more wobbles within 3 miles. A member of my offroad club diagnosed needing new rod ends.

Attempted fixes
I bought the Trail Gear Heavy Duty Steering Kit which includes a new drag link, tie rod, 4 rod ends, and a steering damper. I took off both rods, damper, and the steering box and had the steering box professionally rebuilt. The old steering damper was pretty much entirely done -- spring only, virtually no oil resistance. When reinstalling the steering box, I replaced the high pressure hose with Gates and the low pressure hoses with Gates from phhkit.com. I installed the new tie rod and used two aluminum angles to set 1/8" toe in at 37" wheel diameter, using two laser pointers to center the steering:

I installed the new drag link and tried to center the steering wheel as closely as possible using the two laser pointers on my alignment jig shown above. All crown nuts torqued to 67 ft-lbs plus whatever was needed to line up the cotter pin holes. The Trail Gear rods use jam nuts and do not have any indents to put a wrench on (!), so I tightened the tie rod jam nuts to TG's recommendation of 75-85 ft-lbs using a giant 14" set of vice grips and a giant adjustable wrench. I tightened the drag link jam nuts with just the wrench to "medium tight" because I knew I would need to adjust the steering wheel position a bit more. I did NOT install the new steering damper because one of the bolts was missing and Trail Gear has STILL today not delivered that missing bolt (they blame PROcomp, the steering damper manufacturer), but my understanding (which could definitely be wrong!) was that the steering damper just masks the issue and is never the root cause, so it seemed ok to leave it out initially. I also got my front wheels professionally balanced. Unrelated(?) to these fixes, I also installed a new Tom Woods DC front driveshaft.

Results
After these fixes, I drove a 38 mile loop including 23 miles of paved mountain roads like the ones that triggered so many wobbles. Zero wobbles. I did feel some "incipient shimmies" (vibrations like the ones that preceded death wobbles) which worried me a little, but I don't know the truck super well so I figured those may just be normal solid axle stuff. Given that I got 2 wobbles in 3 miles before the fixes, I thought for sure I would see wobbles in the big circuit if they were still a problem. The drag link did come loose from its jam nuts during the circuit because I hadn't done the final tightening yet, but even with the drag link working its way loose, still no wobbles. So, I considered the issue probably fixed and moved onto the next work.

Going to the picnic, I also had the AC shut off from overtemp while climbing a steep freeway grade on a hot day, so I did a bunch of cooling work next including replacing all of the heater hoses, replacing thermostat, replacing fan clutch with new 95F/6500cst-modded clutch, replacing radiator, and adding a temperature sensor to the upper radiator hose.

I went to do a short test drive to also re-set the drag link properly and...got a death wobble a short distance before my house. Well crap. I finished dialing in the drag link length and tightened the jam nuts to basically the gripping limit of the vice grips, then drove the same 38 mile loop. No death wobbles, but still a bunch of "incipient shimmies".

So, I don't really know what to do. I don't think tightening the drag link jam nuts should have made the difference between wobble and no wobble since I wasn't getting wobble on the big circuit even when the drag link was loose. But, it's also now apparently hard to actually reproduce the wobble. I feel like I can't take the LC on trips because I'll probably see wobble at some point since it was still present after all the fixes (not taking it on the trip I'm leaving for today because of this).

Configuration
When I bought the LC, it already had:

• 37" Cooper Discoverer STT Pro tires with most of their tread life remaining
• Method 105 beadlock wheels
• OME 419 Comp Coils in front, unknown OME coils in back, resulting in ~5" lift based on DeltaVS's panhard bolt method when lightly loaded (but still have front & rear bumpers + winch on front + full-size spare on back)
• Front sway bar removed
• 5.29 diff gears (net result from 37" tires + 5.29 gears = truck travels 92% as far as speedometer/odometer thinks it went, so slightly lower gearing than stock)
• Air locker front, Detroit locker rear

Not very many miles before the picnic, I installed new DeltaVS radius arms for a 4" lift. I tried to get before & after caster numbers, but no shop around here will measure alignment on beadlock wheels, and I gave up trying to measure the caster accurately.

I had recently removed all wheels (one at a time), deflated, carefully and progressively torqued all 120 beadlock bolts, reinflated, and reinstalled.

Both the previous owner and the one before that are members of my offroad group (I joined shortly after getting this truck). The previous owner had a bunch of stuff put on the truck (including air locker), but drove it only a few hundred miles over 2 years. The second-previous owner (an experienced amateur mechanic) said the front axle "is basically all new" -- he said he thought he did the rebuild at 13Xk, but based on CarFax, I don't think he owned it until 145k (he works on a lot of cars, so not surprising his memory may not be perfect).

Possible things to try
I can think of a number of things that hypothetically might address the issue:

1. New non-beadlock wheels + new smaller (35"?) tires
2. Knuckle rebuild, including new wheel bearings
3. Install steering damper
4. Add a front sway bar
5. Replace some of the front axle components (not sure which ones)

I'd be happy to do any of these to fix the issue, but doing all of them would be very expensive, especially when it seems like there's no guarantee that even doing all of these things would fix it. #2 seems like the leading candidate to address any wheel bearing problems, but it seems like the fact that there's no play in the wheels wiggling at 12 and 6 would suggest that the wheel bearings aren't the issue (plus, the wheel bearings were probably replaced 20k ago). #3 will probably "help", but if it were just hiding the underlying issue, that seems like it would actually make things worse by making the underlying problem harder to find. Could #4 actually affect death wobble? I'm not sure what I would be targeting in #5; are there any components that might be causing the wobble? #1 seems like the most likely solution (but I don't really know what I'm talking about yet), but $3k-$4k is awfully steep for "most likely". I want to get non-beadlock wheels eventually in any case, but I really like the Coopers and would like to keep 37s if I can figure out this death wobble issue.

Thanks for reading; thoughts?



[gummycarbs]

I'll mention lone more thing, since you might not be aware of it. When you're putting fasteners back on suspension parts, alignment can be especially difficult. Everything is really heavy, and the tires being stuck on the ground means that they can't be moved more than the tire's sidewall deflection. So always be sure that, for example, your Panhard bolts thread in with minimal resistance until they've threaded in far enough to actually be clamping down on the Panhard.

If parts are misaligned, it's easy to get false torque readings, and many a newb mechanic has sheared bolts or welded nuts trying to get them threaded in. Sometimes the home mechanic has to have the vehicle on jack stands, then use a rolling jack to get an axle into alignment, and/or use a pry bar to hold things in alignment while threading in a fastener.



[mudgudgeon]

I'll mention lone more thing, since you might not be aware of it. When you're putting fasteners back on suspension parts, alignment can be especially difficult. Everything is really heavy, and the tires being stuck on the ground means that they can't be moved more than the tire's sidewall deflection. So always be sure that, for example, your Panhard bolts thread in with minimal resistance until they've threaded in far enough to actually be clamping down on the Panhard.

If parts are misaligned, it's easy to get false torque readings, and many a newb mechanic has sheared bolts or welded nuts trying to get them threaded in. Sometimes the home mechanic has to have the vehicle on jack stands, then use a rolling jack to get an axle into alignment, and/or use a pry bar to hold things in alignment while threading in a fastener.

Good point.
Also, torque suspension bolts when the vehicle is resting at ride height, not on chassis stands with axles drooped



[alia176]

To add to the above, only torque NON flanged suspension hardware. The flanged hardware have four serrations that bite into the metal and turning them is a big no no



[toyotaboy80]

This is pretty disingenuous. The instructions were to "check the torque on every fastener related to suspension and steering". As I said, "I'm completely new to Land Cruisers and vehicle maintenance in general" so I was careful to explicitly list each fastener I checked because I don't know what "every fastener related to suspension and steering" is. "Tighten stuff" is worthless advice.

I didnt mean any offense to you personally. I reckon I could have said what I said with more tact. Ive seen more than enough things get installed or repaired and left loose(by accident I imagine) or just not tight enough to begin with. And by so called professionals....which I dont know how but it happens I guess for whatever reason.

"Tighten stuff" isnt worthless advice. Every fastener needs to be tight enough for its intended purpose. To put it in perspective, an oil drain bolt is either installed, tight in place, or its removed. Its never finger tight and you'll go back to it before the job is done... the day that gets forgotton is the day that person is going to wish they "tightened stuff". To say tighten stuff is a very general statement. But it literally means ensure every fastener is tight. Whether you did the work or not. On a new rig that isnt bone stock it would be especially important as you have no idea if something is tight or not. Not the right stuff. But everything is tight enough. Every single last fastener pertaining to the area of concern.

In any event thats good youve mostly got it figured.

As for your caster, I'd say thats the bare minimum requirement for caster. You could benefit from having more given the nature of your set up. Hard to say if would help the issue youre having now. Could improve other driving characteristics.



[mudgudgeon]

Caster is middle of the road in terms of factory spec.

Ideally, I'd aim for 4⁰ if I were changing things, particularly if lifted and on big rubber



[Mattscruiser]

Howdy ladies and gents, I've come across this thread as I'm trying to fix a bit of a wobble in my 80. Impressed by how in-depth you guys go to resolve problems.

I have a quick question, can anyone tell me how hard it should be to push a steering dampener in? I'm suspecting mine as the source of my wobble, all my bushes look good and nothing is loose. I can push (removed from the car) my dampener in all the way by hand, and then have to pull it back out manually. Is that how these things are meant to be? Doesn't seem so to me.

Cheers, Matt.



[baldilocks]

Howdy ladies and gents, I've come across this thread as I'm trying to fix a bit of a wobble in my 80. Impressed by how in-depth you guys go to resolve problems.

I have a quick question, can anyone tell me how hard it should be to push a steering dampener in? I'm suspecting mine as the source of my wobble, all my bushes look good and nothing is loose. I can push (removed from the car) my dampener in all the way by hand, and then have to pull it back out manually. Is that how these things are meant to be? Doesn't seem so to me.

Cheers, Matt.

Yes, the steering damper is a simple oil shock that should require equal effort on your part to move it in either direction.



[Mattscruiser]

Yes, the steering damper is a simple oil shock that should require equal effort on your part to move it in either direction.

Should it be possible for me to simply push it in by hand?



[baldilocks]

Should it be possible for me to simply push it in by hand?

Yes but it should take some effort, exact pounds of effort I can’t really say and I have no idea how strong you are. If you can collapse it from fully extended against the floor in one or two seconds then I’d say it’s worn out.

The steering damper might mask death wobble of a certain degree but it is not the cause of it. You need to look closer at everything else you read about in this thread.



[Mattscruiser]

Yes but it should take some effort, exact pounds of effort I can’t really say and I have no idea how strong you are. If you can collapse it from fully extended against the floor in one or two seconds then I’d say it’s worn out.

The steering damper might mask death wobble of a certain degree but it is not the cause of it. You need to look closer at everything else you read about in this thread.

Cheers cob. I just pushed it all the way in against the ground, it took probably 5 or 6 seconds, further investigation is required.



[mudgudgeon]

Agreed fully with 'man with no locks' above.

Look beyond the damper. Leave the damper on the bench while you work through other options



[Broski]

So...

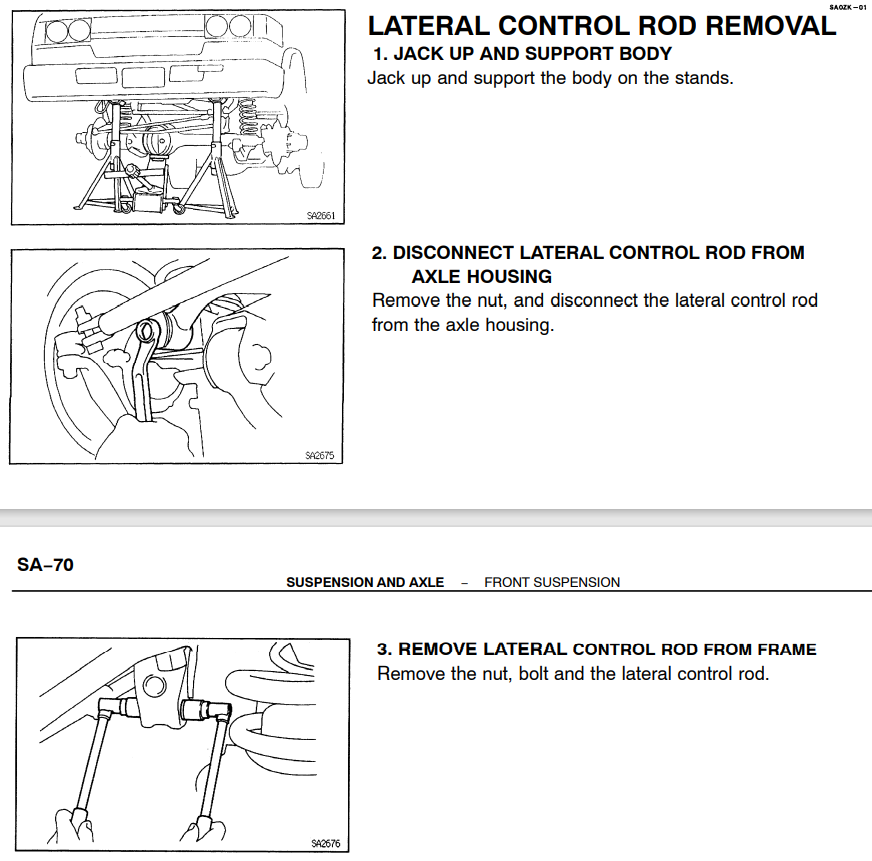

FSM:
View attachment 2823952

Me:
View attachment 2823955

The bolts came out without much trouble. And, the upper nut was already loose, so that seems like a candidate for contributing cause. But, the rod and bushings are REALLY wedged in there; this is after a number of whacks with a dead blow hammer:

Any hints on how to get the bar out? Is it supposed to be this tight in the mounts?

Any guesses on what kind of adjustable front panhard rod it is? Looks like maybe ARB based on internet pictures? Where can I find bushings for that rod? Does anyone know if they are OEM-compatible?

The Dalta arms push the axle forward, so now the Panhard is not in factory alignment and why it's hard to get in and out



[alia176]

Well, looks like it's time for me to pay the Piper, as they say. I started to have a slight DW few weeks ago and now it has become a predictable thing. I immediately thought of this thread and started to chuckle to myself when the steering wheel started to shake. Even though my panhard bushings are less than six month old and the front radius arms are less than one year old, I got DW .

I'll raise the front end today and check out the knuckle bearing pre-load as well as check the torque values on all front suspension hardware. It never ends......



[Wrencher93]

Well, looks like it's time for me to pay the Piper, as they say. I started to have a slight DW few weeks ago and now it has become a predictable thing. I immediately thought of this thread and started to chuckle to myself when the steering wheel started to shake. Even though my panhard bushings are less than six month old and the front radius arms are less than one year old, I got DW .

I'll raise the front end today and check out the knuckle bearing pre-load as well as check the torque values on all front suspension hardware. It never ends......

You said the bushings are new. Are they OEM? Asking to rule things out, not to be a jerk... perhaps you had a hard strike on one side or the other? Something that could tear a bushing?



[jellis]

I got so sick of DW I literally threw money at it and rebuilt my entire front AND rear ends (Delta radius arms appropriate to my lift, new steering rack, new bushings all around, all new rear arms, Delta rear panhard bracket, front axle rebuild including replacing spindle, etc.)--literally ALL the things, including one of the two steering column u-joints. My frame was cracked, fixed that as Step 1 years ago. Nothing did anything, still had DW on and off for years. DW is the most frustrating thing because the truck is literally worth than USELESS if you have it, it's a total liability. So I thought I'LL JUST REPLACE EVERYTHING BECAUSE OTHERWISE MY TRUCK IS GARBAGE!!!! And STILL had DW--boy that was a sad, SAD road trip.....

Then I ditched my Cooper ATS tires (also had Discoverer and STS with DW before that) and got Nitto's and I haven't even felt what @bjp described above as, "incipient shimmies (vibrations like the ones that preceded death wobbles)". It's been a complete game-changer. This includes running them with over 1" of toe-in on accident because my original steering rack was bent and I didn't realize it! I thought I might have DW problems when I rotated (which has happened MANY times before!), but nada!!! Since then it's been about 15 months and 8000+ miles and absolutely no "incipient shimmies" let alone DW!
As cheap/not-cheap insurance since tires wear and change over time, I added the Dobinson's adjustable steering damper for good measure which has been awesome. Expensive as get-out as far as dampers go but well worth it, and certainly have no shimmies at all perceptible in the steering wheel with it now. My old mechanic buddy said that they always cured death wobble with a double damper. After all, a damper IS designed to dampen harmonic resonance which is precisely what DW is. So for everyone who says the damper just masks the problem, I say: I don't care what it takes to make my truck reliably functional. Solved, masked, whatever--if it has DW it's only good for scrap, you can't even morally sell the thing and recoup sunken costs. I'd be curious now what my truck would do with my old tires and this new damper.....

Overall I find it odd that everyone says that the giant rotating masses on each wheel (tires) and the damper installed to reduce harmonic resonance induced by those giant rotating masses are not really causal. If I were to do it over again I'd START spending money to solve DW with known quality tires that have a nice round profile (installed with road force balancing). If that doesn't help you can always use them later so it's not a sunken cost. In my experience most of what I was chasing around in my suspension/steering components were symptoms of DW and not the cause, including the cracked frame, bent steering arms, bent radius arms, etc.



[alia176]

Yup, all OEM bushings . When it comes to my suspension, nothing but OEM will do.

You said the bushings are new. Are they OEM? Asking to rule things out, not to be a jerk... perhaps you had a hard strike on one side or the other? Something that could tear a bushing?



[Broski]

You said the bushings are new. Are they OEM? Asking to rule things out, not to be a jerk... perhaps you had a hard strike on one side or the other? Something that could tear a bushing?

JMHO Bushing don't tear !!



[leonard_nemoy]

I would 2nd starting with tires. I had some old bfg's and a slight wobble. As soon as I got new tires it went away. I also like nitto's, they seem to balance so easy.



[Wrencher93]

JMHO Bushing don't tear !!

Well we may be using the term "tear" differently but a lot of people seem to suffer from degraded bushings that crack/tear/come apart...so I was just pointing out that age isn't always a 100% indicator of any part's status. Though, one would hope new parts would have a normal and long life cycle.



[alia176]

I would 2nd starting with tires. I had some old bfg's and a slight wobble. As soon as I got new tires it went away. I also like nitto's, they seem to balance so easy.

I doubt my tires automagically become out of round and $hitty . Besides, they're less than 12 mos old and rotated and balanced frequently. Still, I'll rotate them to the rear as a quick check to see if the DW goes away. I'm doubting this will happen but one never knows.

Thanks for the input.
