Hard Top Restoration threads, where are they? (1 Viewer)

[airon23]

I've searched my own "watching" because I thought I had one saved. I searched the FAQs. I've done just a regular search but can't seem to find a good restoration of hard top thread on here anywhere, but I'm sure I've seen one. Can anyone point me to the best one. I swear I saw one not too long ago, but it might be under a thread title not including the key words Hard Top Restoration.
Thank you in advance.



[middlecalf]

This one has good info on fiberglass repair
Looking for info on sunroof hole repair



[Solace in Solitude]

@FJ40Mitchell has a comprehensive procedure, documented in this thread.

I don’t know how good it is... I’ve never had a desire to restore mine.

I also know @honk documented a very thorough fiberglass procedure somewhere.

To get a list of MUD threads, associated, in some fashion, with @fj40 hardtop repair, google:

fj40 hardtop repair site:ih8mud.com



[airon23]

Thanks for the help guys. Not the threads I was thinking of but that's ok they were still helpful none the less. I do have to fix 2 small holes with fiberglass. I may just have to start my own when I start it then.



[thebigredrocker]

Man there are a ton of guys who have done tops but the threads are challenging to find because so many terms are used. Cap, lid, top, roof, hard top, hardtop. @airon23 what all do you think your top is gunna need. Fiberglass repair, new gutters, new headliner? Have you made a decision on doing gelcoat or or single stage paint? Gel coat guys that come to mind: @bj40green, @ginmtb, @JohnL. Single stage guys: @Splangy, @MoCoNative, @rkymtnflyfisher @thecrazygreek
If you need to rivet new gutters @emac has been involved in those discussions.

My gutters were fine so I left them in place. Took them to bare metal as best I could. Sanded the roof, applied high build primer, sanded smooth, then SEM self leveling sealer in gutter,
Epoxy sealer, sanded smooth again, then single stage paint. Overkill, but I’m actually wetsanding the top right now.

Hey mate, I'm a boatbuilder here in New Zealand. I wouldn't recommend gelcoat. It's best applied to a waxed mould so when you apply it to the outside of a product you have to add in wax and styrene so that it doesn't stay sticky. You then will be left with a very matte finish and the orange peel from the gun. You have to then wet sand it in stages up to 2000g and polish it up. If you sand through you'll need to do it all again as touch ups are not flawless. I've you've ever looked at and old gelcoat boat (even a few years old) you'll see the gelcoat is dull and porous and maybe cracked. Not worth the effort in my opinion.
A good quality automotive or marine paint will be easier, faster and give you less heartache at the end of the day.



[airon23]

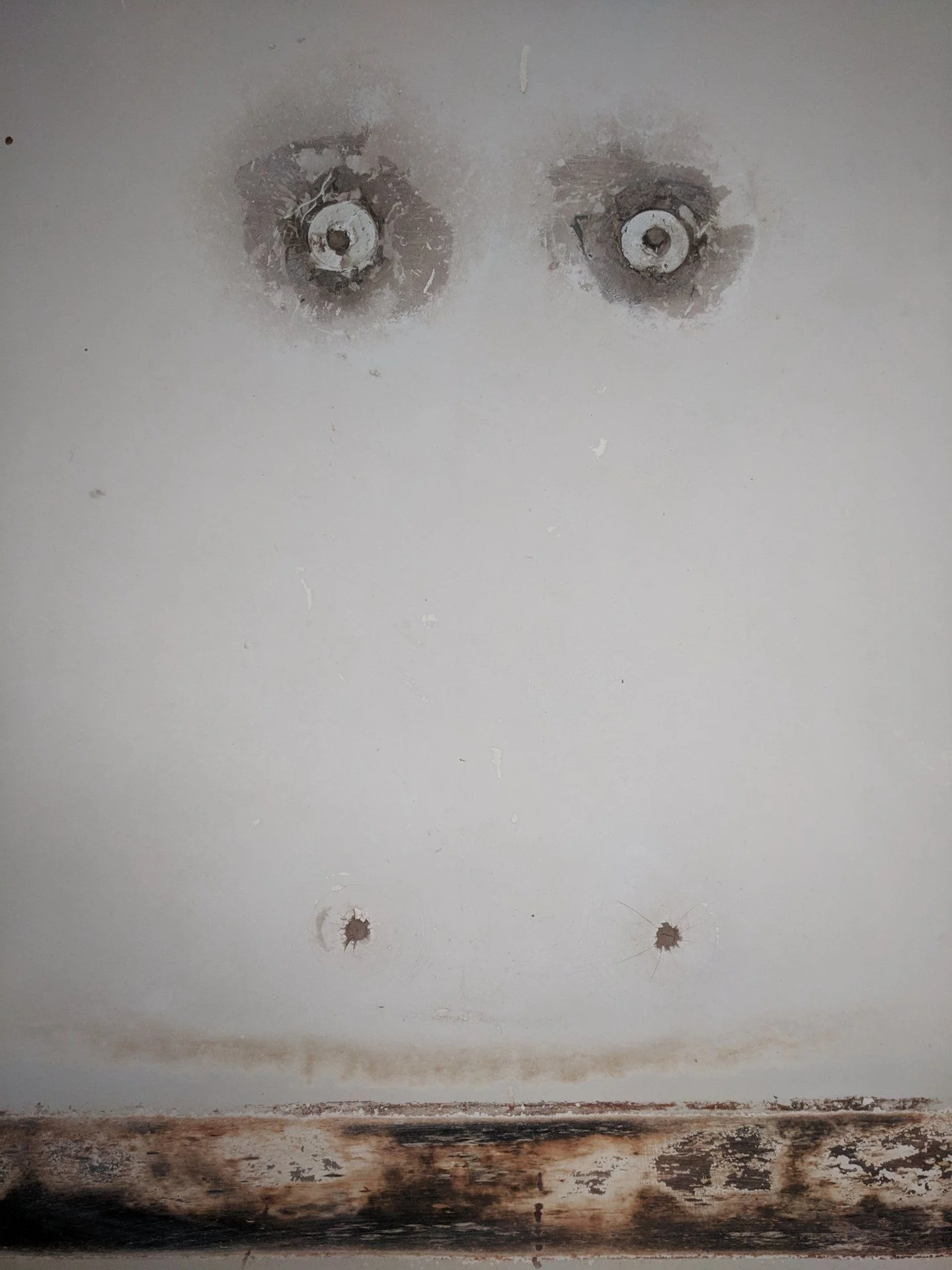

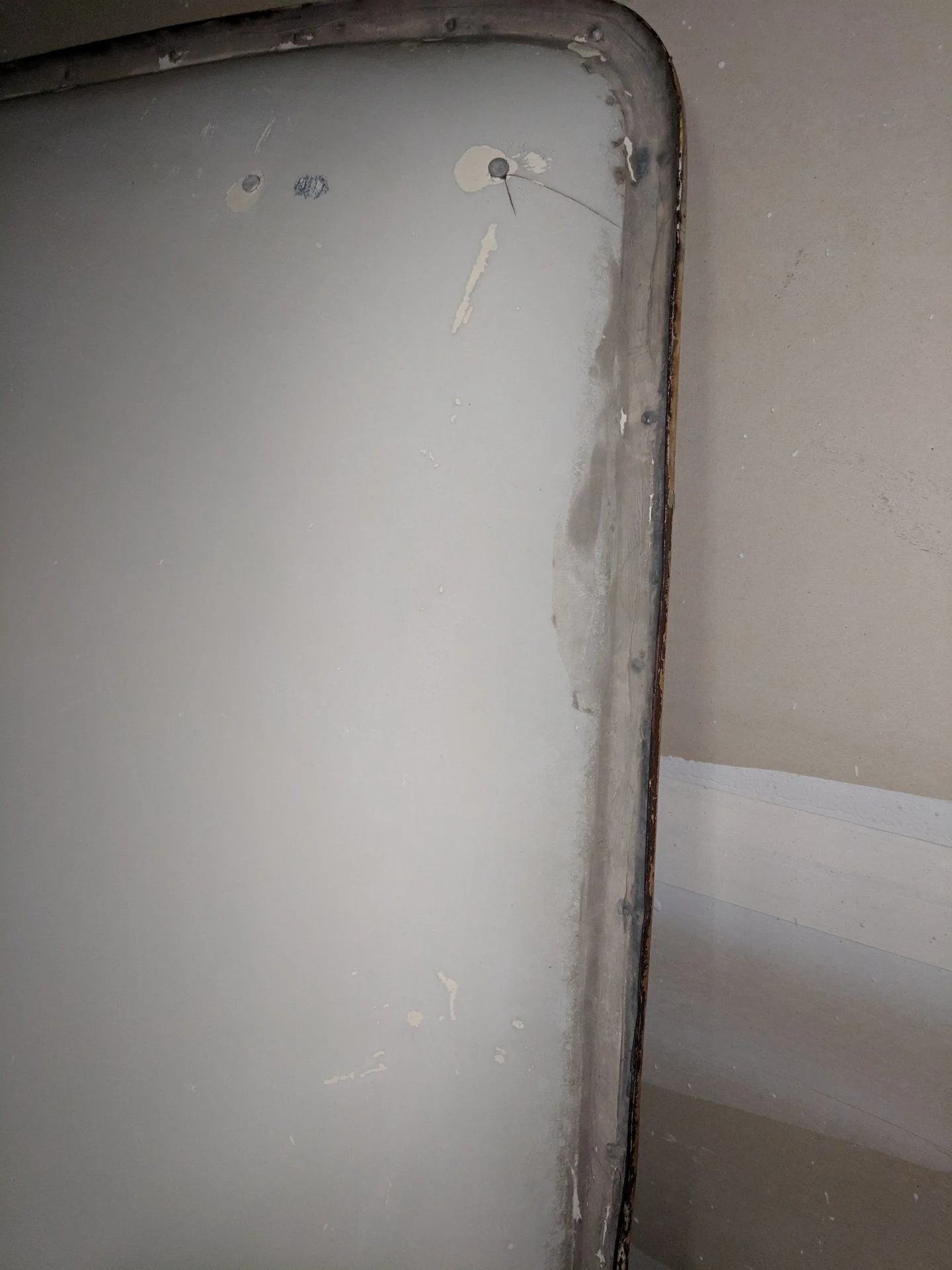

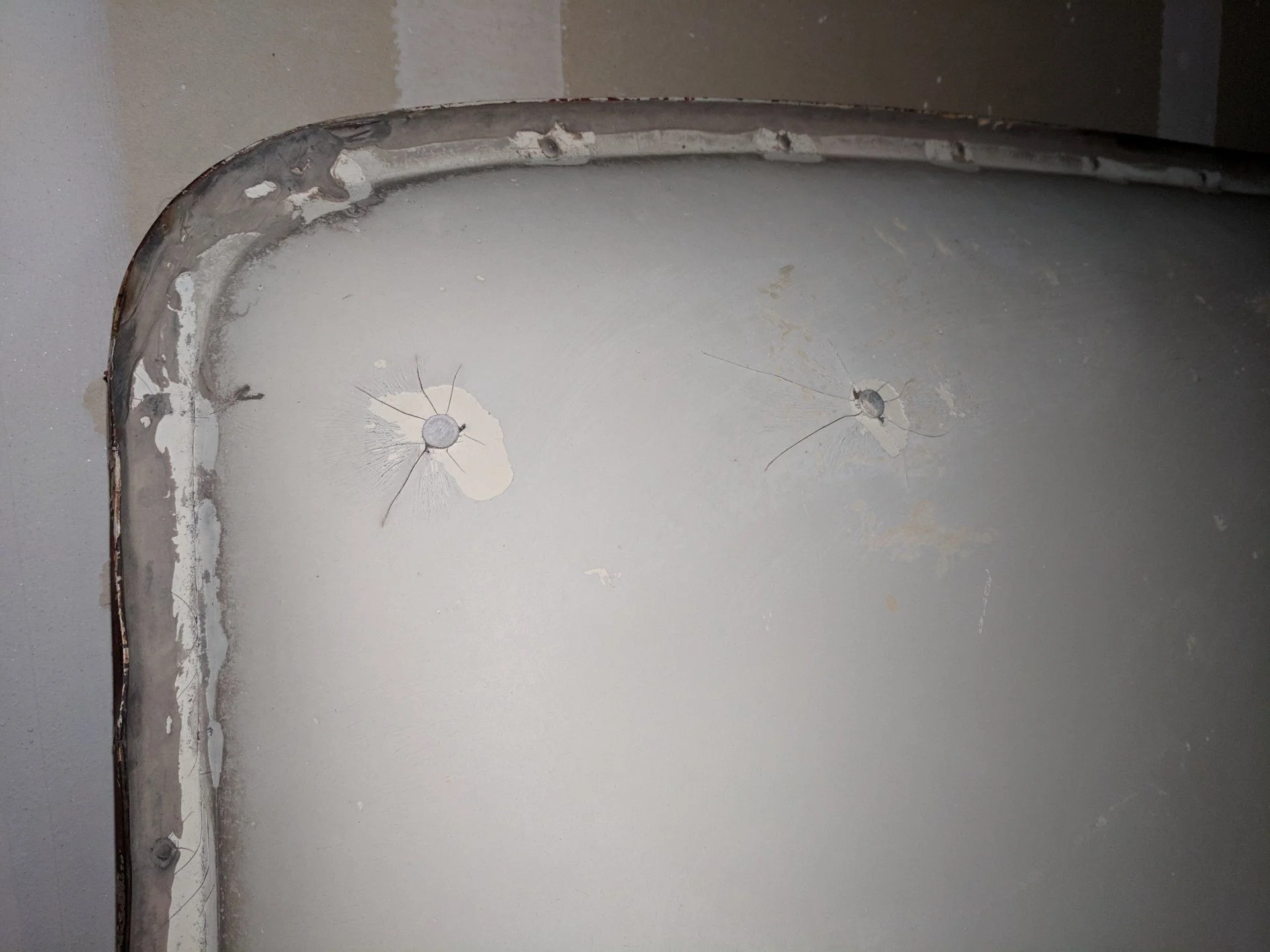

@thebigredrocker right along the lines of what you're describing you did, is what I'm looking to do. The gutters have some home depot goop that's probably been there for 20 years or looks like it at least. There are 2 small holes and a couple scrapes from roof rack in the fiberglass so I would fix the holes and sand and repair the scrapes then prime and paint the top with some cygnus white rattle can ordered from Cruiser Corps. I think my biggest thing are the gutters, and if I have to scrape it all out and use something like the SEM self leveling sealer you're describing but I don't know what that is. Obviously the PO put that goop to try to seal it so it probably needs it.
I really don't want to, nor do I think I need to but maybe, remove the rivets and redo those. It looks like such a pain and I don't exactly have a ton of space as we mostly use the garage for parking our cars.

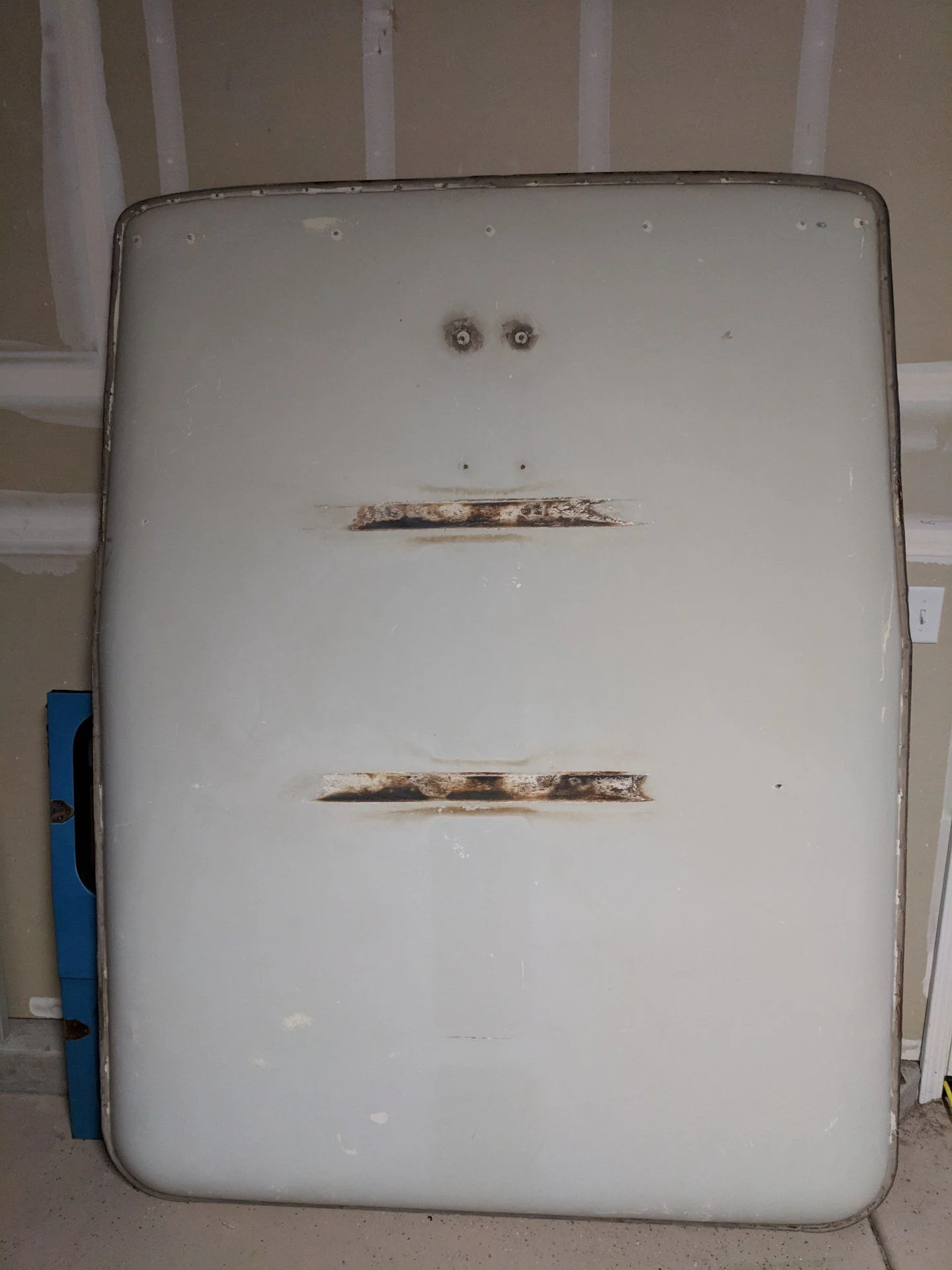

I'll see if I can post a picture of the hard top.

Keep in mind this isn't a full restoration or anything I'm really just trying to what I keep calling refresh my FJ40. So this isn't exactly expected to be show piece quality, but I do want it to look nice.



[rkymtnflyfisher]

I’ll vouch for the SEM seam sealer, I may even have a spare package in a box somewhere. If you need the applicator gun let me know, I’ll let you borrow it if you go with the SEM stuff.

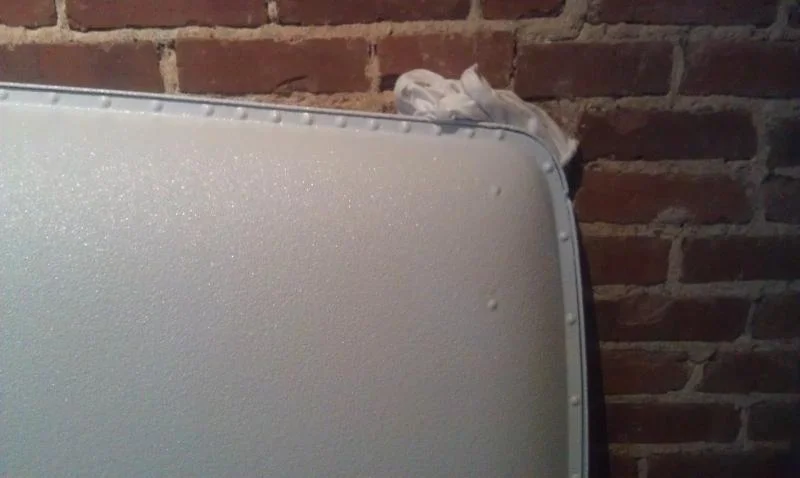

I rattle canned my top a few years back, about 6 cans of gloss white and a few coats of clear.



[rkymtnflyfisher]

A good wire brush and a dental pick from the gun cleaning kit is very useful to get the old sealer out of the cracks.

And new rivets for the top.

I have a box somewhere, in a box, in my garage. Somewhere.

Aside from the gutter the rest should be straight forward, sand, clean, prep, paint.



[airon23]

Turns out the metal gutters look pretty good no real rust. But there are several rivets that are broken which might explain the need for the sealing goop. So I'm not too worried about the fiberglass I think I can handle that. I didn't realize so much paint needed but probably makes sense I guess.



[bikersmurf]

Depends on what you want to know about hardtop... look below —————>


Feel free to add, borrow, steel. ¥



[JohnJL]

search on my name, I just did this and published a bunch of pics.



[airon23]

search on my name, I just did this and published a bunch of pics.

Will do thank you



[thebigredrocker]

Dremel makes a couple attachments that I found were perfect to clean up the gutter metal and not vaporize the fiberglass. Think I posted pictures of gutter clean up.

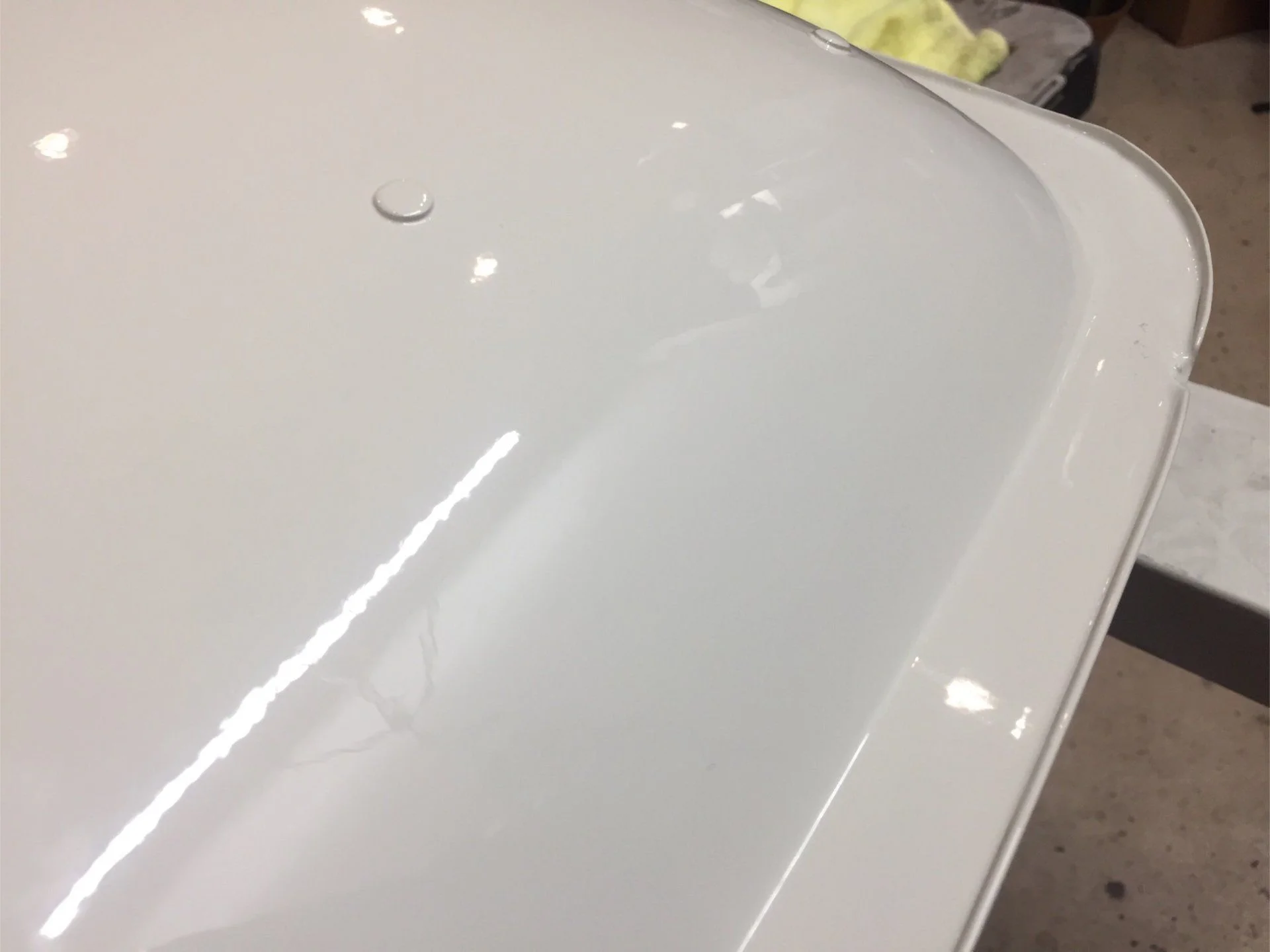

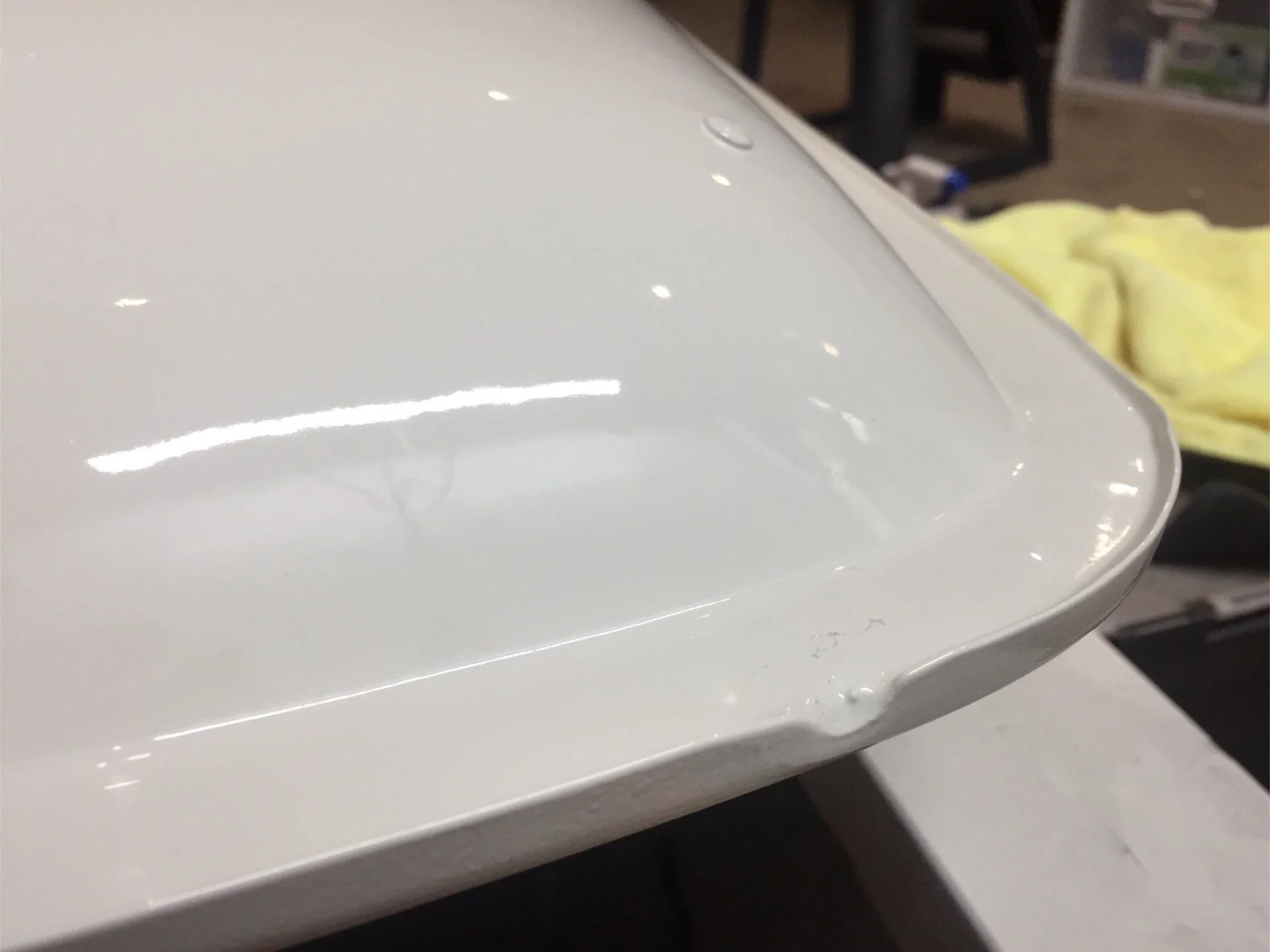

I probably used too much SEM. Here’s how full 3 tubes will get you

If you want a more durable paint mixed in Toyota colors, check out the spraymax 2K. It’s basically single stage from a rattle can. More costly than hvlp, but super simple. The patented can has a built in hardener pod you puncture before you shoot. I’ve ordered it from 66autocolor. Great paint supplier to deal with.



[ginmtb]

Here is what I used - not exactly gel coat but easy to apply and has held up well. A boat guy recommended this stuff to help with the spider cracking and flexing. The stuff to the right was for bonding the fiberglass rain gutter to the top. I too probably filled my gutter too deeply oh well. And then I went cheap and used the appliance epoxy spray paint (Rustoleium, biscuit). Easy touch ups if needed and I want to say under $5 per can. I used a few and put a bunch of layers on it. If you go the rattlecan route, get the little spray gun attachment. I thought those were hokey but then used it and wow what a difference!

Builds - Won a '74 40 on a coin toss...



[BuckMark]

Dremel makes a couple attachments that I found were perfect to clean up the gutter metal and not vaporize the fiberglass. Think I posted pictures of gutter clean up.

I probably used too much SEM. Here’s how full 3 tubes will get you
View attachment 1843684 View attachment 1843685

If you want a more durable paint mixed in Toyota colors, check out the spraymax 2K. It’s basically single stage from a rattle can. More costly than hvlp, but super simple. The patented can has a built in hardener pod you puncture before you shoot. I’ve ordered it from 66autocolor. Great paint supplier to deal with.

@thebigredrocker, that top color looks great! Do you happen to remember the color you had mixed by 66autocolor?
BuckMark



[thebigredrocker]

@BuckMark For my lid, I used Limco Supreme plus single stage in 033 and shot it with an HVLP gun. I submitted my order online and entered some 1980's Toyota truck model that came in 033. Can't recall which model. You can Ping me if you need more help. I can dig through my files or I'll call them and see if they have records. Post #30 here—> 76 FJ40 Resto advice needed (now a documentation) - https://forum.ih8mud.com/threads/76-fj40-resto-advice-needed-now-a-documentation.784068/page-2

I got it from 66autocolor. I have also bought spray cans of single stage mixed in SprayMax cans for small bits. In the link above there's a photo of my bezel shot w/SprayMax single stage. Not sure what brand of paint they loaded in the cans. I think you could request whatever quality paint you want. They were great to talk to over the phone and shipped out almost instantly.



[Vae Victus]

For future reference, roof threads:

(Look for FJ40Mitchell's post within for a good, overall guide)

How to sand and paint FJ40 top?

I went ahead and bit the bullet and took my top to a local paint shop. I want to help and make sure they do it 100% professionally perfect. Can some one point out a thread on how to do this? Yes it has rattle can brown and we wanted to do this: 1. remove gutters 2. Sand with 150 grit with a...

forum.ih8mud.com

Roof restoration

Hi to all, It's time to do a "roof off" overhaul. There are a number of reasons for this. - The headliner is coming down - I have at least 9 leaks inside the cab - The PO did a lousy job and used 3/16" POP rivets - The BONDO in the gutters is cracking Here are some pics The...

forum.ih8mud.com

Hard top repair

I have pulled the rain gutter drip rail from the fiberglass dome. Repaired some holes a PO put in, former roof rack? Started to repair the edges of the fiberglass but I'm rethinking that. It has a lot of old resin that was used to bond the dome to the drip rail. After examining the edge...

forum.ih8mud.com

resealing hardtop rain gutter

Well, I removed the rain gutter today, cleaned everything, and took it to the welder to get a few rust spots repaired. I have been reading threads about resealing. My plan is to buy new rivets from CCOT. CCOT and others recommend using 3m fast and firm sealant. to reseal. I have also read...

forum.ih8mud.com

FJ40 Fiberglass rivet tool

Here is a tool I used for riveting a top for my FJ40, Had to turn down the air hammer a little.

forum.ih8mud.com

Roof Gutter

The roof gutter thing has been threaded to death, but my situation is a bit unique. I completely stripped it down and then had the local Line-X guy shoot it. It turned out awesome, but didn't nor was it intended to fill the gap around the gutter. My question is this. SEM or Sikaflex...

forum.ih8mud.com

Hardtop drip rail

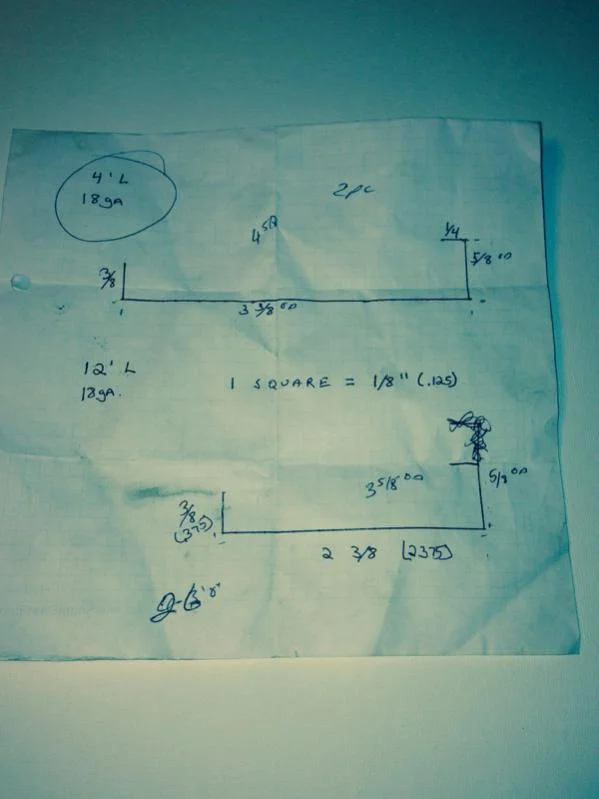

If anyone is repairing the drip rail on their hardtop and just needs to replace the straight sections here are the measurements to have them bent at a sheet metal shop. I had all mine made for $100.

forum.ih8mud.com

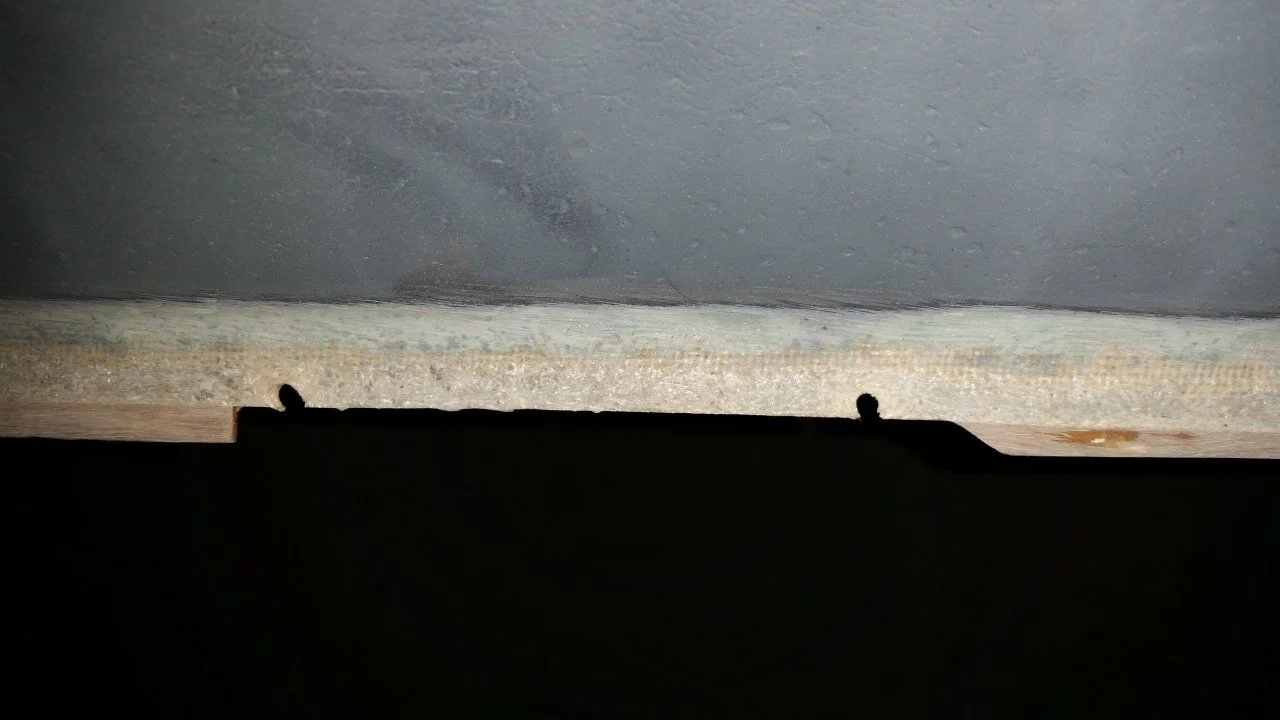

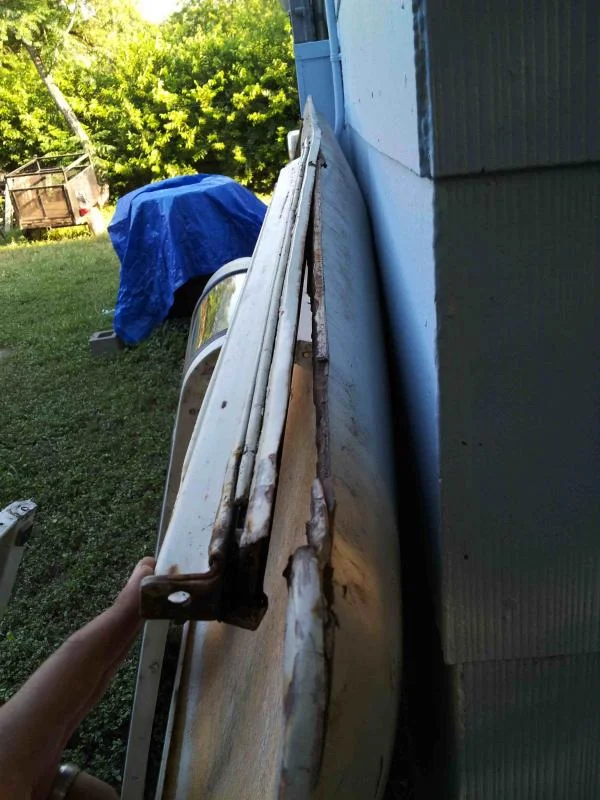

How to fix fiberglass cap separation

Any ideas on how to fix this separation? I'm about to toss my top back on and need to come up with a simple method of binding the seam. :popcorn: :popcorn:

forum.ih8mud.com
