Heater hose Tee fitting replacement

Well, after reading the many threads about changing out the two "Tee" heater hose fittings, I finally got around to ordering them from CDAN and just finished replacing both. Yes, to confirm what everyone has said, getting to the factory hose clamps is a PITA!! I'm just shy of 6' 3" which helped, but still a royal pain. I used a combination of 430 channel locks and needle nose plyers and took about an hour for the entire job.

I estimated that I lost no more than around a cup of coolant (as folks had shared on threads on this topic) and all pretty came from the DS "hot" hose. A few drops came from the PS fitting/hoses.

The Tee fitting on the DS definitely had signs of wear and glad that I changed it out. I gave it a few good hard squeezes with plyers after replacing it to see if it would crumble into bits, but did not. I also stayed with the factory compression hose clamps as they appeared to still do the trick and so no leaks after changing out the fitting.

I ended up buying 3; 2 to swap out and 1 spare as they are pretty dang cheap and in case needed on the trail either for myself or others.

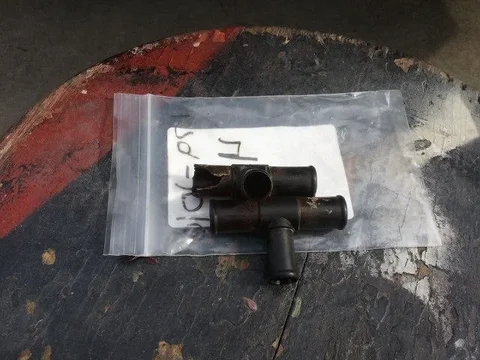

A pic of the old vs new fitting on the DS hose.



Hugh Heifer

Chasing the Beast
Joined
May 10, 2006
Messages
7,270
Location
Rome, GA
2000 UZJ 180 Thousand. Don't know if they have ever been changed. I used brass 5/8 tees and other than being awkward it took 30 minutes due to cramping in my right thigh and calf. I used a small pair of channel locks to do the job.



Heifer-net


Joined
Jul 22, 2005
Messages
1,064
Location
slc area
This may be a dumb question, but that's what Mud is for, right? Can you use the OEM style constant tension clamps with the brass T's?


2000UZJ

Where's My Hammer?
Joined
Oct 7, 2008
Messages
8,885
Location
Earth
This may be a dumb question, but that's what Mud is for, right? Can you use the OEM style constant tension clamps with the brass T's?

I'd assume so, as long as the brass t has the same OD as the OEM.


jemsec

Mach lll Club
Joined
Mar 21, 2011
Messages
1,143
Location
Moore Corner, AL (Irondale)
The OEM clamps will not need to be retightened like most screw type clamps. They worked fine on mine with no leaks. Replaced all the heater hoses with OEM parts at the same time. Rear heater included. Should be good for another 14 years.

Joined
Jul 22, 2005
Messages
1,064
Location
slc area
Great, I have the brass T's from Amazon coming and the new hoses coming from CruiserDan. Thanks all.


cboyd

GOLD Star
SILVER Star
Joined
Jan 5, 2013
Messages
771
Location
Topsfield, MA
I changed my Tee's out recently at 200k when I installed my Helton kit. I used the cable pliers (recommended in post #9) and it made the job very quick.

One of the Tees disintegrated while I was taking it out. The other stayed intact. Leads me to think one had already been changed out.

The harder part was actually removing the hoses from the engine side. I actually had to cut them to get them off. (To change just the Tee's you don't have to do this) I had to change them because of the Shelton heat exchanger, so no harm. Ordering a spare set to keep around...


Hugh Heifer

Chasing the Beast
Joined
May 10, 2006
Messages
7,270
Location
Rome, GA
One of the Tees disintegrated while I was taking it out. The other stayed intact. Leads me to think one had already been changed out....

One side suffers more than the other. I think most people discover the same thing.

Heifer-net


paflytyer

100s in the Hills
Media Partner
Joined
Sep 27, 2011
Messages
2,580
Location
ColoRADo
One of the Tees disintegrated while I was taking it out. The other stayed intact. Leads me to think one had already been changed out.
...

One side is carrying much hotter fluid than the other. I have no doubt the cooler side will last twice as long, but if you're going to replace one, you might as well replace the other. Most folks just keep the "good" one as a spare. Someone else might need it on the trail.

Joined
Feb 6, 2010
Messages
2,233
Location
SLC
Lots of good info in this thread - thanks for the write up paflytyer.

Less than a single :banana:DIYer, so take the following w/ a grain of salt.

Using the right tools makes all the difference. I forgot to pick up a pair of needle nose vice grips beforehand (lost my previous pair), but that would have made this much more simple. As it was, a regular set of pliers and vice grips had to do.

Soapy water worked great.

The DS T going into the block was the one side that broke apart. Assume this is the one that carries the hot fluid.

After replacing the Ts, I'd suggest keeping all the clips right side up so the next time you do this (maybe 90k from now), they are easier to slide or move around.

Last edited:
Joined
Jan 15, 2014
Messages
179
Location
Fullerton, CA
Today I replaced my Pipe T's for the heater hoses. This should be included in your 90k service, but most shops (even Toyota) usually don't do it. If your service was done at Slee, they are one of the few that do it. That should tell you something.

It could leave you stranded and overheating somewhere far from home. For less than $15 in parts and about an hour, you can do it yourself. This is a 1 :banana: job for anyone with very basic tools. Long arms would sure help too. Toyota will charge you $100-$200+ to do it, so save yourself some time and a few bucks. Cheap insurance when you're far from home.

After some trepidation and fretting over replacing these with SS, brass or OE plastic, I decided that the OE ones lasted me 100k, I'll just replace with those. These Pipe Ts connect the hoses that carry coolant to your heater radiator. One side carries much hotter coolant than the other, so that side will likely fail long before the other. Just replace them both.

This job is a real PITA because you almost have to crawl into the engine bay to get at these things. Once you get there, you have to really bend and stretch to reach the clamps. Make sure you wear gym shorts or something without a belt otherwise you'll really dig into your fender. Remove the engine cover to get the best access.

They are located here:

[URL="http://i1216.photobucket.com/albums/dd364/coflytyer/mud9.jpg"] [/URL]

close up

[URL="http://i1216.photobucket.com/albums/dd364/coflytyer/mud10.jpg"] [/URL]

Part # 87248-60460

[URL="http://i1216.photobucket.com/albums/dd364/coflytyer/IMG_0892.jpg"] [/URL]





Tools you need:

Step stool
Pliers
A flathead might help in prying off the hoses
Blanket or something to drape over your fender to make it more comfortable
Soapy Water

I used a stepstool and a moving blanket draped over the fender/engine bay. It's still a long reach. (I'm only 5'9") I parked facing slightly downhill in my driveway to try and keep the coolant loss down to a minimum. I did have to move the stool a lot to get in the best position to unseat the hoses. You'll see what I mean when you do it. There's a reason why Uncle T charges so much. [URL="http://i1216.photobucket.com/albums/dd364/coflytyer/mud13.jpg"] [/URL]


There is a ground wire that's clamped to the heater hose. Just unclip that plastic clamp and set it aside. Now you can move that ground wire out of the way.

[URL="http://i1216.photobucket.com/albums/dd364/coflytyer/mud1.jpg"] [/URL]



The real PITA is getting at the clamps with your pliers. Other members suggested using oil or lubricating spray to make it easier to rotate the clamps to get at the nubs. I didn't want any oil left on there collecting dirt and grime, so I used a water bottle filled with soapy water and a tiny hole poked in the cap. Easy to spray a stream of water right on the clamps and help them slide.

The shorter the handles on your pliers, the easier it will be to get those clamps. The curved head of channel-locks makes it even easier. Spray some soapy water and have a go at those clamps. Just slide them back off the T's.

[URL="http://i1216.photobucket.com/albums/dd364/coflytyer/mud2.jpg"] [/URL]



I did one set of clamps at a time, but it's probably easier to do them all at once. Once you get the clamps off the T, carefully work the hoses off. This is where you'll likely break the T's if they're brittle. If you've got over 150k and they've never been changed, it might be worth clamping the hoses so you don't lose any pieces down into the lines. But I think that's unlikely too. If it does break, I would just remove the entire hose and fish them out that way. Although, you'll likely lose more coolant too. It may be worth it to drain a little out of the petcock at that point.

There's not a lot of room to clamp them anyway, and you're likely to break them just trying to do that. I say just go slow and careful and you wont need to clamp them. It takes a little work to get them off, so take your time and be patient. You'll be in an uncomfortable spot, so don't get frustrated and start yanking things around.

If you're parked slightly down hill, you'll get a small amount of coolant from the firewall side to run out when you pull the first hose. Maybe less than 1 cup worth. You could try to catch this in a clean cup and refill the radiator with it, but it's such a small amount, I just caught it with a towel.

Replace old ones with new Pipe T's, reconnect the hoses, squirt some soapy water and work those clamps back up onto the T's. You could turn those clamps to give them easier access the next time you do this. I just put them back in the same indentations they already made on the hose originally. 90K from now, when I change them again, I'll just replace the hoses and clamps too.

New ones

[URL="http://i1216.photobucket.com/albums/dd364/coflytyer/mud5.jpg"][URL="http://i1216.photobucket.com/albums/dd364/coflytyer/mud5.jpg"][URL="http://i1216.photobucket.com/albums/dd364/coflytyer/mud5.jpg"] [/URL][/URL][/URL]



Replace that plastic snap clamp on the ground wire and pick up your tools. At this point you could burp your coolant system, but I don't think it's necessary. The tiny amount of coolant you lose doing it like this is coming from the heater side. You never lost any coolant from the block. Although, I did it anyway. I turned the truck around so It was facing uphill, opened the radiator cap, started the truck, turned the heater on high, let the coolant circulate and added maybe 1/2 cup to top it off.

Last, check for leaks. Hopefully, you just saved some $$, gained some piece of mind and improved the longevity of your system.

Old ones



[URL="http://i1216.photobucket.com/albums/dd364/coflytyer/mud7.jpg"][URL="http://i1216.photobucket.com/albums/dd364/coflytyer/mud7.jpg"][URL="http://i1216.photobucket.com/albums/dd364/coflytyer/mud7.jpg"] [/URL][/URL][/URL]


One of my T's was in perfect condition, the other didn't break on me, but you can clearly see what the heat has done to it over the years. I *think* I had plenty of time left, I squeezed it pretty hard and it didn't break, but I'm glad I replaced it. YMMV. I'll keep the other in my truck as a spare.....just in case. Someone else might need it for a trail repair! Thanks to those members who answered my questions when I looked into doing this. This probably isn't on the top of everyones list, but with the high milage most of us have, plastic + heat + time = failure. I think it's pretty important.

Stan

Great write up! I will be doing this soon, Tho I want to improve upon this, In other words I was wondering if anyone has used Metal T's for more of a permanent fix other than replacing the hoses? Pros? Cons? Just a thought? let me know your thoughts? Thanks in advance!


Hugh Heifer

Chasing the Beast
Joined
May 10, 2006
Messages
7,270
Location
Rome, GA
IS Brass as mentioned above a good non corrosive metal?
Brass Hose Splicer Fitting, Tee, 5/8" Hose ID Barbed

As mentioned in the thread, brass has been used in radiators for many years. It is a good substitute for the oem but the center piece is smaller than 5/8 so the brass replacement requires just a bit more elbow grease for the install.

Heifer-net
