Builds Benjamin’s 3D Prints Build (5 Viewers)

[Ridge15]

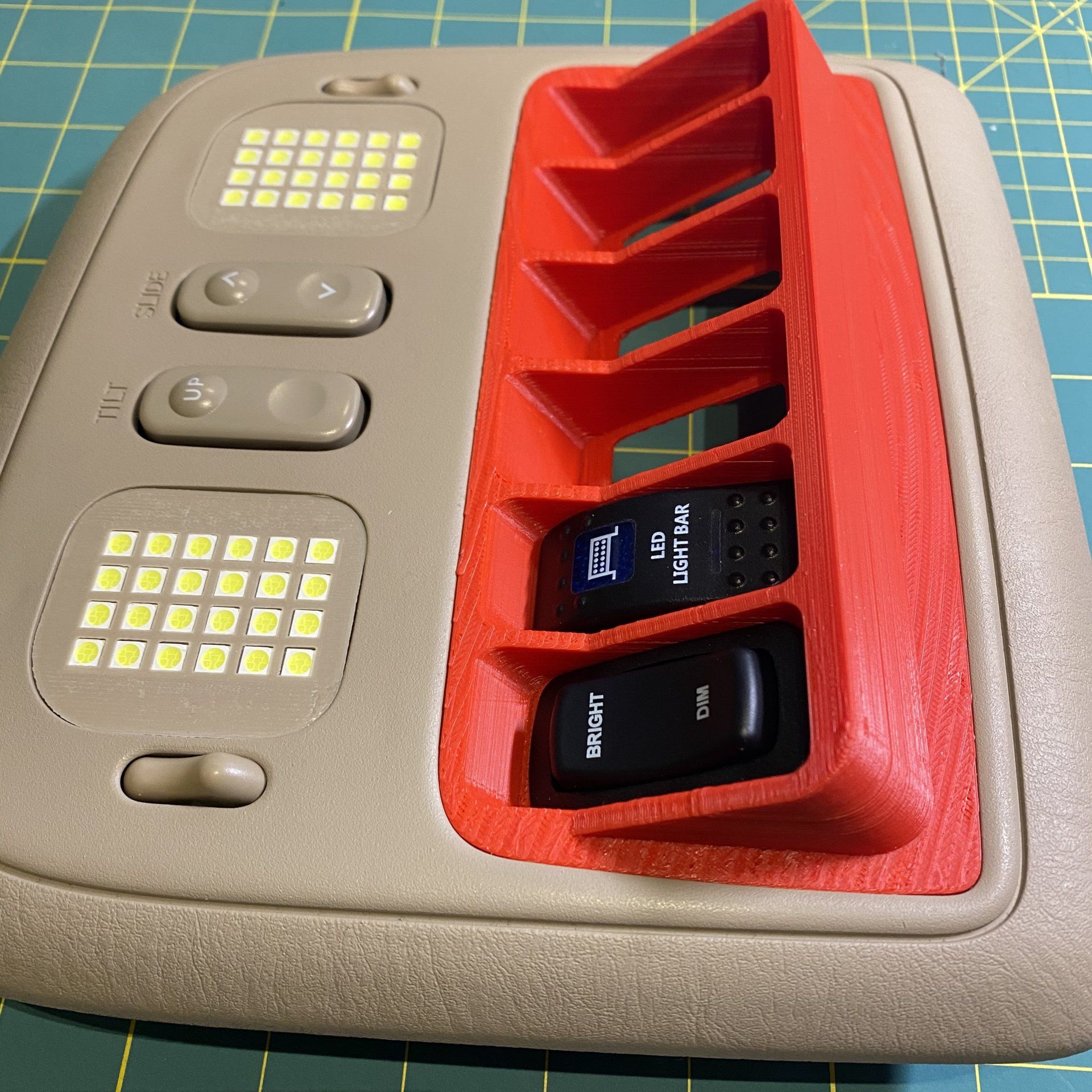

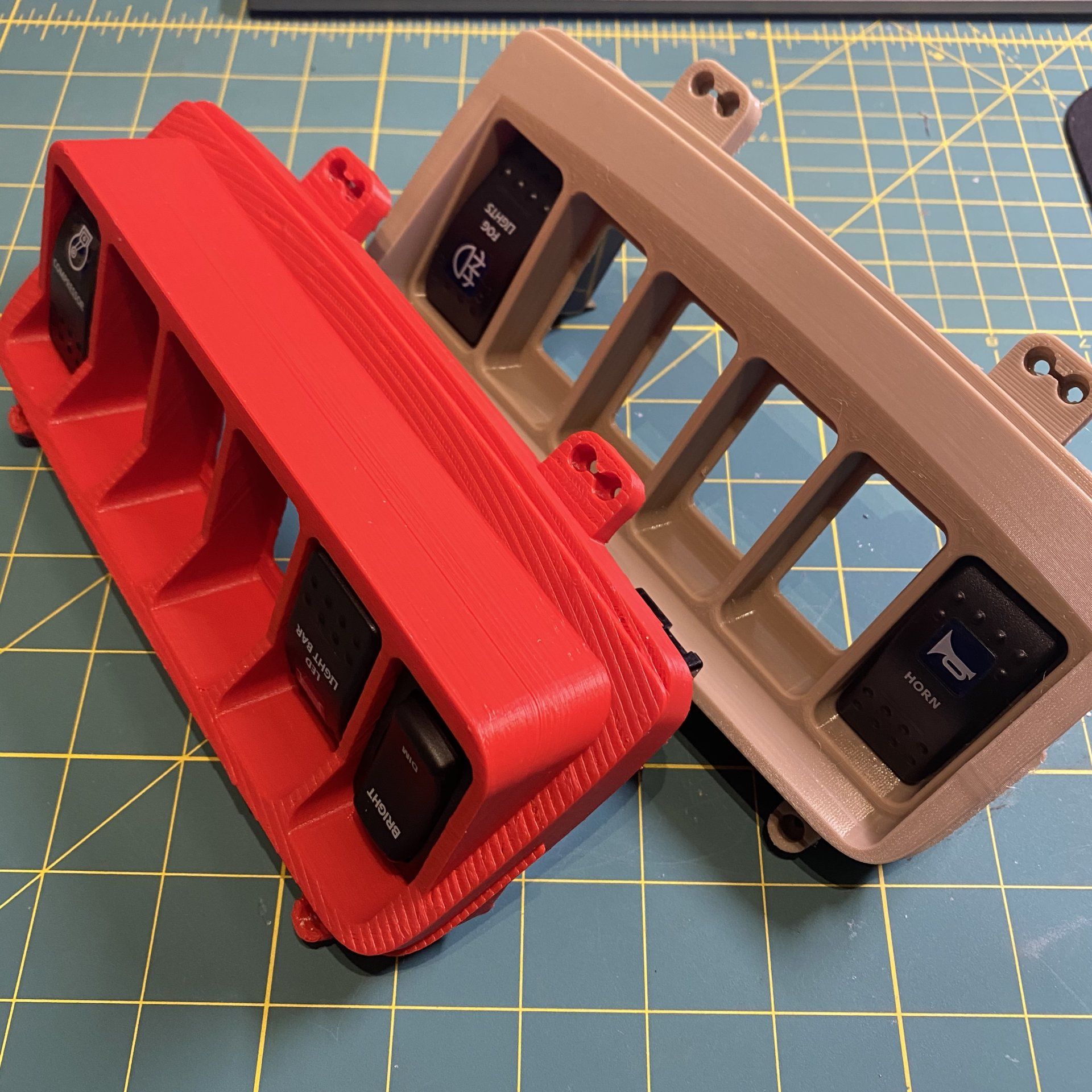

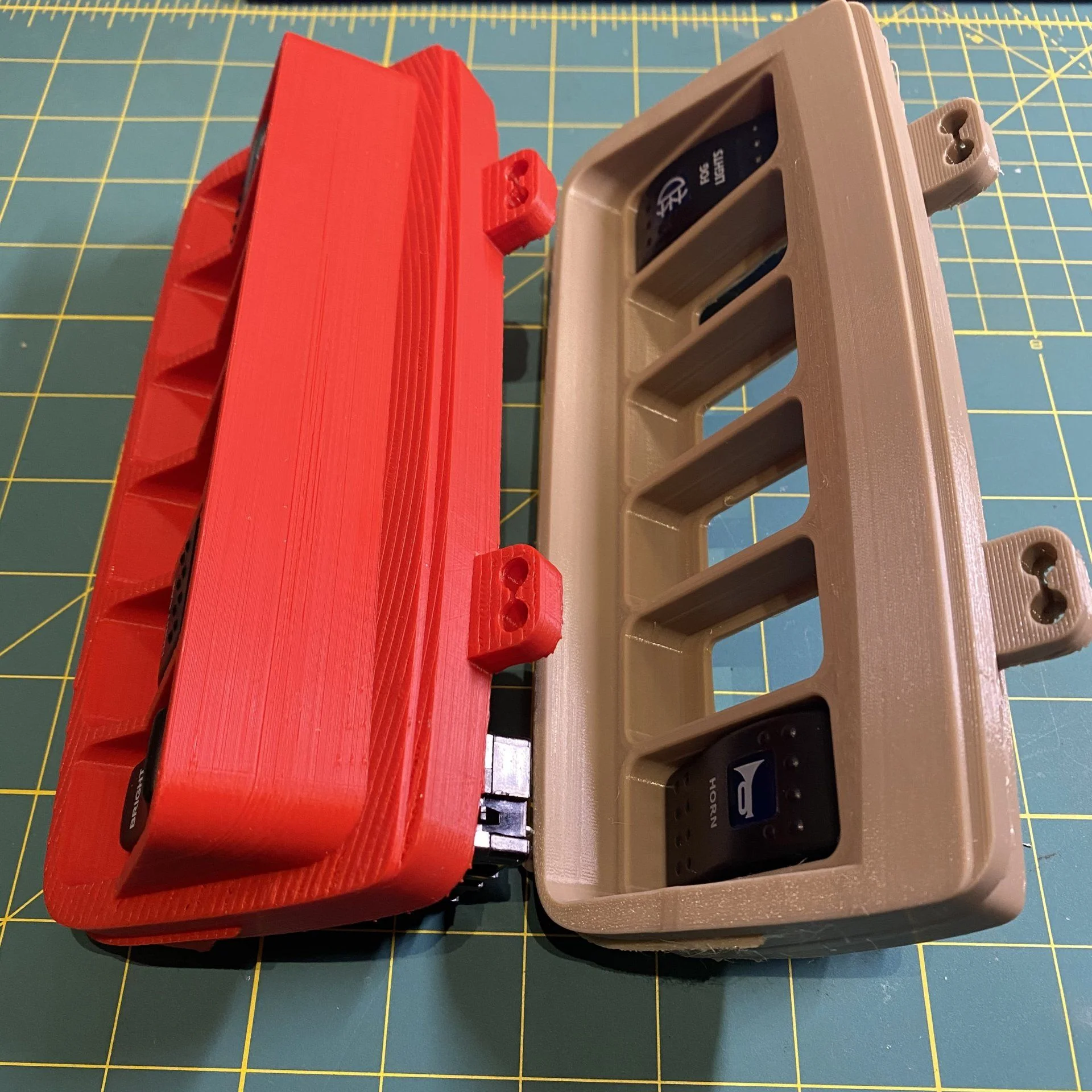

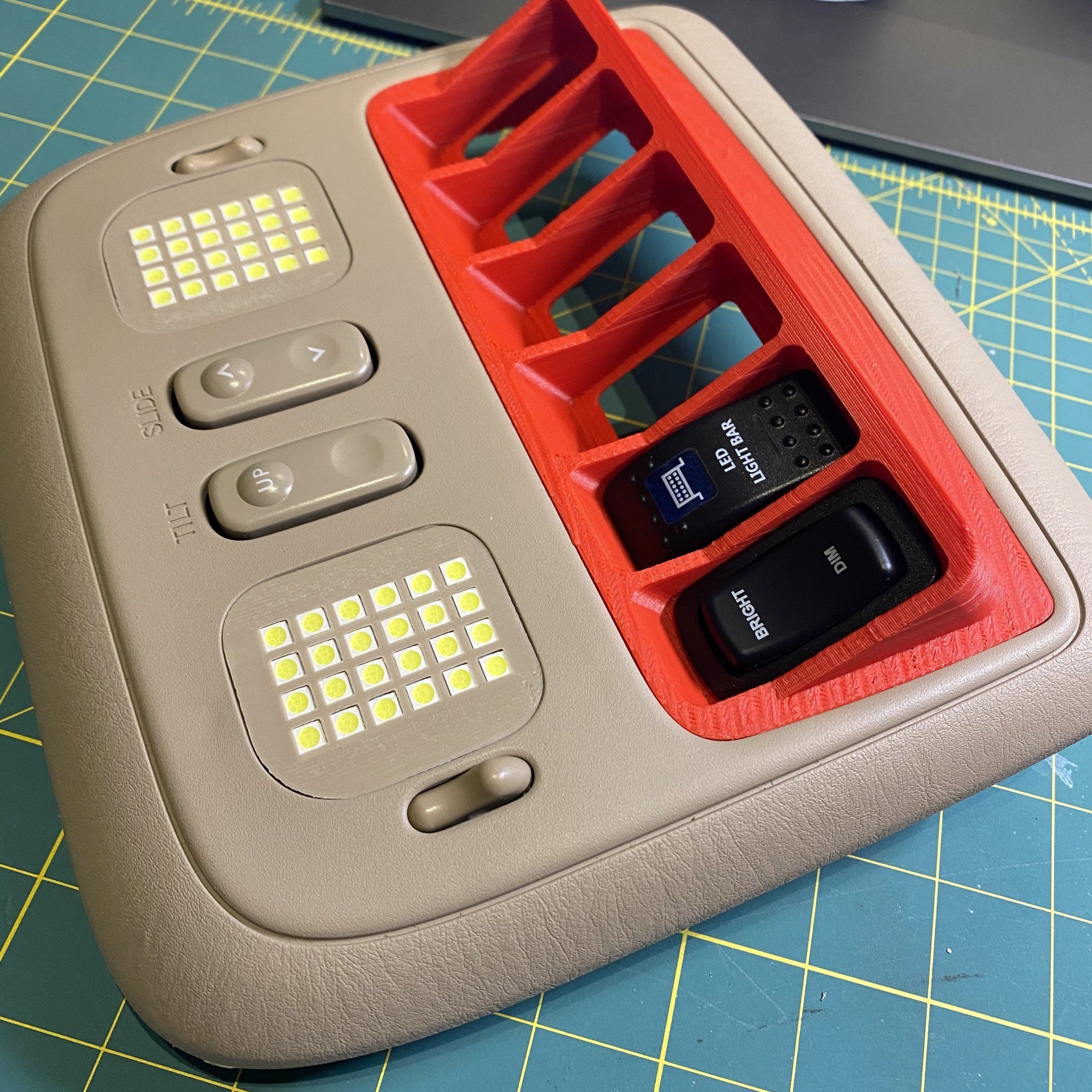

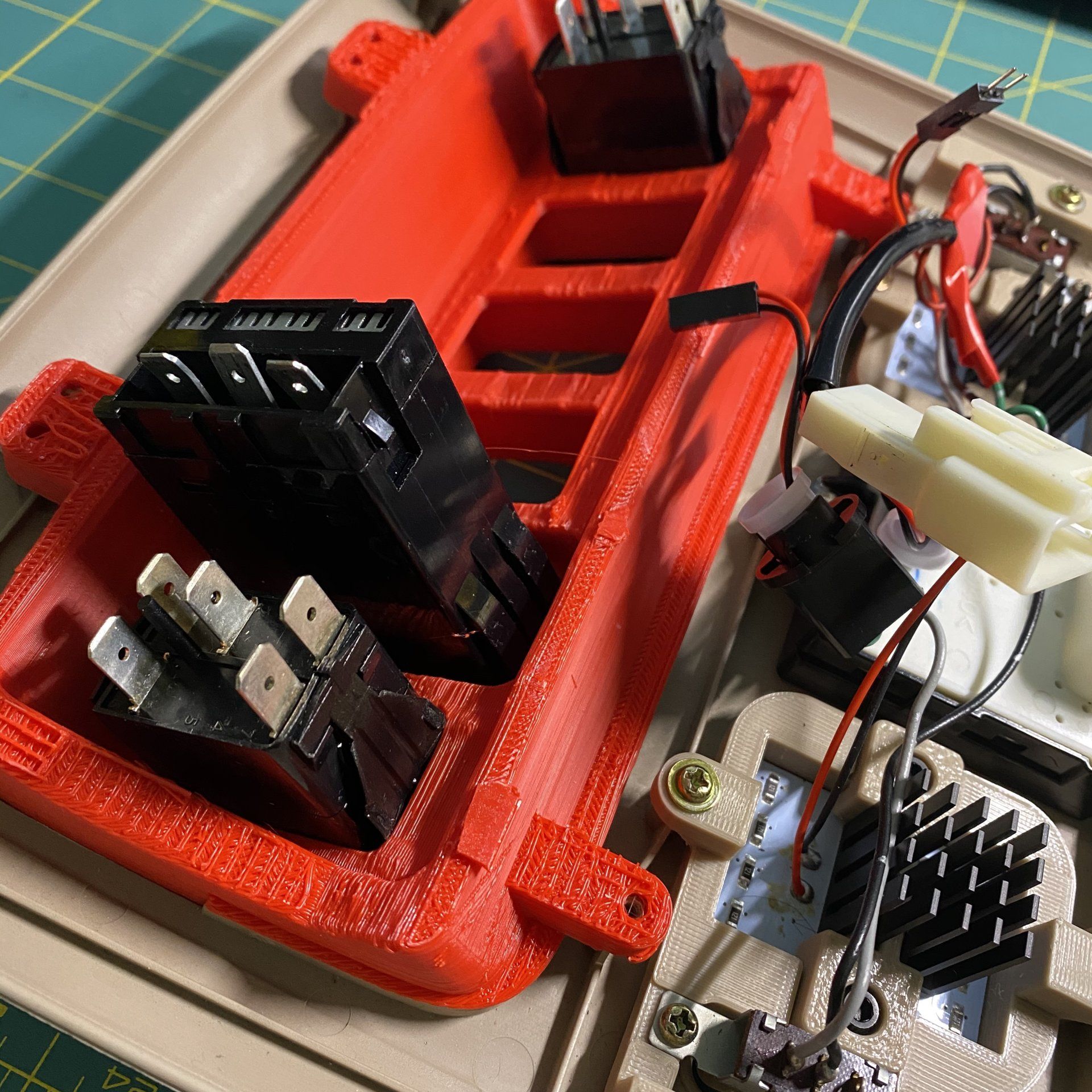

Made a revision on the multi-switch mount based on feedbacks. Switch pockets are pushed out to accommodate some nonstandard monster switch (see the last photo).

View attachment 2240327
View attachment 2240328
View attachment 2240329
View attachment 2240330
View attachment 2240490

Can you post a link to the bright/dim switch that you have. I am looking for a SPDT switch for make 6.



[BenCC]

Can you post a link to the bright/dim switch that you have. I am looking for a SPDT switch for make 6.

Spec is here

https://www.carlingtech.com/sites/default/files/documents/LD-Series_010713.pdf

I got it from EBay

You can search “Carling dimmer”. Be sure to get the 12V version.
This is the one I got.

Carling Technologies LD-Series Dimmer Control Switch - P/N: LD3A1HH13AAFE1FC | eBay

Carling Technologies P/N: LD3A1HH13AAFE1FC.

www.ebay.com

This switch/dimmer is not the standard rocker switch size. Make 6 needs to be modified to mount it.



[Ridge15]

Spec is here

https://www.carlingtech.com/sites/default/files/documents/LD-Series_010713.pdf

I got it from EBay

You can search “Carling dimmer”. Be sure to get the 12V version.
This is the one I got.

Carling Technologies LD-Series Dimmer Control Switch - P/N: LD3A1HH13AAFE1FC | eBay

Carling Technologies P/N: LD3A1HH13AAFE1FC.

www.ebay.com

This switch/dimmer is not the standard rocker switch size. Make 6 needs to be modified to mount it.

Sorry if it was already posted, what is the switch that fits make 6?



[BenCC]

Any ARB style rocker switch. Examples
Amazon product ASIN B00VQ3MSN2



[Ridge15]

Any ARB style rocker switch. Examples
Amazon product ASIN B00VQ3MSN2

Thanks



[BenCC]

Thanks

If you want to mount the switch/dimmer with a variation of Make 6, let me know.



[Natchez]

Some update on the foglight mount.

Plan is to print in ASA material (good weather and UV resistant) and mount on my truck for several weeks and keep improving before being released.
Please feel free to comment and critique.

If this works, do you plan on making an LX470 version?



[BenCC]

If this works, do you plan on making an LX470 version?

Do they have different factory fog lights?



[BenCC]

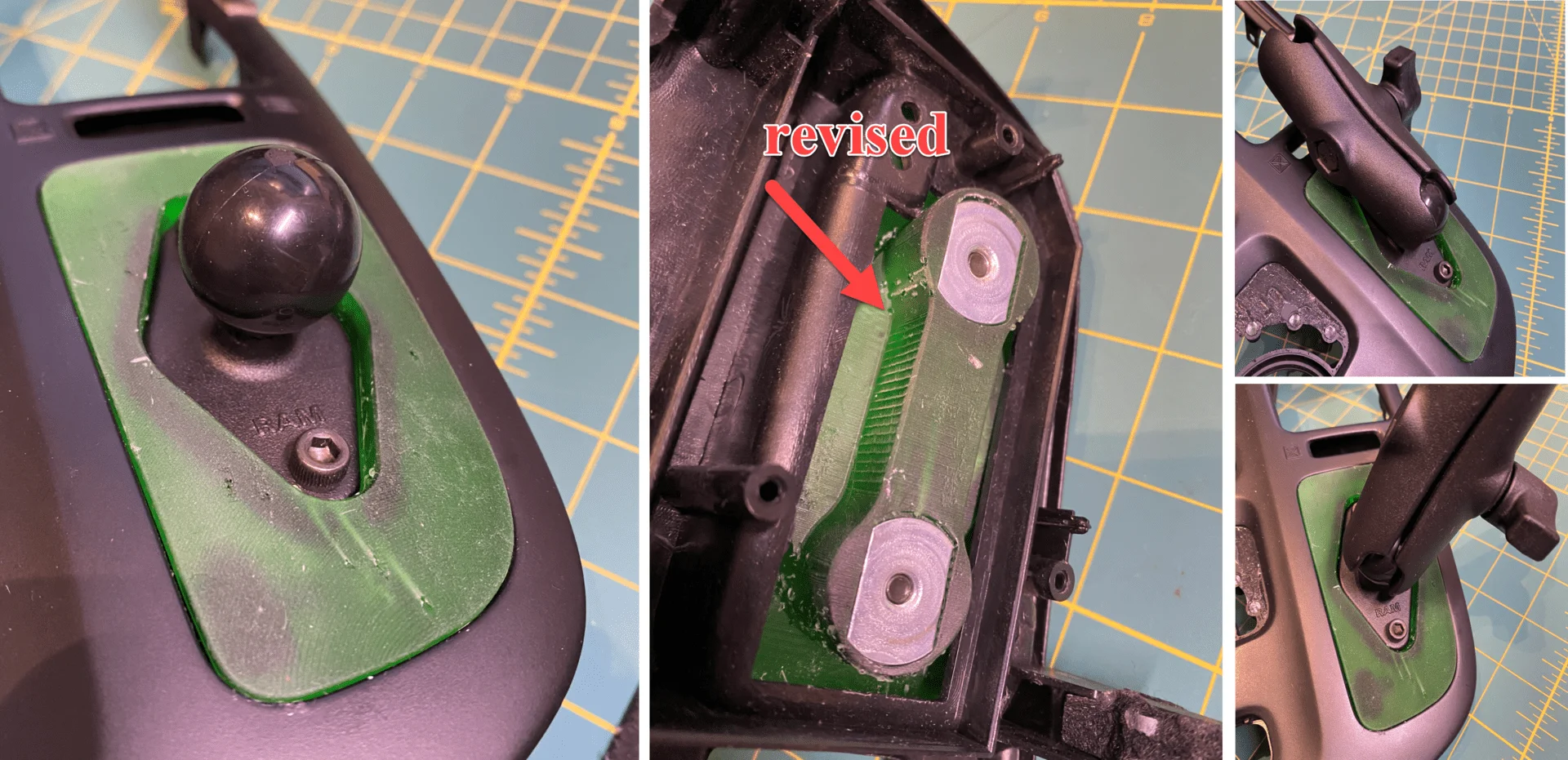

A test print and assembly of M2 Ram Ball mount. CAD was revised to clear the factory panel. Final version should be very close to this. Clearance was also tested by connecting a Ram double socket arm.



[Natchez]

Do they have different factory fog lights?

appearance wise yes, mounting, I'm not sure.



[Natchez]

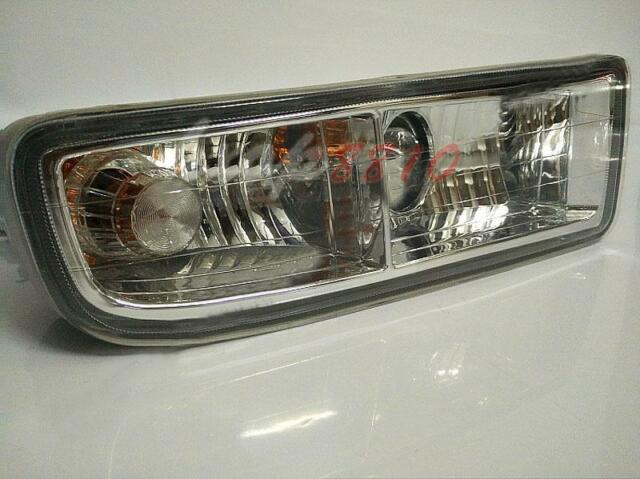

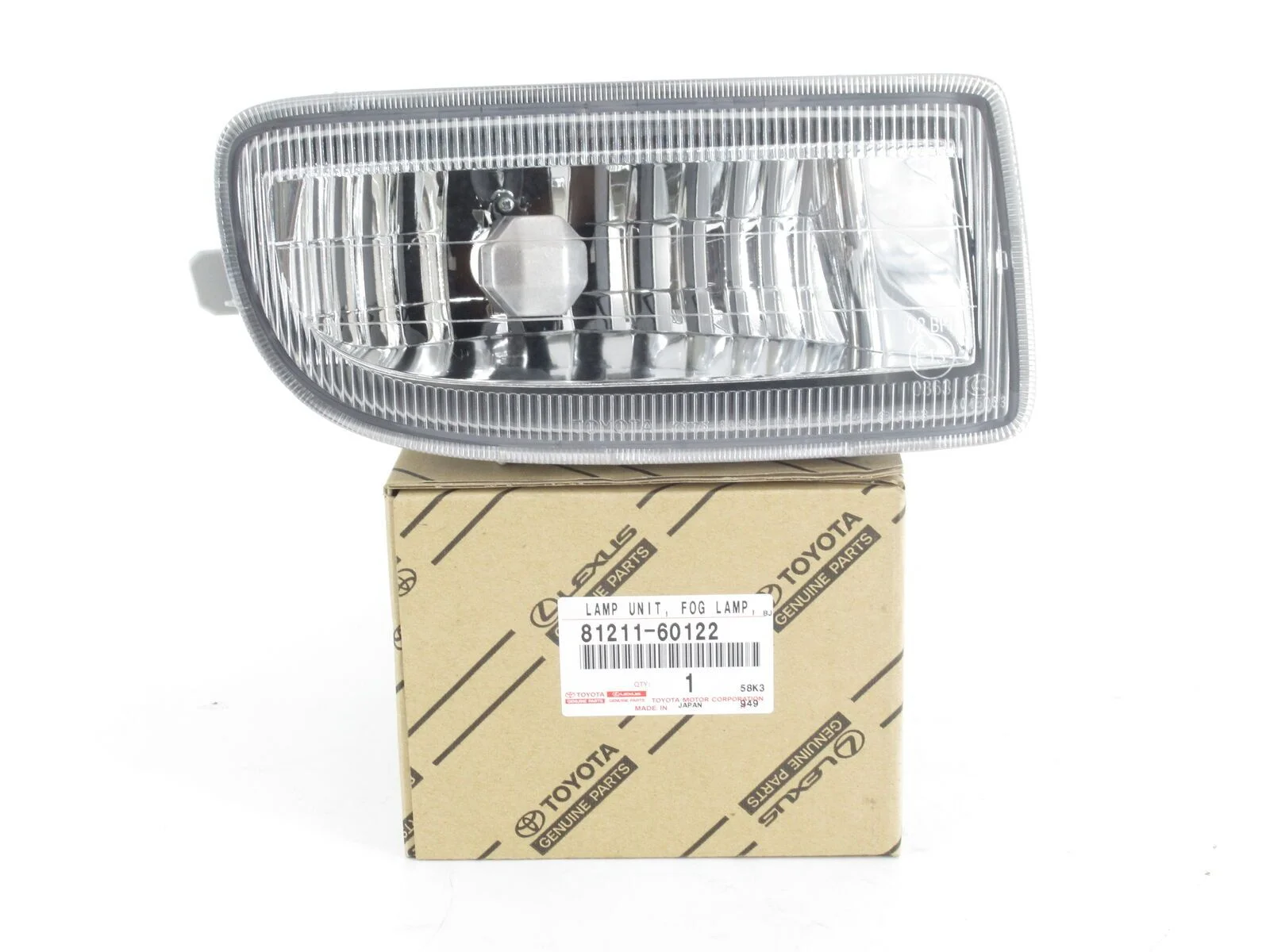

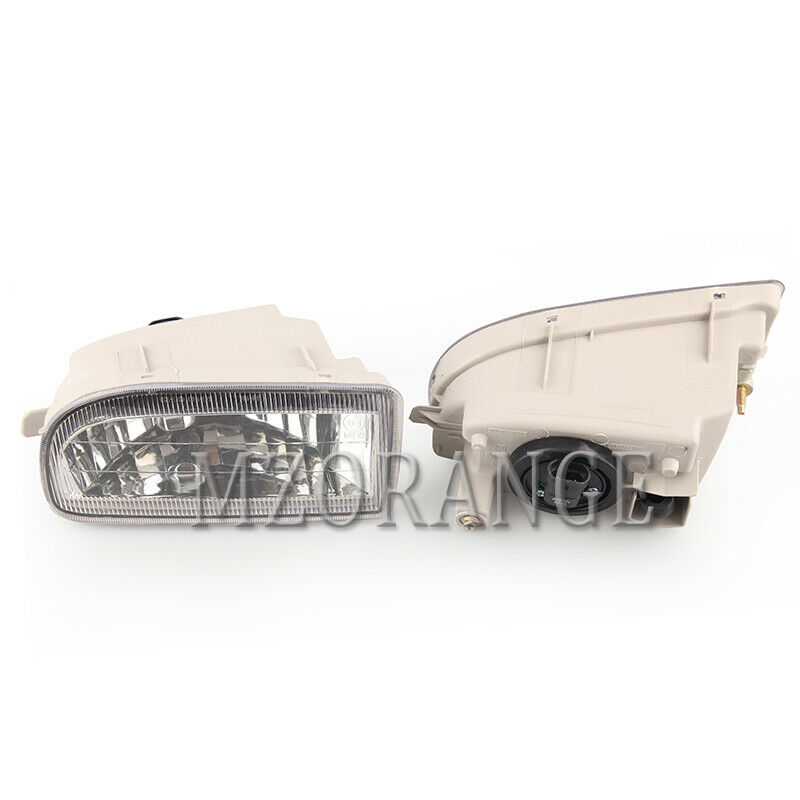

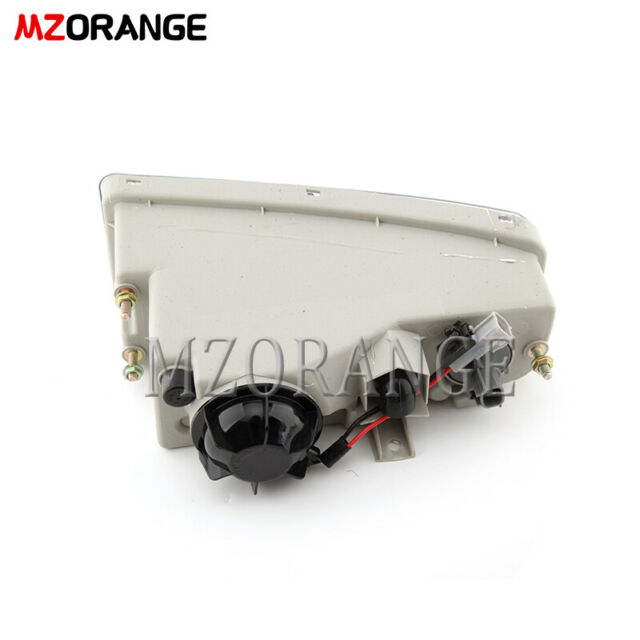

Appears they are different



[BenCC]

Appears they are different

View attachment 2258946
View attachment 2258952


View attachment 2258948
View attachment 2258953

I am finalizing the mount for LC and will gauge the interest on LX. Thanks.



[geanes]

A test print and assembly of M2 Ram Ball mount. CAD was revised to clear the factory panel. Final version should be very close to this. Clearance was also tested by connecting a Ram double socket arm.

View attachment 2258828

Let me know when these are ready! Can't wait to get one.



[bryson]

I am finalizing the mount for LC and will gauge the interest on LX. Thanks.

If they'll help with prototyping, I have a set of the factory LX fogs that you are welcome to have - just cover shipping and they're yours.



[BenCC]

A test print and assembly of M2 Ram Ball mount. CAD was revised to clear the factory panel. Final version should be very close to this. Clearance was also tested by connecting a Ram double socket arm.

View attachment 2258828

@suprarx7nut You want to try to print this part?



[jlm43]

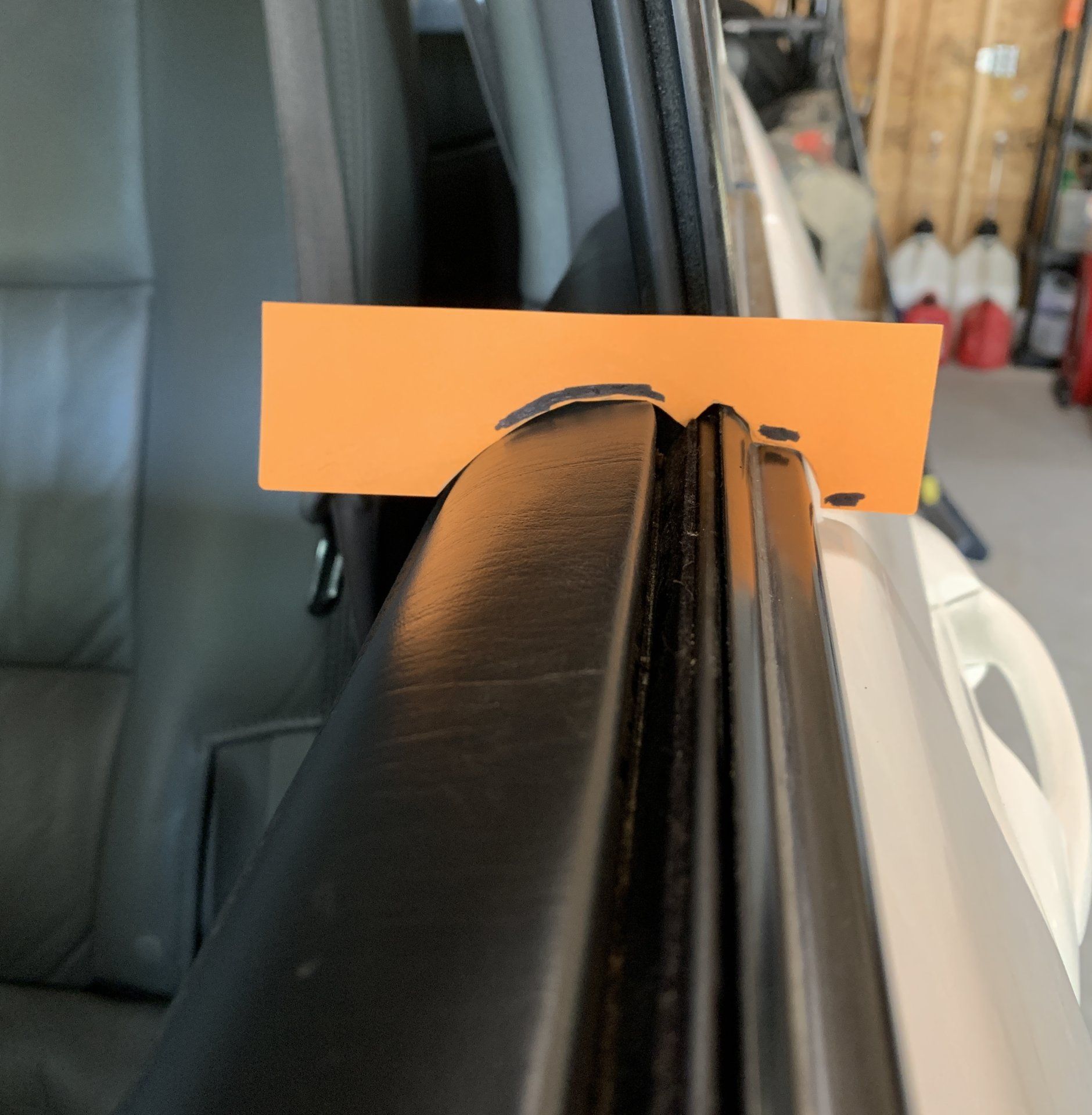

@BenCC, would something like this be doable? It would serve as a step while getting on top of the truck. The window seal and the interior door trim is going to take a beating if I keep stepping there to climb up. Maybe 6” wide would work with most of the load being where the black marks are.



[saucebox]

@BenCC, would something like this be doable? It would serve as a step while getting on top of the truck. The window seal and the interior door trim is going to take a beating if I keep stepping there to climb up. Maybe 6” wide would work with most of the load being where the black marks are.

View attachment 2259914

The Moki might work for you, though it's lower than the window.

Rightline Gear Moki Door Step | REI Co-op

Short reach or tall vehicle? Either way, the Moki door step from Rightline Gear will help. It attaches to your vehicle to help you retrieve your kayak, skis or whatever else is stored up top.

www.rei.com



[suprarx7nut]

Sure. Shoot me an email with stl if you like!



[gregnash]

The Moki might work for you, though it's lower than the window.

Rightline Gear Moki Door Step | REI Co-op

Short reach or tall vehicle? Either way, the Moki door step from Rightline Gear will help. It attaches to your vehicle to help you retrieve your kayak, skis or whatever else is stored up top.

www.rei.com

yeah I wouldn't recommend standing on the door sill like that. If nothing else you will potentially mess with the door alignment and could cause other issues.



[BenCC]

@BenCC, would something like this be doable? It would serve as a step while getting on top of the truck. The window seal and the interior door trim is going to take a beating if I keep stepping there to climb up. Maybe 6” wide would work with most of the load being where the black marks are.

View attachment 2259914

Interesting idea! It is doable. I will take a look.
