Hey everyone,

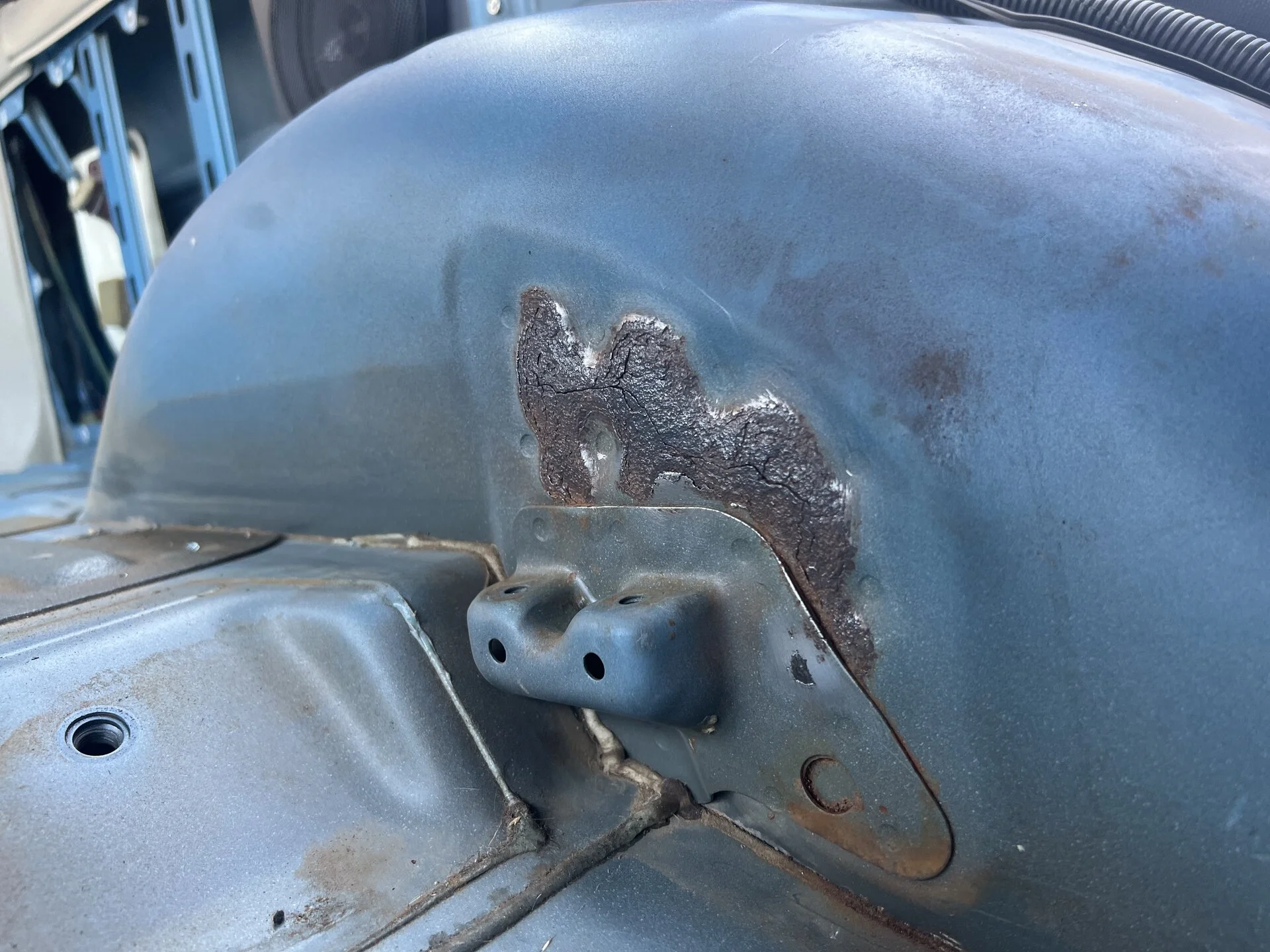

I finally got around to pulling the carpet this weekend and found some rust.

I was planning to put some sound material down before installing the new carpet kit I have - but I want to make sure this is solved first.

I know its a known trouble spot on these rigs. I have crawled the forum but still dont feel like I know enough to make the best decision on what to do.

Should I wire brush, treat and move on (I have read that Fluid Film is a good option. true? others?)

Or, take it to a shop to have them cut it out and replace? Exact replacements may be an issue, suggestions here?

Thank you.

- Jesse



[diesellibrarian]

Sadly you are past the "wire brush, treat, and move on" stage with this.

The way to fix this correctly is to drill out the spot welds (you can clearly see them in the pic - they're the little round indents). Center punch them and use a good quality drill bit to drill through just the top layer. Remove the seat support first, then drill the welds on the next layer and remove the support plate on the inner fender. New steel will need to be welded in: do the inner fender first, then the support plate (you may need to have a new one fabbed up), and then re-attach the the seat support with plug welds. Whether you do it or hire someone to do it, there isn't really any way around it, unfortunately.



[ax0n]

Sadly you are past the "wire brush, treat, and move on" stage with this.

The way to fix this correctly is to drill out the spot welds (you can clearly see them in the pic - they're the little round indents). Center punch them and use a good quality drill bit to drill through just the top layer. Remove the seat support first, then drill the welds on the next layer and remove the support plate on the inner fender. New steel will need to be welded in: do the inner fender first, then the support plate (you may need to have a new one fabbed up), and then re-attach the the seat support with plug welds. Whether you do it or hire someone to do it, there isn't really any way around it, unfortunately.

Thanks man, I appreciate the information.



[kirvesmies]

you're in texas right? from what i've seen there's a strong contingent of cruiserheads there. don't think it would be too difficult to get some localish help. good luck with the repair
check the clubhouse, top header of the page. i think there's 5 or 6 cruiser groups listed. reach out n see what falls outta the tree



[ax0n]

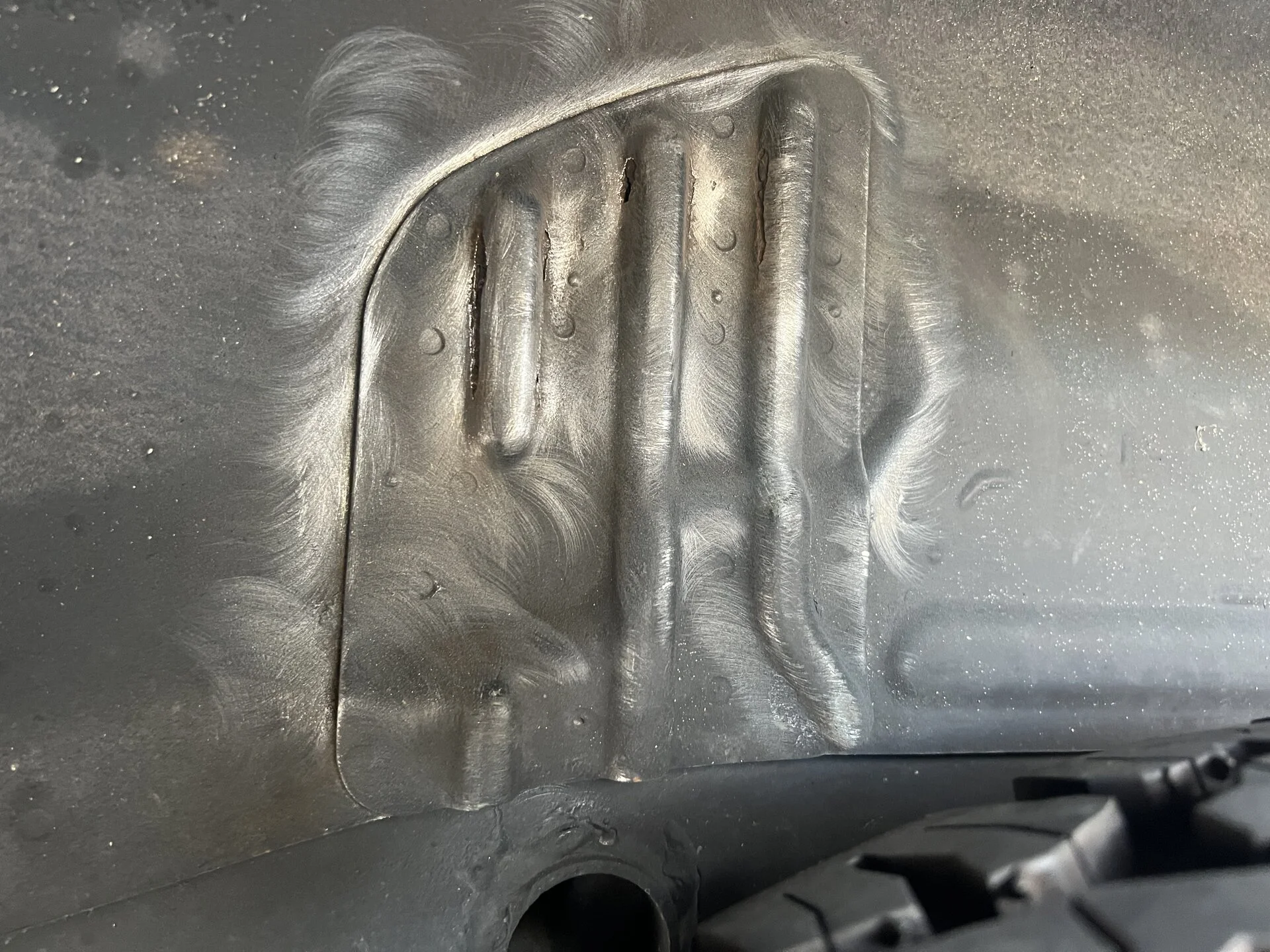

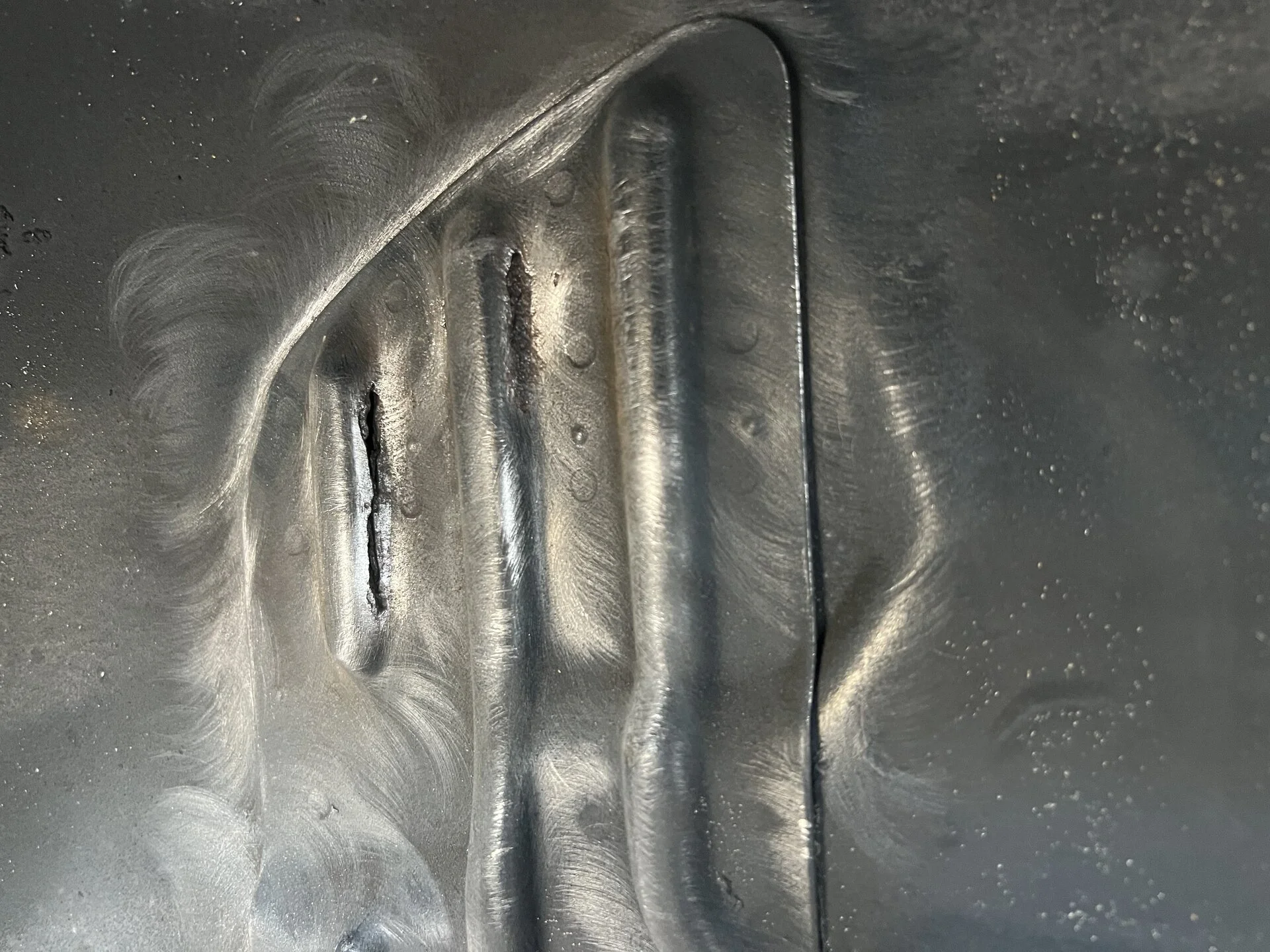

A few more pics after a wire wheel to see what I am dealing with.



[tmxmotorsports]

There are a couple of threads on fixing this. @joebattle1 didn't you fix yours if I remember correctly.



[dbleon]

That rust has “penetrated the cabinet”



[ax0n]

That rust has “penetrated the cabinet”



[joebattle1]

Break out the welder…

Carpet Install / Tint Removal / Wheel rust repair

So of course I thought this was going to be just a quick afternoon job. I of course was wrong... My truck has now been laid up for three weeks while I take care of a bunch of misc repairs. I got the carpet kit from Reevesci. Couple things to note with his kit. It does not come with backing Jute...

forum.ih8mud.com



[AcroSteve]

Did you get this fixed?

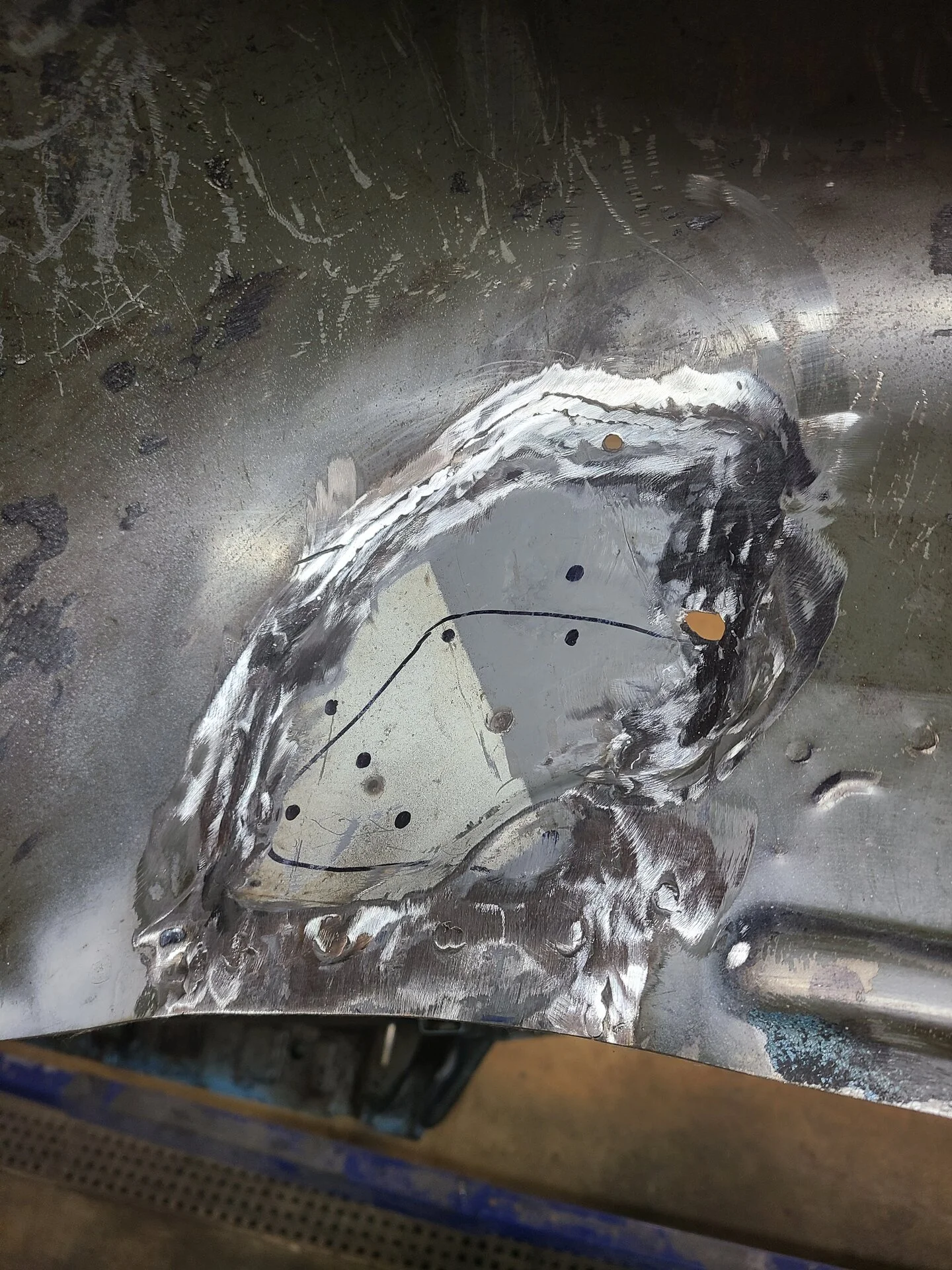

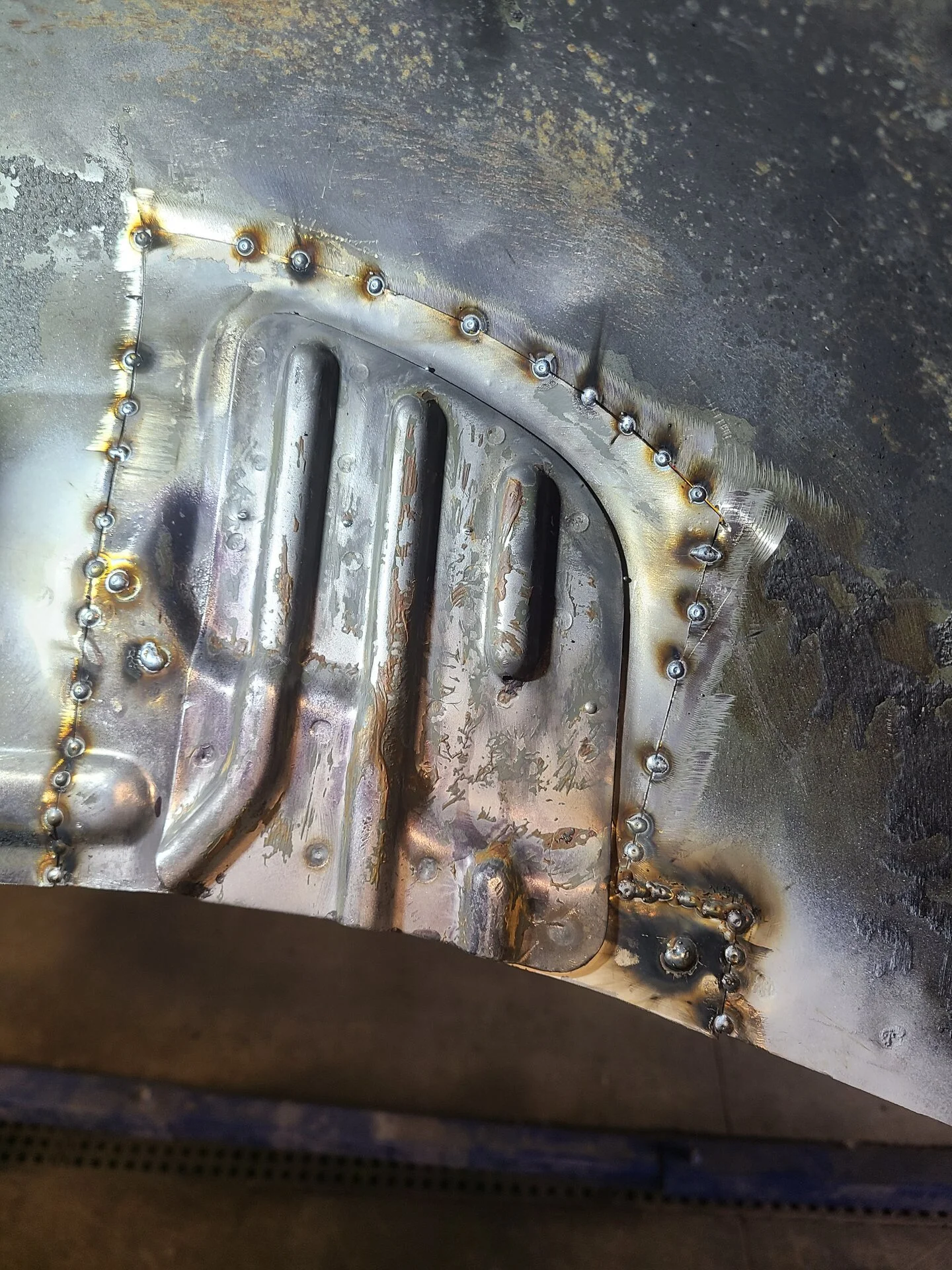

It's quite an involved process, but possible. You can either separate all the layers at the spot welds, or find a good donor part. I did it both ways, but the good donor parts are pricey if you can find them.

But shaping the sheet metal for the fenderwell isn't easy.
