What would cause this?

Joined
Sep 28, 2004
Messages
2,125
Location
Spokane, WA

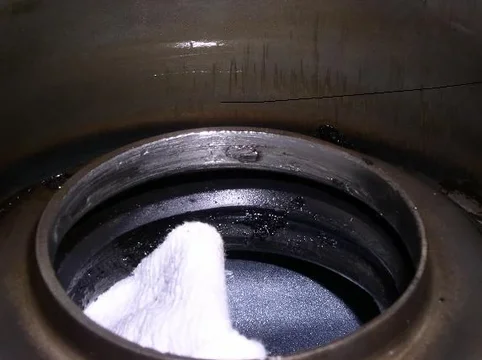

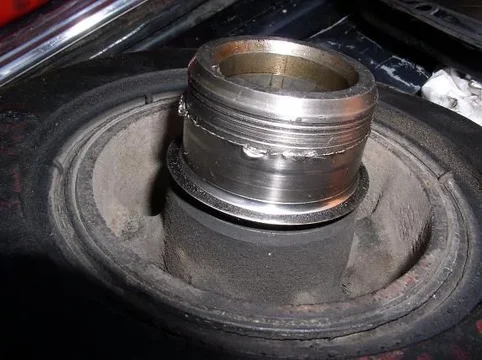

I'm in the middle of replacing my camshaft and I got the dang crankshaft nut off yesterday and found this. I put the speedy sleeve on a few thousand miles ago. What happened? Thoughts? The last picture is of the timing gear cover. It looks like a piece of it was friction welded to the cover. I have a new cover I'm going to use.



http://www.steelnthings.com/wagontech/em/pics/1.JPG
http://www.steelnthings.com/wagontech/em/pics/2.JPG
http://www.steelnthings.com/wagontech/em/pics/3.JPG

That better?

Last edited:

Mace

rock scientist..
Staff member
s-Moderator
Joined
Feb 17, 2002
Messages
21,633
Location
Las Vegas
HOLY BIG PICTURE~~~~~


looks like the speedy sleeve was a bit oversized for the end of the timing cover.

Were the marks in the Pulley there before the speedy sleeve?

BTW, Me thinks you need a new pulley..


Mace

rock scientist..
Staff member
s-Moderator
Joined
Feb 17, 2002
Messages
21,633
Location
Las Vegas
So what caused the marks to begin with?

That is most likely your main problem..

Joined
Sep 28, 2004
Messages
2,125
Location
Spokane, WA
So what caused the marks to begin with?

That is most likely your main problem..

I have no idea. The marks were there from the 3F engine which was neglected. Now its on the 2F which has not been neglected.

Maybe the speedy sleeve did ball up? If I'm careful, I should be able to file that down and check the clearances I think.

Joined
Feb 6, 2007
Messages
241
Location
Lake Tahoe,
Had to strain my eyes





60wag

SILVER Star
Joined
Jun 25, 2003
Messages
1,996
Location
Boulder, CO
I believe its possible to bolt up the front cover misaligned to the pulley hub. The trick is to leave the front cover bolts loose, install the pulley so that the oil seal can center the timing cover on the pulley, then tighten the front cover bolts to lock in the alignment.


Trollhole

THC
Supporting Vendor
Moderator
Joined
Mar 6, 2005
Messages
20,988
Location
Mauldin, SC
Website
forum.ih8mud.com
I believe its possible to bolt up the front cover misaligned to the pulley hub. The trick is to leave the front cover bolts loose, install the pulley so that the oil seal can center the timing cover on the pulley, then tighten the front cover bolts to lock in the alignment.

Thats what I'm thinking. Timing cover wasn't lined up and ate the speedy sleeeve.

Whats the outside diameter of the speedy sleeve and the inside diameter of the crank cover hole?

Joined
Mar 18, 2008
Messages
3,897
Location
Washington, UT. The Promised Land
It looks to me like the speedy sleeve was spinning on the dampener instead of spinning with it. Once it got hot it siezed, deformed and chewed up the seal. You might find a good machinist to re-weld the pulley and save it, or just get a good used one, it shouldn't be too hard to find. One thing to consider is whether or not you have ever had the assembly balanced. If not, no worries. If so, you might mess it up depending on how the machinist did it. The proper way is to balance the crank, then add the flywheel, balance that, then add the dampener and balance that. Some machinists (bad ones) put it all together and balance it as a unit.

Joined
Sep 28, 2004
Messages
2,125
Location
Spokane, WA
It looks to me like the speedy sleeve was spinning on the dampener instead of spinning with it. Once it got hot it siezed, deformed and chewed up the seal. You might find a good machinist to re-weld the pulley and save it, or just get a good used one, it shouldn't be too hard to find. One thing to consider is whether or not you have ever had the assembly balanced. If not, no worries. If so, you might mess it up depending on how the machinist did it. The proper way is to balance the crank, then add the flywheel, balance that, then add the dampener and balance that. Some machinists (bad ones) put it all together and balance it as a unit.

That speedy sleeve is on tight, I installed it. The seal was good, no leaks. I'll take some measurements tonight of the speedy sleeve and the ID of the timing gear cover.

I had it balanced when the engine was rebuilt.
