Tail light issues

  • Thread starter JustTodd
  • Start date
  • Watchers 10
J

JustTodd

Joined
Dec 6, 2019
Messages
6
Location
Clovis,NM
No luck, I have cleaned every ground and fuse. Can't for the life of figure which wires coming from the passenger side to the driver side are the power for the driver side. 100% sure it is not a fuse, ground or bulb issue. The running light works, and the hazard works, just no brake or turn and it's only on the driver side.

Dizzy

Dizzy

Joined
Feb 5, 2018
Messages
2,436
Location
Santa Fe, New Mexico
Does the driver turn signal glow solid on the instrument cluster when the turn signal is set to the left position with the ignition on?

J

JustTodd

Joined
Dec 6, 2019
Messages
6
Location
Clovis,NM
Does the driver turn signal glow solid on the instrument cluster when the turn signal is set to the left position with the ignition on?
No it does nothing, the flasher is working I assume because I can hear it and feel it clicking.

EWheeler

EWheeler

4 Cruisers, No Garage !
GOLD Star
Joined
Apr 5, 2008
Messages
1,742
Location
Menifee, CA
On my 71 and 69 there is a fuse going to the hazard switch that is located way up under the dash. It is accessible if you remove the cowel vent. Have you checked that fuse? I am not positive it exists on a ‘73, but its worth a look.

EWheeler

EWheeler

4 Cruisers, No Garage !
GOLD Star
Joined
Apr 5, 2008
Messages
1,742
Location
Menifee, CA
On my 71 and 69 there is a fuse going to the hazard switch that is located way up under the dash. It is accessible if you remove the cowel vent. Have you checked that fuse? I am not positive it exists on a ‘73, but its worth a look.

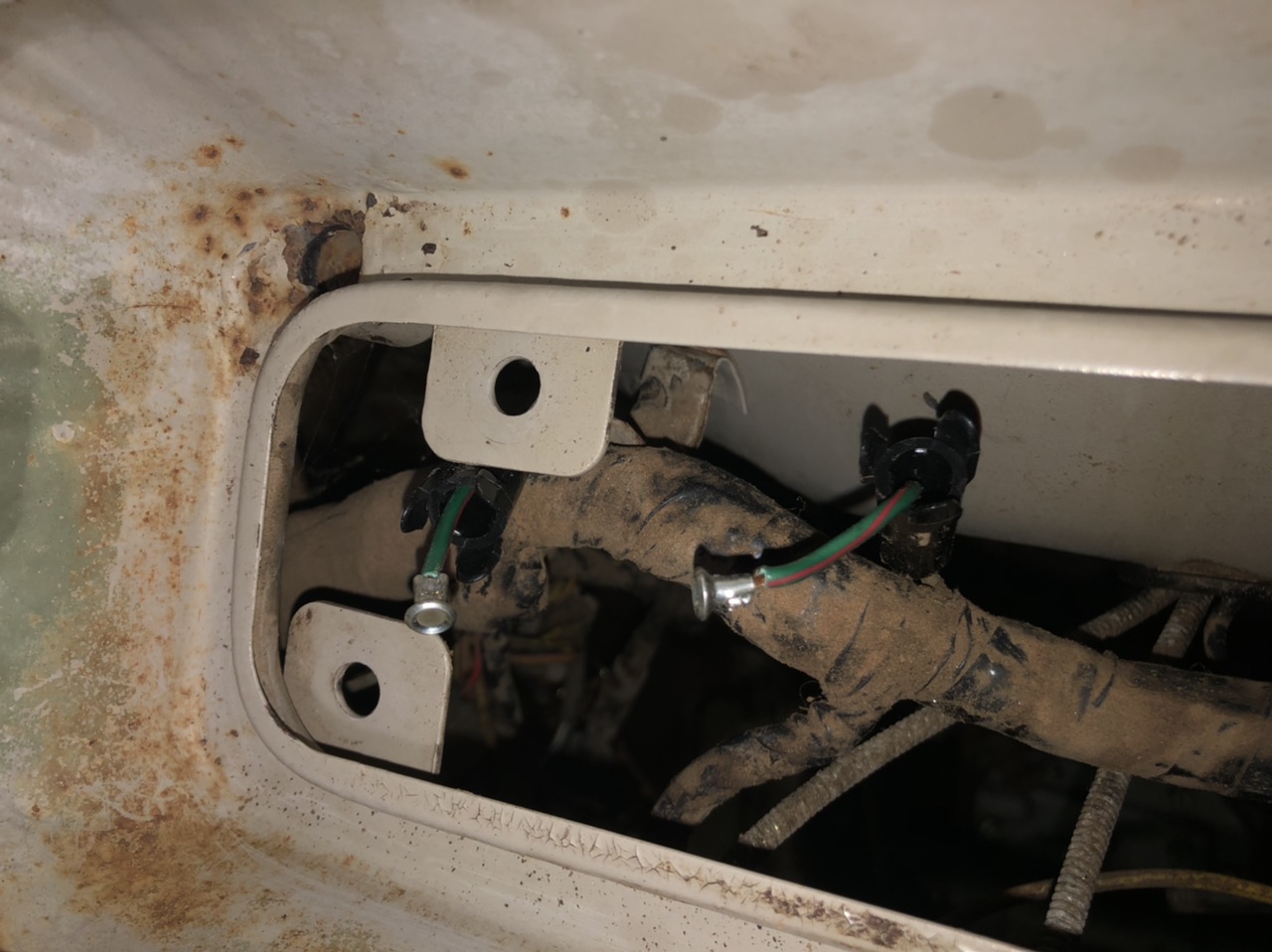

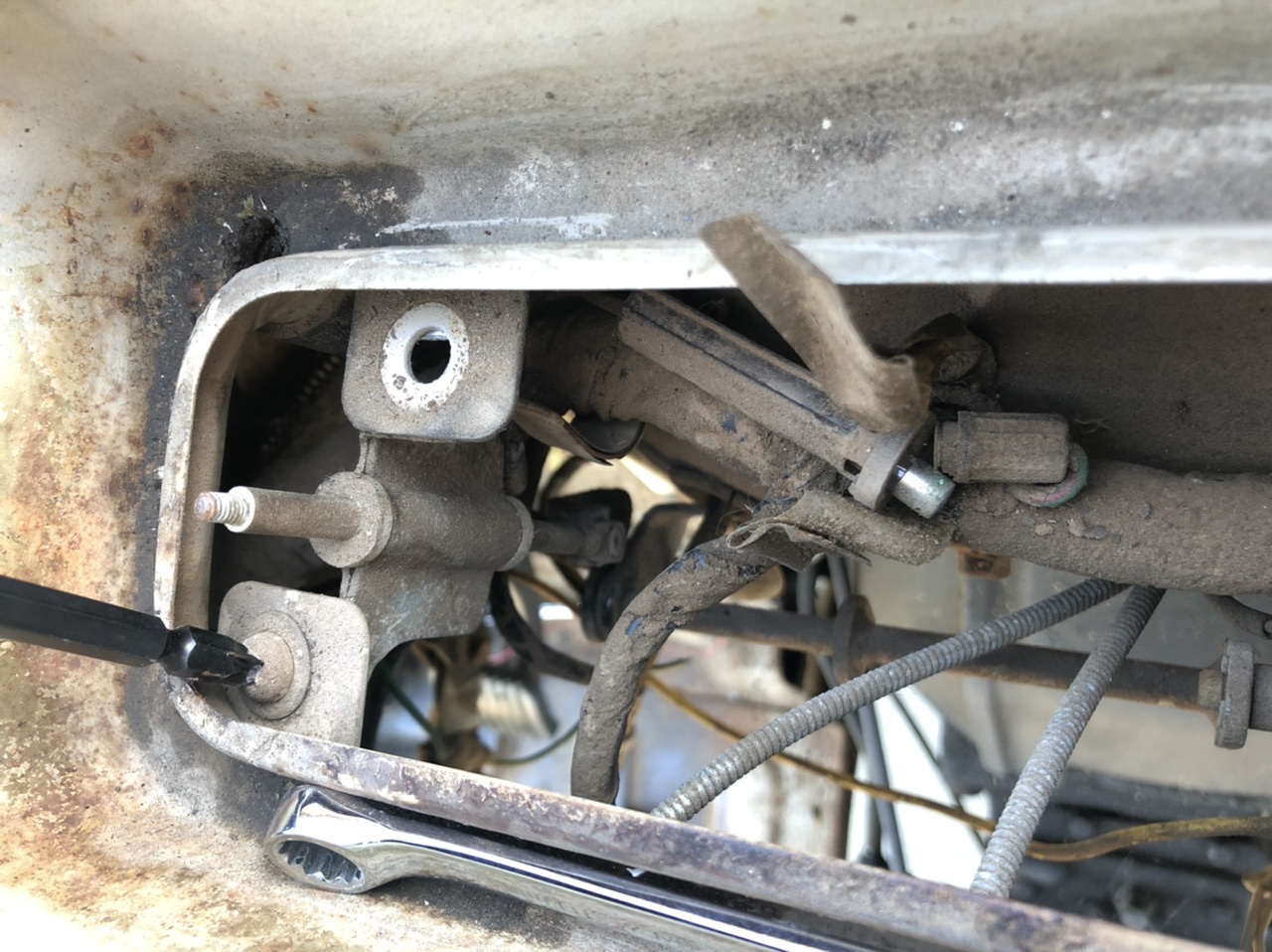

Here is are some photos. My ‘71 schematic shows this fuse. The ‘72/73 schematic from Coolarmans site does not a fuse. I think still worth a look. The fuse holder on my 69 was busted, orereded a new one from @Coolerman

8E5F7ECC 3D05 40DA 8F5F 562709EF8926
D4F432B3 2832 41C7 BFCB E52B9153463C
978821EB E4CD 45A1 B6C9 E18E9753E046

73FJ40

73FJ40

After another night of rust removal!
SILVER Star
Joined
Dec 28, 2006
Messages
1,806
Location
Western Massachusetts
@JustTodd

FIrst, stop listening to the guessers, shotgunning 'solutions' while ignoring the facts you've presented.

@Engineer8000 is correct. It's very likely that the directional switch (or wires from/to the switch) has a problem on the left side.

We've known from the beginning that the ground is good, and the wire to the left stop/directional/hazard filament is intact. We know that the flasher is functional, since it works for the right side and the hazard. You've clearly indicated that the filament works in hazard mode. That proves it.

If you look at Engineer8000's chart in post #17, you'll see that the hazard switch circuit, when activated, bypasses the directional and sends the blinker signal directly to both rear s/d/h filaments.

WarDamnEagle

WarDamnEagle

SILVER Star
Joined
May 20, 2007
Messages
6,021
Location
Riyadh and Auburn
Turn signal assembly appears to still be available. I replaced the ones on my '77, '83, and '94 as they get loose and worn over time. Nothing like new for parts that you touch often.


Engineer8000

Engineer8000

CAPE FEAR ELECTRONICS
Supporting Vendor
Joined
Aug 16, 2019
Messages
1,053
Location
SOUTHPORT NC
Website
forum.ih8mud.com
Turn signal switch is easy to remove and clean. At least it would eliminate that as the problem. It could also be a bad wire/connection but that is less likely.
