Snapped output shaft?

[Bighorn Bande]

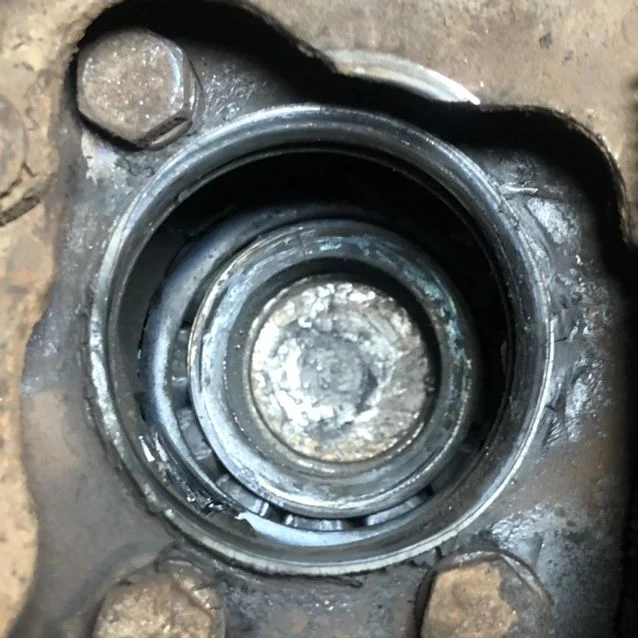

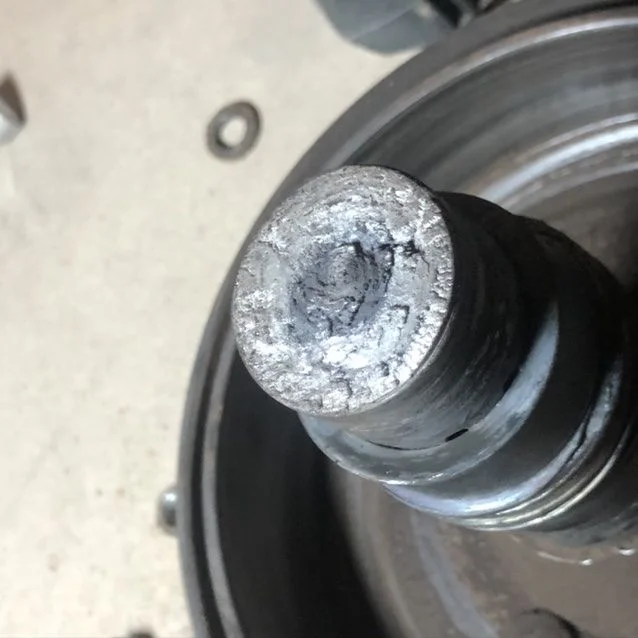

Well, I think I figured out why my 88 OJ50LV doesn’t move under its own power anymore, but I am shocked. Does this mean I need to pull the TC and Tranny, or just TC?



[cult45]

I would say both to ascertain all potential damage. But dude, what's an 88 OJ50LV?



[3_puppies]

can't say I've seen that before.

being as there is no sign of gear oil leaking out on the ebrake, my WAG is there is non left in the transfer,



[65swb45]

can't say I've seen that before.

being as there is no sign of gear oil leaking out on the ebrake, my WAG is there is non left in the transfer,



[Bighorn Bande]

I would say both to ascertain all potential damage. But dude, what's an 88 OJ50LV?

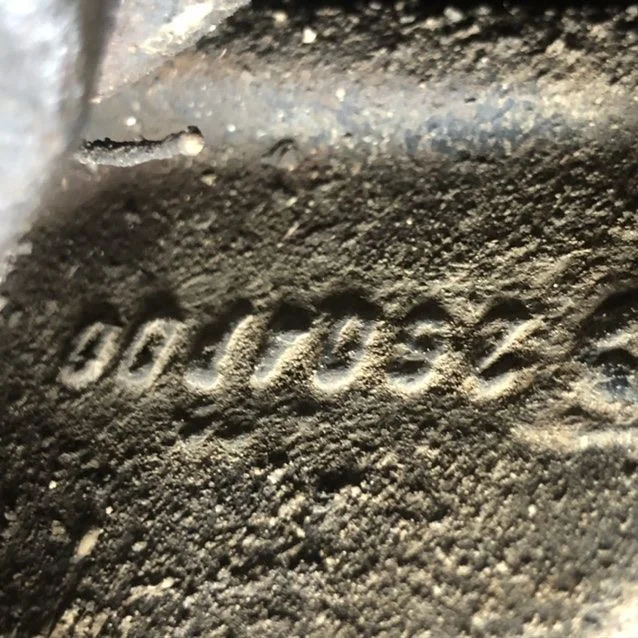

To answer the question, it is a Brazilian FJ40 longbody.



[Bighorn Bande]

While driving there was a ‘pop’ and then no power. Oil is all over the undercarriage from that point backward, but not in the e-brake.



[Bighorn Bande]

Anyone recommend a TC rebuild kit and rear output shaft source?



[pjohnson]

These guys should have what you need.

Cruiser Outfitters



[DangerNoodle]

Anyone recommend a TC rebuild kit and rear output shaft source?

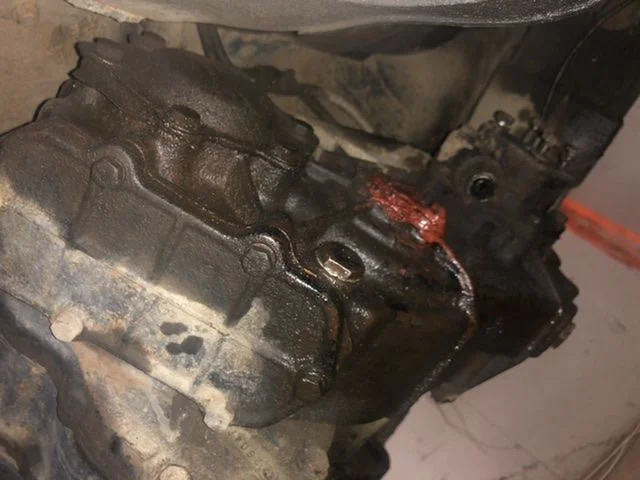

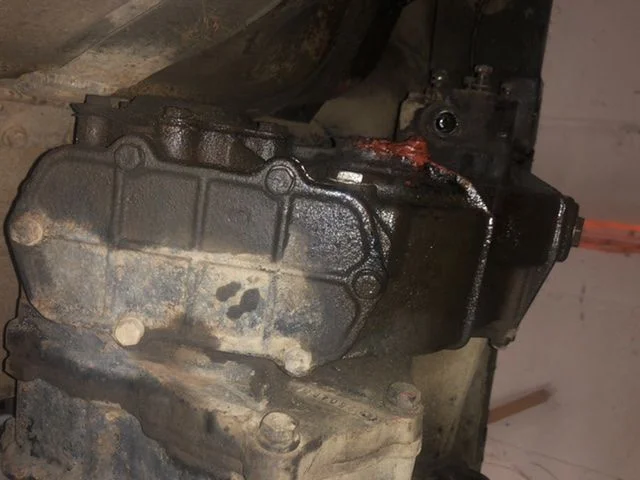

View attachment 2451613

View attachment 2451614

You may have a funky TC because it is South American. I ran to some troubles with them. I highly recommend calling Kurt at Cruiser Outfitters.



[65swb45]

Based on @3_puppies observation, I wouldn’t order anything until I had the whole tcase torn down. If it was a low oil induced break, you may not actually have a rebuildable case.

Also, the flat rear PTO cover is a red flag that you may not have a 1” idler, and could have some exotic, non-replaceable parts in that case.



[middlecalf]

Georg @orangefj45 is another good option for help



[greenbeast]

Bummer, isn't this 1 of 2 your were bringing in town? Hate to see this!!



[65swb45]

I guess I should mention (since no one else is likely to) that I sell rebuild kits too, and have been servicing Landcruiser transfer cases for four decades.



[Bighorn Bande]

Bummer, isn't this 1 of 2 your were bringing in town? Hate to see this!!

Yep. I bought 2 on the lower cost end that looked solid. Didn’t see this coming. Made it from Houston to Trinidad Colorado and then the snap.



[Bighorn Bande]

Based on @3_puppies observation, I wouldn’t order anything until I had the whole tcase torn down. If it was a low oil induced break, you may not actually have a rebuildable case.

Also, the flat rear PTO cover is a red flag that you may not have a 1” idler, and could have some exotic, non-replaceable part in that case.

Bummer, but good to consider.



[3_puppies]

Based on @3_puppies observation, I wouldn’t order anything until I had the whole tcase torn down. If it was a low oil induced break, you may not actually have a rebuildable case.

Also, the flat rear PTO cover is a red flag that you may not have a 1” idler, and could have some exotic, non-replaceable part in that case.

looking at the ebrake backing plate, it looks like the hole is oblong, so if the housing seal area is damaged, you may need that also.
X2 on tearing it all down and seeing exactly what you are dealing with.
oil has definetly been leaking from somewhere, seeing all the red good on the idler shaft, but there was no oil at the break area, that is a problem.
what transmision is in front of the transfer?



[Bighorn Bande]

I guess I should mention (since no one else is likely to) that I sell rebuild kits too, and have been servicing Landcruiser transfer cases for four decades.

Do you have experience with the Brazilians



[Bighorn Bande]

looking at the ebrake backing plate, it looks like the hole is oblong, so if the housing seal area is damaged, you may need that also.
X2 on tearing it all down and seeing exactly what you are dealing with.
oil has definetly been leaking from somewhere, seeing all the red good on the idler shaft, but there was no oil at the break area, that is a problem.
what transmision is in front of the transfer?

5 speed (stock in 88 Brazilians)



[Tancruiser]

Ohhh so close you almost made it home.



[Bighorn Bande]

Ohhh so close you almost made it home.

So close! Well, I should have just had them transported, but the 5 speed drove nice enough... until it didn’t.
