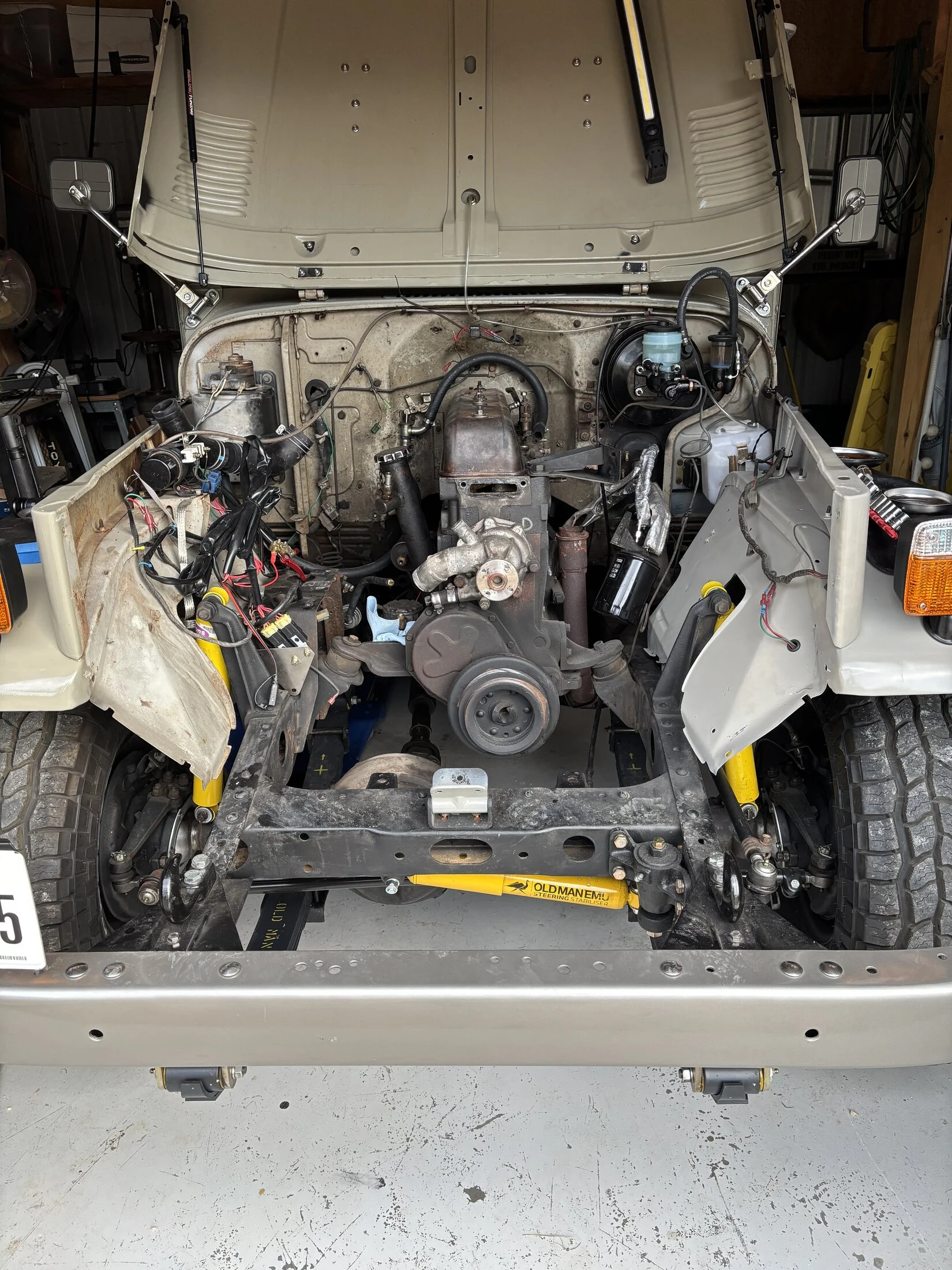

We’re into it! Everything is disconnected and drained.

Now that I can see everything I have to ask. Can I pull the engine with the transmission and TC attached as a unit? It looks like it’ll be too in balanced.



[Pighead]

Can I pull the engine with the transmission and TC attached as a unit?

Yes you can. It's not too bad



[MatthewMcD]

Yes you can. It's not too bad

Thanks. Picked up a dolly to catch transmission. Fingers crossed.



[Grayscale]

The exhaust might be in the way? It gets tight next to the steering box, when the transmission is attached. The load leveler was maxed-out on my pull with both gear boxes.

This is when you want a roll-cage. It makes a perfect transmission installation tool. Had one on my '73.



[Grayscale]

I just remembered. The technique was to remove the motor mount ear from the driver's side of the engine. So, it is wise to unfreeze those fasteners before you undo the rear motor mounts to the frame. This way, you can no-fuss remove the mounting ear before the motor is pulled too far forward out of the engine bay, and it is getting a bit close to the original steering box. Maybe someone working with an impact wrench can do it with the engine's weight on the crane, but, I was just using hand-tools?

No tab.



[MatthewMcD]

I just remembered. The technique was to remove the motor mount ear from the driver's side of the engine. So, it is wise to unfreeze those fasteners before you undo the rear motor mounts to the frame. This way, you can no-fuss remove the mounting ear before the motor is pulled too far forward out of the engine bay, and it is getting a bit close to the original steering box. Maybe someone working with an impact wrench can do it with the engine's weight on the crane, but, I was just using hand-tools?

No tab.

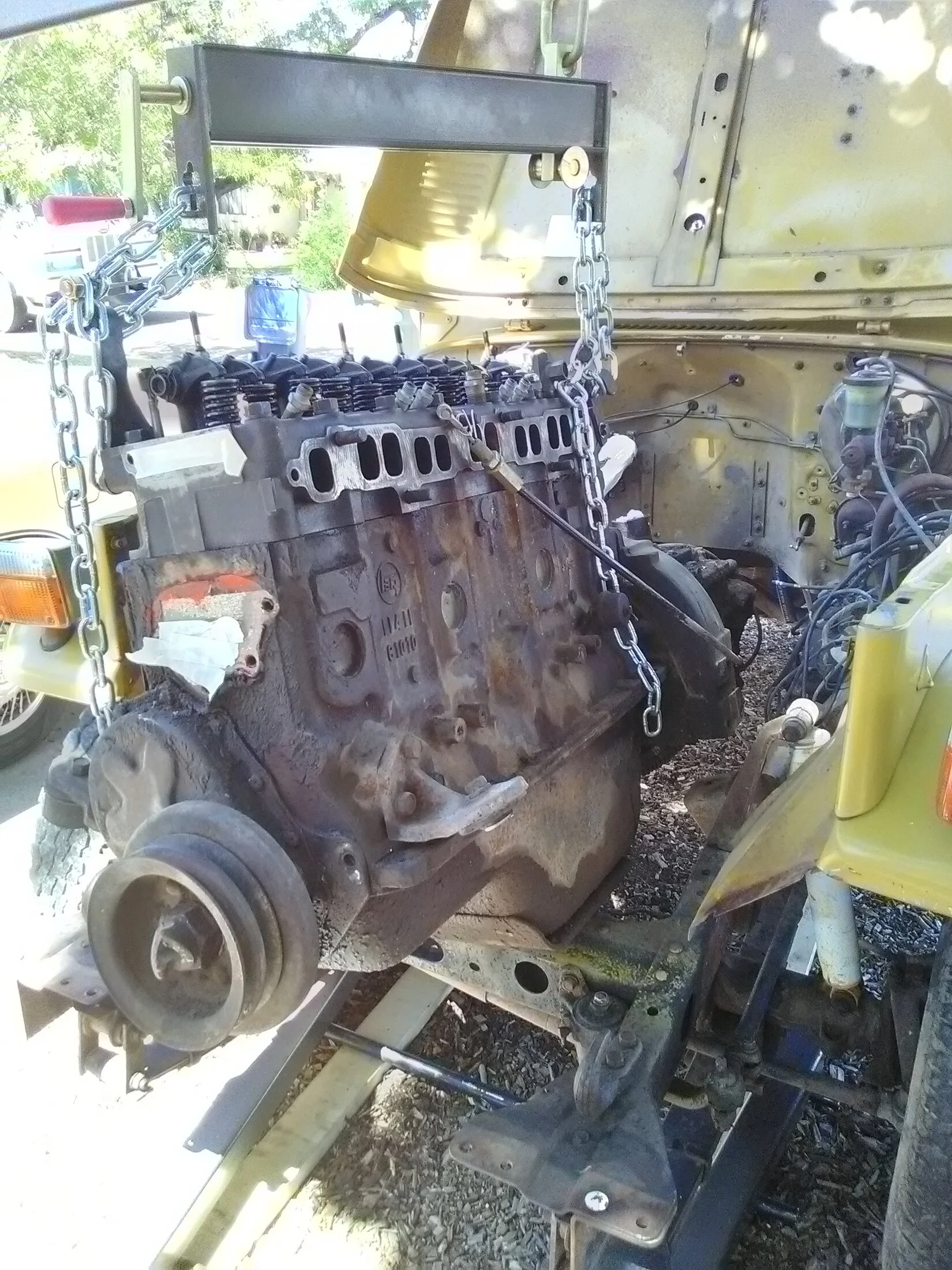

View attachment 3824514

Thanks, we did run into a binding issue on the steering box, we managed around it and saved the brake lines in the process. We got the whole assembly out without damage. I pulled the bell housing and flywheel and tomorrow will get it ready for resurfacing.

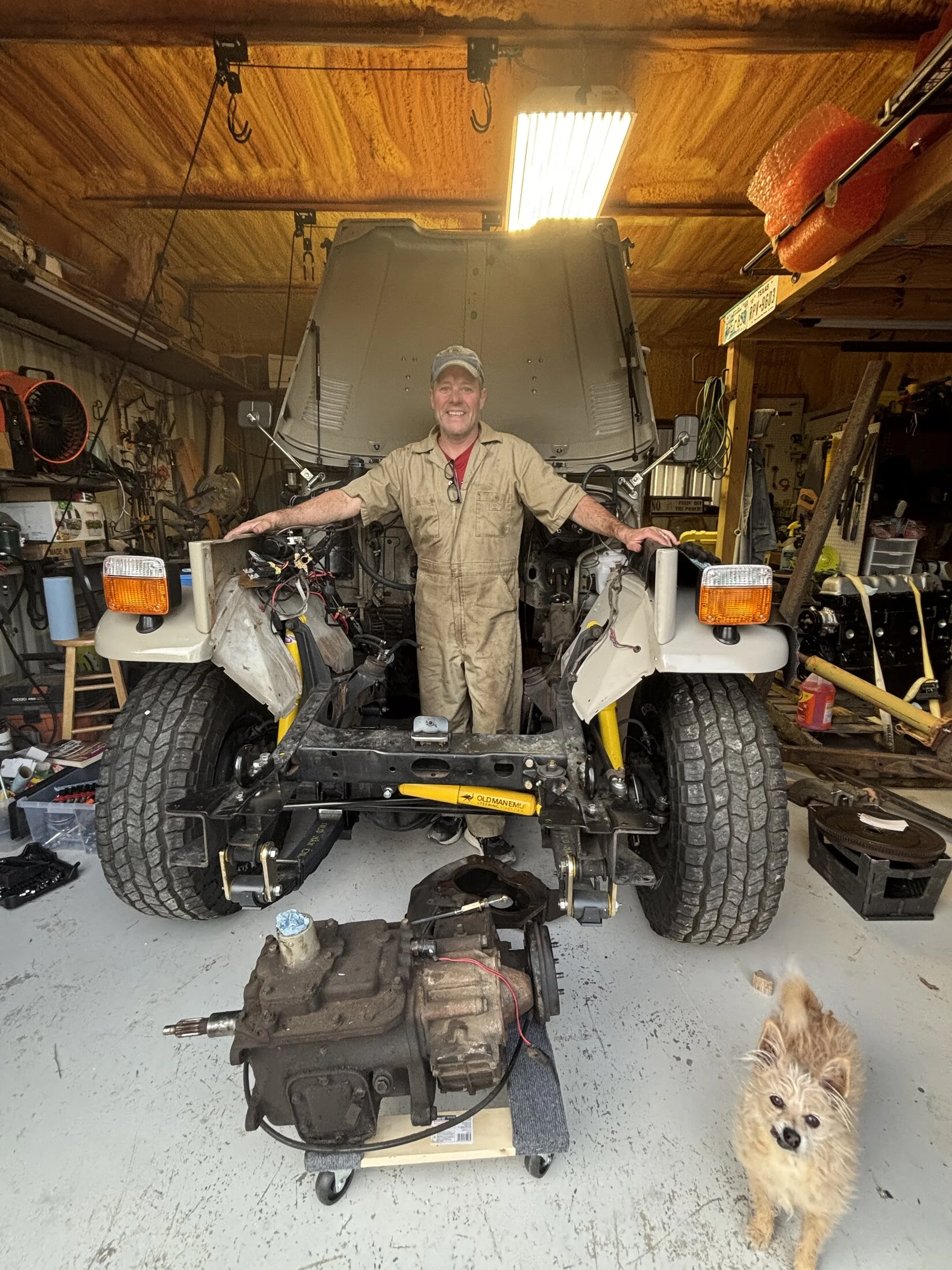

Here's a very tired me and our "shop dog" Zeus.

Over beers we decided to put the new engine in and then install the Transmisson/TC after everything is running.

Tomorrow I'll clean the engine bay and address any rust. I'll be back next weekend to try and install the new engine.



[MatthewMcD]

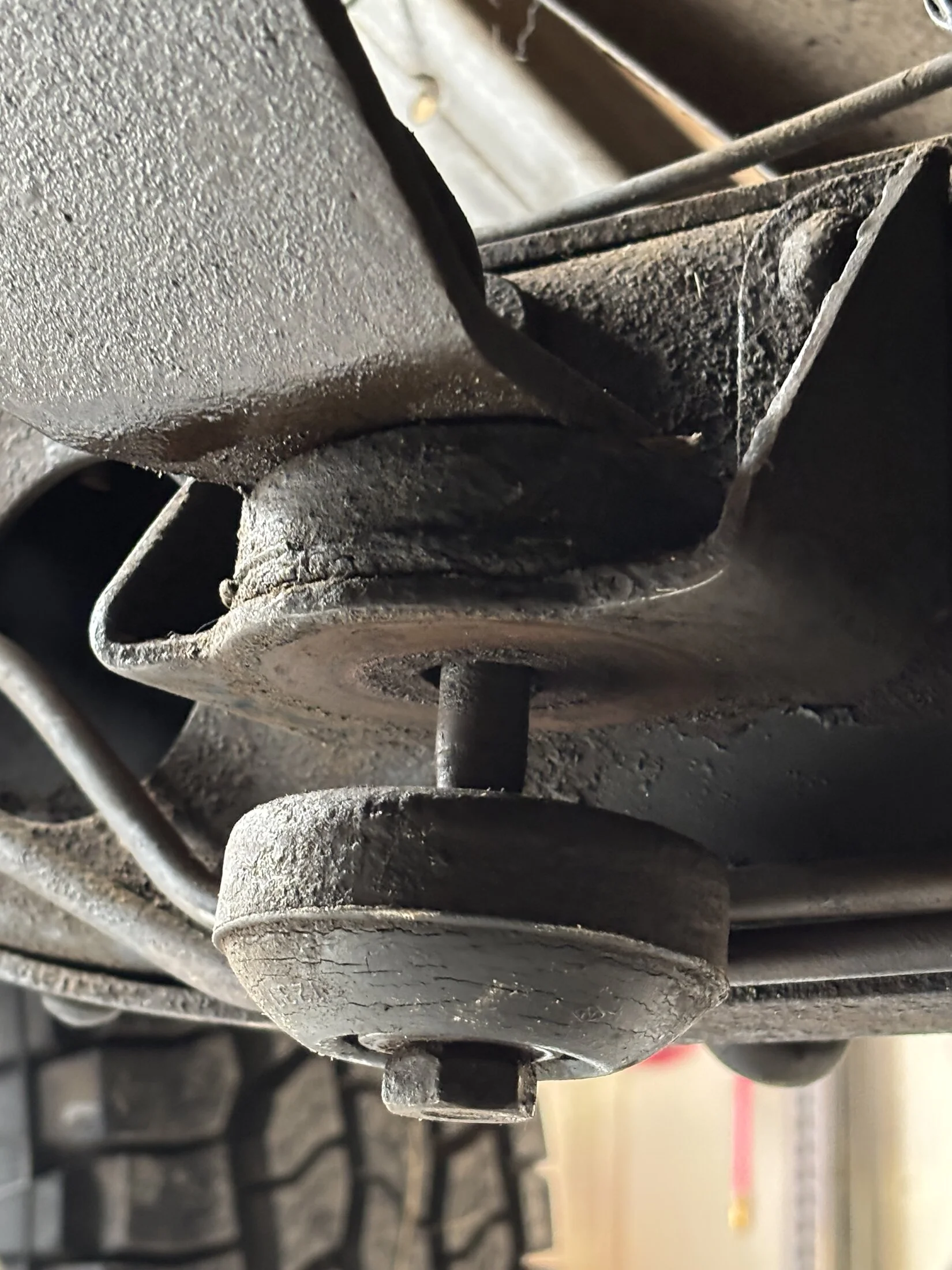

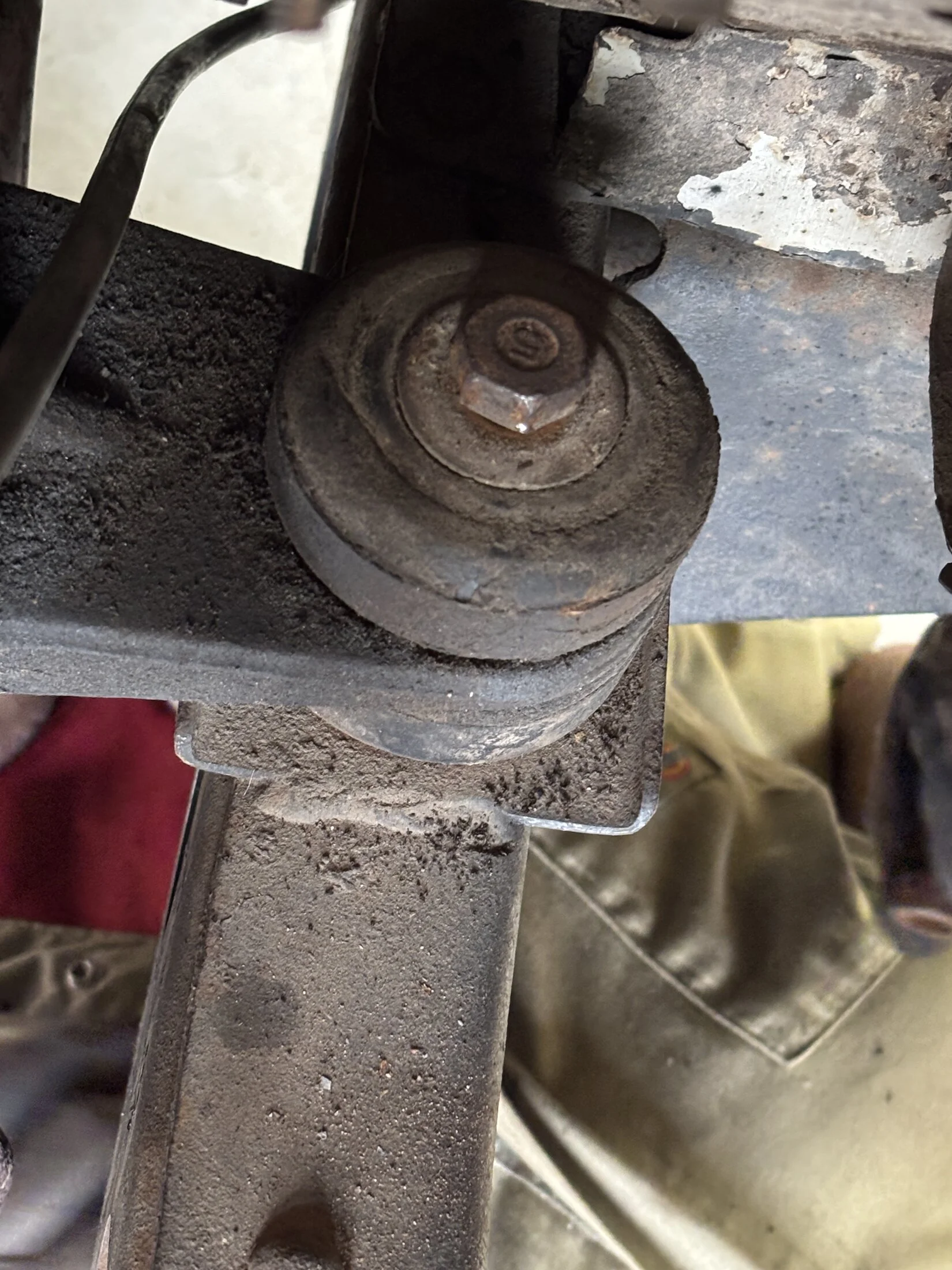

These are the two old rear mounts. (Yes, I have new OEM replacements.) Are they "stacked" correctly?
Drivers Side (Nut on bottom)

Passenger Side (Nut on top)



[MatthewMcD]

Last question for the day, these keepers were on the flywheel. I haven't seen them in any of the diagrams. Do they have a name and are they necessary?



[Skreddy]

Last question for the day, these keepers were on the flywheel. I haven't seen them in any of the diagrams. Do they have a name and are they necessary?
View attachment 3825240

The keepers go on then the corner gets folded over so the bolt can’t loosen. Not necessary but if you can reuse them it’s good insurance.



[charliemeyer007]

Locking tabs. You have the pattern, you can make new ones, they are just sheet metal.



[MatthewMcD]

Locking tabs. You have the pattern, you can make new ones, they are just sheet metal.

Thanks, can you tell me if the motor mounts were arranged correctly?

cc: @Skreddy



[charliemeyer007]

F, 2F, 3F 1FZ and 2UZ-FE FJ40, FJ45, FJ55, FJ60, FJ62, FJ80, FZJ80, UZJ100 Land Cruiser Motor Mounts - Specter Off-Road

Toyota Land Cruiser parts since 1983. From the oldest FJ25 and to the newest Land Cruiser, Non USA or domestic 40 Series, 60 Series 80 Series or 100 Series, SOR has the largest selection of top quality new and used OEM and aftermarket Land Cruiser parts in stock in the world. Specializing in...

www.sor.com



[LSUfj]

Thanks, can you tell me if the motor mounts were arranged correctly?

Looks to be correct per the parts diagram. But…see post #220 below for clarification



[Skreddy]

Thanks, can you tell me if the motor mounts were arranged correctly?

cc: @Skreddy

They look like how mine are.



[Skreddy]

It’s been out for a couple days…. Why isn’t that old engine stripped so we can see what combo is inside it?!



[MatthewMcD]

F, 2F, 3F 1FZ and 2UZ-FE FJ40, FJ45, FJ55, FJ60, FJ62, FJ80, FZJ80, UZJ100 Land Cruiser Motor Mounts - Specter Off-Road

Toyota Land Cruiser parts since 1983. From the oldest FJ25 and to the newest Land Cruiser, Non USA or domestic 40 Series, 60 Series 80 Series or 100 Series, SOR has the largest selection of top quality new and used OEM and aftermarket Land Cruiser parts in stock in the world. Specializing in...

www.sor.com

Sweet, hadn't seen that exploded view. Thank You.



[MatthewMcD]

It’s been out for a couple days…. Why isn’t that old engine stripped so we can see what combo is inside it?!

'Cause I have to travel for work, so I can buy dog food and truck parts, so I have a happy dog and fulfilled spirit, so I can restore myself, so I can go back to work, so I can...



[MatthewMcD]

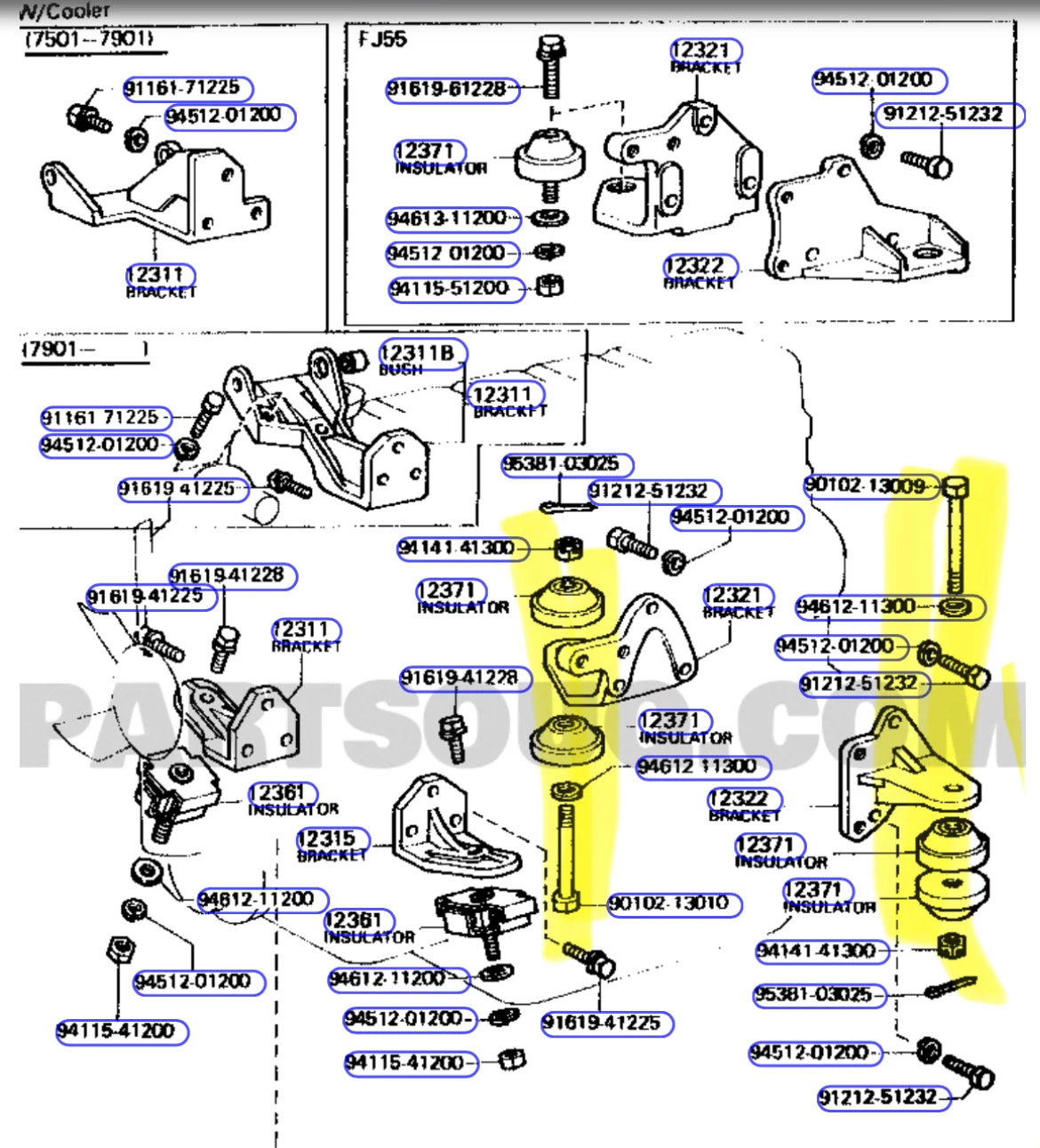

Looks to be correct per the parts diagram. Nut on top on pass, nut on bottom on driver. Did either of yours have a cotter pin?

View attachment 3825731

Thanks! One had a cotter pin, the other had the castle nut and no cotter pin. I plan to get it installed and then drill the bolts for cotter pins.



[65swb45]

Just popped in to tell you that I dropped off your parts at UPS this morning, and to say thanks for the insulator. Maybe in spring I will get a chance to install it on Ruftoys and post a pic or two.



[65swb45]

Looks to be correct per the parts diagram. Nut on top on pass, nut on bottom on driver. Did either of yours have a cotter pin?

View attachment 3825731

This information is wrong, and it is illogical. You cannot put your hand inside the driver’s side frame rail to set a cotter pin in through the castle nut. The nut goes on top.

And the saddle of the passenger mount gets wallowed out by the HEAD of the bolt facing down.

One of a hundred reasons why I tell people the FSM is a handy reference tool, but it is not the Bible.
