major update
I haven't updated my build thread in a while but I have been busy
First I had drivetrain selection issues. My original goal was to use a toybox with my 1piece case behind a 700R4 & 6.2 diesel. After a call I find out that they won't be making a toybox for a 1piece case for a while. So I start taking with Georg (Orange45) and Steve at EBI and they both recommend going to a splitcase. So I find a local guy selling a splitcase from an 88 FJ62 for $150. I get that home and call to get a toybox for the splitcase just to find out that it might 3-4 months before a toybox is available. I know Marlin makes good stuff but I don't feel like waiting for them anymore. So a little web searching, another call to Georg, a call to Gary at Mudrak I end up with the following:
NP 203 reduction box and adapter for my 700R4 ($100 local)
NP203 to splitcase adapter
shaft for the 700R4 to 203
Because of the stretch to my 40 I shouldn't have an issue with lenght. I've ordered rebuild kits for both of them.
I also got a change to spoil the workshop a little and got the following off of Kijiji (craiglist equivalent)
60gallon 5hp compressor that I plumbed with copper lines from front to back
and a parts washers

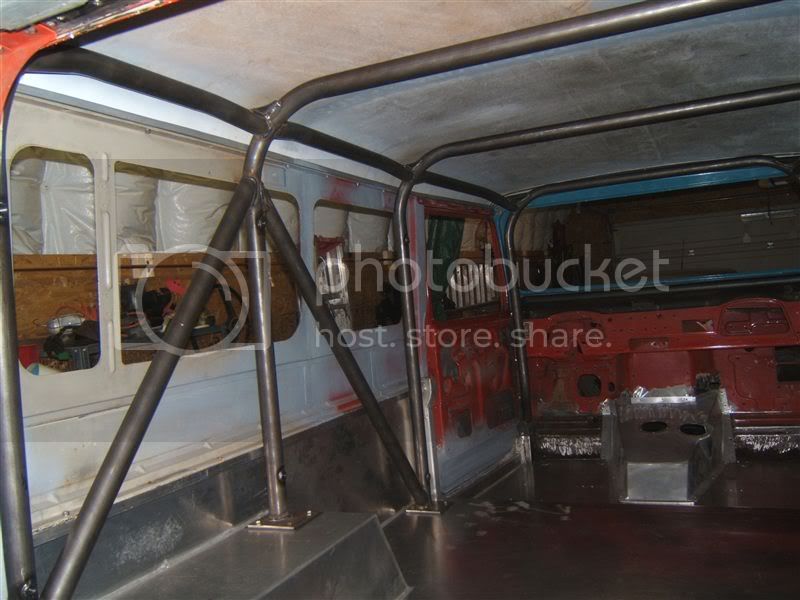

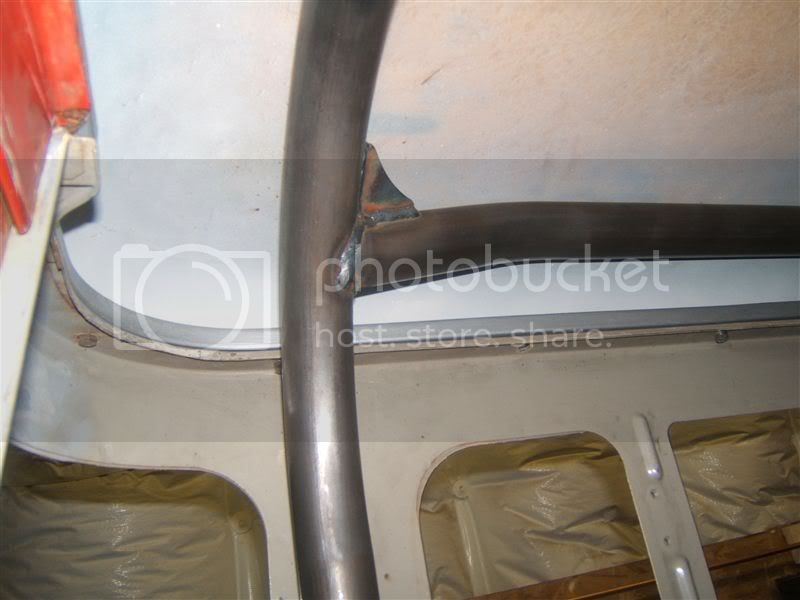

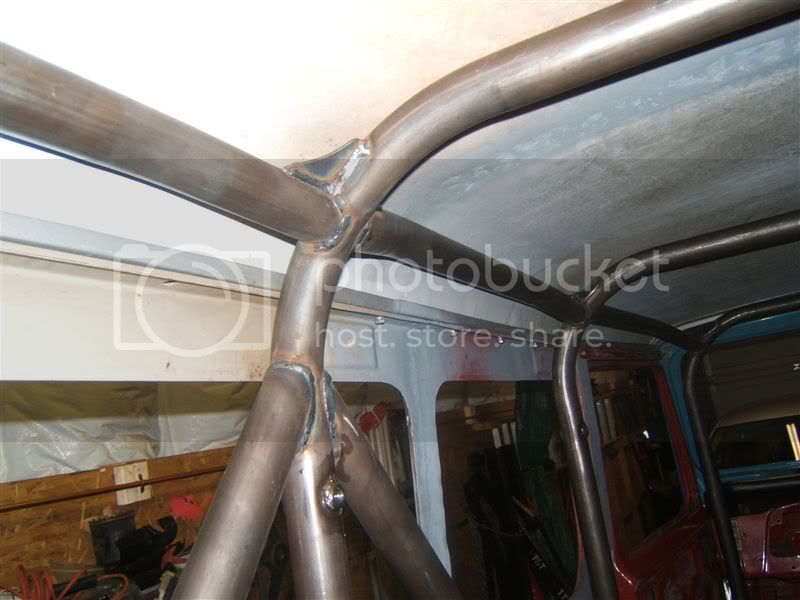

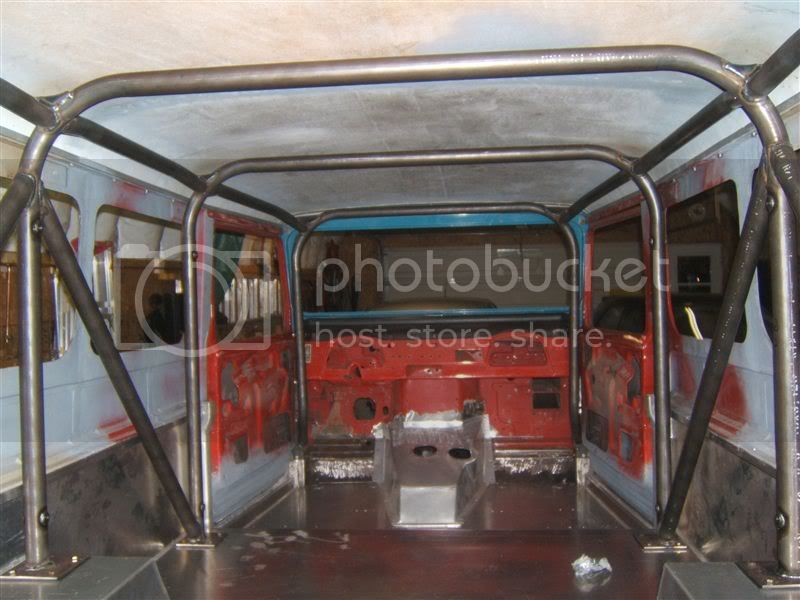

So while I was installing the compressor the 40 finally got its rollcage. Local fabricator built me a cage using ~100 feet of 1 3/4" .120 wall DOM tubing. It's built nice and tight to the body and roof and has 6 frame tie ins using poly bushing to dampen some of the vibration. Here are some pics.
Some of the other stuff that I've done but didn't get a chance take pictures of yet:
1-Tranny hump from Aqualu has been massaged to fit the firewall better.
2-I got my front seats (Corbeau Baja RS suspension seats with sliders and seat risers from a Heep YJ)
3-Rear seat frame is started and should have some slide out draws when I'm done
4-Got a twin stick and a manual to vacuum conversion for the splitcase.
I would like to thank Georg (Orange45) for all the time he spent helping me out with the whole t-case situation.
That's all I can think of for tonight. Things are progressing well and I hope to get this thing on the road next spring.
I haven't updated my build thread in a while but I have been busy
First I had drivetrain selection issues. My original goal was to use a toybox with my 1piece case behind a 700R4 & 6.2 diesel. After a call I find out that they won't be making a toybox for a 1piece case for a while. So I start taking with Georg (Orange45) and Steve at EBI and they both recommend going to a splitcase. So I find a local guy selling a splitcase from an 88 FJ62 for $150. I get that home and call to get a toybox for the splitcase just to find out that it might 3-4 months before a toybox is available. I know Marlin makes good stuff but I don't feel like waiting for them anymore. So a little web searching, another call to Georg, a call to Gary at Mudrak I end up with the following:
NP 203 reduction box and adapter for my 700R4 ($100 local)
NP203 to splitcase adapter

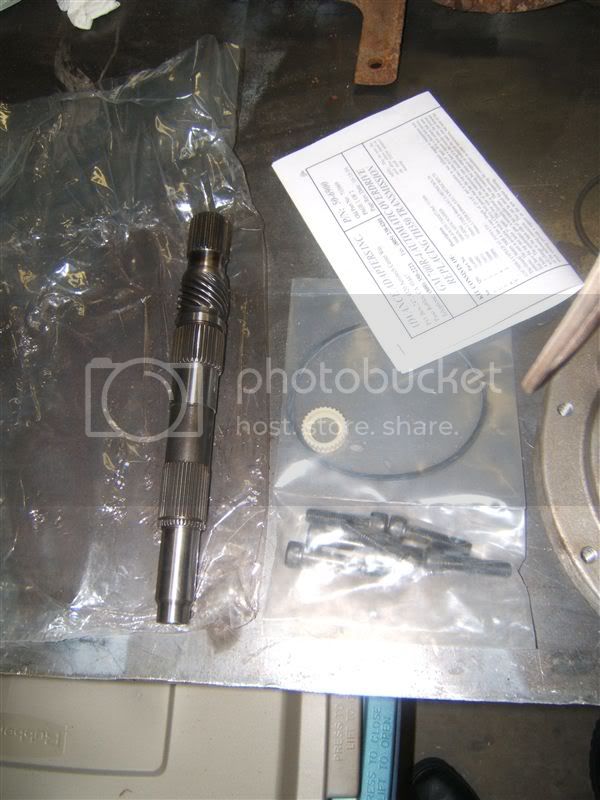

shaft for the 700R4 to 203
Because of the stretch to my 40 I shouldn't have an issue with lenght. I've ordered rebuild kits for both of them.
I also got a change to spoil the workshop a little and got the following off of Kijiji (craiglist equivalent)
60gallon 5hp compressor that I plumbed with copper lines from front to back
and a parts washers
So while I was installing the compressor the 40 finally got its rollcage. Local fabricator built me a cage using ~100 feet of 1 3/4" .120 wall DOM tubing. It's built nice and tight to the body and roof and has 6 frame tie ins using poly bushing to dampen some of the vibration. Here are some pics.
Some of the other stuff that I've done but didn't get a chance take pictures of yet:
1-Tranny hump from Aqualu has been massaged to fit the firewall better.
2-I got my front seats (Corbeau Baja RS suspension seats with sliders and seat risers from a Heep YJ)
3-Rear seat frame is started and should have some slide out draws when I'm done
4-Got a twin stick and a manual to vacuum conversion for the splitcase.
I would like to thank Georg (Orange45) for all the time he spent helping me out with the whole t-case situation.
That's all I can think of for tonight. Things are progressing well and I hope to get this thing on the road next spring.
pbgbottle
Forum Lifer
- Joined
- Feb 8, 2004
- Threads
- 288
- Messages
- 5,553
- Location
- Cloverdale B.C. Canada
- Website
- www.instagram.com
cool thanks for the updates.
kling-on
Kool Arrow
- Joined
- Apr 26, 2003
- Threads
- 255
- Messages
- 5,503
- Location
- Pimpin part in SanAntonio TX
- Website
- www.texas4x4.org
Looking good... I love it
great build...
kcustom73
Stretched it...
- Thread starter
- #69
More pics

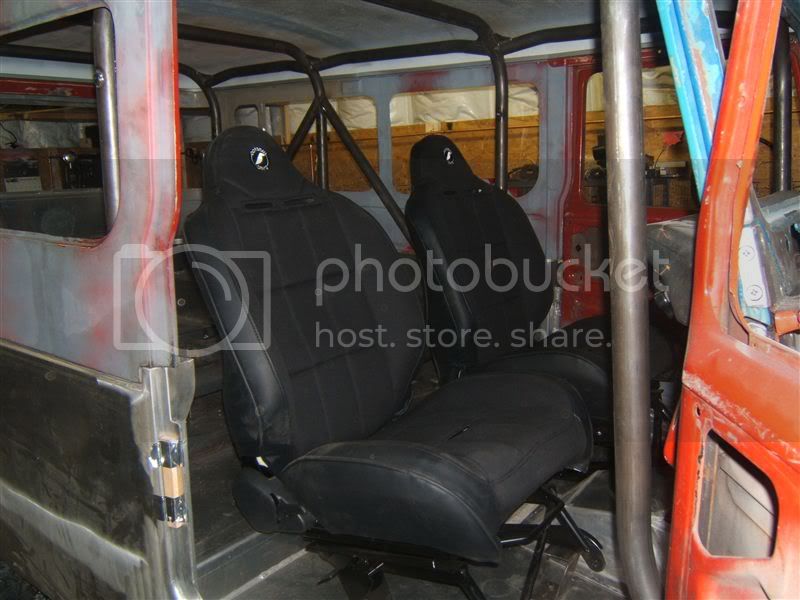

Just a few pictures of my front seats installed. They are Corbeau Baja RS with sliders and riser from a heep. The heep riser will make it easier for the people (like my 2
) to get in the back.

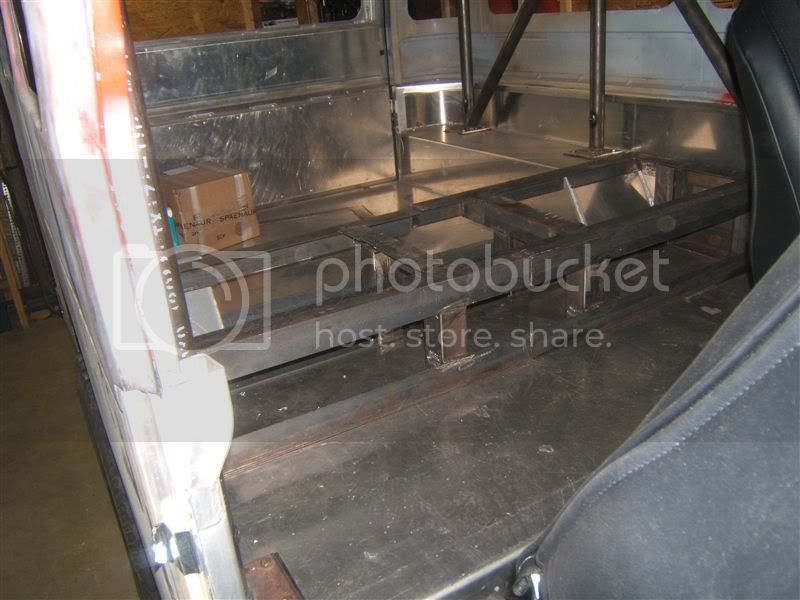

And speaking of the back seat. I've also started working on the rear seat frame. I think I might just put another set of Baja RS's back there too. I will be closing them up and putting a door on the front of them to give me some storage.
Just a few pictures of my front seats installed. They are Corbeau Baja RS with sliders and riser from a heep. The heep riser will make it easier for the people (like my 2
) to get in the back.
And speaking of the back seat. I've also started working on the rear seat frame. I think I might just put another set of Baja RS's back there too. I will be closing them up and putting a door on the front of them to give me some storage.
Aqualu
How are you liking the aqualu tub so far?
I'm thinking of doing a tub swap and have been looking at their stuff.
Looks nice but it's always great to get real feedback of someone who's used it.
Great build....
How are you liking the aqualu tub so far?
I'm thinking of doing a tub swap and have been looking at their stuff.
Looks nice but it's always great to get real feedback of someone who's used it.
Great build....
Nice work
i am waiting to finsh it to get some id from your work
i am waiting to finsh it to get some id from your work
subscribed.
kcustom73
Stretched it...
- Thread starter
- #75
Josh, I can't take credit for the front hoop idea. I got the idea from a Butch Lewis / Paul Decker design. My fabricator and I modified it bit to work with my Aqualu tub. Not really worried about how it's mounted to the tub. The a-pillar is mounted to the tub and should be nice and strong.
kcustom73
Stretched it...
- Thread starter
- #76
It's been a while...
Sorry if my updates seem sporadic, but I've actually been busy working on the 40
My last update was just a bit before xmas but I've been crazy busy on the build. During the xmas break I took the entire thing apart to get all the sheet metal media blasted and primed. Once it came back I attached the Aqualu tub to my stock firewall for the last time (I hope)
While the body parts where at the blasters I took the time to take apart my donor FJ62 axle to get it ready for the knuckle / disk brake swap.
I also started to put a thin coat of bondo on my hardtop to get it ready for primer (I'll probably sand most of it off but at least I'll get nice and smooth)
I finally got into some really fun stuff and finally got the drivetrain mocked up and installed. I know you guys like pics so...
WIP of the hard top (takes a lot of bondo to cover a stretched roof )
The drivetrain mocked up (GM 6.2 diesel, 700R4, NP203 doubler, splitcase from an 88 FJ62)

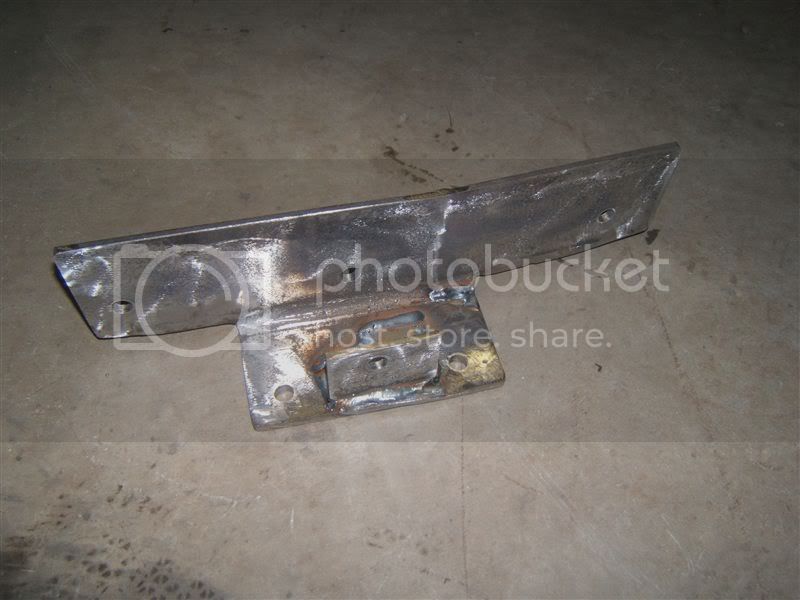

Motor mount are made of 1/4" wall 4"x4" tube and 1/4" plate. I used the original style rubber mounts and notched the tube to fit over the frame. Then the brackets are bolted thru the frame using 4 Grade 8 7/16" bolts
Driver side installed

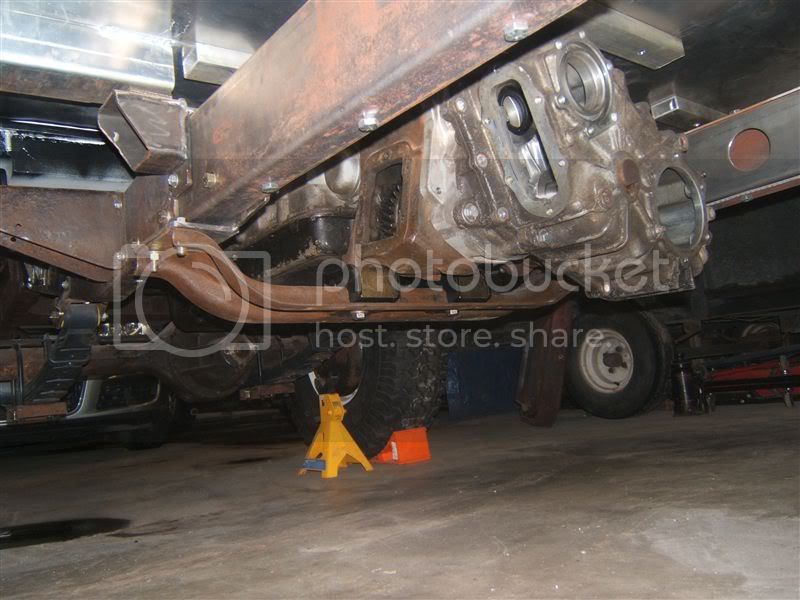

Fabbed up the tranny cross member using the original cross member from the NP203 and some 1/4" angle iron. More grade 8 hardware thru the frame to hold everything in place. Also got some energy suspension bushings.

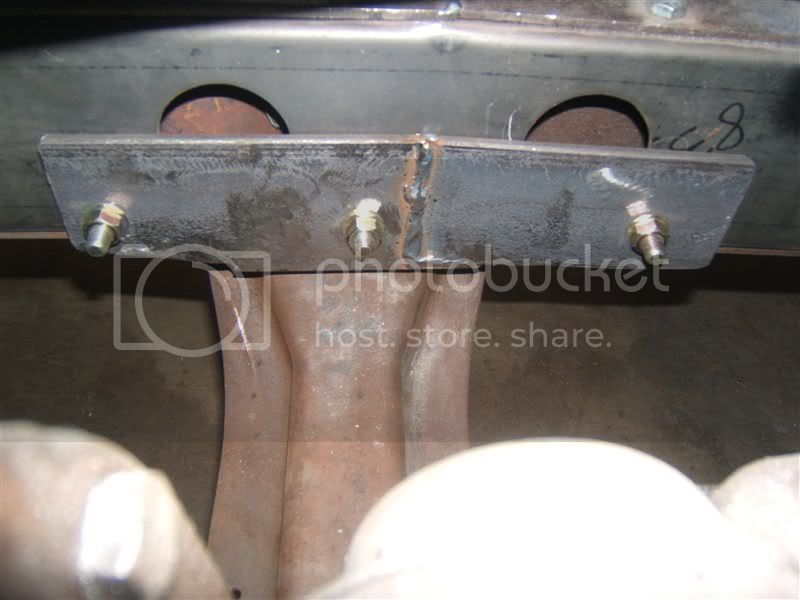

Support bracket
Seen from the inside
This is what it looks like as of tonight...
Progress is good and I hope to get all the fab worked done by the end of April.
Sorry if my updates seem sporadic, but I've actually been busy working on the 40
My last update was just a bit before xmas but I've been crazy busy on the build. During the xmas break I took the entire thing apart to get all the sheet metal media blasted and primed. Once it came back I attached the Aqualu tub to my stock firewall for the last time (I hope)
While the body parts where at the blasters I took the time to take apart my donor FJ62 axle to get it ready for the knuckle / disk brake swap.
I also started to put a thin coat of bondo on my hardtop to get it ready for primer (I'll probably sand most of it off but at least I'll get nice and smooth)
I finally got into some really fun stuff and finally got the drivetrain mocked up and installed. I know you guys like pics so...
WIP of the hard top (takes a lot of bondo to cover a stretched roof
)
The drivetrain mocked up (GM 6.2 diesel, 700R4, NP203 doubler, splitcase from an 88 FJ62)
Motor mount are made of 1/4" wall 4"x4" tube and 1/4" plate. I used the original style rubber mounts and notched the tube to fit over the frame. Then the brackets are bolted thru the frame using 4 Grade 8 7/16" bolts
Driver side installed
Fabbed up the tranny cross member using the original cross member from the NP203 and some 1/4" angle iron. More grade 8 hardware thru the frame to hold everything in place. Also got some energy suspension bushings.
Support bracket
Seen from the inside

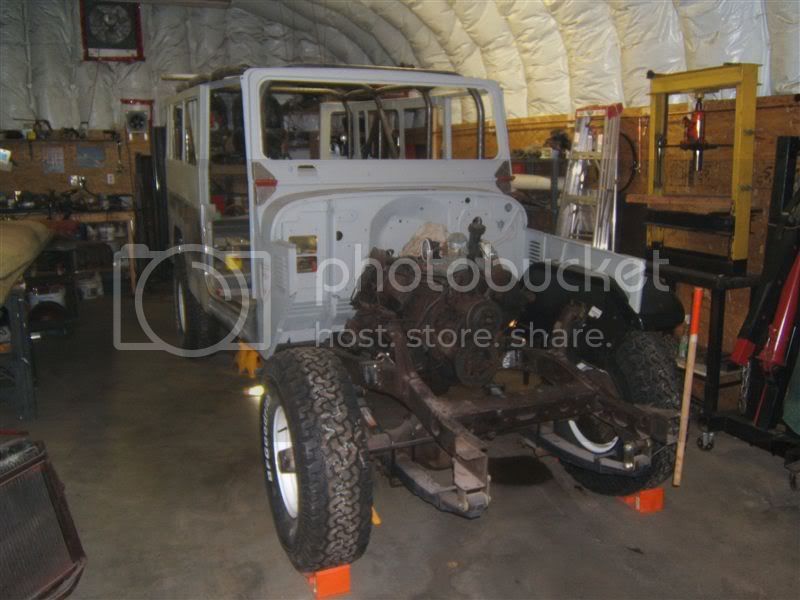

This is what it looks like as of tonight...
