Just a few things to ask about this thread...

I have to dig into my front end and just ordered up everything to rebuild it and am upgrading to the larger rotors except I went with Toyota Reman front Calipers and we shall see what happens... with that alone I will save about 250ish per side before a core return....

Also Adam those dust shield P/N's dont seem to work... I came up with 47781-60100 RH and 47782-60100 LH



[SHREDwagon]

You can cut the lip of the dust shield off with a grinder. Fit's fine! The rear is another story...



[Adam B]

At the time of my purchase (2.5 years ago) those were the right part numbers but who knows what they've done since.

Like SHREDwagon said, If I was doing it again I'd just reuse the existing backing plates and cut the lip off with a plasma cutter (or angle grinder if you're a knuckle-dragger).



[hectorladron]

i just did this whole upgrade last week and after bleeding it twice now, i can’t seem to notice much of a difference from my stock set up. i hope its just air in the system still.



[b702012]

i just did this whole upgrade last week and after bleeding it twice now, i can’t seem to notice much of a difference from my stock set up. i hope its just air in the system still.

You will see the difference after a week of driving, had the same issue, had to bleed the brake system four times. Now my brake system like a day and night different in stopping



[b702012]

You will see the difference after a week of driving, had the same issue, had to bleed the brake system four times. Now my brake system like a day and night different in stopping

Before

After



[Diesel Cruiserman]

We use to to do this upgrade often and I found in one particular case we used Hawk pads, customer brought the truck back and complained about no improvement with braking.. I later ran it through a bed in process which yielded big BIG improvement...
http://www.tirerack.com/brakes/tech/techpage.jsp?techid=85:beer:

We use to pull the bleeder valve out and coat it with brake lube, also remove rubber boots and add a little brake grease in that area to slow corrosion and always change out the rubber lines at the same time..

Rob



[hectorladron]

Let's hope that's the case. I've been bedding them and I've noticed the small grooves (your upgraded picture shows them) on the rotor have nearly disappeared on one side.
I'm going to bleed them a few times more. I bought a vacuum pump for this job which helped a lot along with keeping the truck running and getting a friend to pump the brakes a few times to help get rid of the bubbles faster.



[Malahki]

A common mistake bleeding the brakes is pumping the pedal multiple times before cracking the bleeder open. Doing this can break down the large air bubbles into little champagne type bubbles spread through out the system. It leaves the pedal feeling spongy because the air bubbles compress. Then you have to let them settle for a long time before attempting to bleed the system again.



[RHDieselCruiser]

I am about to go thru this journey for my HDJ81. I am hoping that all willl fit with OEM 15" wheels.
Since I am going in there thinking of changing bearings and seals on the front axle but that endeavor has taken me most of the day, I was not thinking that it would take me this long to try to look up Toyota part numbers for bearings, caps, clips, seals, rings.
I do not know why I did not think of this sooner, any of you have any pointers for a diagram with the correct part numbers? or all of the part numbers involved? I guess I am just tired and trying my luck here.



[IanB]

I am about to go thru this journey for my HDJ81. I am hoping that all willl fit with OEM 15" wheels.
Since I am going in there thinking of changing bearings and seals on the front axle but that endeavor has taken me most of the day, I was not thinking that it would take me this long to try to look up Toyota part numbers for bearings, caps, clips, seals, rings.
I do not know why I did not think of this sooner, any of you have any pointers for a diagram with the correct part numbers? or all of the part numbers involved? I guess I am just tired and trying my luck here.

The '93+ brakes will NOT fit with the OEM 15" wheels of the '90-'92 models.



[RHDieselCruiser]

The '93+ brakes will NOT fit with the OEM 15" wheels of the '90-'92 models.

Thank you! I was afraid of that. Just my luck. well time to look for some 16".



[Crab Sack]

You can always save your self some money by getting the Toyota oem reman calipers.
Part numbers 47730-60060-84 and 47750-60060-84.
They cost about $100ish each plus core charge.



[bjowett]

I can build a larger system that should fit under the stock 15"er on the 80. Here are the beginnings of the units I am building for my BJ73. The rotor is a special directional vane high carbon 306 x 32mm.



[Dilspec]

I can build a larger system that should fit under the stock 15"er on the 80. Here are the beginnings of the units I am building for my BJ73. The rotor is a special directional vane high carbon 306 x 32mm.

View attachment 1563477

View attachment 1563478

Sorry to bump an old thread, there's a lot of useful information here. @bjowett did your brake setup ever come to fruition?



[bjowett]

Regular life continues to back burner all these fun things I want to make and offer.... With the kids becoming less dependent, some might get done... brakes and shocks are next in line.



[Dilspec]

Did anyone here upgrade the master and booster with the upgraded front brakes? Any noticeable difference in pedal feel when only doing the front brakes without changing those?



[1yellowhotrod]

This topic comes up every now and then but I have yet to see a complete parts list with prices and some photos so the purpose of this thread is to compile that information in order to help anyone who is interested in upgrading the front brakes on their HDJ81 to those from a later model Landcruiser / LX450.

My focus is on the what and the why but I’m not going to get into the how part too much. There are plenty of good tech articles describing complete front end rebuilds and there’s no point trying to outdo them. I recommend you read at least one of them before getting into this job unless you already know what you’re doing. There are far more words than most people will want to read, but hopefully the parts list, pricing, and a few photos will be useful.

Thanks to the folks who discovered Original Toyota Parts at Affordable Everyday Prices where you can place online orders for genuine Toyota parts at almost reasonable prices! They will ship via USPS to Canada Post and you will end up paying whatever duty Canada Customs charges plus about $5 per box for handling on this end. This is FAR better than whatever brokerage UPS or a similar service will charge and is light years ahead of the outright robbery experienced at Canadian Toyota dealerships.

PARTS LIST

04465-60220 Front Brake Pad Kit (2000 Toyota Landcruiser 100 Series) $56.27
43512-60090 Front Disk (1997 Landcruiser or LX450) 2x $80.14 $160.28
47730-60061 Front Caliper (1997 Landcruiser or LX450) $298.97
47750-60061 Front Caliper (1997 Landcruiser or LX450) $298.97
47781-60061 Backing Plate (1997 Landcruiser or LX450) $47.71
47782-60061 Backing Plate (1997 Landcruiser or LX450) $47.71

Subtotal: $909.91
Shipping: $135.00
Customs + Canada Post Handling: $129.48

TOTAL: $1174.39

As you can see, half of the cost of this job was for the calipers. You need the bigger calipers to use the bigger disks (rotors) but it might be worth trying a wrecker to see if you can find a used set.

Also note that I chose to use the 100 series pads. There is debate about the value of this but I figured that more material should last longer. If you’re using these larger calipers the 100 series pads drop in with no modifications but you will not be able to use the anti-squeal shims. The inner pads have JUST enough room with the pistons fully retracted. It looks like the outer shims might fit but I will probably just wait till next time I’m doing wheel bearings or something like that and stick all the shims in then. Or not. So far they’re silent…

WHY DO THIS?

The stock front brakes on the HDJ81 are mediocre at best. It only took a couple of years for Toyota to realize that and switch to larger parts and they were kind enough to make the whole system interchangeable and bolt-in. By collecting the right parts you can make your front braking system a generation newer.

Again, I won’t waste your time with step-by-step instructions. Figure that out yourself. In my case my front end had been rebuilt a couple of months ago so I didn’t even repack the wheel bearings this time – I just took everything apart and reassembled with the new parts.

ROTORS

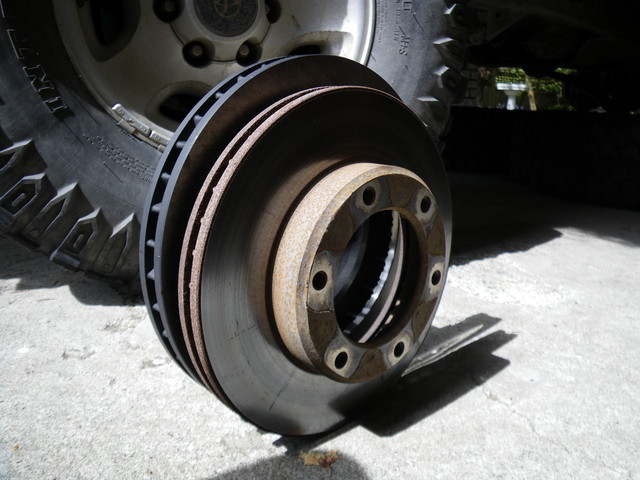

Here’s a couple of shots of the old 11” rotors compared to the new 12” rotors. You can also see how much thicker the new ones are. I didn’t weigh them to compare but there’s a significant difference.

The new rotors will bolt right up in place of the old ones. I found it helpful to break free the mounting bolts while I still had everything on the vehicle. My air compressor is dead so I didn’t have the use of an impact gun but a 2 foot breaker bar with a 17mm socket and a pry bar between wheel studs made it easy. Now that I think about it, an impact gun probably would have just shaken everything and loosened a bunch more dirt, making my life worse.

BACKING PLATES

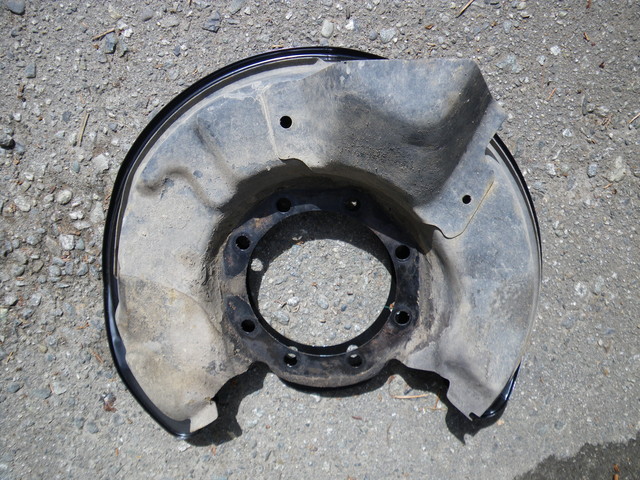

The stock backing plates can be reused but you will need to trim off the lip all the way around. Since new backing plates were less than 10% of the total price, I wasn’t going to waste my time messing around. If you’re doing a budget build and managed to find used calipers then maybe saving another hundred bucks makes more sense.

I also figured that the lip might provide even slightly more protection from rocks, etc, which was another vote for new parts. One interesting difference is that the original backing plates have a scoop to direct air toward the rotor. The new ones don’t.

You can see the new backing plate sticking out behind the old one. Not much bigger, but enough that the old ones won’t fit.

CALIPERS and PADS

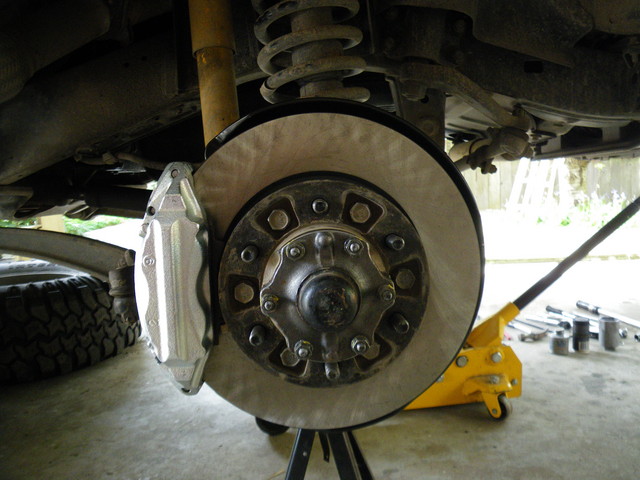

The new calipers are direct bolt-in replacements. As I mentioned, they will take the 100 series pads with no modifications, but the anti-squeal shims don’t fit with brand new pads.

This shows the difference between my original 80 series pads (on the right) and a set of cheapo Raybestos 100 series pads. These aren’t the ones I actually installed but they were all I had laying around for a photograph.

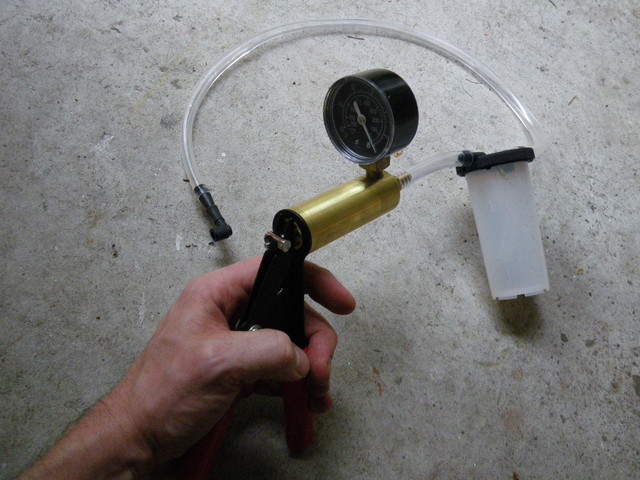

The caliper swap gave me a chance to try out my vacuum pump bleeder, which worked incredibly well. Hook it up, pump a few times to get a decent vacuum, then crack the bleeder screw and continue pumping the hand pump as needed to maintain vacuum. It only took about half a master cylinder reservoir worth of fluid to bleed both front calipers completely. The best part was showing the device to my girlfriend and telling her that she had been replaced…

BREAK-IN

In the past I had no idea that you were supposed to break-in a new braking system. I always figured that whatever coating might be on the rotors would burn off and that would be the end of it. After some reading I am convinced that there is validity to the idea of using a brake bedding procedure to deposit an even layer of pad material on the rotors, thereby making for smooth, even braking without vibrations. I also now believe that most of what people attribute to warped rotors is actually a result of an uneven deposit that could have been avoided with a good bedding procedure.

I did something like this: You are being redirected...

In my case it was easy to go slow through a few city blocks until I got to the start of a section of highway (SW Marine Drive heading to UBC in Vancouver) without having to do any real braking or sitting at any stop lights with the brakes clamped. Once on the highway I got up to 100km/h then gave the brakes a moderate stab to warm them up while slowing me down to about 30km/h. Back up to 100, then I just mashed on them to nearly a full stop. I repeated this a few times, which was kind of difficult because of the other traffic and all the bloody cyclists. Bikes and motor vehicles just can’t coexist.

Not liking the idea of rapid cooling, I did gently apply the brakes a few times during the cooling stage. Just enough to generate a bit of heat, but not much at all. From there on out I went another 10 minutes with as little use as possible, and when I had to stop at street lights I made sure not to stay on the brake while sitting. I either kept inching forward or dropped it into Neutral and used the emergency brake to hold me still (yes, mine works very well).

RESULTS

It’s only been a day but it already feels like a different vehicle. The brakes are firm, I think I could actually lock up the MTs, and they seem more resistant to fade. I’ll have a much better chance to test things out in a couple of weeks when I have my boat on top and 500+ pounds in the back.

Now I’m wondering about upgrading the rears….

RANDOM THOUGHTS

My factory 16 inch rims worked perfectly for this job. I’m certain that 15 inch rims wouldn’t allow for these bigger calipers.

Clean everything BEFORE you start disassembly. No matter how many times I do work like this, I never do a good enough job of getting rid of all the dirt ahead of time. This is of particular importance if you plan to do like I did and not bother cleaning and repacking the wheel bearings, etc.

Cone washers can be a hassle. I remember a long time ago when I first encountered these beasts and had one hell of a time getting them out. Since then, I've always reassembled with anti-seize compound all over the outside and inside of the cone washers and now all I have to do is remove the nuts and regular washers then hit around the edges of the drive plate + hub with a brass hammer and the cone washers pop out one by one.

The retaining ring the prevents the drive plate from coming off the end of the axle shaft can also be a pain, particularly getting it back on because there is no place for your snap ring pliers to grab. A traditional circlip has nice little holes for the pliers to go in. When I remove them (only the first time, obviously), I use a small cutoff disk on a Dremel and cut a very small v-groove at the end of each one to give my snap ring pliers a place to seat. You'll be really happy you did this the first time your retaining ring doesn't fly across your driveway, never to be seen again.

There are many techniques for setting the wheel bearing preload. I've always used the "Roger Brown" method (look it up if you’re interested) but this time I tried actually using a fish scale. I ended up with 8 pounds on the fish scale, which seemed to feel pretty much like I used to end up with using the other method. Regardless, I don’t like the idea that you should have "some play", particularly with large tires. The methods I have used in the past have always resulted in no play when a tire is wiggled and I’ve never had a problem with the work I've done in 250,000+ km of driving a Toyota truck.

COMPARISON SHOTS

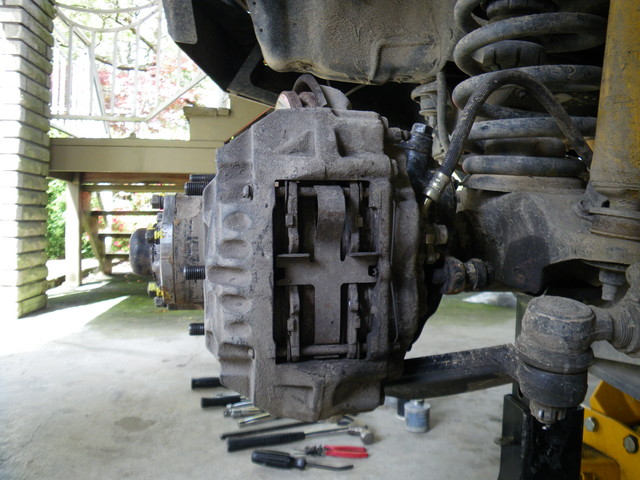

In this picture you can see that the inner pad is right against the rotor and there is a small gap between the outer pad and the rotor. This is with the pistons fully retracted before I ever bled the system or touched the brake pedal. You might be able to use the outer anti-squeal shim and in a few months maybe the inner too. Personally, I don't care to.

Link to previous thread.

This is so awesome you taking the time to do this write up. Thanks for that



[Feistl]

Has anyone ever done a write up for the rear brake upgrade? What parts are required? The usual sites i use for part numbers arn't showing any differences .

Normally i wouldn't bother upgrading the rears, but the 92+ can have the larger dogbones installed which apparently makes the handbrake... work. Which would be nice.



[veiloctane]

Has anyone ever done a write up for the rear brake upgrade? What parts are required? The usual sites i use for part numbers arn't showing any differences .

Normally i wouldn't bother upgrading the rears, but the 92+ can have the larger dogbones installed which apparently makes the handbrake... work. Which would be nice.

im still in the progress of doing the rears but there not that much bigger.. just easier to get parts in North america for the odd hdj81 brake rotors...

calipers are the same to use.. need backing plates and hand brake parts.

here is a link to the rear brake upgrade thread that shows parts. hope this helps.

HDJ81 Rear Disc Brake Upgrade

I didn't order any backing plates, I was later told that my current ones could be dremeled to fit in a pinch. I know you can cut the backing plates to fit on the front brake upgrade but I dont think it will work on the rears. Sure you can cut the outer lip off but the round center park brake...

forum.ih8mud.com
