May 3, 2011
Torsion bars 101


First some terms so the search function picks this up:
- help with torsion bars
- how to adjust torsion bars
- reindex torsion bars

This all went in Amy's thread but I thought those who weren't subscribes may like to see it.

Ok lets try get to the bottom off all of this for new readers and to try and clear some things up for old readers. Its been discussed a thousand times so here is my take on torsion bars.

To start off with I would like to say that if you sit and read through every thread on this site on torsion bars you are going to end up confused and not very confident about doing the job yourself, if however you get under your truck with some PB blaster, a 22 and 30mm spanner and get cranking you will start to understand how everything works very quickly.

1. Front shock install
2. The names of all the bits
3. How torsion bars work (from a dummy for dummies)
4. How to lift the front of your vehicle
5. How and why we measure droop
6. How to re-index the torsion bars

Here we go


1. Front Shock install

From the top lip of the wheel cap to the fender (with empty tanks and no winch/bumper)

478mm = FR FL = 485mm
485mm = BR BL = 465mm


Now I’m going to start with the front despite the fact that the winch and bumper are not on. It is the easier of the two jobs with the shocks but the torsion bars seem to confudle most new members so I’m going to go through it very slowly with loooooooooots of photos.

If I get something wrong please correct me so others can learn from my mistakes, this will be my first time.

For the front I have bought 2 new Old Man Emu long travel Nitro Charger shocks. There were no torsion bars in stock, I will probably have to re index my stock ones and use them until I can get OME replacements.

To start off with I went and got myself some axle stands (yes yes yes… the brick lift is gone  ) I took the opportunity to get myself some nut lock, WD40 (we don’t have PB blaster here) and a 22mm racketing ring spanner, do not underestimate the importance of any of these items. I also filled up both of my tanks.

I jacked the front up and placed the axle stands underneath, then the wheels came off and the jack was used to get the swing arm to the exact height to change out the shocks.

Once that was done (it really is a :banana: job) I decided to crank the torsion bars to their max to see what I could get out of them without having to re-index them (wasn’t in the mood for a huge job in this heat, and wanted to learn about how they worked before I re-indexed them).

I didn't get much out of the bolts (1 turn on the right and 2 on the left)

Considering the front bumper and winch are not yet installed and the back, which is currnetly at 485mm is going to go up by 3" I will be re indexing the bars ( I plan to have a 1" rake and 50mm droop as per recommendations)

It turned out that they didn't have enough thread in them to get them to the right height so I was in for some work to re-index the bars. I took the opportunity to educate myself and maybe a few others.

Torsion bars

2. The names of all the bits

Print off this picture and go and crawl under your car, the torsion bars are the 1.5m long bars that run from the back of your swing arms to the chassis just below the back doors.

A = don't worry about A, don't touch A
B = Adjusting Bolt/nut
C = Rear housing Adjuster arm / Anchor Arm
D = Torsion Bar
E = Front housing
, AKA Tourque arm / T-Bar Bracket / torsion bar anchor plate (mounted to the lower control arm)
F = Spines
G = Rust that is going to give me a headache next weekend



3. How torsion bars work (from a dummy for dummies)

Imagine holding a piece of string in both hands, if you twist one end one way, and the other end the other way the piece of string beings to coil up. If you then let go both ends it will uncoil. This is exactly what your torsion bars do, except they are big chunks of steel.



Now apply the same principal to the torsion bar, the back of the bar is clamped firmly to the vehicle and the front twists up and untwists as the front wheels go up and down. When the car is sitting stationary on the ground there is some preloaded spring in the bars (it is this spring we are messing with when we lift the car with the adjuster nut). As the wheels are compressed up, the twist is built up (red arrow) and as the wheels go down the twist is released (green arrow).


We need that little bit of negative (red arrow) twist in the bar when the car is stationary otherwise when the car goes over a bump and the wheels lift up the bar will have no twist left in it and it will pull the tyres off the floor. This is why that 55mm of droop is so important! it is also why we adjust and re-index the bars with no load on the front, so that as we drop the car back down the bars get that bit of preload from the weight of the vehicle.

4. How to lift the front of your vehicle

Ok so now that we know how the torsion bars work it should be pretty easy to work out how to get the front of the vehicle up while standing still.
First things first, measure the distance from the centre of the hub to the wheel arch. This is your starting measurement.

Now we need crank the bars to put more twist in them, so that they will push down on the swing arm more. Have a look at the picture below. We want the swing arm to be pushed down (orange arrow), to do this we need more green arrow twist in the bar (think about twisting that bar and how it will push the swing arm down), to do this we need to push up at the new purple arrow because black is a fixed point.


Fortunately pushing up at the purple arrow is easy because Toyota has given us a bolt to crank that will push it up. Now have a look at the picture below of the LC’s bar and how it relates. Turning this bolt clockwise will push it up increasing the twist on the bar and turning it anti clockwise will release some of the twist in the bar.


Once you have jacked the front wheels up off the ground, using a white out pen draw a line from the middle of the bolt B onto the bracket is crews into, this way you will be able to count the turns as you crank away at the bolt (you can see from my picture that my bolt has had one quarter of a turn clockwise).


Give it about 3 or 4 full rotations clockwise, drop the vehicle back down and measure the distance from the centre of the hub to the wheel arch again. Hey presto, you just lifted the front of your car!!! (you’re not done yet keep reading)

5. How and why we measure droop

Remember this “We need that little bit of negative (red arrow) twist in the bar when the car is stationary otherwise when the car goes over a bump and the wheels lift up the bar will have no twist left in it and it will pull the tyres off the floor. This is why that 55mm of droop is so important!”

Well now that you have lifted your car up and put a whole lot of green arrow twist in the bar you need to make sure there is still some left for when the car goes over a bump.its easy just follow these instructions.

• Measure the distance from your hub to the wheel arch.
• Start to jack up your car from the chassis
• As your tyre lifts of the ground stop and measure the distance from the hub to the wheel arch

If the difference between the two measurements is 55mm or more you are ok, if its less, you need to drop the vehicle down a little by unscrewing bold B a bit.
Last edited:

6. How to re-index the torsion bars

If you have done all of the above and have not been able to get more than 500mm between your hub and wheel arch it’s probably because you have cranked away at bolt B all you can but it is now all the way in, and you can’t crank it any more. (sucks to be you because now you have to re index your bars)

I’m not going to go into the why for this it will get too complicated so just follow the below instructions.

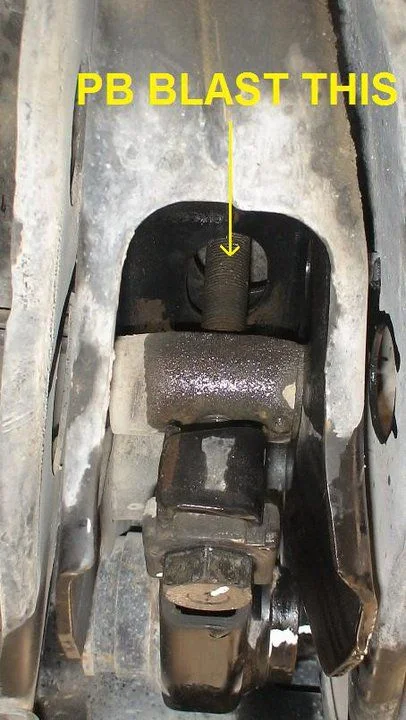

1. PB blast everything, especially both ends of the TBars, and mark the bars where they go into the housing at the front with a whiteout pen, like you did with bolt B)

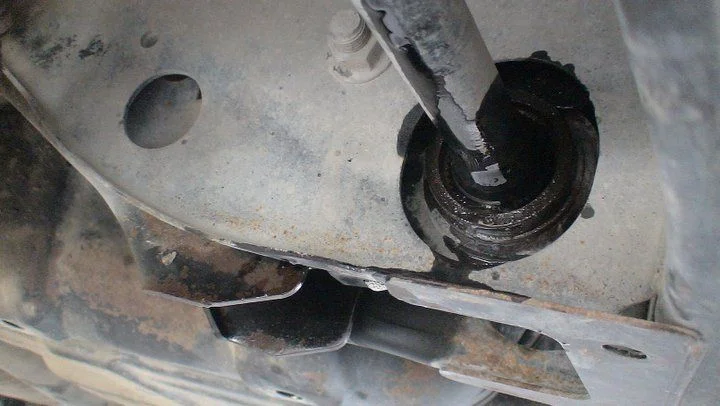

here you can see I have PB blasted the back end of the torsion bar, this is not necessary unless you are replacing them.


2. Unscrew these two nuts (Blue Arrows)


3. Move back to the adjuster bolt, Bolt B, and start to unscrew it, it’s going to take ages and when you are losing all your strength, and the will to live... your about half way there.

Squirt lubricating spray onto the top of bolt B to make your life easier.


Don’t undo it all the way just to the very end!

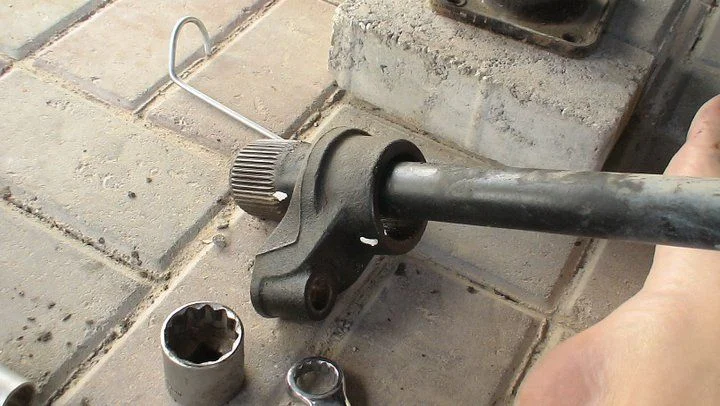

4. Now start to wiggle your T-bar back and forth until you can separate the front of the bar from this housing (You don't need to get the back out because you'r not removing the bar).

Let this housing slide back onto the bar like you can see in the picture.




5. What you now want to do is get a big cable tie and tie it nice and tight where you see the white line on the below picture, in doing so you are pushing the back housing for the torsion bar right up against the frame (white arrow). As a result the other end of the bracket will be pushed down all the way against the adjuster bolt (blue arrow). This is why you didn't take the adjuster bolt all the way out.



6. With the back secured, you have effectively rotated your torsion bar when it is in its neutral position. (This means that when you now line up the front housings on the drivers side, the marking you made on the tbar will be offset a few degrees anticlockwise from the marking on the housing. And on the passenger side they will be offset clockwise. think of it as twisting both bars out a few degrees)


Line up the front housing with its bolts and then slide it back over the Tbar spines and re-bolt it to the swing arm.

Remember the back is in its ideal position to get the most out of the bars.

(WARNING: I’m a bit of a monster at 6,2” and 120kgs and while I didn’t need a breaker bar at any stage of the process this little “hold the bar and slide on the brackets on" nearly killed me. you may want to support the front of the torsion bar with a ratchet strap before you try to line the housing up with its bolts.)

7. Once you have done that you can tighten up everything, put a few cranks into your adjuster bolt (bolt B) and you will see that you have loads of thread left to do any adjusting you need.

(I’m sorry I didn’t take better photos it was just so greasy and hot and I wanted to get it done. When I swap our the bars for OME ones I will take some better photos)

8. go and have a wheel alignment done as you have just changed the geometry of the front of your car.


Hope this helped, and to those of you who are still confused the best piece of advice I can give you is to print this off and get under your truck, it will all start to make sense. Anyone who thinks any of my comments are incorrect please let me know and I will edit them :flipoff2: you don't get photos untill the back is in and she is sitting level :popcorn:

Last edited:
Looks like great info - need to finish reading it later.

One important qualification is that raising/lowering the front using torsion bars does not apply to ahc vehicles. On an AHC equipped vehicle you should only adjust torsion bars for 2 reasons:
1) to level front left and front right. For example if the front left is too high, you could either crank TBar on front right to get it up or crank down TBar on front left to bring it down. Seems most typical for the driver's side to sag over the years so in the US at least most of us find that we need to crank the drivers side TBs up a bit to get it level with the front right.
2) to adjust neutral pressure on the front shocks. In this case you would crank both TBars up (equal amounts on each side) to bring neutral pressure down, and you would crank down on both TBars (equal amounts on each side) to bring neutral pressure up.
Last edited:
Awesome write up, gunny. This should be added to the FAQ immediately.
rockin stuff.

I just added sliders to my 2.5'' lifted LC and lost some ground clearance, both literally and visually. I miss having a little more daylight under my rig and was thinking about raising the noise a inch to compensate. This helps a ton, thanks!
Nice write-up.
Great write up! Thank you! I may actually attempt this myself now ;)
This is great thank you. Its people like you that make this site so great. Keep it up.
Very great write up, thank you! Did it and got about an inch a a quarter of lift without maxing out. Just wanted it level for now. May crank some more whenever I get around to ordering some spacers...
Its a pleasure guys, Ive learnt so much from this forum its good to contribute.

I will edit it with better photos in future and simplify some of the instructions. I was just soooooo dirty and greasy, it was 48 degrees and I was sweating like a whore in a nunnery, so I didnt want to touch my camera.

You should be able to get 500mm to 550mm from the center of the hub to the wheel arch (and still have 55 to 60mm of droop)
Last edited:
Hey! Want to come to Birmimgham, AL and help do mine? Short weekend trip.
One suggestion: Can you post a pic of the white index markings post indexing so that anyone attempting this can validate their results against yours? It will also help verify that we either got it in the ballpark or did something massively wrong. Finally, can you add it to the original post so that it reads as one set of instructions? There are some threads out there with great content but it can be a bear combing through multiple pages trying to find stop/start places in guides like this.

Not trying to tell you what to do, I just think this has the potential to be the "best of breed" thread on re-indexing torsion bars.

Thanks again for the great effort!
Great write-up!

IIRC, for a 'simple' re-indexing job (one that doesn't involve replacing the t-bars) you can do step 4 without removing the bars. Just slide the bracket rearward and clock it over a notch or two and move it back forward. depending up on the degree of corrosion on the splines this may indeed be easier outside the vehicle.

edit: maybe this is how you're describing it already. one of your pics shows the bar out of the vehicle on the ground.
Thanks, this is wonderful, now to de stinkbug the cruiser. Going to make my week a little more interesting.
