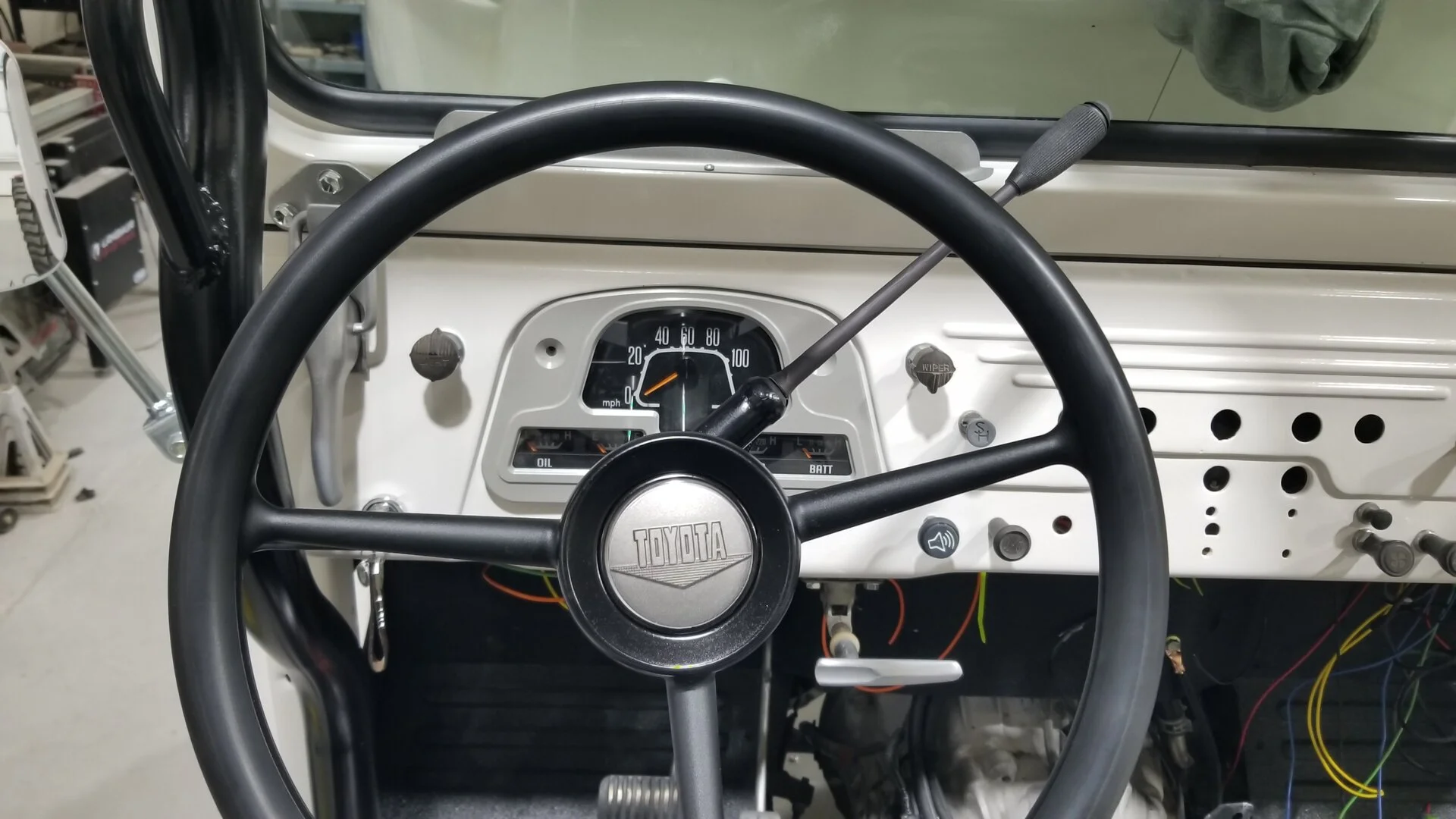

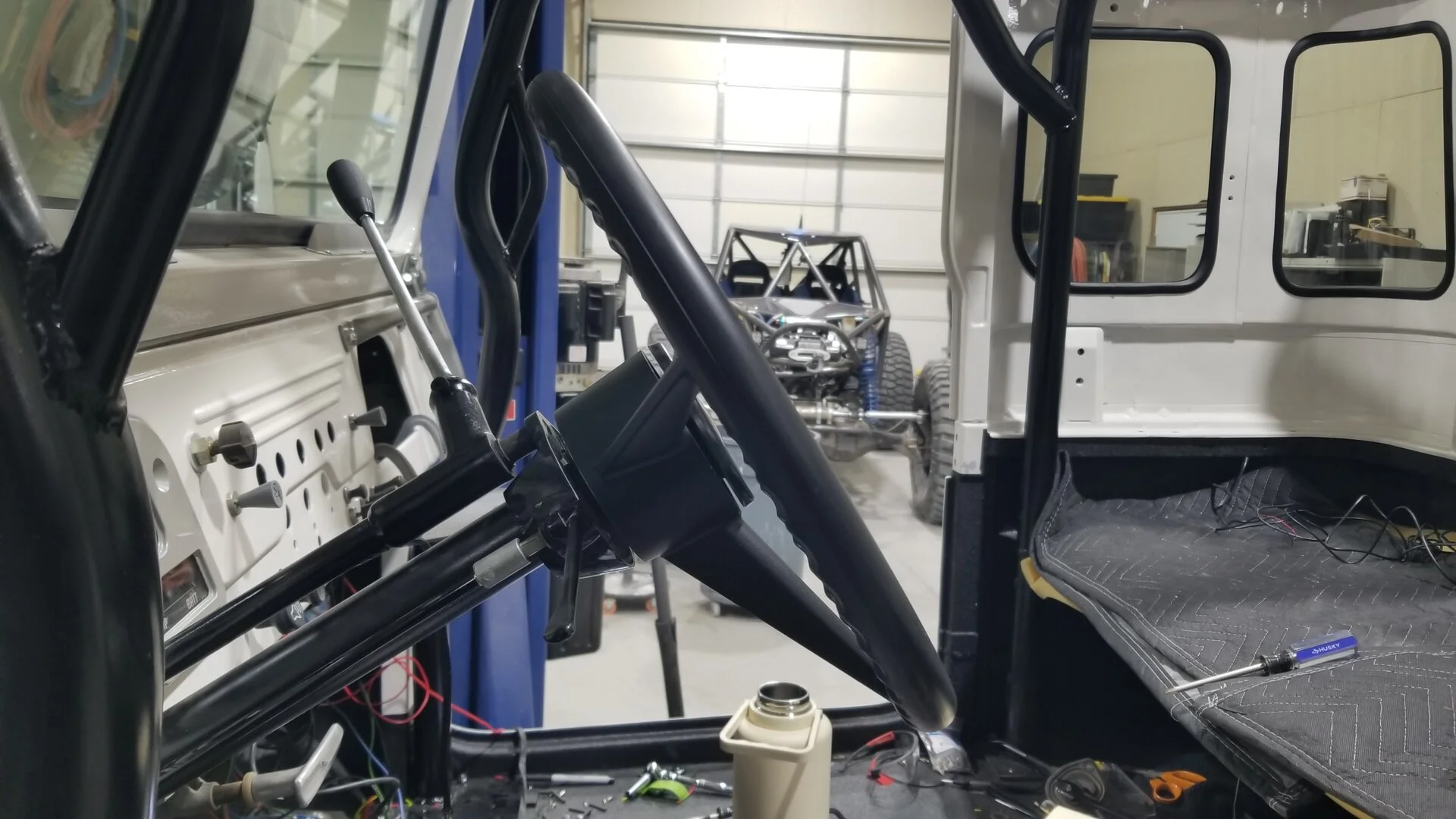

Installed -



[Tank5]

Looks great in your build.



[Skitz]

Since you brought up the steering, I took a closer look at your linkage... that looks like it took a minute to iron out...

How did the rest of the routing go?



[UZJ40]

Along the lines of trying to hide the tech stuff in the build, I've been scratching my head trying to figure out how I can bump shift the transmission without having another button or switch on the dash. I decided to put it on the end of my shifter stalk.

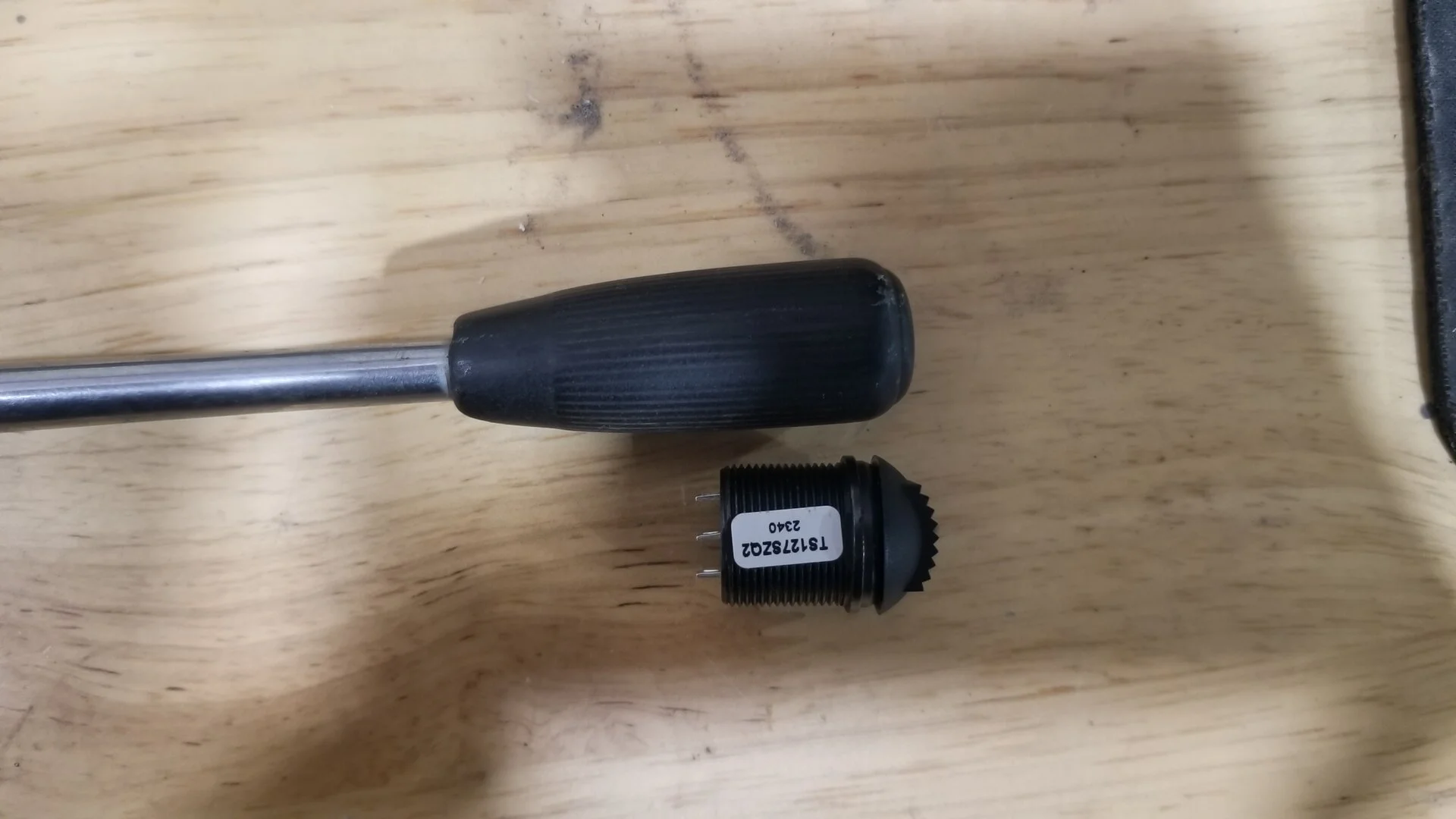

Looking at the new switch compared to factory end -

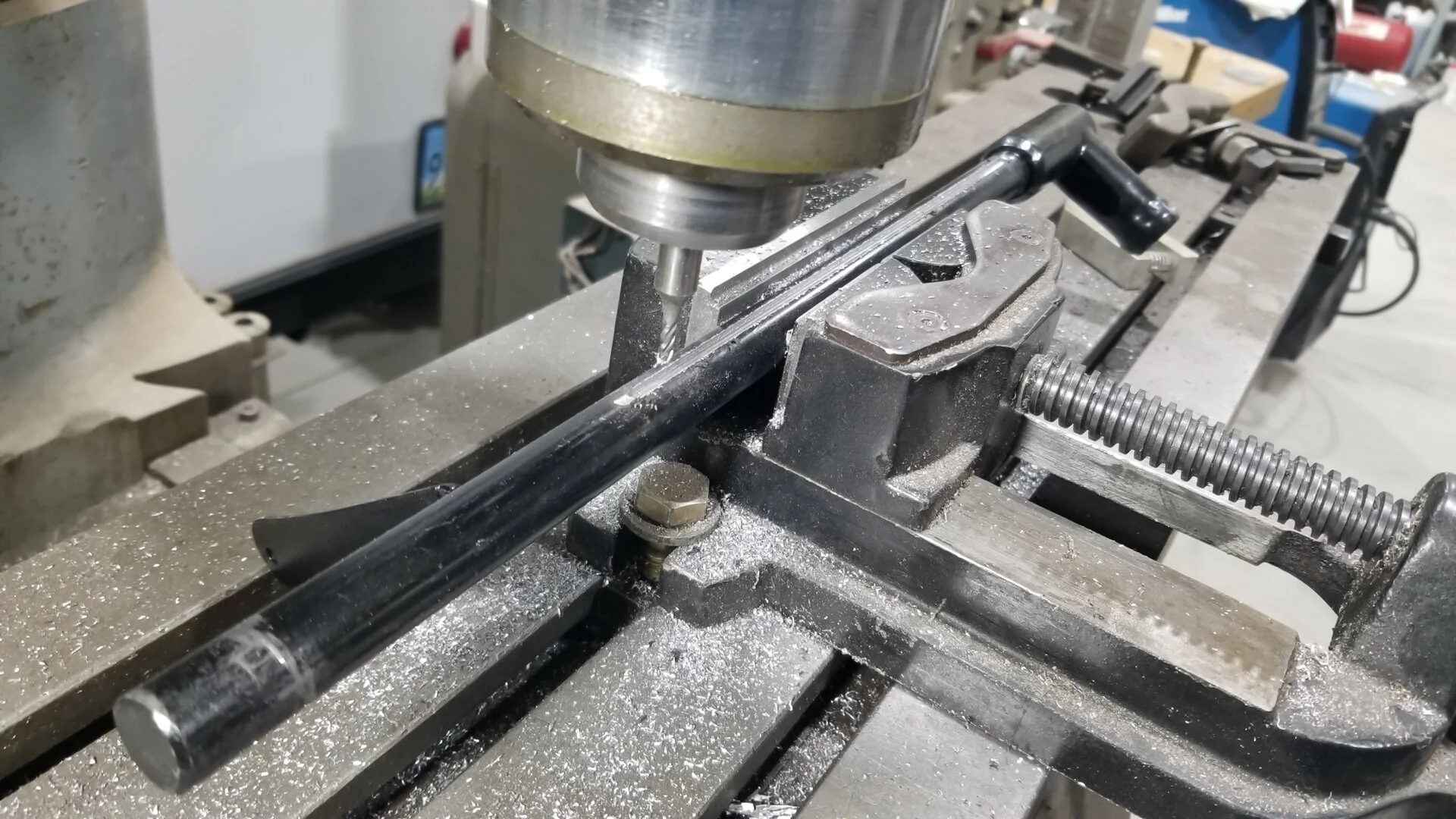

Milling a channel for the wires to hide -

Milling the 3 on the tree linkage to hide the wires as well -

The new knob I had my friend 3D print with the switch in it -

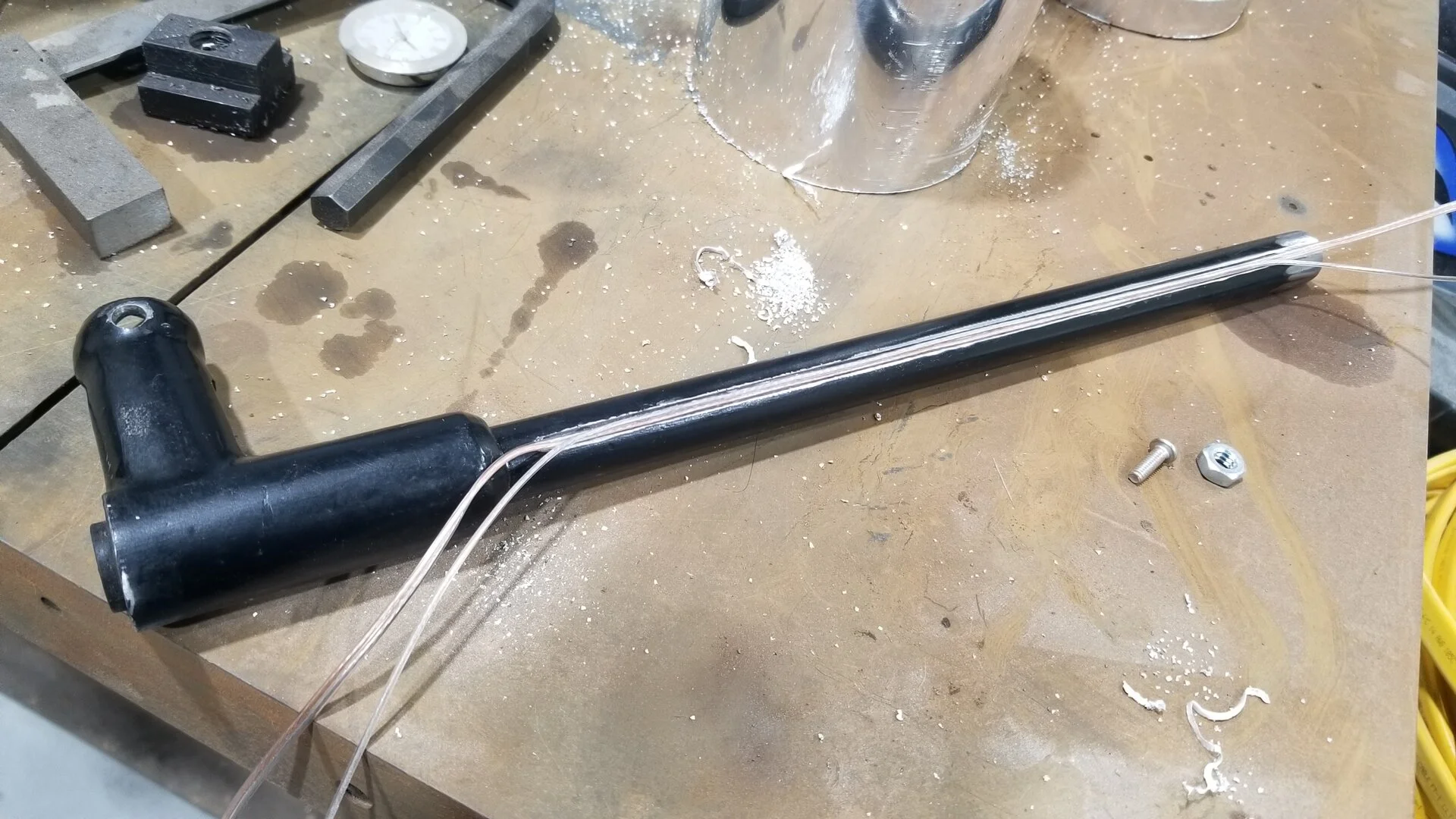

Running the wires -

New OEM bushing going in from @Cruiser Cult

Installed, painted, done -

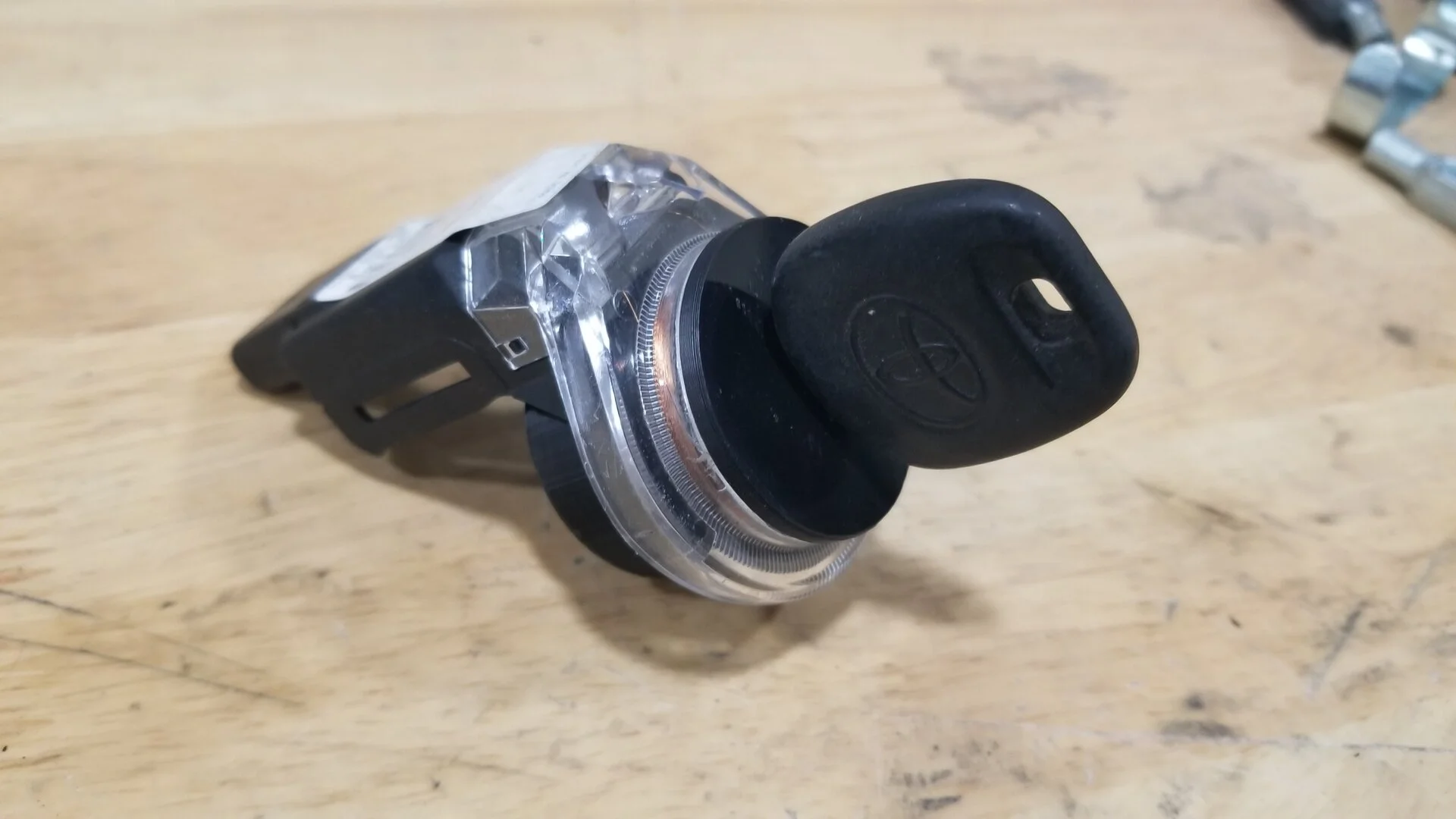

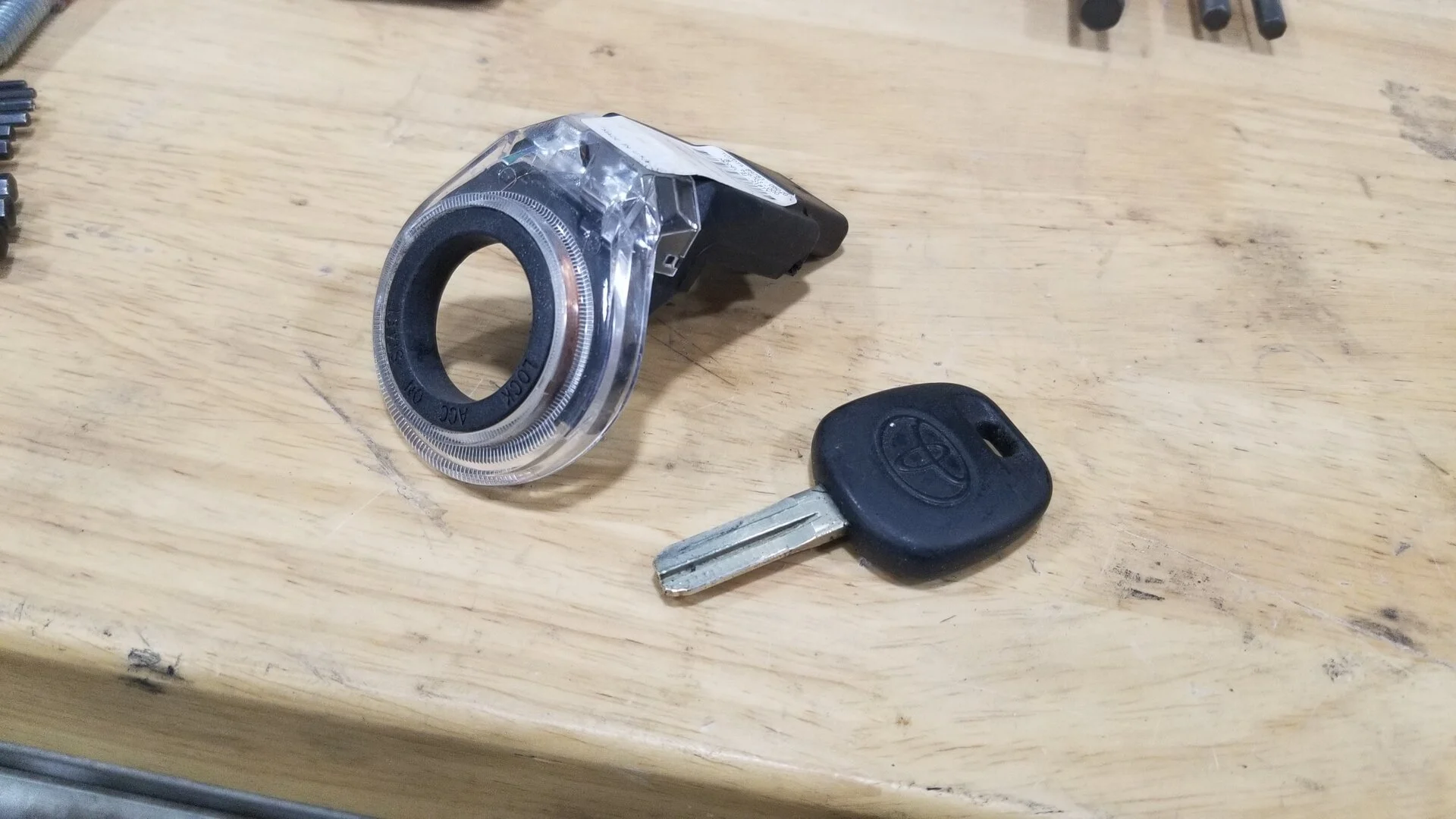

Also had him print up a key holder for the transponder key since the key needs to be present but I'm not using the Sequoia key switch and tumbler -



[Cruiser Cult]

Impeccable work as always!



[ryaneddy16]

cant the ecu be flashed and the immobilizer (transponder) be deleted?



[thatcabledude]

So sick.

…As usual



[UZJ40]

cant the ecu be flashed and the immobilizer (transponder) be deleted?

Thank you for the question.

I see @LexusV8 Engines flashes them. I haven't seen any reviews or talked to anyone that's used them. I do look forward to hearing/seeing some, and I'd like to support them one day.

I also plan on using the key for additional safety when I leave the car for more than a few minutes.

Maybe it would be ideal for a race truck or something, but it's only 4 wires to hook up, it's small/lightweight, and I think it's quite useful.

Since you brought up the steering, I took a closer look at your linkage... that looks like it took a minute to iron out...

How did the rest of the routing go?

View attachment 3503159

The rest was easy... Those are the only joints. Everything else is straight.



[UZJ40]

Impeccable work as always!

Thank you

So sick.

…As usual

Thank you



[UZJ40]

Got the seats covered with some guidance from @EWheeler

After all the frames were sand blasted, I painted them semi gloss black -

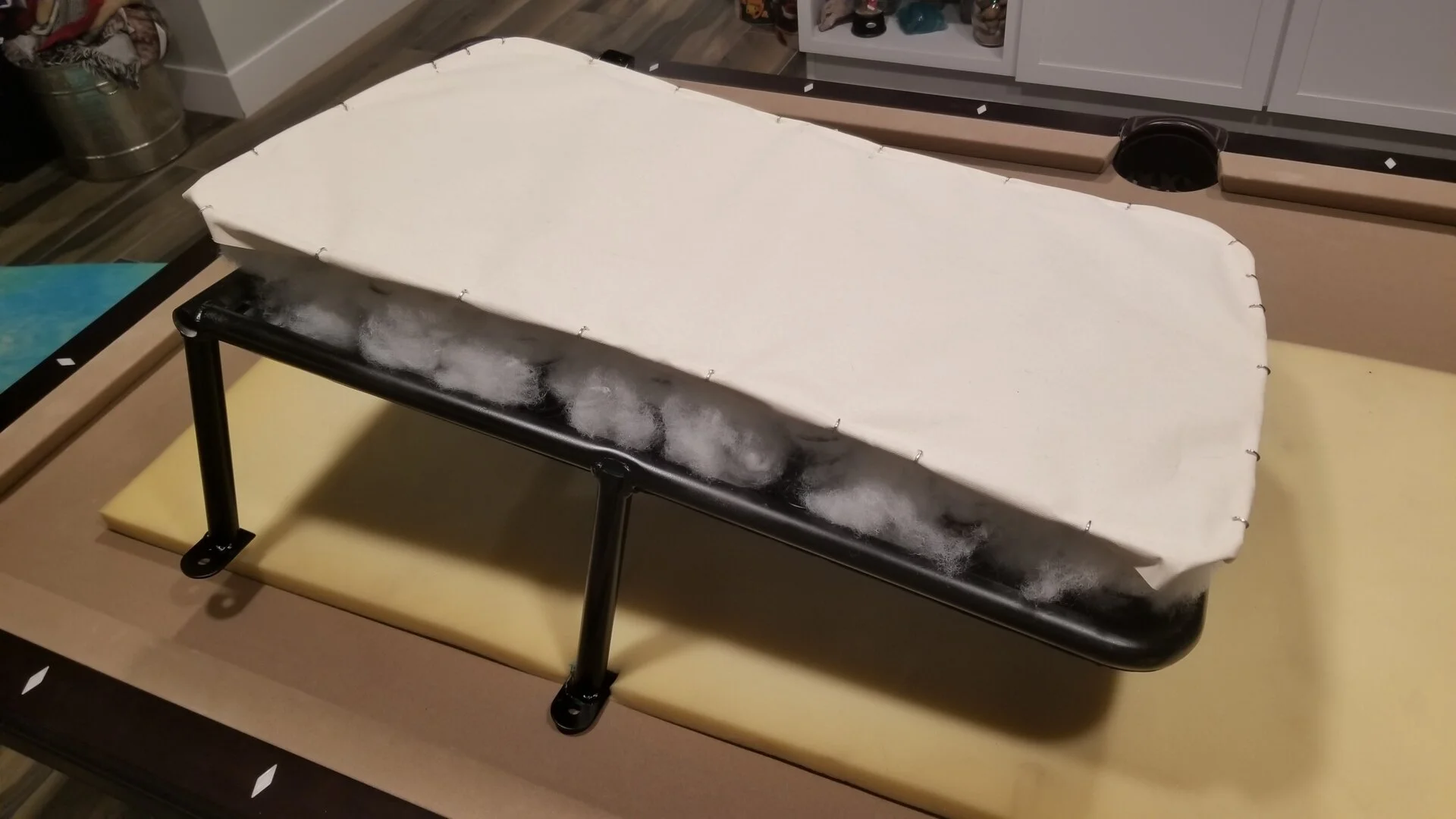

Adding some Poly Fill to reduce the bounce -

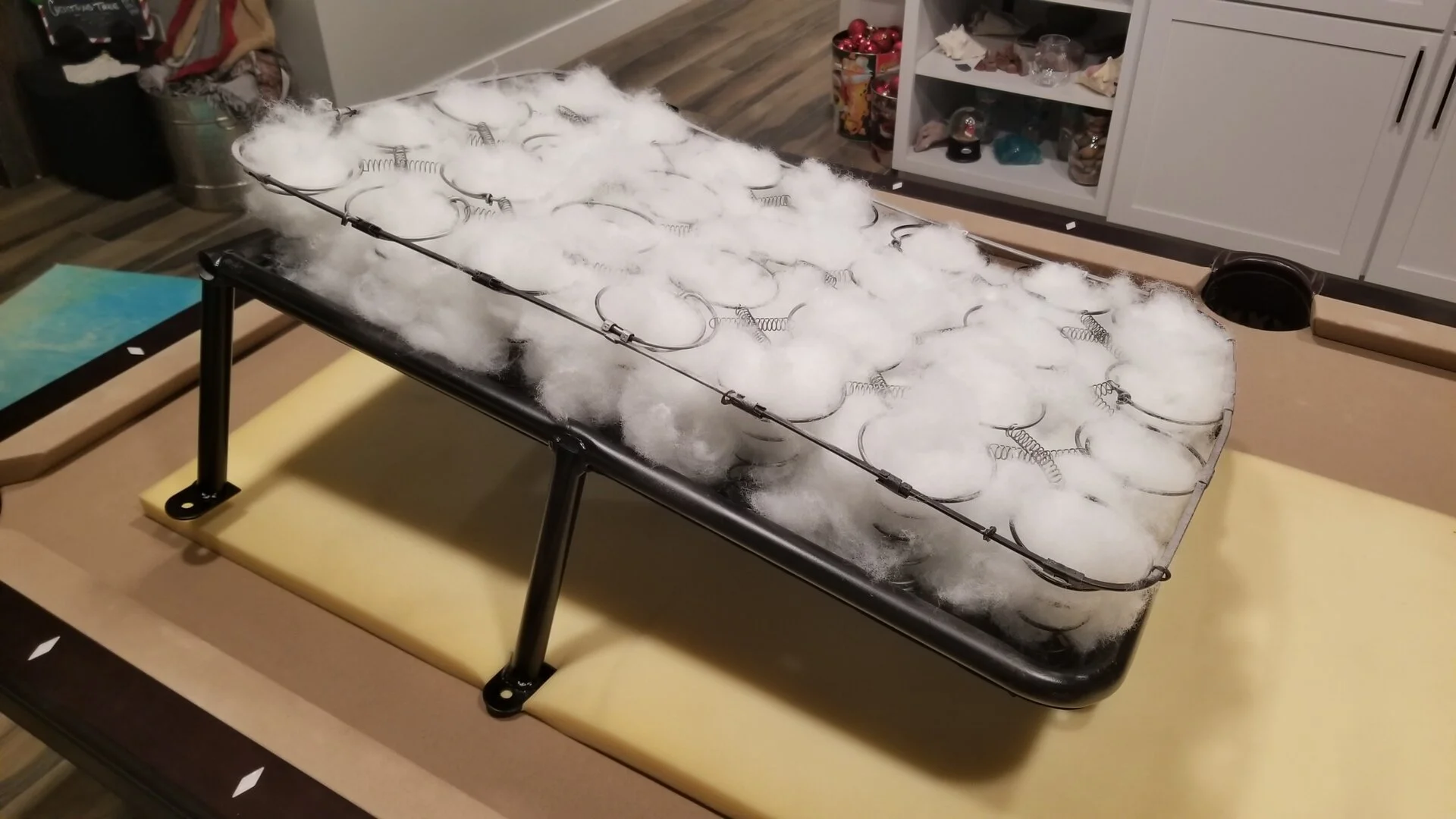

Covering the springs to protect the foam -

2" of foam on top, with a 1/2" foam skirt -

Seat heater pad installed -

Bottoms done -

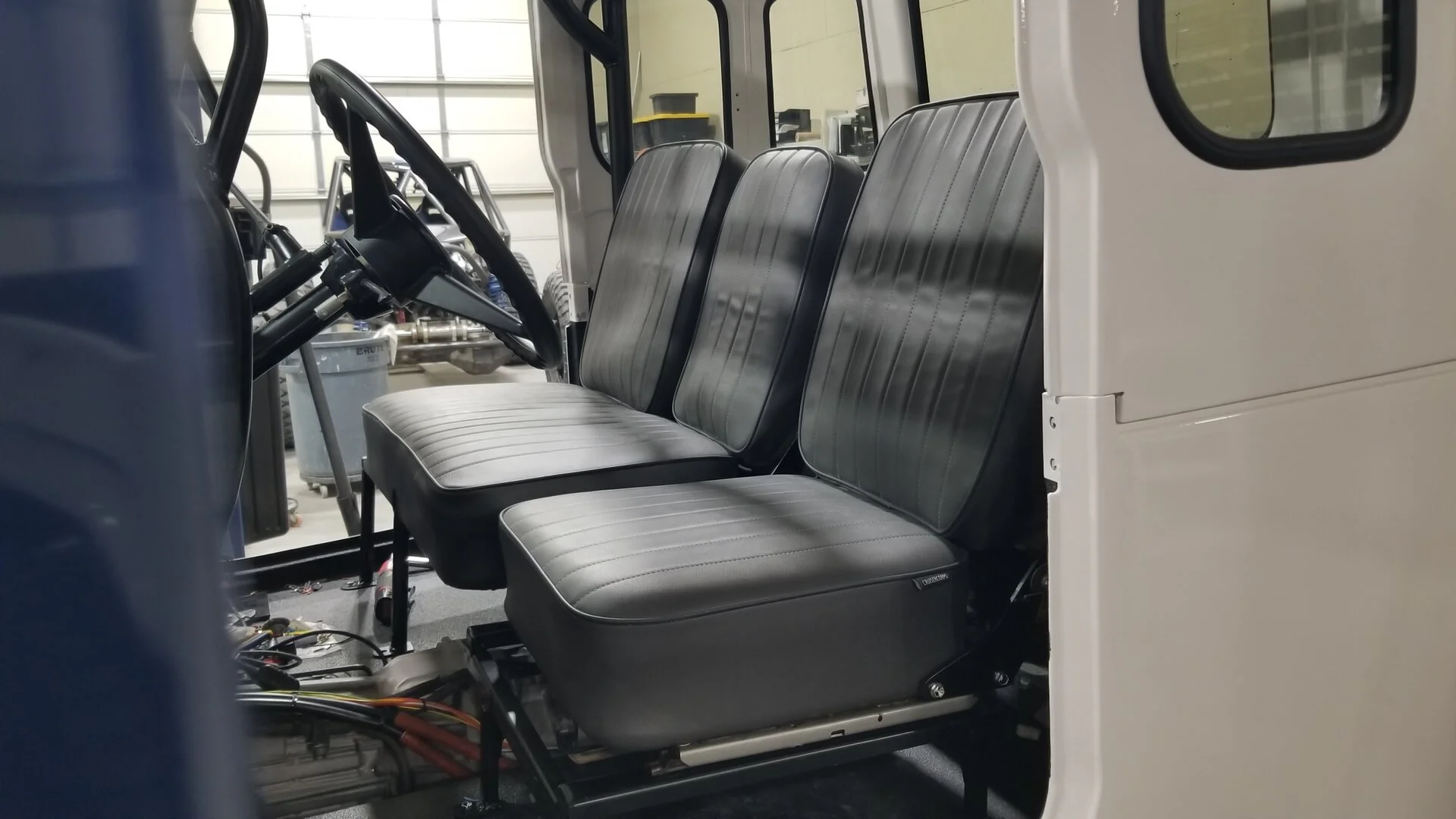

Installed -

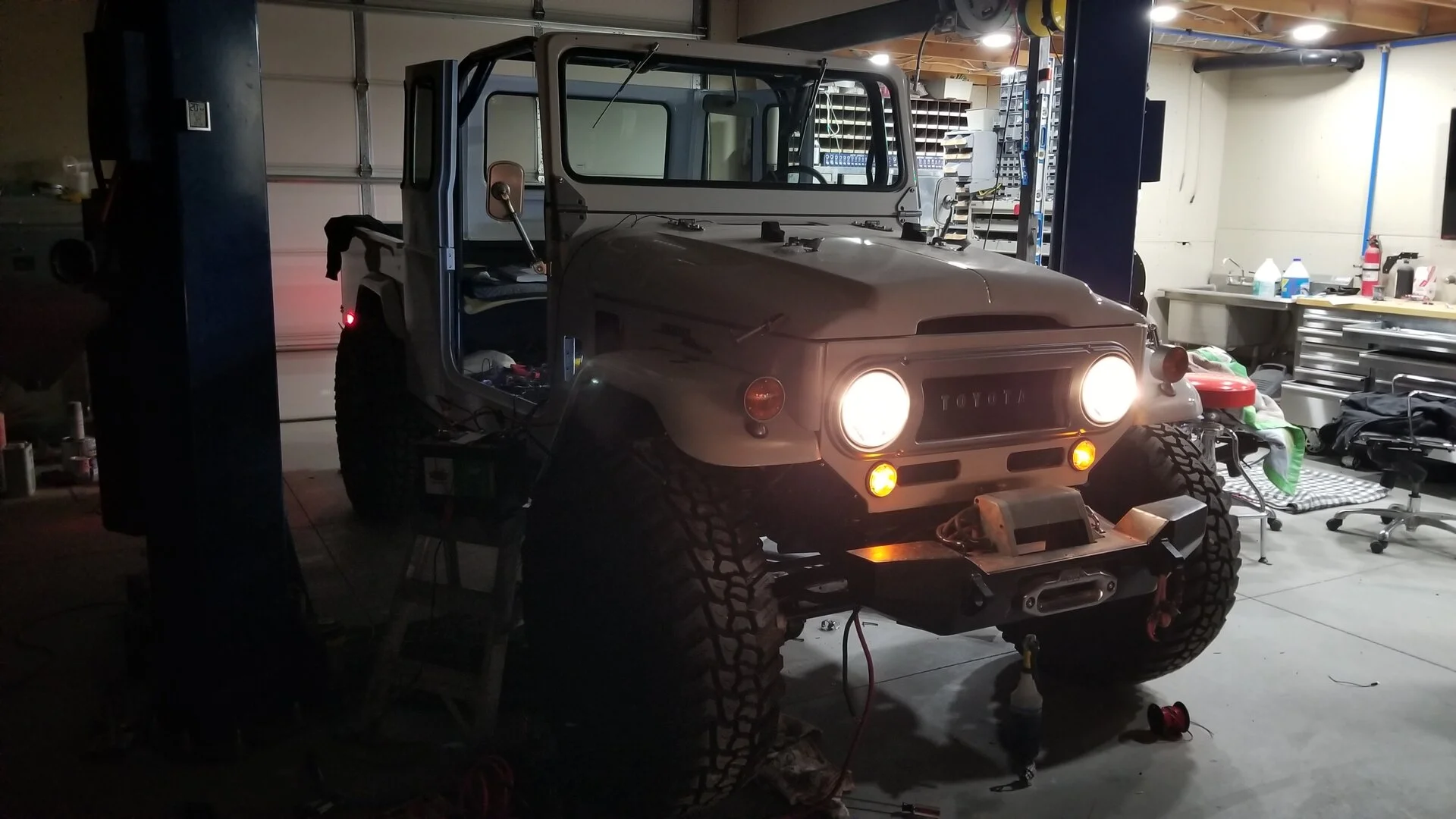

Light wiring also complete! All lights, brake lights, headlights, blinkers work -



[pjohnson]

Seat heaters,



[Zjohnsonua]

cant the ecu be flashed and the immobilizer (transponder) be deleted?

Having the immo is a perk. If you have the system and the associated key, I've no idea why one would delete it.



[UZJ40]

As I get closer to driving this thing, the front axle has been on my mind. Ever since I swapped the orientation, I never felt 100% confident in the measurements and angles. I decided to give it another go.

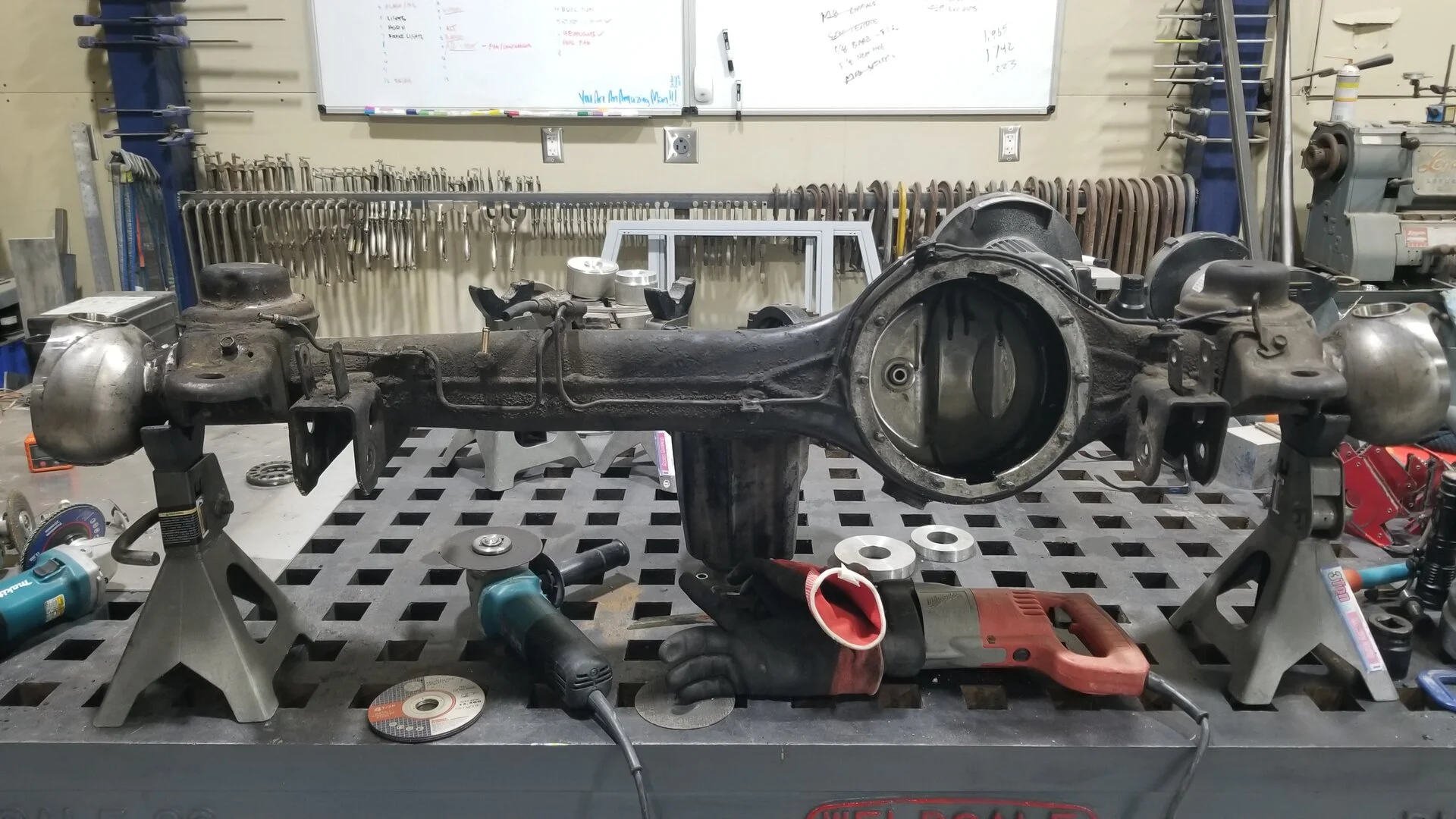

I purchases another stock 80 series axle to make a jig and take measurements from -

I turned 4 spacers to fit in the trunnion bearing races so I could keep the axle in a fixed position as I cut off all of the brackets -

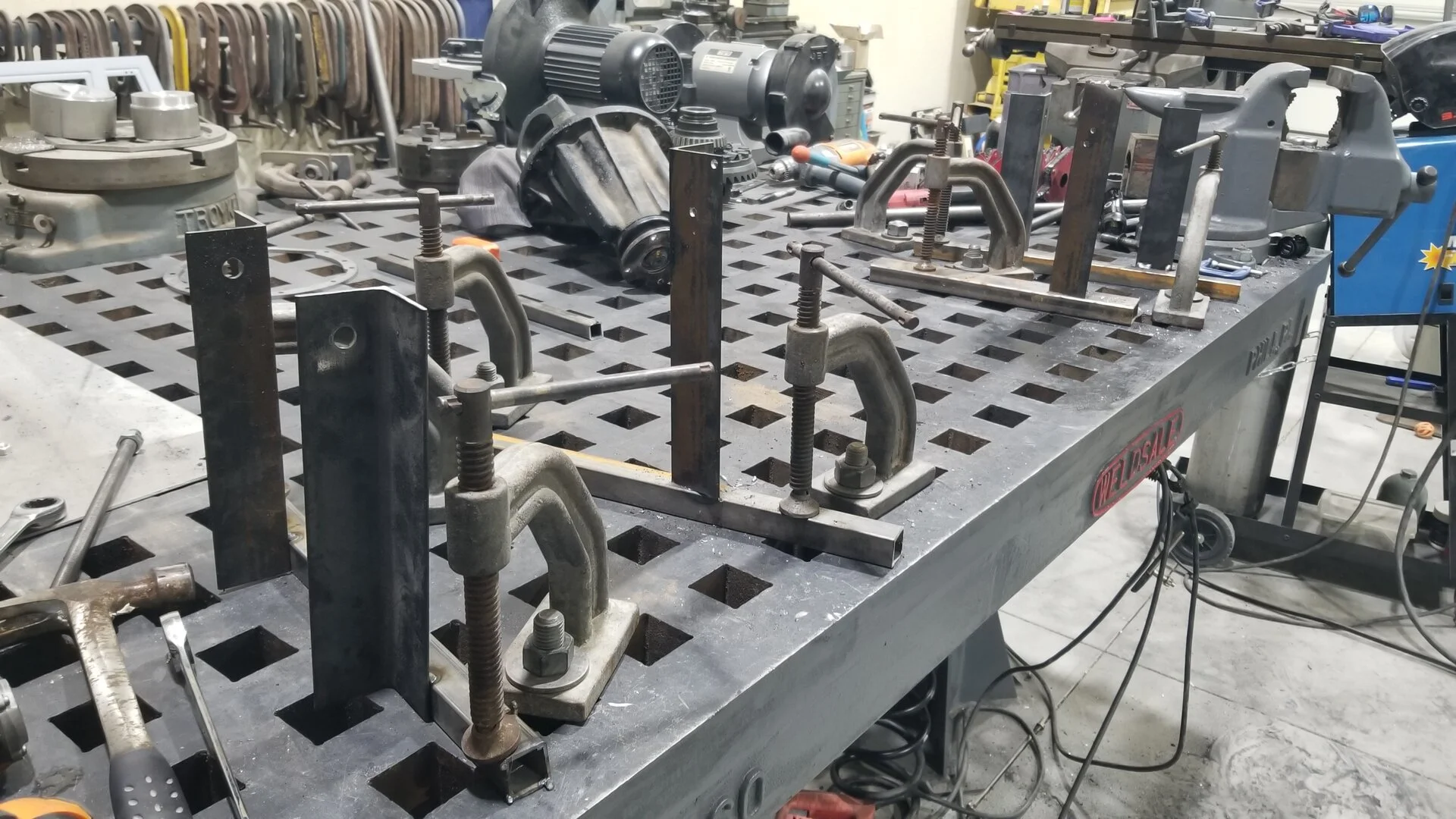

Next I made fixtures for the spring buckets and radius arm mounts before cutting them off -

Now I'm left with this jig to put my other axle housing into -

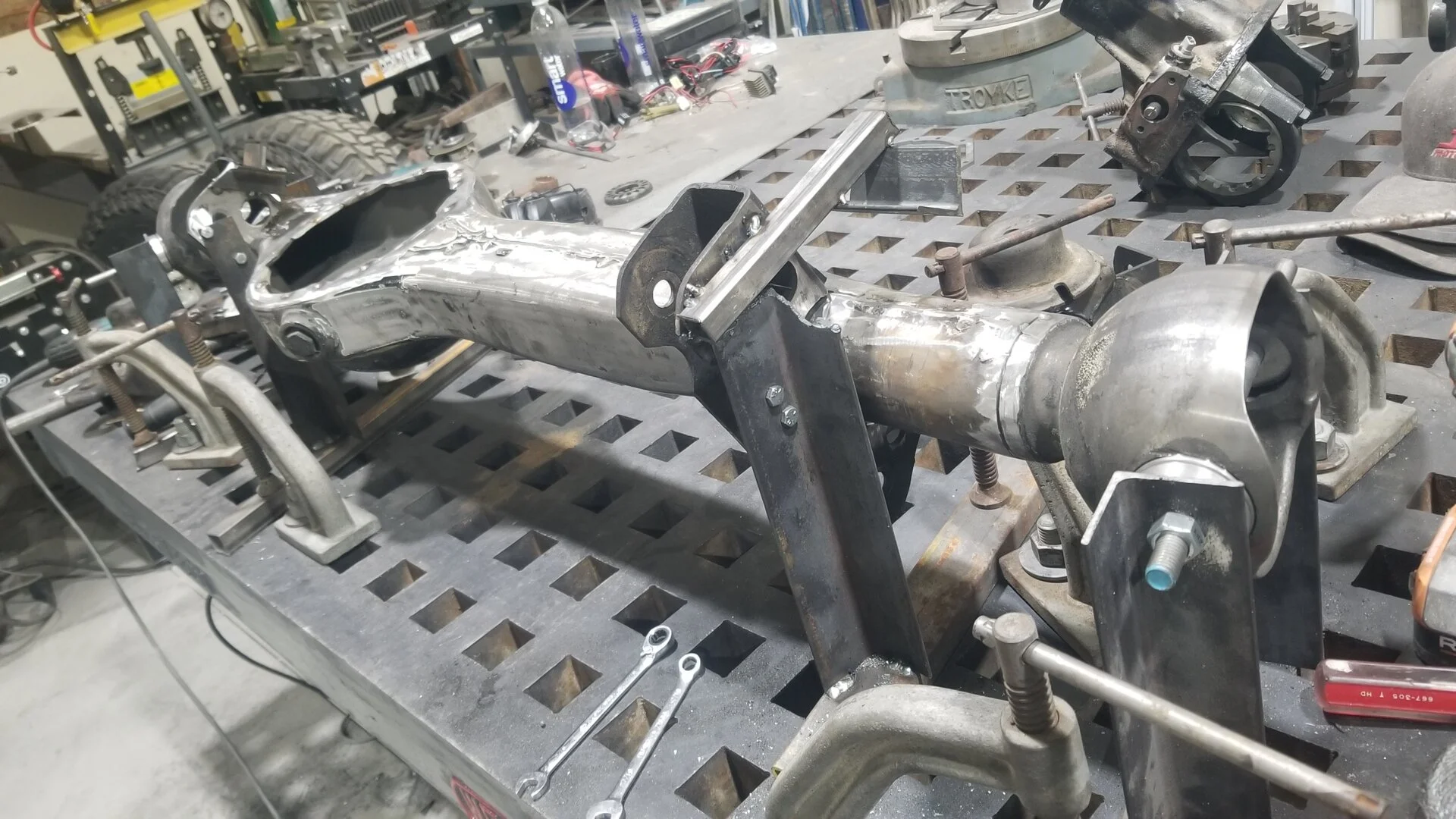

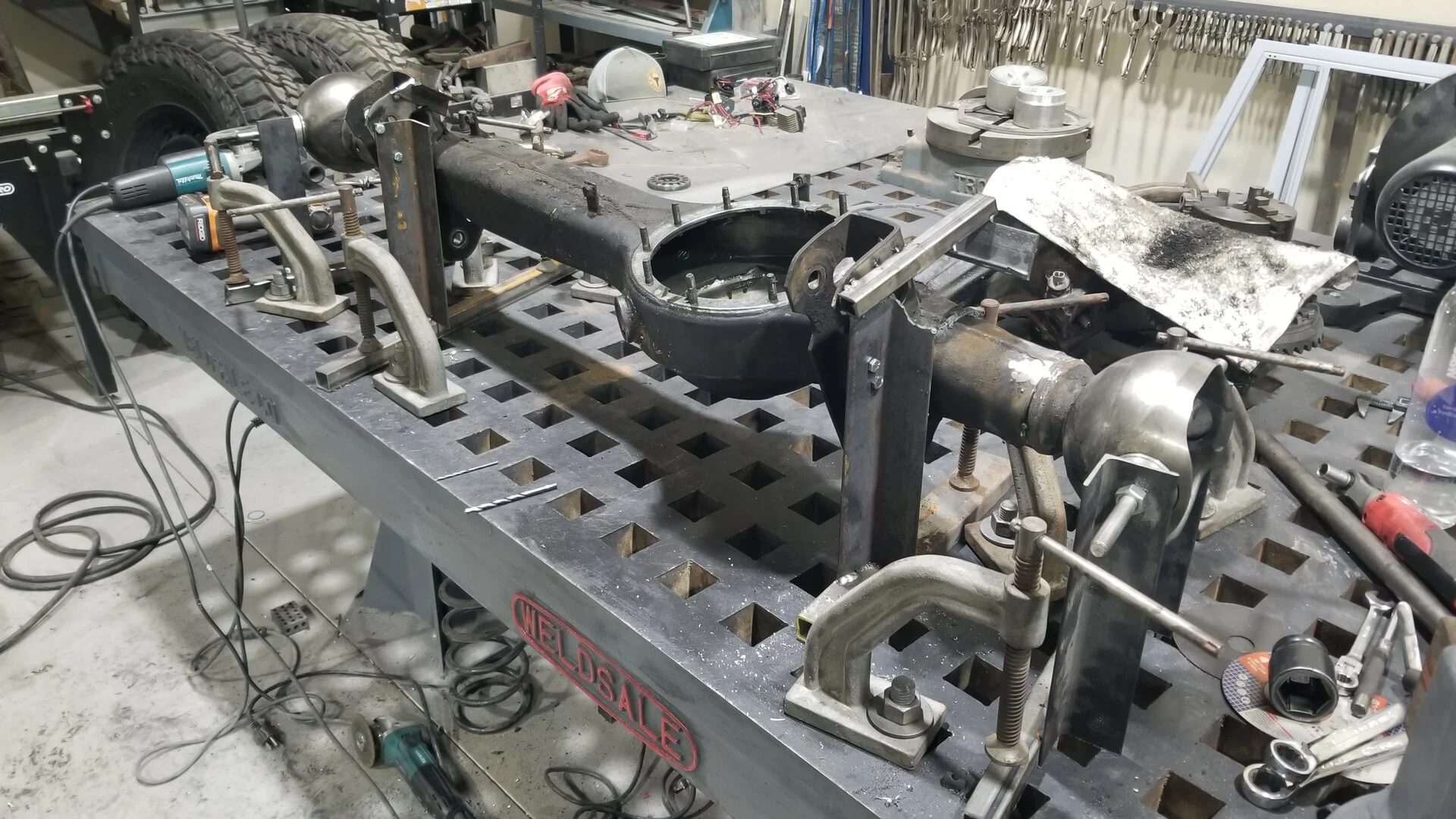

Tacking the brackets into place -



[UZJ40]

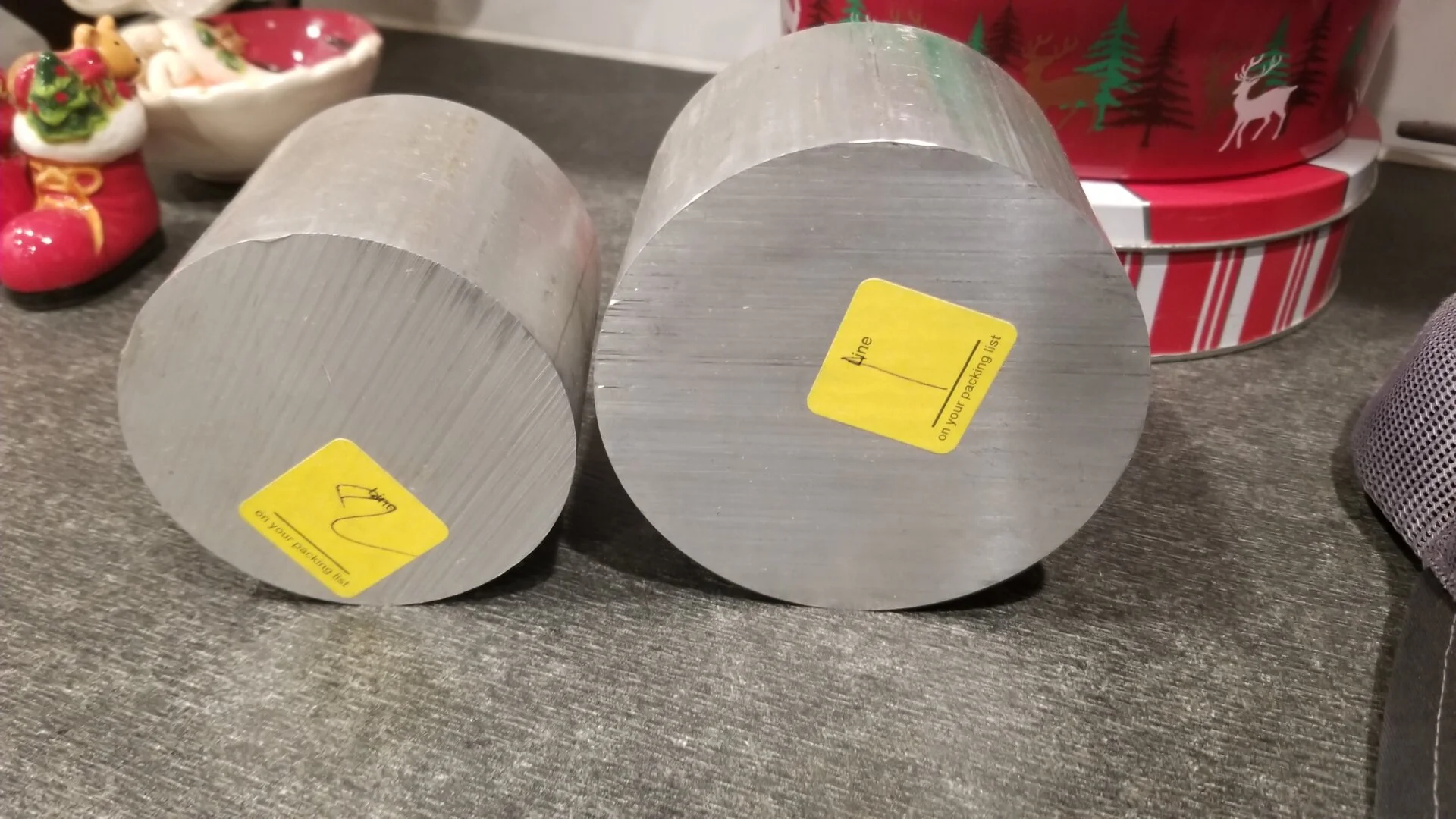

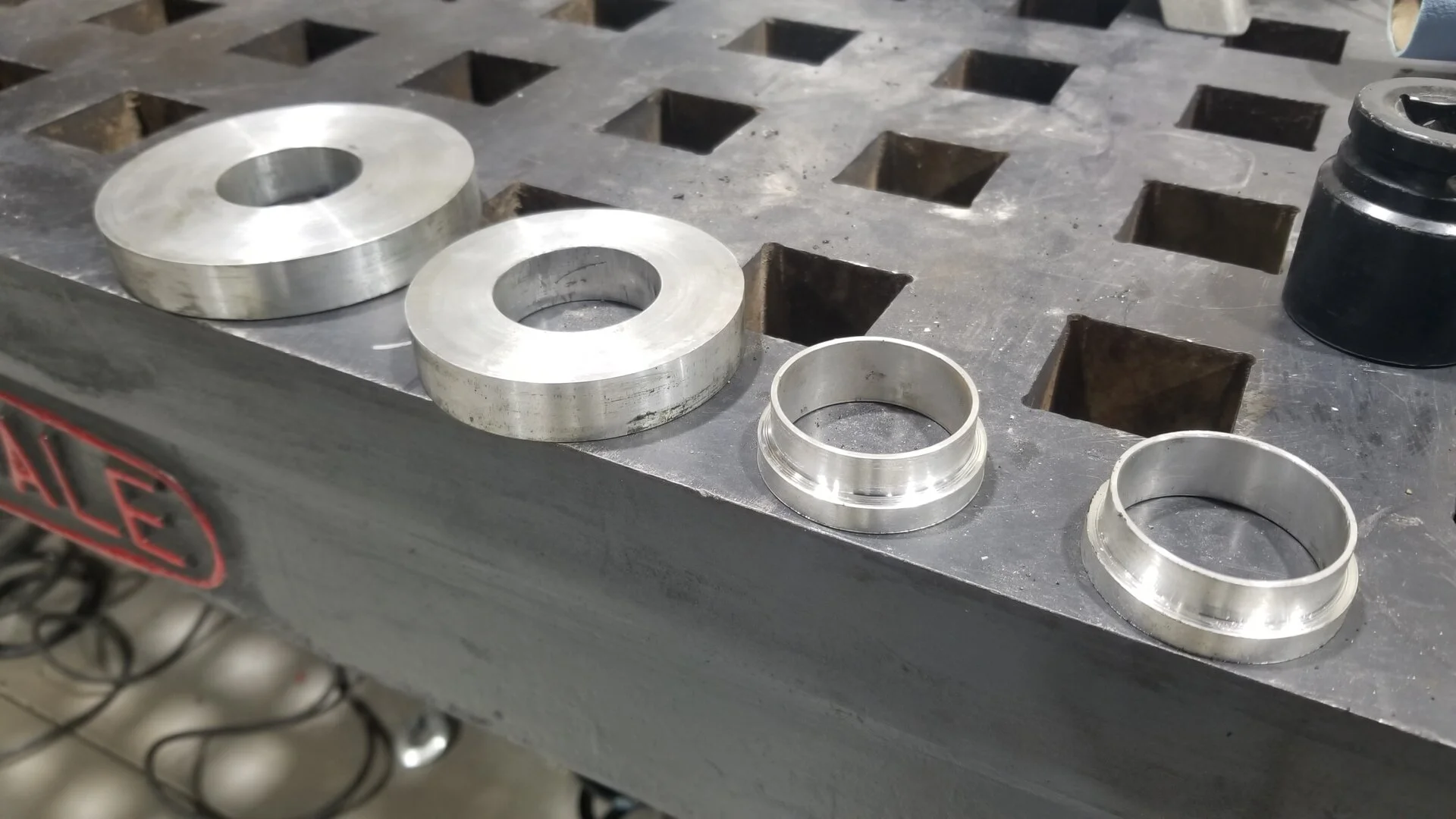

Next, to make sure the differential was properly positioned, I turned some spacers for the axle housing and diff housing out of some raw aluminum -

Putting the spacers in the diff using the alignment bar -

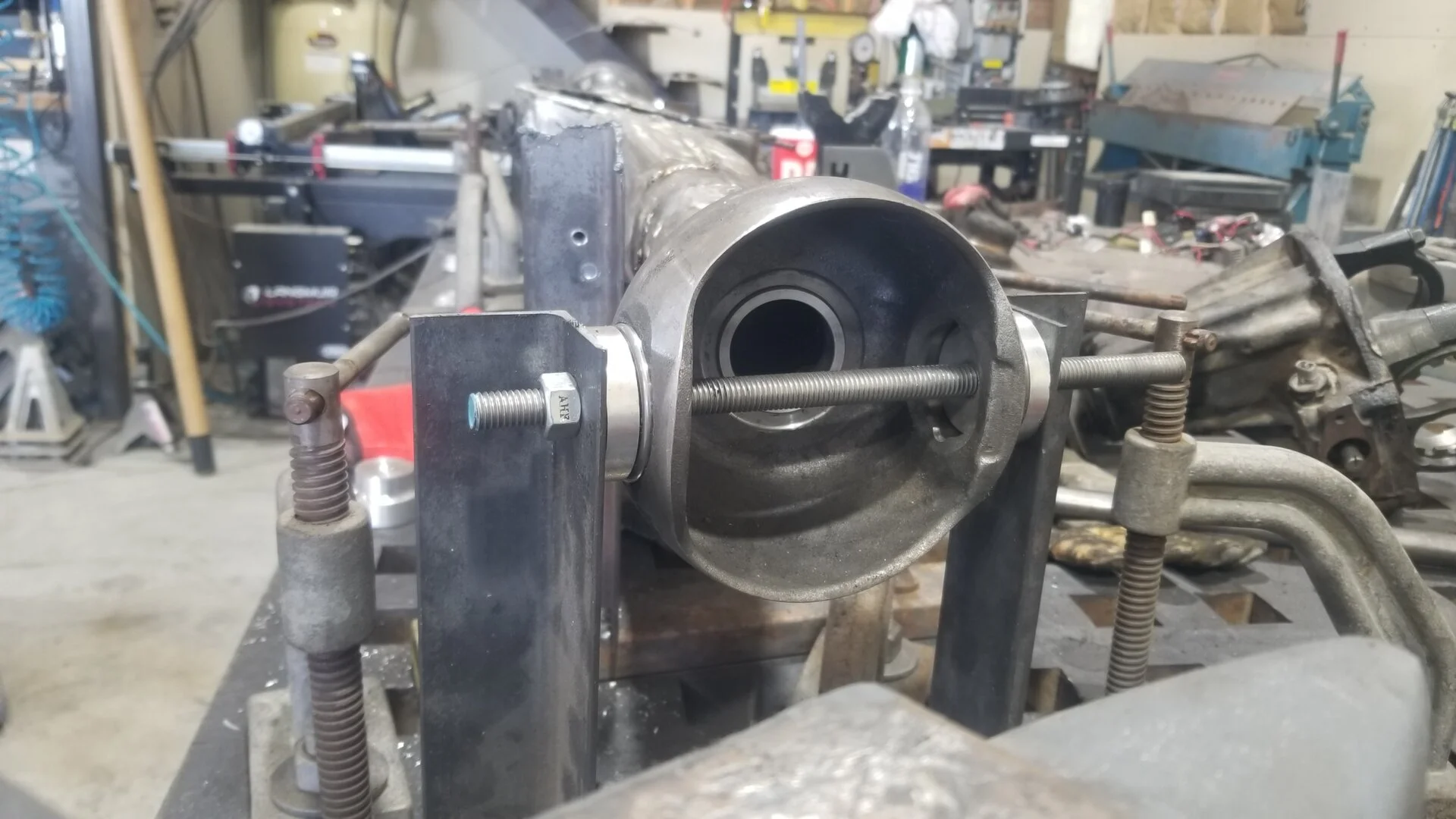

Spacer in the end of the axle housing -

3 of the holes in the new flange tapped so I could attach it to the diff and tack into place with the alignment bar inserted all the way through -

Diff in place and alignment bar in -

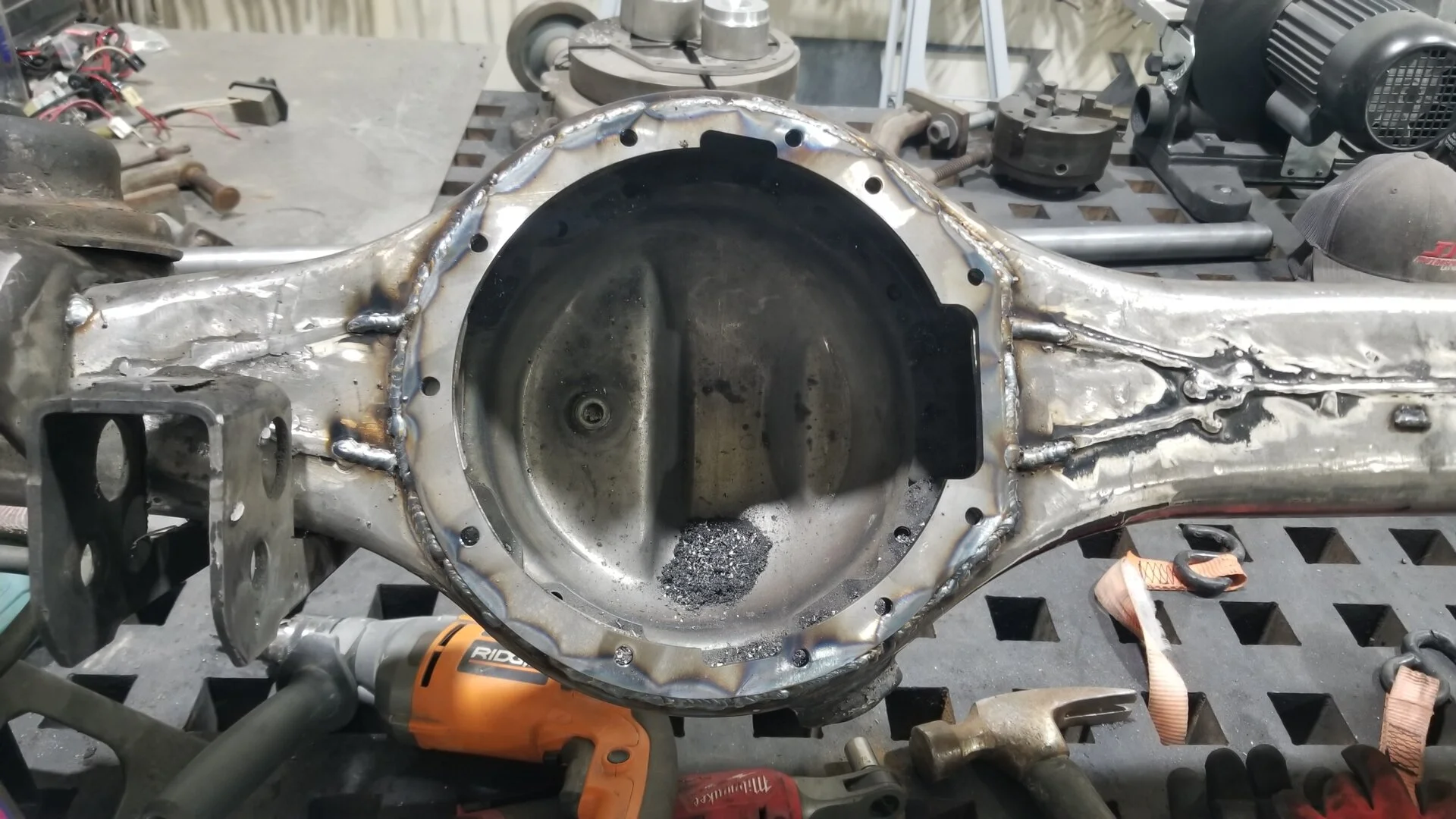

After the flange is tacked into place, diff is removed to tap the remaining holes and fully weld it in -

I cut out a bunch of filler pieces for the spring buckets and radius arm mounts on the plasma table and welded them in -

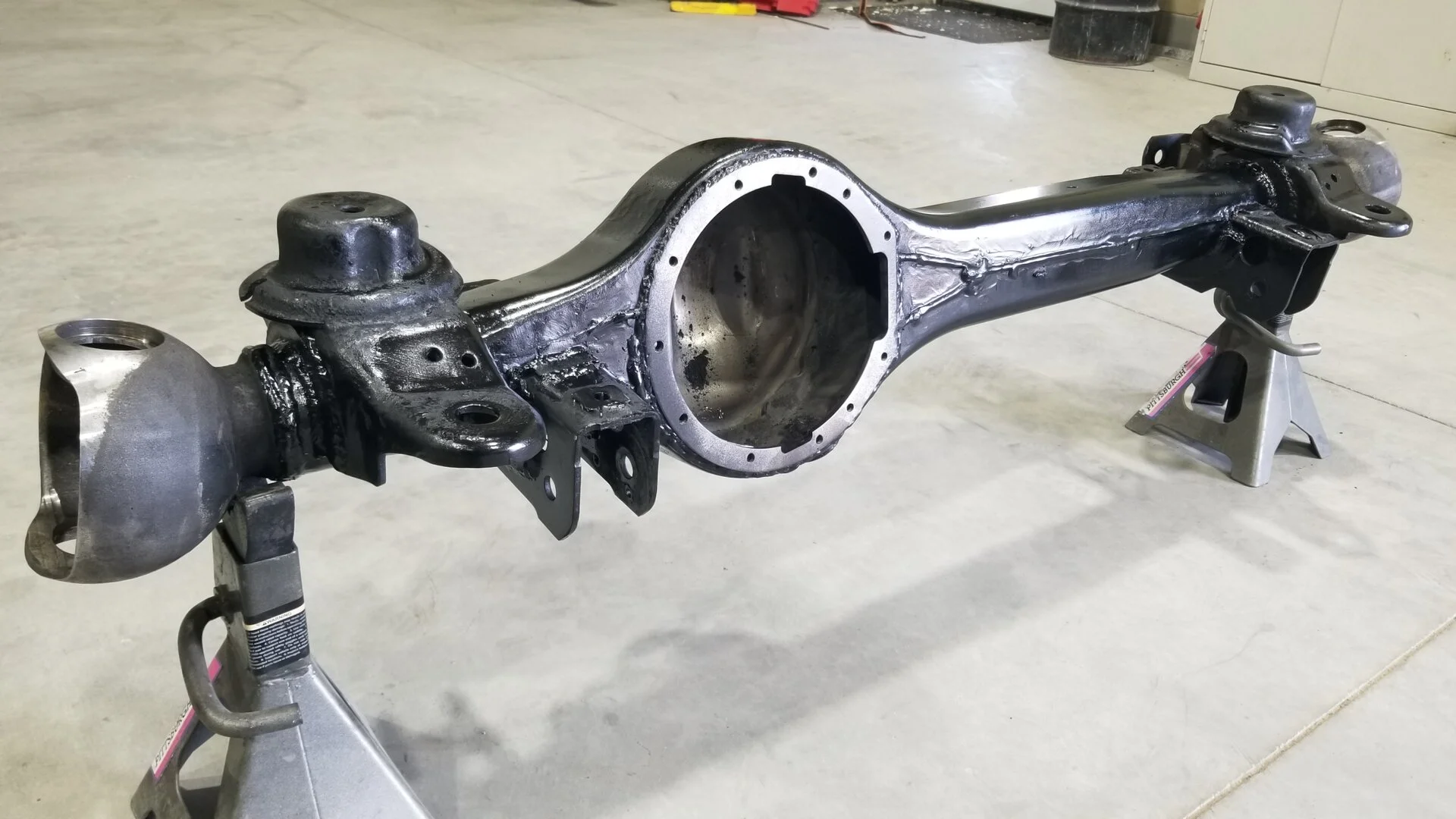

Axle is painted and done! I feel much better about it. All stock measurements and alignments -
