The plan

Discussion in '40- & 55-Series Tech' started by rusty_tlc, Nov 2, 2005.

  1. rusty_tlc

    rusty_tlc Dain Bramaged Member

    Messages:
    13,442
    Media:
    3
    Albums:
    2
    Likes Received:
    948
    Joined:
    Jun 23, 2005
    Location:
    Reno, NV
    I'm getting close to putting my 40 back together. The suspension has been keeping me awake at night. For some reason I didn't put nearly as much research into this part of things as I did others. At any rate I've been searching and reading and think I have a plan. But I would like a sanity check.

    The problem is after the SOA my rig is way to high.

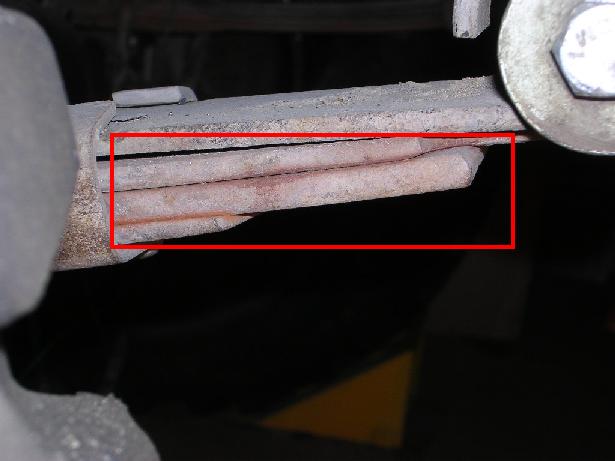

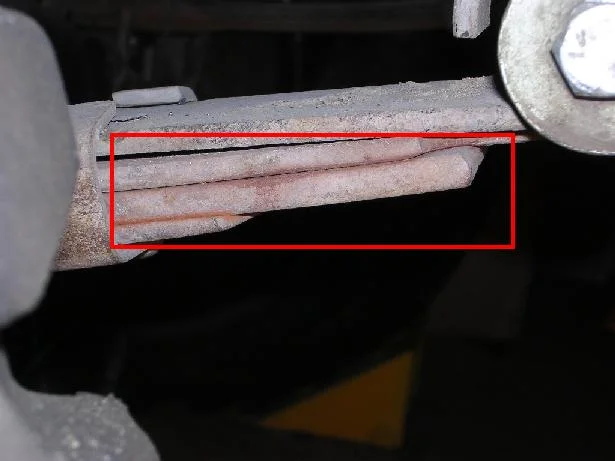

    The first problem I identified is the addition of helper springs in the leafs.

  2. rusty_tlc

    rusty_tlc Dain Bramaged Member

    Messages:
    13,442
    Media:
    3
    Albums:
    2
    Likes Received:
    948
    Joined:
    Jun 23, 2005
    Location:
    Reno, NV

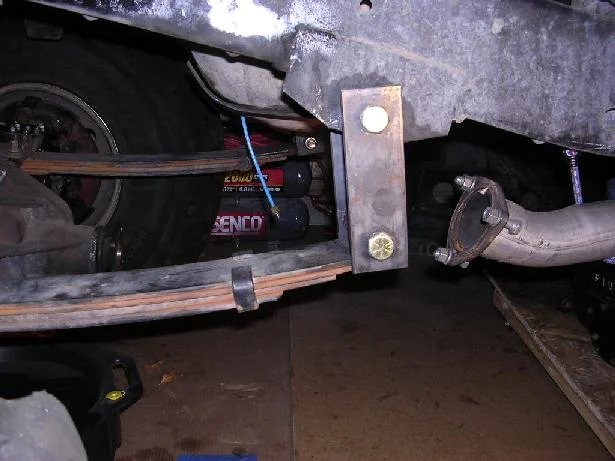

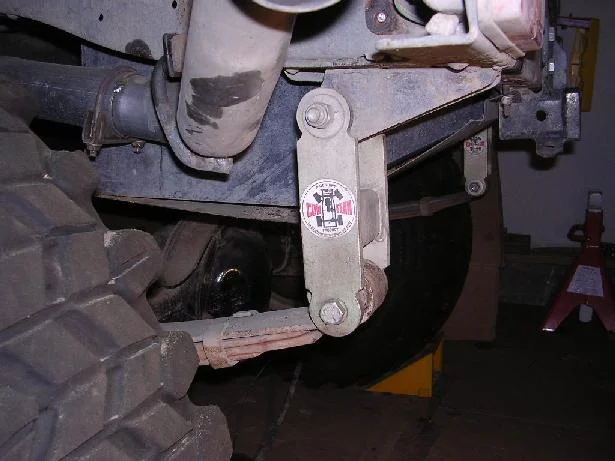

    The next issue is the location of the spring hangers.
    frnt_shkl2.jpg rear_shkl.jpg

  3. rusty_tlc

    rusty_tlc Dain Bramaged Member

    Messages:
    13,442
    Media:
    3
    Albums:
    2
    Likes Received:
    948
    Joined:
    Jun 23, 2005
    Location:
    Reno, NV

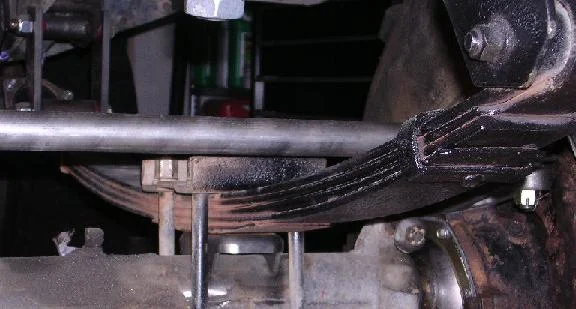

    Here is my attempt to show the arch of the springs. This without the trans & t-case installed. There will also be a HFS bumper and 8274 winch.
    front_sprng_arch.jpg rear_sprng_arch.jpg

    Last edited: Nov 2, 2005
  4. rusty_tlc

    rusty_tlc Dain Bramaged Member

    Messages:
    13,442
    Media:
    3
    Albums:
    2
    Likes Received:
    948
    Joined:
    Jun 23, 2005
    Location:
    Reno, NV

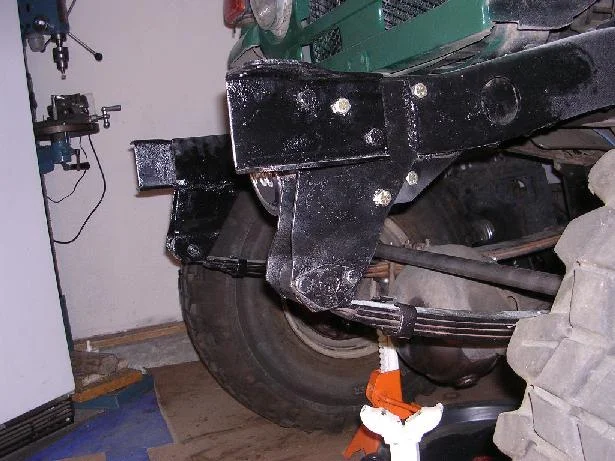

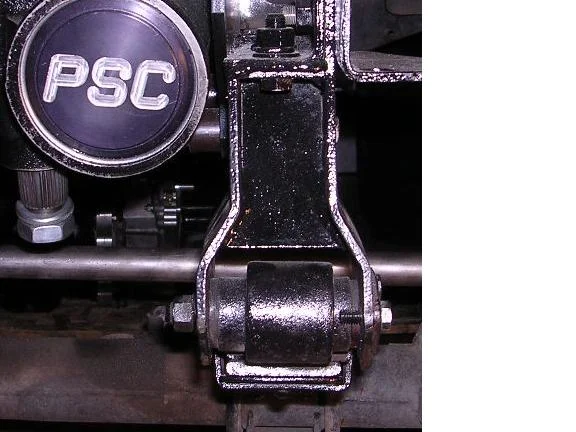

    I would like to shorten the front fixed spring hanger but there is a celrance issue with the steering gear box.
    frnt_shkl.jpg PS_shkl_clear.jpg

  5. rusty_tlc

    rusty_tlc Dain Bramaged Member

    Messages:
    13,442
    Media:
    3
    Albums:
    2
    Likes Received:
    948
    Joined:
    Jun 23, 2005
    Location:
    Reno, NV
    So my plan is to
    1) remove the helper springs
    2) move the shackle side spring hangers in
    3) remove additional leafs as required

    I really don't know what to do with the front fixed spring hanger situation other than live with it.


    Does this sound like it will work? I really would like a critique, good or bad.

  6. bustanutley

    bustanutley

    Messages:
    2,285
    Likes Received:
    4
    Joined:
    Apr 10, 2004
    Location:
    denver
    umm well, you can cut that sh#t off and put some of these on your front

    [​IMG]

    from proffits

    your caster is going to be all jacked anyway if you move your rear mounts

    do it once do it right do it low

  7. AlaskanWheeler

    AlaskanWheeler SILVER Star

    Messages:
    1,158
    Likes Received:
    359
    Joined:
    Jul 8, 2004
    I may be mistaken but I think that SR kit is suppossed to give you a couple inches of lift alone. Bustanutley got the right idea.

  8. MandMAutomotive

    MandMAutomotive

    Messages:
    69
    Likes Received:
    0
    Joined:
    Nov 1, 2005
  9. rusty_tlc

    rusty_tlc Dain Bramaged Member

    Messages:
    13,442
    Media:
    3
    Albums:
    2
    Likes Received:
    948
    Joined:
    Jun 23, 2005
    Location:
    Reno, NV
    Those are the exact hangers I'd like to use. I just don't see enough clerance with the PS gear box.

  10. V-DAWG

    V-DAWG

    Messages:
    189
    Likes Received:
    0
    Joined:
    Feb 3, 2005
    Location:
    SLC, UT
    Those are long shackles. Get some shorter ones.

    How much "too tall" is it?

    I would put the front of the front spring on the frame as bustanutley showed, then put the top of the reverse shackle mount through the frame- eliminate the drop from the frame. For the rear, remove the helper spring, and shorten the shackle.

    Good luck!

  11. V-DAWG

    V-DAWG

    Messages:
    189
    Likes Received:
    0
    Joined:
    Feb 3, 2005
    Location:
    SLC, UT
    Is there any way you could move the box back a little bit, or maybe mount it more level with the frame?

  12. Mace

    Mace rock scientist.. Staff Member s-Moderator

    Messages:
    21,654
    Likes Received:
    2,093
    Joined:
    Feb 17, 2002
    Location:
    Las Vegas
    Other leaves were removed to put the Helper spring in.

    stock cruiser is a 6 pack (sometimes 5 sometimes 7) I would be tempted to get a set of stock springs...

    Also.. the military wrap goes on the frame end, not the shackle end..

    and lose the funny Shackle reversal..

  13. bustanutley

    bustanutley

    Messages:
    2,285
    Likes Received:
    4
    Joined:
    Apr 10, 2004
    Location:
    denver
    I know it is a lot of work but I would move your box anyway, level with the frame, this will make for much better steering geometry. here are some pics for reference on what my junk looks like.

    [​IMG]
    [​IMG]

    you can see that my drag link and tie rod are completely parallel with each other (no bump steer. Also my box is level with the frame out of harms way.

    Oh and I know that I got a freaking ps leak. Stupid thing just started leaking the other day somewhere around my cooler, need to take a gander.

    Last edited: Nov 3, 2005
  14. rusty_tlc

    rusty_tlc Dain Bramaged Member

    Messages:
    13,442
    Media:
    3
    Albums:
    2
    Likes Received:
    948
    Joined:
    Jun 23, 2005
    Location:
    Reno, NV
    I have the original springs that were removed, just need to figure out what goes where. Any help on that?

  15. rusty_tlc

    rusty_tlc Dain Bramaged Member

    Messages:
    13,442
    Media:
    3
    Albums:
    2
    Likes Received:
    948
    Joined:
    Jun 23, 2005
    Location:
    Reno, NV
    :doh: I just installed the steering box. What you say makes sense so I'll look at what it would take to move it tonight.

  16. too tall

    too tall

    Messages:
    1,372
    Likes Received:
    149
    Joined:
    Jan 9, 2004
    I'd flip the front hangers from side to side and sink the shackle end into the frame, doing it this way puts you only about .5" above stock with the steering correction kit you have .I've had one of mine like that for years it works great.I have never had any issues with the so-called rockfinders but I run 35's and flip the front springs as well .The original springs should have two different arcs , the one with less arc goes in the front .

  17. rusty_tlc

    rusty_tlc Dain Bramaged Member

    Messages:
    13,442
    Media:
    3
    Albums:
    2
    Likes Received:
    948
    Joined:
    Jun 23, 2005
    Location:
    Reno, NV
    If you look at the pictures you can see my draglink, it is above the springs. That is Hysteer.
    SOA can be done without converting to Hysteer but you wind up with the tie rod running at an extreme angle which causes bump steer. In addition you leaving your draglink below the axle exposed to rocks.
    You don't need PS with a SOA, but SOA usually implies larger tires which definatly make PS a requirment, unless you have Popeye arms like Flexing 40. He has a SOA and runs 36" tires with no PS, welded rear and lockrite front. Don't piss him off. :D

  18. camcruiser13

    camcruiser13

    Messages:
    6,978
    Media:
    3
    Albums:
    1
    Likes Received:
    29
    Joined:
    Jun 22, 2004
    Location:
    sittin on the couch in UT
    click on my link below to see some pics of what i have done hehe

  19. rusty_tlc

    rusty_tlc Dain Bramaged Member

    Messages:
    13,442
    Media:
    3
    Albums:
    2
    Likes Received:
    948
    Joined:
    Jun 23, 2005
    Location:
    Reno, NV
    Nice work!
    It looks like you used the BTB Products adaptor plate, is that correct?

  20. rusty_tlc

    rusty_tlc Dain Bramaged Member

    Messages:
    13,442
    Media:
    3
    Albums:
    2
    Likes Received:
    948
    Joined:
    Jun 23, 2005
    Location:
    Reno, NV
    That was a mistake.
    I called Proffitts Cruisers, they have kit that sells for $40, includes the hangers and through frame sleeves.

    They also have a way nicer Sag PS mounting bracket for $65.

    The problem? Explaining to :princess: why I'm grinding off the PS plate I just bought and replacing it. :doh:


    This will require much thought. I'm still open to suggestions.
