My turbo Lx450

[Realst8]

The tank side is already has a check valve unless you are like me and removed it as it the problem with the canister. Also, the canister is already vented out the bottom coming from the VSV side.

You're right there is a vent out of the bottom, the boost pressure would never get past the canister.



[Realst8]

Im running a WAIC setup, works really well and with a 840 CFM fan on the heat exchanger it cools even when crawling around in the woods.

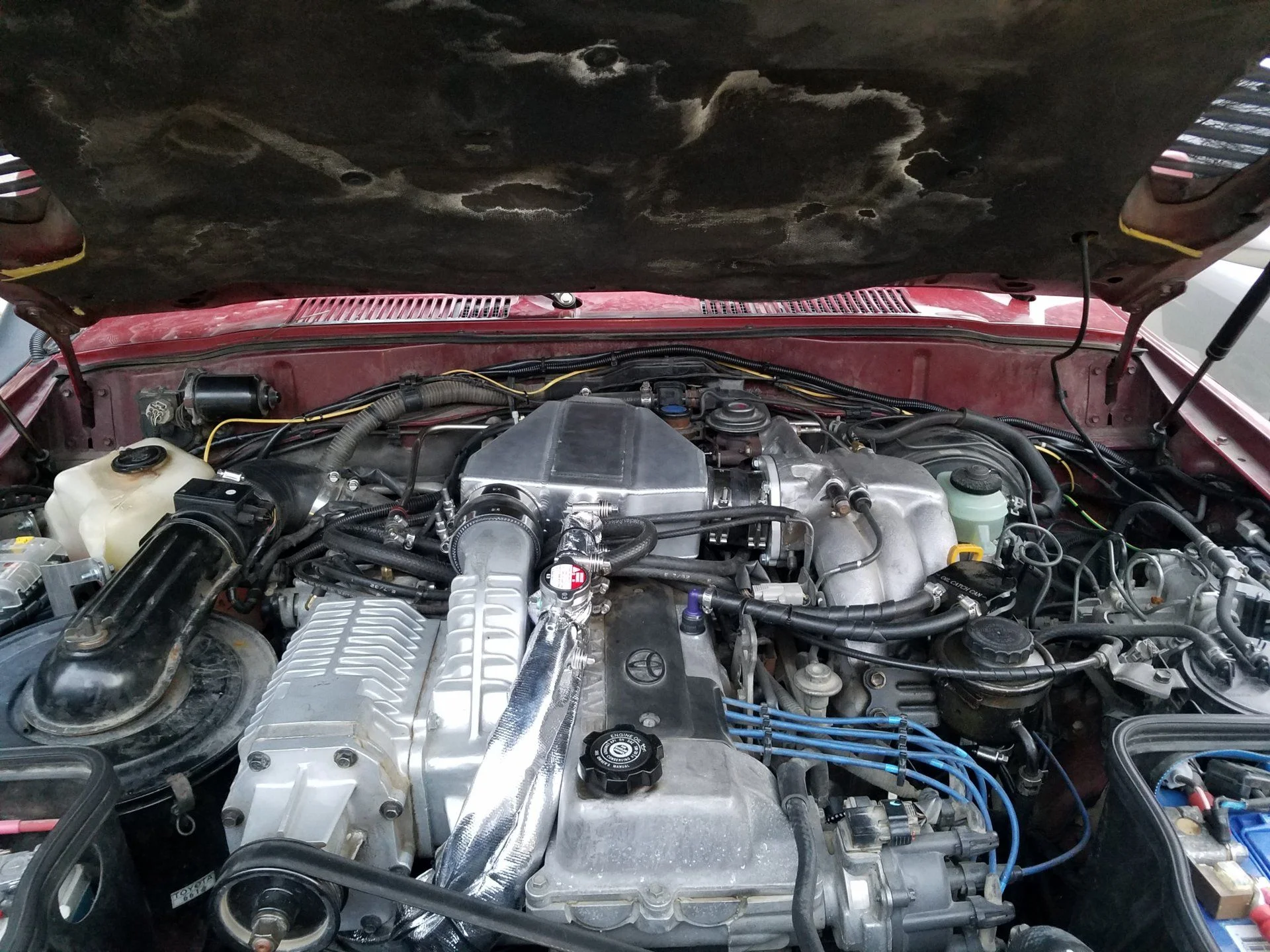

View attachment 2032439

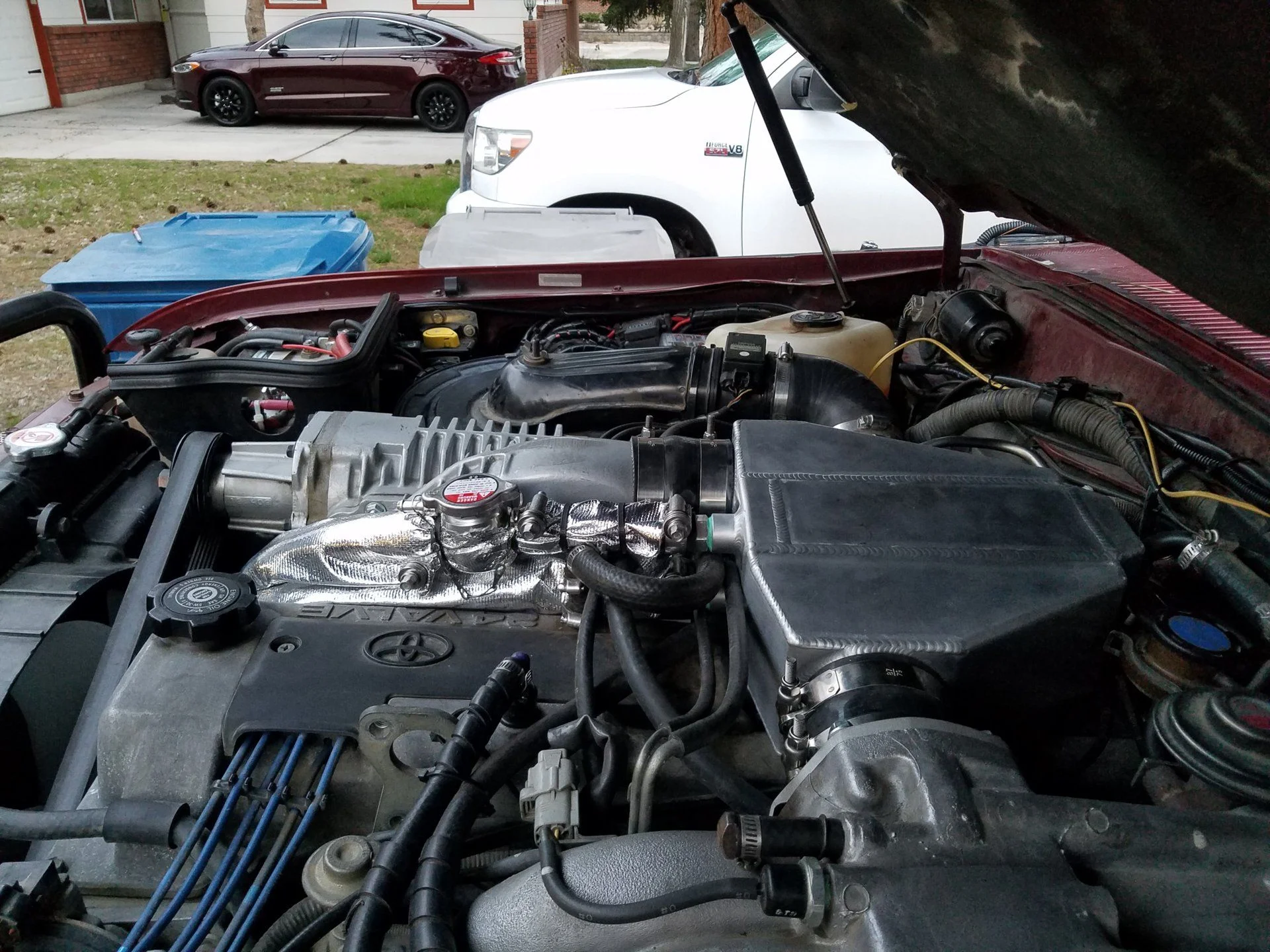

View attachment 2032440

Looks great! Do you a run tank for extra capacity?



[Cruzilla]

I did not add a tank at this point, I did use the largest heat sink I could find. Its a Derale 40 row stacked plate cooler. My plan was to add a tank in the future if I have heat soak issues.

40 Row Series 10000 Stack Plate Cooler, -10AN O-ring Female

40 Row Series 10000 Stack Plate Cooler, -10AN O-ring Female Coolers Only Stack Plate 40 Row Cooler, -10AN O-ring Female 54078

derale.com



[LandCruiserPhil]

How much room is above the valve cover?

Would this fit on top?

Water to Air Intercoolers

We have a wide selection of water to air intercoolers.

www.frozenboost.com



[LXDOC]

Where did you source the AW intercooler and adapter to intake manifold?



[Realst8]

How much room is above the valve cover?

Would this fit on top?

Water to Air Intercoolers

We have a wide selection of water to air intercoolers.

www.frozenboost.com

There isn't very much room, a 3.5 in core intercooler would probably work, the other issue is the throttle cable and trans kick down cable. The supercharged trucks have the throttle body before the supercharger so there is a little more room. I'm going to have some time this afternoon to do some measuring and try and figure out what can fit, it may have to end up being a modified or custom intercooler.



[NLXTACY]

There isn't very much room, a 3.5 in core intercooler would probably work, the other issue is the throttle cable and trans kick down cable. The supercharged trucks have the throttle body before the supercharger so there is a little more room. I'm going to have some time this afternoon to do some measuring and try and figure out what can fit, it may have to end up being a modified or custom intercooler.

I’m well down this path, it needs to be custom for exactly the reason you stated.



[Realst8]

@NLXTACY I'm looking forward to what you design! Will it be available separate from the turbo kit? After spending some time today measuring, a 3.5" core will just barely fit between the exhaust housing and the hood and I have no hood pad. A custom built one would fit vertically between the radiator shroud and the turbo inlet elbow. I'm going to be ordering a water injection kit this week and run that for now.



[Realst8]

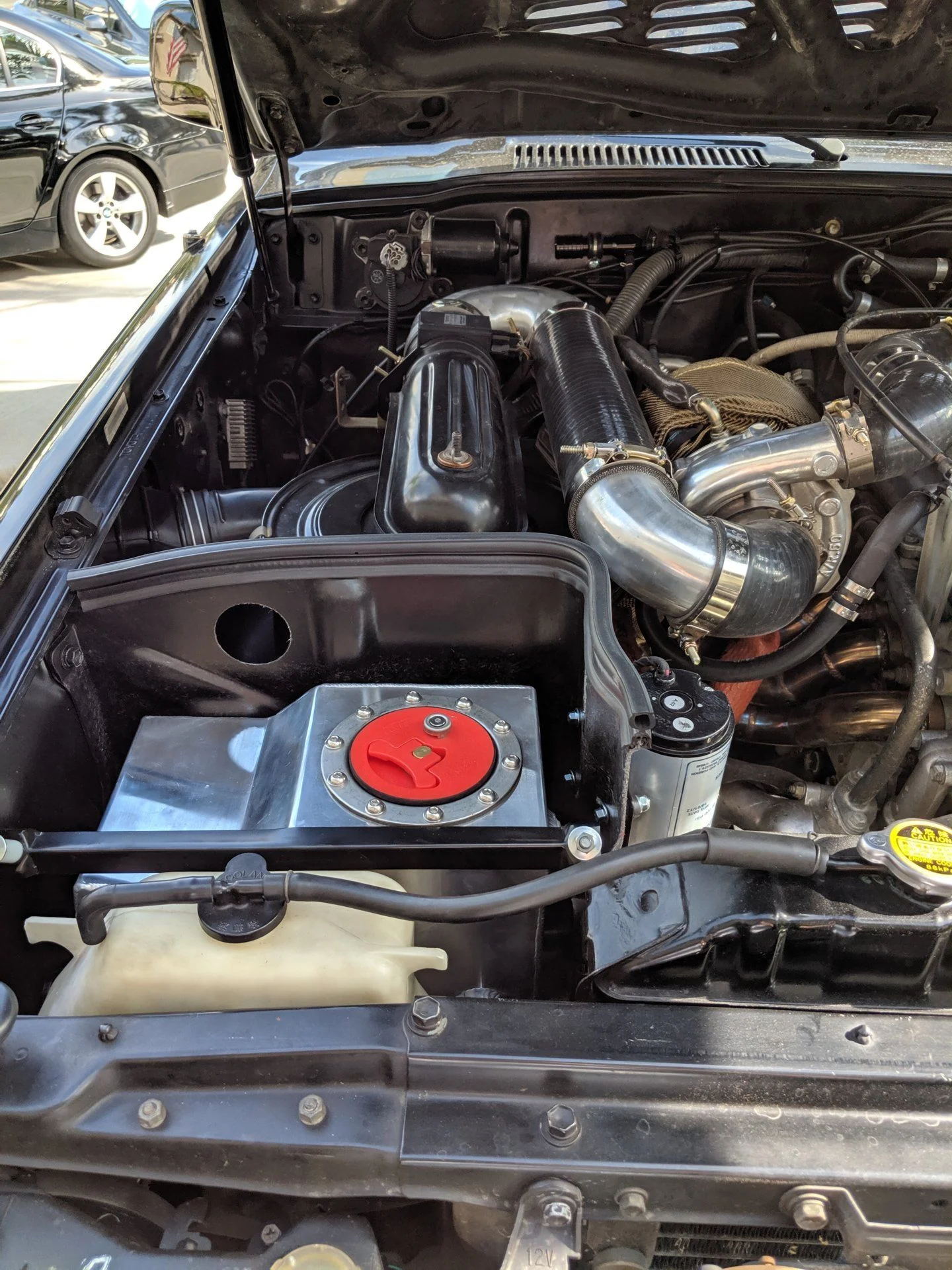

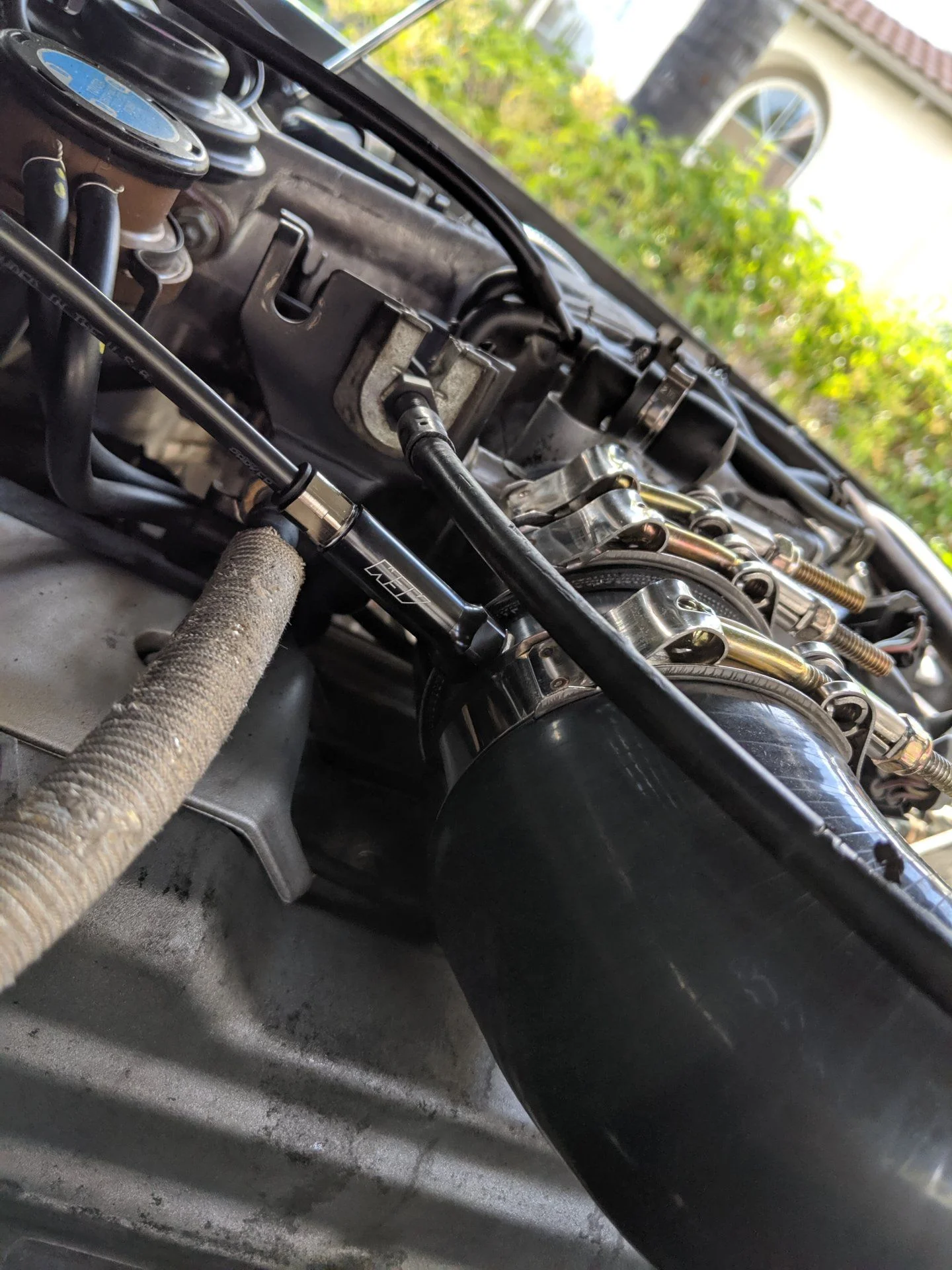

I finished up installing the water/meth injection today. It makes a noticable difference, much more consistent. Before it was pulling timing down to 1 degrees advanced now it stays up at 10-12 degrees. I used an intercooler tank for a 05+ mustang and a oem second battery box, an AEM progressive controller, nozzle and pump. I'm running snow performance "boost juice" and the smallest nozzle which I believe is 250cc. It richens the mixture about .4-.6 afr.



[Realst8]

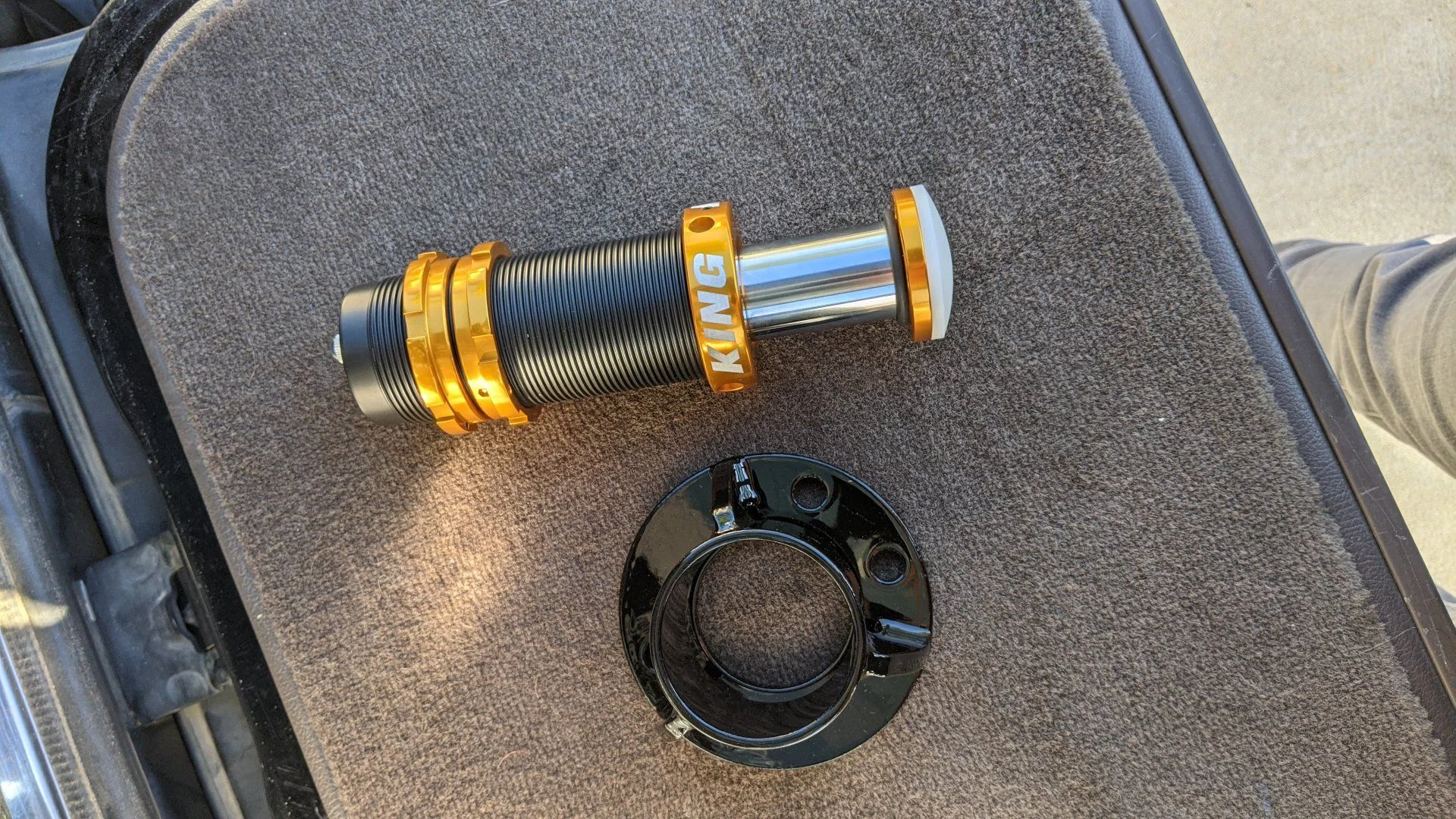

Bought myself a Christmas present



[alia176]

Bazinga



[cybrstar]

Any update on how your CX turbo kit is performing?



[Realst8]

Any update on how your CX turbo kit is performing?

Performs great. I've put about 10k miles on it with no problems at all.

I did purchase a L92 out of a 2008 Escalade and will doing the swap in August.



[cybrstar]

Any pictures of your downpipe? Are you running a intercooler?



[Realst8]

It's the cx racing downpipe. No intercooler but I do have water/meth injection.
