How to Determine Bolt Dimensions

[Von Hayek]

Can anyone tell me how I can figure out diameter and thread pitch from this part number? 90119-14097



[iptman]

Are you looking for the bolt size and thread pitch or just want to know if it's possible to figure it out from the part number?

Trail Tailor Offerings- Racks, Sliders, Control Arms and Misc

Hey Jason. Thanks for doing another run of the spacer combos, and all your great products. Could you confirm we'll need to source 12.9 grade hardware, around 70mm in length for the ARB deluxe bar? Yes I'd run 70mm in the stronger personally.

forum.ih8mud.com

This thread says that's an M14x1.5 and no one corrected the guy so probably right.



[Von Hayek]

No, I'm looking for the dimensions. Thanks. That sounds right too.



[Jakes40]

M14x1.5 sounds right. My thread chasers only go up to 12mm



[JohnVee]

Speaking of ^^^, this might be a good place to ask this: If one was looking to build a set of taps and dies for a LC, what would be needed outside of the standard 10-ish piece set? Anybody have a good list going? I've lent out and/or lost or broken the majority of what I had, including the odd pitches that don't come in sets.



[Von Hayek]

Definitely M14 x 1.5. I just ordered one. I'm chasing the fixed nut that holds the bolt for the tow hook. I can't imagine there is anything bigger than that on the truck but I have been known to make mistakes, from time to time.



[emorth]

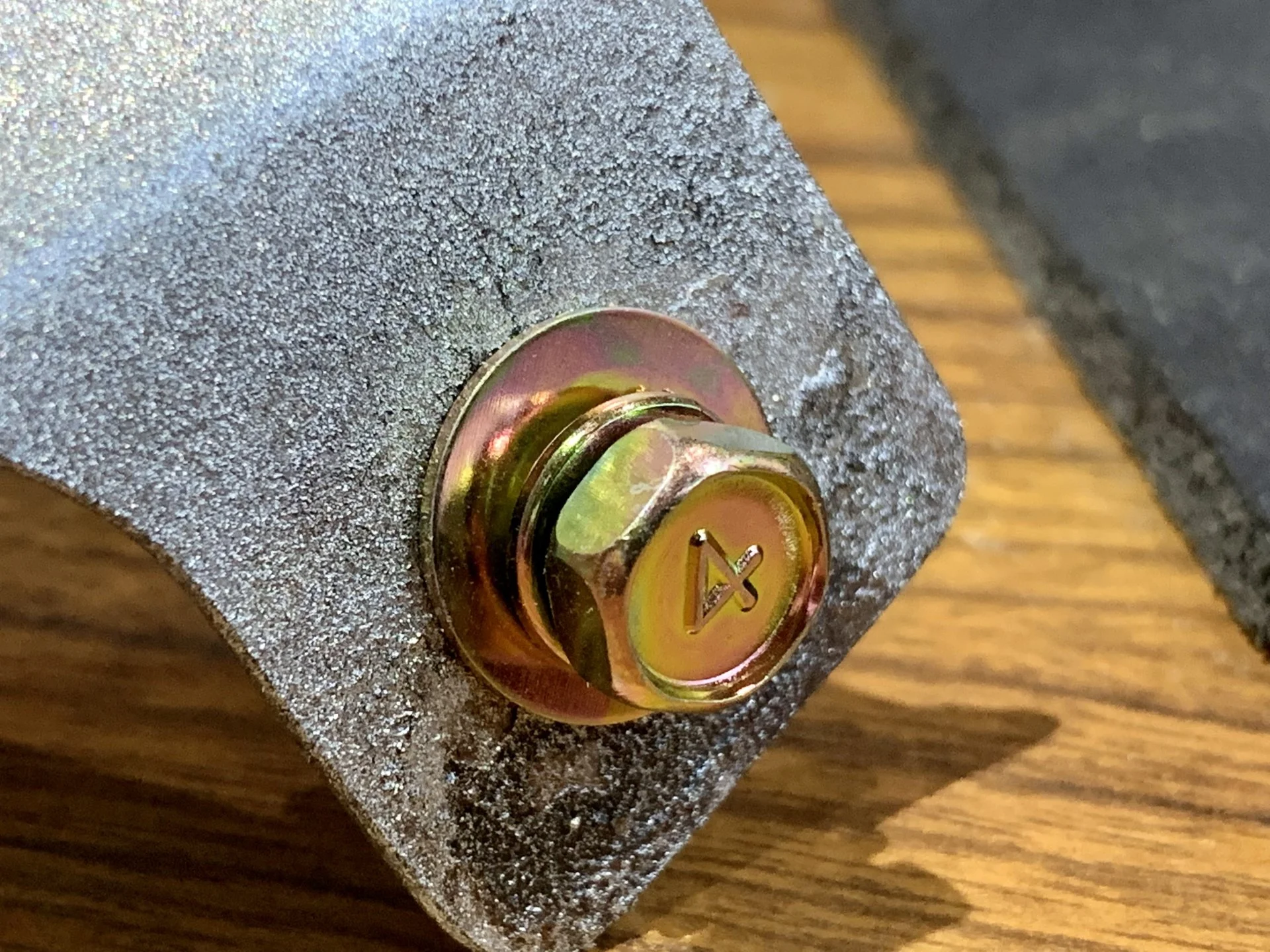

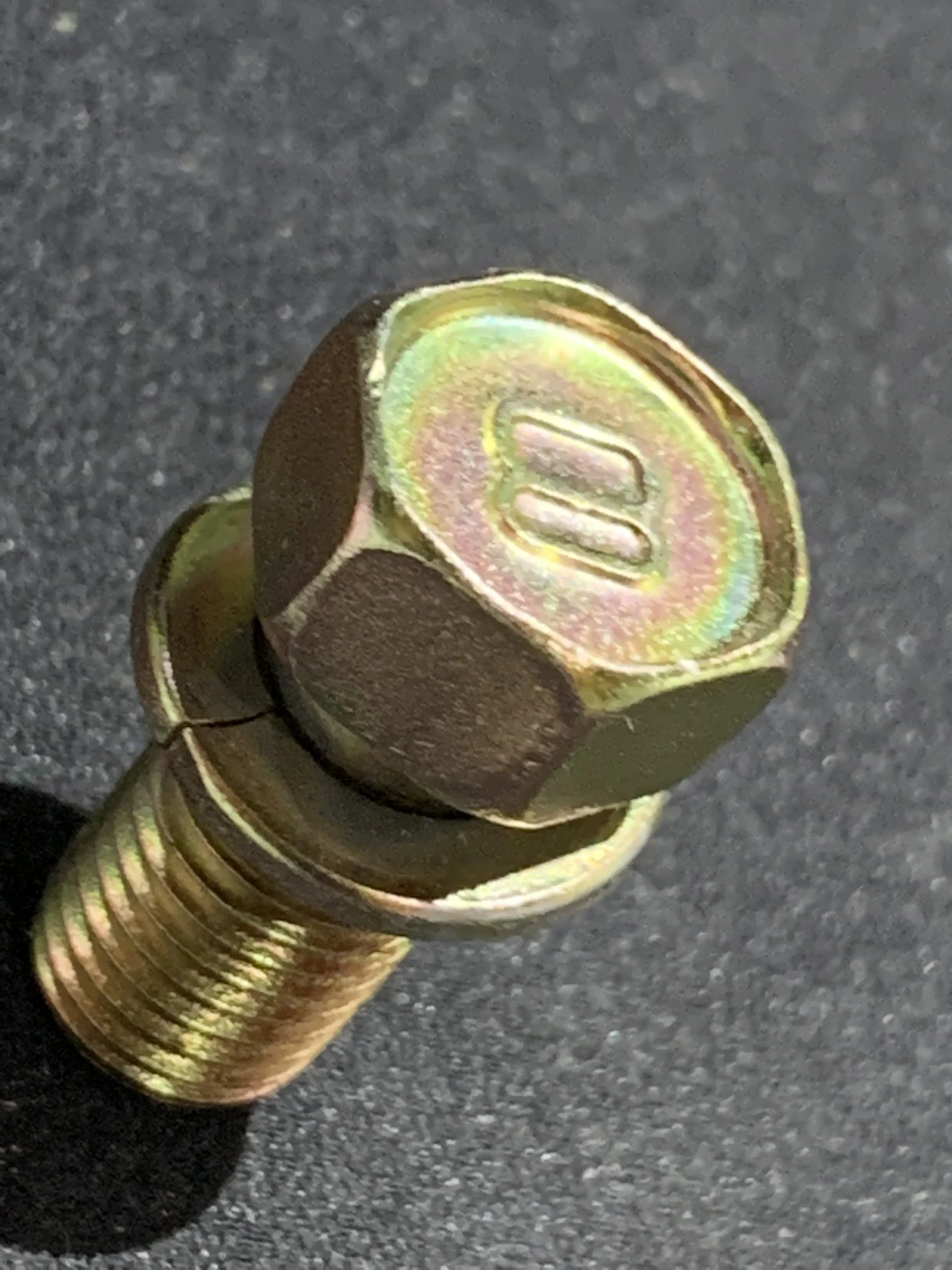

This thread is totally screwed.



[ToyotaMatt]



[ToyotaMatt]



[ToyotaMatt]



[Von Hayek]

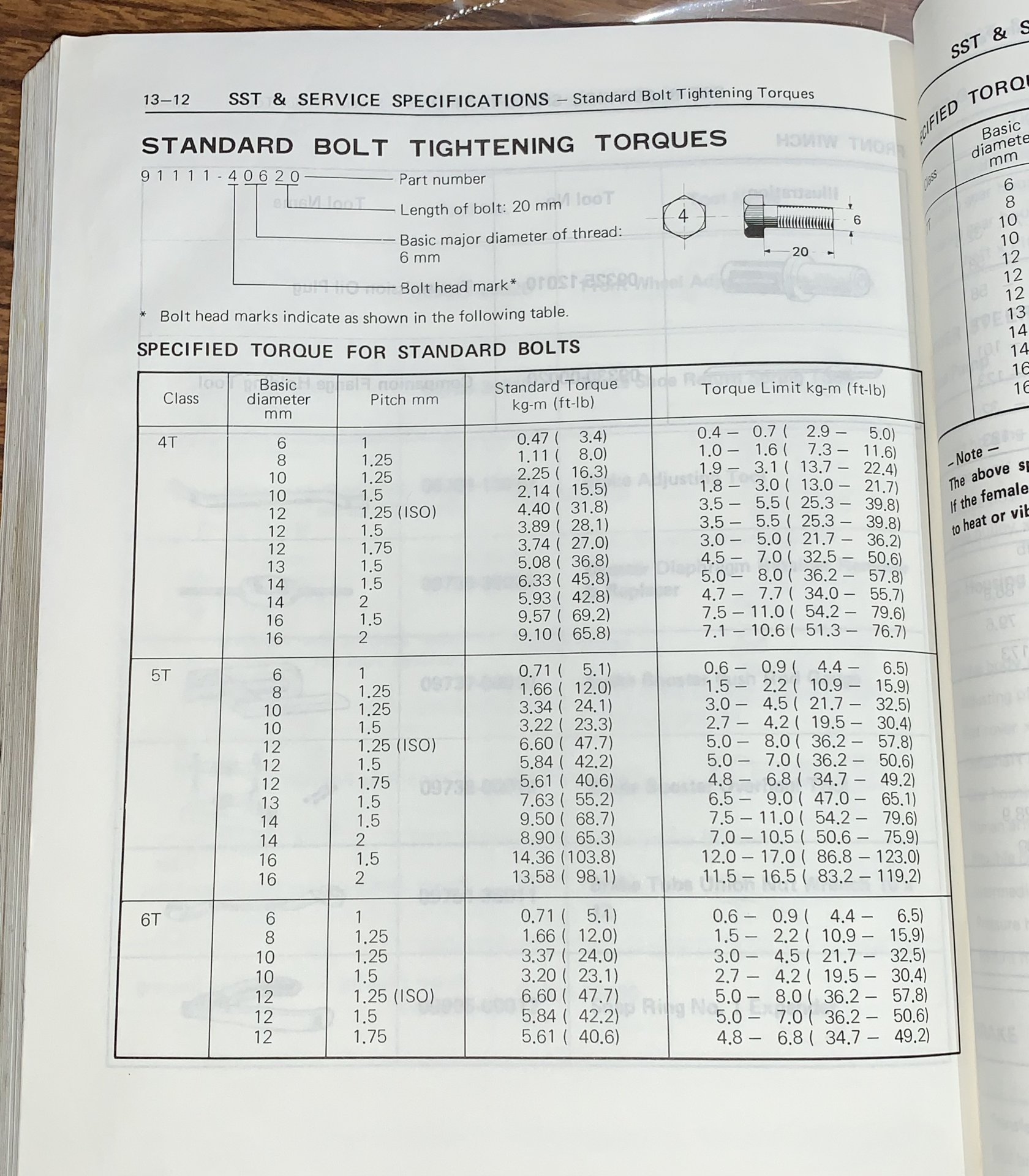

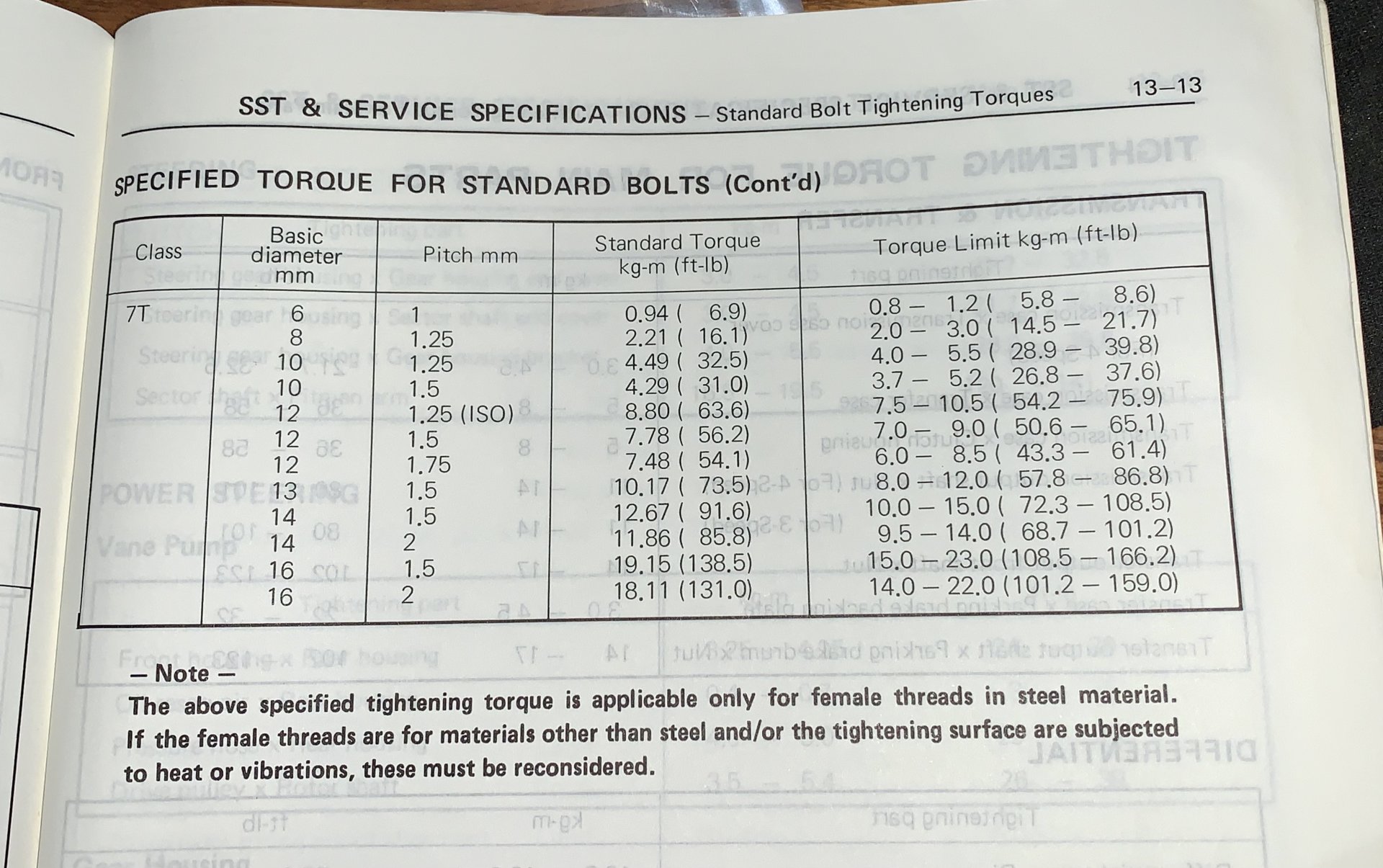

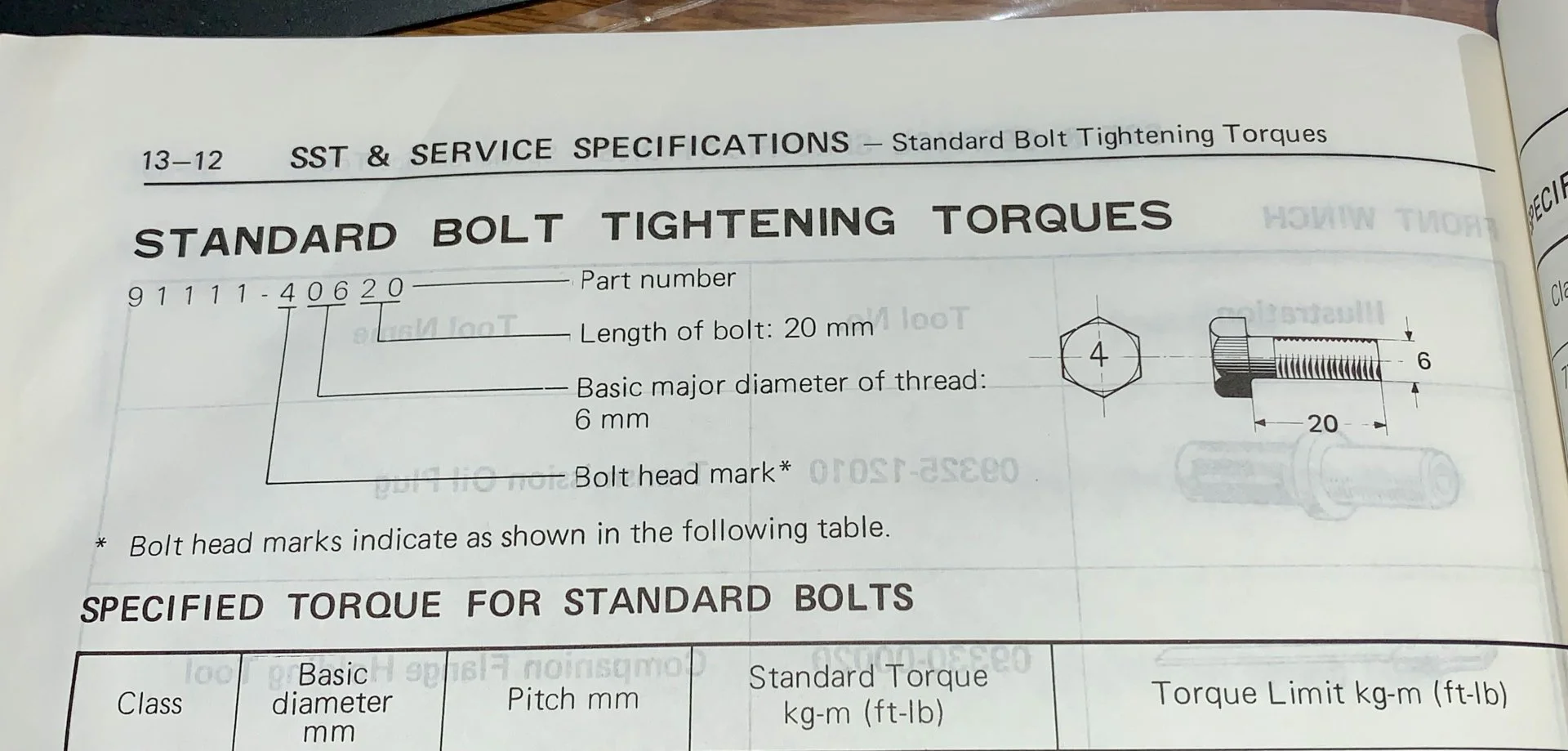

View attachment 2947005View attachment 2947006View attachment 2947008

That is the exact information I needed. I need that book.



[Von Hayek]

Except that this doesn't make sense for 90119-14097. This part number would make it a M40 bolt. We know it is M14. And the length is wrong too. Hmm. They must have changed the code?



[jht3]

Definitely M14 x 1.5. I just ordered one. I'm chasing the fixed nut that holds the bolt for the tow hook. I can't imagine there is anything bigger than that on the truck but I have been known to make mistakes, from time to time.

did that size tap/die work for you?

i also want to clean up the captive nut threads and bolt/nut that hold a pintle hook to my 80 series. my tap/die kit and thread repair kit top out at M12
