How dumb is this idea? Restoring the frame, not the body... (1 Viewer)

iptman

SILVER Star
Joined
Nov 22, 2008
Messages
4,595
Location
Northern VA

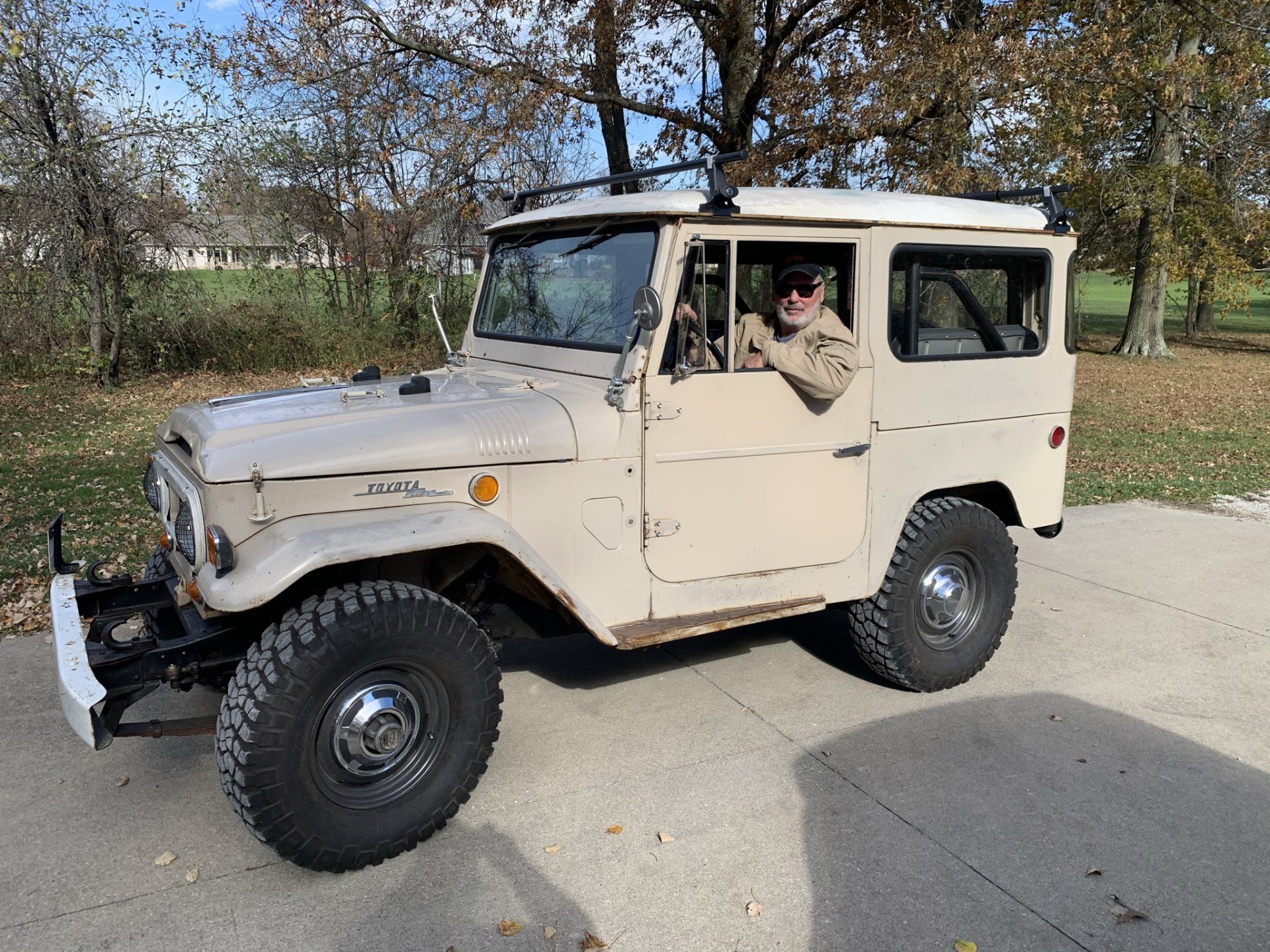

I've had my 40 for a few years now and it runs like a top. It's a kali spec 8/77 with all the smog equipment intact and functional. I've replaced a few things on it with OEM parts and the only big thing not factory for this truck is it's rocking a later model Fed spec exhaust manifold since the thermal reactor manifold was cracked beyond repair. I love the patina and original pin striping but the frame needs to be refreshed in order to not get any worse. I don't drive the 40 in winter after the first salting (just happened) but it does live in an open air barn with a dirt floor. I've recently laid down a thick tarp for it to park on and I was shocked at how much condensation was under the tarp after only a few days of dry weather. The frame looks rougher in the pictures IMO but it's clear to me if I don't do anything about it it's only going to get worse.

Is it a dumb idea to consider pulling the body, engine, trans/transfer in order to clean up the rust, seal and paint the frame, axles and suspension? then putting the body back on just as you see it below. I know at some point I'll probably have to deal with the rust issues on the body but for the most part it's in good shape. The majority of the original under coating is still on it and the places where it's starting to peal off the original paint is in great shape. The frame was also coated and you can see the original frame paint peaking out in places..

Anyway, would be interested to hear people's thoughts on this idea.





Joined
May 14, 2016
Messages
1,628
Location
Arizona
It is amazing how the moisture wicks into everywhere in those states. It would be a real good thing to pull frame and completely redo it . Rust never sleeps.


Jdc1

SILVER Star
Joined
Sep 9, 2013
Messages
3,799
Location
Akron, OH
@dlzadl has been using a product called Boshield that works awesome. It’s isn’t like fluid film in that it dries and takes a solvent to take it off. It also doesn’t smell. Basically you scrub with CLR to neutralize rust and then spray the Boshield on. It dries to a dark grey or black. It’d be a shame to take that rig off the road long enough to take the body off. You can see it on the front of his frame on the ‘69.



tjhaga

SILVER Star
Joined
Jul 15, 2007
Messages
1,071
Location
Central Iowa
I would leave the tub on and pressure wash/clean the frame as well as possible. Then use Fluid Film generously and re-evaluate in a year. I bet this would greatly slow down the rust on your frame. Then when you decide to restore the body, do the frame at that time.

Joined
Jun 10, 2015
Messages
648
Location
Houston, TX
I’d do just as you suggested. Do a frame off, frame restoration. Don’t fix what’s not broken. Pull the frame, have it blasted and then seal it with your choice of treatment. POR15 is very popular.

Joined
Dec 13, 2012
Messages
1,264
Location
KY
It is a lot of work to pull the body. As others have said it appears to be a frame coating that is flaking off. There is some surface rust present but nothing that looks excessive in the pictures. There are products that can neutralize the rust but should get that coating off by scraping or pressure washing first. Unless your axles are in need of service, why pull the body without rebuilding the suspension.

Good luck on whatever route you decide to take.


Jakes40

IH8MUD Poser
SILVER Star
Joined
Dec 10, 2004
Messages
3,799
Location
Winchester,Va
Very Dumb!!!

I didn’t read any of it just saw who posted it!

😀

I would definitely do something with just the chassis leave the body if you can. I like Eastwood’s rust encapsulator. There is a product like fluid film that is black and you can get a mint smell to ward off mice when it’s in the garage.

Last edited:

1MOA

SILVER Star
Joined
Nov 7, 2017
Messages
1,513
Location
Warrenton VA
I would leave the tub on and pressure wash/clean the frame as well as possible. Then use Fluid Film generously and re-evaluate in a year. I bet this would greatly slow down the rust on your frame. Then when you decide to restore the body, do the frame at that time.
I would go this route.... I know a guy who can pressure wash that frame to perfection and is local to you. ;)


iptman

SILVER Star
Joined
Nov 22, 2008
Messages
4,595
Location
Northern VA
I would go this route.... I know a guy who can pressure wash that frame to perfection and is local to you. ;)

You think it'd strip the old undercoating but leave the original paint? Or would it just take everything off?


1MOA

SILVER Star
Joined
Nov 7, 2017
Messages
1,513
Location
Warrenton VA
You think it'd strip the old undercoating but leave the original paint? Or would it just take everything off?
Not sure. I did my 77 frame and it left the paint. I use a dual lance so I can drop the pressure down

Joined
Aug 29, 2015
Messages
862
Location
Rocky mtns
I’m originally from the northeast (most of them)- I don’t see rust. Solid pressure wash and coating of your choice. Body off opens all the hidden issues. Keep it driving and treat the rust that’s accessible.

Joined
Nov 24, 2019
Messages
110
Location
California
If you go for the frame off and strip and paint the frame with POR15 or have the frame powder coated it can be hard to put rusty parts back on. You will be tempted to repaint the axels...then the motor....then the transmission and whatever. New break line's, hoses....it's hard to put older parts on a clean frame.


I think the body and paint on your rig looks great but would probably want to paint the underside if It was "already" off the frame.
