Hi everyone.

I've finally gotten around to posting up a thread on my FJ40 build.

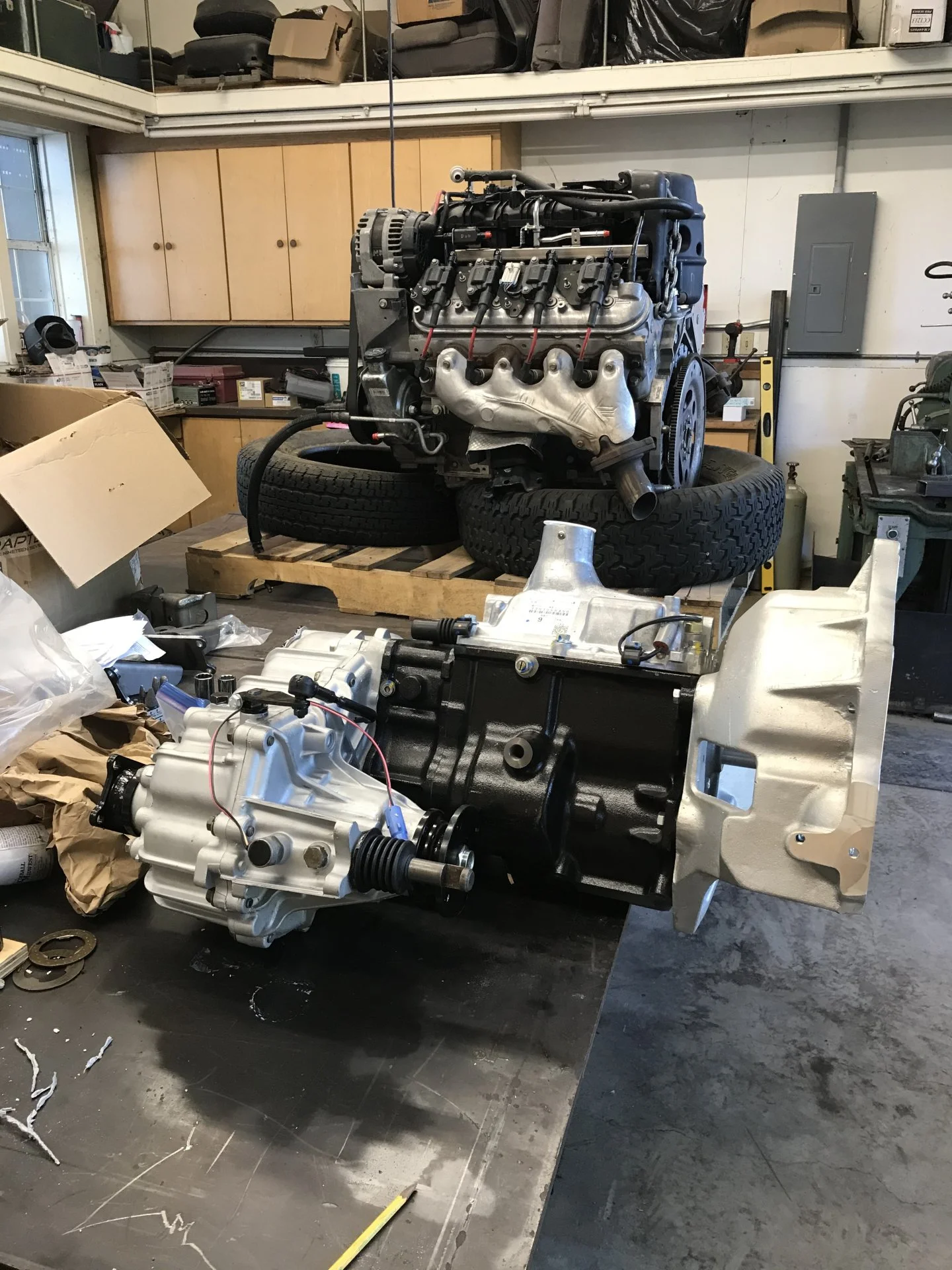

Some background: I bought the 40 back in 2018 for $4,000. Originally I planned to put in a 12HT, but I couldn't find one. I went so far as to get a 6.3L LM7 V8 and all the adapter parts to put it in.

In the end, I just couldn't bring myself to own a landcruiser that didnt have a Toyota engine. So I hunted for a 12HT for over a year and a half. Finally, I found a good one.

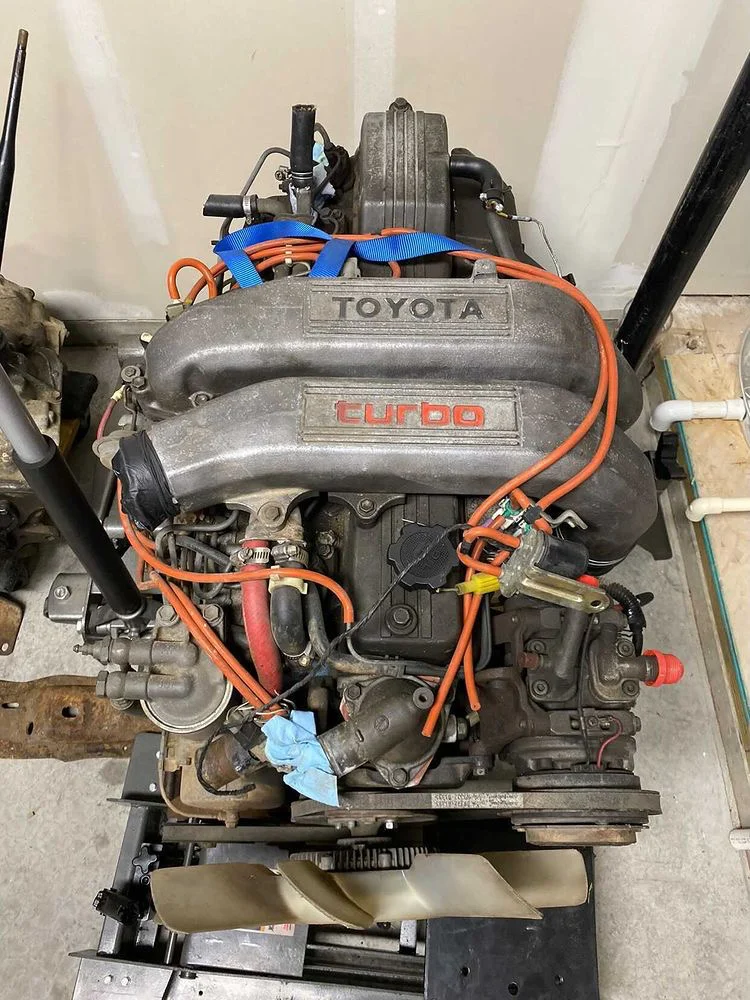

This will be my fourth 12HT swap (two were done for work, and one on my personal 60). I own three 12HT powered cruisers, and I absolutely love the engines.

Long story short:
The 40 is a 1969.
It has some body rust but not bad.
I am keeping the patina for now.
The final goal is this: 12HT, 60 series axles, new OME suspension, power steering, dual ARB lockers.

I will post photos and some write-ups in this thread, but I have been trying to take short video clips as I move through this project. They have very low/no production quality, but they are still more captivating than simple photos.

I hope you enjoy.
-Will

Here is a link to the youtube playlist with the brief collections of videos I have made.

Enjoy!

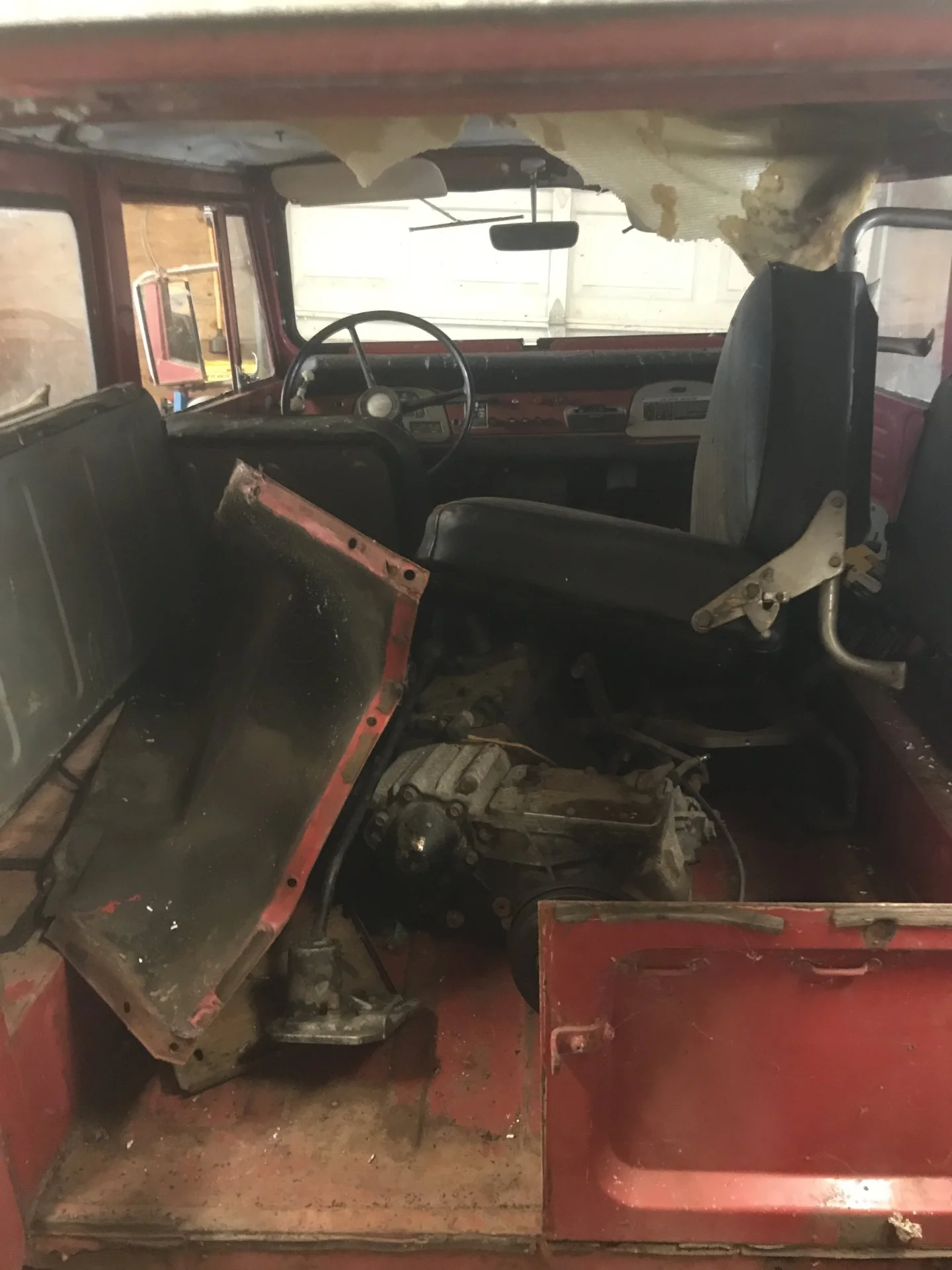

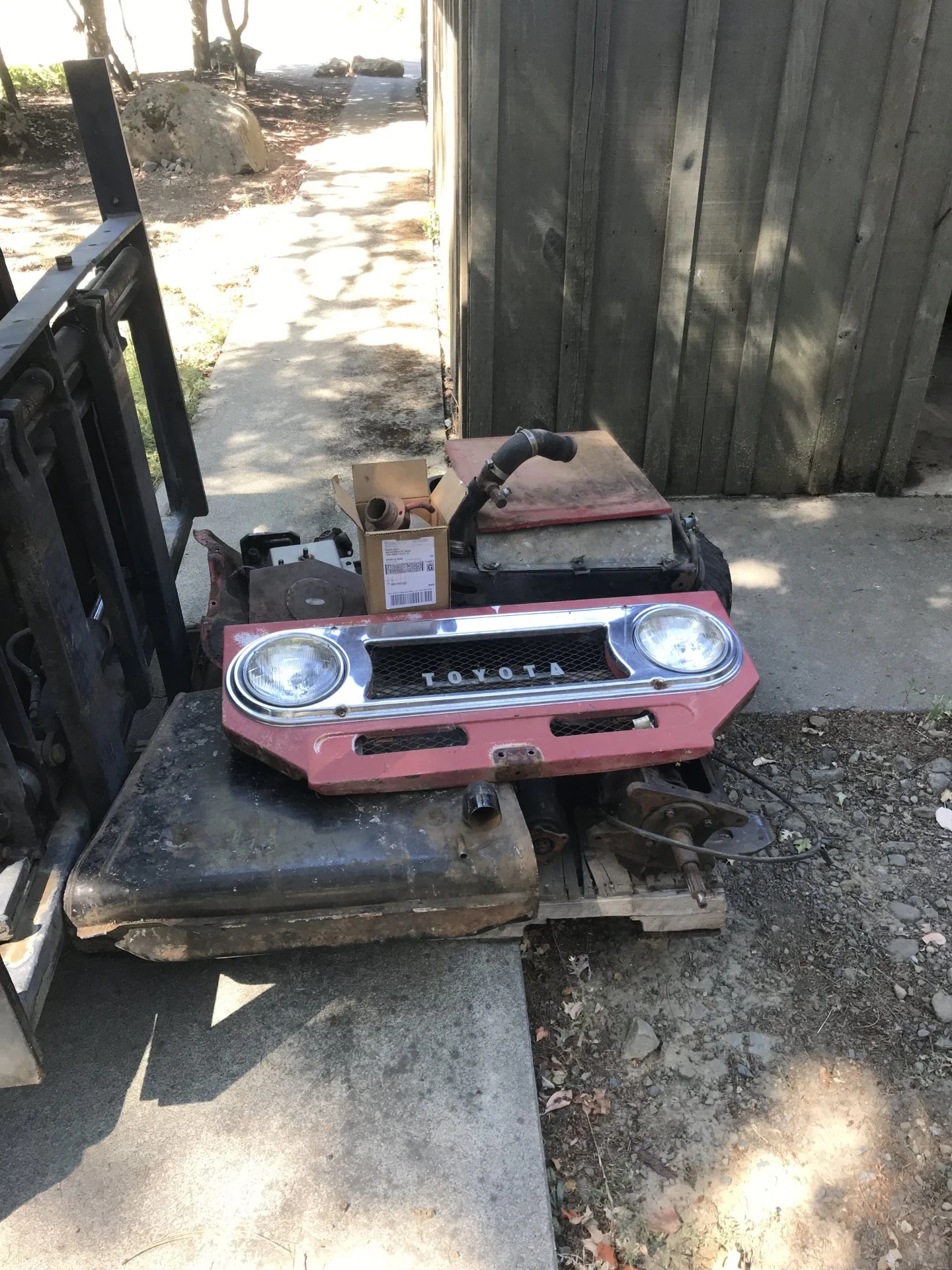

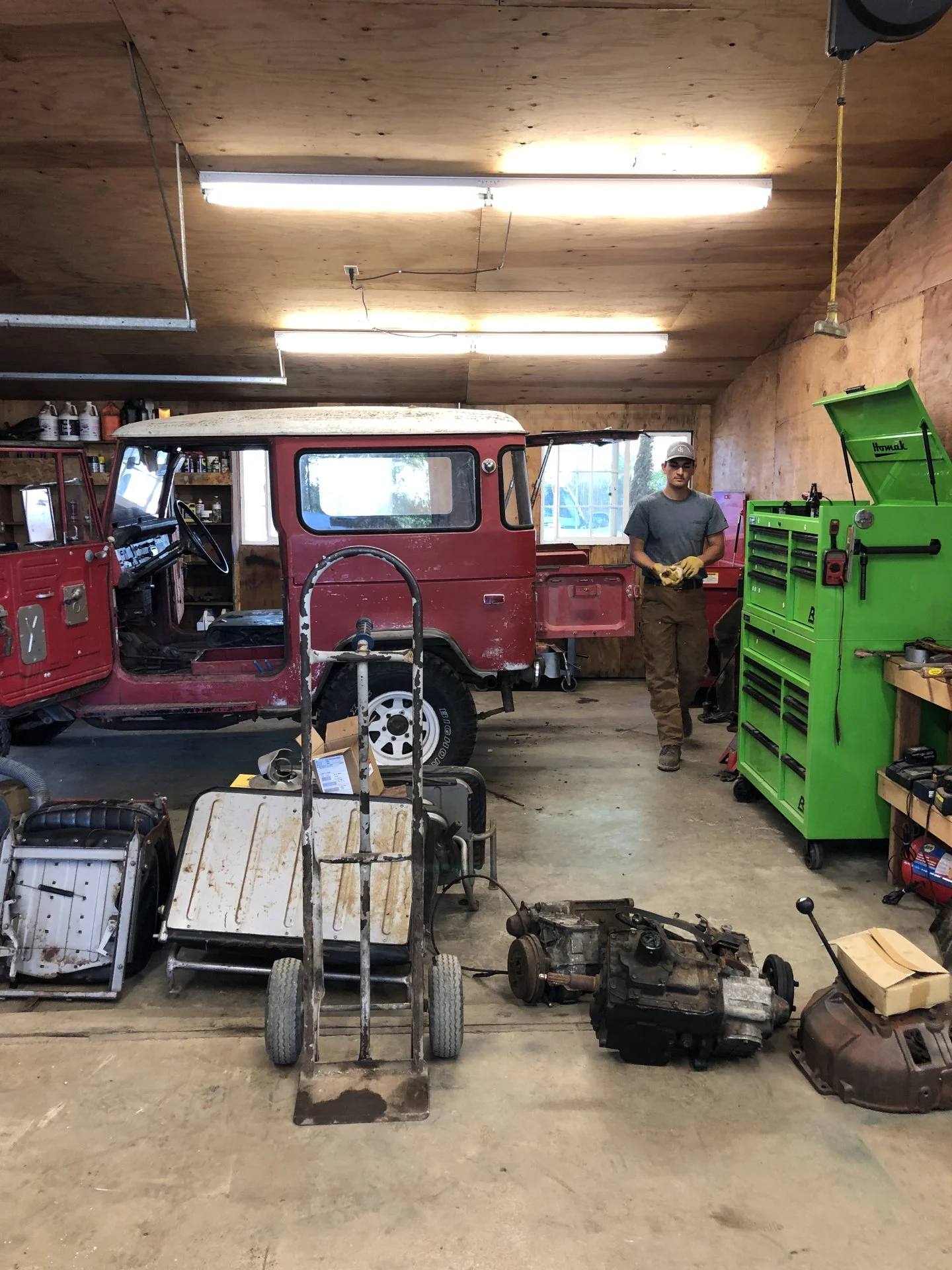

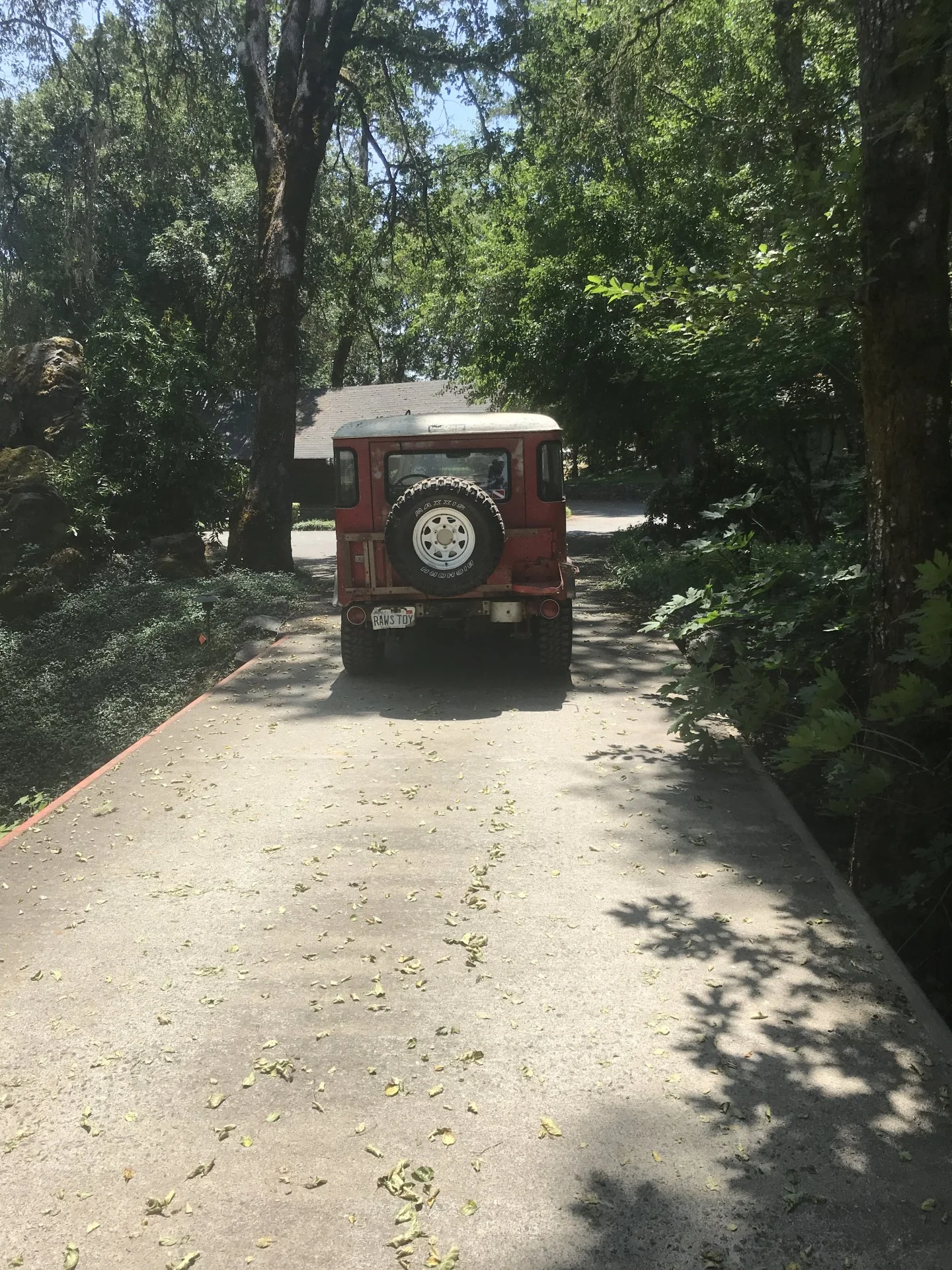

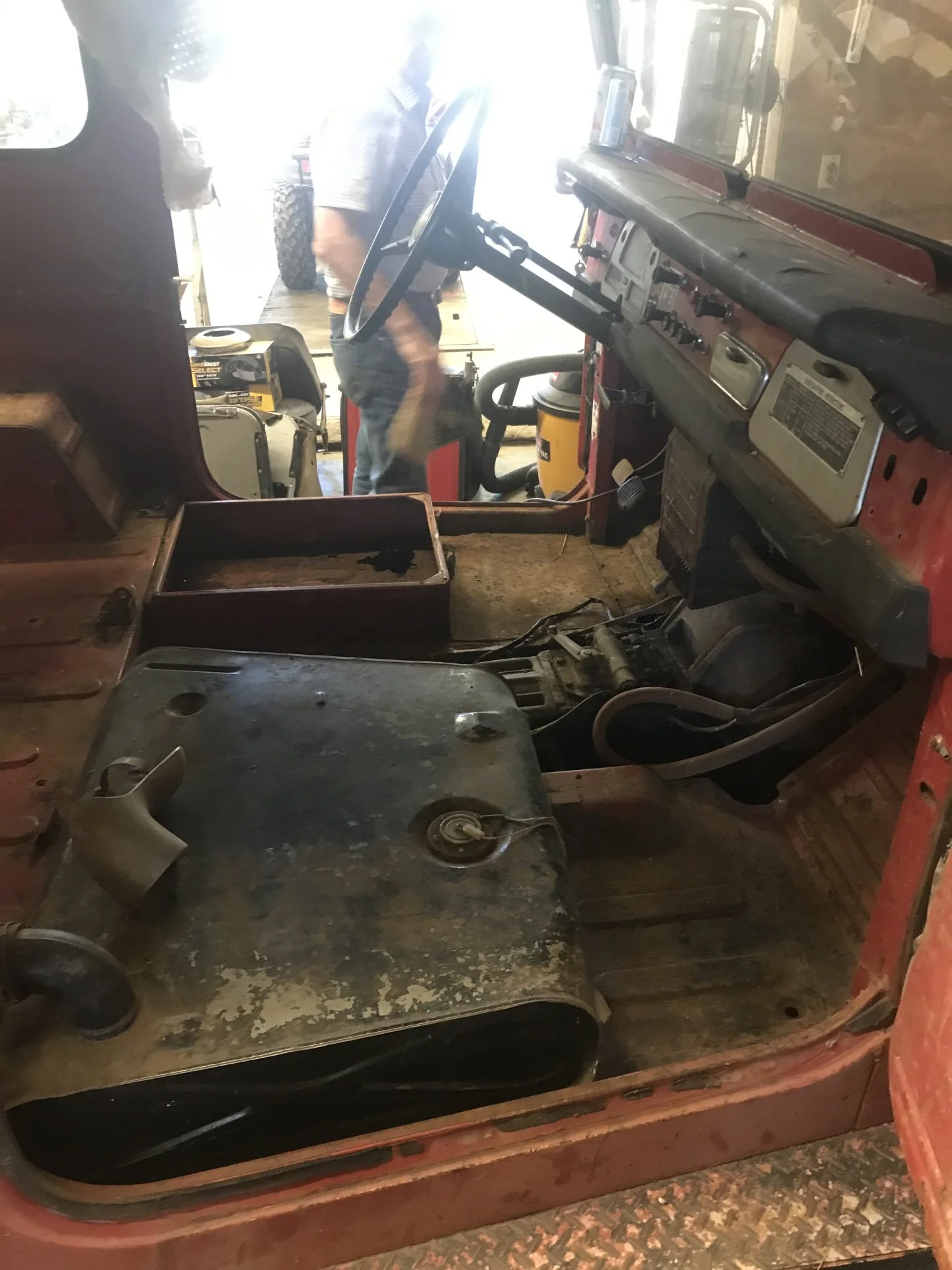

Early build stages. Cleaning out the interior and prepping for engine pull and rust carving.



IMG_5908 2.webp




IMG_5909 2.webp

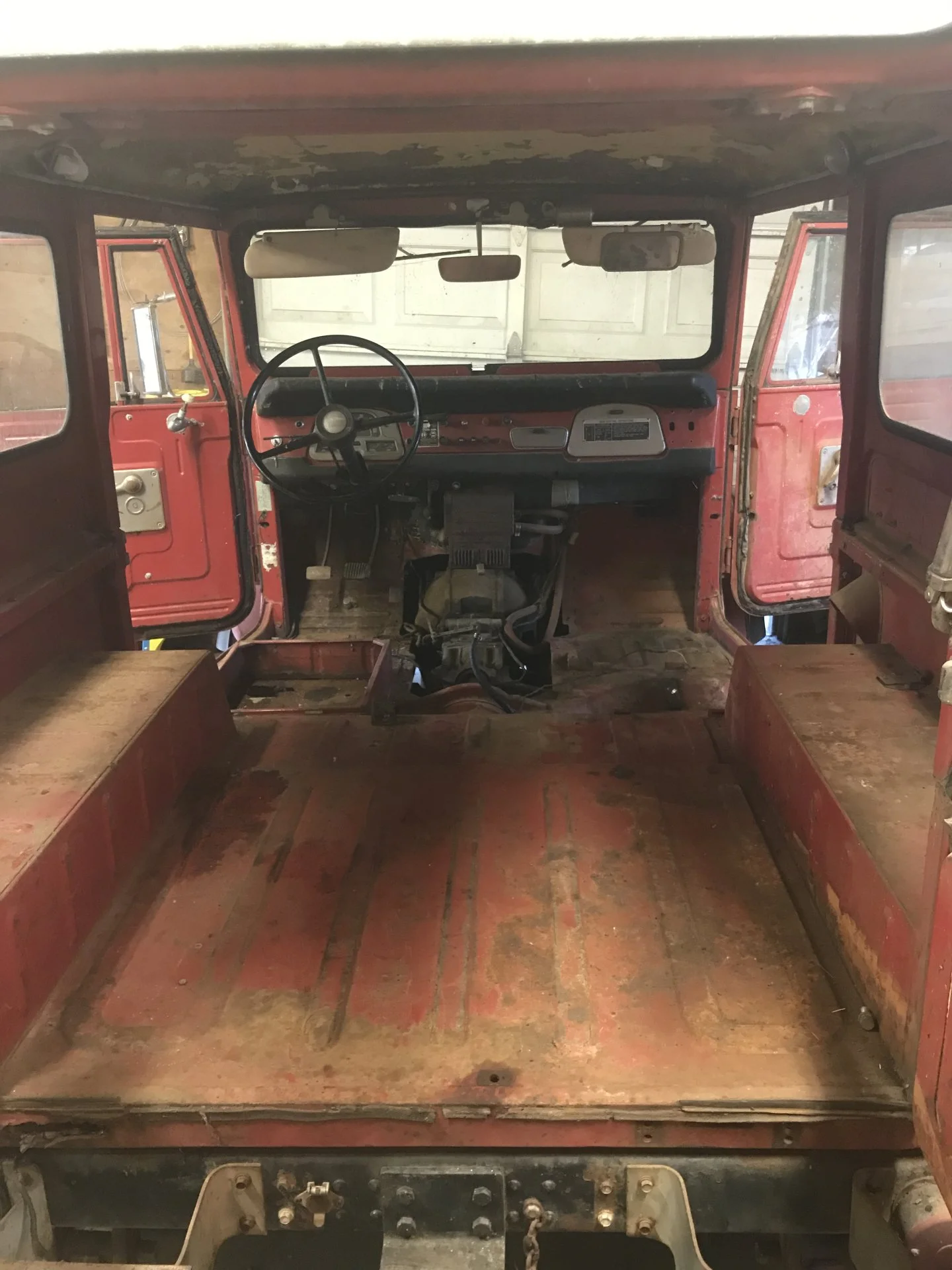

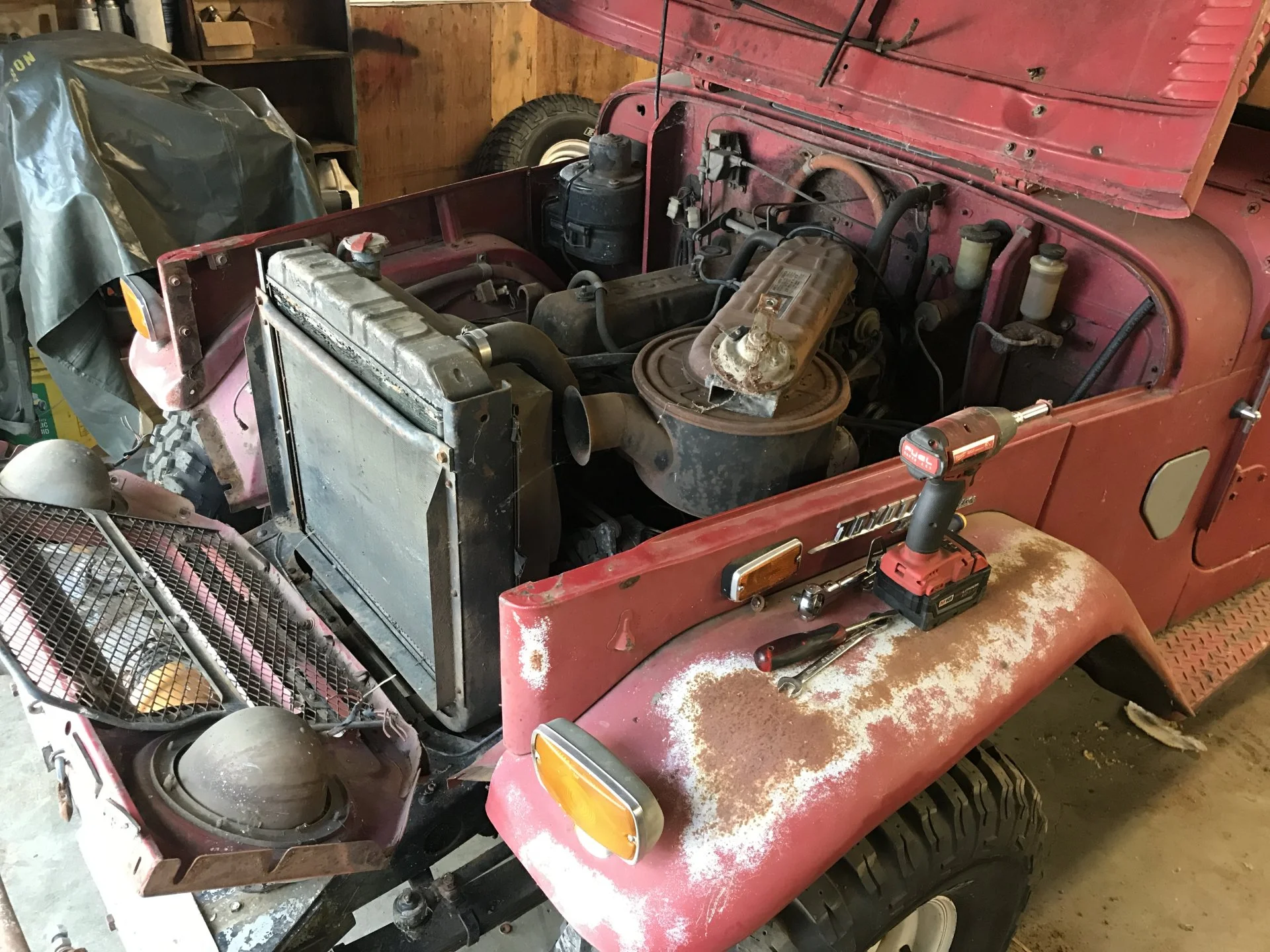

Interior cleanout, and early engine pull prep.



IMG_5918 2.webp


IMG_5928 2.webp




IMG_5962 2.webp

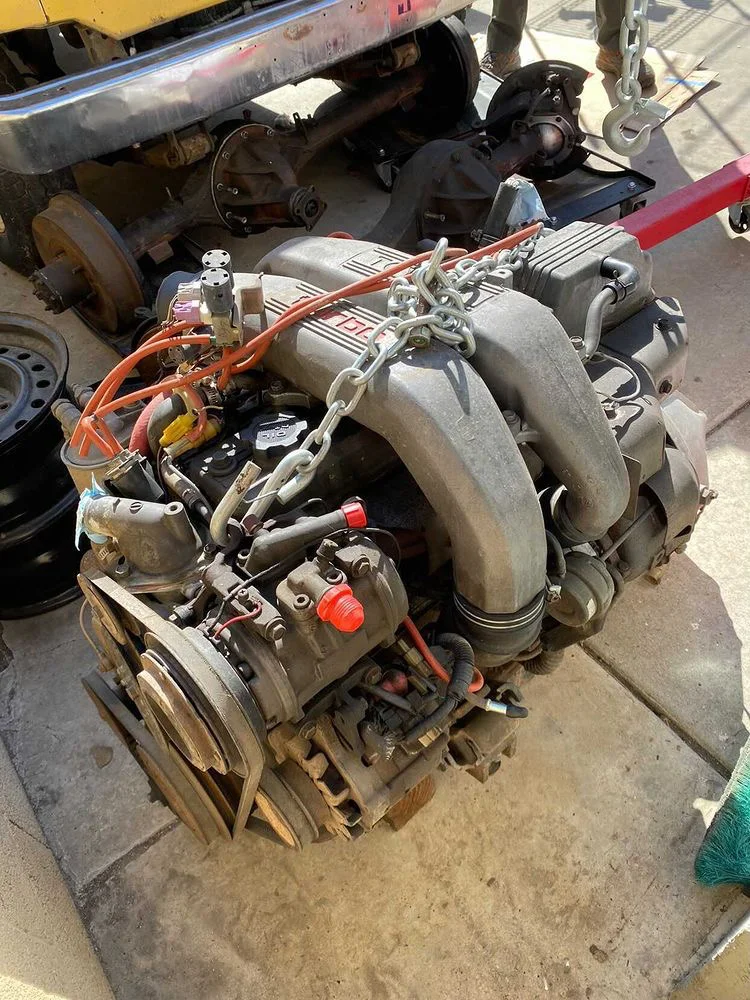

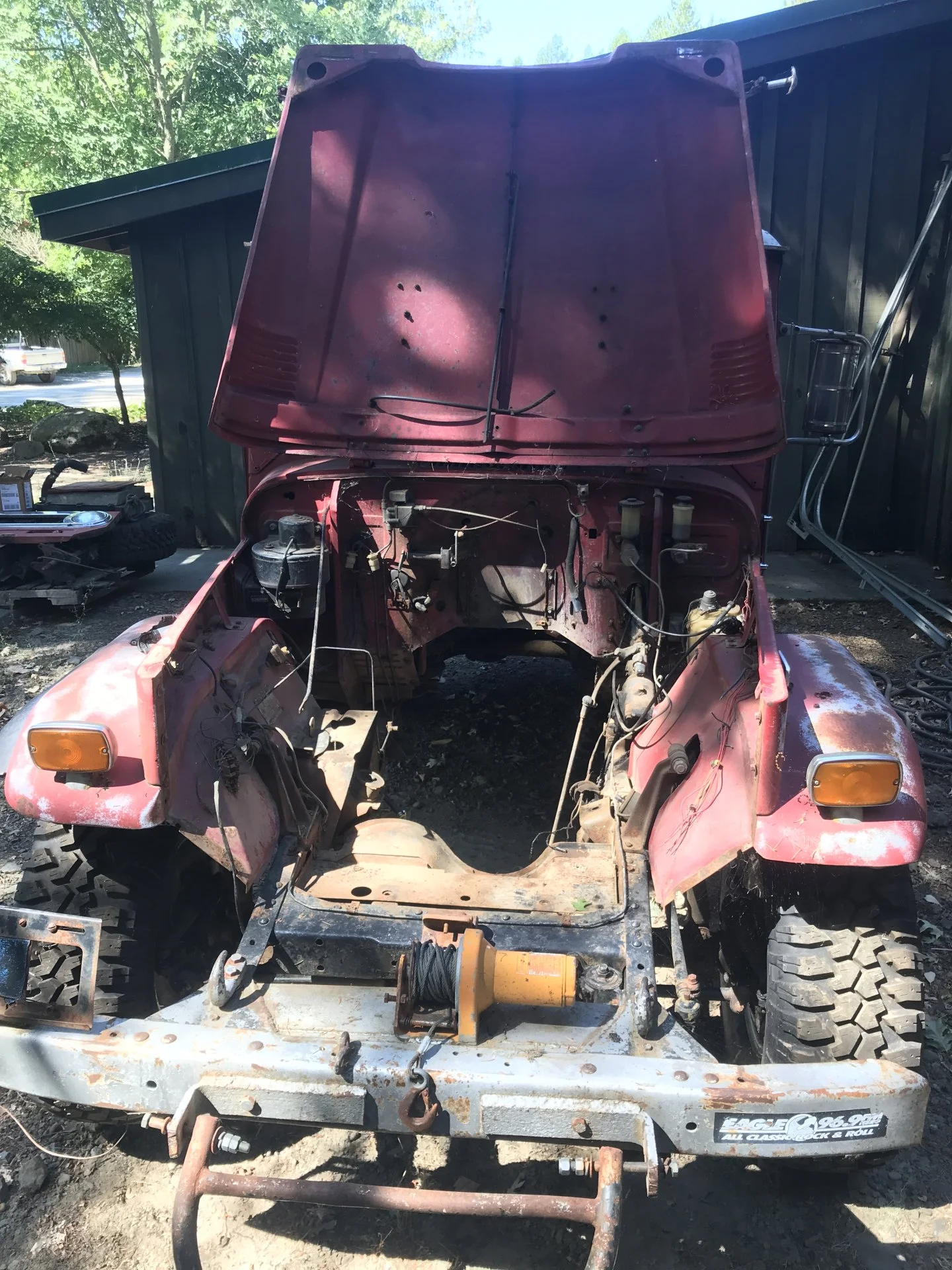

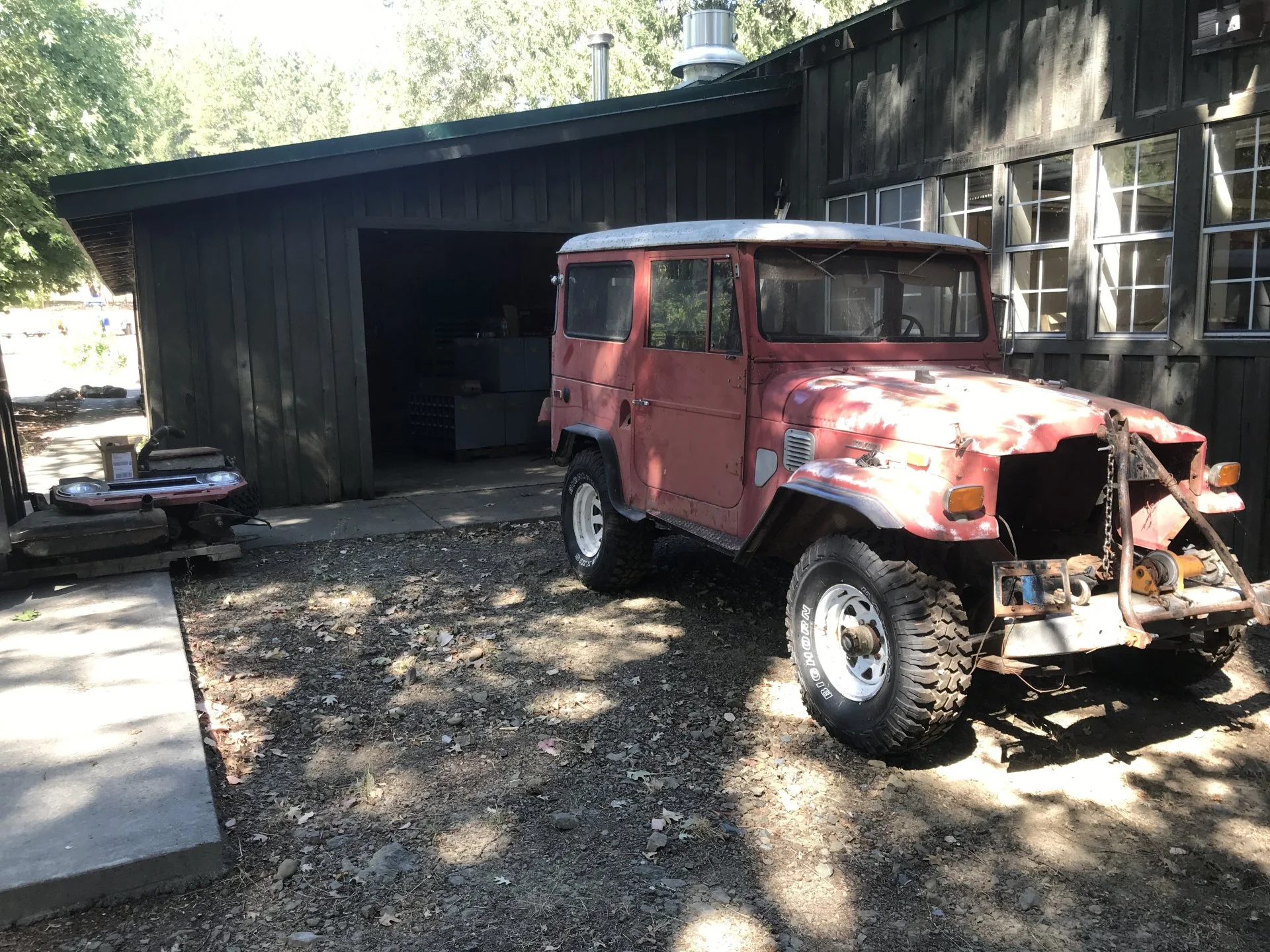

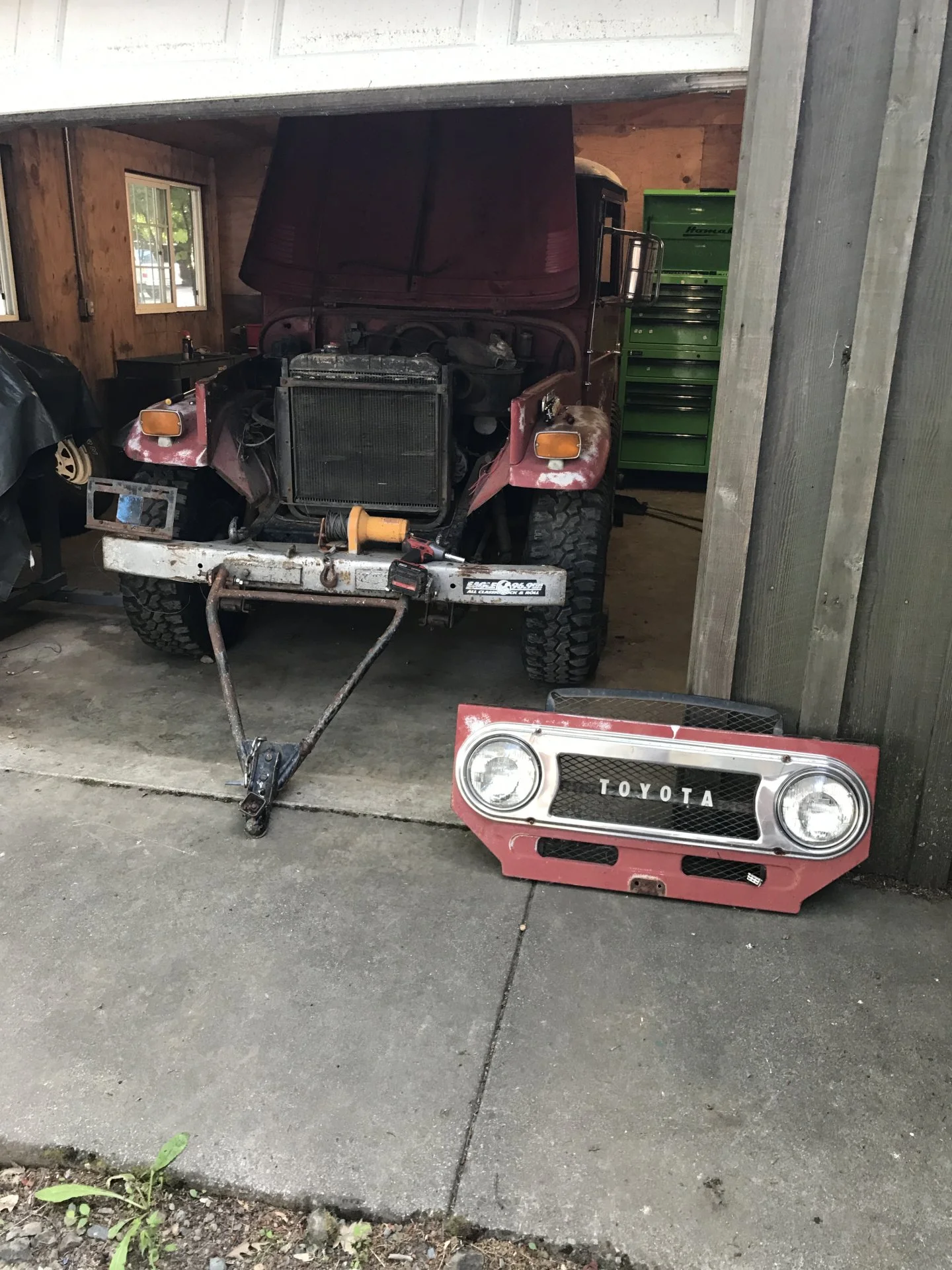

Engine Out!



IMG_6923 2.webp

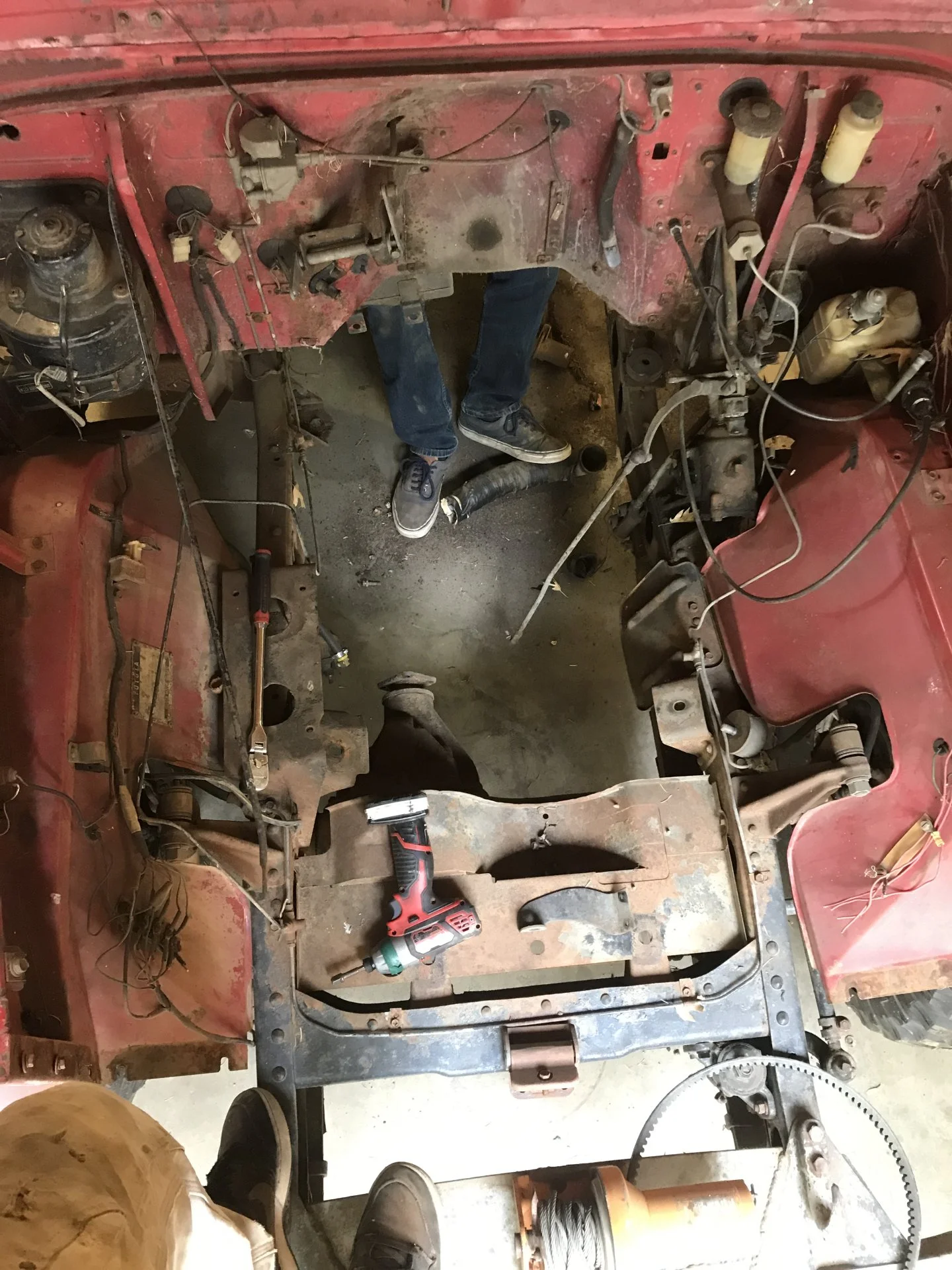

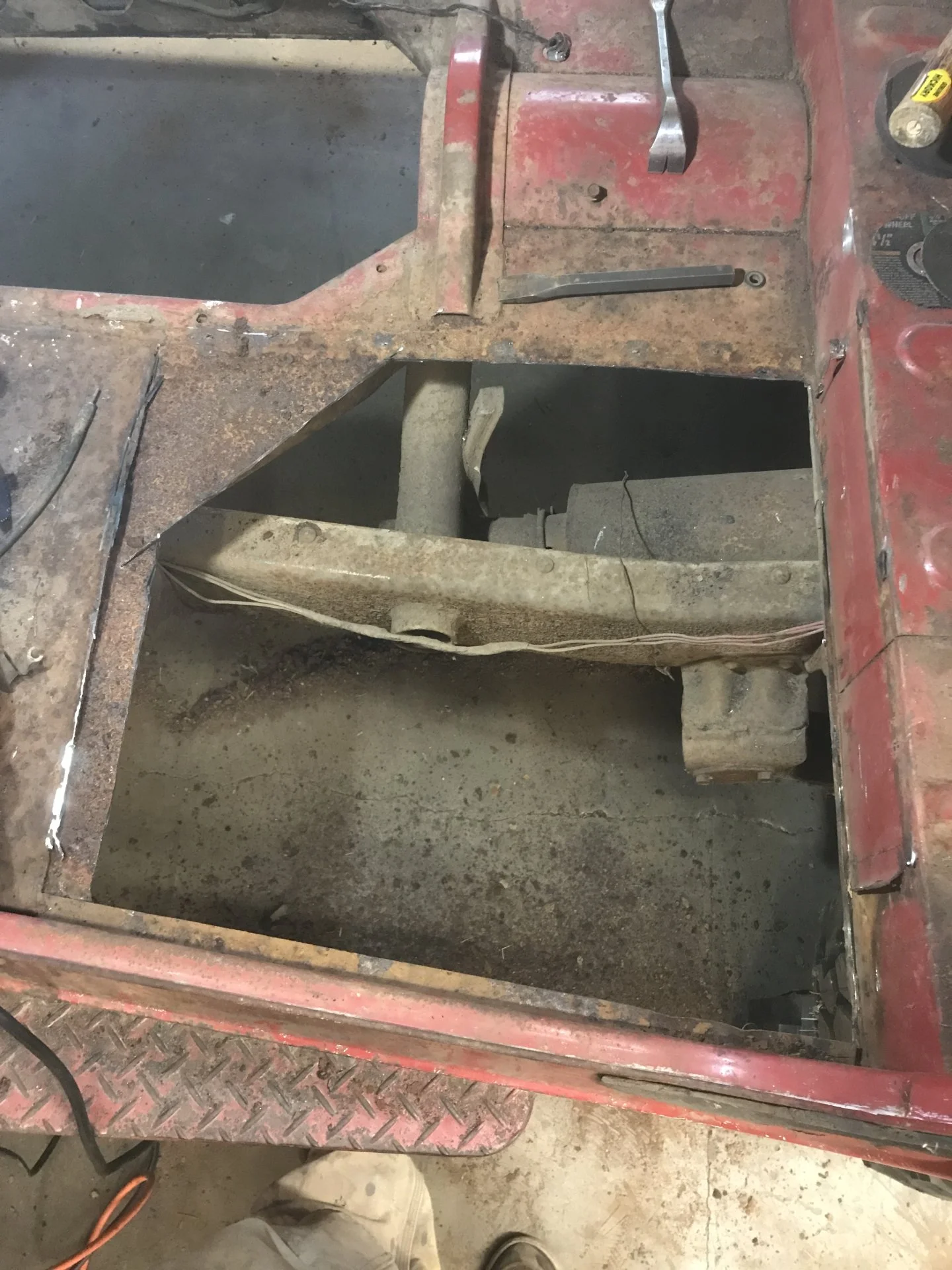

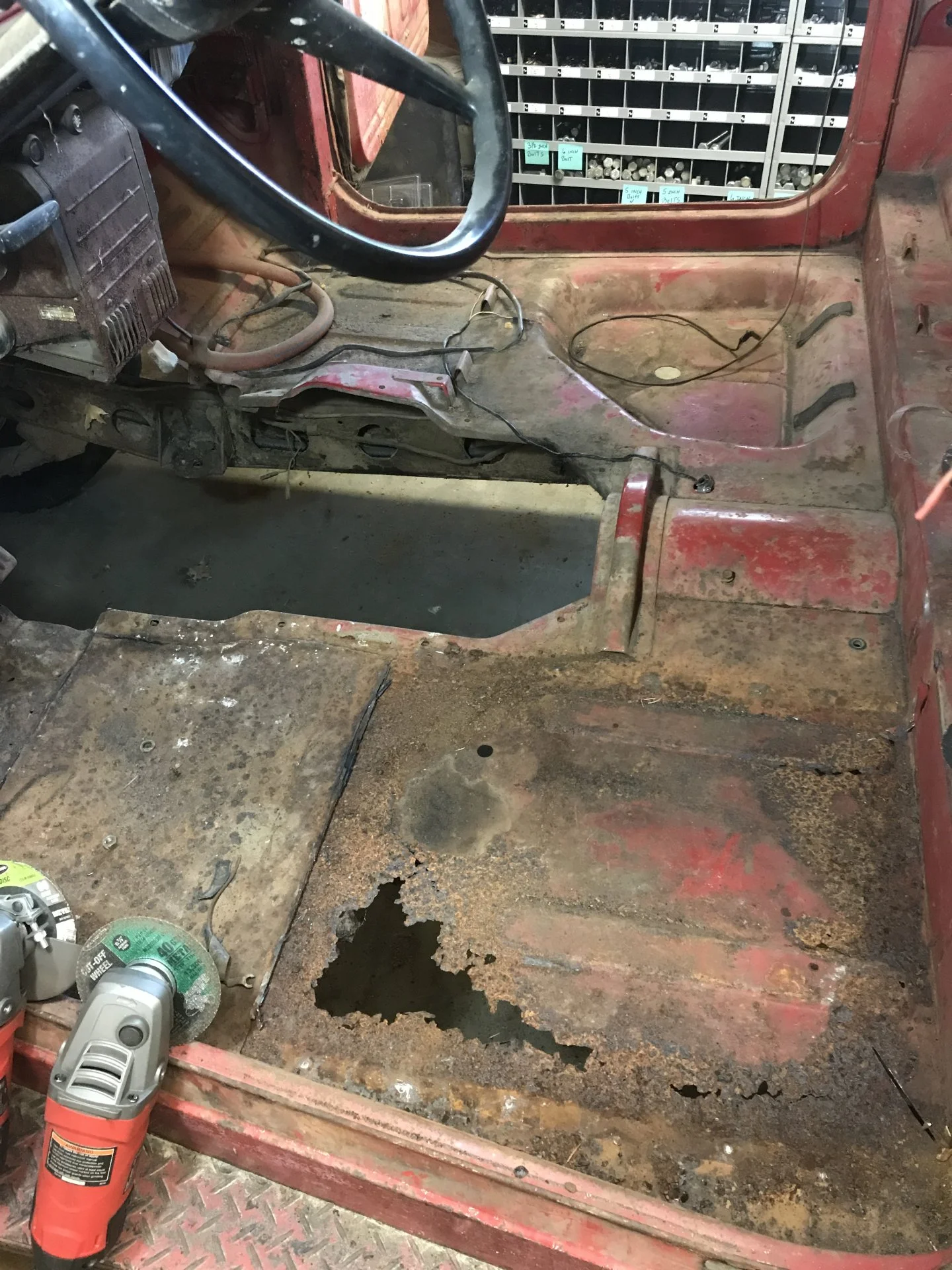

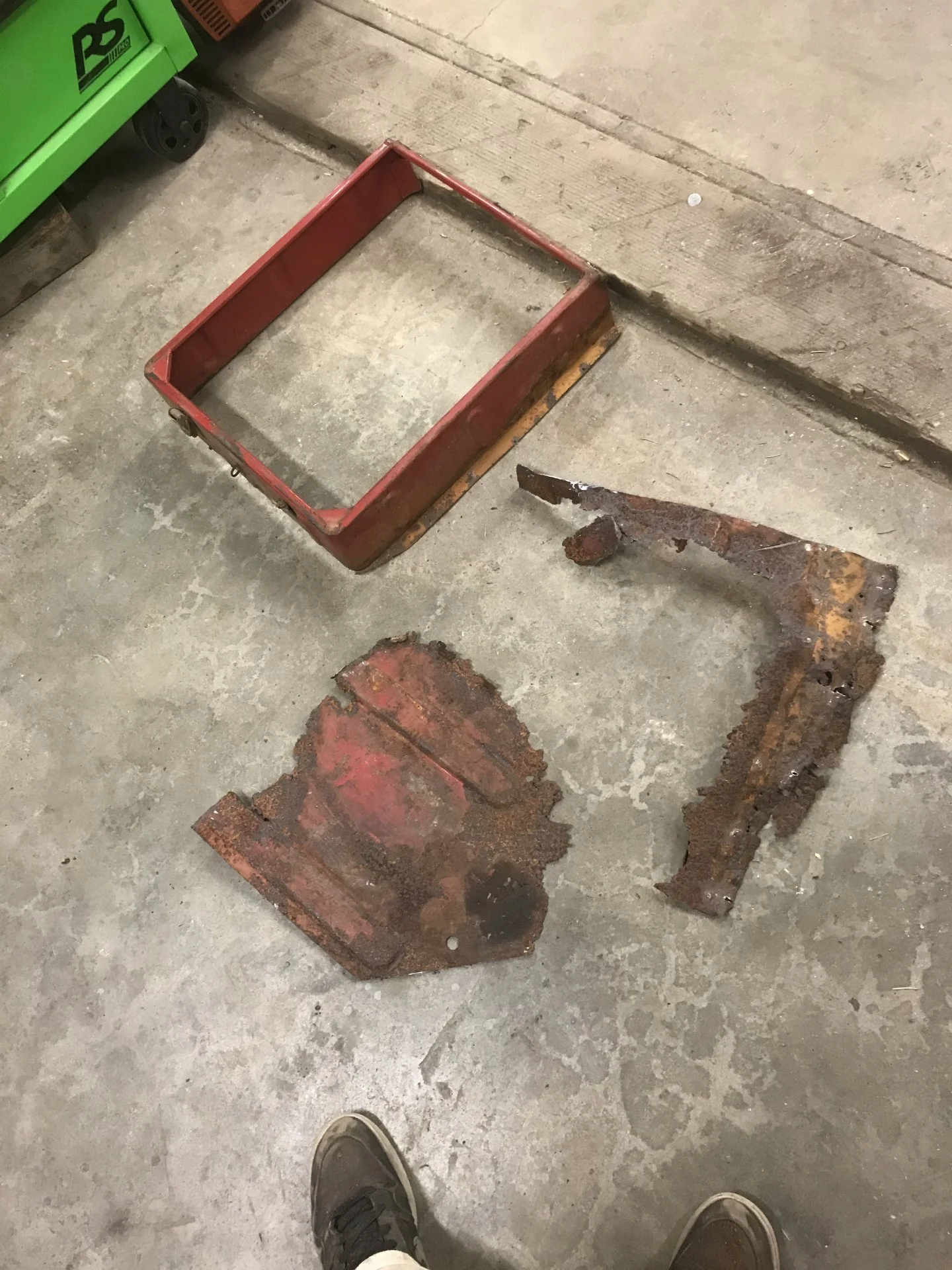

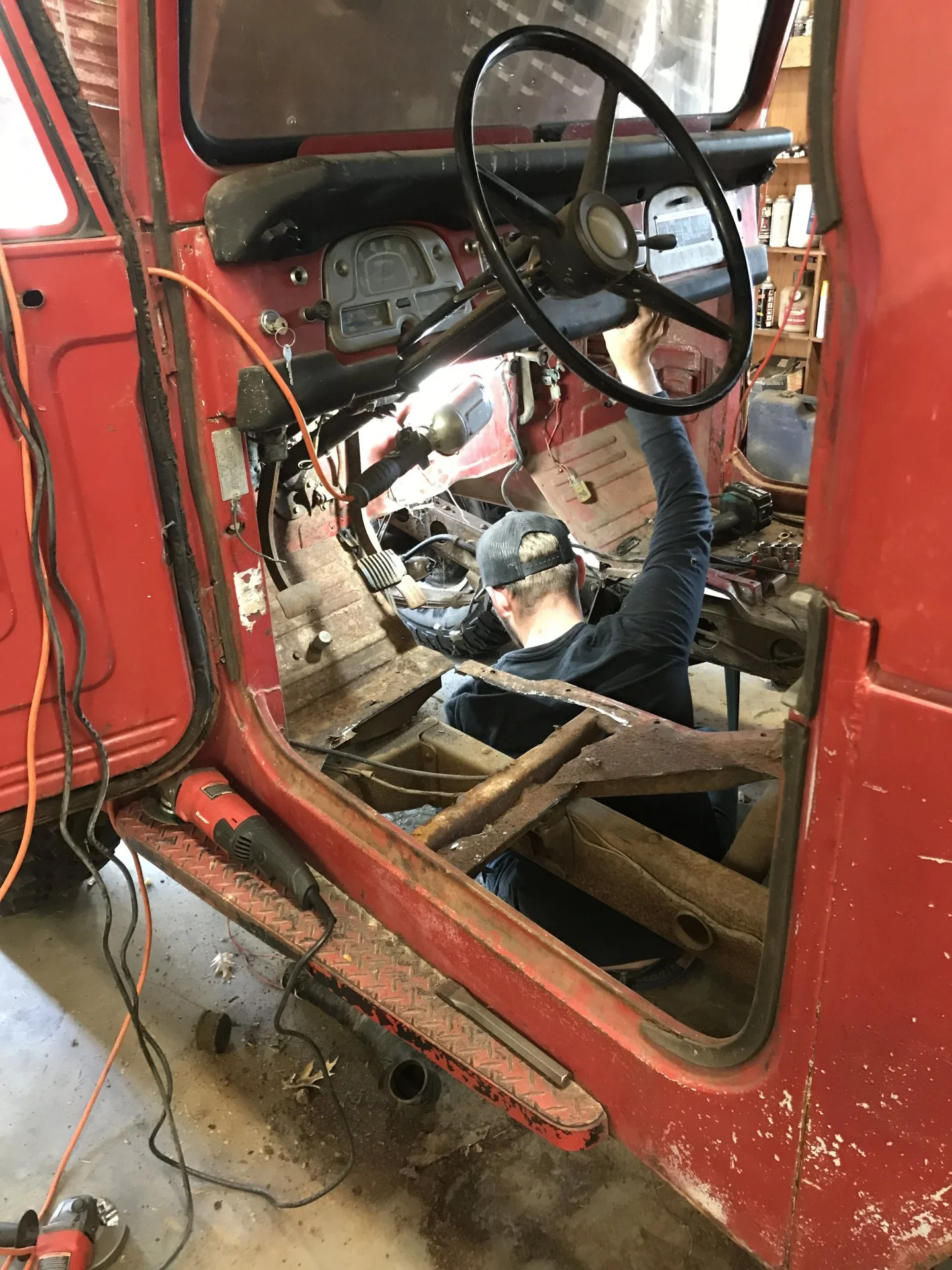

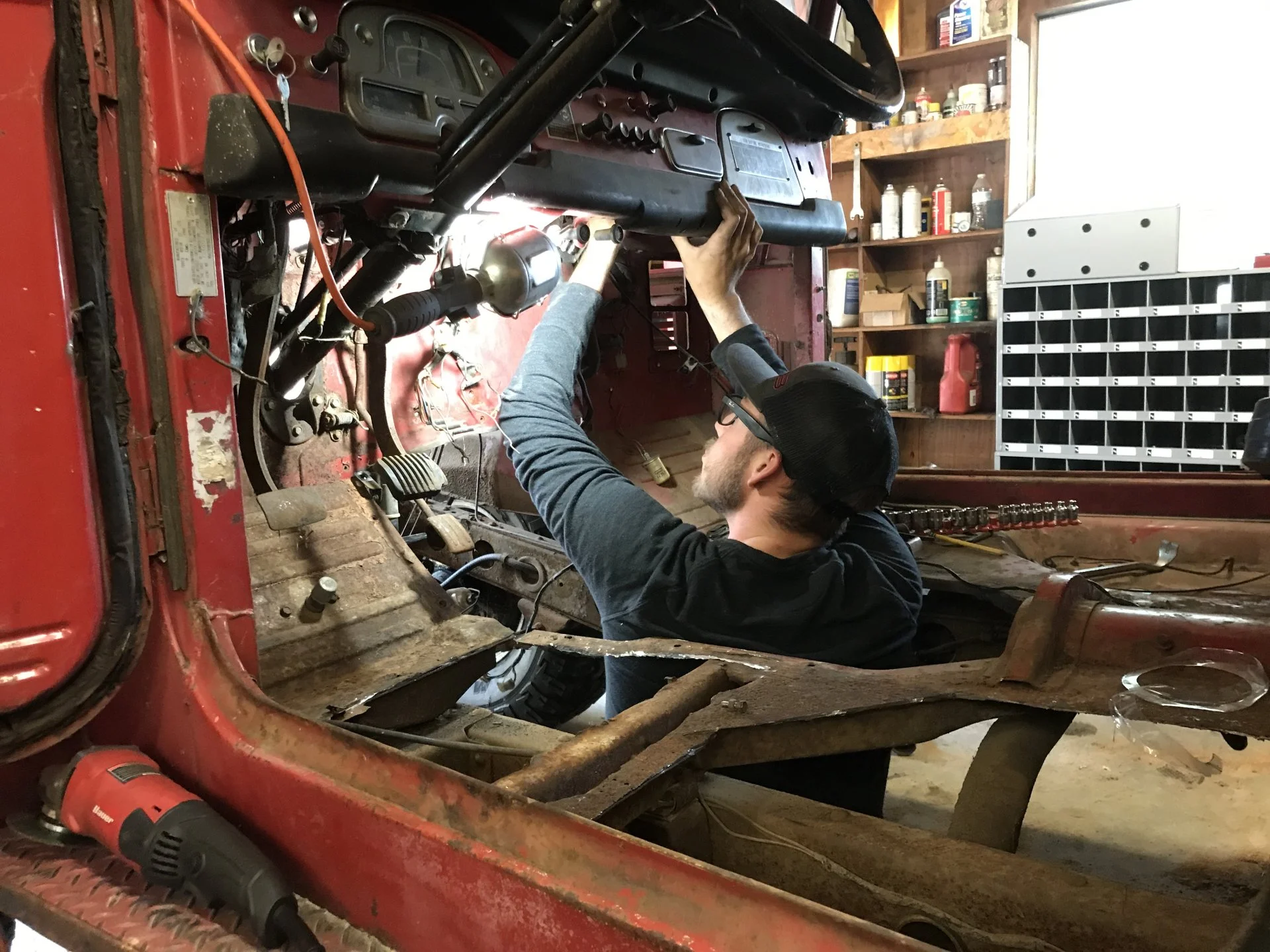

Early stages of rust removal and dashboard disassembly.

IMG_9078 2.webp




IMG_9081 2.webp




IMG_9090 2.webp

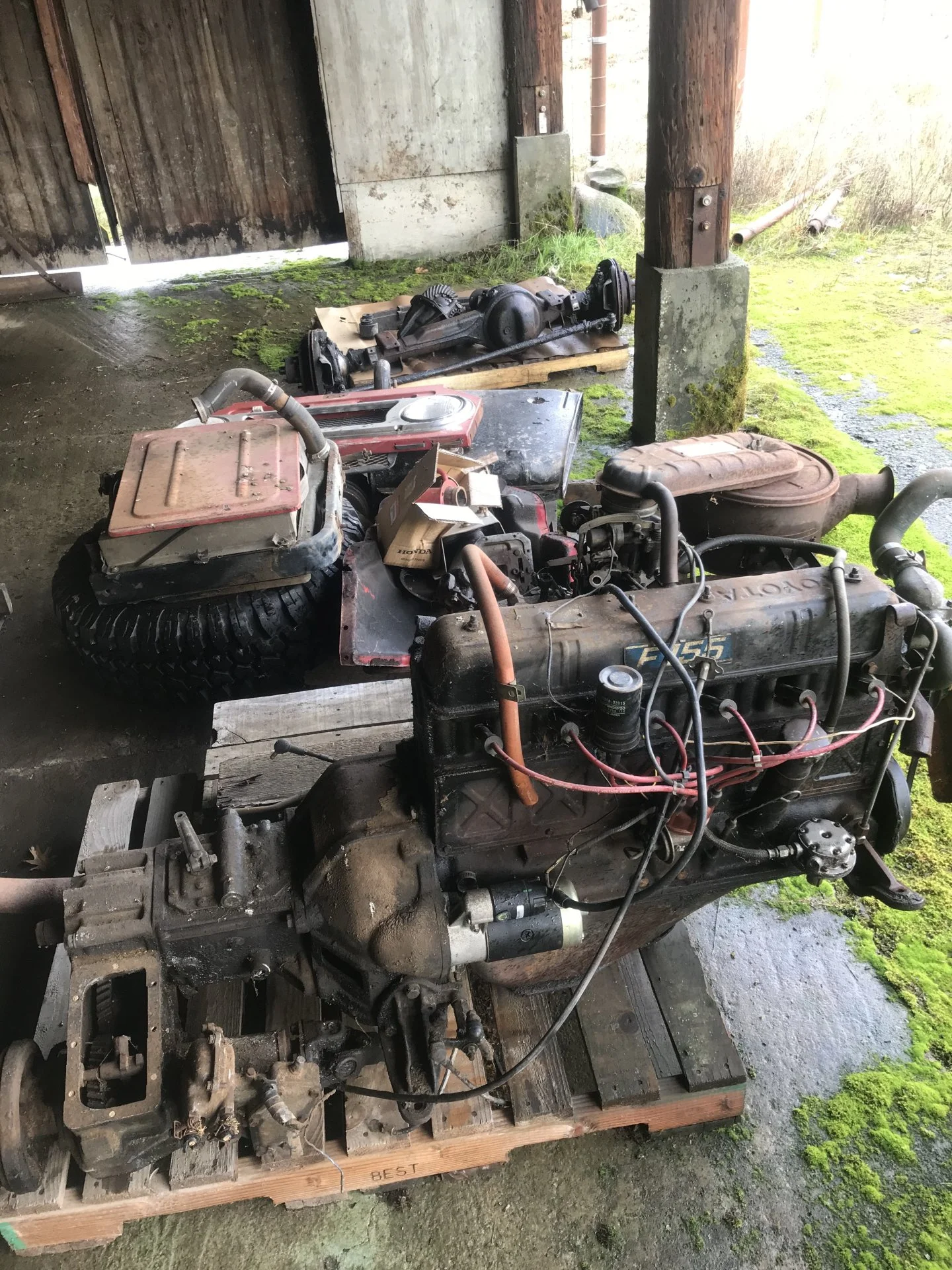

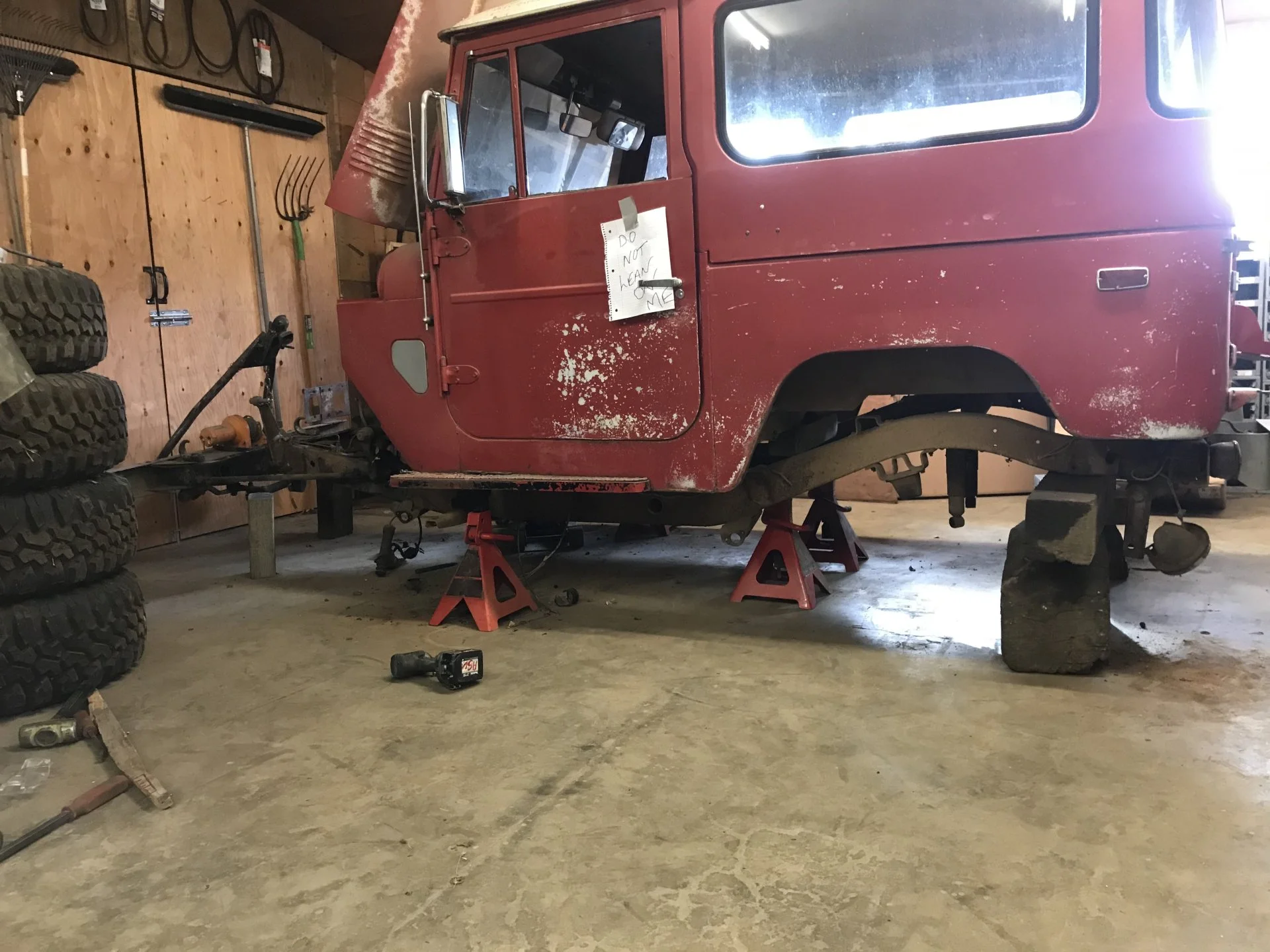

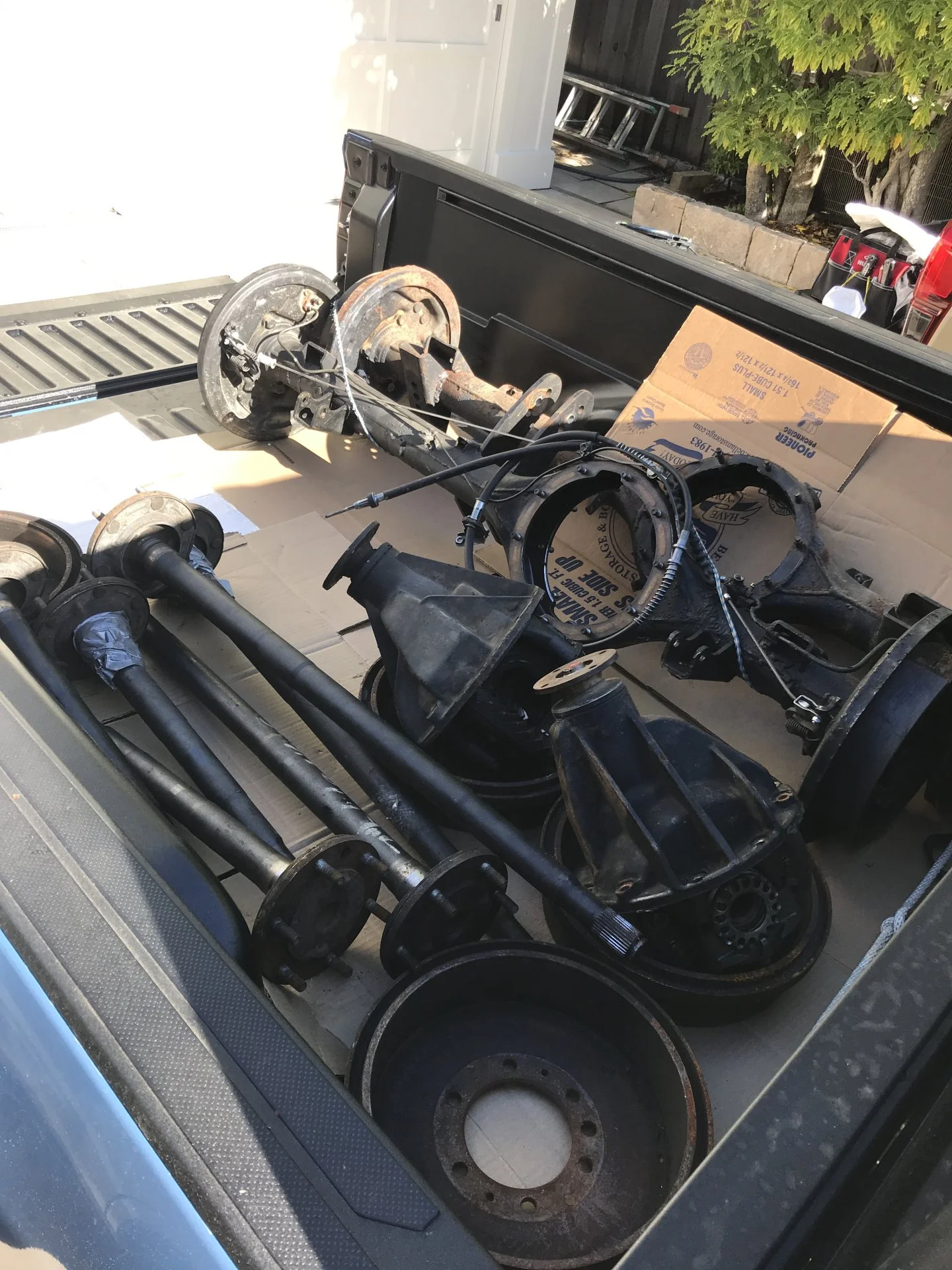

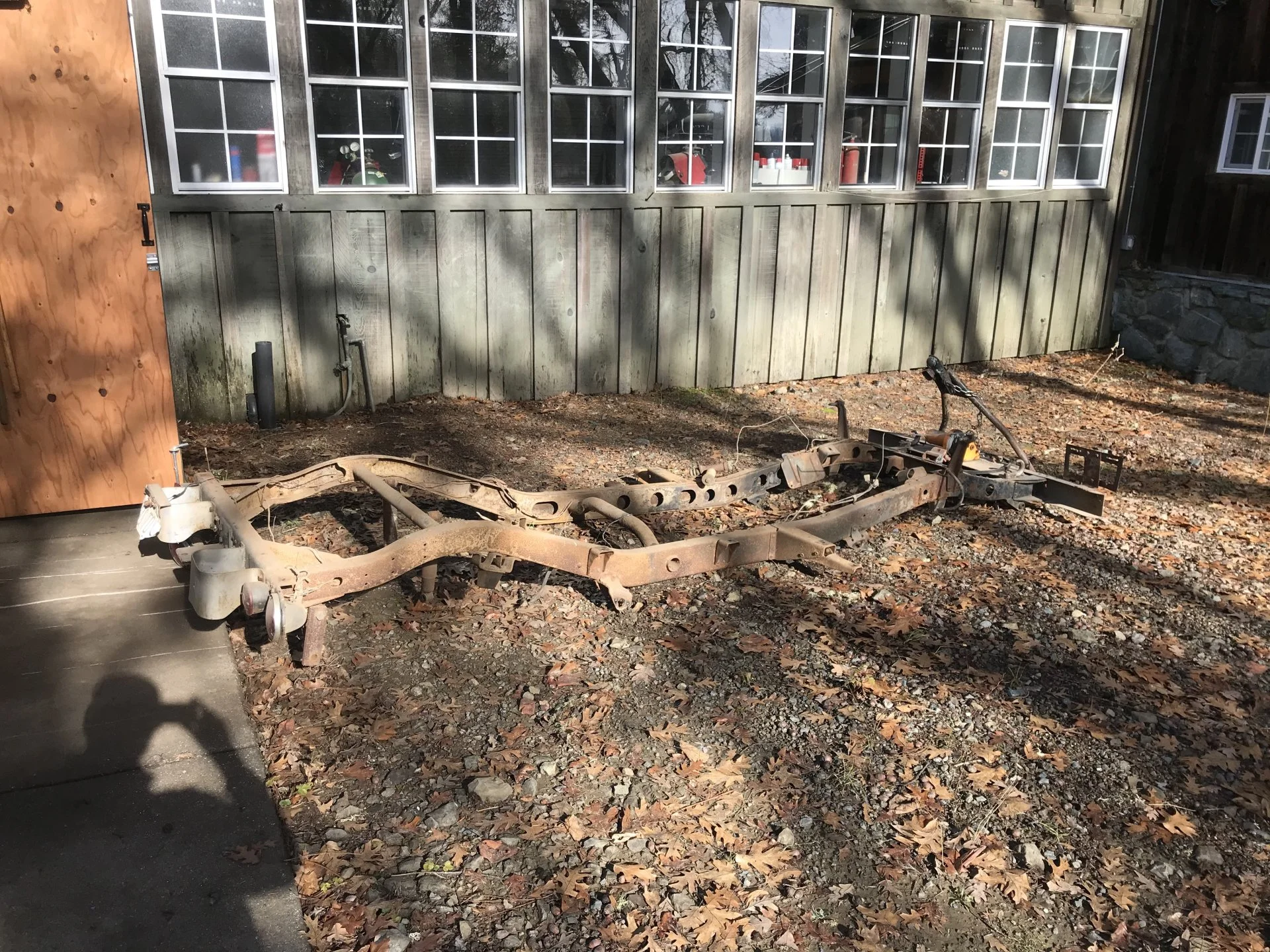

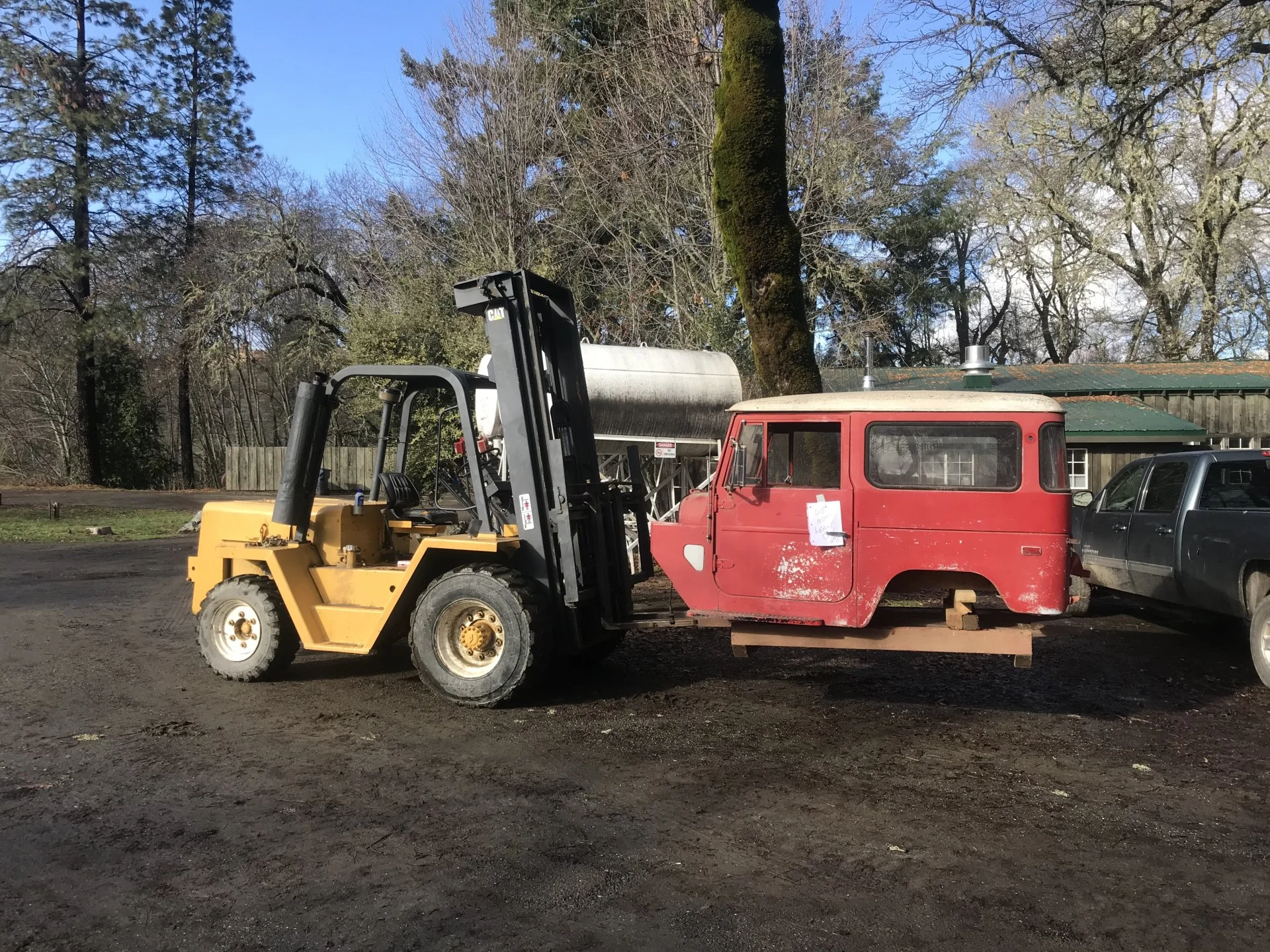

Craigslist axles acquired, body removed, frame stripped, engine into barn storage.

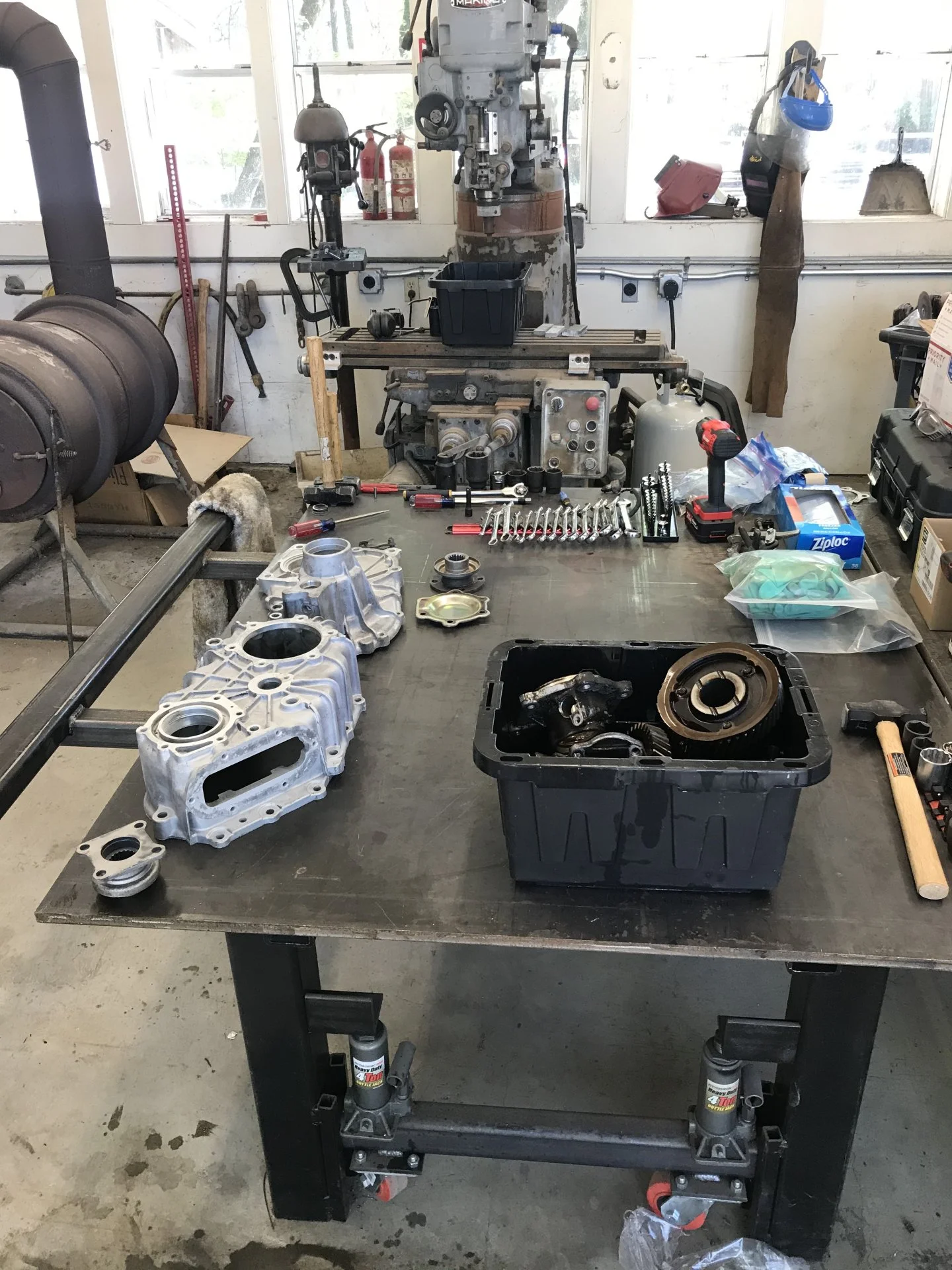

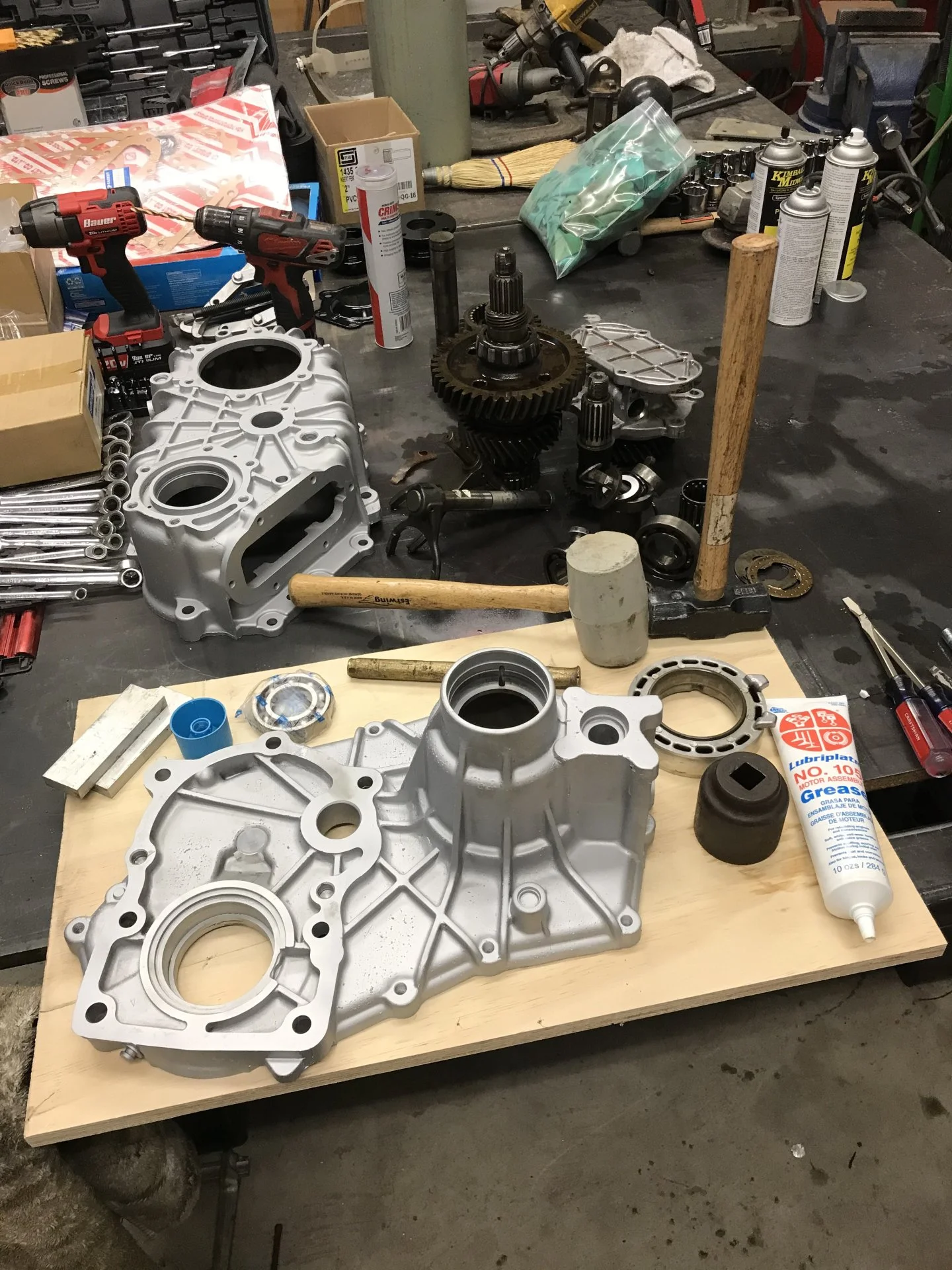

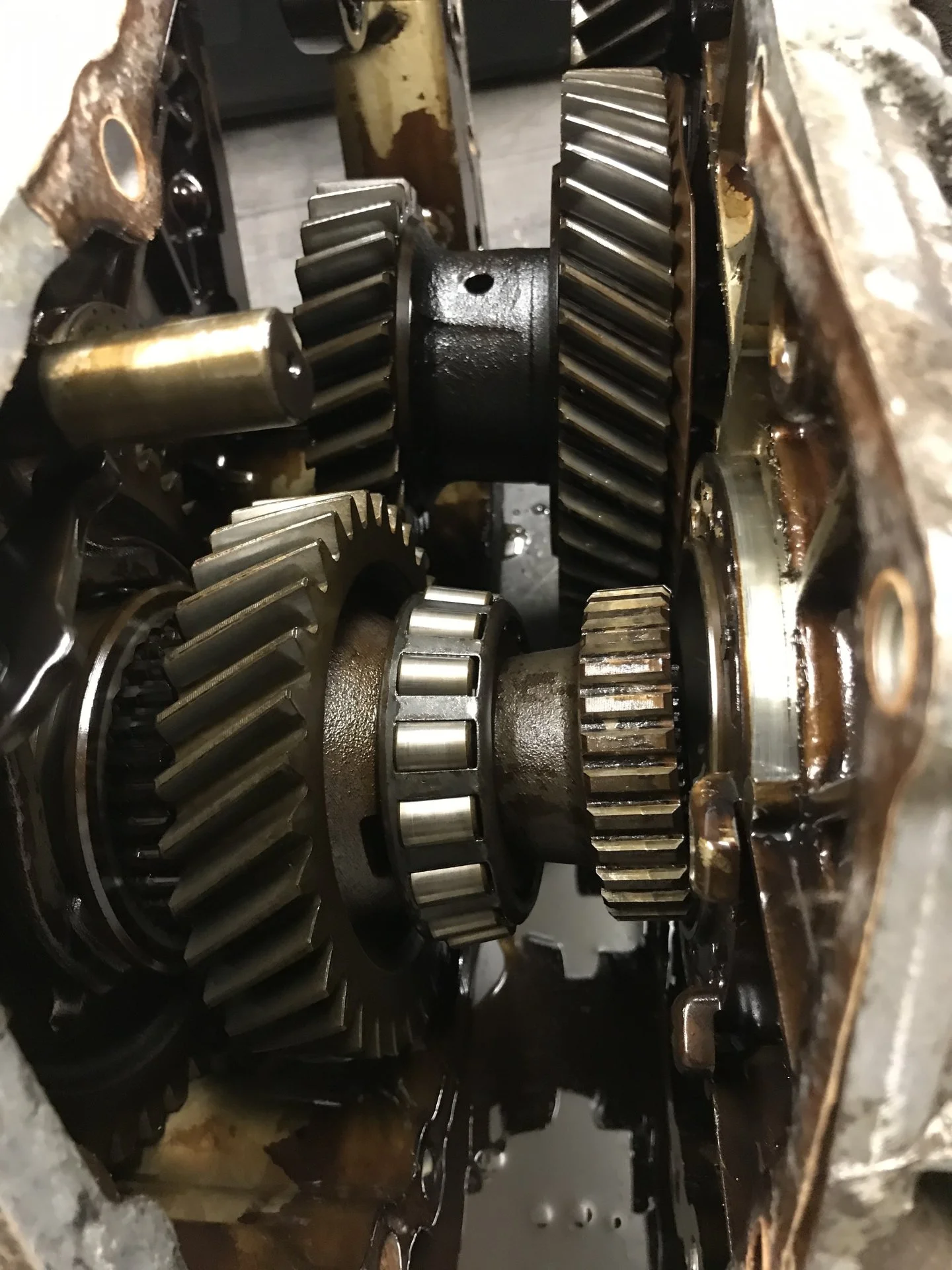

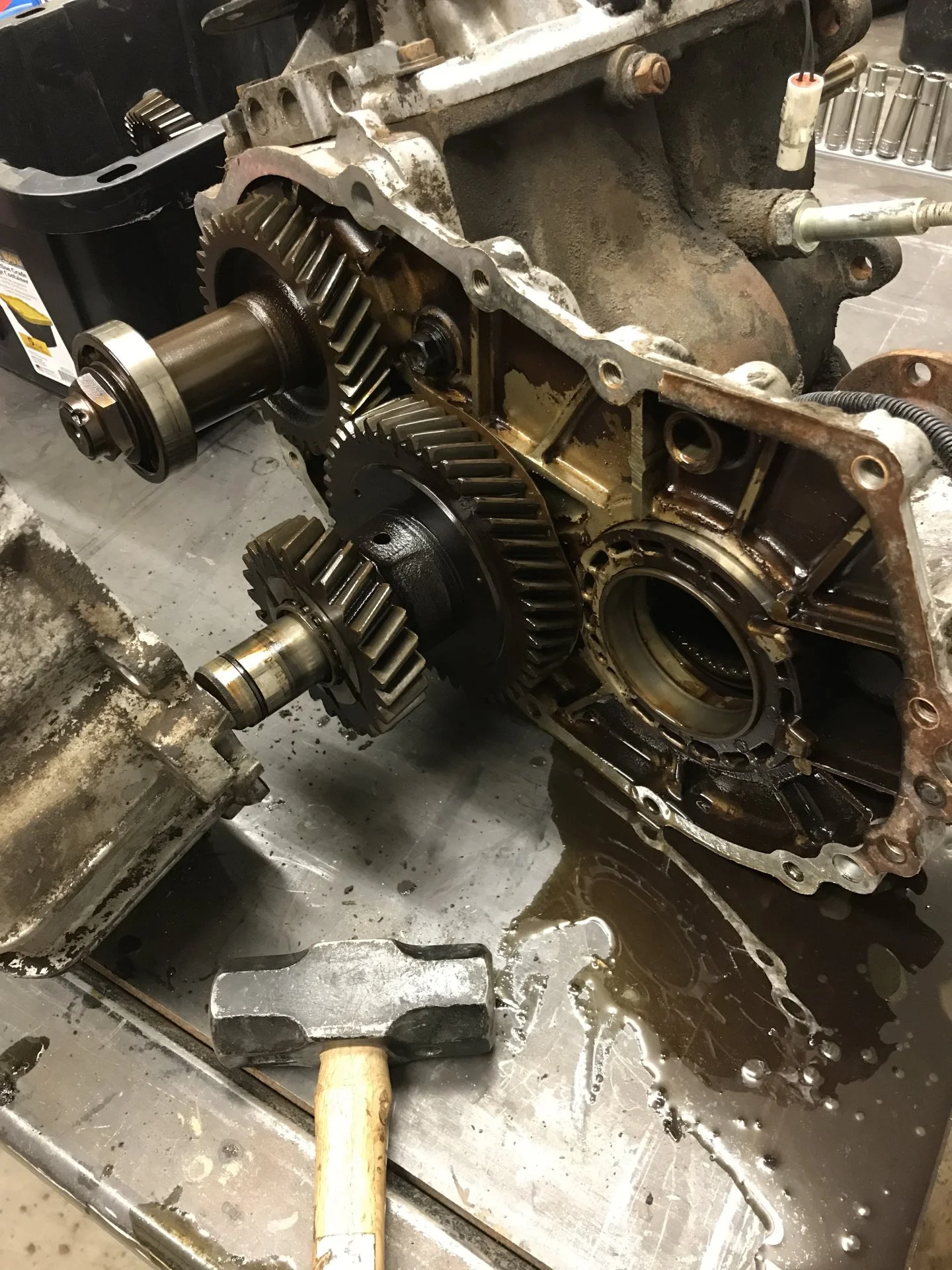

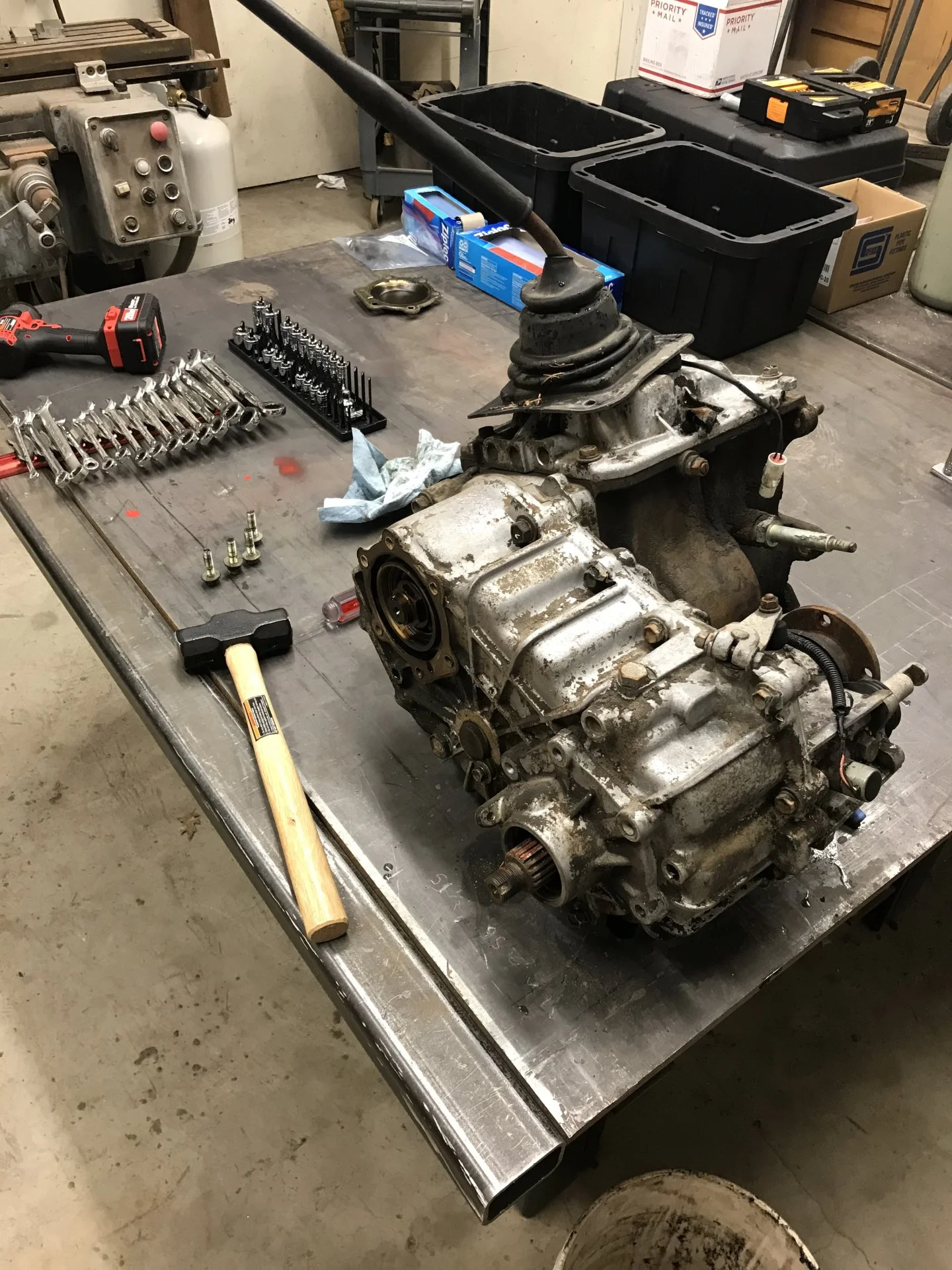

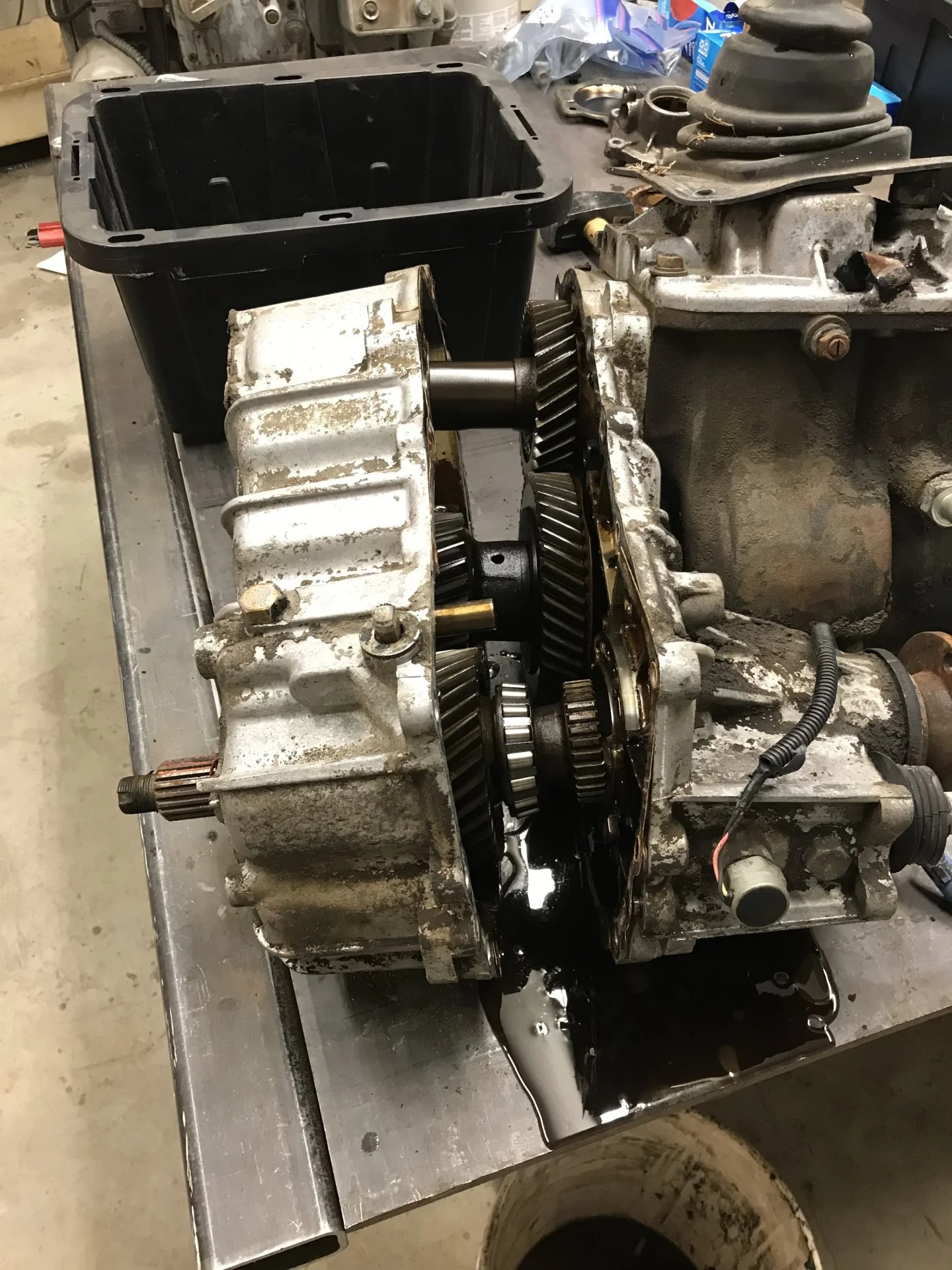

Transfer Case rebuild part 1



IMG_0122 2.webp

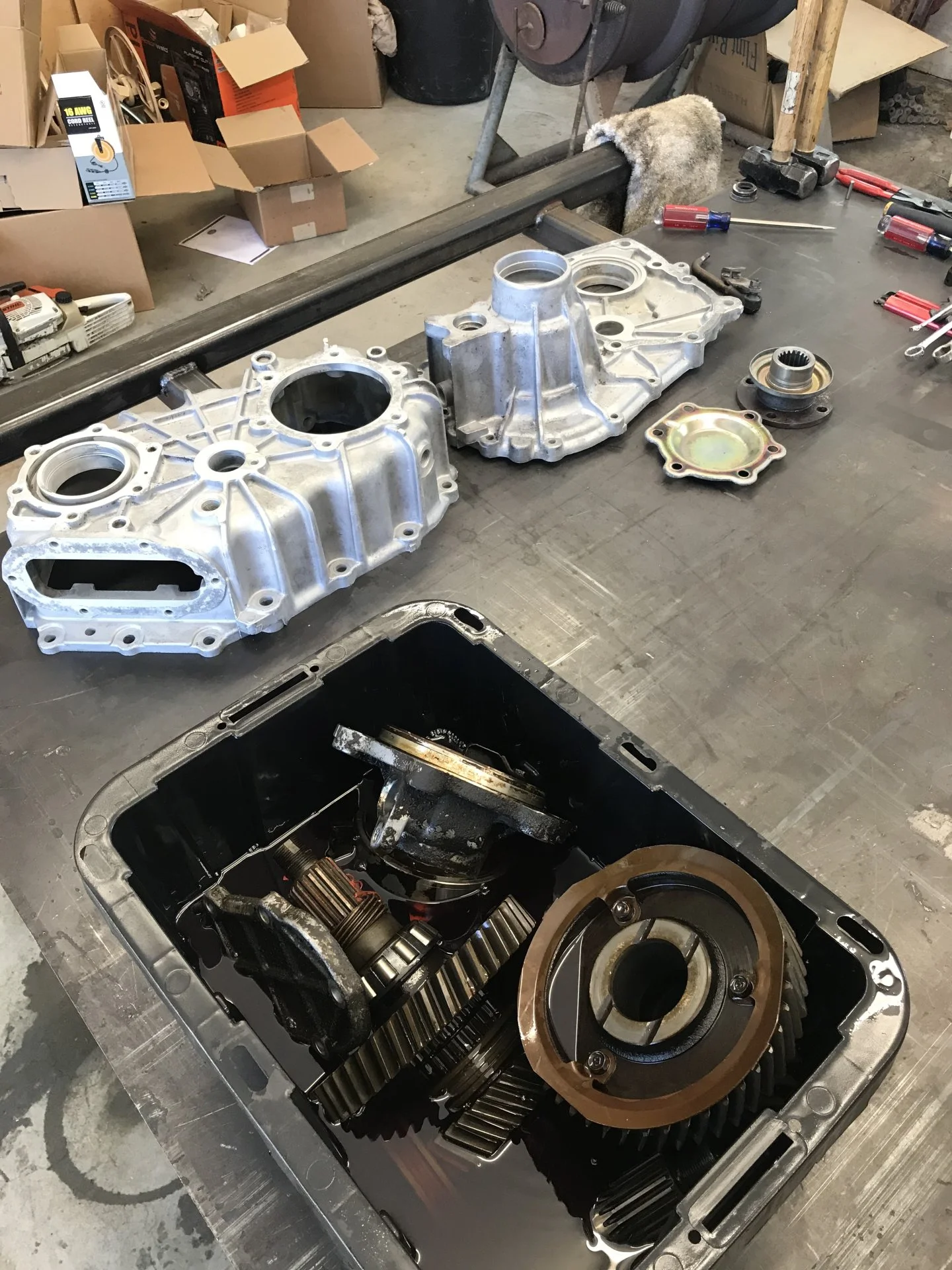

Transfer case rebuild part 2

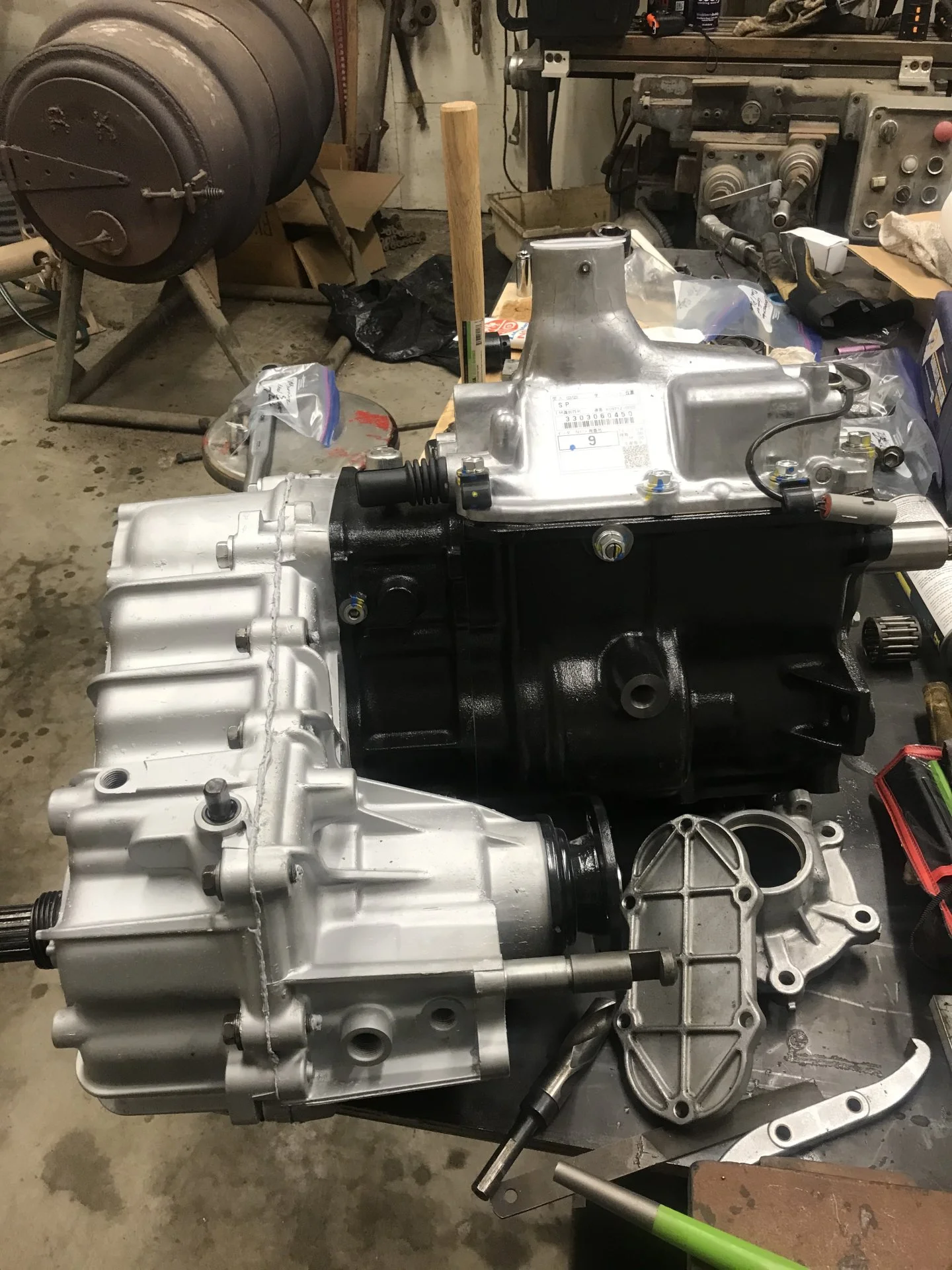

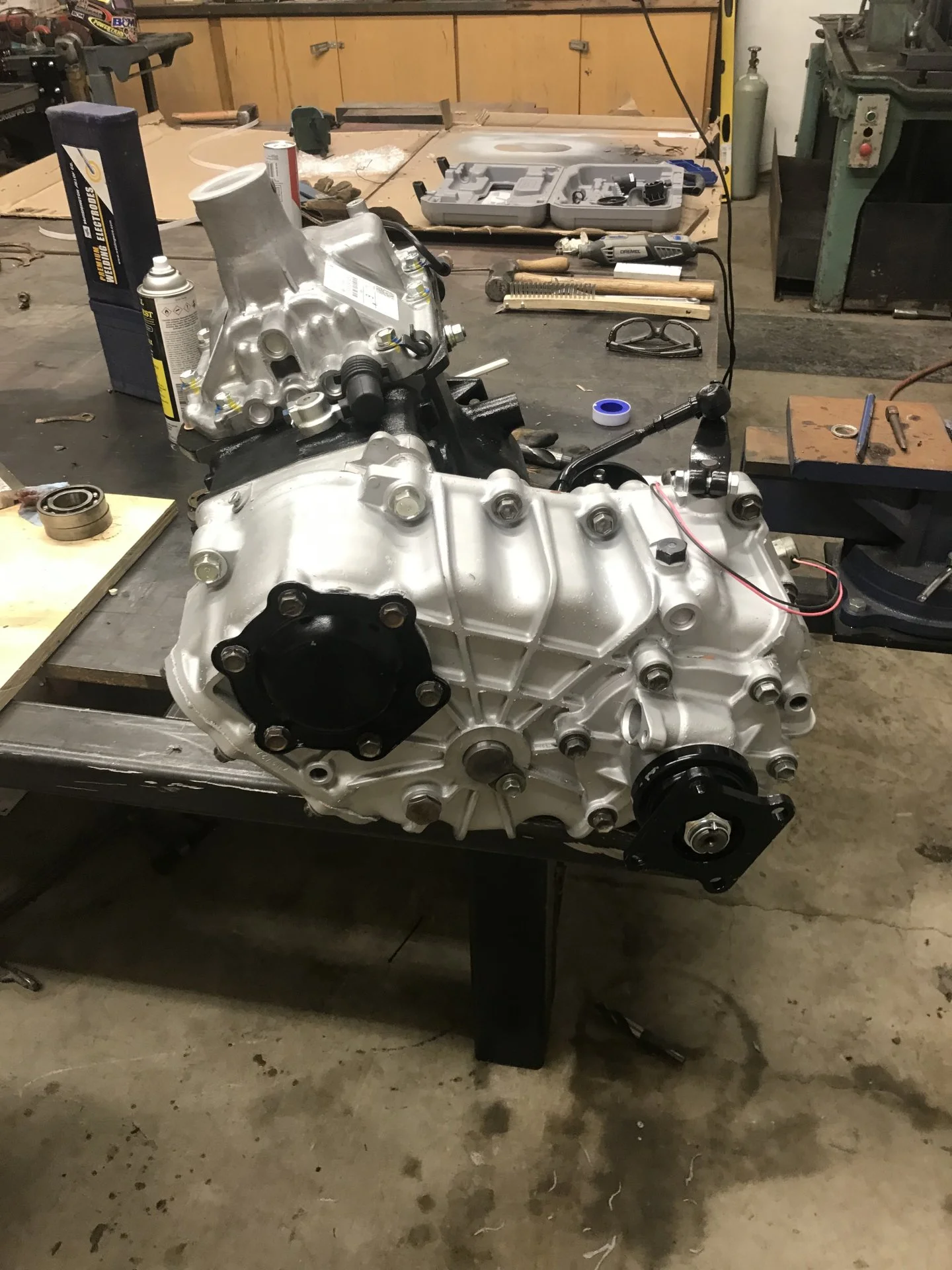

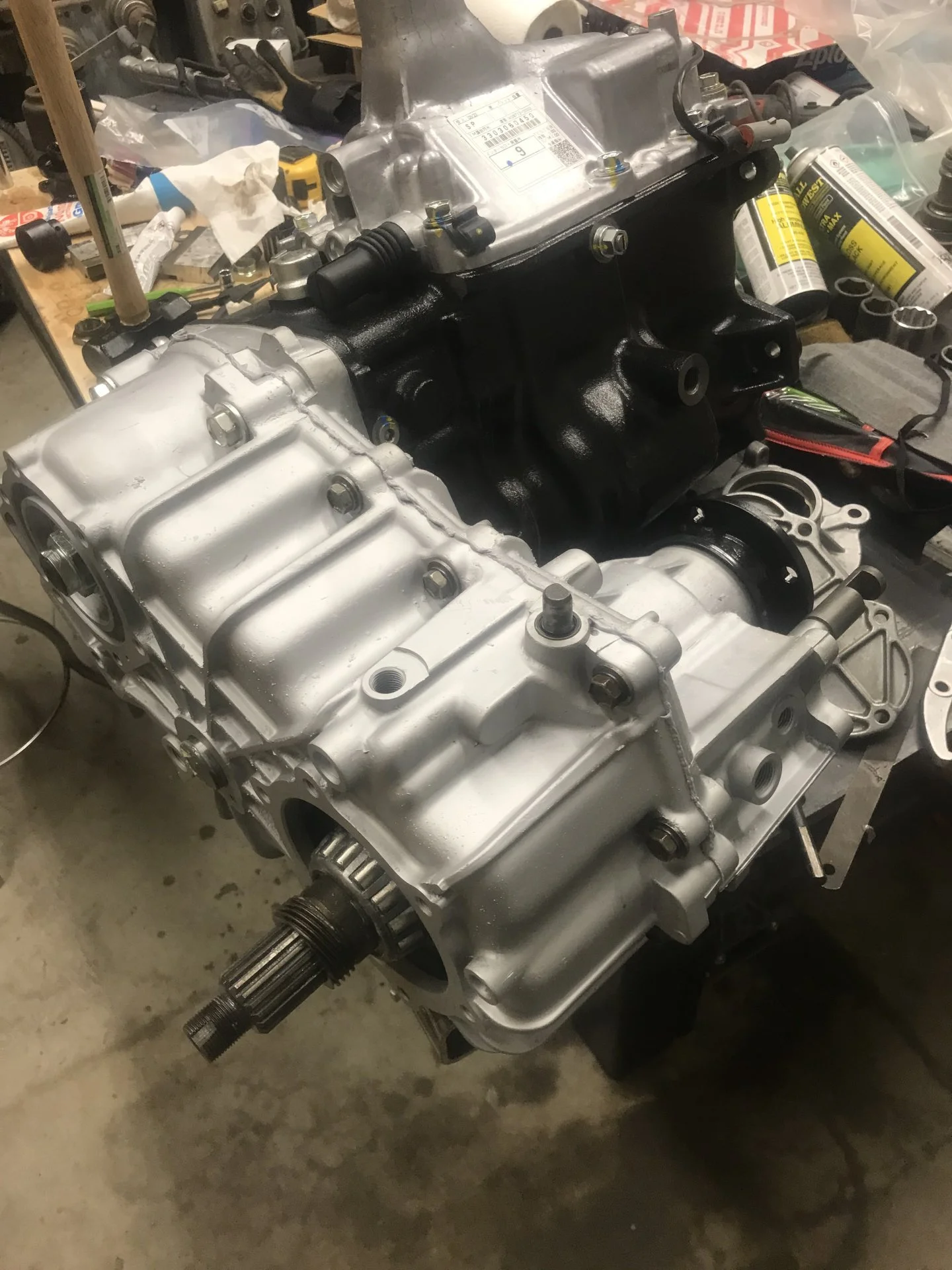

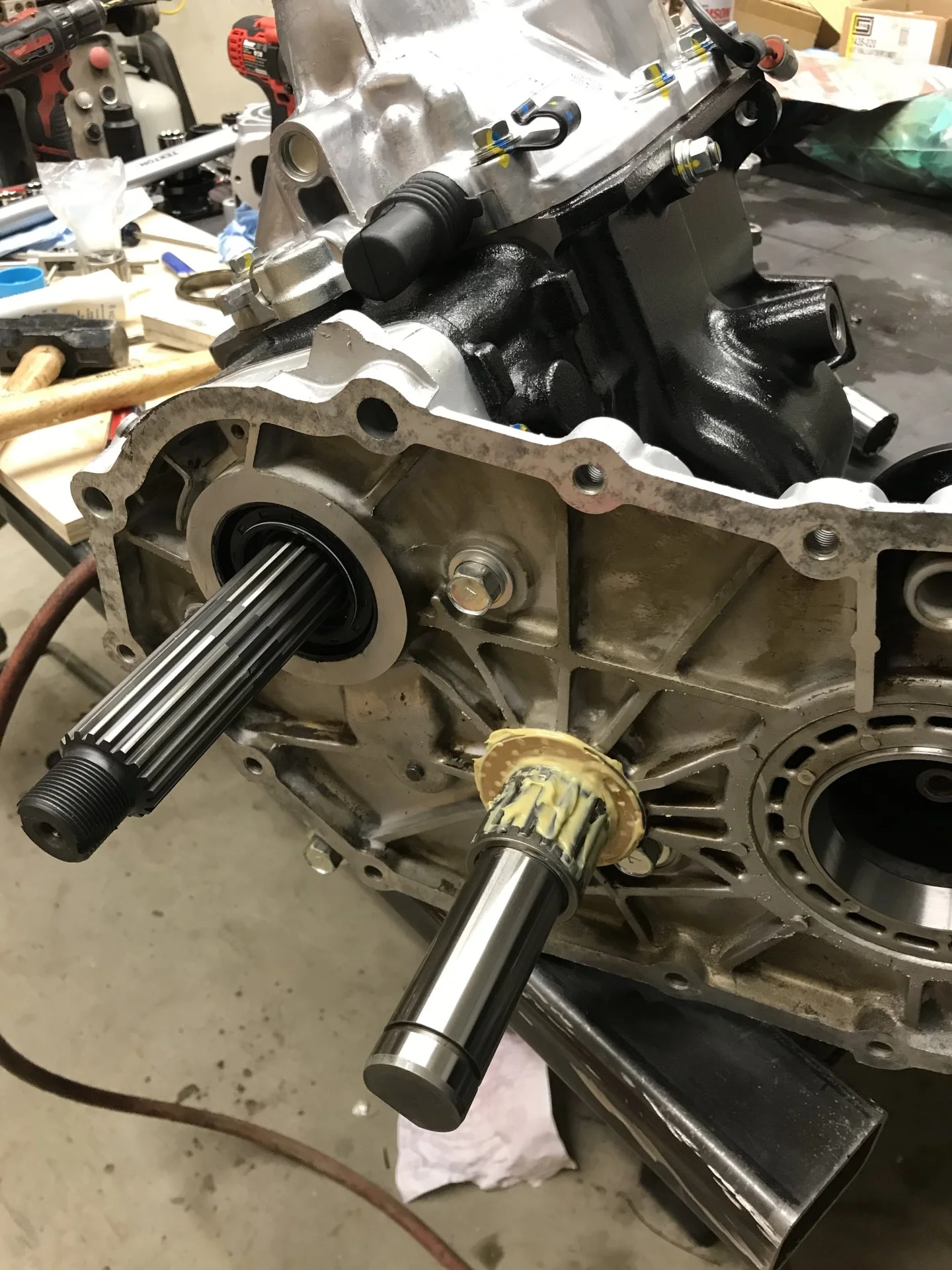

Transfer Case Completed.

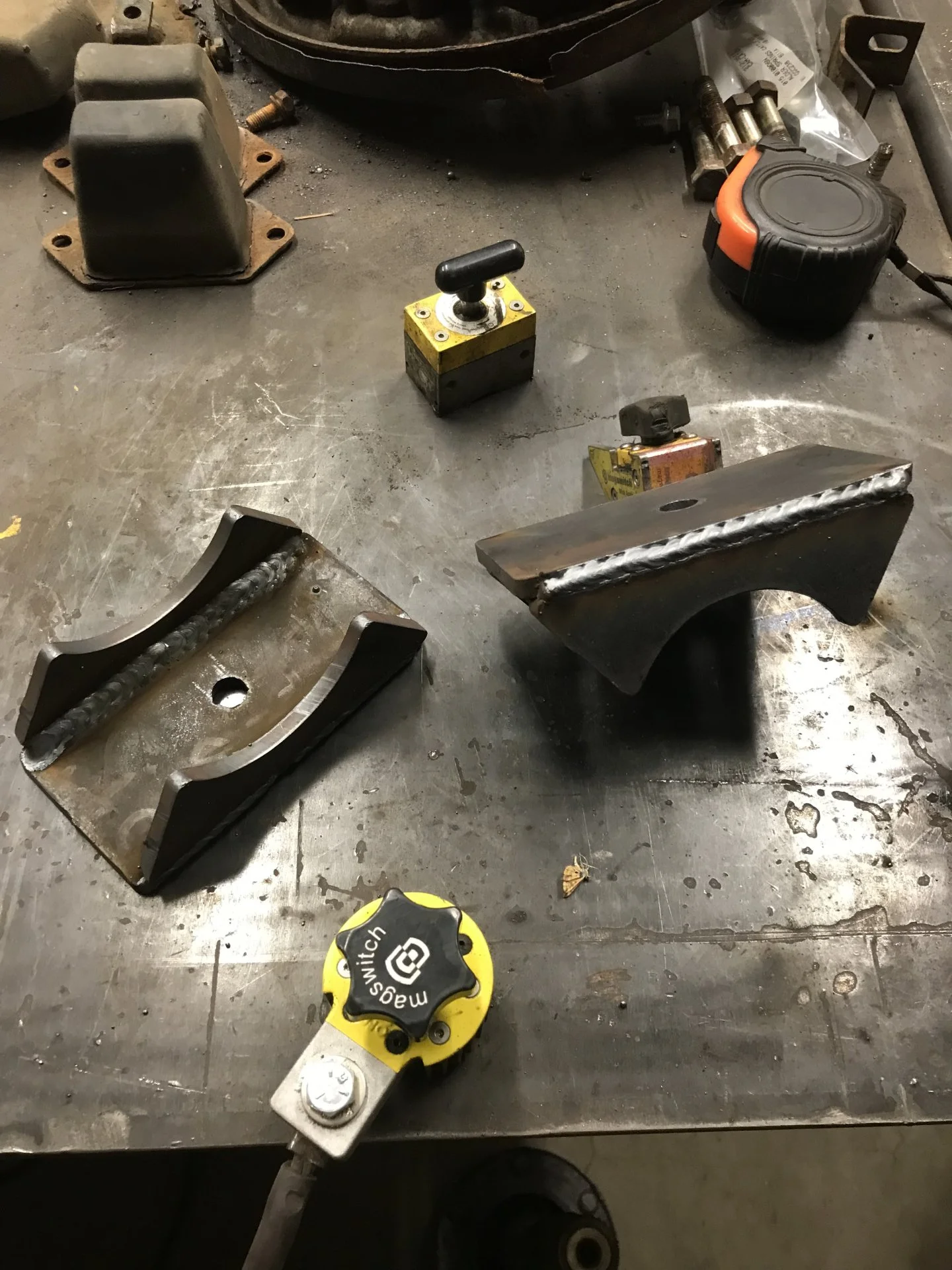

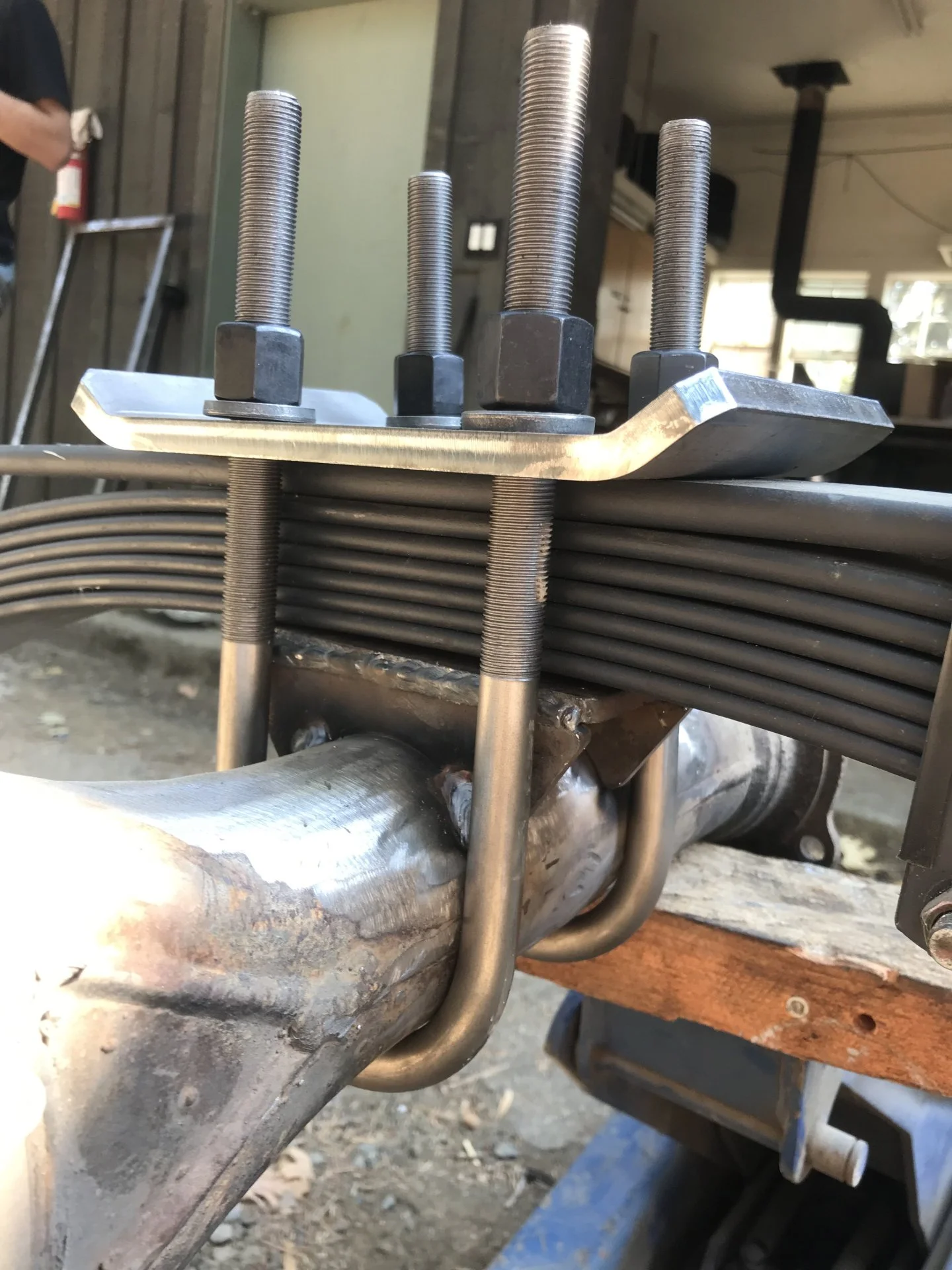

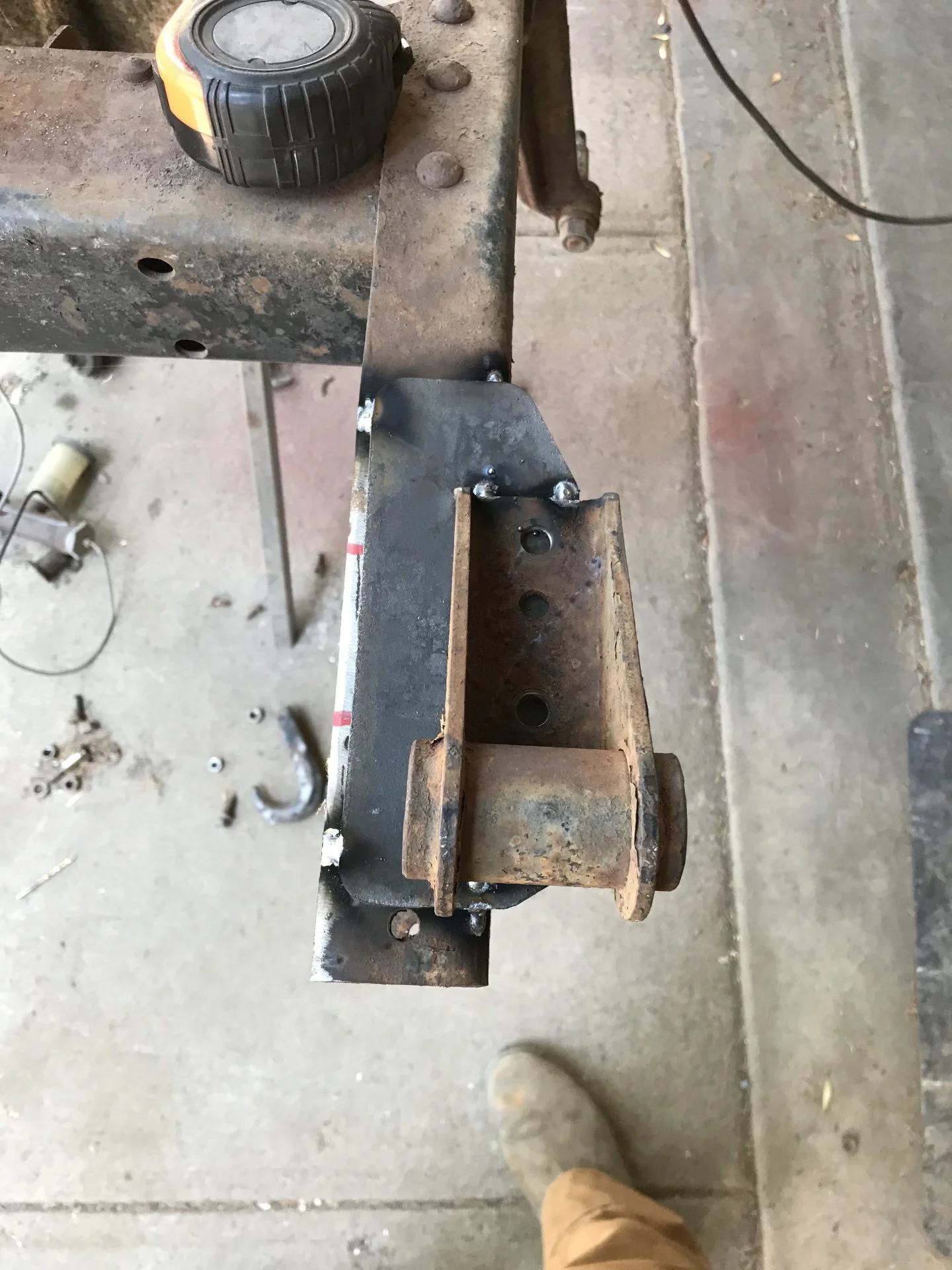

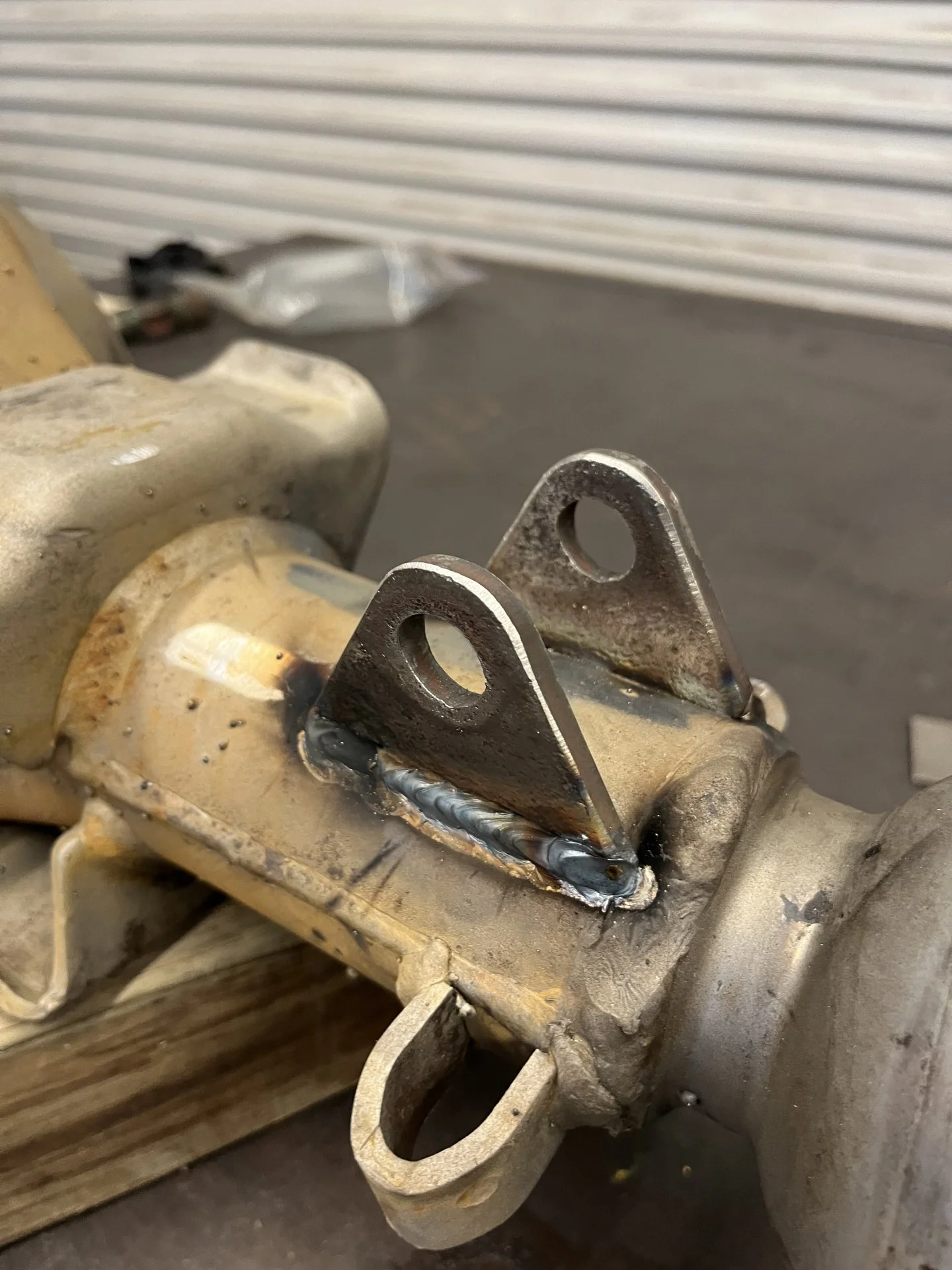

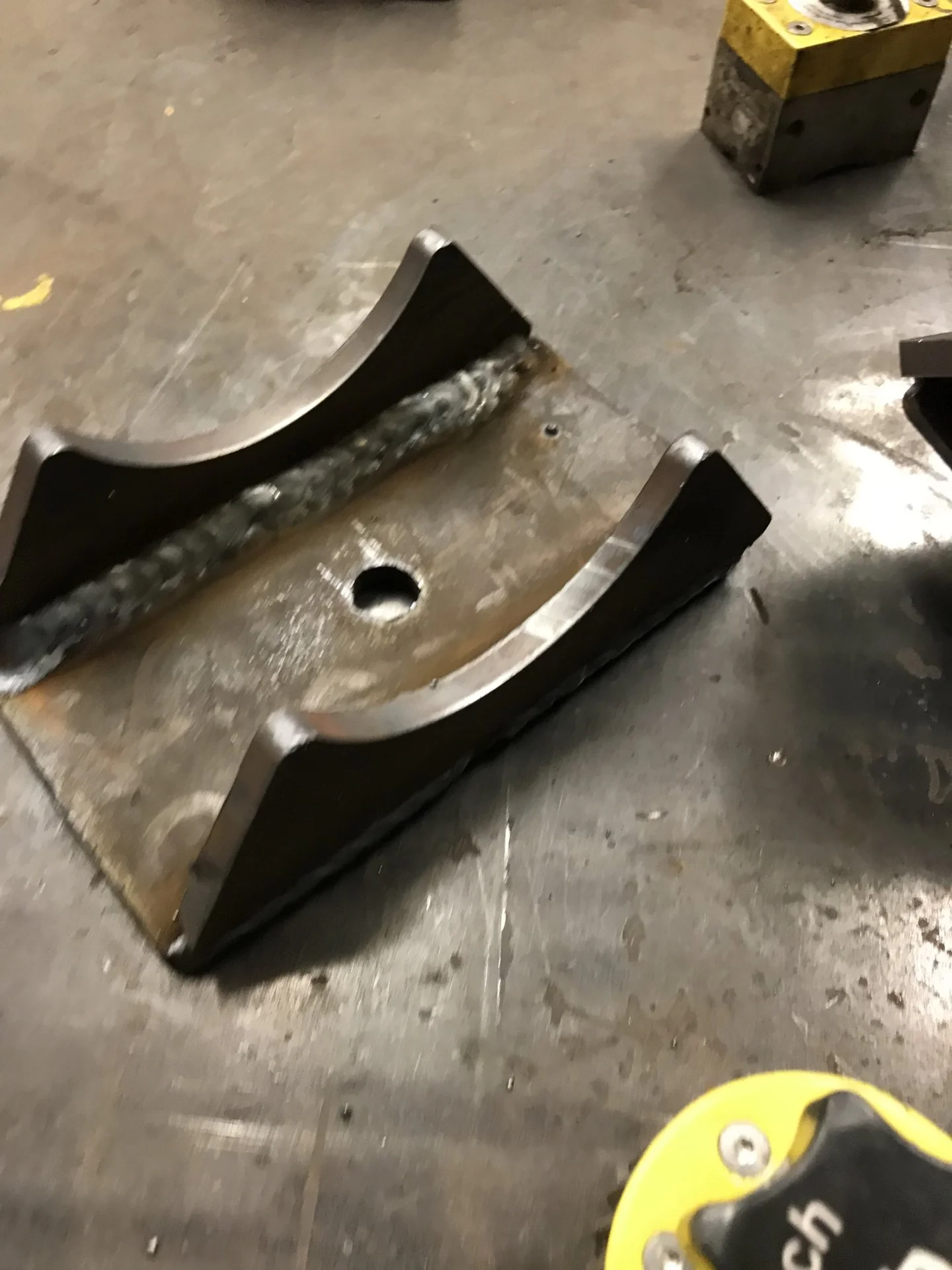

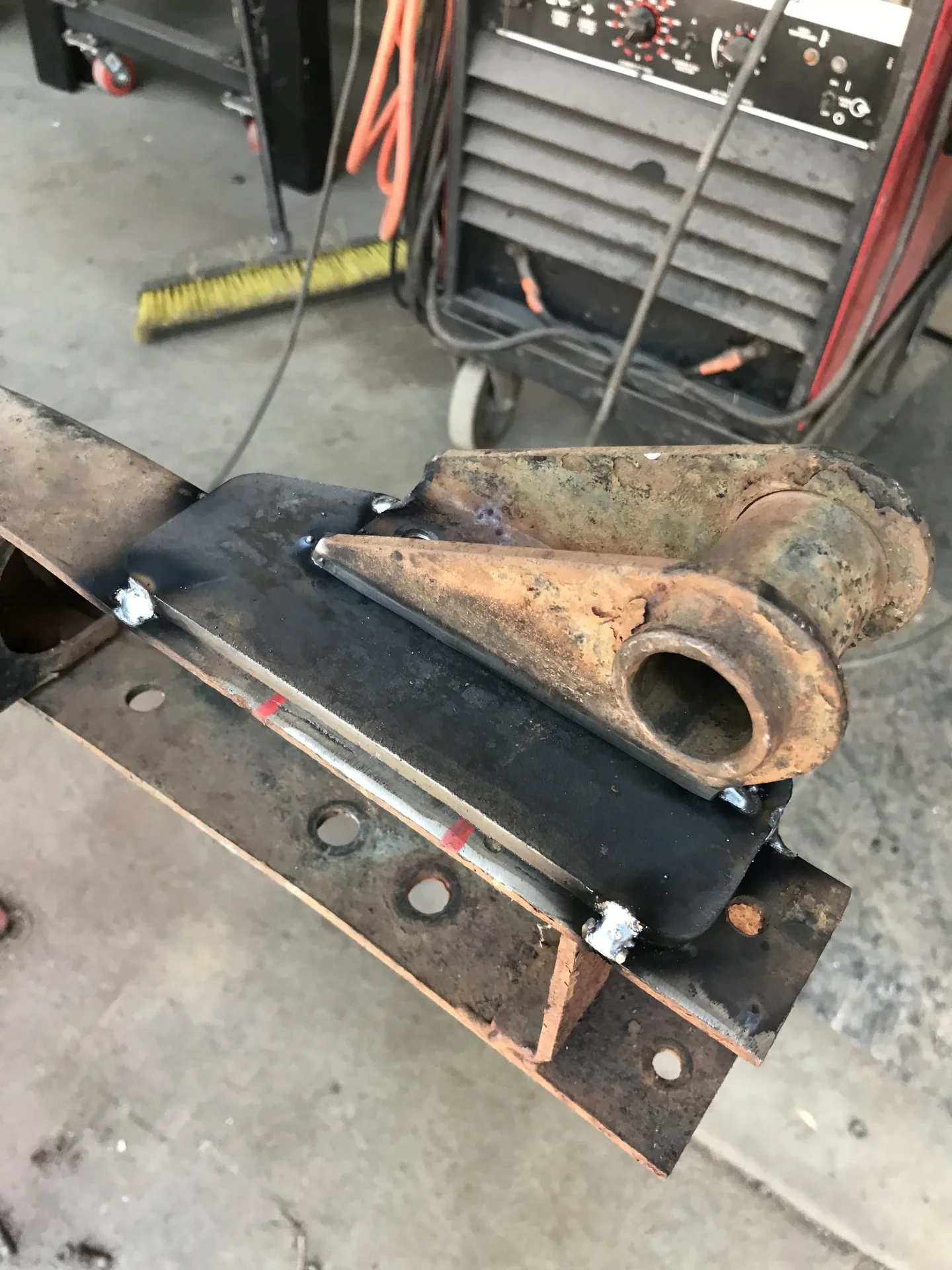

Frame and spring perch modifications.







IMG_1382 2.webp


IMG_1383 2.webp

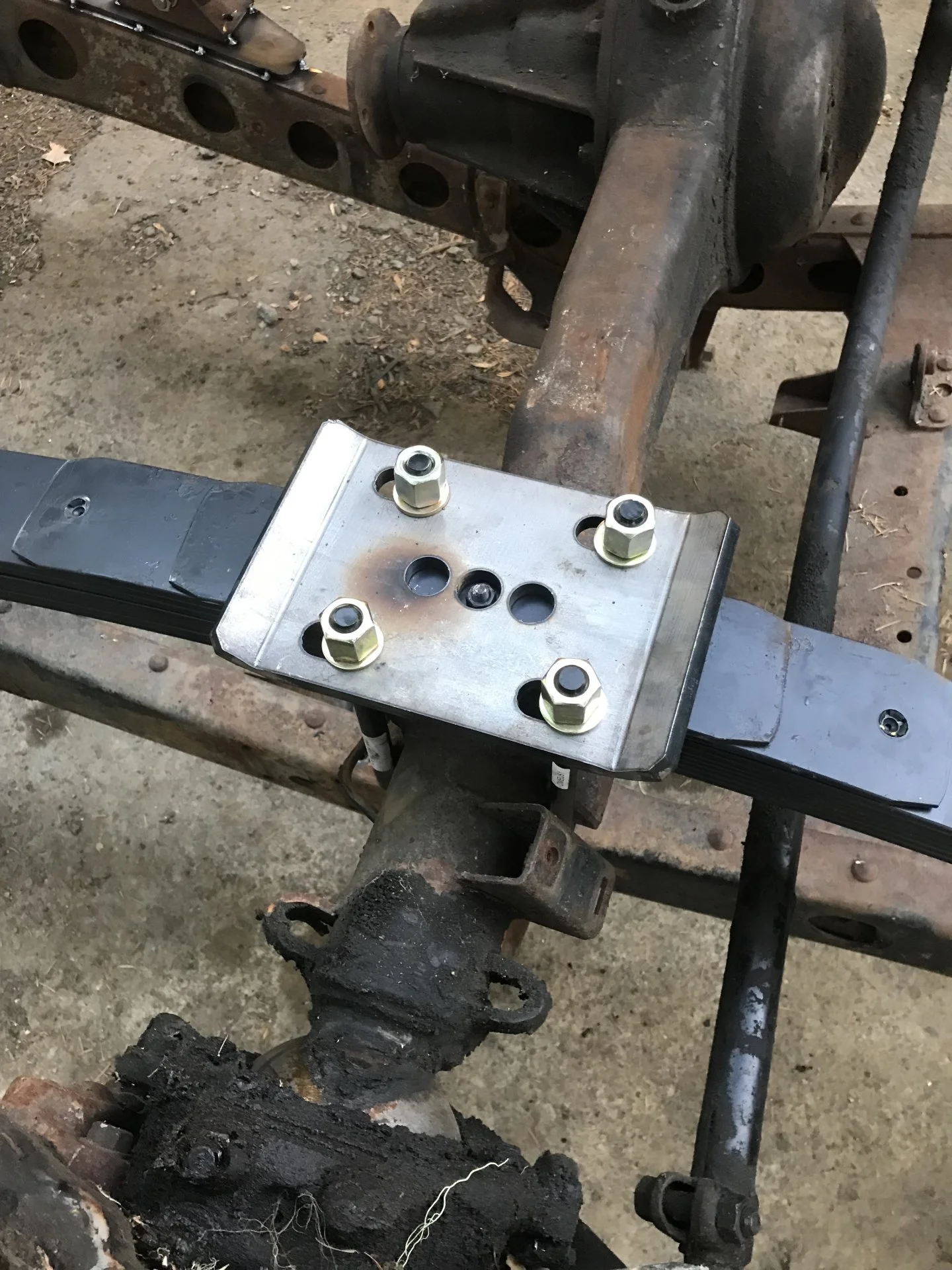

Springs and perches completed

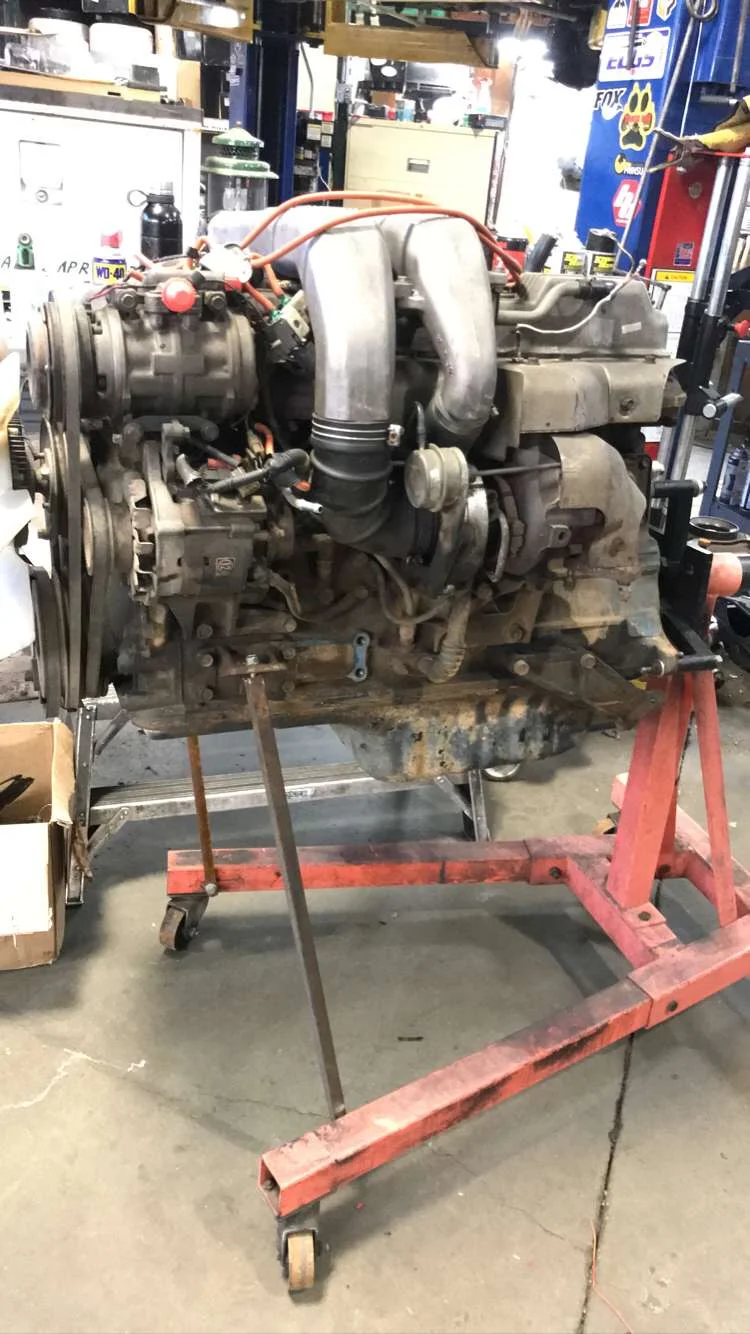

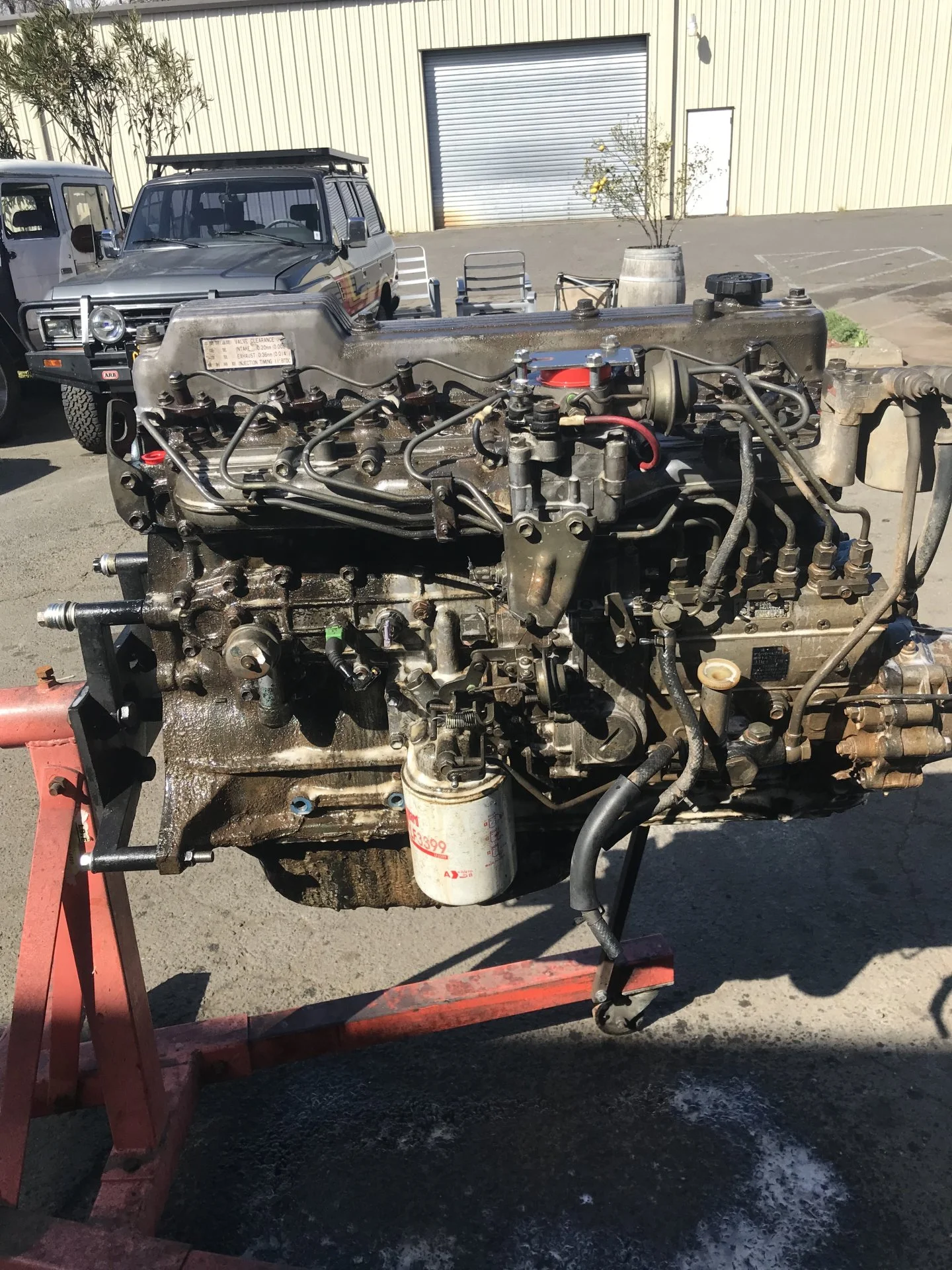

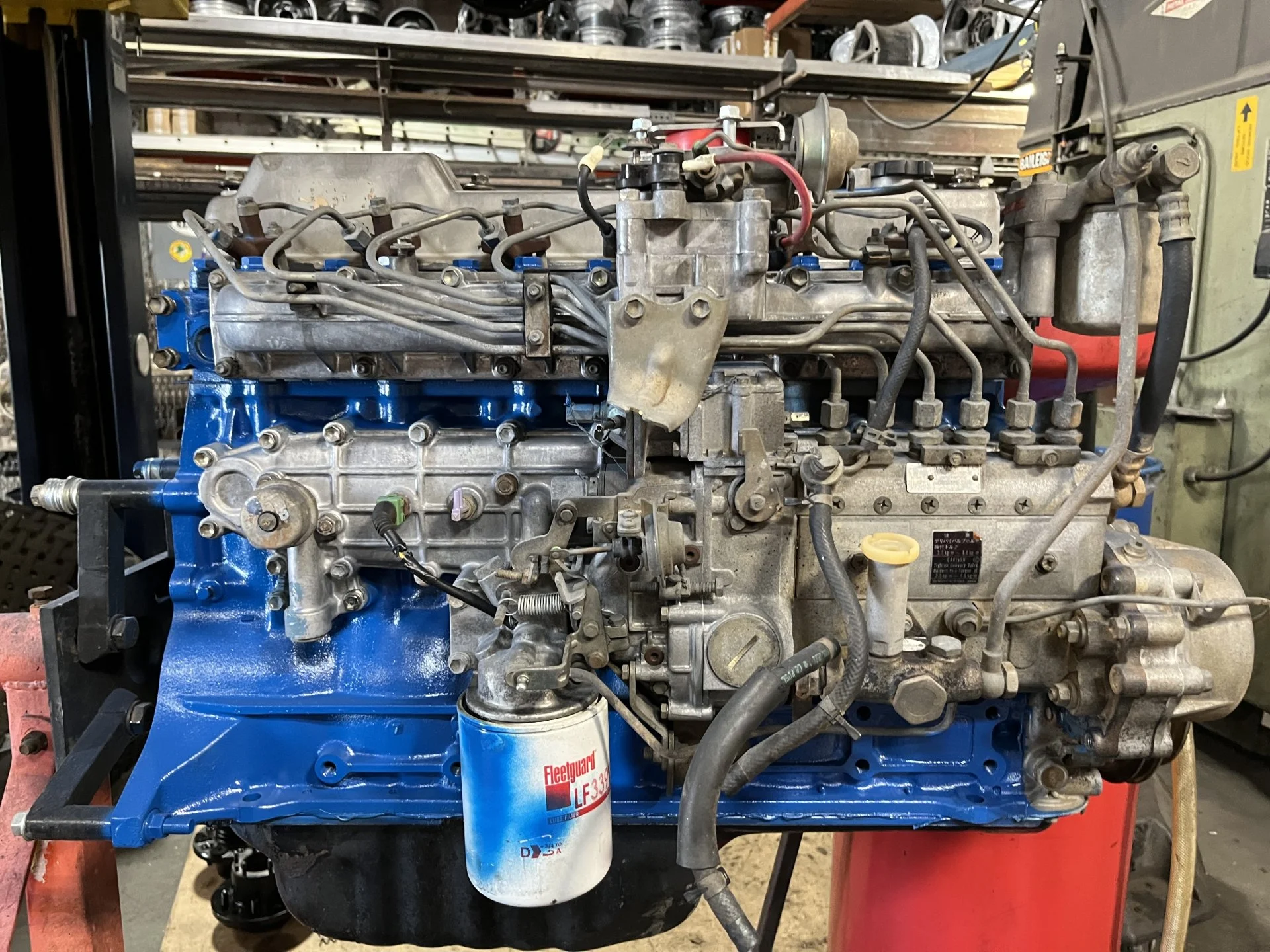

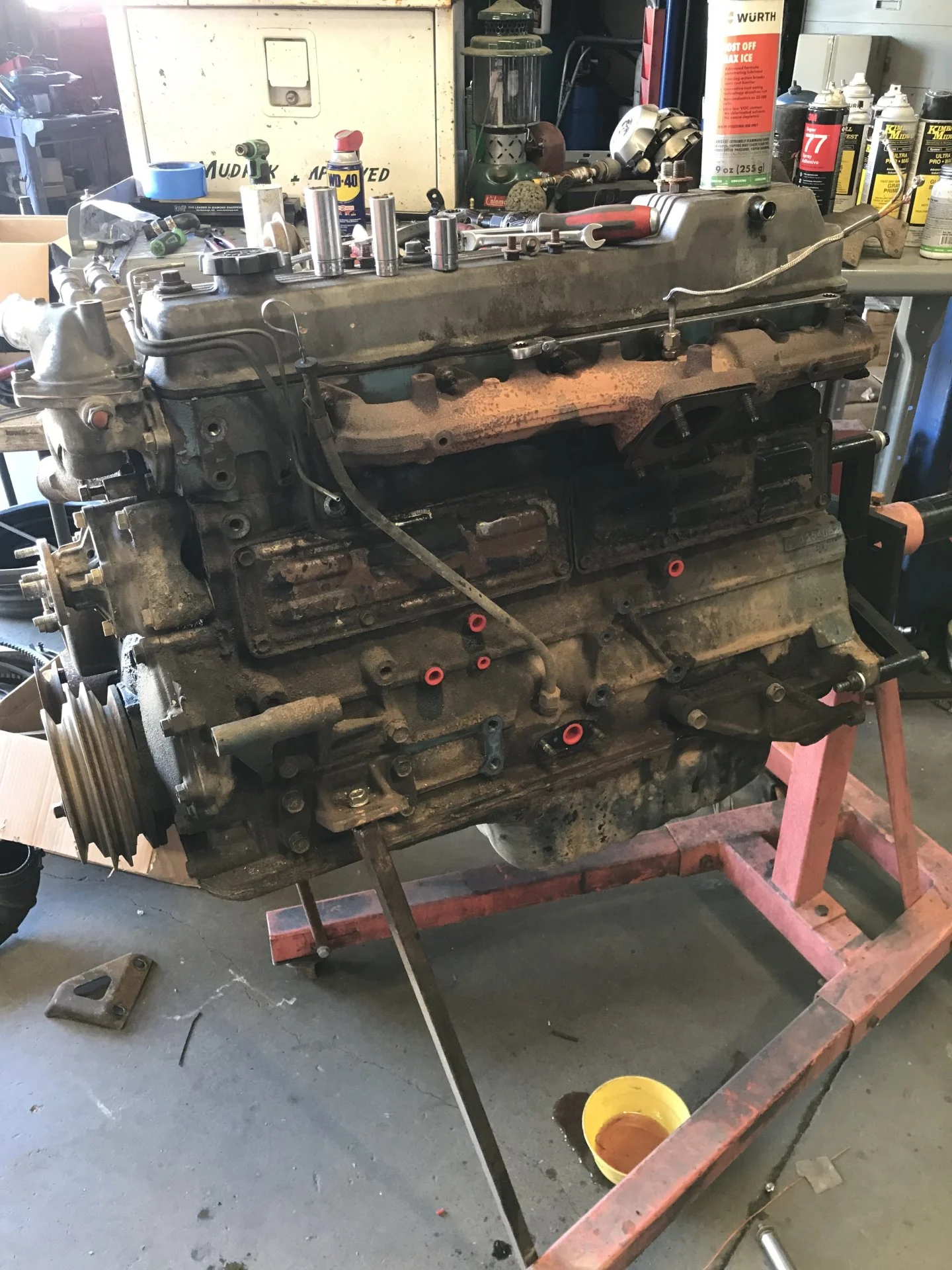

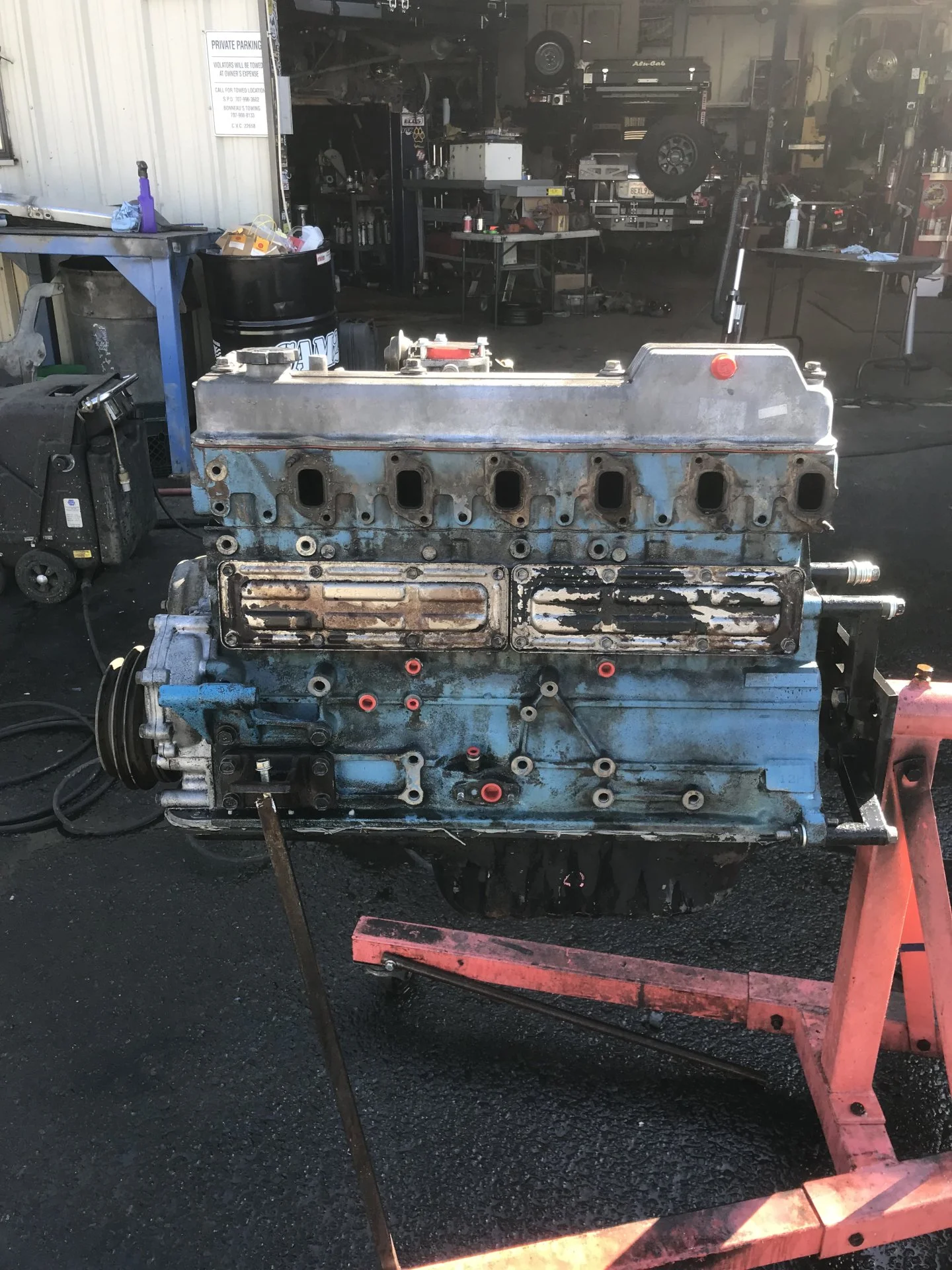

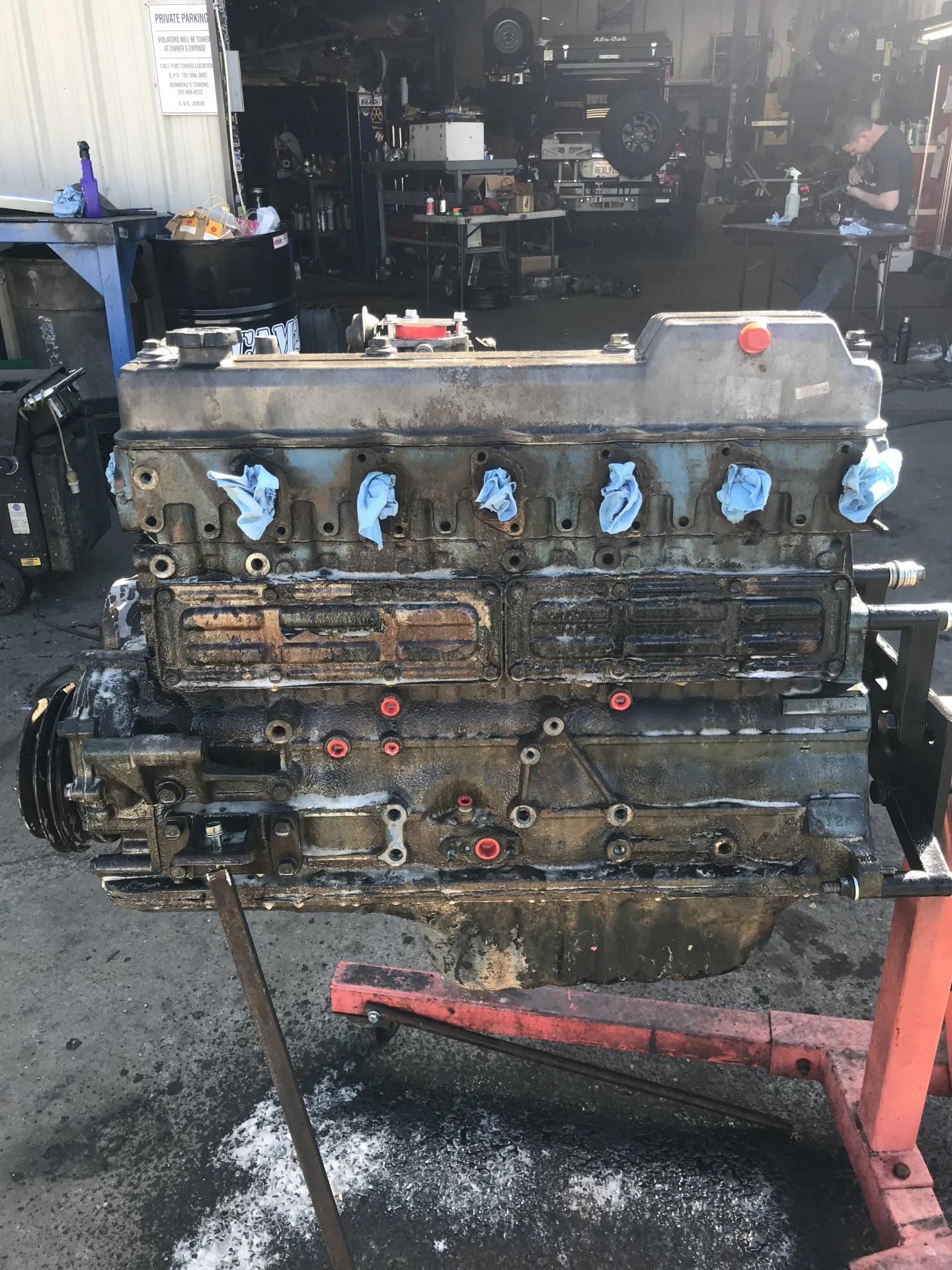

12HT work begins with a deep clean.

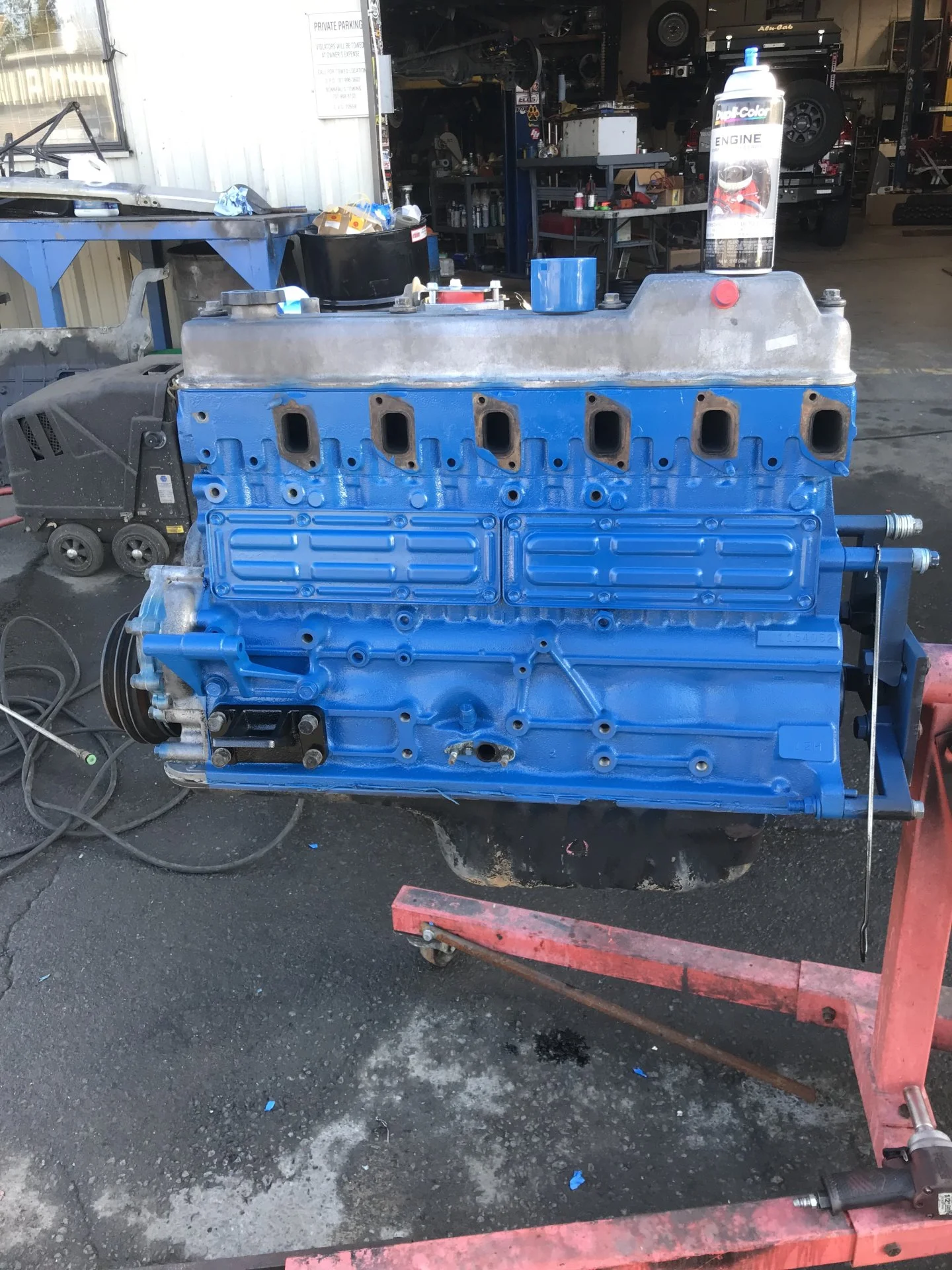

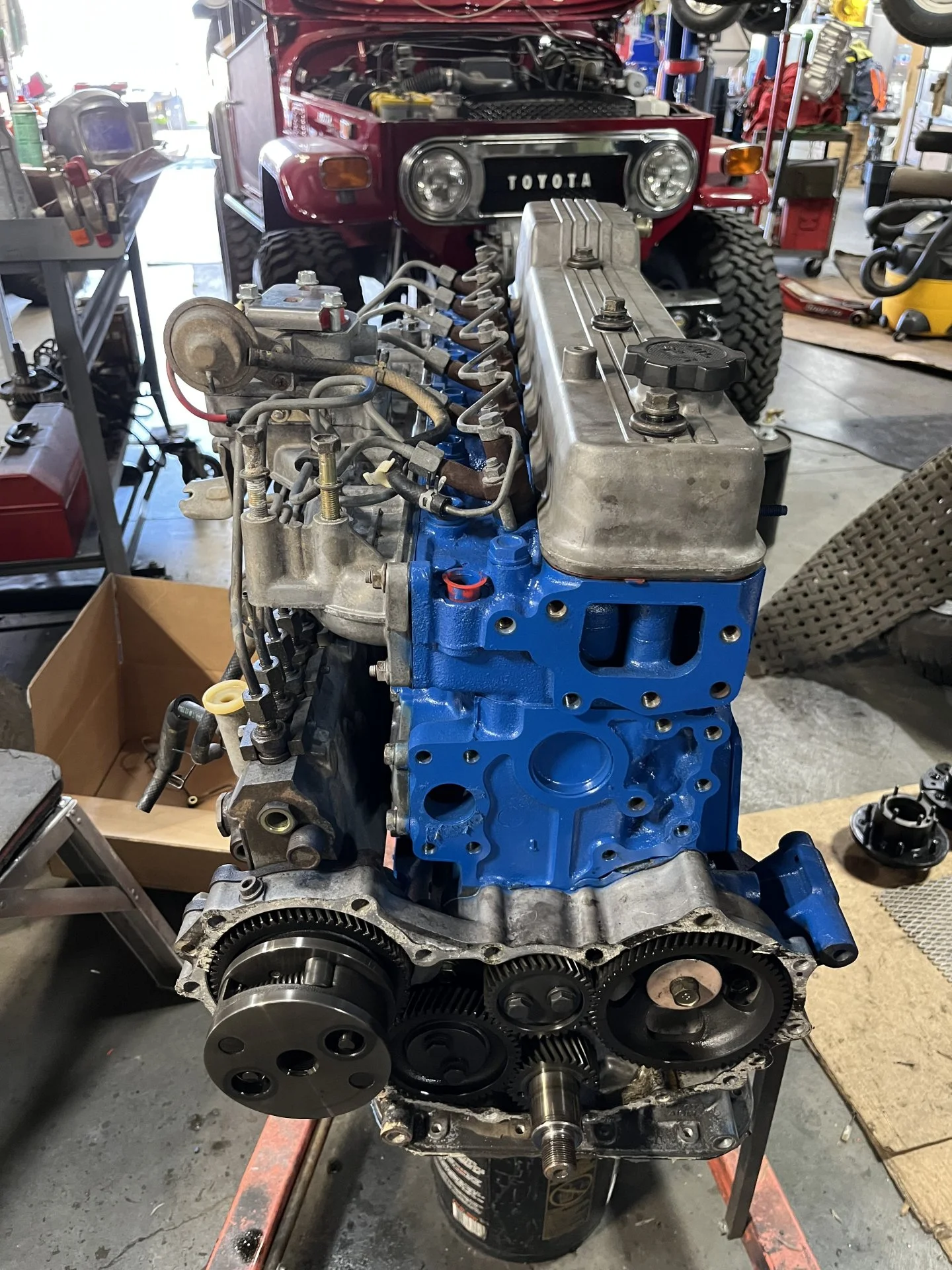

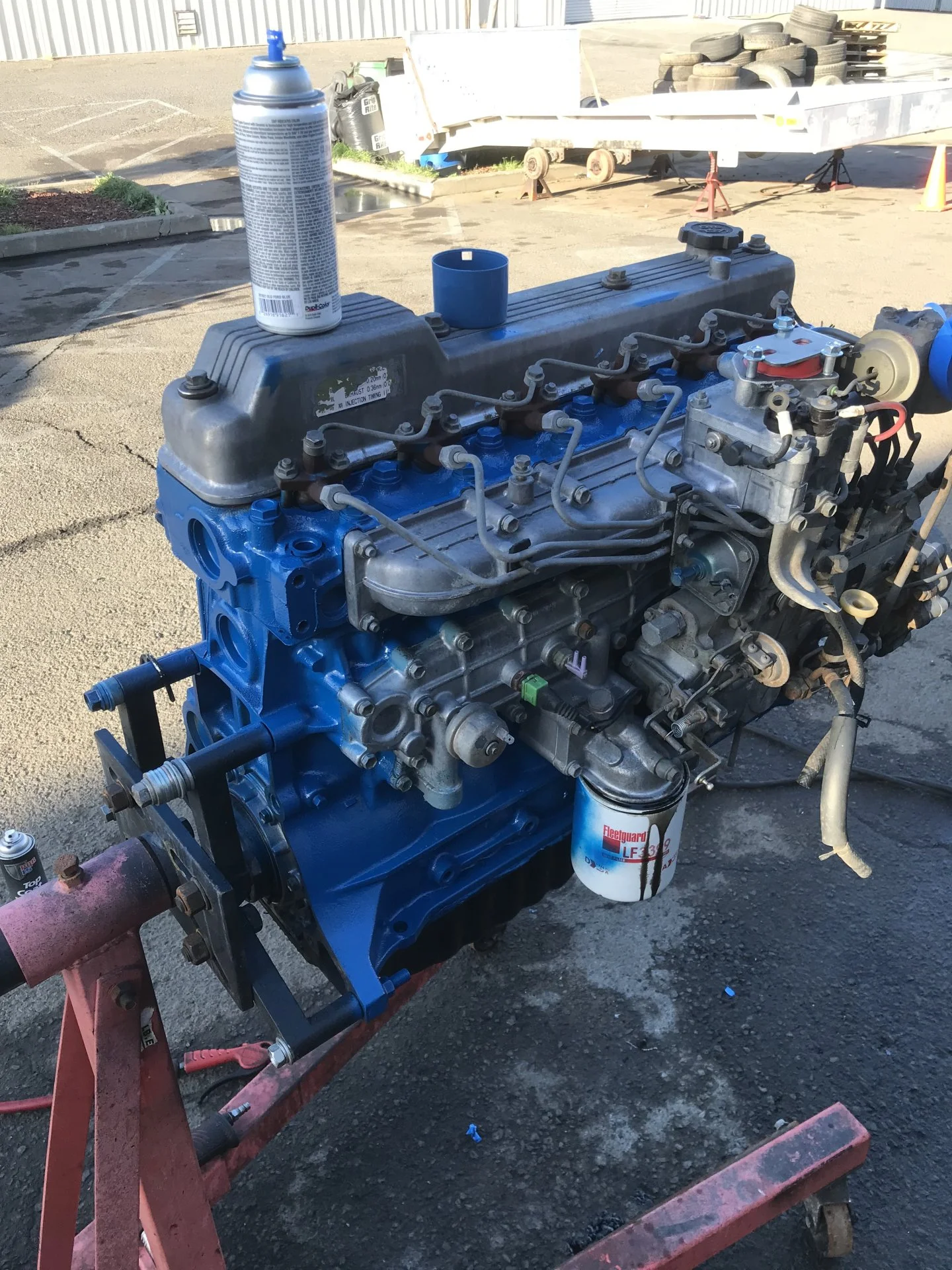

Cleaning and painting the block. I repainted it with components attached to ensure no paint entered critical components. All the outer accessories will be removed and cleaned anyway. More engine work to come.

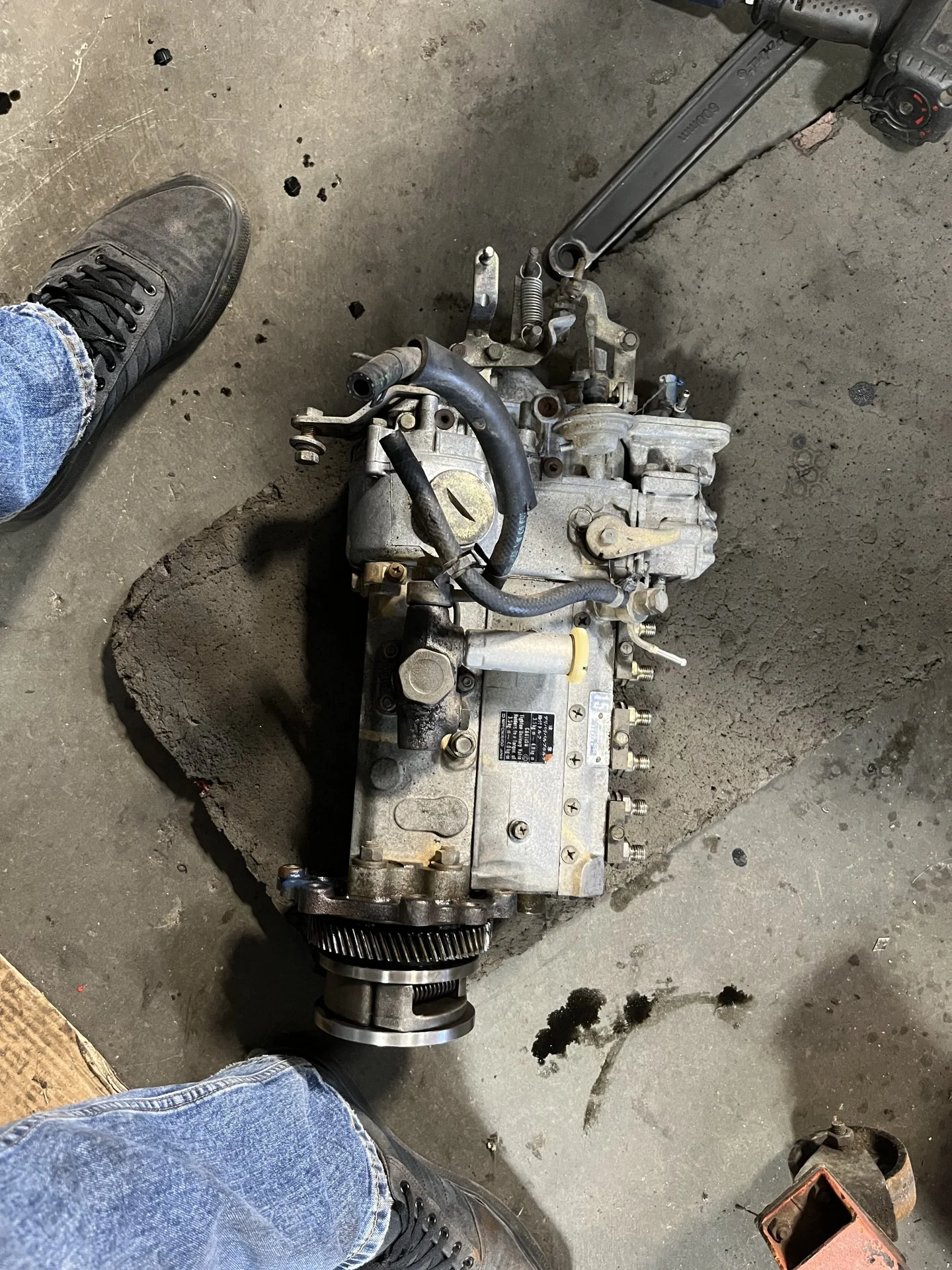

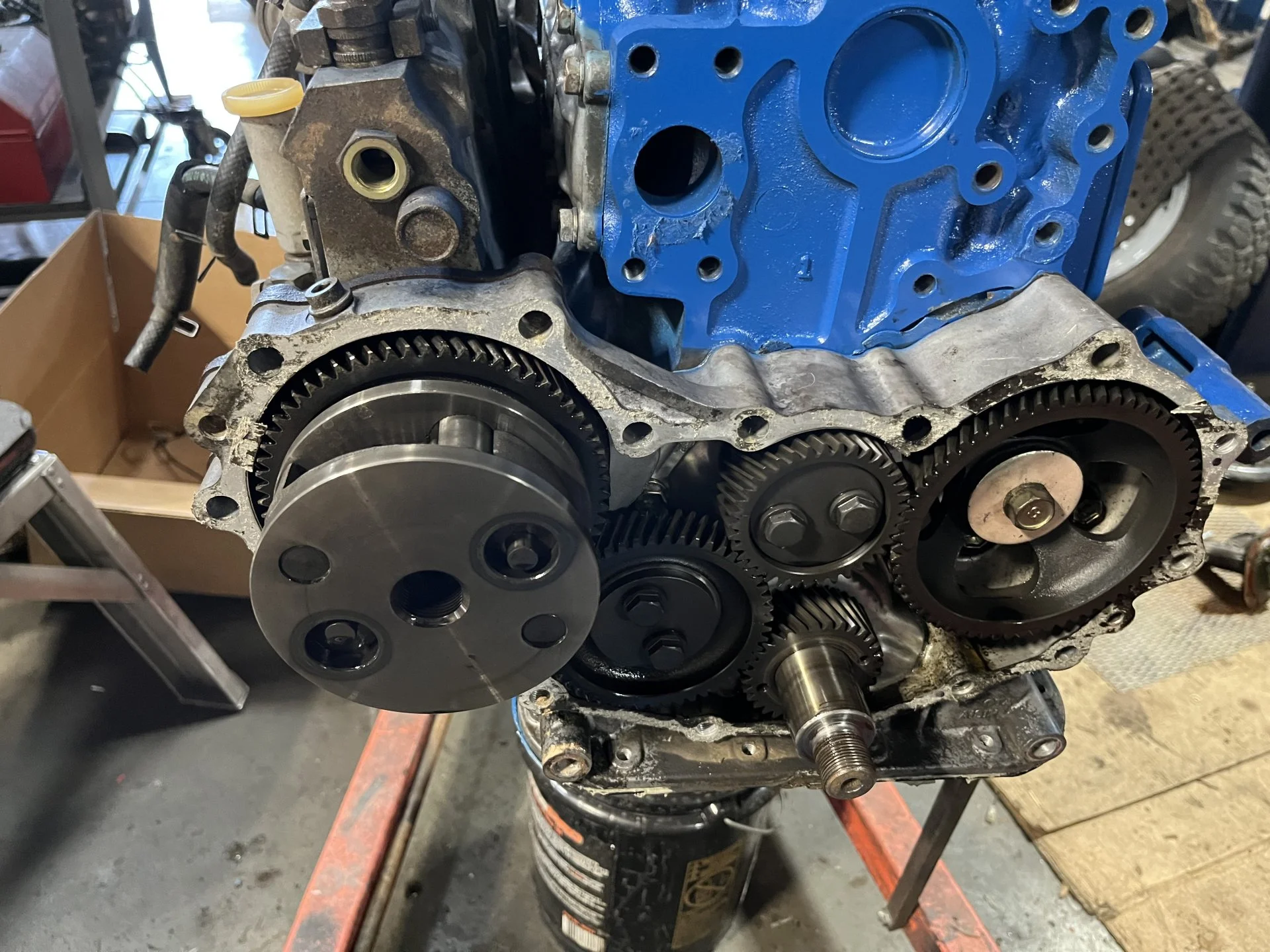

Removing the Fuel injection system to replace gaskets, and begin engine rebuild.

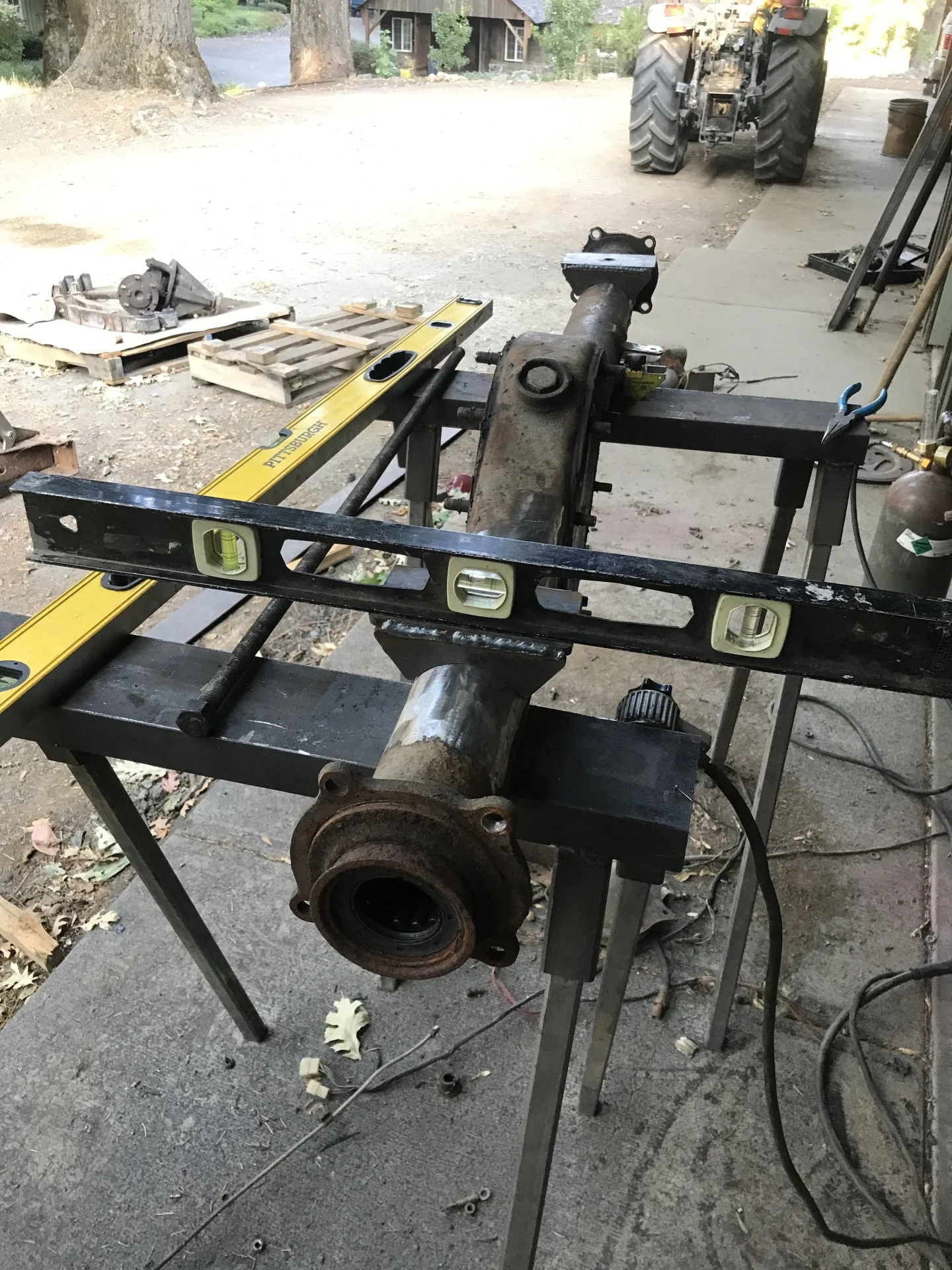

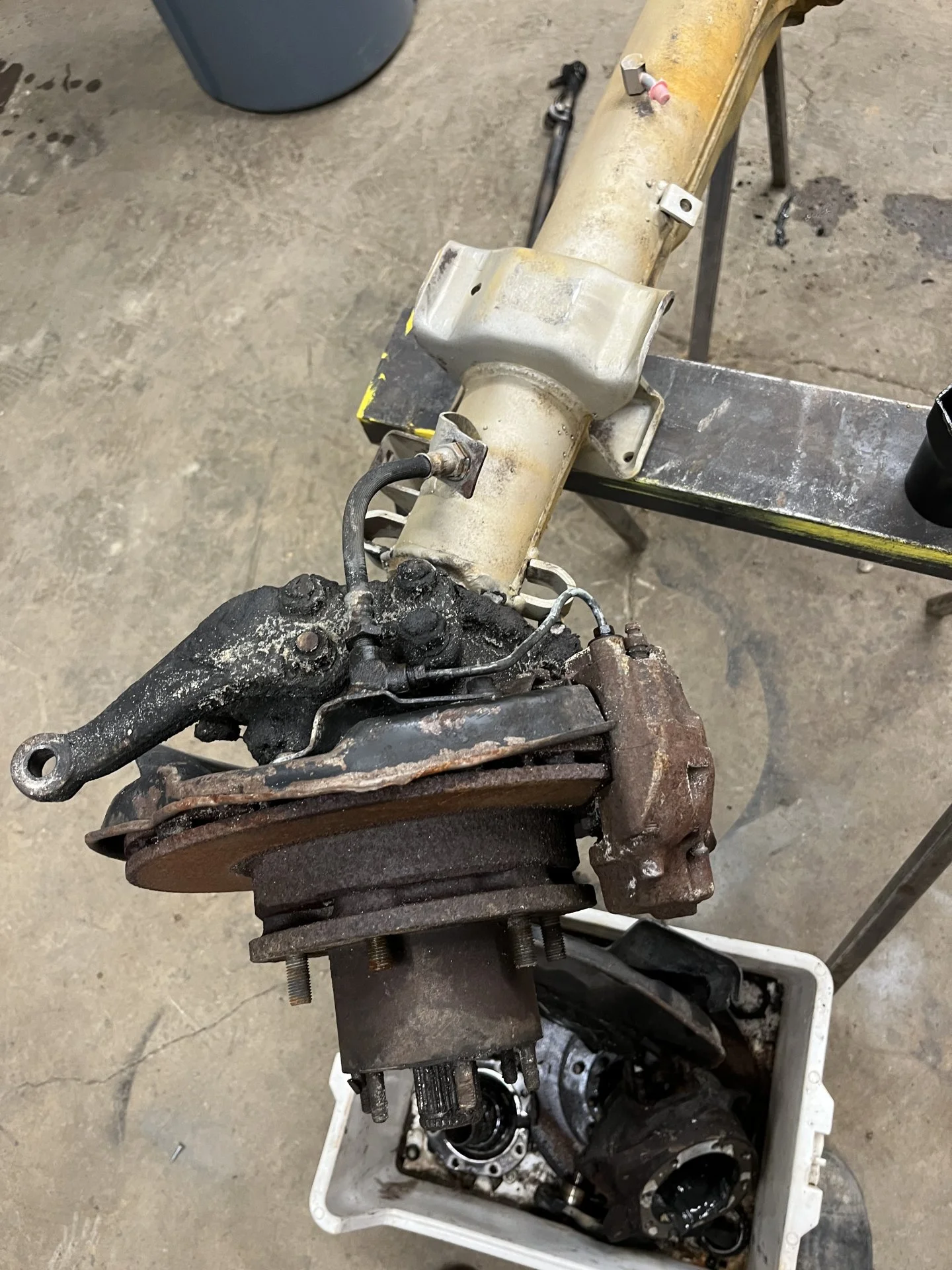

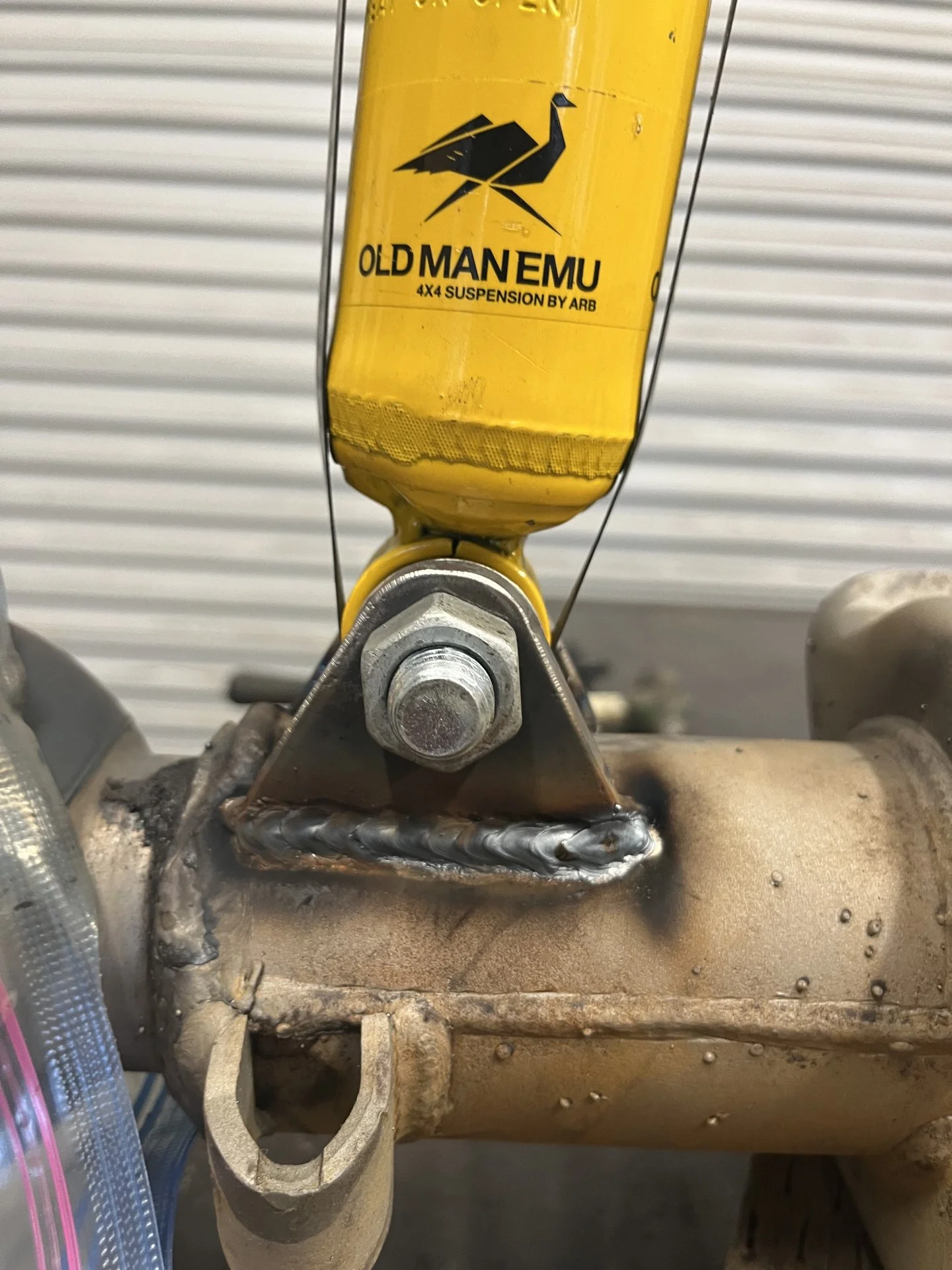

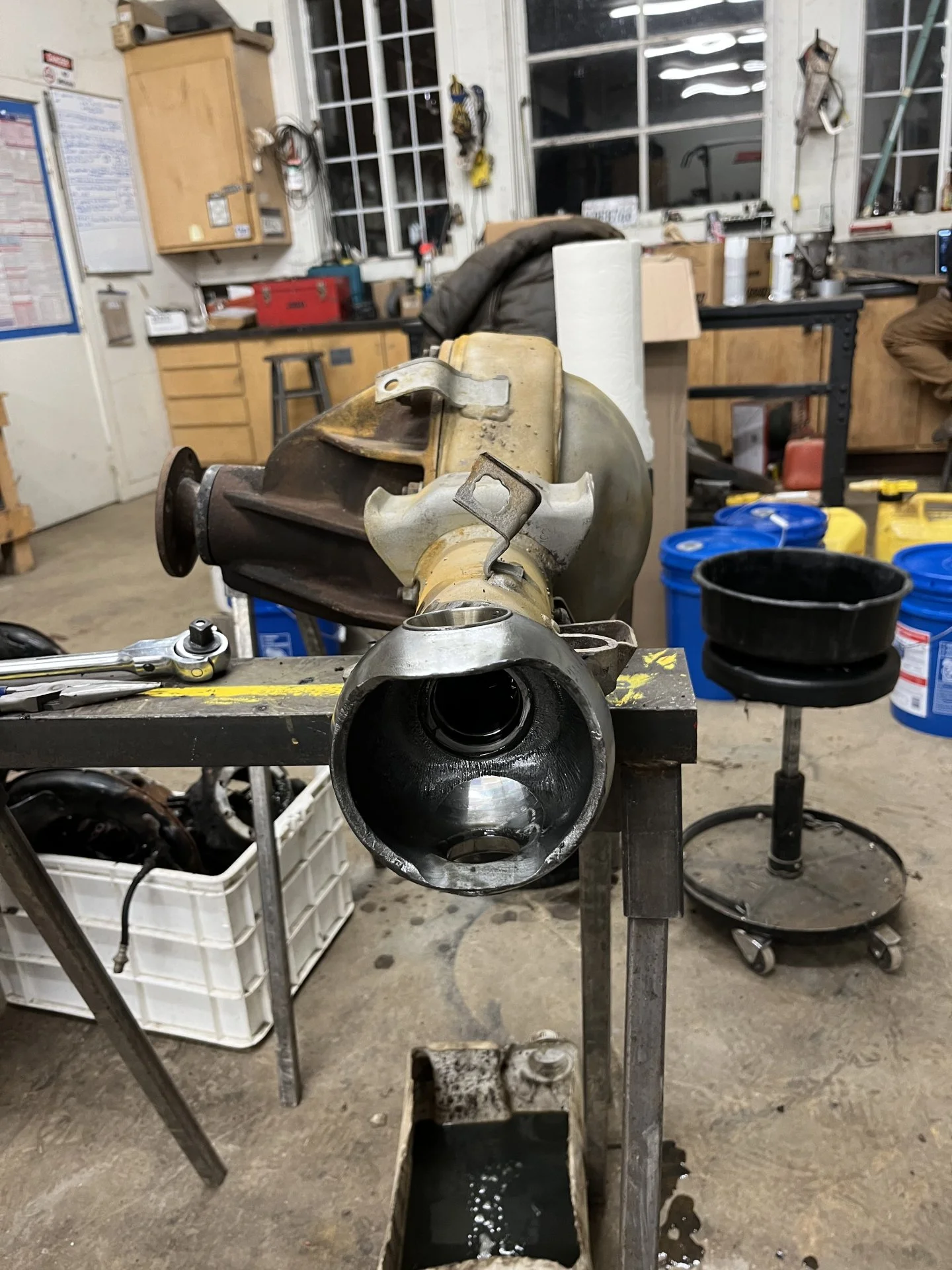

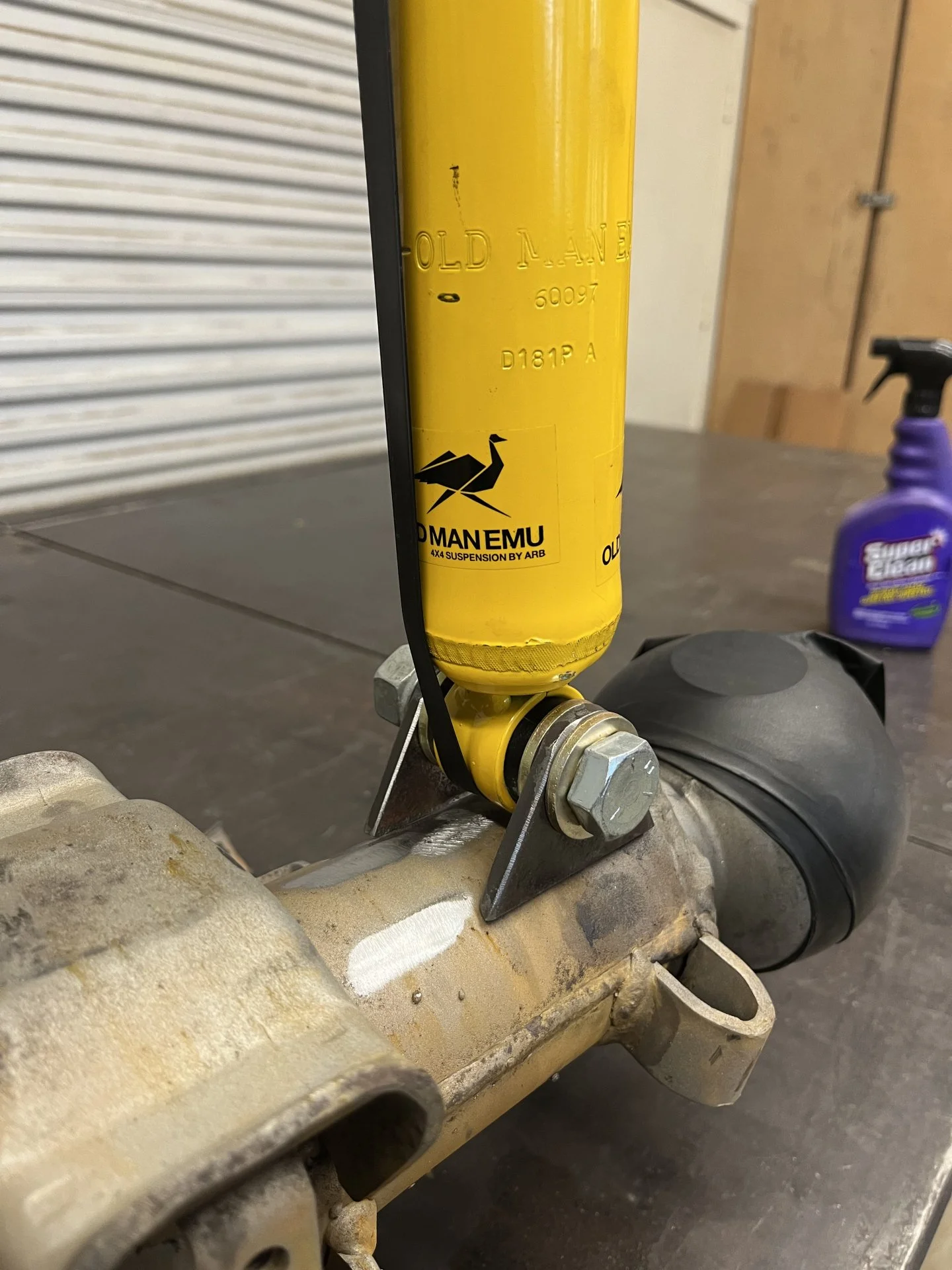

Front Axle Work. Blasted, stripped, shocks mounted. Ready for paint.

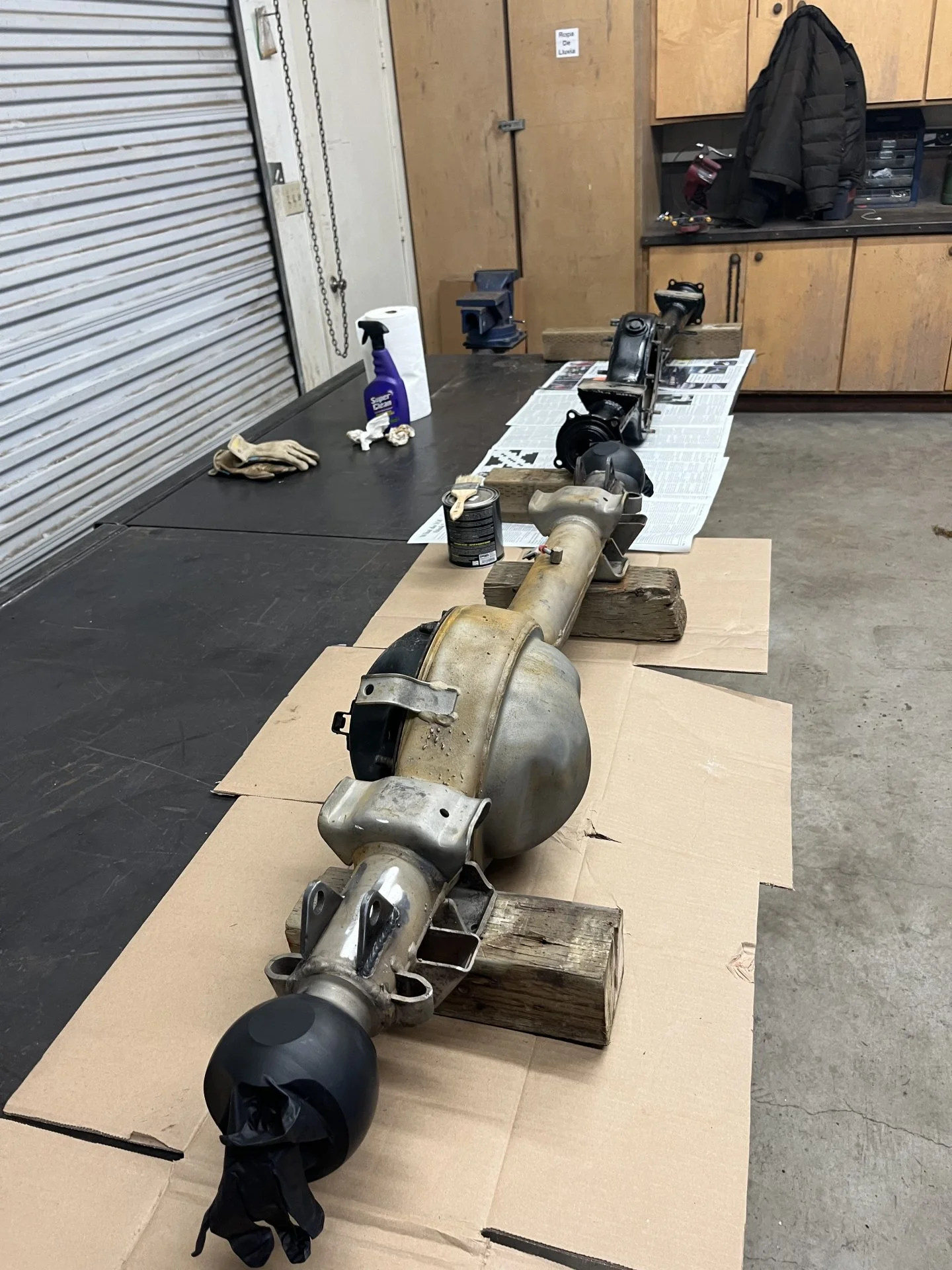

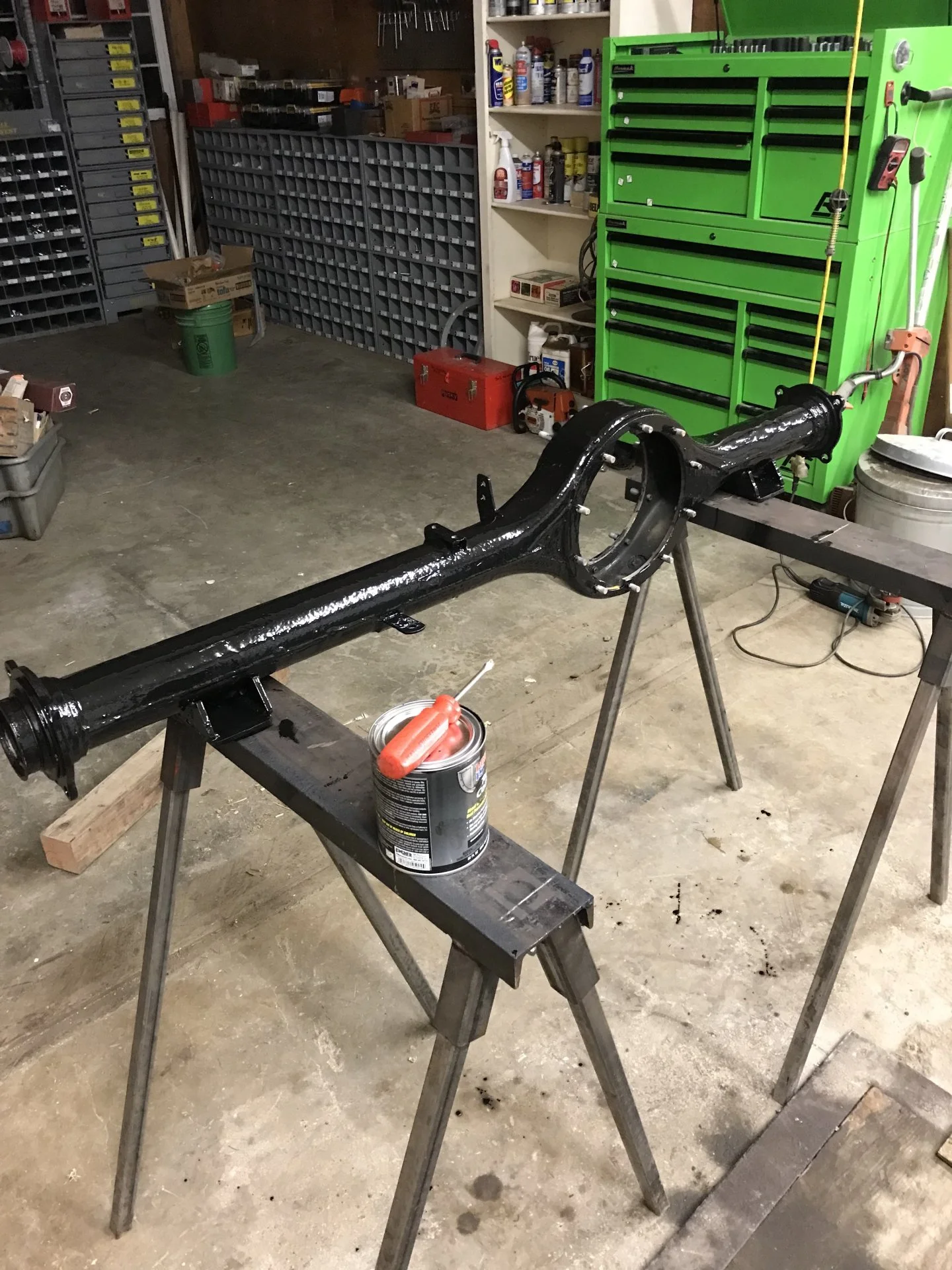

Rear axle painted, front ready for paint.
Next step: ARB Lockers




Does anyone know how I can tag this thread as a "Build" with the little grey tag?
