@BenCC & others,

I'm interested in ordering MAKE 7 V1, but I need to know which elements of the build are/aren't included? Is it just the housing? If so, are some 12V or USB sockets better than others?

Also, I'm willing to learn and work, but I'm no electrician. Does anyone have diagrams or instructions for rewiring?

Thanks so much!
Will



[Greenbean]

Thanks again Ben for the great work!



[Olypencruiser]

just read the thread again and I’d like to put my hat in for 3rd brake light/camera/reverse light type thing. Camera up high would be great



[AlpineAccess]

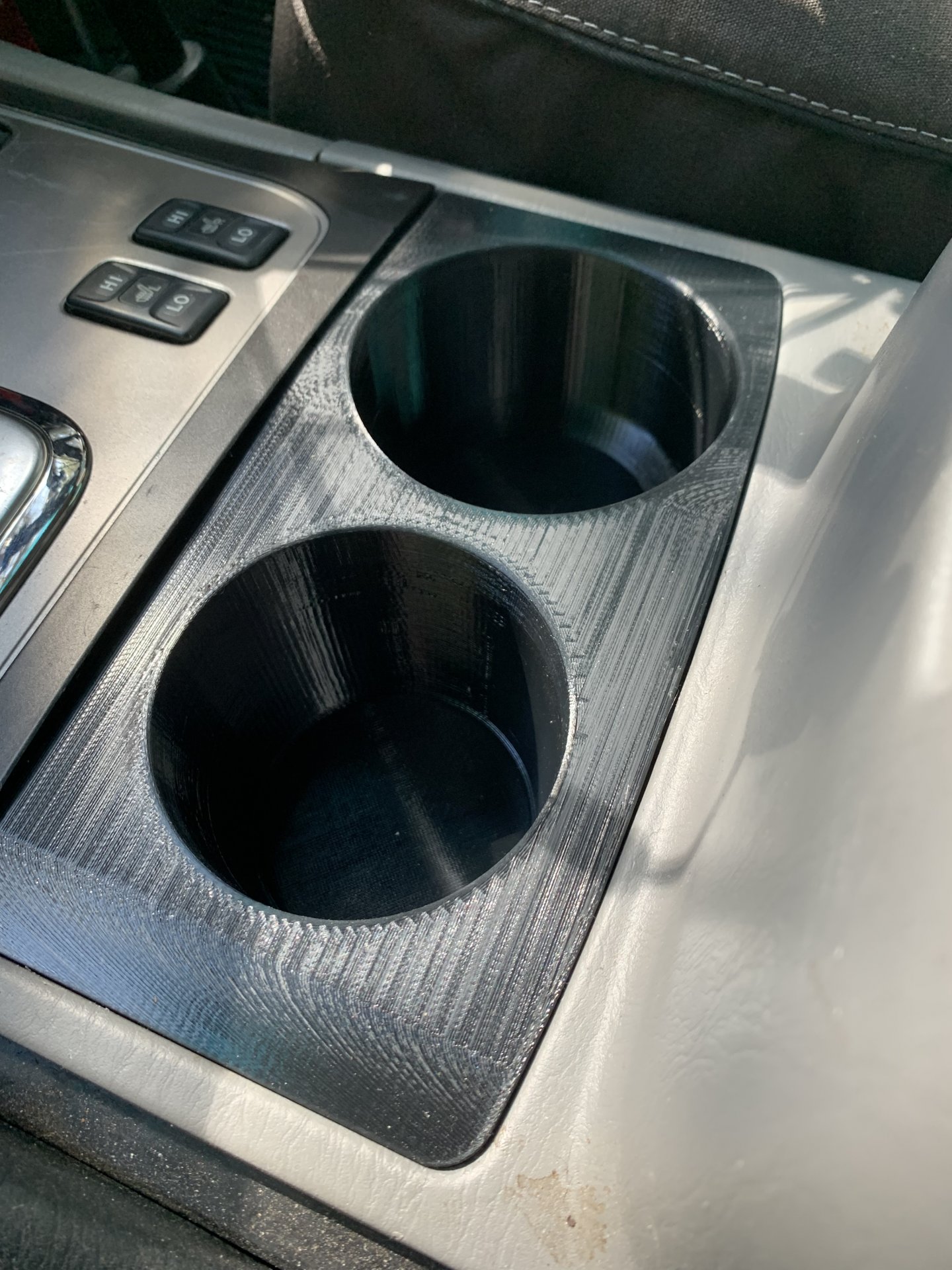

custom cup holder

View attachment 2794109

View attachment 2794110

Who makes your seat covers? Also the cup holder looks



[Hu1k]

just read the thread again and I’d like to put my hat in for 3rd brake light/camera/reverse light type thing. Camera up high would be great

I read the thread and didn't see this suggestion, but add my vote. Great idea.



[ih8philly]

Any chance the battery terminal cover is available?



[ThorH]

Ben-

Sent a PM for a M2V2!



[BenCC]

Guys, orders have delays. Please allow 2 more weeks. Otherwise, you can request a refund at any time.

Sorry for the delay.



[rrc swb]

Guys, orders have delays. Please allow 2 more weeks. Otherwise, you can request a refund at any time.

Sorry for the delay.

Hey Ben, looks like you are pretty busy.

Have you had any time to work on the Icon Six Speed center cap?



[shtbrwn86]

Make 7: Rear Cooler Switch Hole Mounting Plate

7.1 Overview of the Final Product

View attachment 2330079

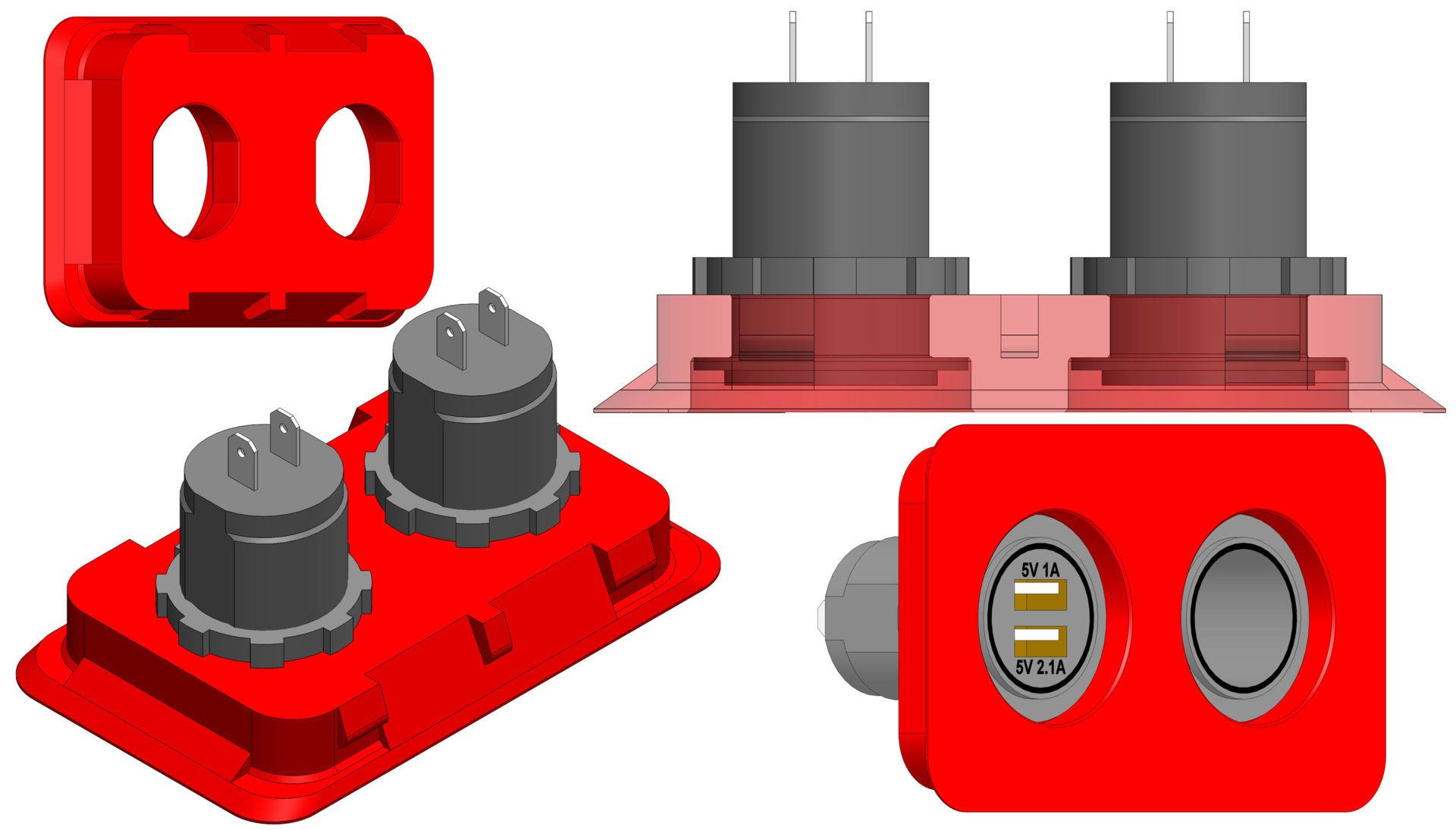

Make7 V1

Note: Make7 V1 mounts two 12V socket devices, such as

12V Socket

USB Extension

USB Charger 2.1 A

USB Charger 4.8A

View attachment 2138888

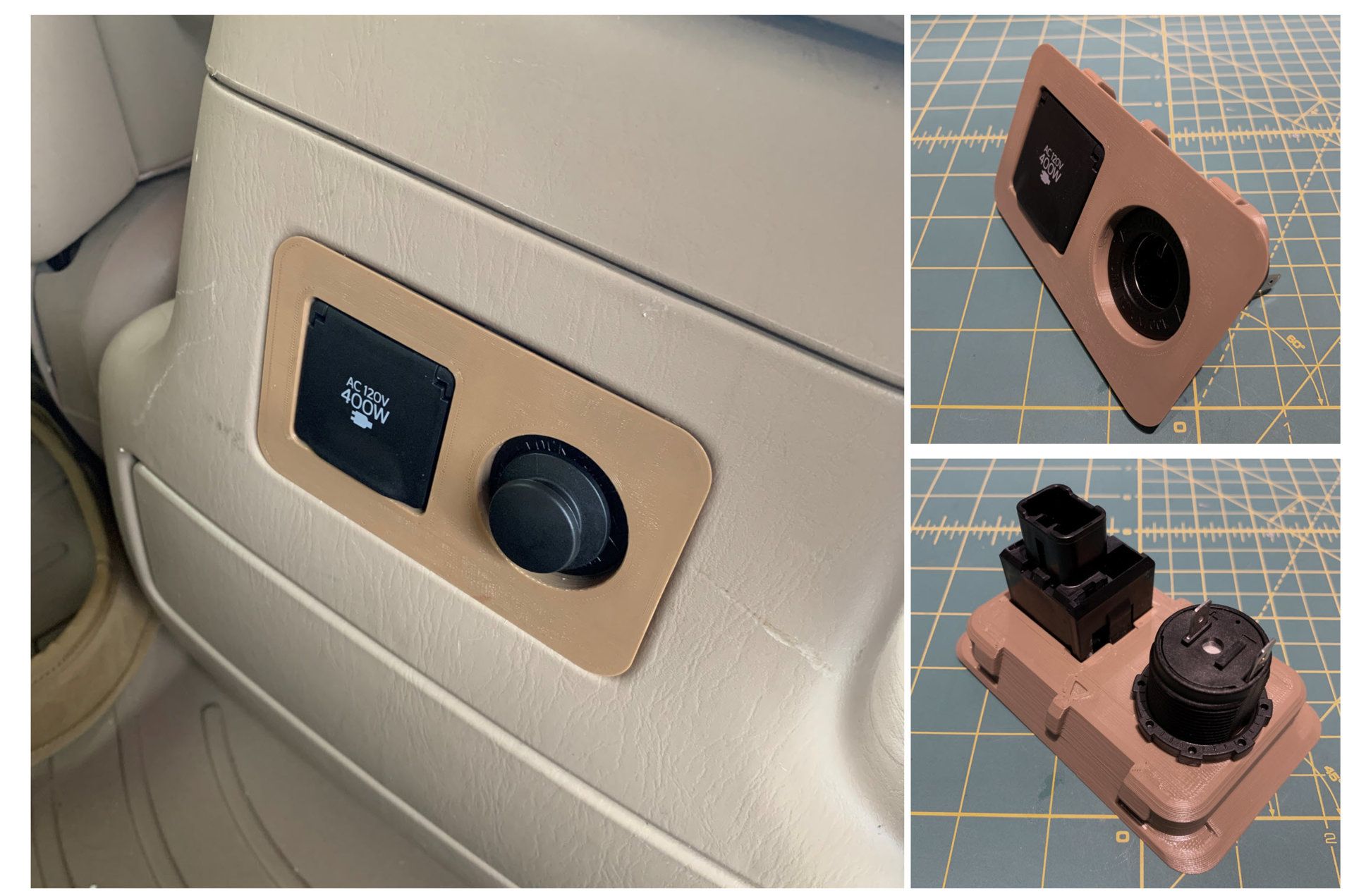

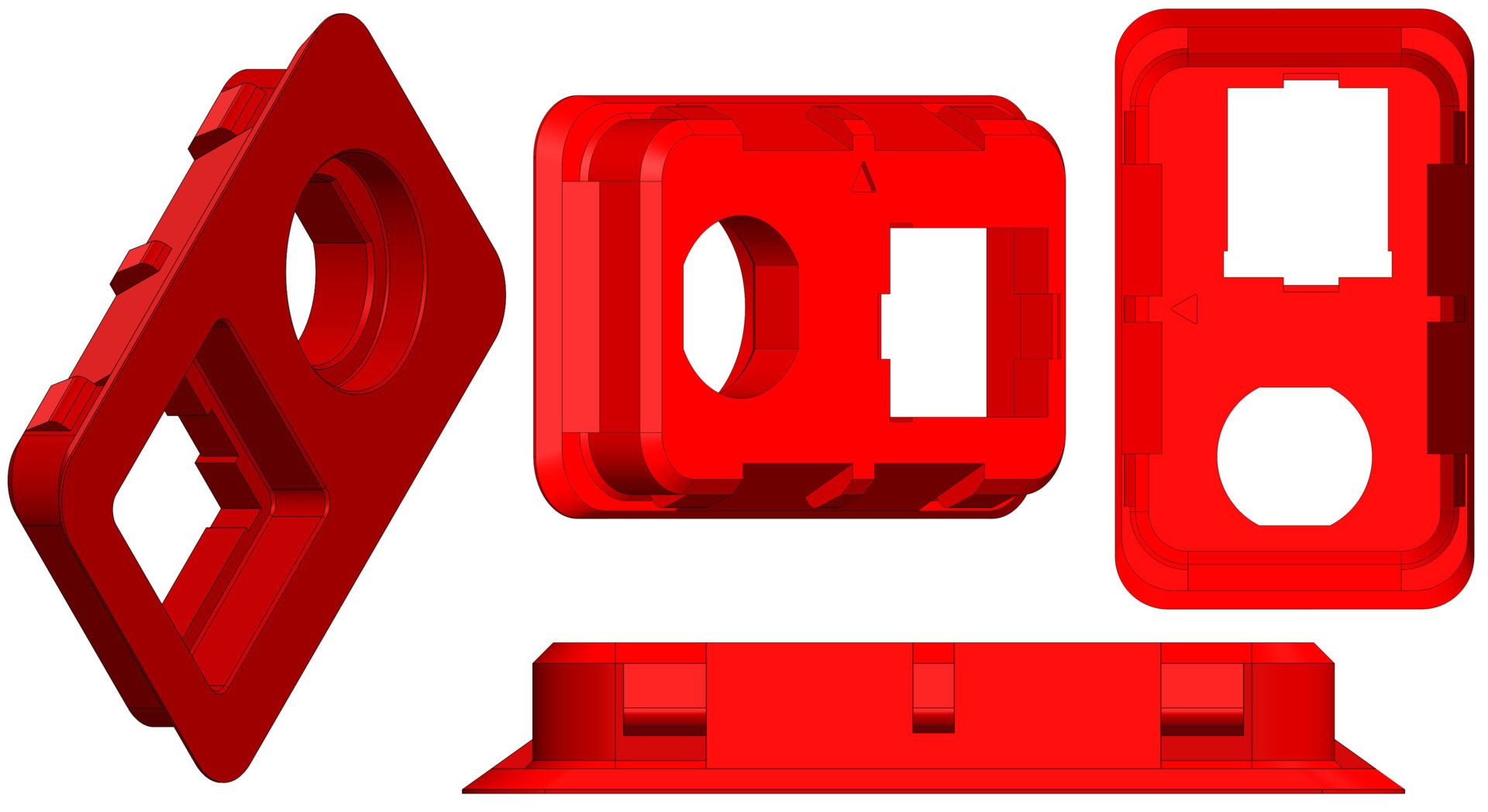

Make7 V2

Note: Make7 V2 mounts one 120V outlet and one 12V socket device. The Toyota part number of the 120V outlet is 85530-35050-C0. The harness can be found here.

View attachment 2138729

Socket device CAD courtesy of Alexander Polyakov at Free CAD Designs, Files & 3D Models | The GrabCAD Community Library

View attachment 2138731

7.2 Introduction

This mount it to replace the blank panel or the radio control unit at the back of the center console. It mounts two car socket devices.

7.3 Design and Fabrication

Multiple prototypes have been made to test the dimensions, surface printing method, and materials, etc.



7.4 Purchase List to Complete the Installation

120V Outlet: 85530-35050-C0
Wire Harness (Toyote OEM 12” In-Cab AC 120V 400W Power Outlet Plug-N-Play Wire Harness | KTJO 4x4 - https://www.ktjo4x4.com/product/toyote-oem-12-in-cab-ac-120v-400w-power-outlet-plug-n-play-wire-harness/56?cs=true&cst=custom)

12V Socket

USB Extension

USB Charger 2.1 A

USB Charger 4.8A

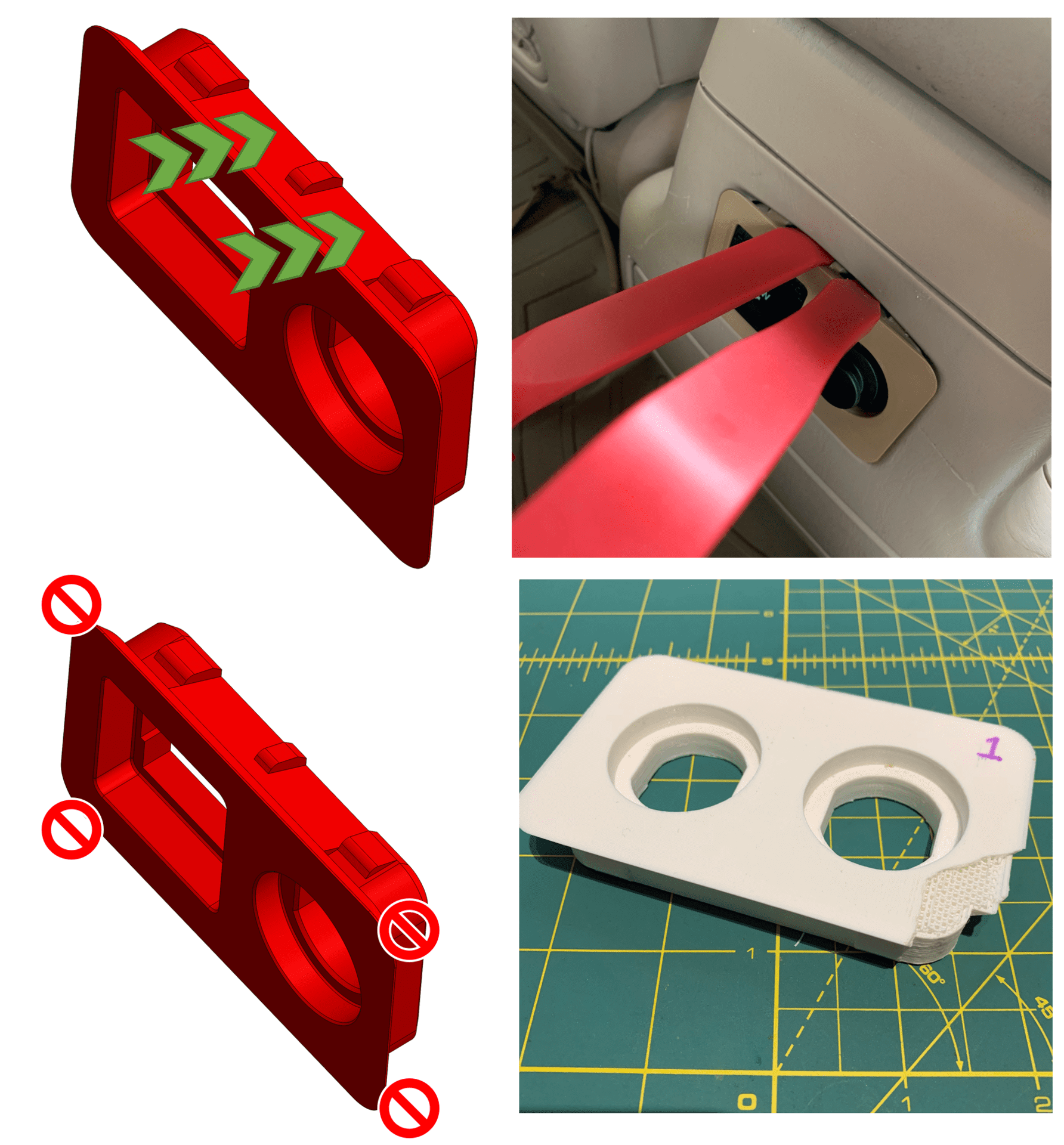

Note: The following figure shows how you remove the mount and how not to.

View attachment 2139394

7.5 Purchase Link

$30 (Tan, Grey, Black)+Shipping

PM for direct Paypal payment.

Stupid question maybe, but where are you getting power for the 12v outlets? I plan on getting one of these to add some usb ports but I also want to find some power under there to tap into for my two headrest monitors. Are you tapping into existing wiring? Or are you running wiring with an add-a-fuse or something?



[AZMoonshadow]

Ben, I PM'd you. I want one of your M35(?) SP-9100 mounts asap.



[yotanewb]

Ben, PM sent. Looking for a MK53



[fabricraft1]

Make 4 V3: Multiple Rock Switches DEEP Mount for Toyota Land Cruiser 100 Series

M4V3.1 Overview of the Final Product

View attachment 2330074

View attachment 2241596

M4V3.2 Introduction

This make is revised based on M4V2 . Switch pockets are pushed out to give some extra clearance behind the mount. See the following two pictures for comparison between the revised version (M4V3 Red) and the previous version (M4V1 Blue).

M4V3.3Purchase List to Complete the Installation

Rocker Switches

Panel Plugs

M4V3.4 Purchase Link

$75 + USPS Priority. Printed in tan or grey ABS or PETG. PM for direct Paypal payment.
50% discount if you purchased M4V1 or M4V2.



[fabricraft1]

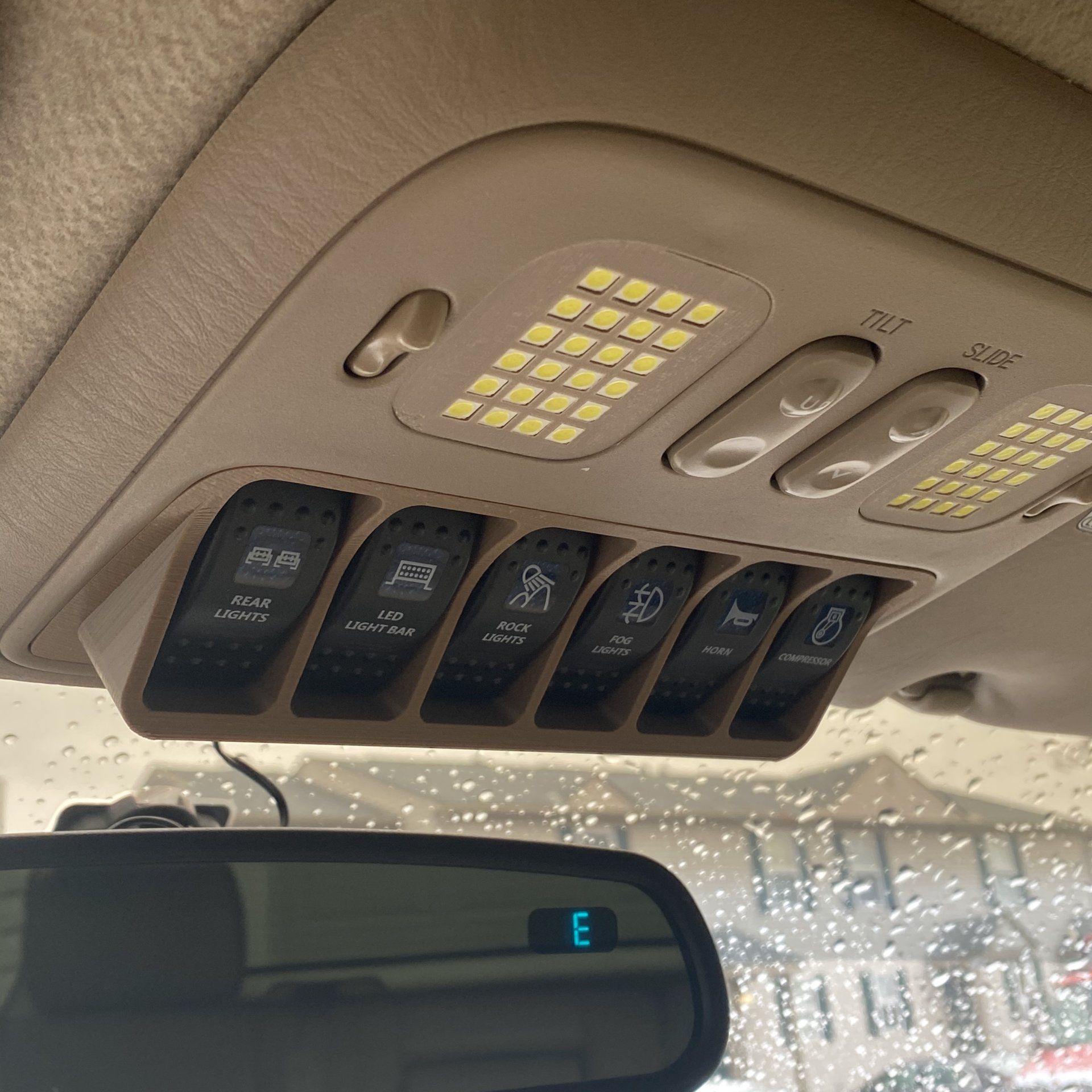

View attachment 2242371

Hey Ben. I’d like to get one of the M4V3 tan.



[highkick05]

is @BenCC still able to take orders? what do you do email? will you post international



[777300er]

Hi Ben, I shot you a message before the break about Make 17. Hope you had a good Thanksgiving.



[HappyCouch]

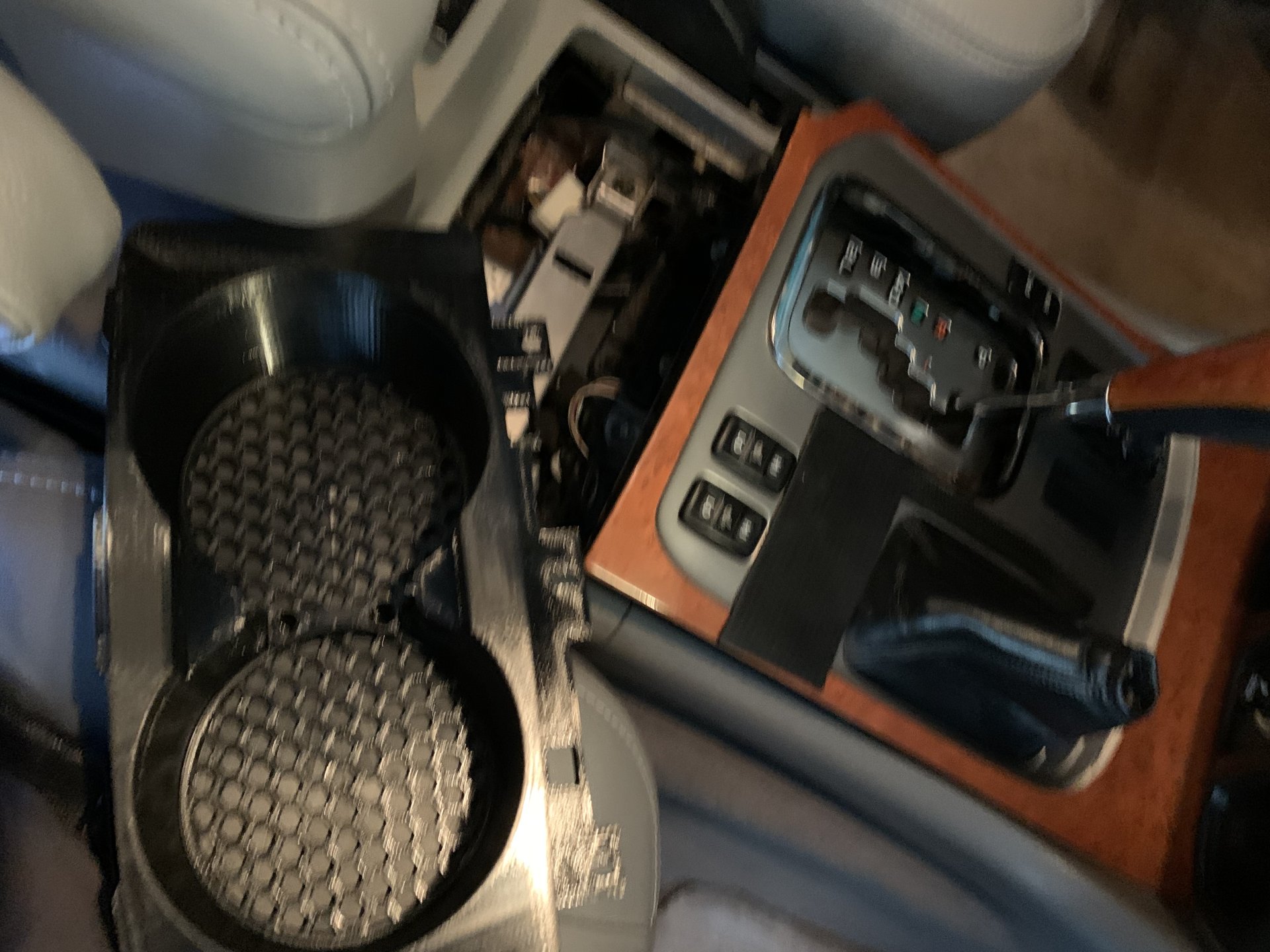

Ben…or everyone. I’ve been trying to install the cup holder in my 2006 LX 470 and have run into a problem. There is wiring on the drivers side/by the e-brake that is not allowing the cup holder to install. Has anyone else run into this? How do I resolve this issue? I have a CD changer in the center console…is wiring for cd changer?



[jtb517]

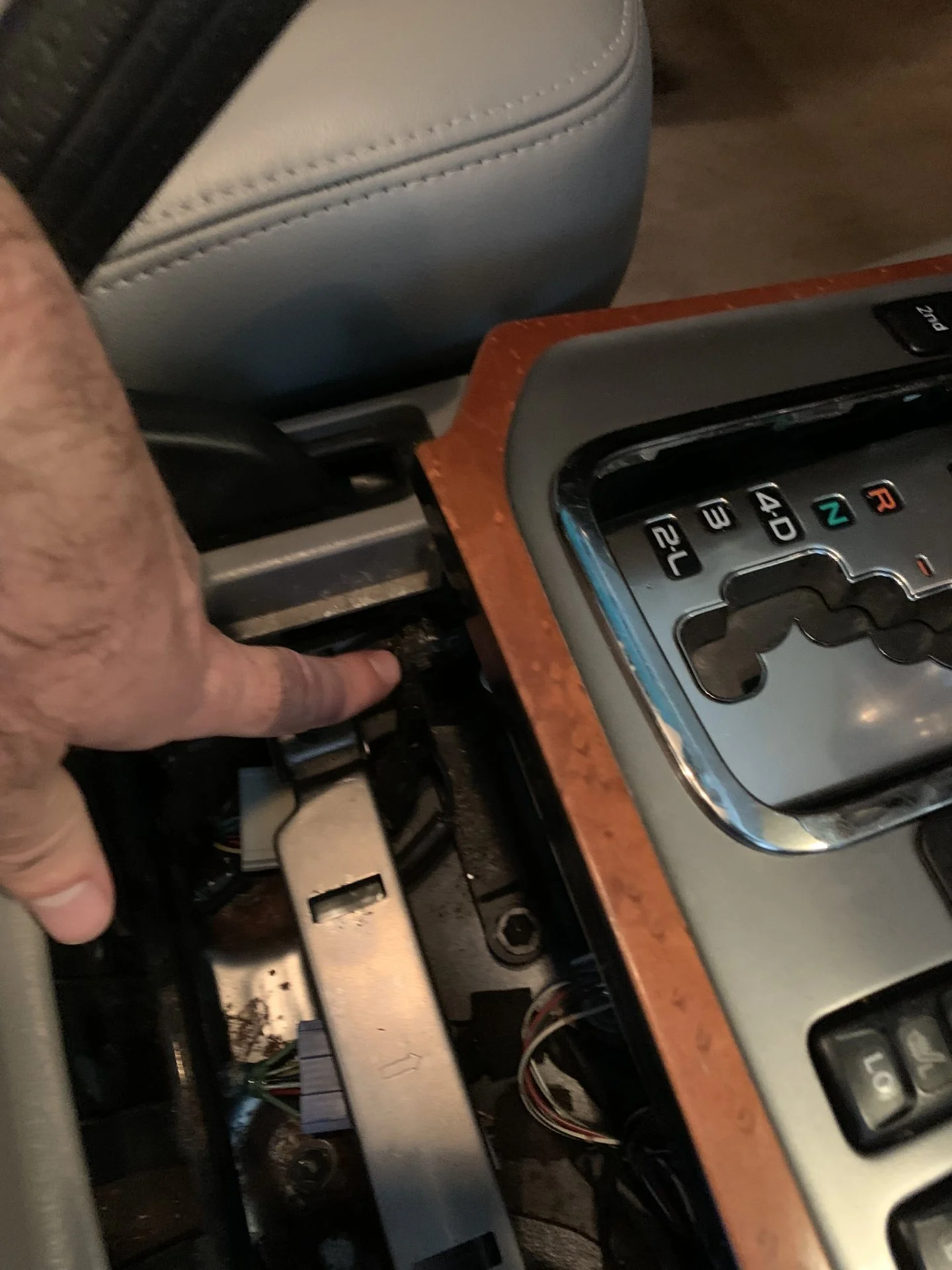

Looks like you can unclip that loom from its mount right where your finger is. Reroute and secure in a new spot with a zip tie?



[Kabanstva]

+1 on battery terminal covers availability for the slee terminals.



[HappyCouch]

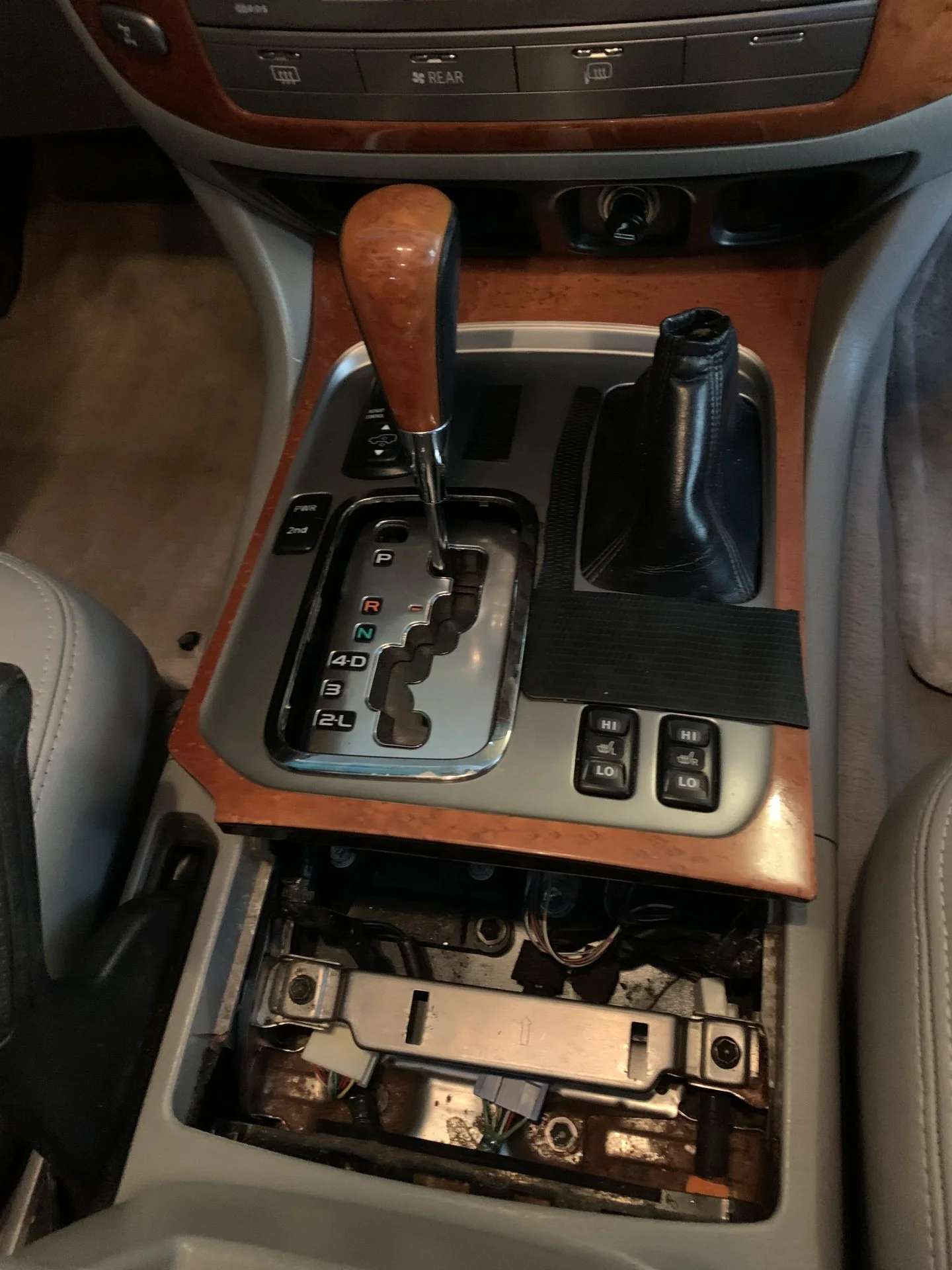

Ben…or everyone. I’ve been trying to install the cup holder in my 2006 LX 470 and have run into a problem. There is wiring on the drivers side/by the e-brake that is not allowing the cup holder to install. Has anyone else run into this? How do I resolve this issue? I have a CD changer in the center console…is wiring for cd changer?

View attachment 2854077

View attachment 2854078

View attachment 2854079

View attachment 2854080

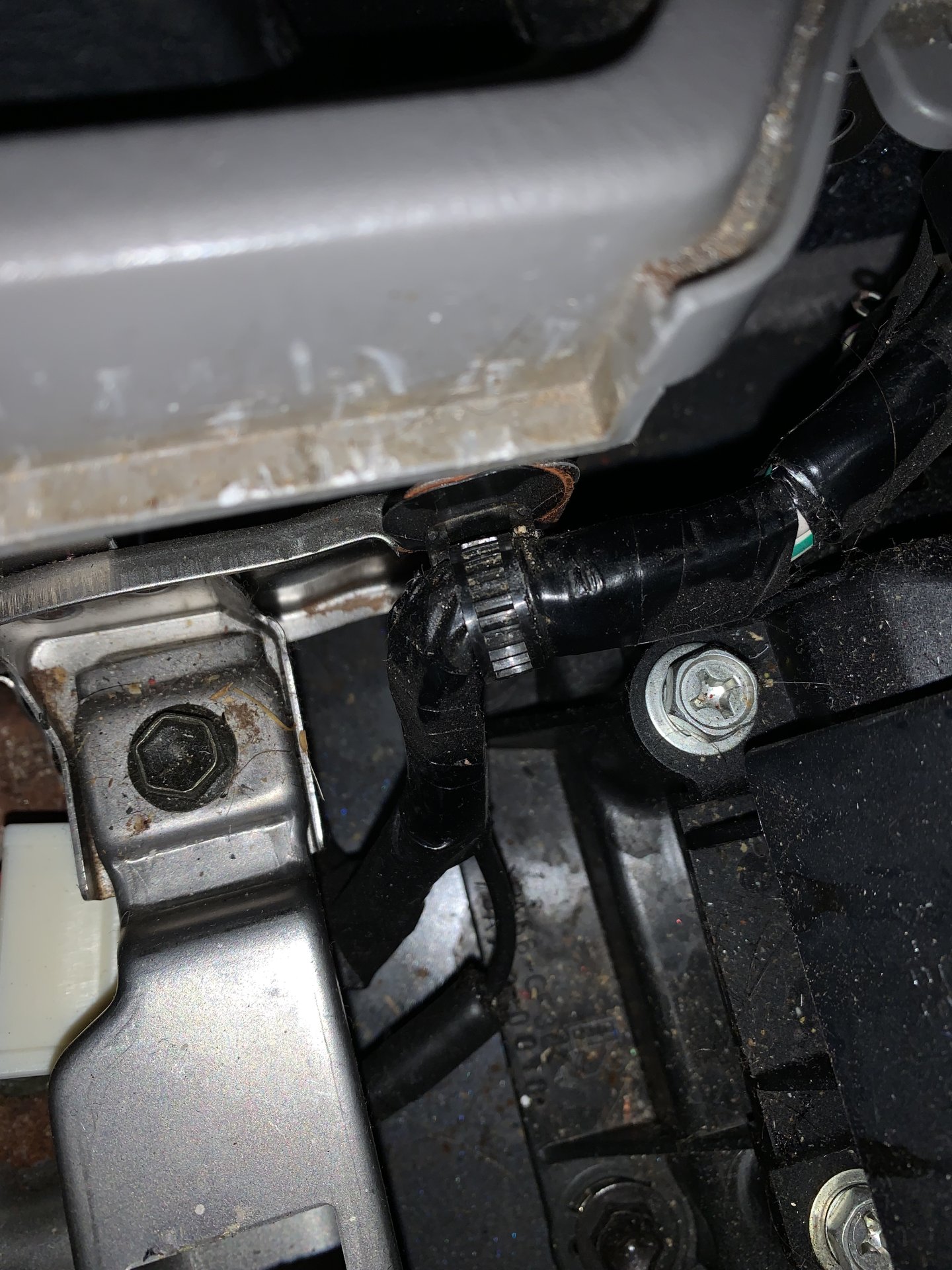

This was a clip. The cupholder fit once the clip for the wiring was released. I'm curious, is this exclusive to an LX 470 or maybe specific years? Another question, if others have installed this cupholder and have run into this same issue what they did with the wiring? Seems to me you'd either have to leave the wiring dangling or create a new way to fasten it lower in order to install the cupholder.
