Builds Benjamin’s 3D Prints Build (65 Viewers)

[Trophytruck481]

Hey Ben
is the ashtray unit different between the early single piece surround verses the later 3 piece style ?



[Kabanstva]

Would it be possible to somehow build a new mount for the cargo area lighting? Maybe something that replaces the current cargo light panel with a new design to house KC Cyclone light or something similar.



[ih8philly]

Any update on those battery terminal covers?



[thibaut]

I am glad to report that for RHD vehicles the ‘mirror’ version works perfectly.
Finally got around to having truck, part and tools in the same location. Very please with the results !
Thank you Ben



[coleaconrad]

Make 16 V2: Third Row Ashtray Replacement Panel V2

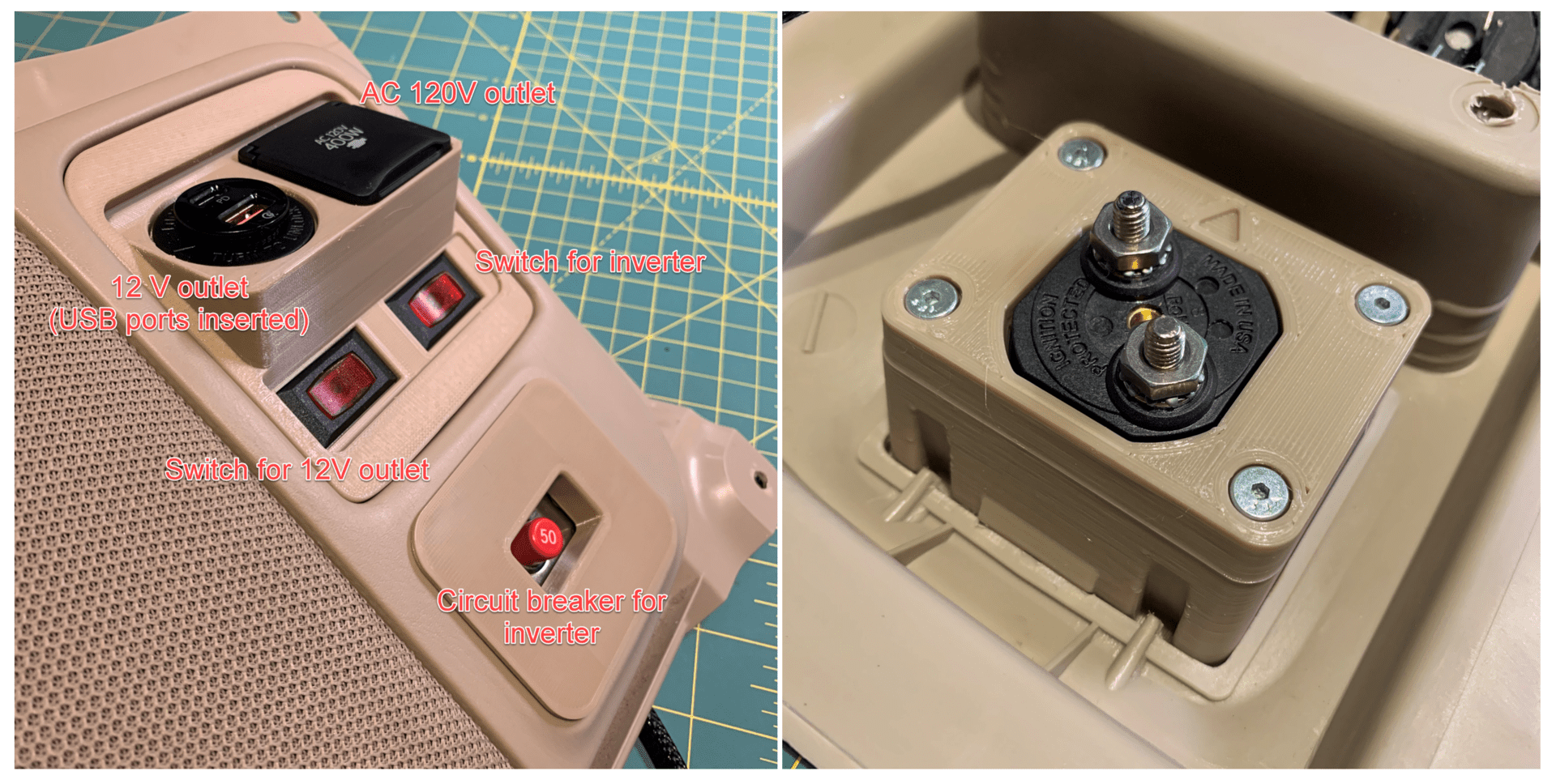

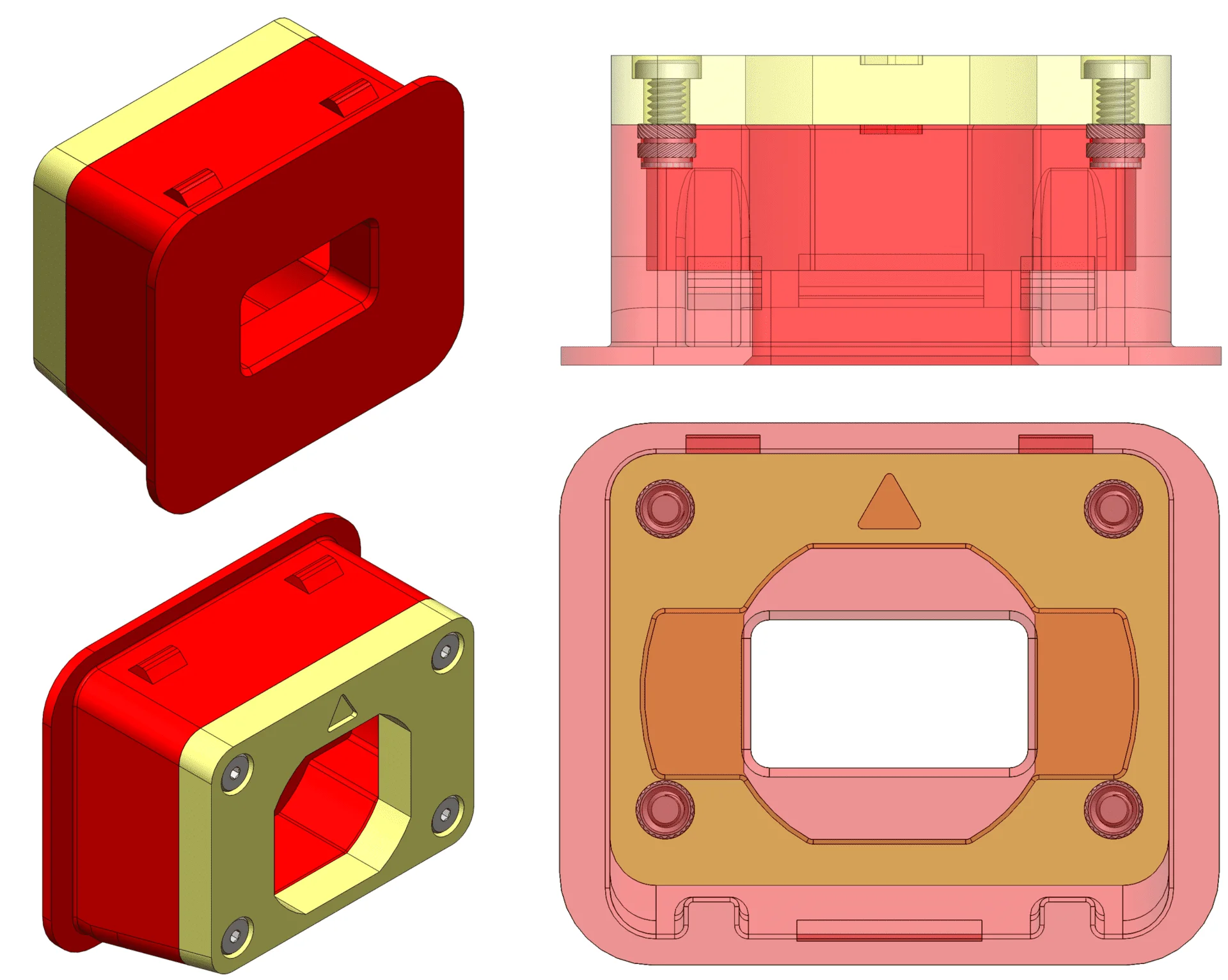

16V2.1 Overview of the Final Product

View attachment 2166794

View attachment 2166815

16V2.2 Introduction

Make 16 V2 mounts one breaker to protect the inverter circuit.

16V2.3 Design and Fabrication

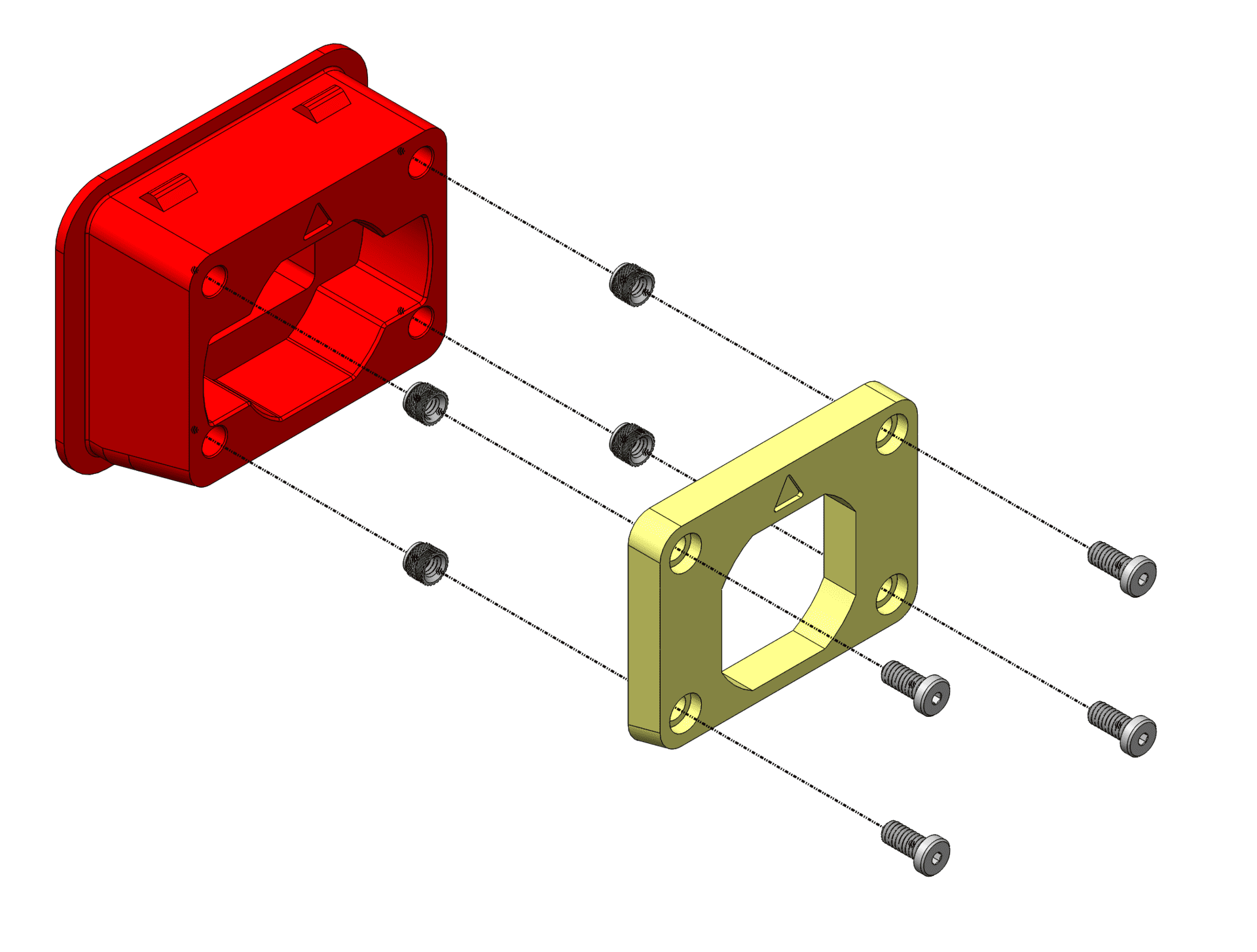

This is a two-piece design to mount the circuit breaker securely.

View attachment 2166811

16V2.4 Purchase List to Complete the Installation

Circuit Breaker
(Select the current based on the wattage of your inverter).

16V2.5 Purchase Link

PM for Direct Paypal Payment

Price:
$20 + Shipping (USPS Priority).

Hey Ben-
I am considering trying to utilize the 3rd row ashtray and cup holder to house a 12v outlet (cig. lighter), USB port, Volt meter, and a switch to turn the circuit on/off. Have you or are you willing to spin up some parts to accomplish this via the combination of plugging the cup holder and the ash tray? Ultimately, I'm trying to execute this without having to hack up the rear of the vehicle.

Amazon product ASIN B07PP1V3L5



[twosmoker]

Hey Ben-
I am considering trying to utilize the 3rd row ashtray and cup holder to house a 12v outlet (cig. lighter), USB port, Volt meter, and a switch to turn the circuit on/off. Have you or are you willing to spin up some parts to accomplish this via the combination of plugging the cup holder and the ash tray? Ultimately, I'm trying to execute this without having to hack up the rear of the vehicle.

Amazon product ASIN B07PP1V3L5

Combo of the m16 and m18 should achieve your goals, check the links on page 1



[BenCC]

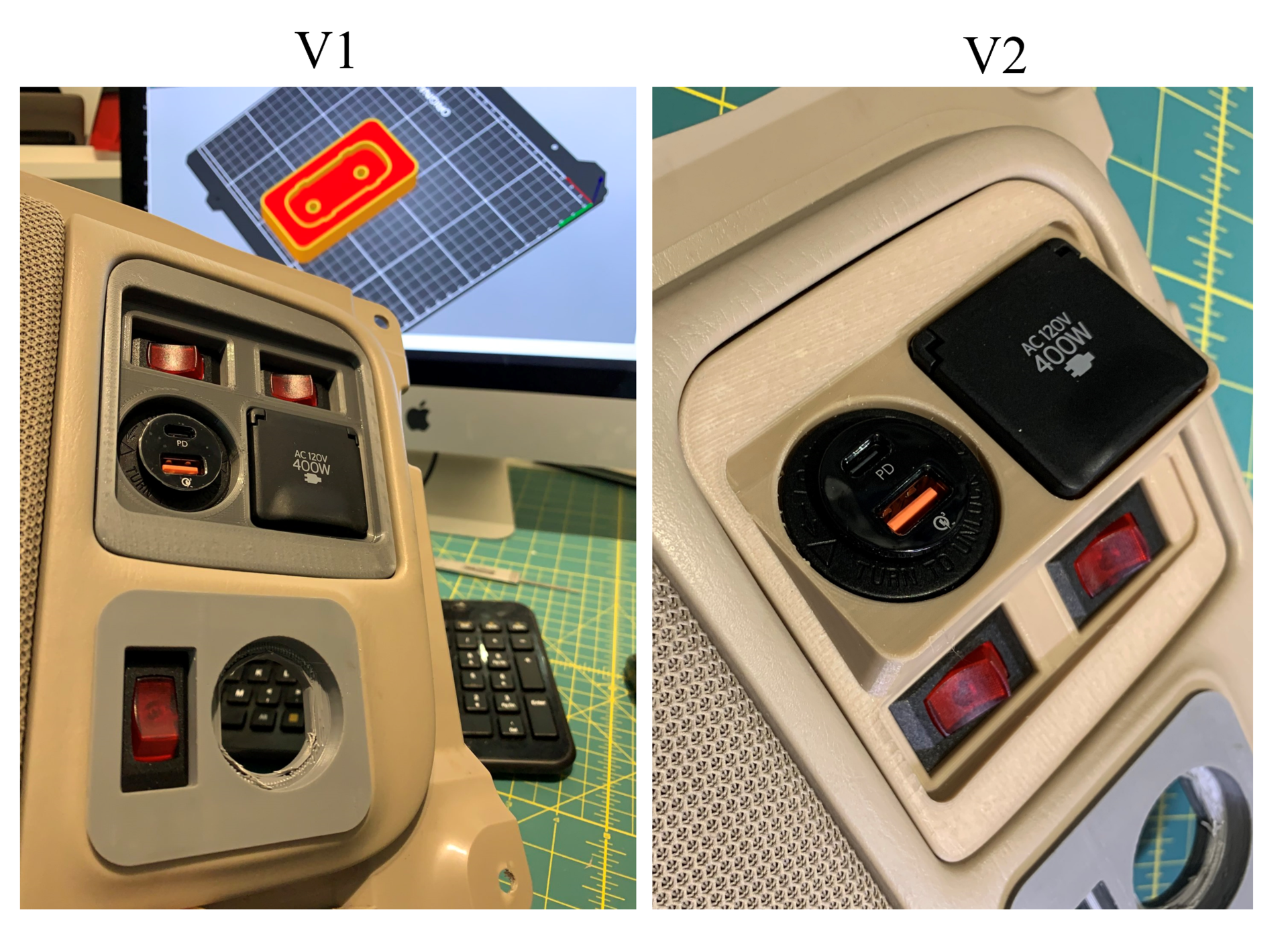

Combo of the m16 and m18 should achieve your goals, check the links on page 1

View attachment 2725356

Thanks. I have a M18V3 that holds two 12V barrel devices.



[Alibaster]

Forgive me is this has been asked, but how large can you print?



[BenCC]

The swap kit is finally done. The holdup was the pre-made extension cable.



[BenCC]

Forgive me is this has been asked, but how large can you print?

I can print up to 500mm by 500mm (about 20 inches).



[BenCC]

I stop by and check this thread every couple days, just to see if there is an update on the back up camera piece.

Sorry didn't work on that project.
Update on me: Just completed one robotic gripper project. And just completed the journal paper and submitted it. I could not share more at this time. Once the paper gets accepted, I can talk more haha.



[BenCC]

Hey Ben
is the ashtray unit different between the early single piece surround verses the later 3 piece style ?

I only have the single piece one from my truck. Do yo have the pic of the 3-piece unit?



[BenCC]

Would it be possible to somehow build a new mount for the cargo area lighting? Maybe something that replaces the current cargo light panel with a new design to house KC Cyclone light or something similar.

I have been using this setup. I liked it a lot. I think I can mount these bad boys in the cargo area relacing the original one.



[BenCC]

I am glad to report that for RHD vehicles the ‘mirror’ version works perfectly.
Finally got around to having truck, part and tools in the same location. Very please with the results !
Thank you Ben

It seems Toyota engineers just perfectly mirrored our trucks.



[BenCC]

Any update on those battery terminal covers?

No sorry. I may have more time during the summer. Will post update here and on insta.



[BenCC]

I am checking the CAD files. I cannot believe I have about 50 makes. The total design file size is 48.6 GB!



[Kabanstva]

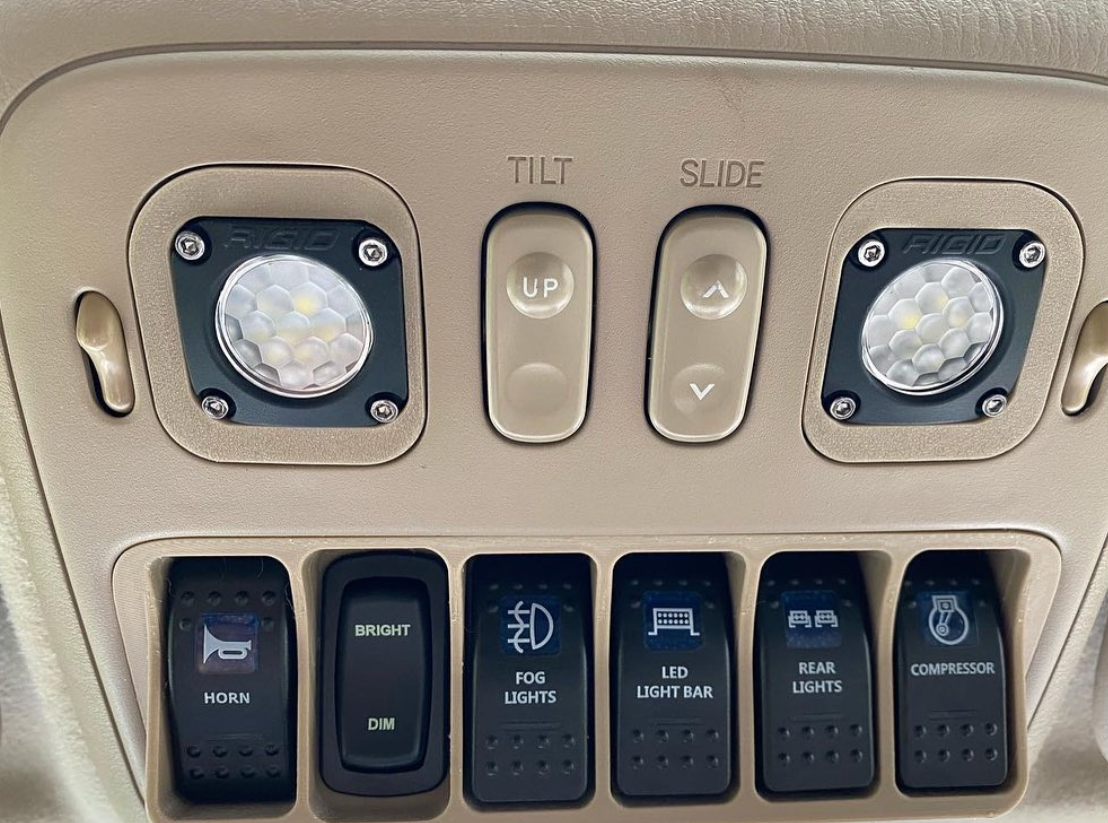

I have been using this setup. I liked it a lot. I think I can mount these bad boys in the cargo area relacing the original one.

View attachment 2725383

PLEASE!!! This would be so amazing. Thanks Ben.



[aaronrules]

I’m looking forward to seeing how the Tundra wheels caps you have been posting on IG come out! I’ve got some Tundra wheels and have had to run without wheel caps since putting them on. My wheel spacers stick out a tad with these wheels as well.



[RootMeanSqr]

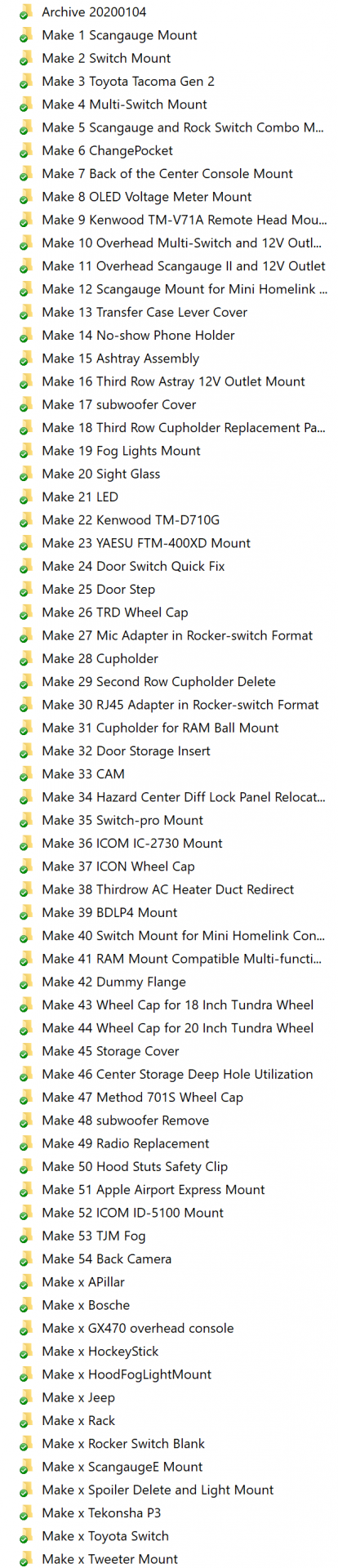

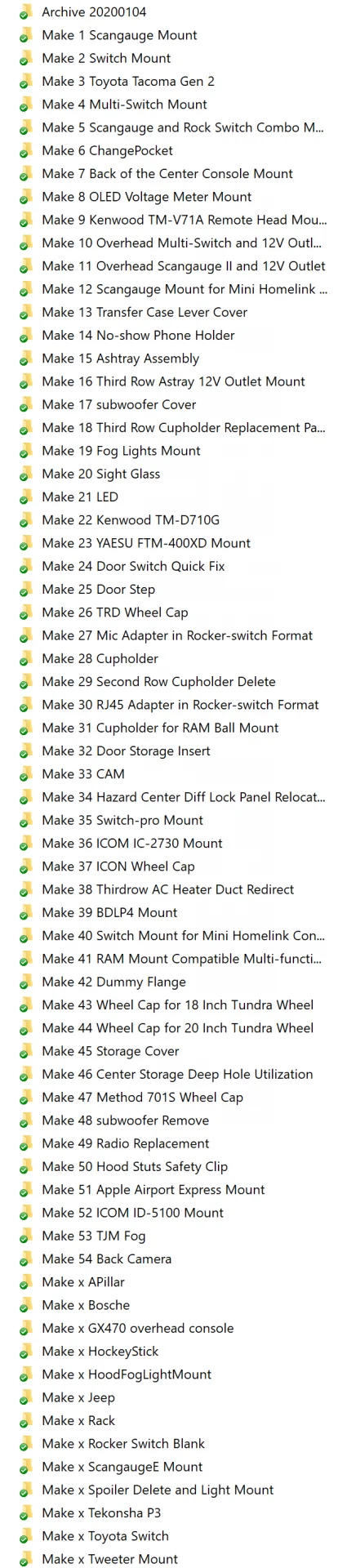

I am checking the CAD files. I cannot believe I have about 50 makes. The total design file size is 48.6 GB!

View attachment 2725389

I think you can strike the "Make x Jeep" off your list. LOL.



[BenCC]

I think you can strike the "Make x Jeep" off your list. LOL.

Agreed.
