ARCHIVE Anyone have images of the installed fuel filter still mounted under the intake manifold?

[NLXTACY]

Ok, I MIGHT be working on another project.

I need to get pictures of EXACTLY how the fuel filter is oriented under the intake and everything that is in its way. It has the two bolts holding onto the manifold and the two banjo bolts and hoses but I need to fully understand what is actually surrounding the fuel filter. I'm fairly certain the fuel filter mounts exactly parallel to the ground with the hoses front and back.



[dallen341]

I have an intake laying around. I'll get some pictures this weekend. PM me a cell and I can text pictures to you and get more views if you need



[NLXTACY]

I have an intake laying around. I'll get some pictures this weekend. PM me a cell and I can text pictures to you and get more views if you need

Oh excellent!!



[andrews520]

Please let it be something that gives me a relocated and easy to access OEM filter.



[NLXTACY]

There is this feeling I have where I keep needing to touch my nose. It's the oddest thing.



[dallen341]

Please let it be something that gives me a relocated and easy to access OEM filter.

and easy access to the damn EGR solenoid under the manifold!



[NLXTACY]

and easy access to the damn EGR solenoid under the manifold!



[sbman]

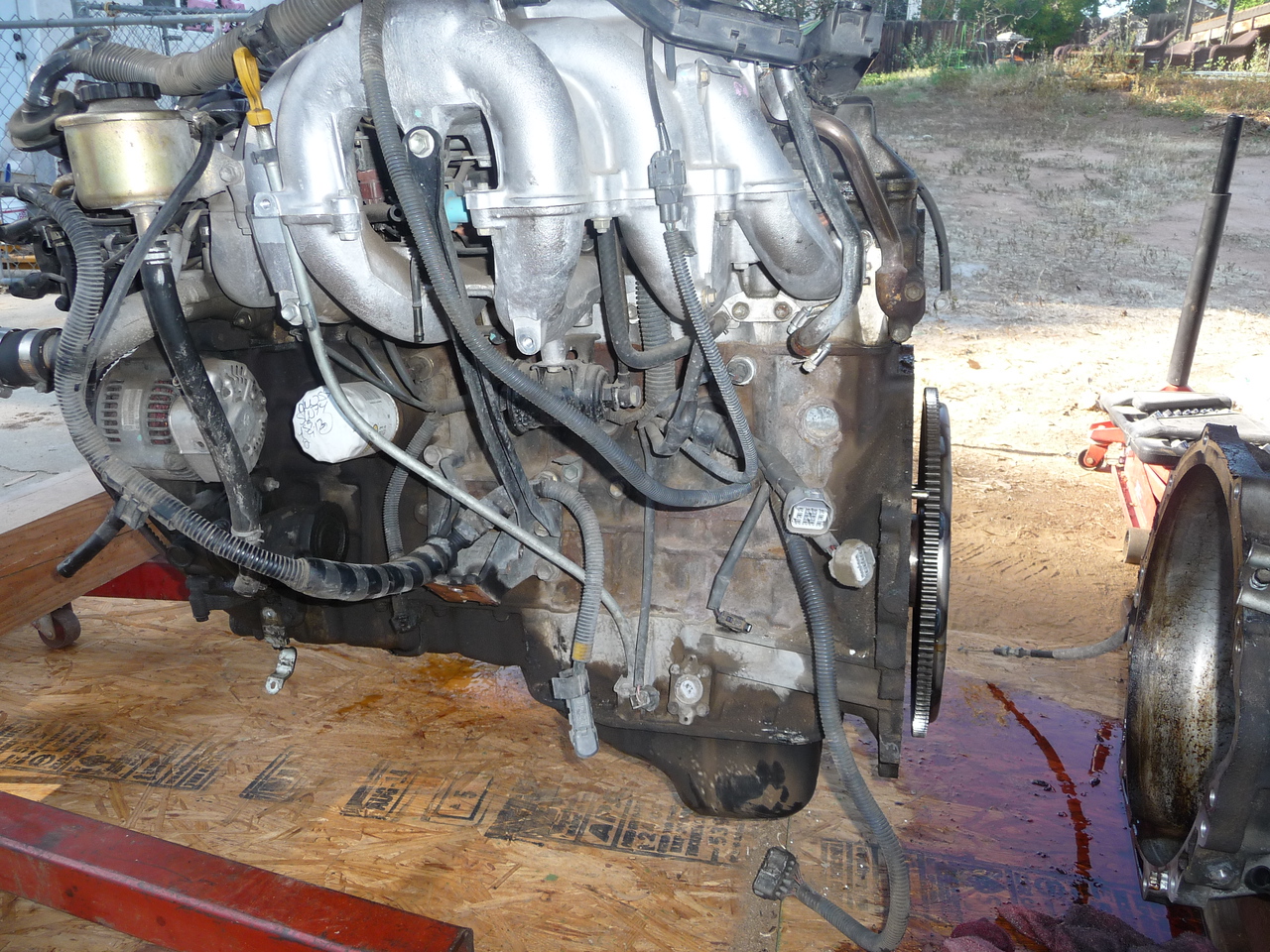

Hopefully this one helps. I've got a bunch more



[half k cruiser]

Please let it be something that gives me a relocated and easy to access OEM filter.

For all the more often you have to change one I don't think the 30 min spent doing this job is that big of a deal.



[NLXTACY]

For all the more often you have to change one I don't think the 30 min spent doing this job is that big of a deal.

This is one of those jobs that never takes me 30mins to do. It's a pain. I have multiple goals with this project. Ease of maintenance is only one of them.



[Oscar Witte]

It takes 30min on a good day, but some of the most frustrating minutes of my life.



[NLXTACY]

^this



[LINUS]

While some can claim "30 mins" - it's just such a f'ng PITA, like you either drink beers in the shower (redneck hot tub), or swear you need to go to teh chiropractor after doing it.

And the random hand-scratches that look like you played catch using a kitten.

Then again, I'm also the guy who notched his lower intake manifold so you can pull it without touching the engine harness.



[NLXTACY]

Hahaha playing catch with kittens is exactly right!!!



[slow95z]

well if you guys would just do a body lift things like the fuel filter, PHH, and knock sensors take like 10 minutes to do



[RhinoFZJ80]

Slow95Z that made me lol! I got a 2" body lift about to happen! Makes me happy just thinking about all the easy things I can get to.



[1973Guppie]

I would buy a kit, changing that filter sucks



[artech]

Unfortunately body lifts are not legal in some states, like Maine.

Too many people using hunks of pipe and hardware store bolts...



[half k cruiser]

for your viewing pleasure .... 30 minute fuel filter install ! if your socket isn't attached to something that looks like that, your doing it the hard way



[98 SNAKE EATER]

I never really had an issue when replacing mine (right tools gets the job done quick), but I really hope this project entails some sort of Schrader valve port so we can easily do fuel pressure tests and fill emergency gas cans if needed

That would be sweet
