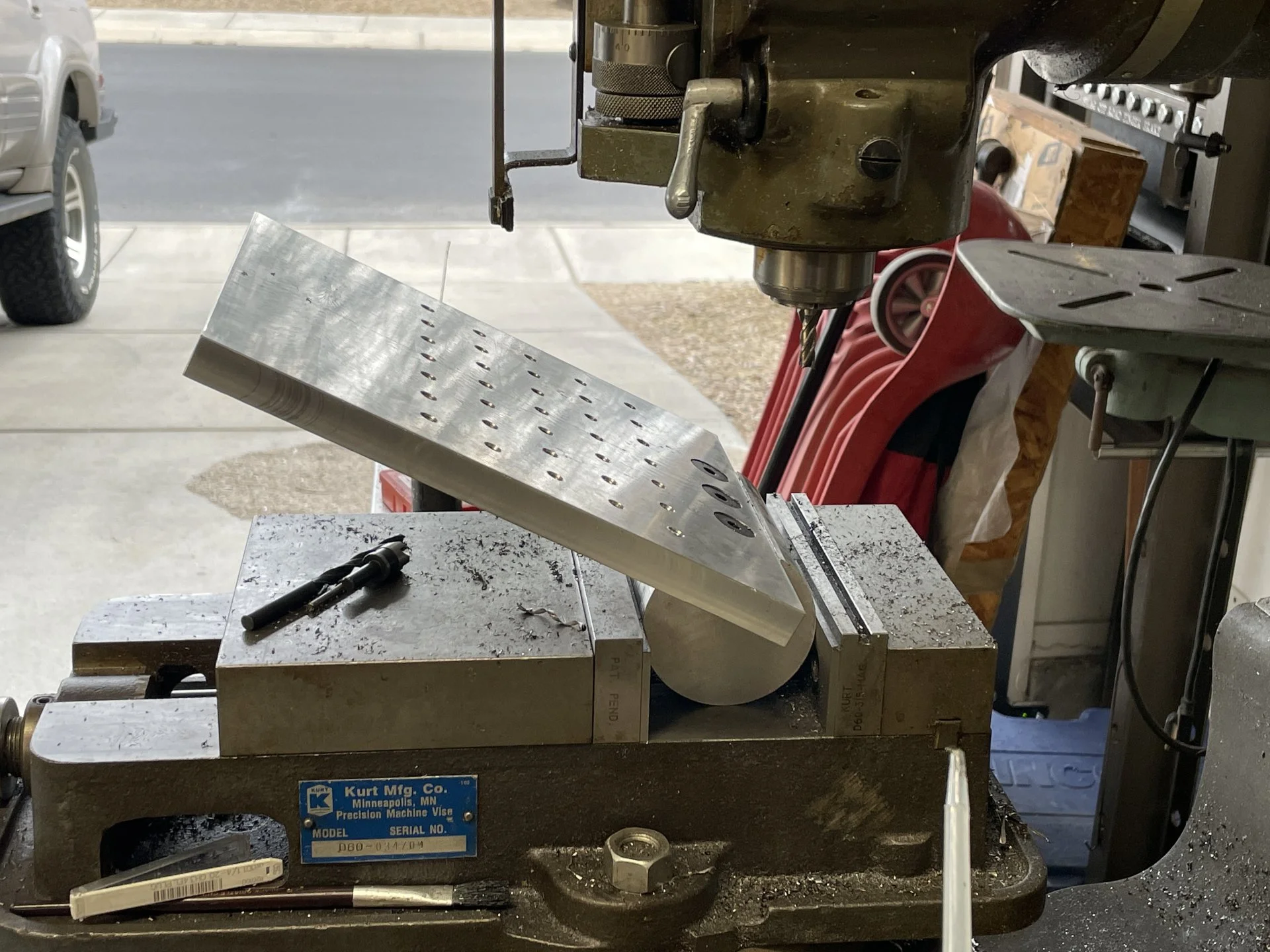

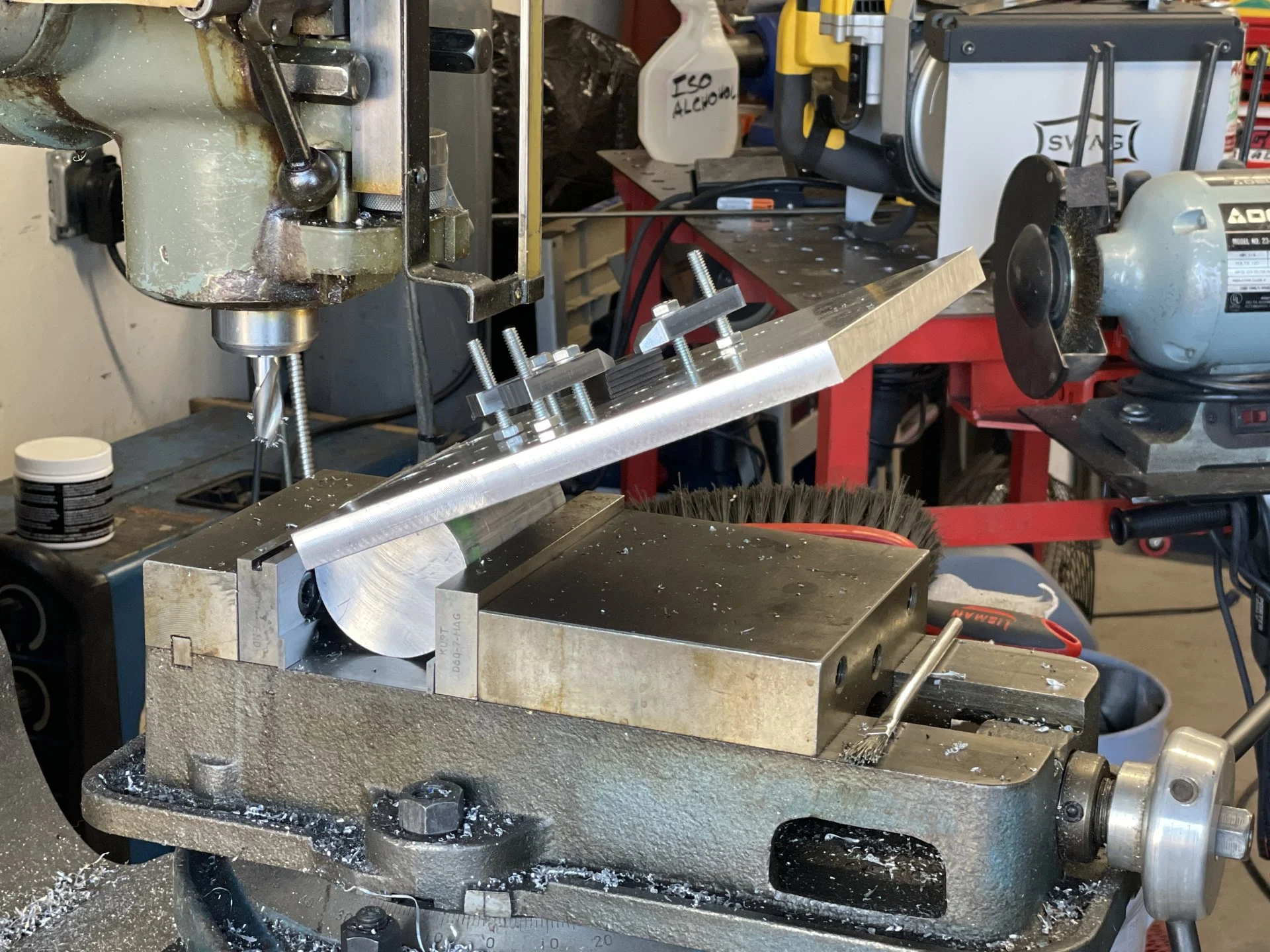

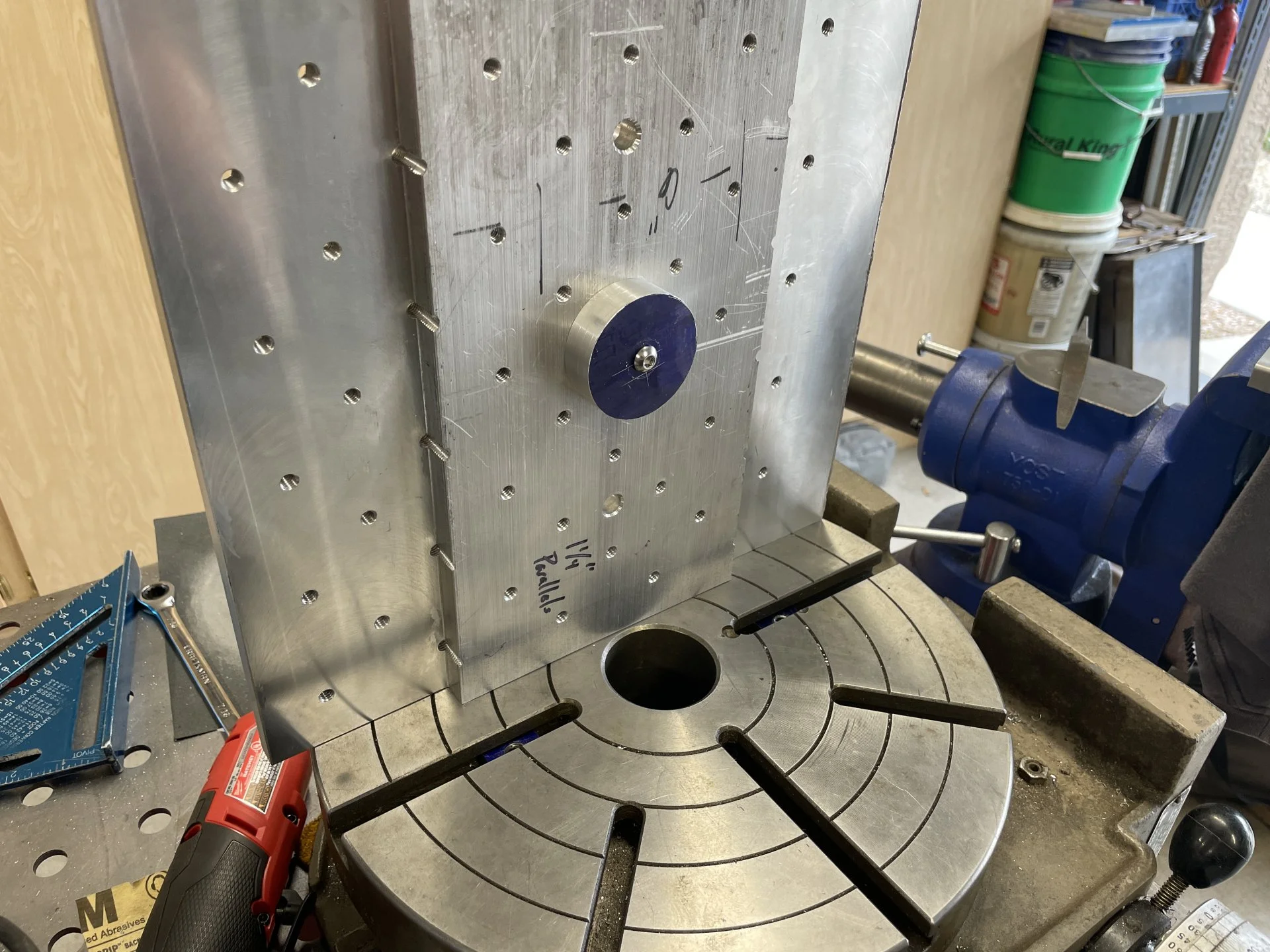

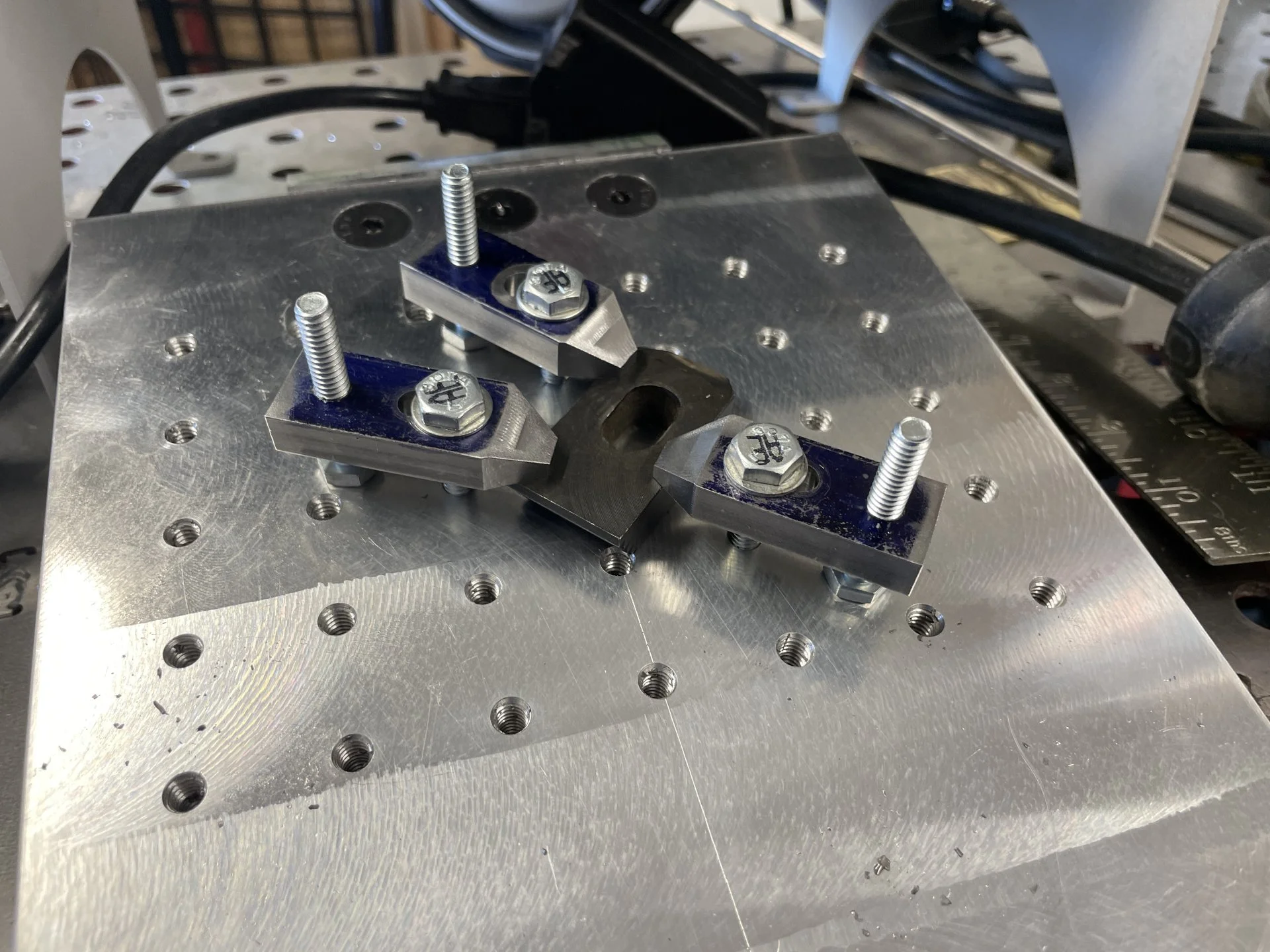

On a distantly related note, I took breaks from the fuel system work to complete some fixturing projects for my mill. I completed a 12"x12" plate with 1/4-20 threaded holes on 2" centers. This can be used on my rotary table, using the locating dowel and holes for 3/8-16 fastener or by clamping it in the vise using the machined shoulder. A sine table laid out the same way can be clamped in the vise for light weight angle machining. Lastly, I made a set of 1/4-20 hold down clamps in 2" and 3" lengths for use on the plates. These were a great learning experience and also a lot of fun to make. They will really come in handy when doing light weight stuff on my next build.



[ARJMN]

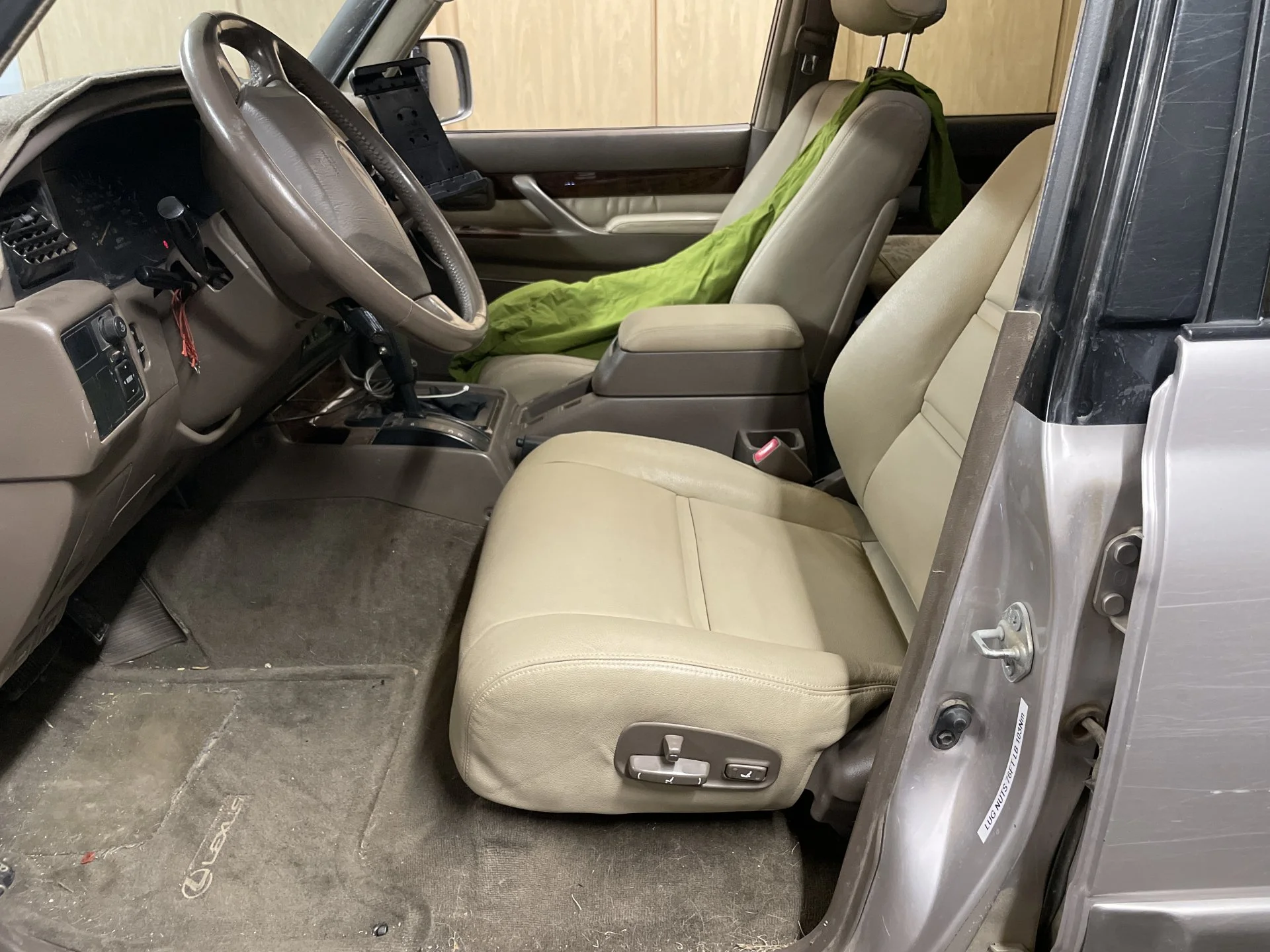

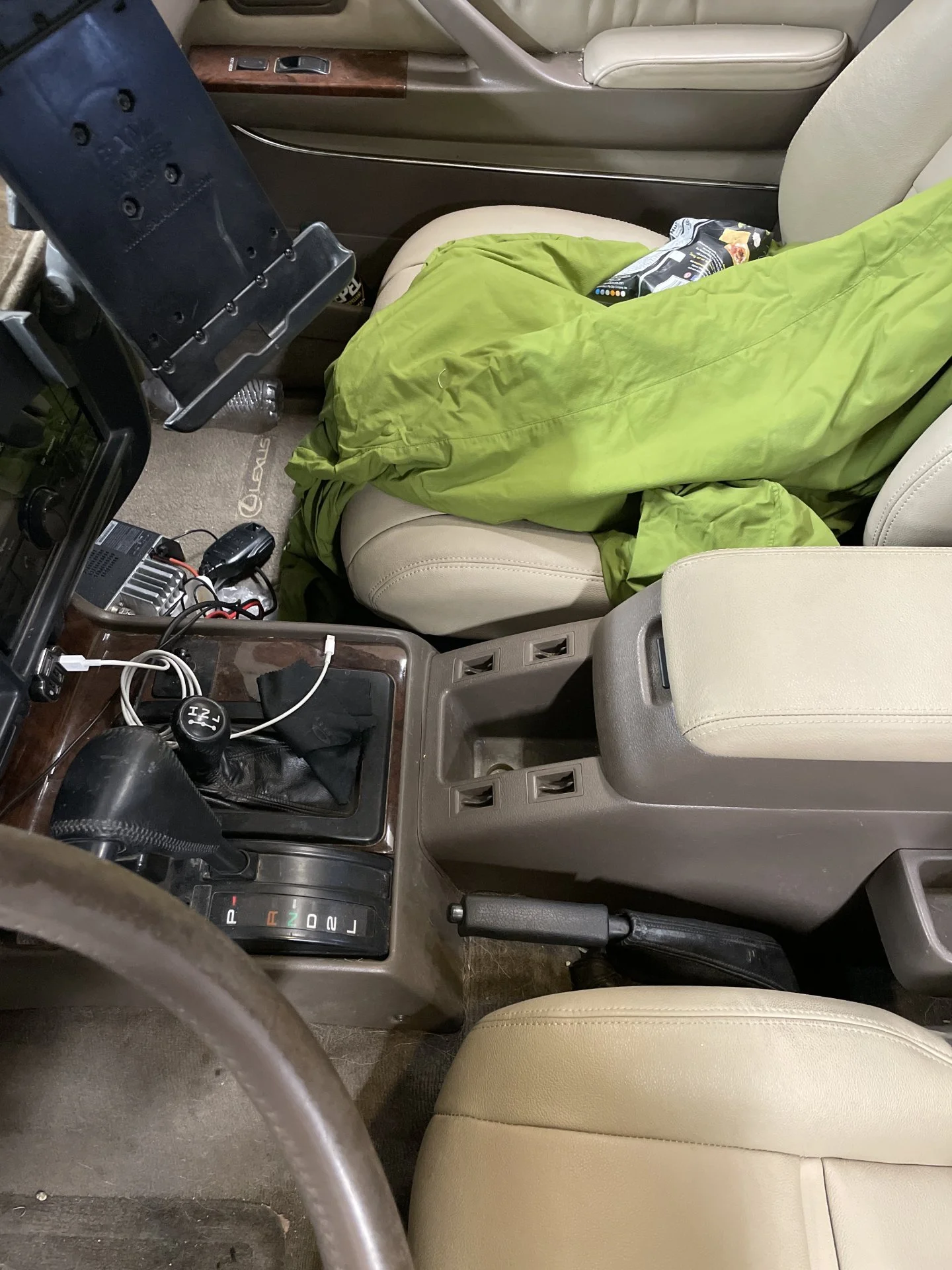

The cramped leg room situation on my 80 has bothered me from day one and up until now, I have just accepted it and considered it "part of the charm". No more! I installed a set of Land Tank Seat Brackets this past weekend. I cringed at the the $162 delivered price for what is about $5 in .750 square bar, $15 in machining, and $5 in hardware, but holy cow what a difference they made! I am happy to support the small guys making great products, but might consider banging out something of my own to Rufus when he goes under the knife. You can see the difference with both the front seats moved all the way back. Its like the difference in economy and an upgrade to premium economy.

There truly are very few mods left to be made on ole' Lexi Jo. She is ready for full time duty this summer, and I hope to be tearing down ole Clappy the Farm Truck soon to begin the Cummins swap project officially.



[ARJMN]

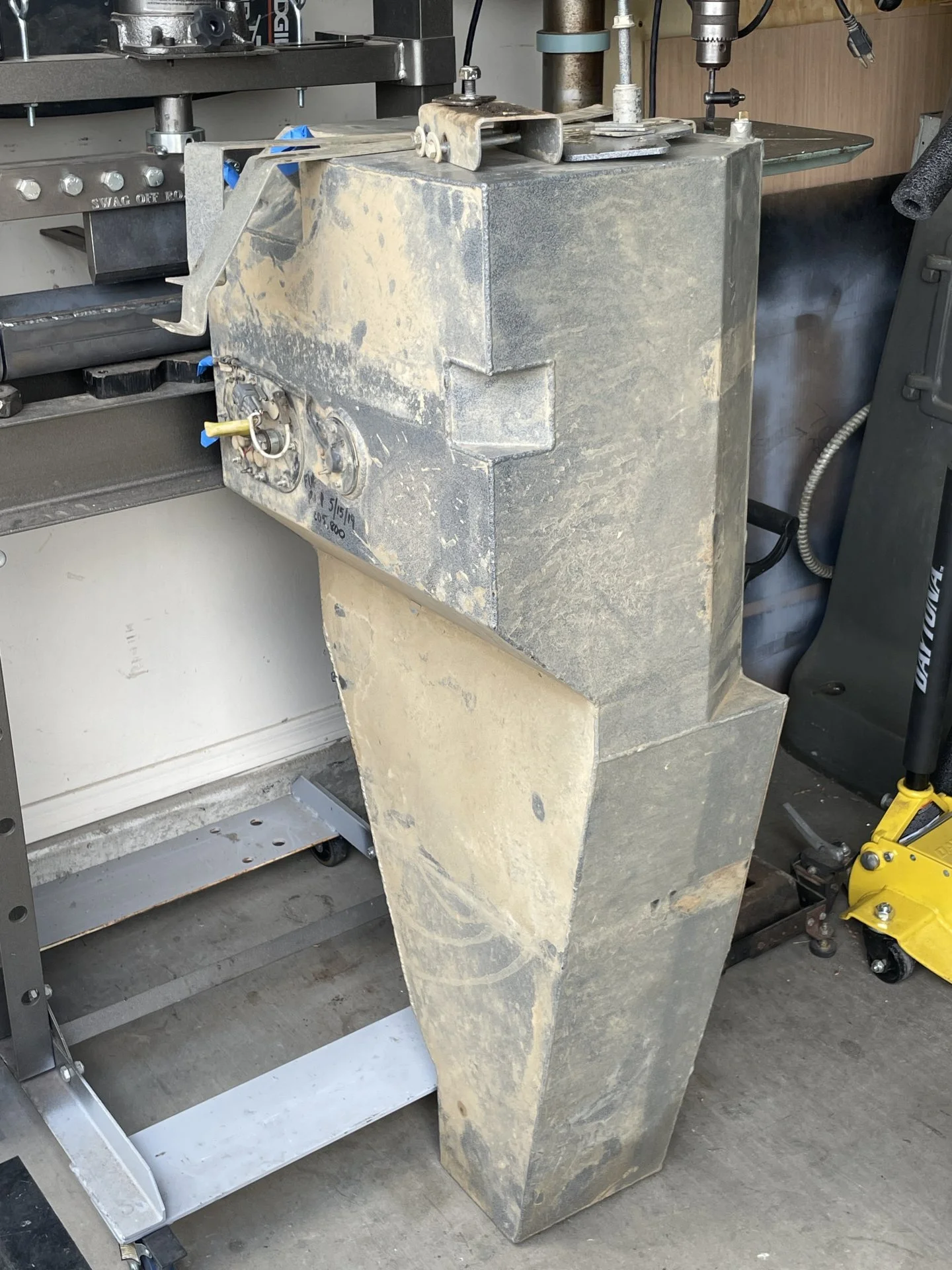

I finally got around to swapping out the Manefre 38 gallon fuel tank for the stock tank I got from @Cruddz. After my run up Crown King this spring I decided I was 100% over this thing. If you want to cruise miles upon miles of relatively flat ground, it is great. I can do about 500 miles of HWY driving with the big tank, but the dang thing is so long that when you get on a steep climb with it full, gasoline can come spewing out of the filler neck. That happened to me on CK. I was almost full and went up a very steep pitch and gas came gushing out of my vent and gas cap. Admittedly, I had removed the baffle in the gas cap to aid in the venting of the tank, but regardless of that fact spewing gas is a no go for me. In consideration of getting ready to build my 96 out as my touring rig with 6BT and all the fruit, Lexi Jo will either be sold or converted into a lightened trail rig. IDK know yet which. The Manefre tank will be sold off in the short term and I will clean and outline my modifications at that point.



[ARJMN]

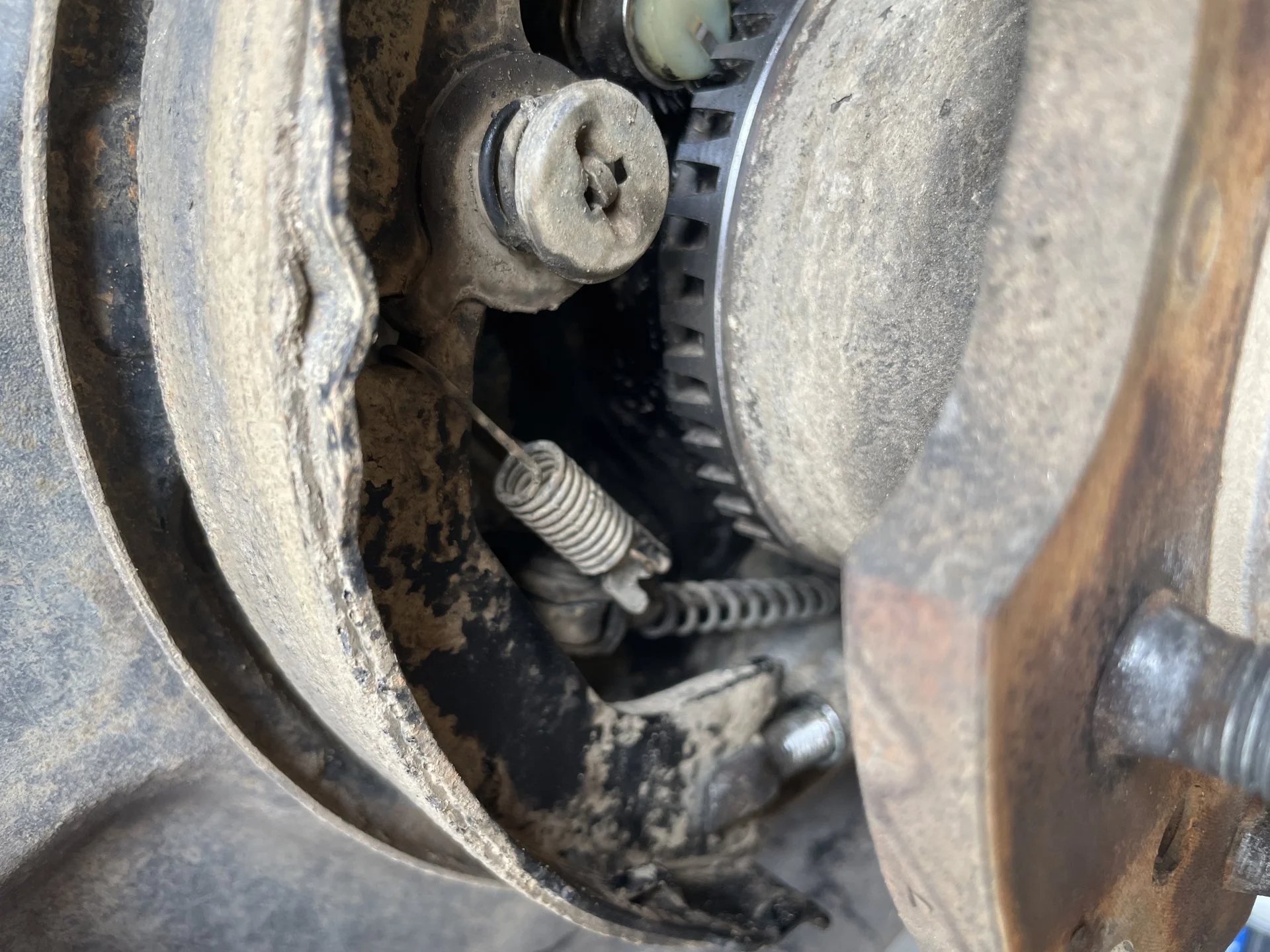

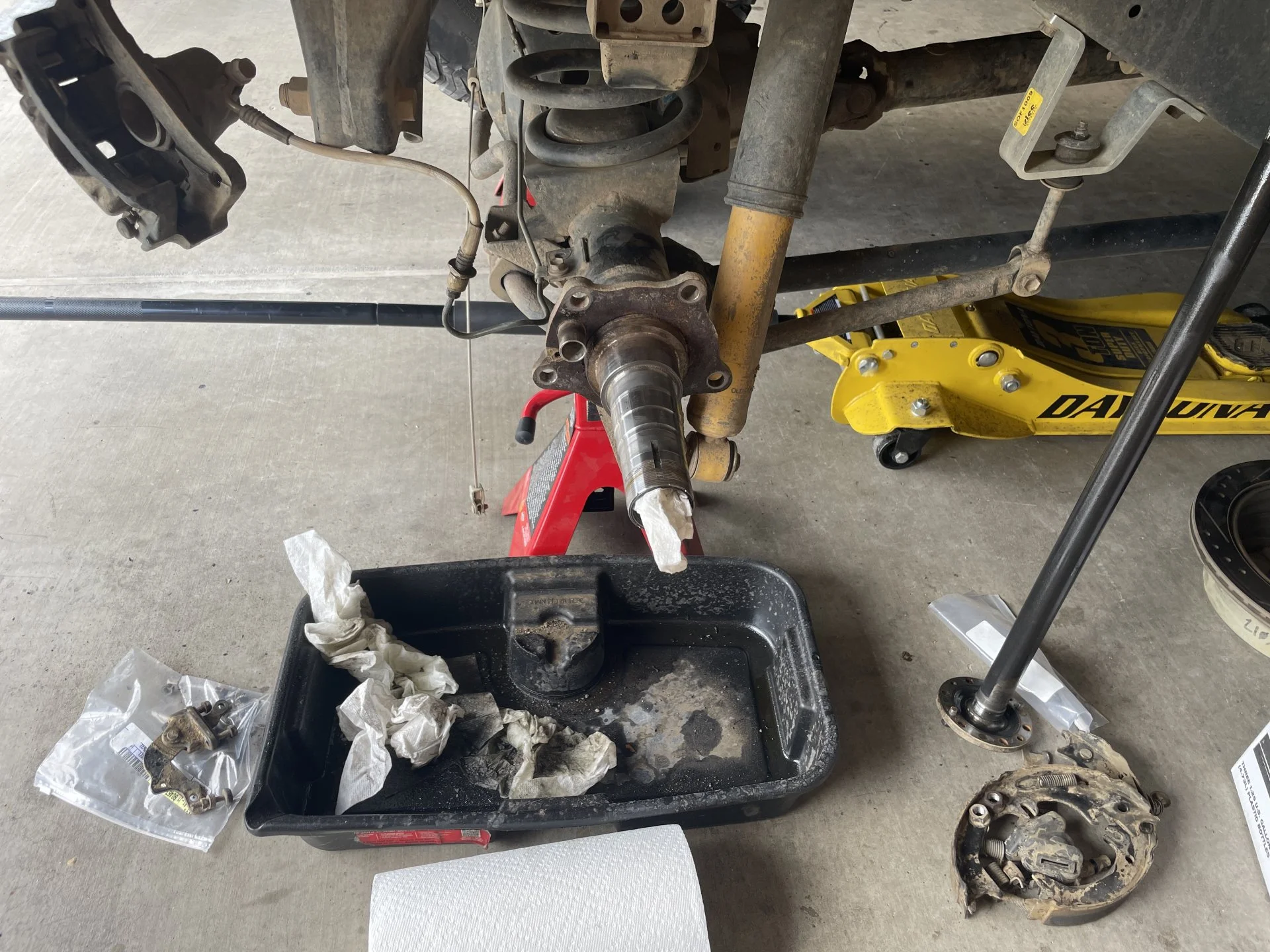

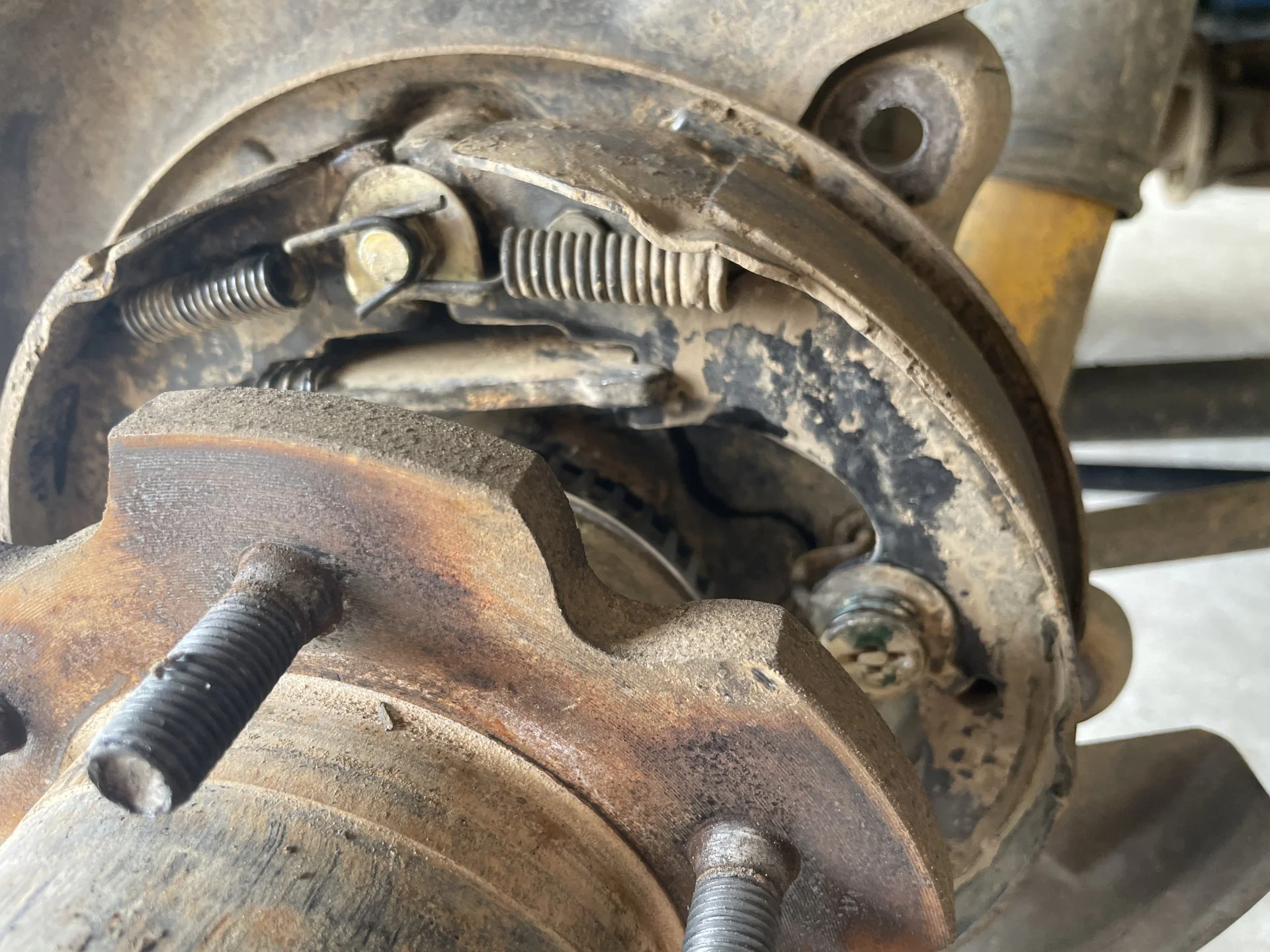

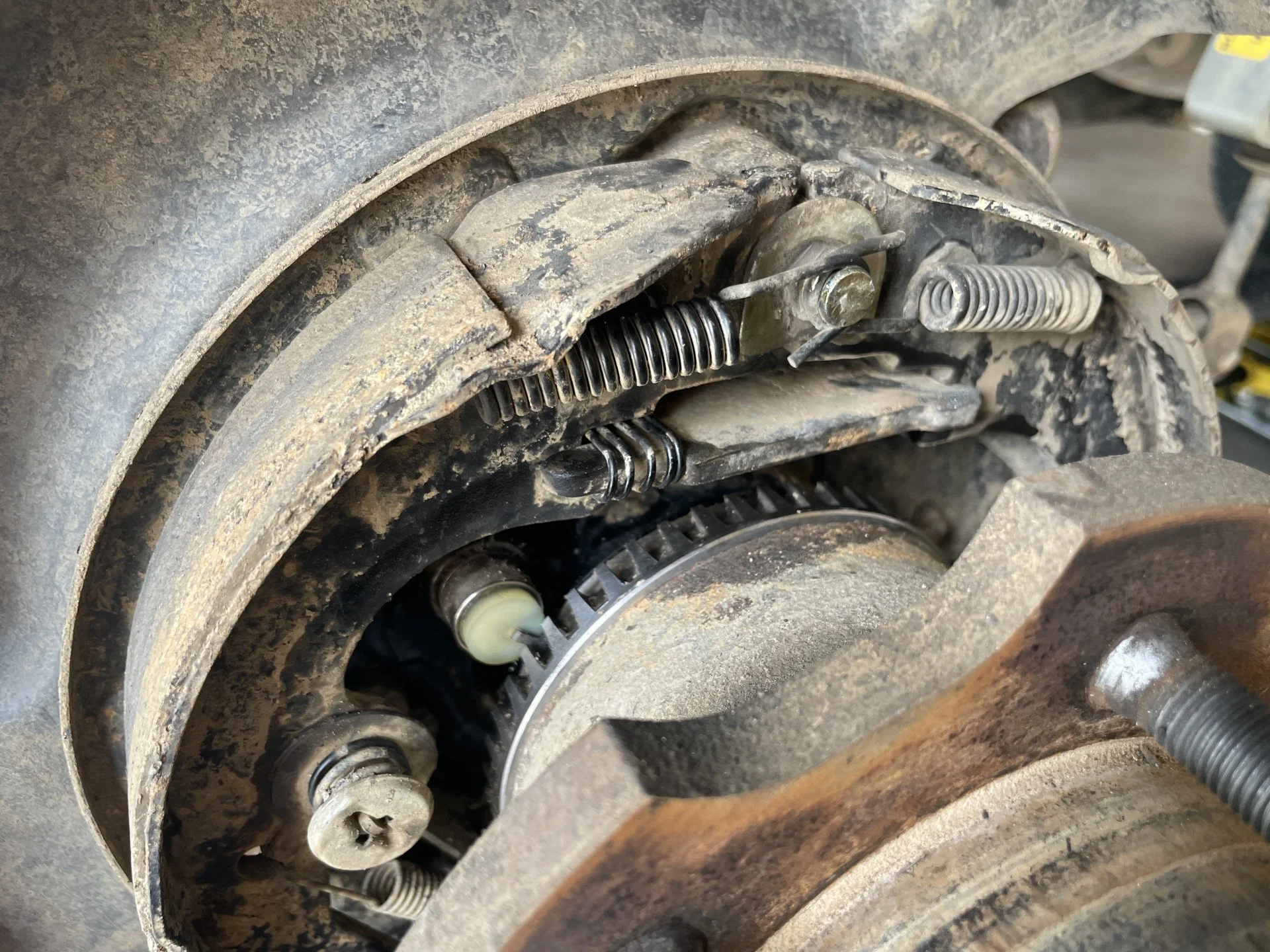

Next up, was my return to the battle for parking brake supremacy. The park brake has NEVER worked worth a flip on Lexi Jo since the day I bought her. Yes, I know...its a Land Cruiser, the parking brakes are all crrrrrrrap! I was on board with that until I bought my 96. Rufus in bone stock, dealer maintained, and has a parking brake that functions perfectly fine. It holds securely on graded both up and down. I am almost afraid to look at it too much, because it might catch wind that it has low expectations and stop working too. All that said, I have gone the full nuclear path on Lexi Jo. New rotors, new pads, new cable, new, new, new.....I am about $600 deep into this effort to replace everything that could be worn and contribute to the s*** performance of the brake. I'll post up more as it all goes together. While I was taking it all apart, I fell into my usual trap of "while I am here, I might as well do this too". So now I am rebuilding the rear rotating assemblies as a whole. Bearings, seal, etc... I have also found that there have been a couple of parts updated since the ole girl was built in Ishikawa.

Unpaid endorsement here, I discovers Zolex Hand Cleaner while at a coal mine in MS. IF you have never used this stuff, I will tell you it is amazing. It takes off everythign you get on your hands and is worth every penny.



[OffRoadScott]

I finally got around to swapping out the Manefre 38 gallon fuel tank for the stock tank I got from @Cruddz. After my run up Crown King this spring I decided I was 100% over this thing. If you want to cruise miles upon miles of relatively flat ground, it is great. I can do about 500 miles of HWY driving with the big tank, but the dang thing is so long that when you get on a steep climb with it full, gasoline can come spewing out of the filler neck. That happened to me on CK. I was almost full and went up a very steep pitch and gas came gushing out of my vent and gas cap. Admittedly, I had removed the baffle in the gas cap to aid in the venting of the tank, but regardless of that fact spewing gas is a no go for me. In consideration of getting ready to build my 96 out as my touring rig with 6BT and all the fruit, Lexi Jo will either be sold or converted into a lightened trail rig. IDK know yet which. The Manefre tank will be sold off in the short term and I will clean and outline my modifications at that point.

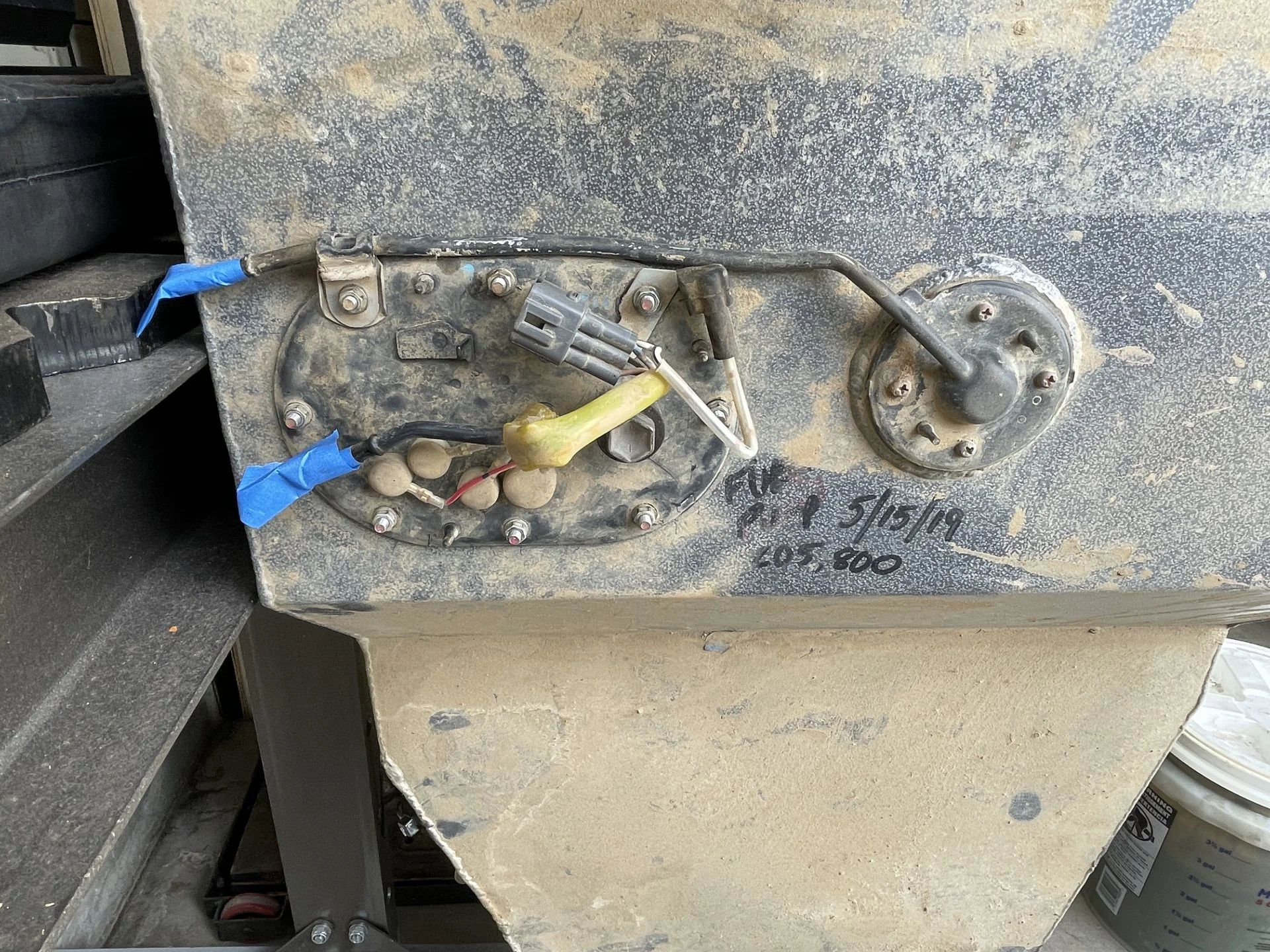

View attachment 3045156

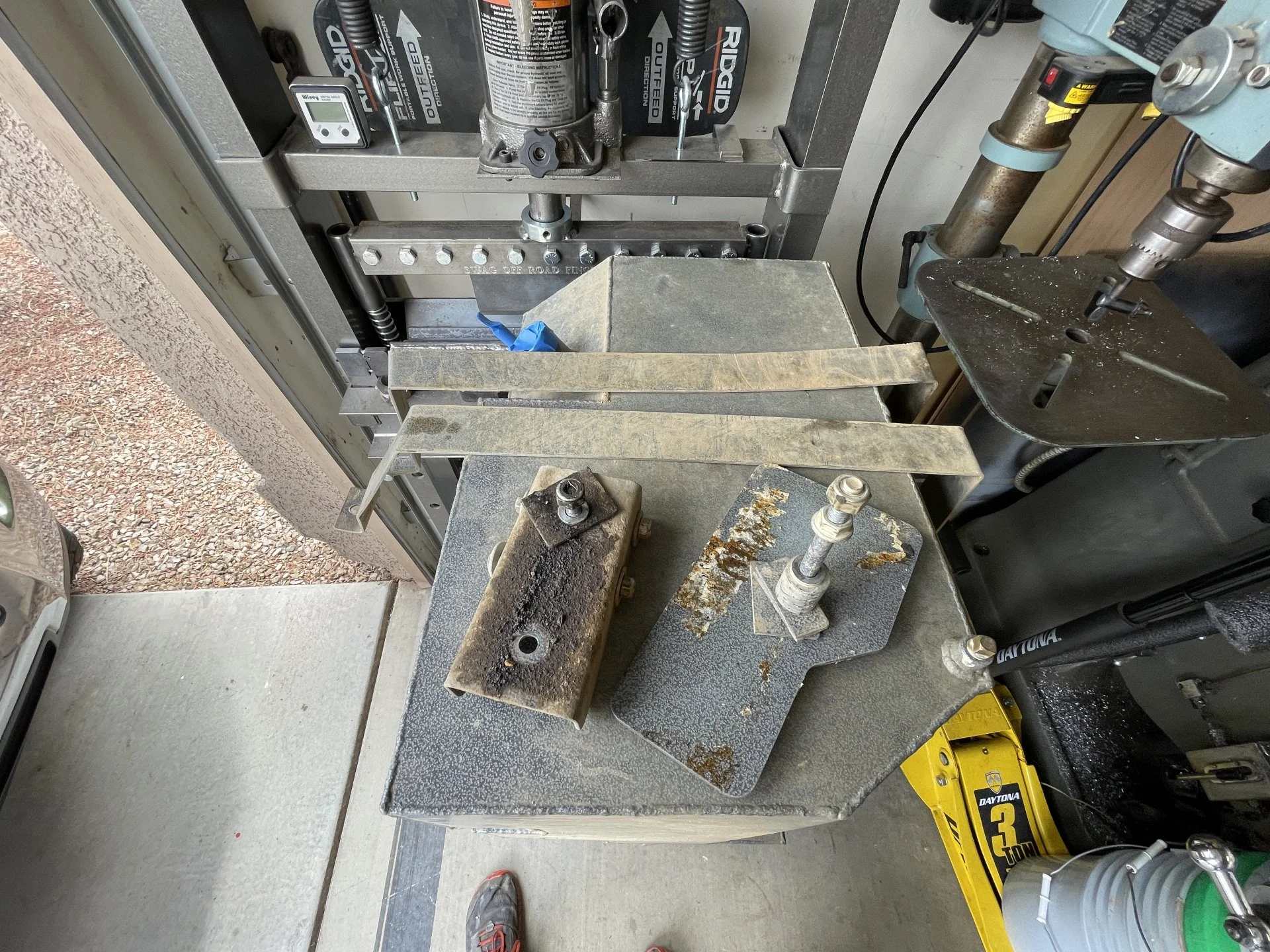

View attachment 3045157

View attachment 3045158

I need a new tank, mine has the notorious crack



[-Spike-]

I finally got around to swapping out the Manefre 38 gallon fuel tank... ...the dang thing is so long that when you get on a steep climb with it full, gasoline can come spewing out of the filler neck.

I can't help but think there may have been a problem other than the tank's length. The system should be sealed, no fuel should leak no matter what orientation the tank is in. Were you able to determine where the fuel was leaking from?

I believe you once mentioned that on hills, when low on fuel, the fuel pickup tube would not be submerged and couldn't pick up fuel. I can understand how the length and bottom contour would lead to that problem.



[ARJMN]

I need a new tank, mine has the notorious crack

I'll give you first right of refusal there, Scott.

UPDATE: @OffRoadScott has claimed the 38 gallon tank, sorry if anyone else was wanting it.



[ARJMN]

I can't help but think there may have been a problem other than the tank's length. The system should be sealed, no fuel should leak no matter what orientation the tank is in. Were you able to determine where the fuel was leaking from?

I believe you once mentioned that on hills, when low on fuel, the fuel pickup tube would not be submerged and couldn't pick up fuel. I can understand how the length and bottom contour would lead to that problem.

Spike,

I must accept some level of responsibility for the poor experience. I modified my 80 to be a far departure from what Toyota intended it to be, but...it is a toy and I have so thoroughly enjoyed (most) of the work. I have removed the check valve from my gas cap which is a big part of why it "gushed" out, but to be far it still would leak out if I filled it to full capacity and parked uphill in my driveway. Another contributor would be that charcoal canister and the included check valves within failed, and thusly were not able to vent tank pressure. The worst event was when I had the tank nearly full, sat idling for a while heating the fuel in the tank, and then I when I heard the tank "BONG" with expansion, I went back to unscrew the gas cap and received a geyser of 87 octane. All in all, I have maybe not a perfect storm of factors, but sufficient enough that I am DONE with that thing.

A separate note is that I was quite disappointed with the lack of real install instructions, support from the manufacturer, and the fact that I had to modify the tank to account for the routing of the park brake cable. It also make removal of the T-Case a huge PITA due to the tank barely clearing the mounting bolts. I have figured out how o do it with a tranny jack and an assortment of extensions and swivel sockets. There is a reason that Toyota specs two smaller tanks instead of one large one. On my next build, I will do a 24 gallon aux tank out back.

I think this tank is a great option for someone with a stockish 80 that is touring and not wheeling hard tracks. The weight, size, and cons just dont align for steep angles and tough spots.

On your note of the running out of fuel on a grade, yes, that happened to. The sump in the tank is sufficient for temporary steeps, but hang out too long with your fuel level low, and the sump will drain and the pick up will run dry. It has happened to me twice, once was easy as I just had to roll downhill to a more level spot and cycle the key a few times. The other was a bit more nerve racking, requiring me to dead engine brake backwards down a steep rocky face.

Nothing earth shattering here, just a wonderful journey of learning, improving, and starting again more intelligently.



[ARJMN]

Status update: A coupe weeks after the rear brake overhaul with all OEM parts and I am happy to report that i have a working park brake. The brakes have bedded in at this point and I will readjust them soon to take up the slack. I am not able to get the "7 clicks" performance the manual speaks of, but I can say that all OEM seems to make a difference. One more win for the home team. Additionally, I have run a half a tank through with the factory tank in place. Definitely a huge difference on capacity and the rate at which the gauge moves. SO far, zero regrets going back to a stock tank. Let me take a long trip and make twice as many fuel stops and I may have a little different position.



[ARJMN]

I also have the PowerStops listed here if you need some brakes SOLD



[ARJMN]

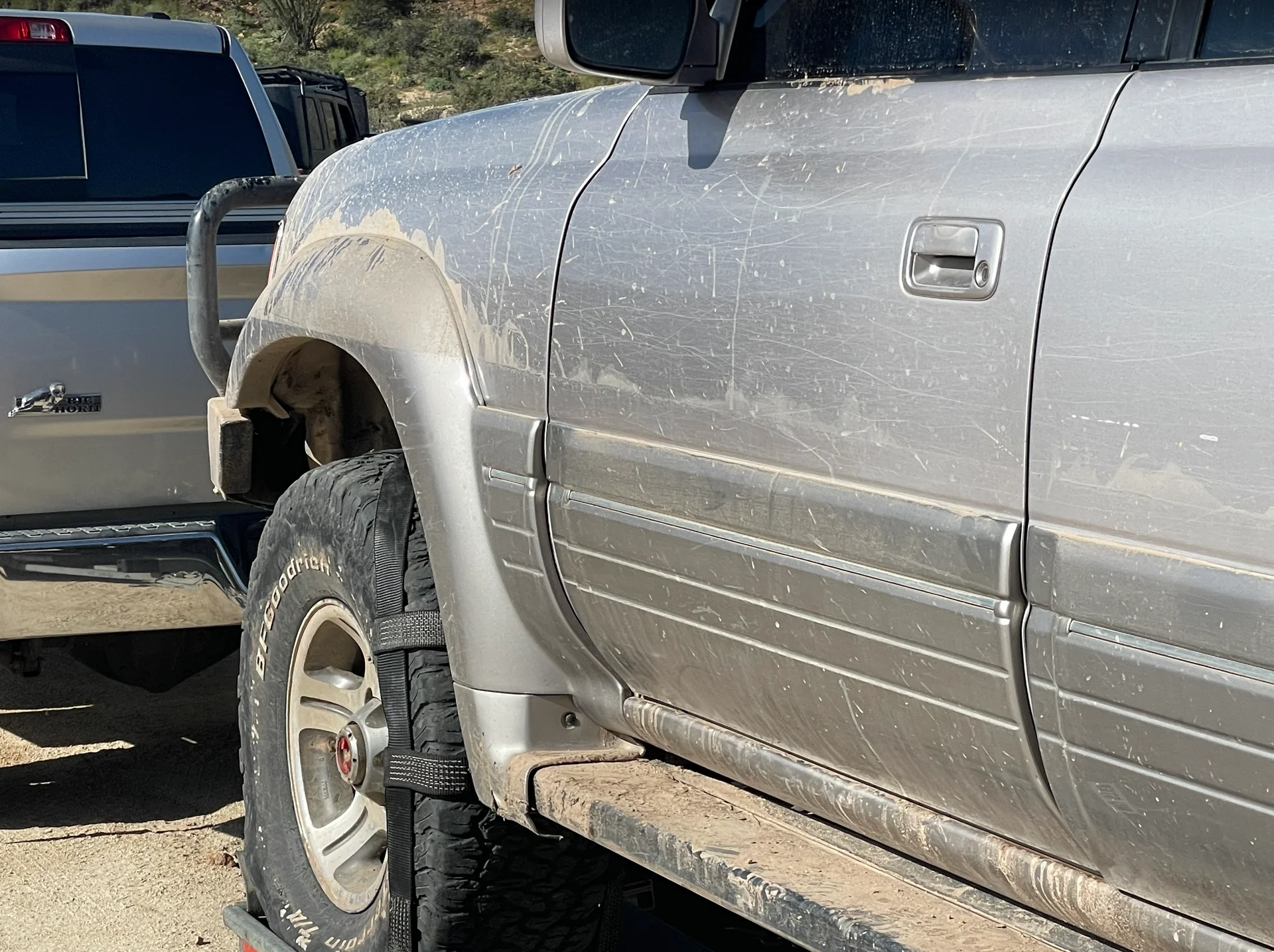

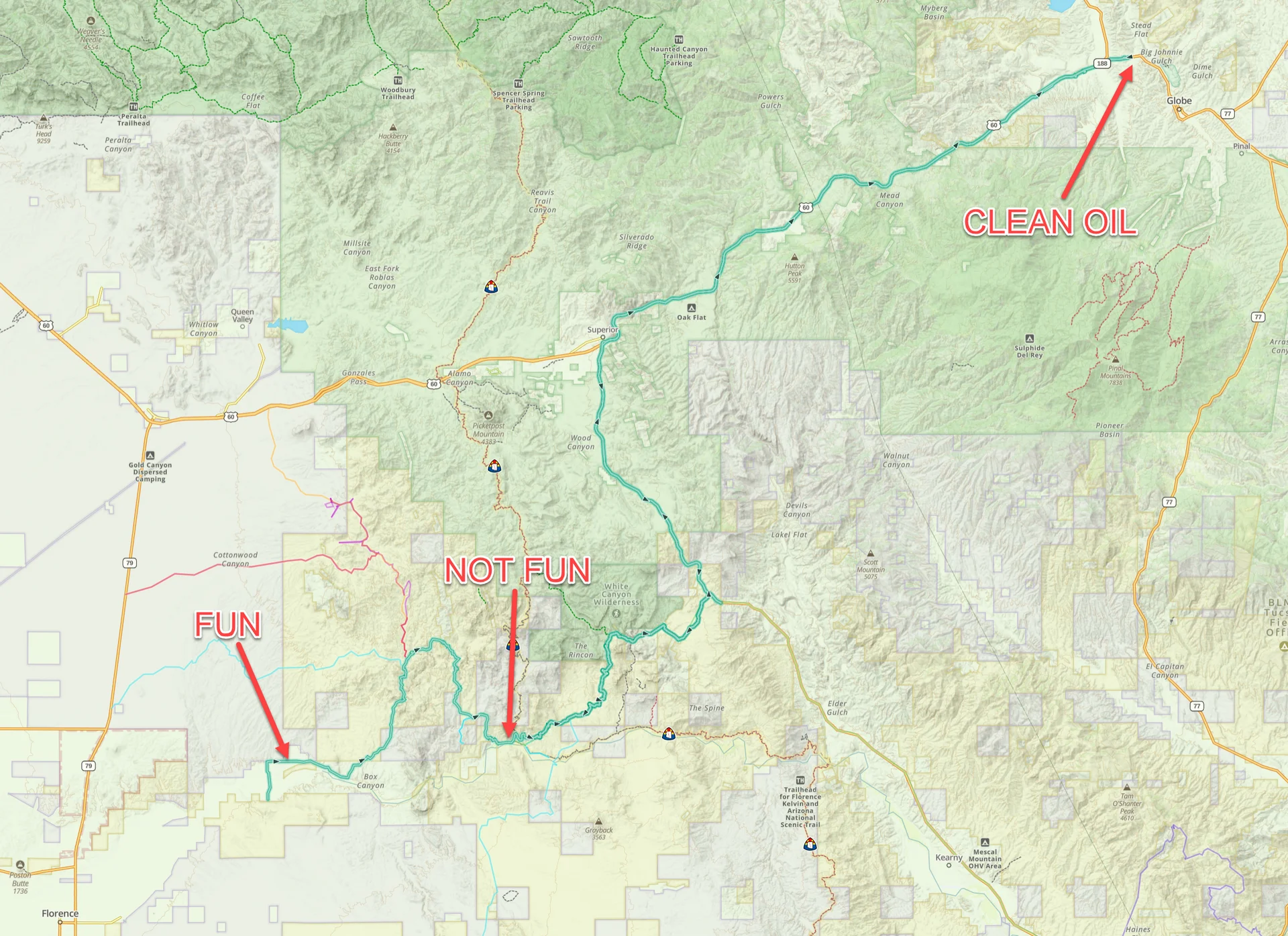

Well, the Gila claims a victim. Or was it "Dumba$$ drives into deep $hit"? In short, I sank the 80 this past weekend down by the Gila River. I was more or less following the same track that we ran in February, but holy cow was that hole a lot deeper now. This is the same hole that @Otter caked up his radiator in. You can see the water line on the fender in the pics. Essentially, I toed off in it quick enough to push a wave, but stopped short when it started getting deep. When the wave rebounded, I could see the other end and thought it was doable. Little did I know there was a seriously deep section in the center that had 33" swallowing rut in the bottom. The axles bottomed out and there I was, going nowhere! I tried to free myself to no avail, and once I had about an inch of water in the floor, I crawled out the window and across the hood to the front bumper. While doing so, the horn started blaring. I hollered for my passage to poop the hood, and after getting it open, I unplugged them to silence the racket. That done, I went back to pulling cable. After I had enough unspooled to get started, I jumped from the hood to the bank and ran up the trail to find a tree to anchor to. A quick return to the 80 and a hood shimmy later, I was snaking back into the seat and reeling in the cable. I have always erred on the big side when it comes to winches. Some say 1.5X rig weight, but I like the 2X factor. Being able to single line pull in most situations is a big plus as you have to pull half as much cable and the line speed is much better. It still loaded up the Superwinch Talon 12K pretty good, but about 30 seconds later I was free and on dry land.

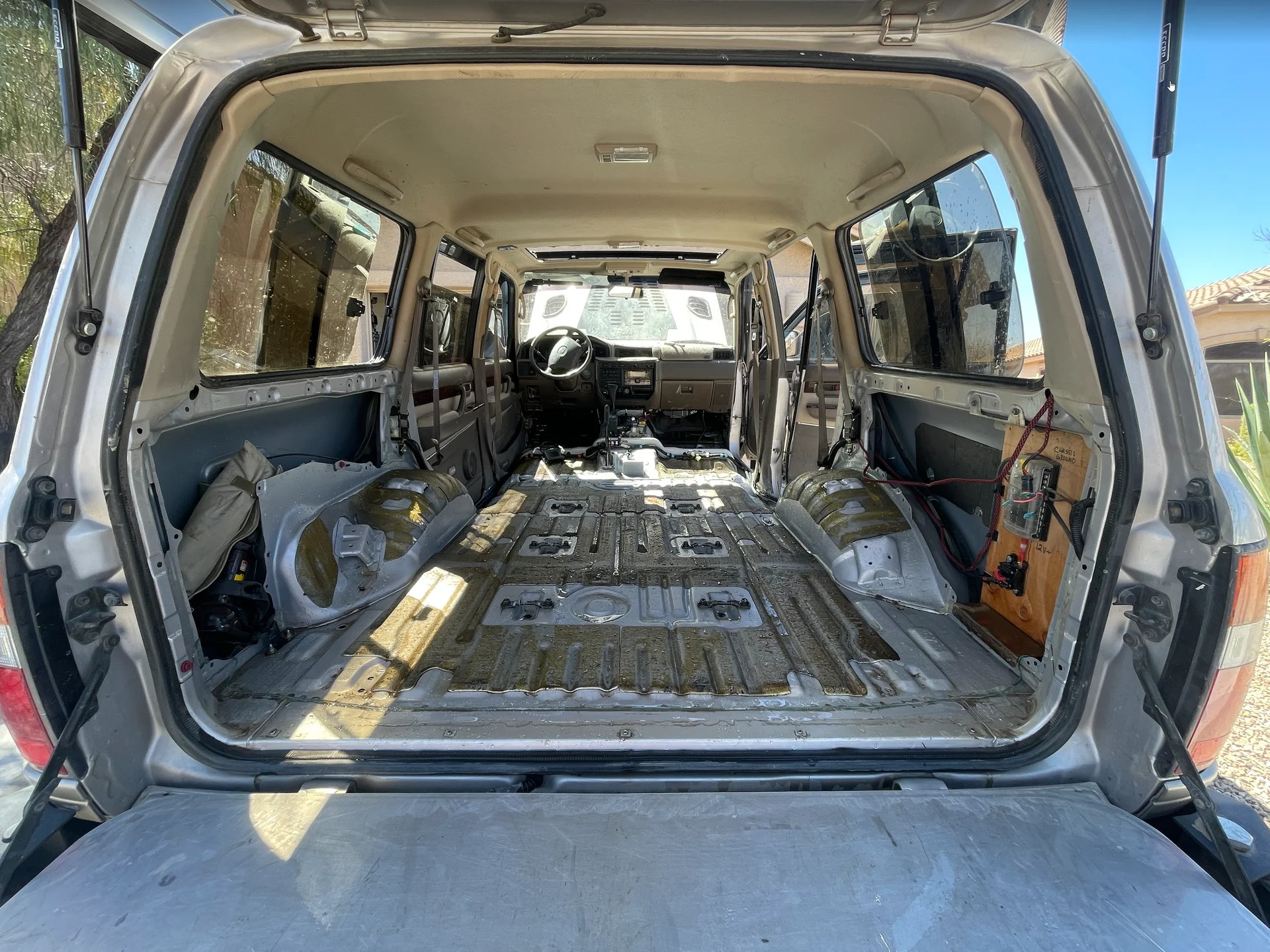

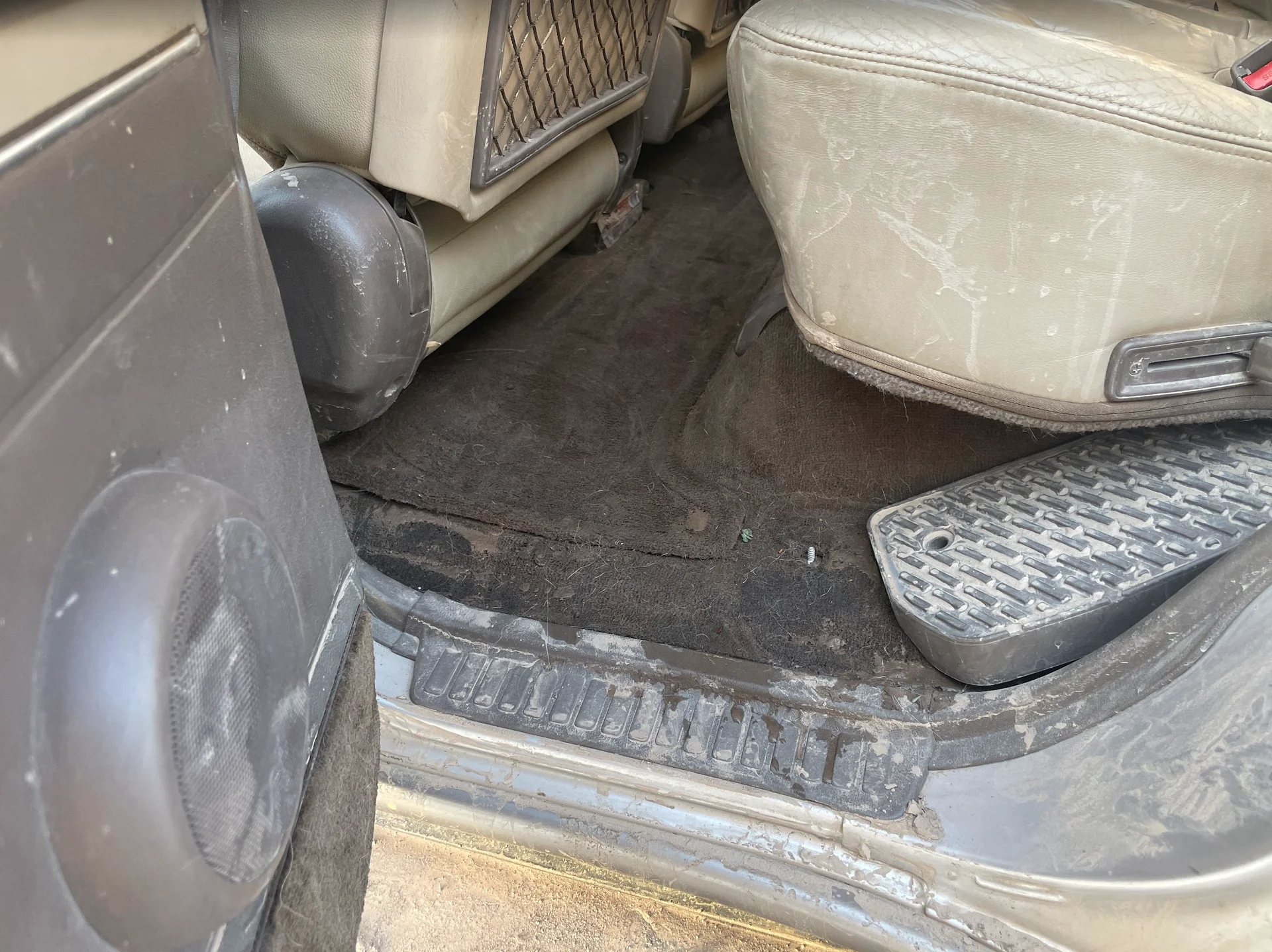

I thought the sum of the damage was just going to be having mud in the interior, but it also meant that with about 6 inches of water inside, everything was soaked, muddy, and stanky. That included two of my guns, all my clothes, and everything else not piled up above the flood line.

The real casualty was the 6.0 LS under the hood. The engine never shut off in the water. The exhaust was constantly blowing big bubbles, the intake/filter were bone dry thanks to the Safari Snorkel, but when I thought to check the dip stick, it was full of milkshake. I have no idea how, but the bottom end was full of that nasty river bottom mud and silt. Also, remember when I said the horn was honking? The lights were also going nuts, and when I tried to start up again, it refused to fire. The 80 Series has a security system ECU under the drivers seat that can disable the starter, and with it being full of the same nastiness, it was shorted out. I got the rig pushed off the trail and to a spot that would soon serve as our camp for the night. I was with a co-worker and his family, and he asked me what I needed. I said 8 quarts of oil and an oil filter. We both smiled and shook our heads. A quick chat yielded the plan that his son and I would take one of their Jeeps to town and grab much needed supplies. We knew right there, it was going to be a very long night(weekend). We had a sandwich and then hit the trail. Two hours later, we pulled into O'Reily's in Globe where 3 gallons of 5W-30, 2 oil filters, an oil pan, cleaners, and paper towels claimed 182 bucks out of my wallet. We grabbed some Taco Bell, because why not, and less than two hours later, we arrived back at the wounded bird. I drained the oil and it was pure river bottom muck-shake. Disgusting.
