55/80 Build. This little piggy came home. (1 Viewer)

This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

fre55h

IG: @andrewstewartdent
Joined
Jun 30, 2018
Threads
3
Messages
531
Location
Australia
G'day.

I started this project a few years back and up to a point where I need to delve into unfamilliar territory with the 80 Series and looking for resources.

Build.

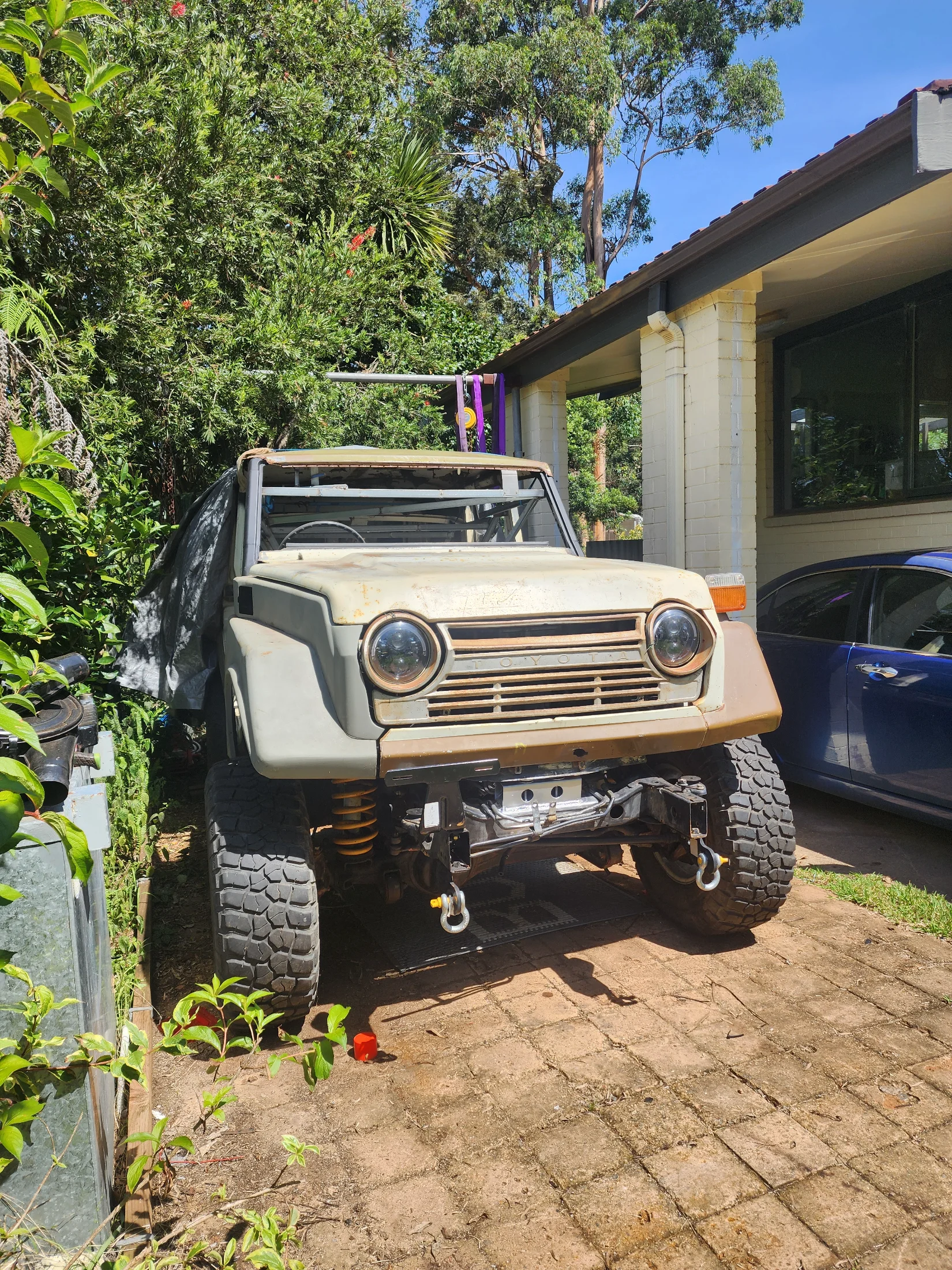

-Body: 1977 FJ55 Landcruiser
- Chassis 1995 1FZFE 80 Series, Auto, GXL.
- Running Gear: All Stock for now.
- Wheels: 35s on Allied Savanna Wheels (VDJ79 series look-alikes)


I will be utilising the 80 Series wiring harness for the build and plugging it all back together, but in my haste did not lable everything.

Q1. Wiring Harness schematic, Pin Out or Pictures.

Q2. Internal or External fuel pump?
I am using a 177L Diesel Tank, and need to either plug the factory petrol fuel pump/sender in, or install a external pump and use the tank's sender (which is made to suit the larger capacity tank)

Q3. Vacuum Schematic, where best to find this?

Q4. Relays/parts to replace before start up
.

Looking forward to the next phase.
Cheers!
Andrew.
