Wanted 1HZ Denso Air Conditioning Compressor Suction Manifold and hose-ends (1 Viewer)

[lelandEOD]

Location

United States

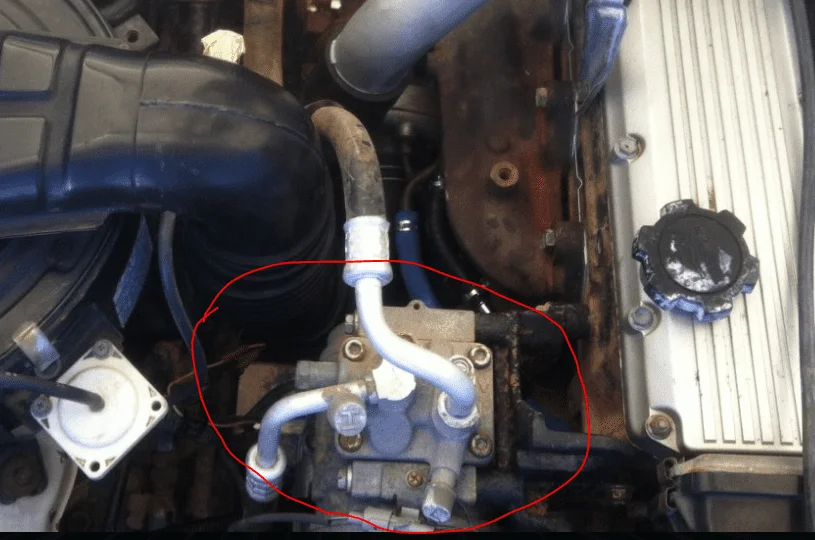

I'm looking for the following manifold (part number 88371-60300) for my 1HZ conversion:

I can buy a remanufactured A/C compressor from several vendors, but it seems that they do not come with the suction manifold and the correct part is proving hard to find.

I'm also hoping to pick up a pair of High and low pressure hose ends as well. I just need the hose ends, as I can cut off the crimp and make my own custom lines specific to my application:

Let me know what you have!



[FJ73Texas]

Check with Cool Stream in Arizona.

Auto AC Parts Store, Tucson AZ | Auto Heating Parts | Call 520-918-3604



[c2dfj45]

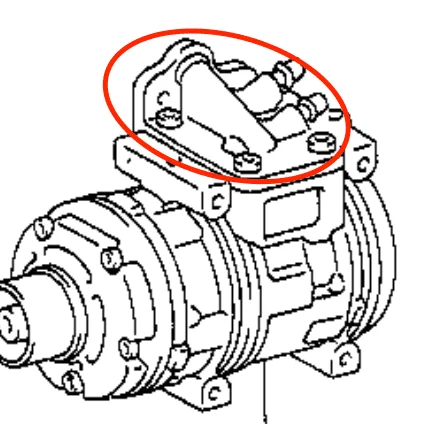

I'm looking for the following manifold (part number 88371-60300) for my 1HZ conversion:

View attachment 2050972

I can buy a remanufactured A/C compressor from several vendors, but it seems that they do not come with the suction manifold and the correct part is proving hard to find.

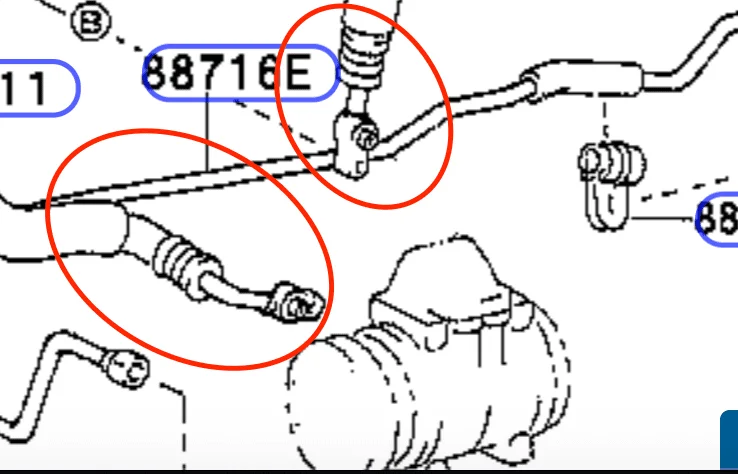

I'm also hoping to pick up a pair of High and low pressure hose ends as well. I just need the hose ends, as I can cut off the crimp and make my own custom lines specific to my application:

View attachment 2050974

Let me know what you have!

Really weird.....I spent the better part of my morning looking around for this same piece. Couldn't find one.

I have purchased a Denso manifold from Nostalgic Air for our 3FE installs and then just used universal hose ends and hose to make a line. Easy. I might have to do the same thing in my current build because finding this manifold is going to be tough.



[JDMStanNTopSoft]

I’ll see if I can find you one



[lelandEOD]

@c2dfj45

I'm also wondering if there are many suction manifolds that would work on this style Denso compressor? Seems to me that Denso would likely make a multitude of different manifolds having the same compressor bolt pattern to allow for hoses to connect in different configurations to suit different auto manufacturers' requirements. I was in the local junk yard last weekend and saw a lot of different import models with a Denso compressor that appeared to have the same rectangular manifold footprint as the one we are after.

At least in my case, I am not dead-set on a 1HZ/HZJxxx manifold as the engine and A/C compressor was being fitted to a 40-series truck anyway. I don't need the original lines to reach/line up/connect as I'm making my own to begin with. I just need a manifold that will bolt up appropriately to the Denso compressor designed to mate to the 1HZ bracket and pulley idler.

Thoughts?



[c2dfj45]

This is what we use on the 3FE compressor when we do that swap....

Denso / GM Compressor Adapter for 10PA15C, 10PA17C and 10PA20C models

GM Nippondenso (Denso) 10PA15C, 10PA17C and 10PA20C compressor adapter and accessory kit used to convert a stock Denso type Compressor to aftermarket hoses. The adapter accepts #8 and #10 male O-ring fittings. The Adapter is equipped with a low side charge port and has a High Pressure Relief...

nostalgicac.com



[lelandEOD]

Shazam... that'll probably be exactly what I need; thanks! I am definitely learning A/C systems and it never even occurred to me that there would be a market for aftermarket adapters.



[RhinoRig]

Did you find what you were looking for? I'm going thru the same process right now and the link above says it's out of stock. Thanks



[PabloCruise]

This is what we use on the 3FE compressor when we do that swap....

Denso / GM Compressor Adapter for 10PA15C, 10PA17C and 10PA20C models

GM Nippondenso (Denso) 10PA15C, 10PA17C and 10PA20C compressor adapter and accessory kit used to convert a stock Denso type Compressor to aftermarket hoses. The adapter accepts #8 and #10 male O-ring fittings. The Adapter is equipped with a low side charge port and has a High Pressure Relief...

nostalgicac.com

Bumping an old thread - do you know the best place to get adapters for inlet and outlet? I need to make custom lines...



[lelandEOD]

Try Cold Hose.

Cold Hose - Nippondenso 10PA Compressor Manifold Fitting with Short High Pressure Relief Valve

Compressor manifold for 10PA15C and 10PA17C Denso compressors. Fits various vehicles and John Deere equipment. It includes the orings. This manifold accepts a #8 and #10 Male Oring Fittings.

coldhose.com



[PabloCruise]

Try Cold Hose.

Cold Hose - Nippondenso 10PA Compressor Manifold Fitting with Short High Pressure Relief Valve

Compressor manifold for 10PA15C and 10PA17C Denso compressors. Fits various vehicles and John Deere equipment. It includes the orings. This manifold accepts a #8 and #10 Male Oring Fittings.

coldhose.com

Gracias!



[PabloCruise]

Try Cold Hose.

Cold Hose - Nippondenso 10PA Compressor Manifold Fitting with Short High Pressure Relief Valve

Compressor manifold for 10PA15C and 10PA17C Denso compressors. Fits various vehicles and John Deere equipment. It includes the orings. This manifold accepts a #8 and #10 Male Oring Fittings.

coldhose.com

I am about to show my ignorance about AC fittings, but how do you secure custom hoses to this manifold:

I have a manifold for a 10p15c (I think it is factory Land Cruiser):



[SuperDuperCruizer]

Looks like the manifold for the Toyota fittings is swapped for the part/adapter above.



[lelandEOD]

Yeah, you’ll take off the stock manifold from your compressor (4 bolts) and replace it with the universal Denso adapter.

Then it’s just a matter of fabbing up the correct size lines/fittings for the hi and lo side connections.



[Cruisunder]

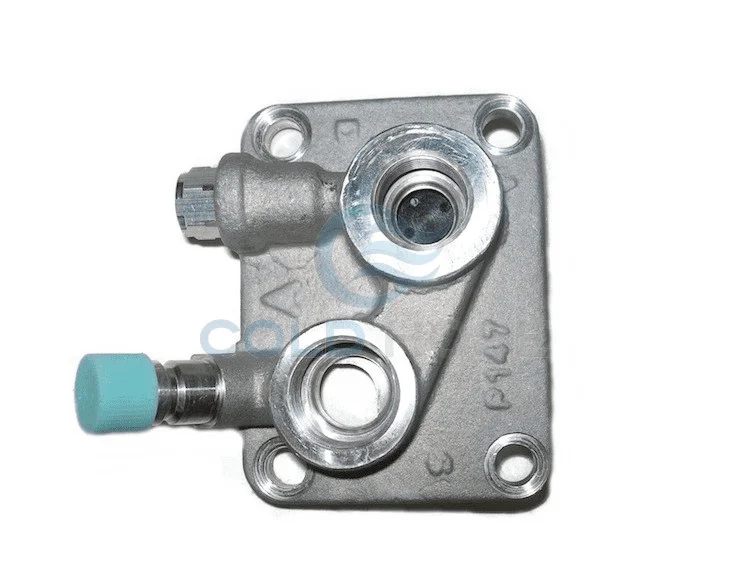

I am about to show my ignorance about AC fittings, but how do you secure custom hoses to this manifold:

View attachment 2458696

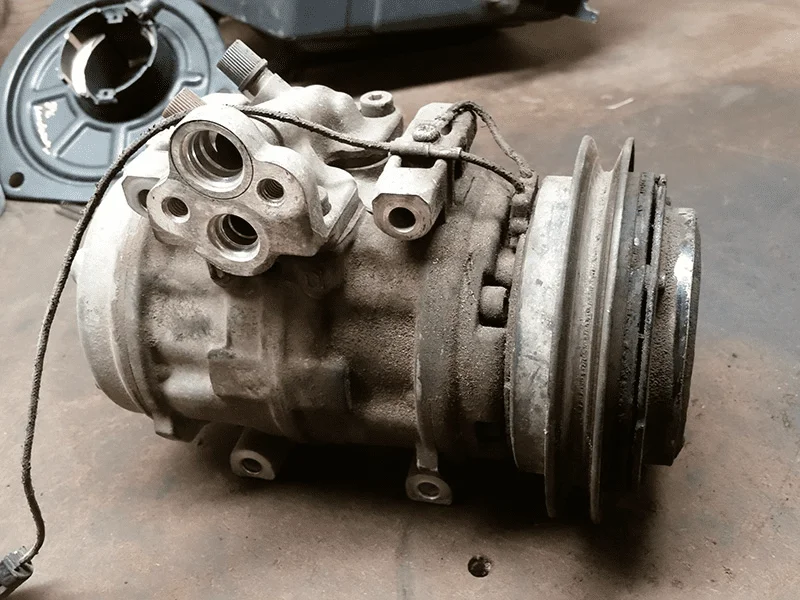

I have a manifold for a 10p15c (I think it is factory Land Cruiser):

View attachment 2458697

Are you saying you'll have the manifold off this compressor available? I'm looking for a stock manifold as an ac tech recently broke off one of the fittings.



[RhinoRig]

A Better auto parts store experience

These guys were super helpful! Gave them the denso part number off the compressor and they're shipping me fittings.
