SST 09530-35010 Differential Drive Pinion Adjust Gauge

Joined
Jun 24, 2003
Messages
1,608
Location
Takoma Park, MD
Website
forum.ih8mud.com

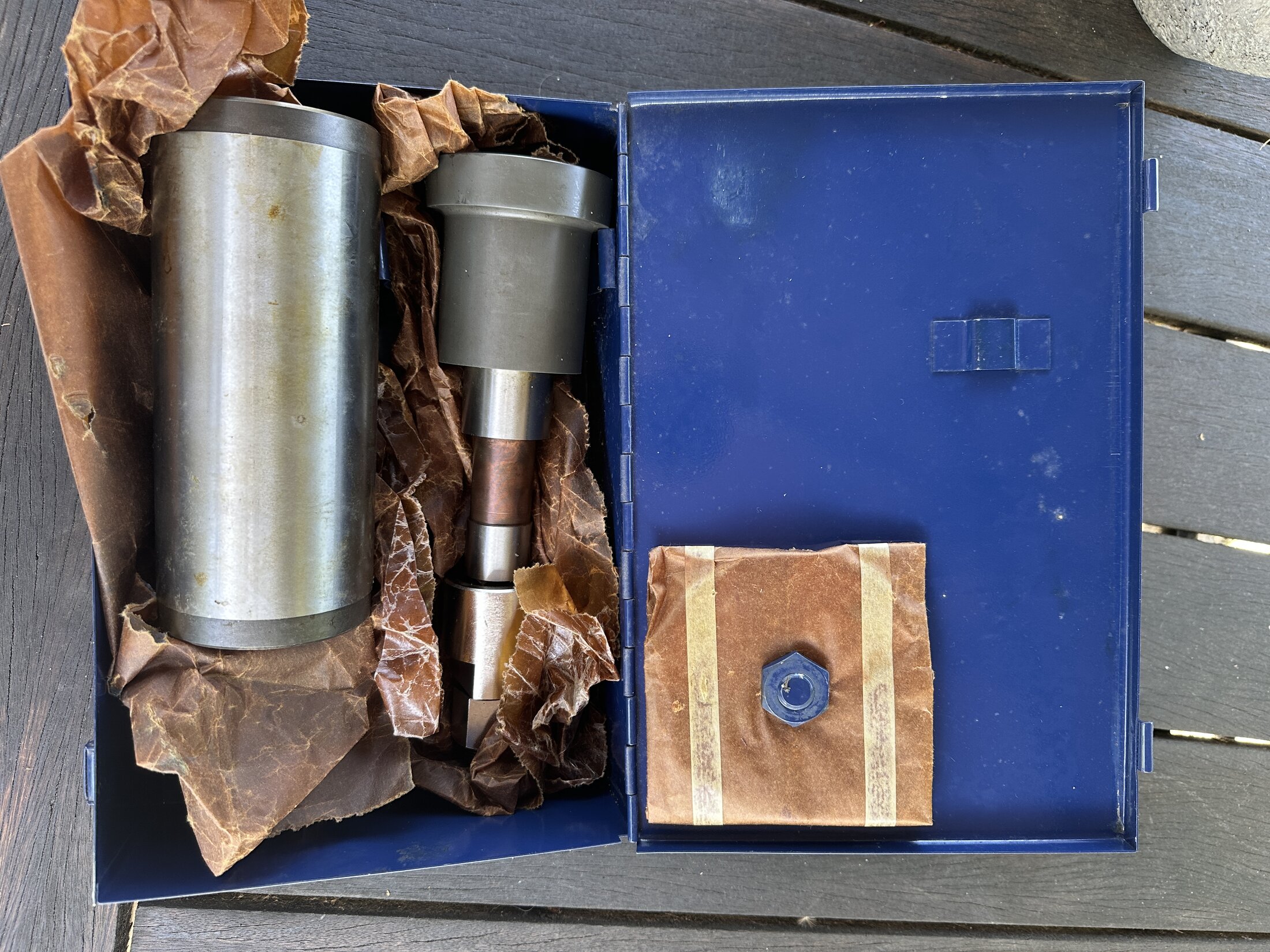

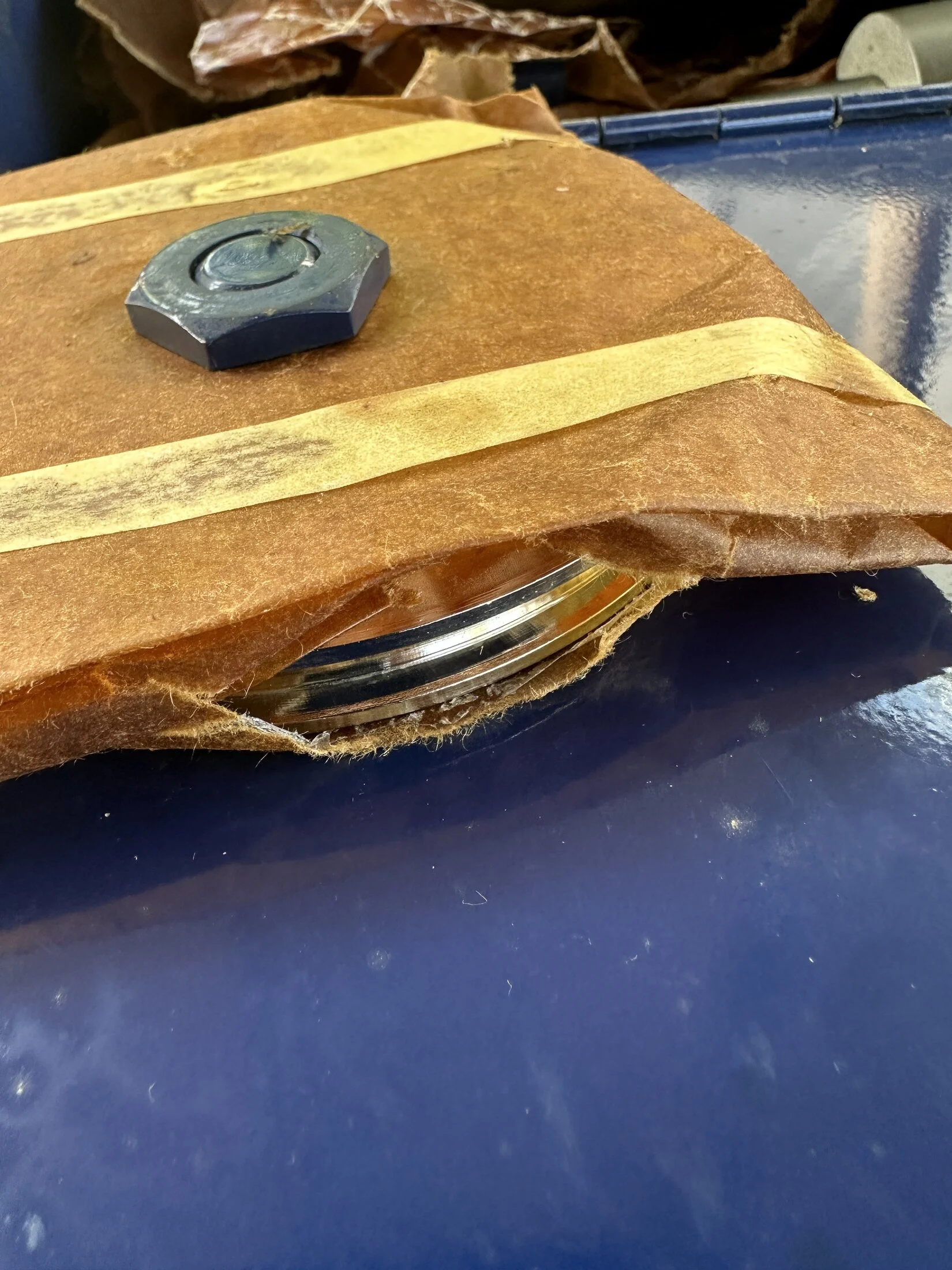

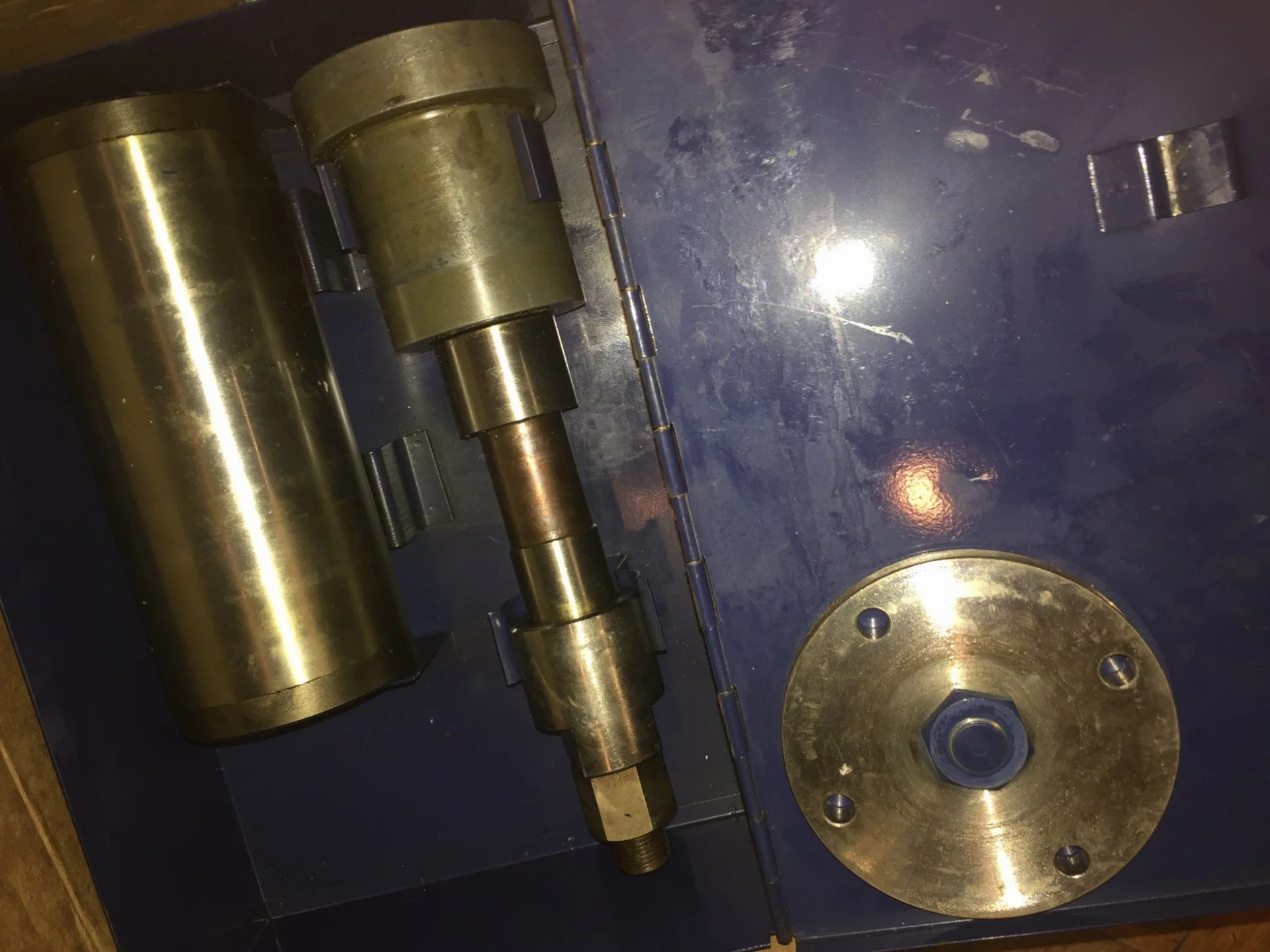

This SST has been discontinued for a while and when I happened to come across one, I jumped on it. It's possible to setup the pinion depth without the SST by trial and error; however, I'd prefer to focus this thread on the tool itself and how the service manual calls for its use.




Joined
Jun 24, 2003
Messages
1,608
Location
Takoma Park, MD
Website
forum.ih8mud.com
Here's where the SST is referenced in the factory service manual:

SELECTION OF SHIMS AND SPACER

Drive Pinion Positioning.

1. Mount the SST [09530-35010] and bearings as shown in the diagram and tighten the nut at 2-3 kg-m (14-22 ft-lb) torque.

Diff 6 copy.jpg

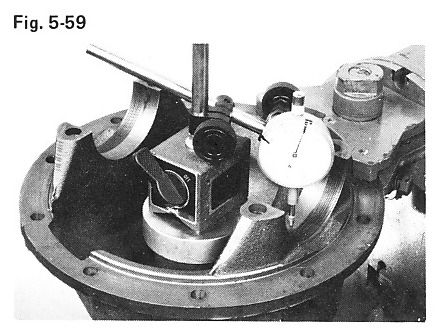

2. Set a dial gauge on top of the SST, and measure the lowest position of the side bearing installation surface on the differential carrier. At this position, set the dial gauge pointer to zero.

Diff 6 copy 2.jpg


3. Remove the dial gauge and set it on a surface plate.

If the gauge pointer stays at zero, the shim now being used is satisfactory.

If the gauge point indicates on the minus side, replace with a shim that is thinner by that amount.

If the gauge pointer registers on the plus side, replace with a shim that is thicker by that amount.

Diff 6 copy 3.jpeg

Last edited:
Joined
Jun 24, 2003
Messages
1,608
Location
Takoma Park, MD
Website
forum.ih8mud.com
Diff 6 copy.jpg


Adjusting Shim Thickness

Part No. Thickness mm (in.)
90564-68001 0.25 (0.010)
90564-68002 0.3 (0.012)
90564-68003 0.35 (0.014)
90564-68004 0.4 (0.016)
90564-68005 0.45 (0.018)

Joined
Jun 24, 2003
Messages
1,608
Location
Takoma Park, MD
Website
forum.ih8mud.com

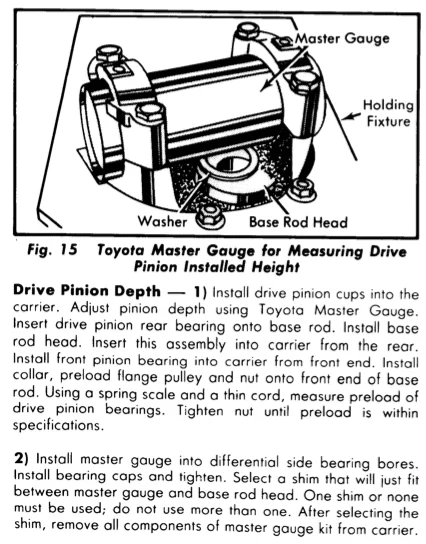

I found some reference to the cylinder shaped tool pictured above to the right of SST 09530-35010. It's called a Master Gauge. It looks like you can determine the shim thickness for the pinion using some feeler gauges instead of a dial indicator. I'm feeling even better about my find.

Master Guage.png

Last edited:
Joined
Jun 24, 2003
Messages
1,608
Location
Takoma Park, MD
Website
forum.ih8mud.com

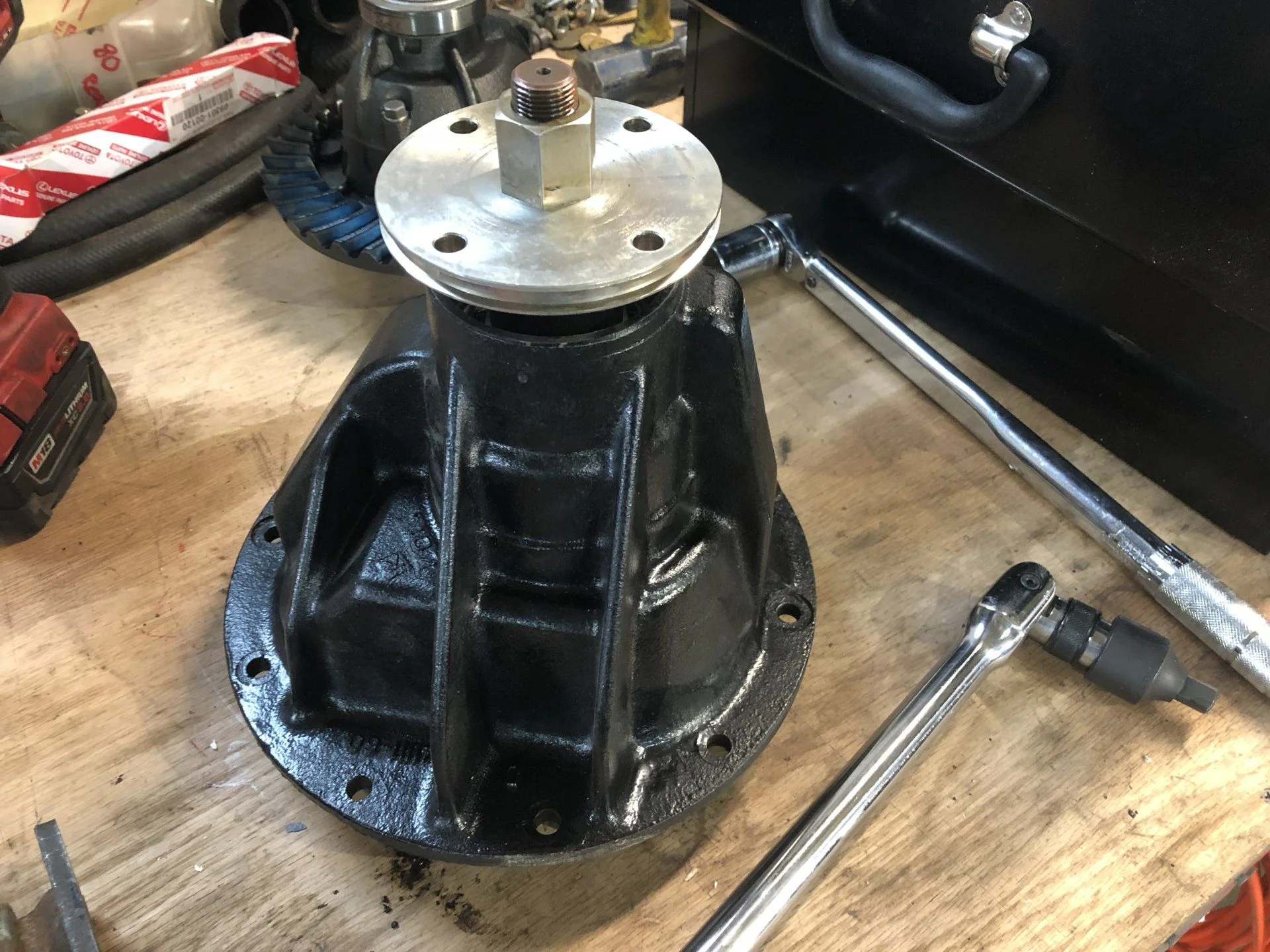

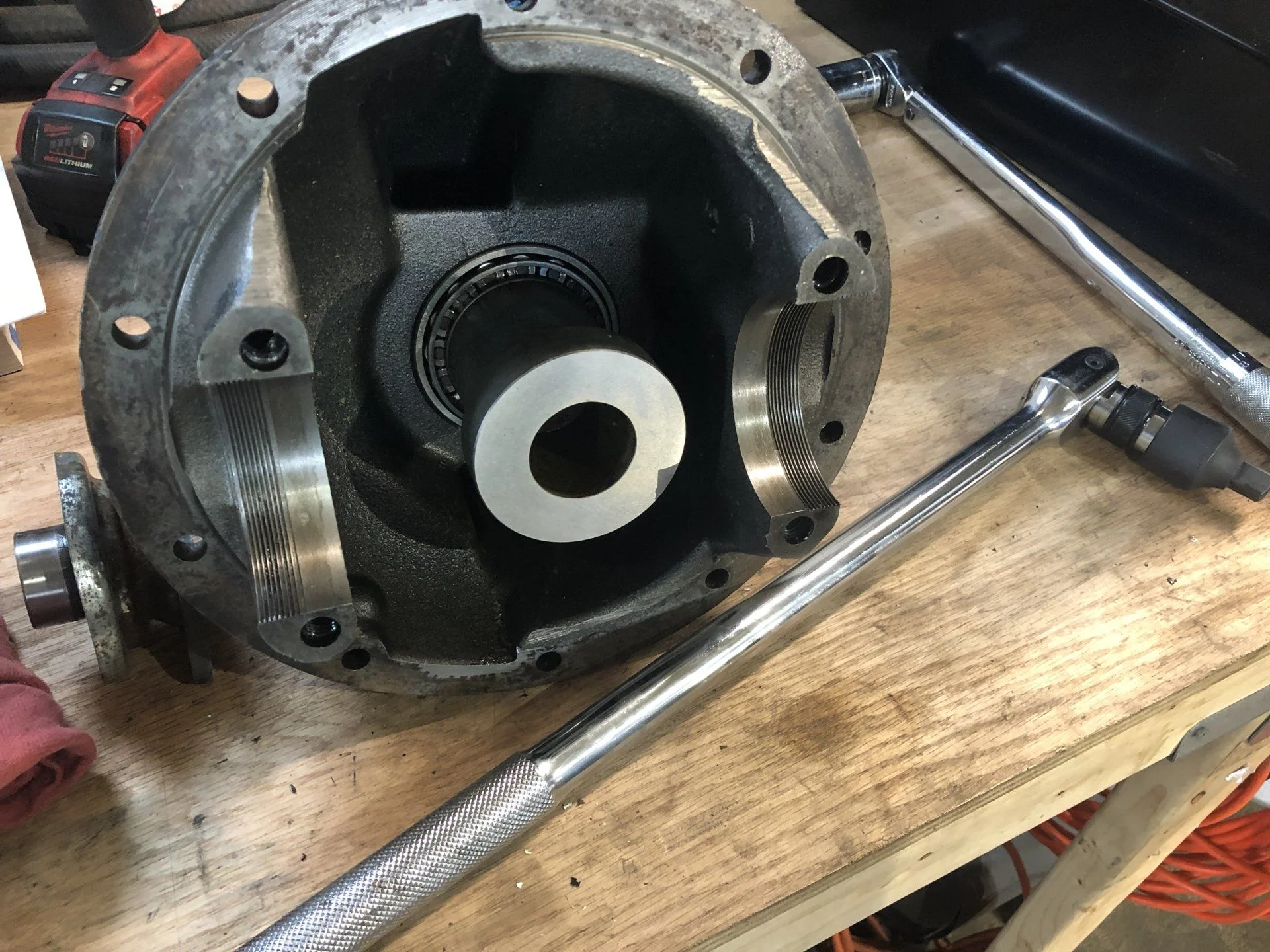

Setting up a differential using the procedure mentioned in the previous post.







OGBeno

11400-17120
Moderator
GOLD Star
Joined
Aug 28, 2004
Messages
31,516
Location
Patagonia, Arizona, USA
Very nice.

You should send this off to @reevesci and have him re-engineer it for you and then you sell to MUD.

I know at least 10 people who would buy a set without asking how much it costs. I know I would be happy to pay up front for a reproduction of this SST.

Nice work.

Joined
Jun 24, 2003
Messages
1,608
Location
Takoma Park, MD
Website
forum.ih8mud.com
@beno I don’t mind having reproductions made... going to be a while though; I have 2 more differentials I’m rebuilding for a friend and 2 of my own I need to get to afterwards. PM me... I may be able to set you up with one.


TRAIL TAILOR

Enabler
Supporting Vendor
Joined
Jun 21, 2011
Messages
19,837
Location
Redding, California
Website
trail-tailor.com
Very nice.

You should send this off to @reevesci and have him re-engineer it for you and then you sell to MUD.

I know at least 10 people who would buy a set without asking how much it costs. I know I would be happy to pay up front for a reproduction of this SST.

Nice work.


Always game for remaking these tools. I've got three SSTs reproductions now and I'd be interested in this one as well.

Jason

Joined
Jun 24, 2003
Messages
1,608
Location
Takoma Park, MD
Website
forum.ih8mud.com
