Wiper Control Relay (1 Viewer)

[Hungale]

Could anyone tell me how to connect?
It's not for a specific model, I need to know what goes with each position.
Thank you



[TreadingLight]

Have you checked for a pinout in the FSM?

If it came out of an 84-90 you might find it here: TOYOTA REPAIR MANUALS : Free Download, Borrow, and Streaming : Internet Archive - https://archive.org/details/3FEREPAIRMANUAL/1984-1990-chassis-body

You can plug that part number into toyodiy to find the models it was used in, if you need to track down a different FSM.



[AirheadNut]

That wiper relay was used in the 1990-1993 LJ78, here is the wiring diagram:

Here is the pin diagram for the plug:



[Hungale]

Very well!!! A thousand thanks.
I looked at the diagrams of the 84 and it wasn't correct.



[Hungale]

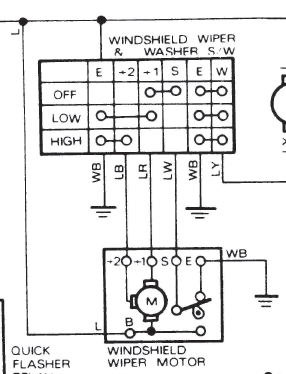

current connection (BJ42)

as I would like

I modified the entire electrical system and I have to change the position of the windshield wiper motor wires. Now it's positive, I need it with a negative connection. Can anyone tell me how to connect it? Thank you



[lorekeet45]

Hi, do you still need help with this, I can show you how to modify it.
John
Australia



[Hungale]

Hi, do you still need help with this, I can show you how to modify it.
John
Australia

thanks, I solved it. Everything works perfectly
