Builds What the Foo is this??? (1 Viewer)

[gofast]

This is one cool thread!



[2fpower]

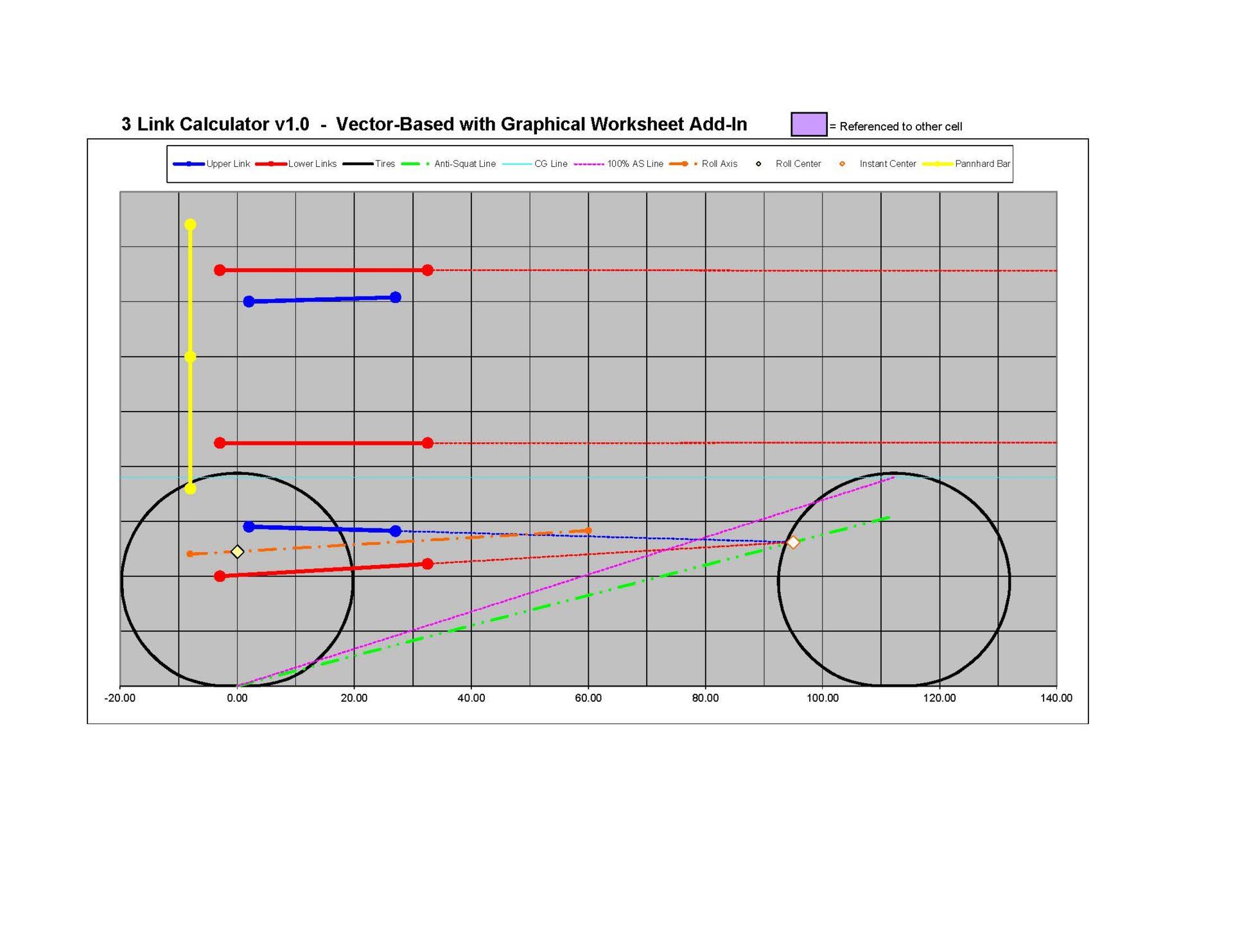

Calcs for the front setup:



[2fpower]

Trying to get all parts in the door. Down to under 25 days to next event.....

Buckle Up Buttercup!

looks like 5" stroke is what i need for the portal axles.

1.5x6x1 DA Hydraulic Cylinder Wolverine WWSB1506-S | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com

1.5x6x1 DA Hydraulic Cylinder Swivel Eyes | Surplus Center | Brands | www.surpluscenter.com



[2fpower]

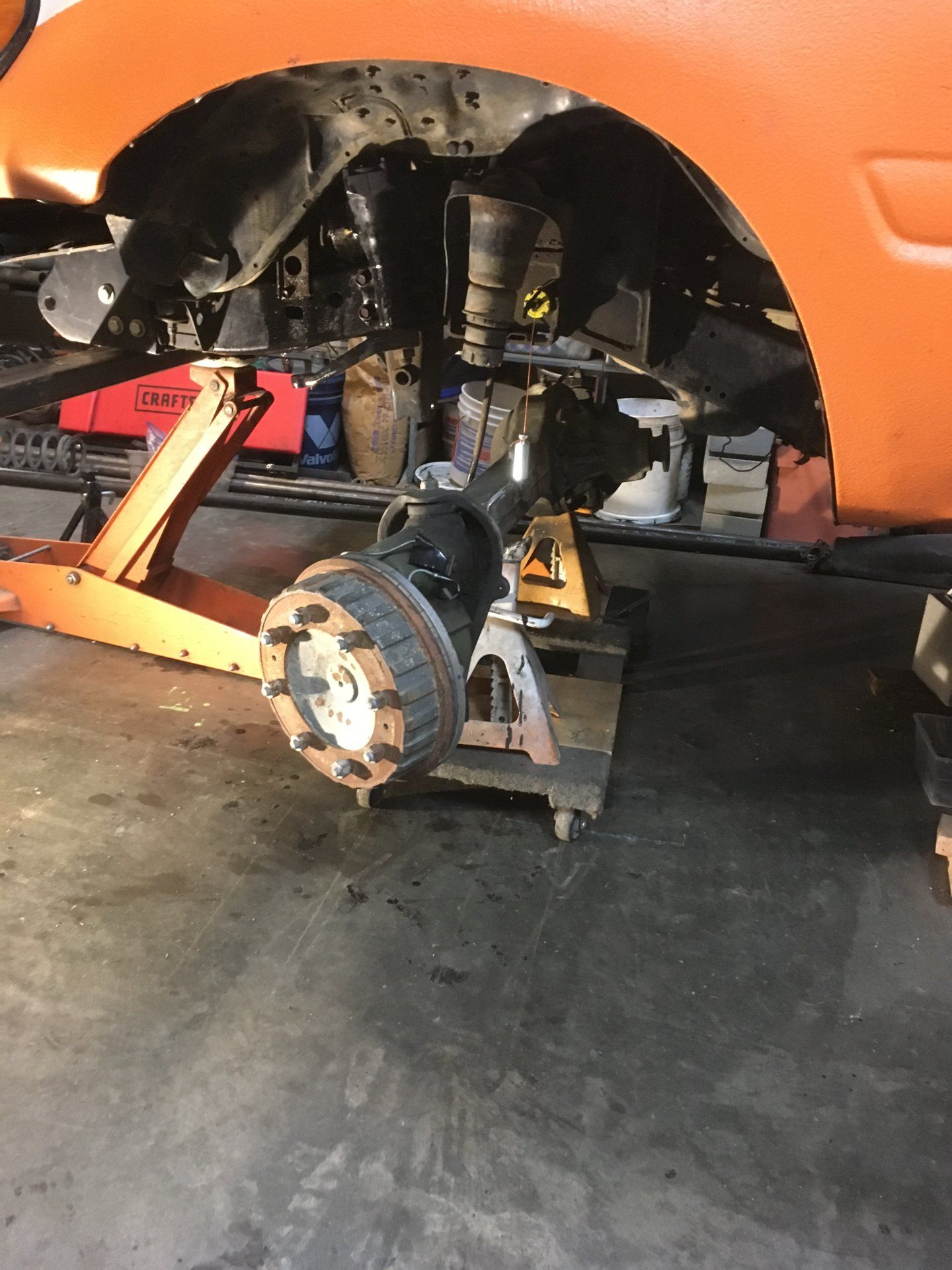

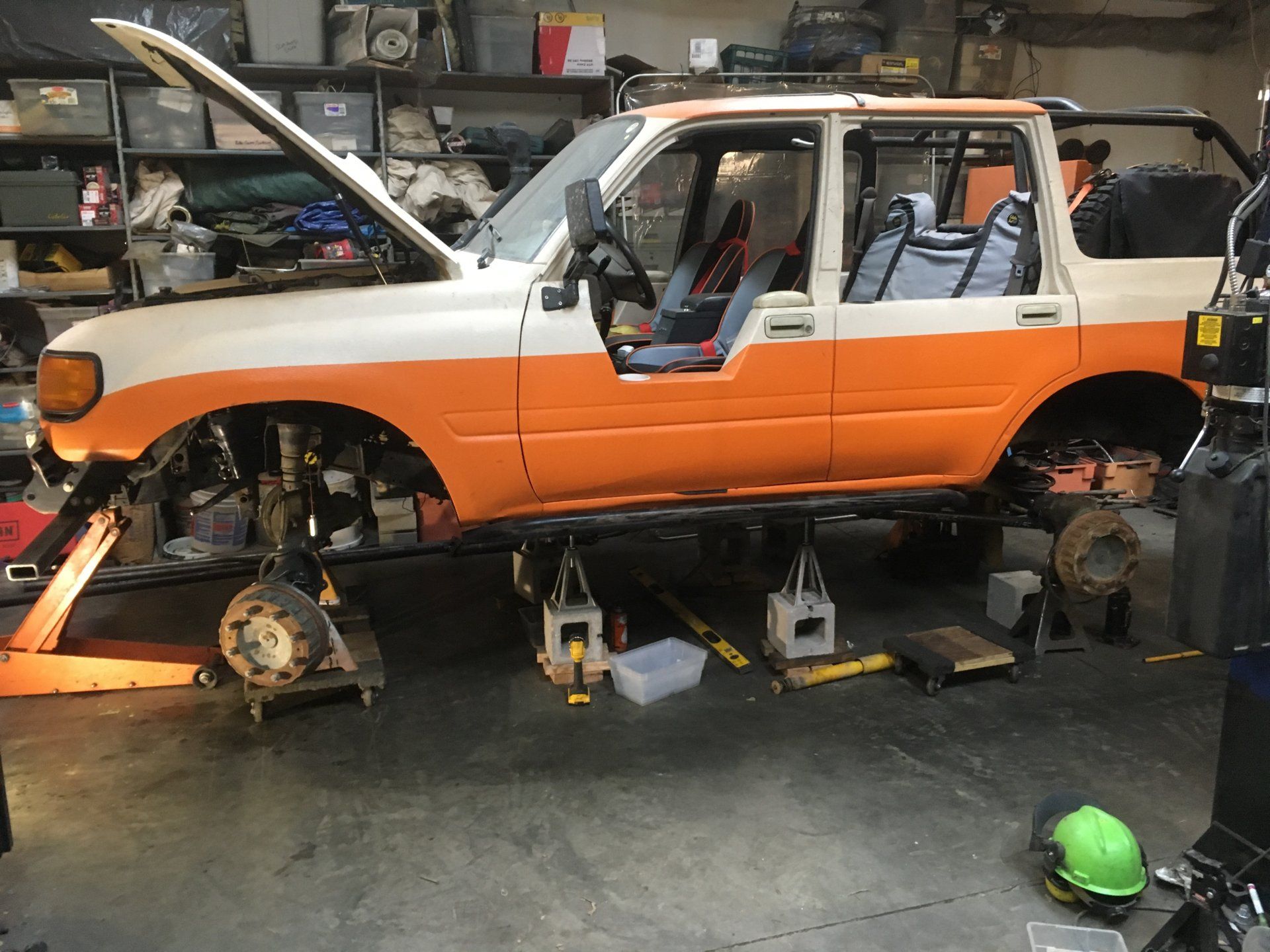

Front starting.



[2fpower]

Got the front lower mounts made.

To get the mount a little further forward they wrap around the front. I will cap them with some quarter plate.



[nukegoat]

Keep going. the OE 80 axle and my dana 60 front use an 8" stroke. Both kept up with the 80 pump with a 1.5" bore. You may want to consider a 1.75" bore if you're using a shorter stroke



[Golgo13]

You asked about welding johnny joints... What about welding a collar and pressing in the joint as if it were just another bushing?



[2fpower]

You asked about welding johnny joints... What about welding a collar and pressing in the joint as if it were just another bushing?

I did heavy tacks around the part, then I welded about 1 inch at a time, letting plenty of cooling down between times. I definately deformed some, but I was able to freeze the inserts, and get them to go in with some limited force. (hammer and socket).



[2fpower]

Keep going. the OE 80 axle and my dana 60 front use an 8" stroke. Both kept up with the 80 pump with a 1.5" bore. You may want to consider a 1.75" bore if you're using a shorter stroke

Great point. Had not thought about the shorter stroke needing a bigger piston. Will try to source something like that.



[2fpower]

could not find one with ball ends from Suplus center.... seems like the swivel ends worked nice, and allows for some movement.

but found these.... thought on using these end styles????

1.5x5x1.12 DA Hydraulic Cylinder Monarch 677528-P | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com


1.875x5x1 Dempster DA Hydraulic Cylinder | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com

2.5x5x1.25 DA Hydraulic Cylinder | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com



[cjmoon]

could not find one with ball ends from Suplus center.... seems like the swivel ends worked nice, and allows for some movement.

but found these.... thought on using these end styles????

1.5x5x1.12 DA Hydraulic Cylinder Monarch 677528-P | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com


1.875x5x1 Dempster DA Hydraulic Cylinder | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com

2.5x5x1.25 DA Hydraulic Cylinder | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com

other than all those having the wrong stroke length you would need all the mounts and caster angle point of rotation in the same plane. based on the portal design that may need a very low axle mounting point. possibly lower than the lower mounts.



[2fpower]

other than all those having the wrong stroke length you would need all the mounts and caster angle point of rotation in the same plane. based on the portal design that may need a very low axle mounting point. possibly lower than the lower mounts.

Now you are just confusing me. I need 5" stroke, and all of those are that I thought... Am I reading it wrong?

This picture is from a volvo portal axle that someone added the hydro assist. I was planing on doing similar.



[cjmoon]

Now you are just confusing me. I need 5" stroke, and all of those are that I thought... Am I reading it wrong?

This picture is from a volvo portal axle that someone added the hydro assist. I was planing on doing similar.

Oops sorry I missed the 5” you had the 6” references. In one of the posts. If your having trouble finding the right 6” a spacer can be added to limit the 6” stroke down I might have some that will fit that where in some coil overs I bought a few years ago.



[2fpower]

Tore apart an old unlocked front axle to get the spring and pan hard mount.



[2fpower]

Did a lot of measuring and angles last night, to get 4° of positive caster. @cjmoon was nice enough to answer my myriad of text. Stock Volvo has 3° of positive caster. My transfer case output shaft is 4°. So we’re going to match those up to be 4 degrees each. Had to make up a wooden jig to determine if there was any castor in the axle itself, and found there was none.



[2fpower]

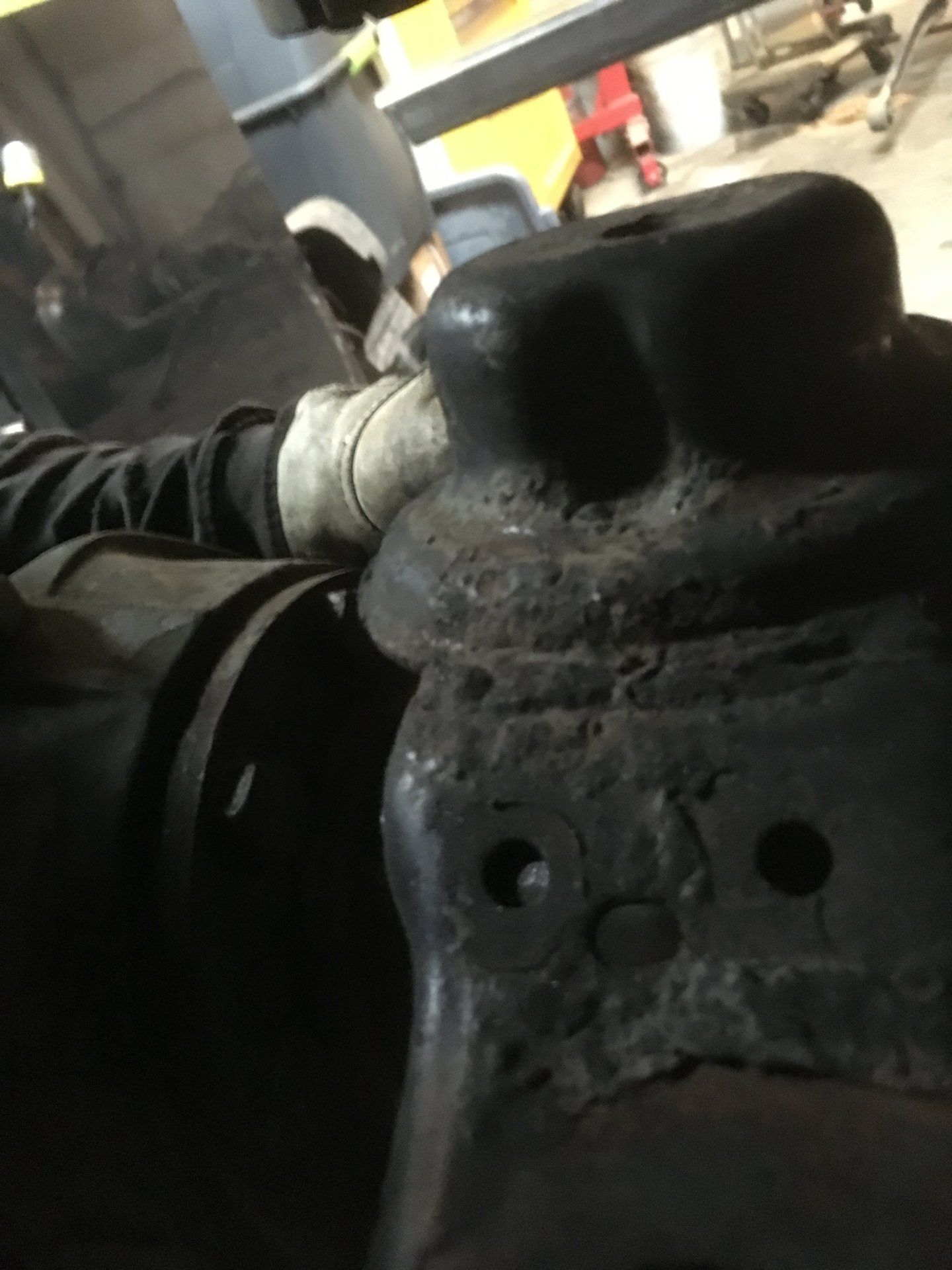

Only problem I ran into was where the front spring mounts will go, there needs to be access from the rear to the bolts that hold the portal drive on. Current plan is to put some quarter wall pipe through my mounts, such that the bolts go through all the way through it. Looks like I only need to do two bolts on each side



[nukegoat]

I doubt your track bar will be that long/large btw.

Nice work tho. Really a cool project.



[cjmoon]

Only problem I ran into was where the front spring mounts will go, there needs to be access from the rear to the bolts that hold the portal drive on. Current plan is to put some quarter wall pipe through my mounts, such that the bolts go through all the way through it. Looks like I only need to do two bolts on each sideView attachment 1666700View attachment 1666701

Would ther be enough room to use stud and nuts around the bracket. Worst case you have to get the studs stared before the portal isn’t fully seated? Just a thought. It makes more since seeing the picture.



[cjmoon]

base on where your mounts ended up your anti-Squat(anti Dive for this front application) is 99 moving the upper frame mount up another 1" like we discussed and you have room for with a little angle in that bracket brings it down to about 73% move it as high as you can, another 1/8 above that is 70%. it's looking really good.



[2fpower]

base on where your mounts ended up your anti-Squat(anti Dive for this front application) is 99 moving the upper frame mount up another 1" like we discussed and you have room for with a little angle in that bracket brings it down to about 73% move it as high as you can, another 1/8 above that is 70%. it's looking really good.

so just up, not back any further?
