Warn 8274 w/ OEM Bumper Pictures?

[powthief19]

I'd love to mount my 8274 into my oem bumper, can you please share some pics of how mudders mounted them up?



[Landpimp]

Warn mounting plate(maybe for jeep) on OEM bumper, was installed in 1982 when new.

Have pics but can't post.



[gcrump01]

I welded a 3/8" plate to the back of a used bumper, then had it powder coated.

Pic of the mock up.

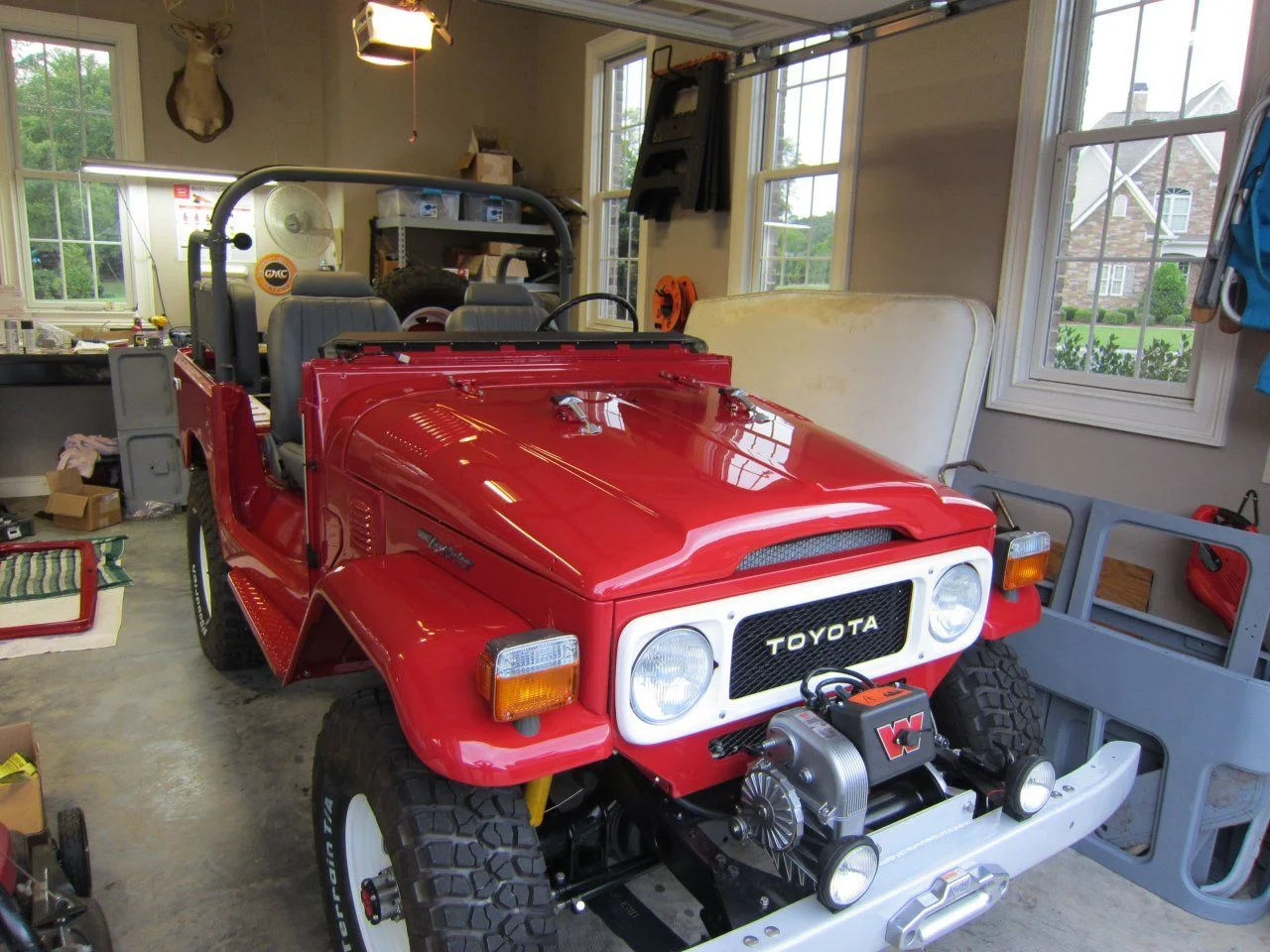

And a couple pics of it finished.



[powthief19]

I welded a 3/8" plate to the back of a used bumper, then had it powder coated.

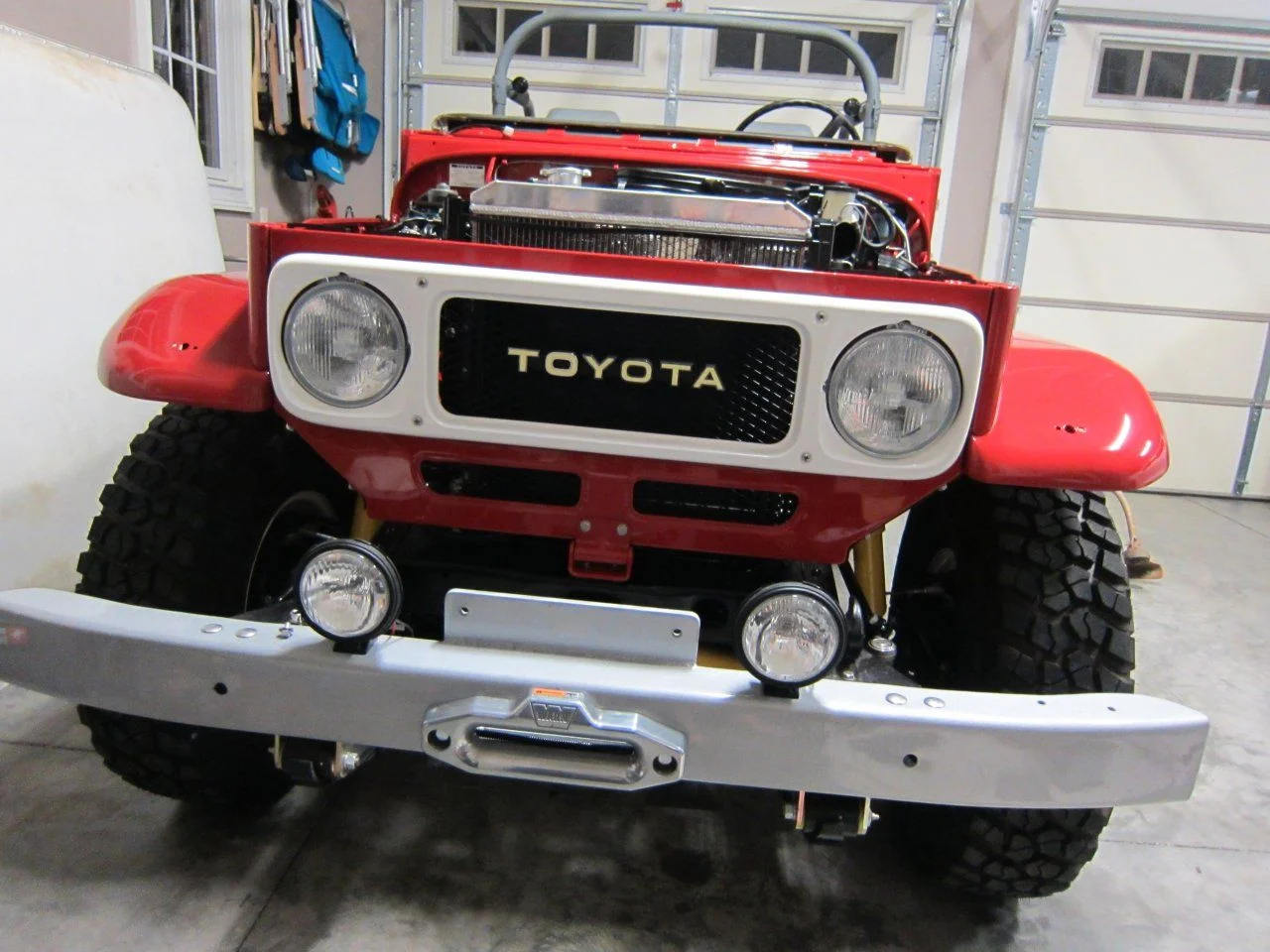

Pic of the mock up.

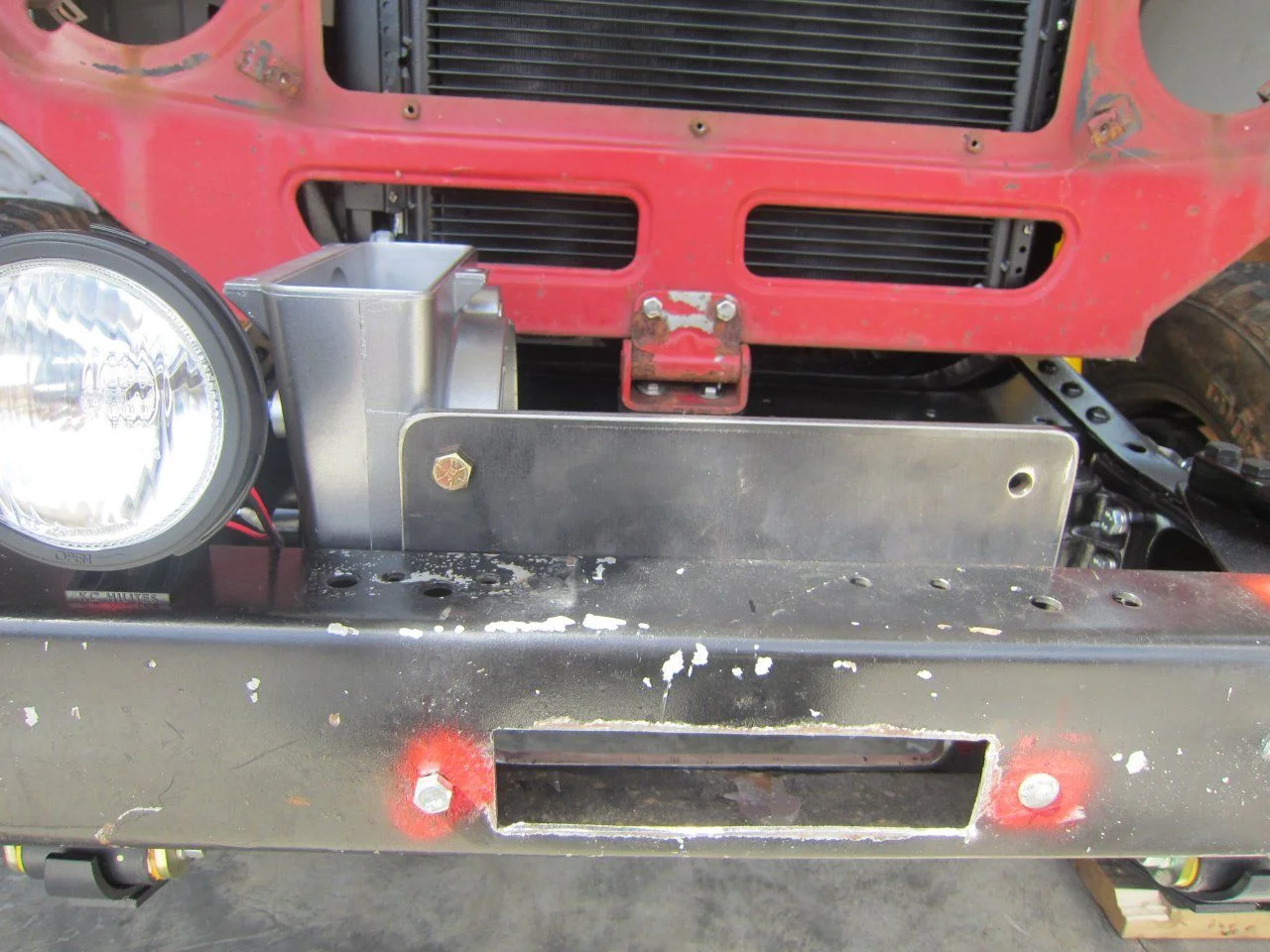

View attachment 1491631
And a couple pics of it finished.

View attachment 1491632
View attachment 1491633

nice, any photos of it from the rear?

Also, do you access the lower mounting holes from inside the bumper?



[emac]

Warn winch rebuild, CCOT bumper, etc.

This thread has a few pictures



[gcrump01]

nice, any photos of it from the rear?

Also, do you access the lower mounting holes from inside the bumper?

I'll take a few from the back tonight. I found a template for the 8274 mounting holes and went 1" outside the center of the mounting holes from every direction.



[gcrump01]

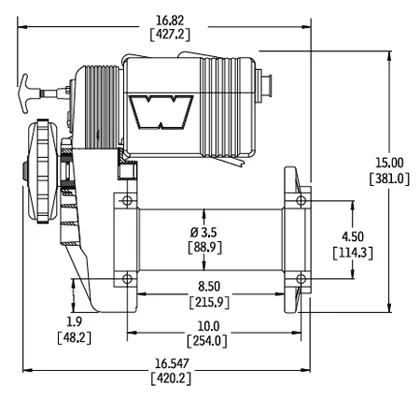

Here's the template.



[gcrump01]

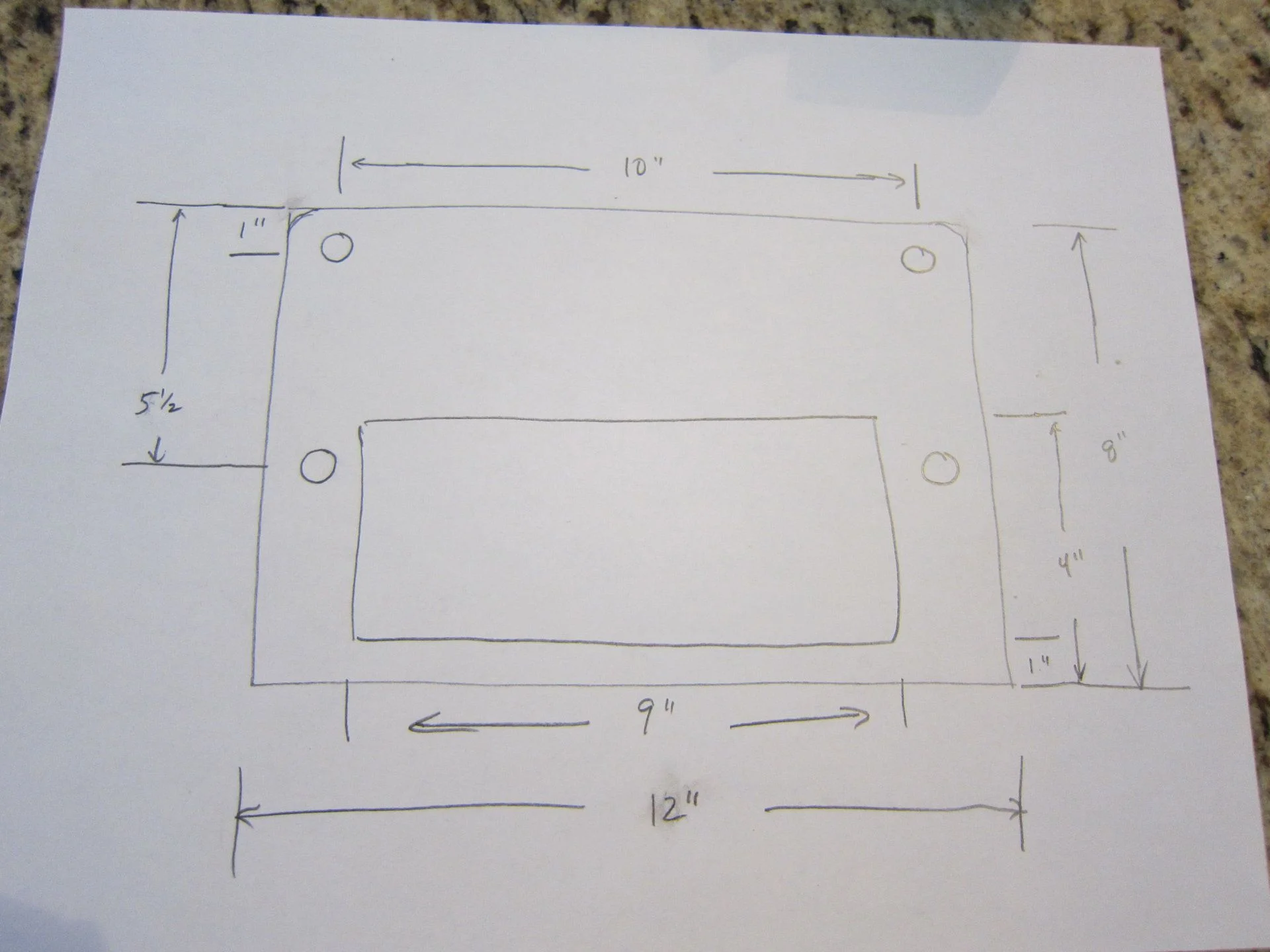

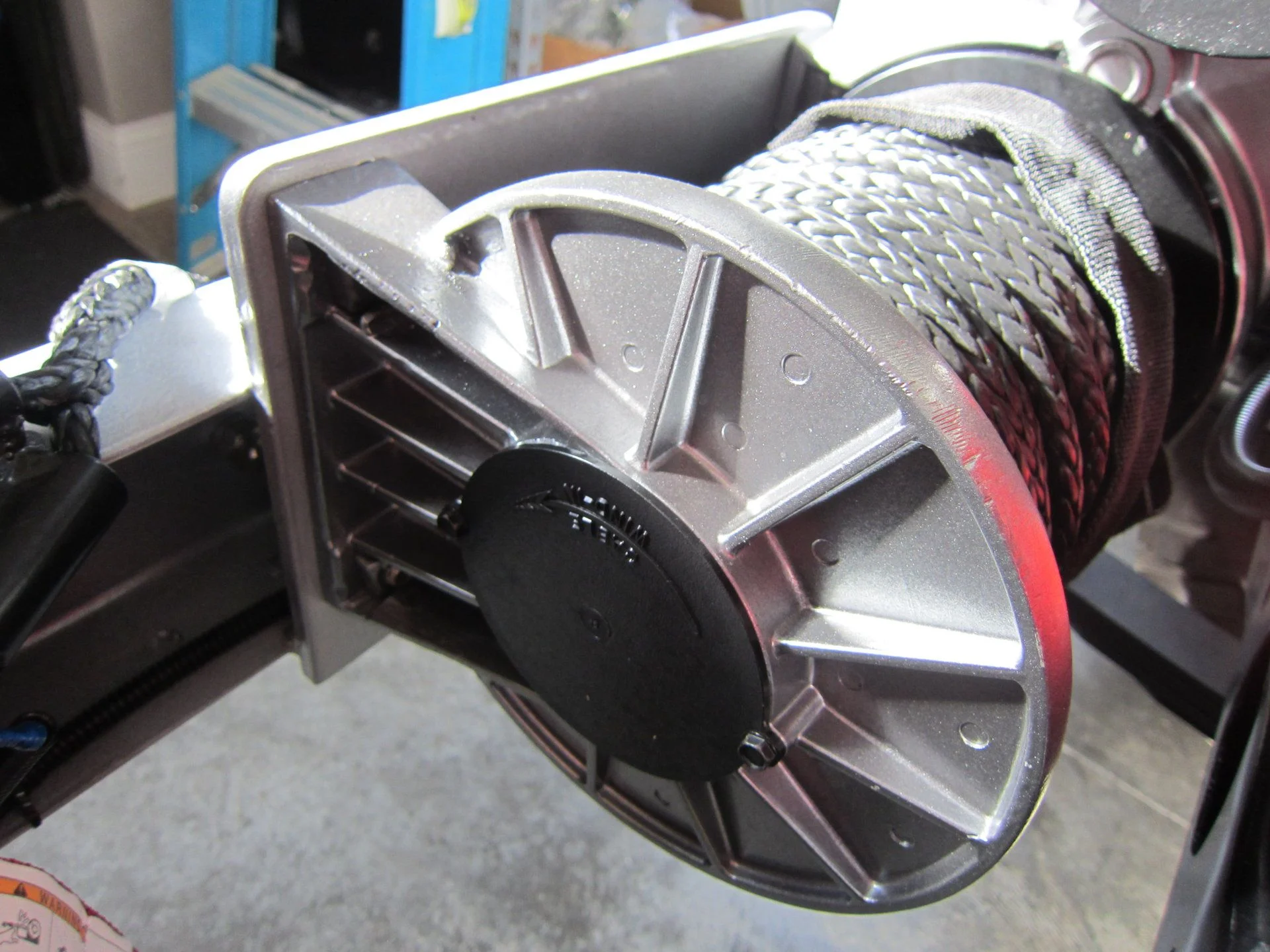

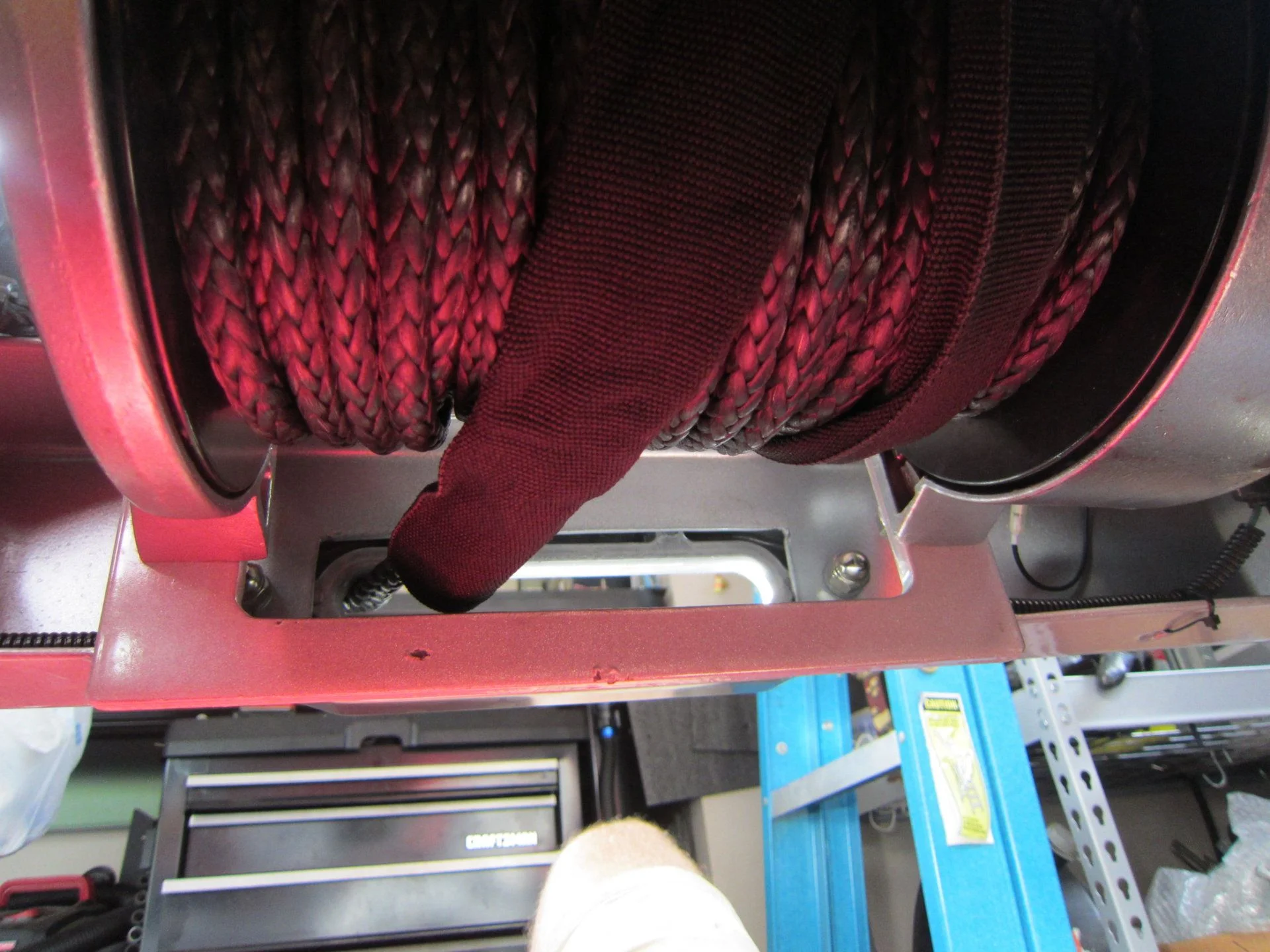

Here's a couple from the back as best I can take - and a sketch of the plate I used (hope I got all the numbers right)



[powthief19]

That helps so much, thank you!



[roma042987]

Page 17 of my thread in my signature has the build. Mine is bolted to bumper as well as tow hook attachments on frame. I could literally suspend the 40 by it.



[powthief19]

Nice looking rig. Can you send me a link to your build thread?

(ignore this, i was reading on my phone!)



[powthief19]

@gcrump01 what color did the powder coater use on your bumper?



[1911]

Page 17 of my thread in my signature has the build. Mine is bolted to bumper as well as tow hook attachments on frame. I could literally suspend the 40 by it.

View attachment 1491921

Is that "The Wall" on Poughkeepsie Gulch trail in the San Jauns?

Fun trail; I've done it myself in my 40:
View media item 57367



[gcrump01]

@gcrump01 what color did the powder coater use on your bumper?

Sorry, I don't know. I just picked a silver that was close to the factory color.



[roma042987]

Is that "The Wall" on Poughkeepsie Gulch trail in the San Jauns?

Fun trail; I've done it myself in my 40:
View media item 57367

Yep that's it awesome place



[Downey]

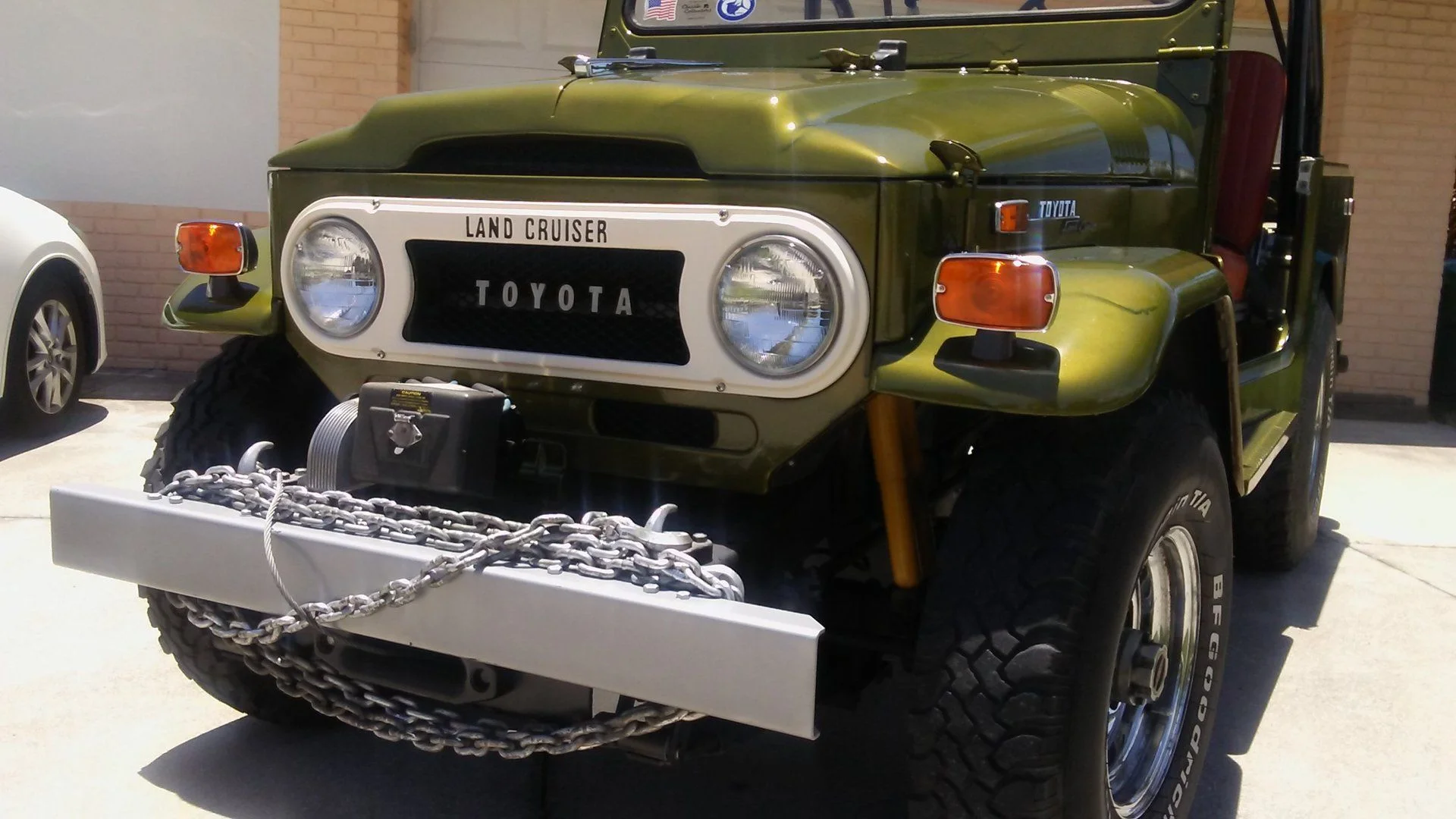

(1) When using a stock front bumper I use to clip/bend the ends on rocks/trees, so ended up chopping the ends off of the bumper (like the dark green rig shown above.
(2) When adding a winch mounting plate to the stock front bumper, you could consider mounting it about 1" towards the passengers side in case you want to consider a Saginaw power steering conversion in the future. I did, and the 1" was not noticeable at all.



[Captn Conch]

I took off my oem bumper and put on a JT bumper, both fit fine with the universal Warn saddle mount plate, I mounted it lower to keep air flow unrestricted into radiator and the winch mount plate is so thick it is an effective skid plate for the front. The mount actually goes completely under the winch so it's underside is protected also. I'm not sure of mount availability as I did the mount back in '88.



[Trailortrash]

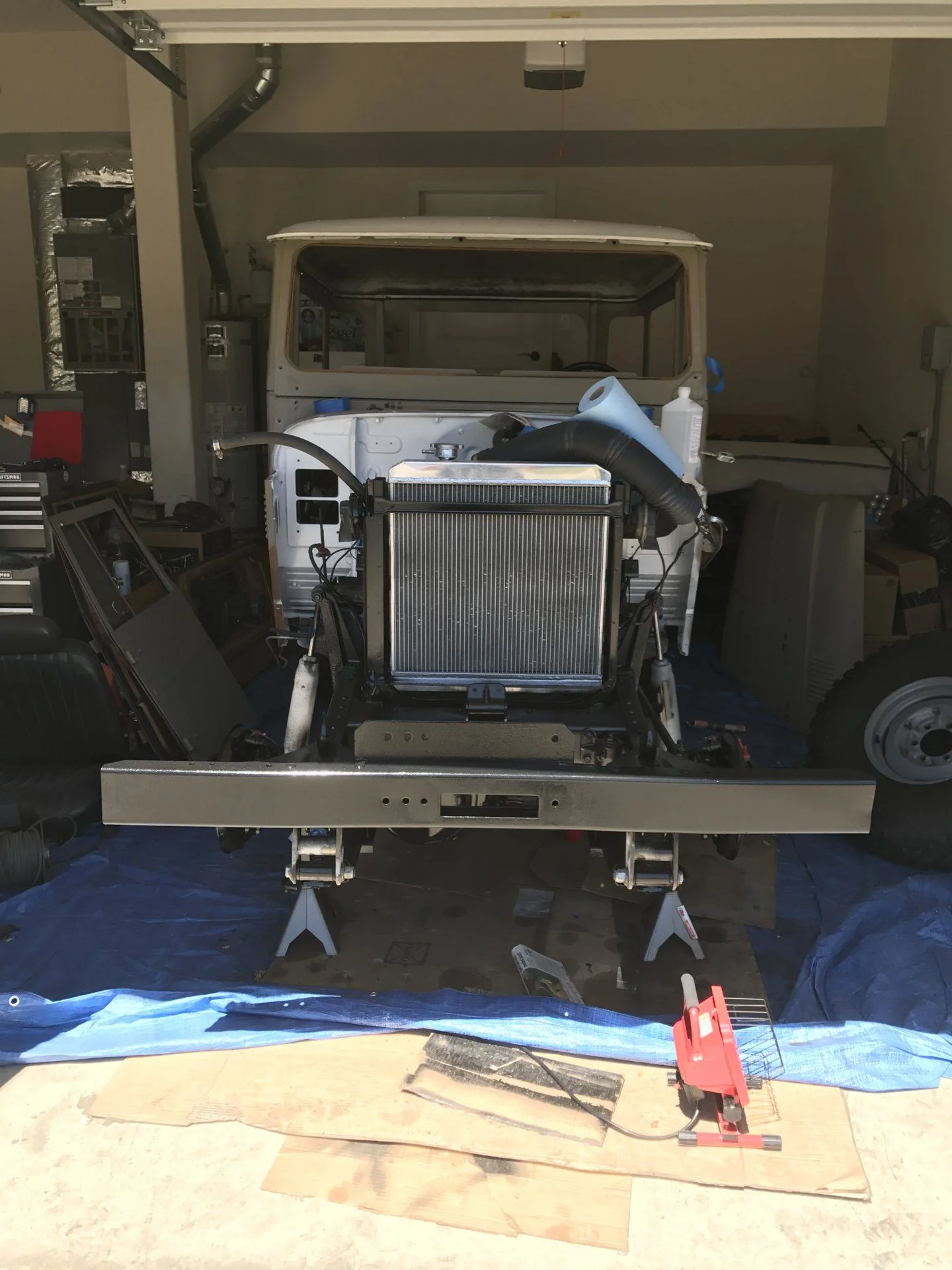

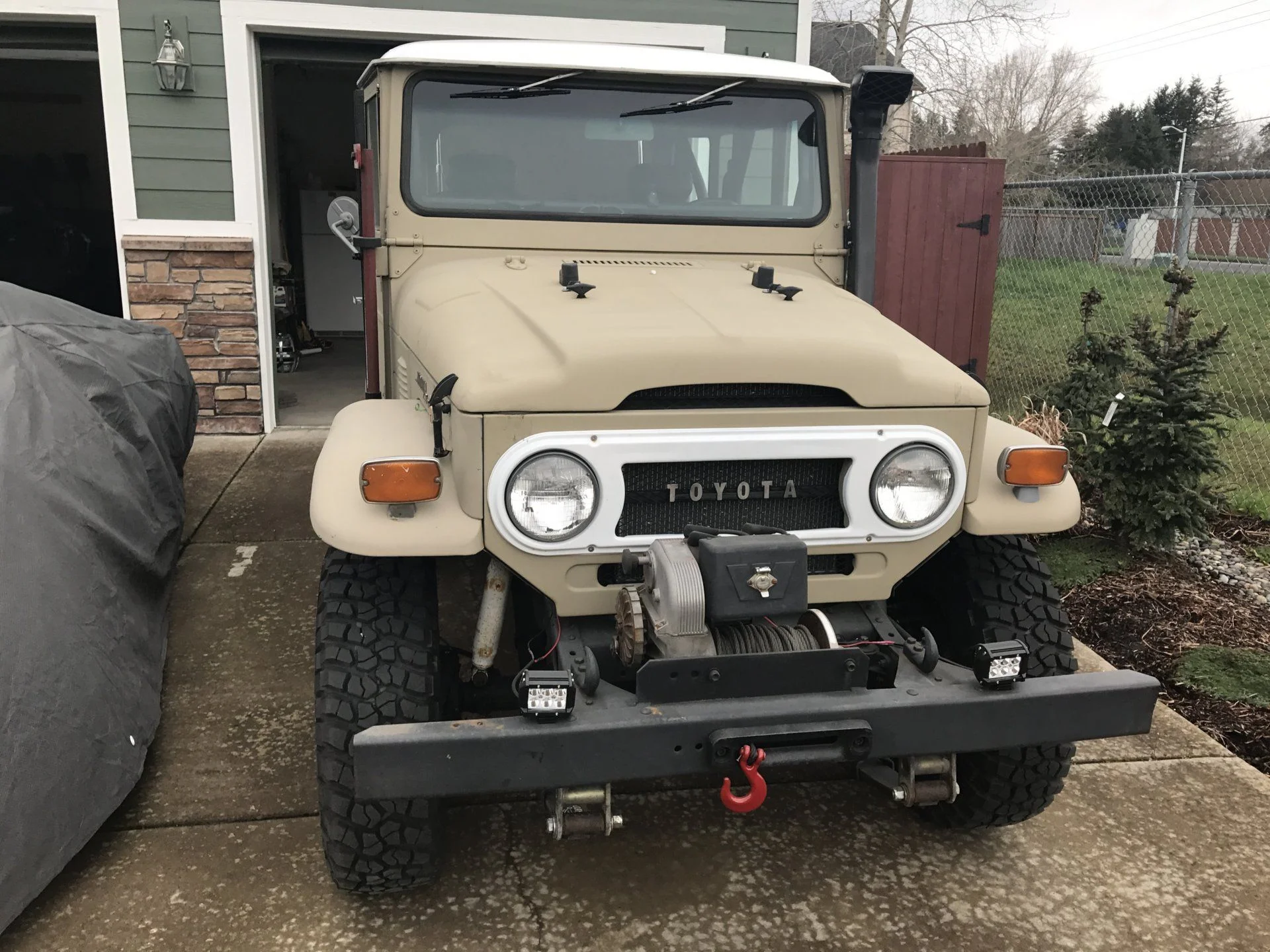

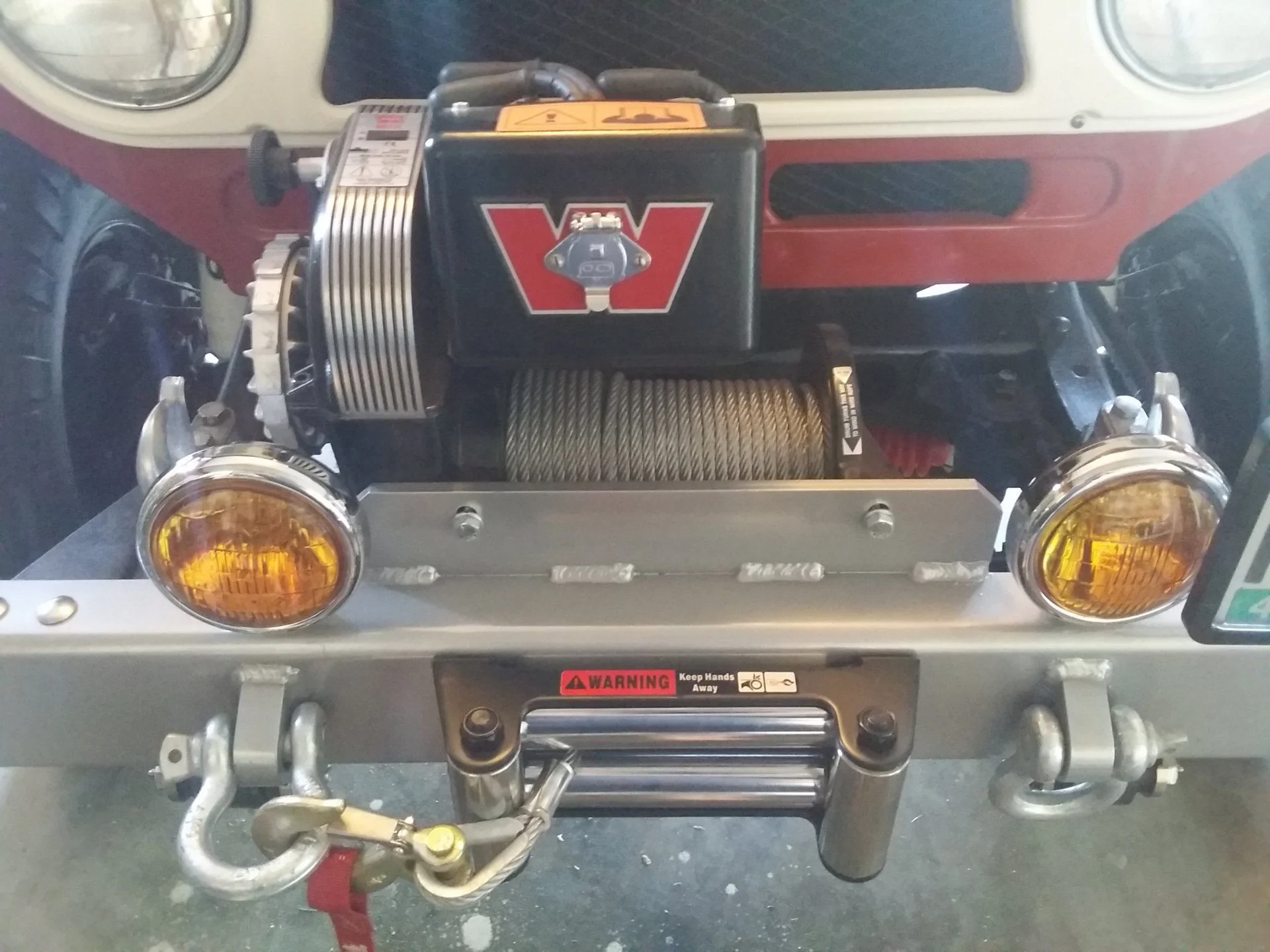

Here is my set up. I think the bumper is stock with a heavy duty back plate attached to it. Winch on and off.



[powthief19]

Here is my set up. I think the bumper is stock with a heavy duty back plate attached to it. Winch on and off.

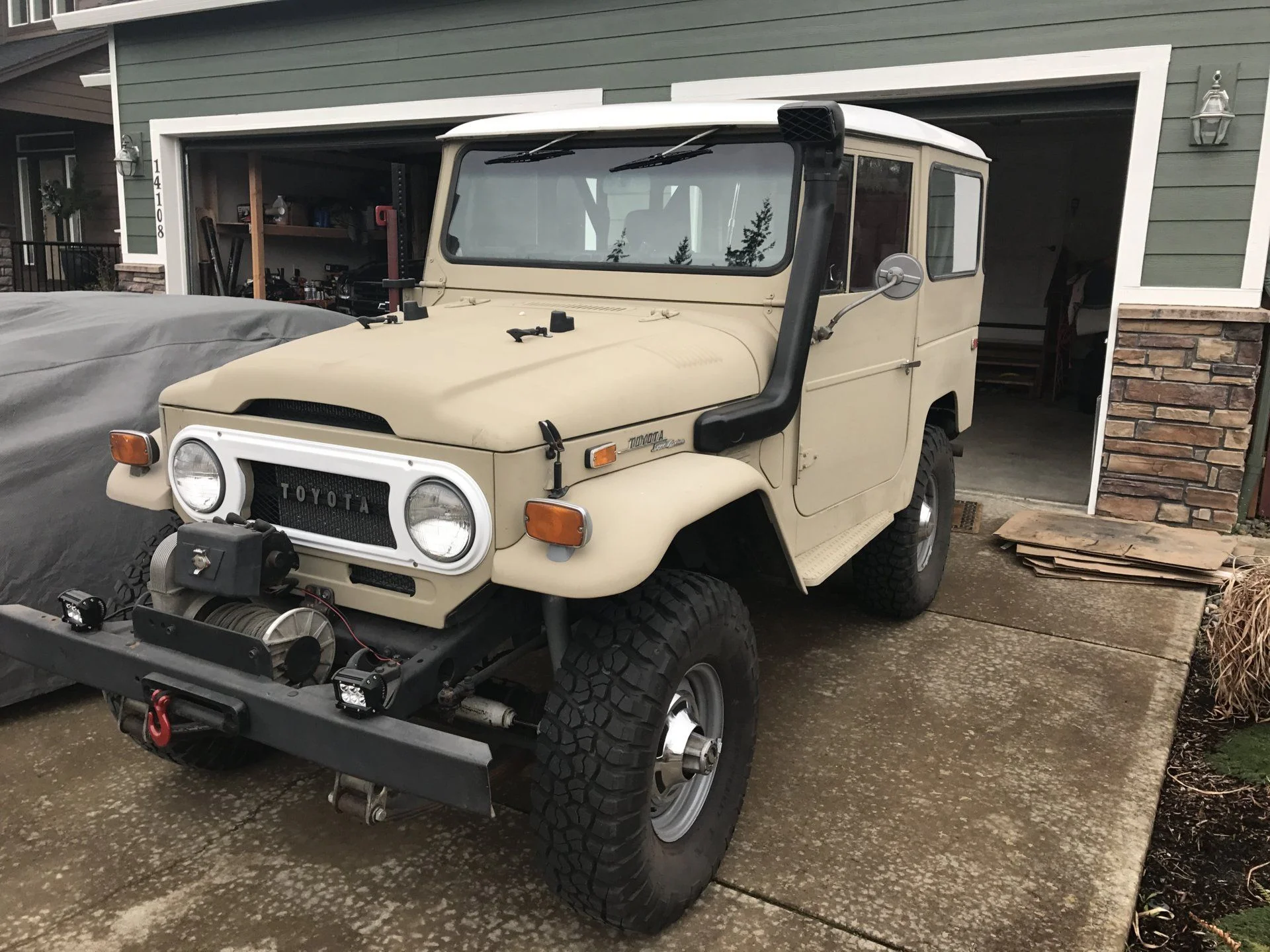

View attachment 1494673

View attachment 1494674

View attachment 1494675

Nice ride. I think thats some version of a ccot bumper. Thanks for sharing.



[TimeIsMoney]

HFS bumper
