Unknown black box 1982 FJ43

[GrooGrux69]

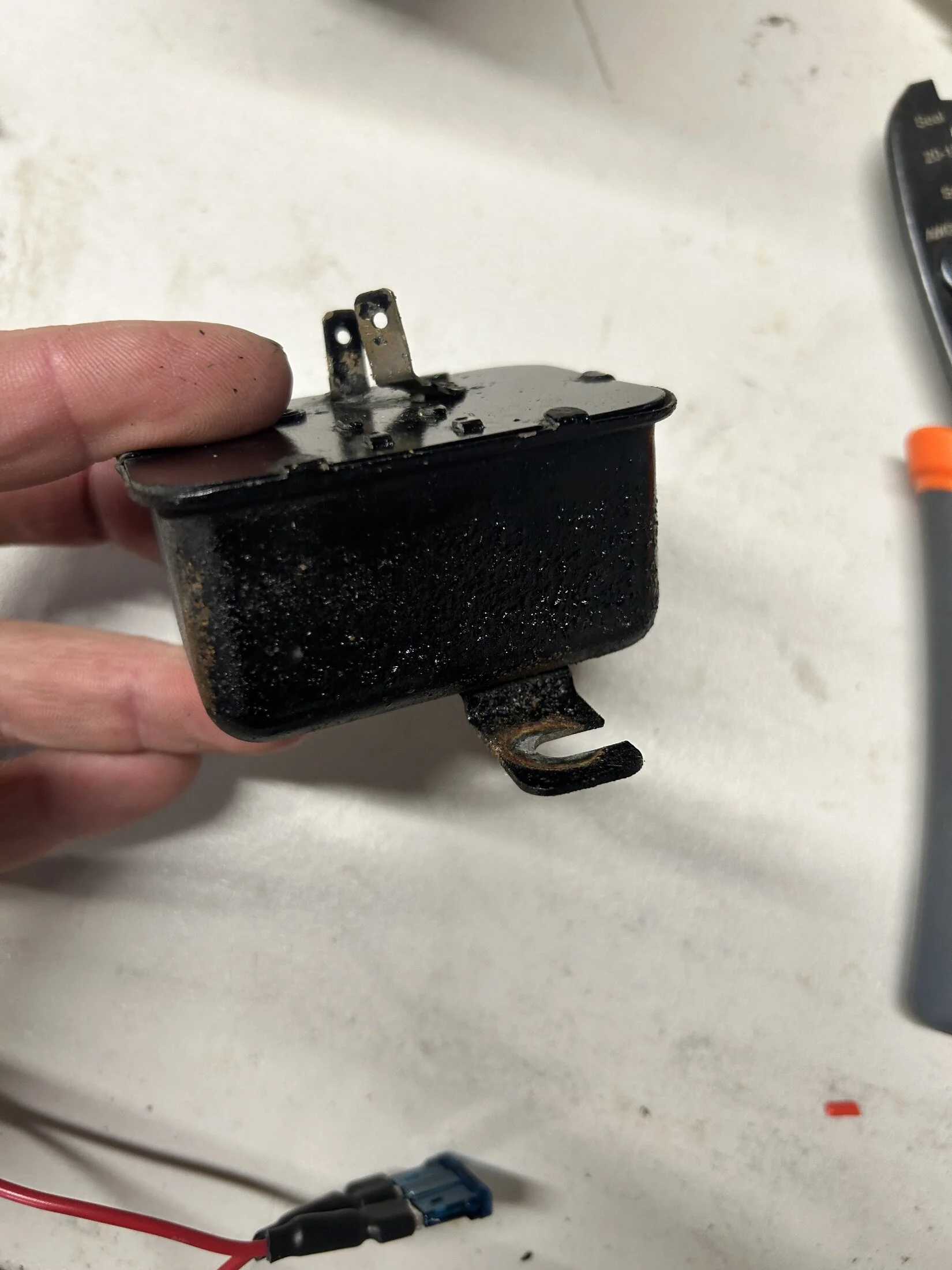

Howdy. I found this under the dash, close to the firewall harness hole on the drivers side. Anyone know for sure what it is? My guess is it’s the seatbelt warning buzzer. If you look the contacts they are arranged like a flasher and are labeled. One is a load and the other is “B”. I hope it’s the buzzer



[Rigger]

If you put 12 volts to it, and it made a buzzing noise, that would support your supposition that it is a buzzer.



[GrooGrux69]

If you put 12 volts to it, and it made a buzzing noise, that would support your supposition that it is a buzzer.

I wired it to a light as if it were a flasher. The circuit works but it doesn’t flash. I thought it seemed dim so I checked the output voltage to see if it is a voltage regulator and nope.



[Rigger]

I assume it's from an FJ40, since you've posted in the '40 section. What year?



[charliemeyer007]

Does it have any part #'s on it? B could be Battery and L could be Load or perhaps Inductor in EE terms apparently not Light.
If you are careful you can pry the tabs and open it up to see what is the unit.
Doesn't look like any of these exactly, so could be a PO mod for some non standard equipment, or some non OEM unit pressed into service for function - for a long time there were lots on NLA stuff for for older LC's.

https://www.sor.com/cat/182

Maybe correct wiring diagram could help by the color codes for the wires going to it



[Paul_A]

It's the black box, collecting all your driving data



[devo]

I’m unaware that Colombian 43’s (assuming) had a seatbelt warning systems ! Those general market rigs were not big on safety stuff like in NA? It’s not the blinker relay clicking box?



[pb4ugo]

It looks like the flasher. Below is US spec



[zerotreedelta]

Agree, looks like the flasher. B+ would be input voltage, and load would go to the light.

One light may not be enough load to trip the thermo switch, depending how you tested it.



[GrooGrux69]

It looks like the flasher. Below is US spec

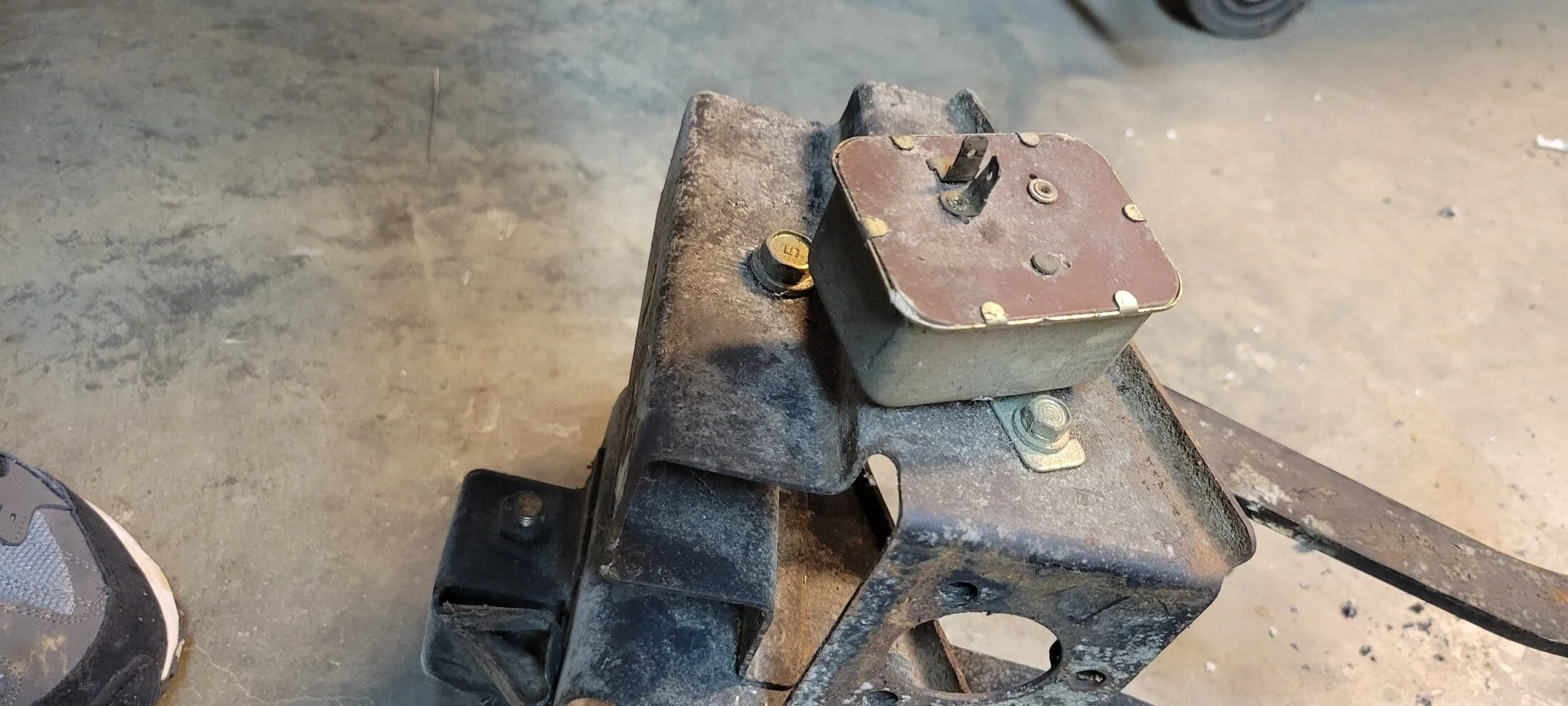

View attachment 3777424

I was thinking that as well. But I tested it and it didn’t flash. Maybe it’s too old. Or I wired it backwards. I’ve been know to make wiring mistakes. I love little Land Cruiser treasures.



[locklaw]

It looks like the flasher. Below is US spec

View attachment 3777424

It is indeed a flasher and no different to the US Spec you show, except for the black paint overspray (I believe it's considered the HD spec vs the round flasher can).



[MOTOV8R]

Did you have enough resistance in your test? It will not flash without enough resistance in the circuit.



[GrooGrux69]

Did you have enough resistance in your test? It will not flash without enough resistance in the circuit.

The resistance I used was one front turn signal light.



[charliemeyer007]

One bulb usually doesn't blink because it doesn't have enough resistance. Hook up at least two and see what happens



[jblatz]

For reference, for Europe/General Market 1982 FJ43, the parts catalog lists 2 flasher units.

81980-30040 for vehicles with Hazard Switch

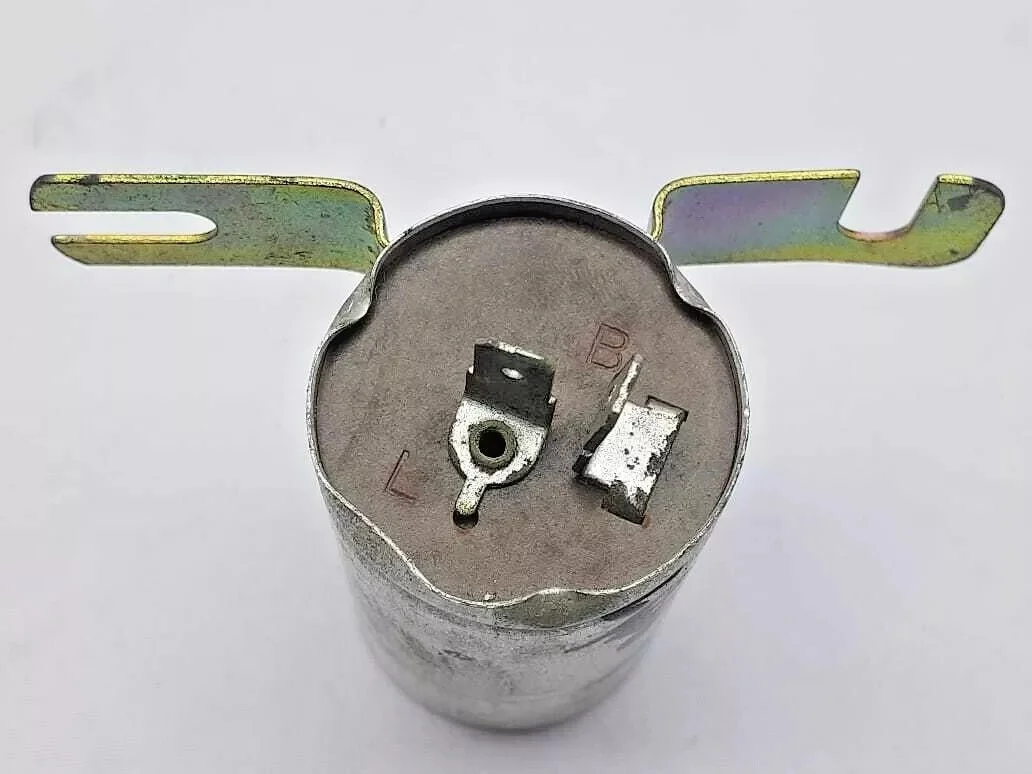

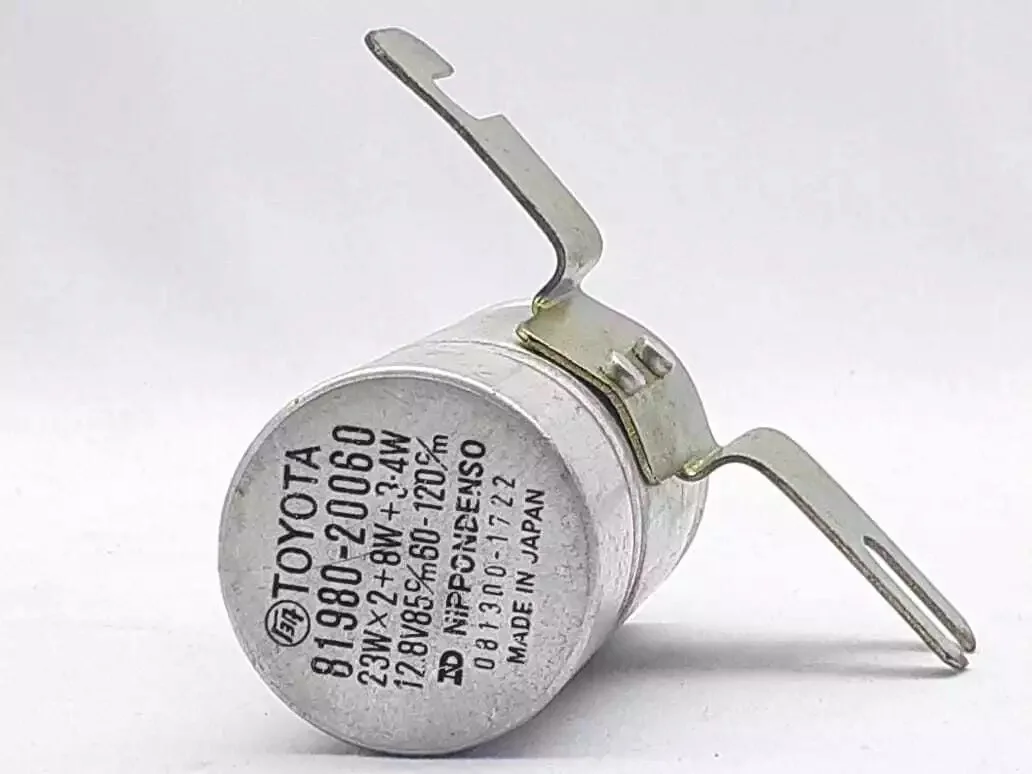

81980-20060 for vehicles without Hazard Switch.



[GrooGrux69]

For reference, for Europe/General Market 1982 FJ43, the parts catalog lists 2 flasher units.

81980-30040 for vehicles with Hazard Switch

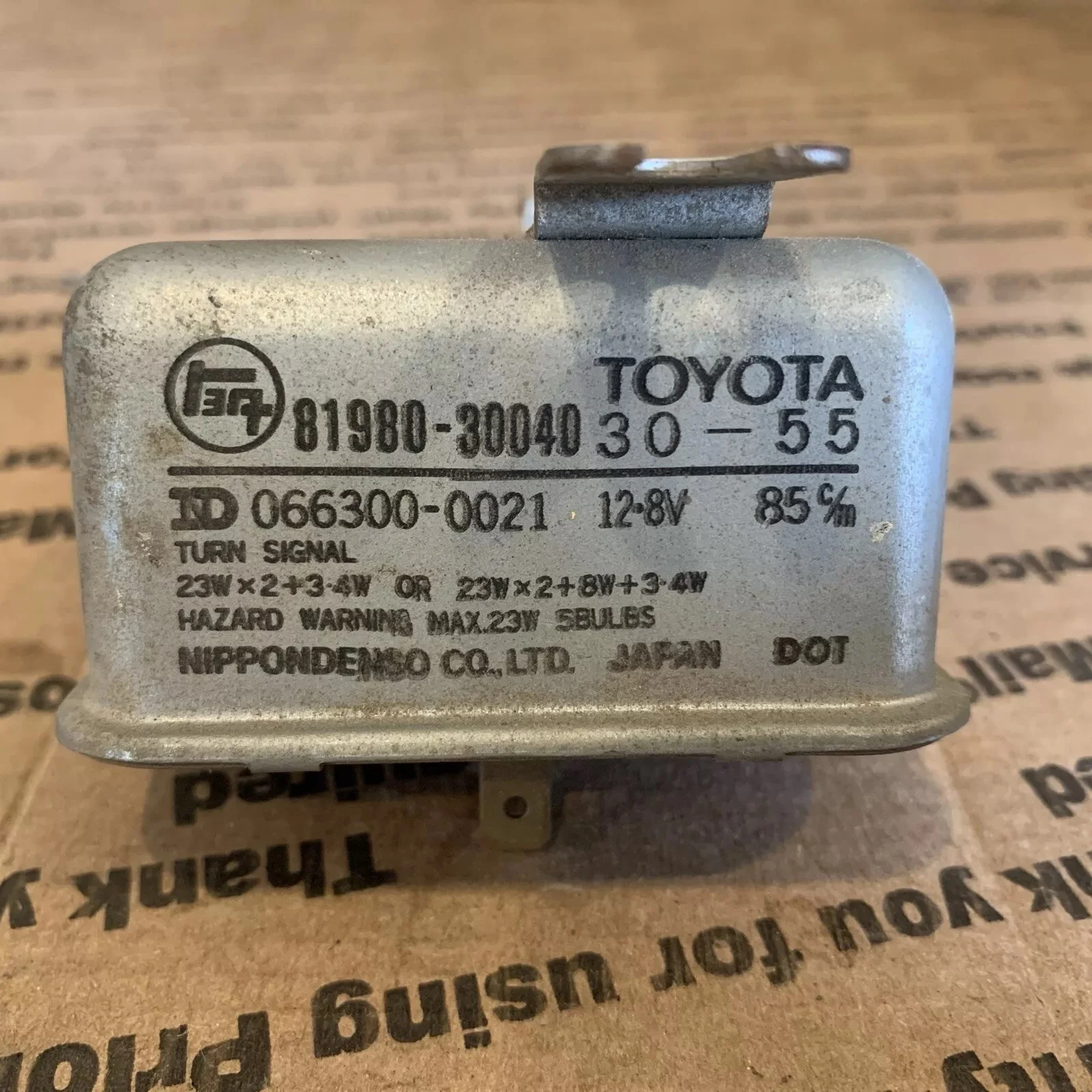

View attachment 3778279

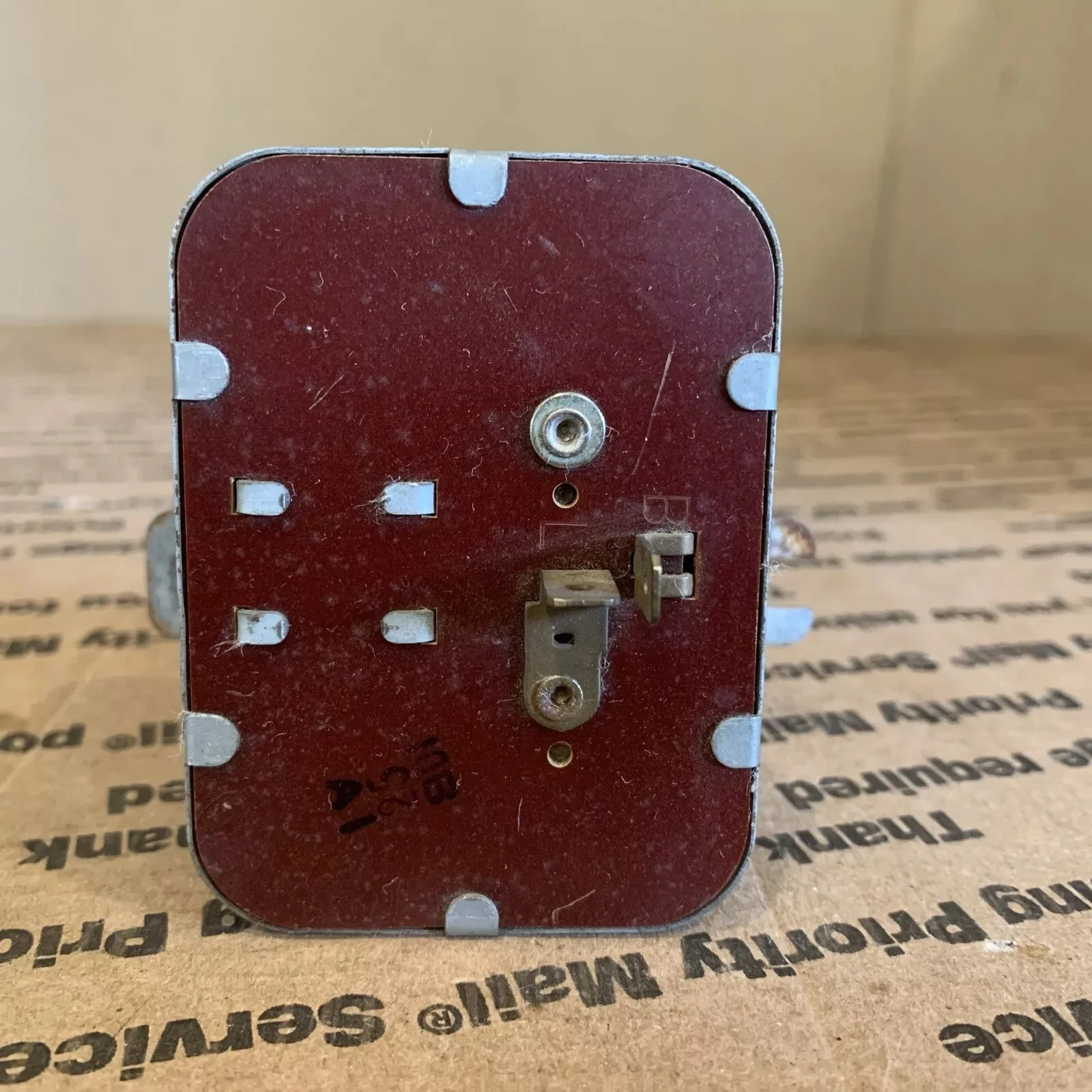

View attachment 3778280

81980-20060 for vehicles without Hazard Switch.
View attachment 3778281
View attachment 3778282

Where do I find this catalog?!?! Thanks



[jblatz]

Where do I find this catalog?!?! Thanks

toyodiy.com
