The A/C Amp Thread

Discussion in '60-Series Wagons' started by TrickyT, May 2, 2015.

  1. TrickyT

    TrickyT Hate that mud... SILVER Star

    Messages:
    1,446
    Likes Received:
    439
    Joined:
    Apr 1, 2006
    Location:
    Mill Valley, CA
    This thread is all about FJ60/FJ62 A/C amplifiers. You know, that little black box that mounts on the evaporator case behind the glove box. There are plenty of other threads concerning A/C amps and I thought about adding to those, but in the end decided that the information here breaks enough new ground that it deserves a dedicated thread.

    There are details here about the A/C amps for the FJ60 (p/n 88650-60020) and the FJ62 (p/n 88650-90A03) . Both are fairly similar and designed to perform three functions:
    1) prevent the compressor from engaging during engine start-up or at low idle
    2) increase idle speed when the compressor is engaged
    3) disable the compressor if the evaporator coils get too cold (i.e., near/at freezing)

    The major difference between the boards is how #1 is implemented. The FJ60 board has rpm sense circuitry that is driven by a signal from the igniter that inhibits the A/C clutch relay from closing at low rpm, while the FJ62 uses a signal from the ignition switch that disables the relay when the starter is engaged and for a short time thereafter.

  2. TrickyT

    TrickyT Hate that mud... SILVER Star

    Messages:
    1,446
    Likes Received:
    439
    Joined:
    Apr 1, 2006
    Location:
    Mill Valley, CA
    Here’s what the circuit boards look like. FJ62 circuit board (p/n 077300-0841) is the top photo, FJ60 (p/n 077100-1690) on the bottom.


  3. TrickyT

    TrickyT Hate that mud... SILVER Star

    Messages:
    1,446
    Likes Received:
    439
    Joined:
    Apr 1, 2006
    Location:
    Mill Valley, CA

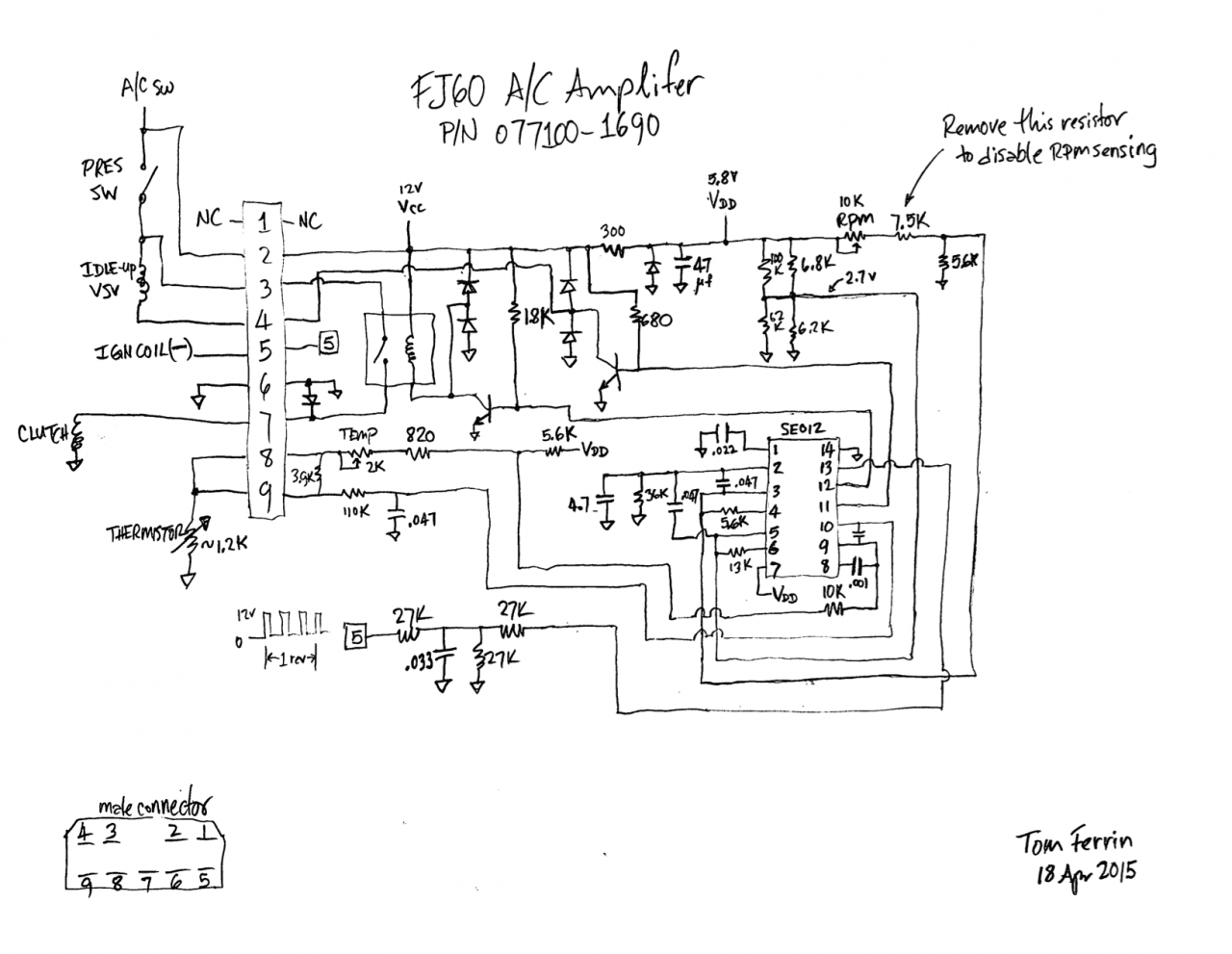

    For the EE’s out there, here are the schematics that I reverse engineered for the two boards.

    Both boards use a proprietary IC for the controller. On the FJ62 it’s a Toshiba T2333 and on the FJ60 it’s a Nippon Denso SE012. I could not find data sheets for either.

    beno likes this.
  4. TrickyT

    TrickyT Hate that mud... SILVER Star

    Messages:
    1,446
    Likes Received:
    439
    Joined:
    Apr 1, 2006
    Location:
    Mill Valley, CA
    I first got interested in these boards a few years back when a friend was having a problem with the A/C on his FJ62. In the end the A/C amp was not at fault, but I did reverse engineer the circuit.

    More recently, @FJ60Cam was doing a V8 swap in his 60 (see https://forum.ih8mud.com/threads/cams-fj60-is-gittin-a-heart-transplant.809304/) and obviously wanted the A/C to still work. Trouble was, the ignition signal from the ’07 5.3L Vortec was not compatible with the FJ60 A/C amp. Now others have dealt with this problem by either buying a signal converter module to drive the amp or by re-purposing an amp from a FJ62. (See for example https://forum.ih8mud.com/threads/ac-amplifier-not-working.849576/). But Cameron and I got to talking and I told him to send me his amp and I would figure out how to disable the rpm sensing circuitry so that he could just use his original amp. (At 310 hp compared to the 2F’s 135 hp there wasn’t much concern about the Vortec being able to spin the compressor at startup.)

    It’s really easy to disable the rpm sense circuit. You just need to remove one resistor from the circuit board. If you want to be able to reverse your change you can unsolder the resistor, otherwise just use a small pair of wire cutters and snip the leads on the resistor. Here’s the resistor’s location on the board:

    Last edited: May 2, 2015
    bush, FJ60Cam and beno like this.
  5. TrickyT

    TrickyT Hate that mud... SILVER Star

    Messages:
    1,446
    Likes Received:
    439
    Joined:
    Apr 1, 2006
    Location:
    Mill Valley, CA
    While I was at it, I wondered about the red trim potentiometer on this same board. It’s used to adjust the temperature at which the compressor cuts out to keep the evaporator coils from freezing over. There is a thermistor mounted inside the evaporator whose resistance changes as a function of temperature according to this graph taken from the FSM:


    Note that the graph shows a range of values for any given temperature, indicating that the thermistor has a tolerance of +/- ~8%. The red trim pot is meant to be a factory-only adjustment to account for board-to-board differences in resistor and thermistor values. But with careful adjustment a user could adjust this potentiometer so that the compressor would continue to run until just before the evaporator begins to freeze up. So while I was figuring out how the rpm sense circuitry worked, I used my same test setup to calibrate the red trim pot. Here’s what that looks like:


    If you mess with your trim pot setting just remember that the resistor values in the circuit are not exact and therefore these marks are only approximate. Make sure you make a reference mark on the board before you make any changes so that you can always reset the pot to where you started at. Also, exactly when the evaporator coils freeze is going to depend on humidity and other factors so be a bit conservative in your setting.

    Last edited: May 2, 2015
  6. TrickyT

    TrickyT Hate that mud... SILVER Star

    Messages:
    1,446
    Likes Received:
    439
    Joined:
    Apr 1, 2006
    Location:
    Mill Valley, CA
    Lastly, if any of you are interested in what it took to figure all this stuff out, here’s a picture of my test setup:

    The white breadboard with the small PC board and blue LED is an Arduino microprocessor that I programmed to simulate the 2F ignition system, with the knob controlling the “rpm”. In the photo it’s set at 32.6 Hz which corresponds to 650 rpm.
