Swapping my differentials to locking differentials

  • Thread starter Equinsu ocha
  • Start date
  • Watchers 11
lp2k

lp2k

Had a couple of drinks.. saw a couple of things
Joined
Mar 31, 2012
Messages
1,366
Location
Gotha, Florida (near the dog)
Year1993
PartLocker Truck
Wire, Floor (82161)82161-60042
Wire, Floor, No. 3 (82163)82163-60051
Wire, Frame, No.2 (82165)82165-60080
Wire, Frame (82164)82164-60012
Differential Lock ECU89533-60030
Dash Bulb (2x)90981-11018
Dash Bulb holder (2x)83101-14040
Differential Lock Switch84725-60020

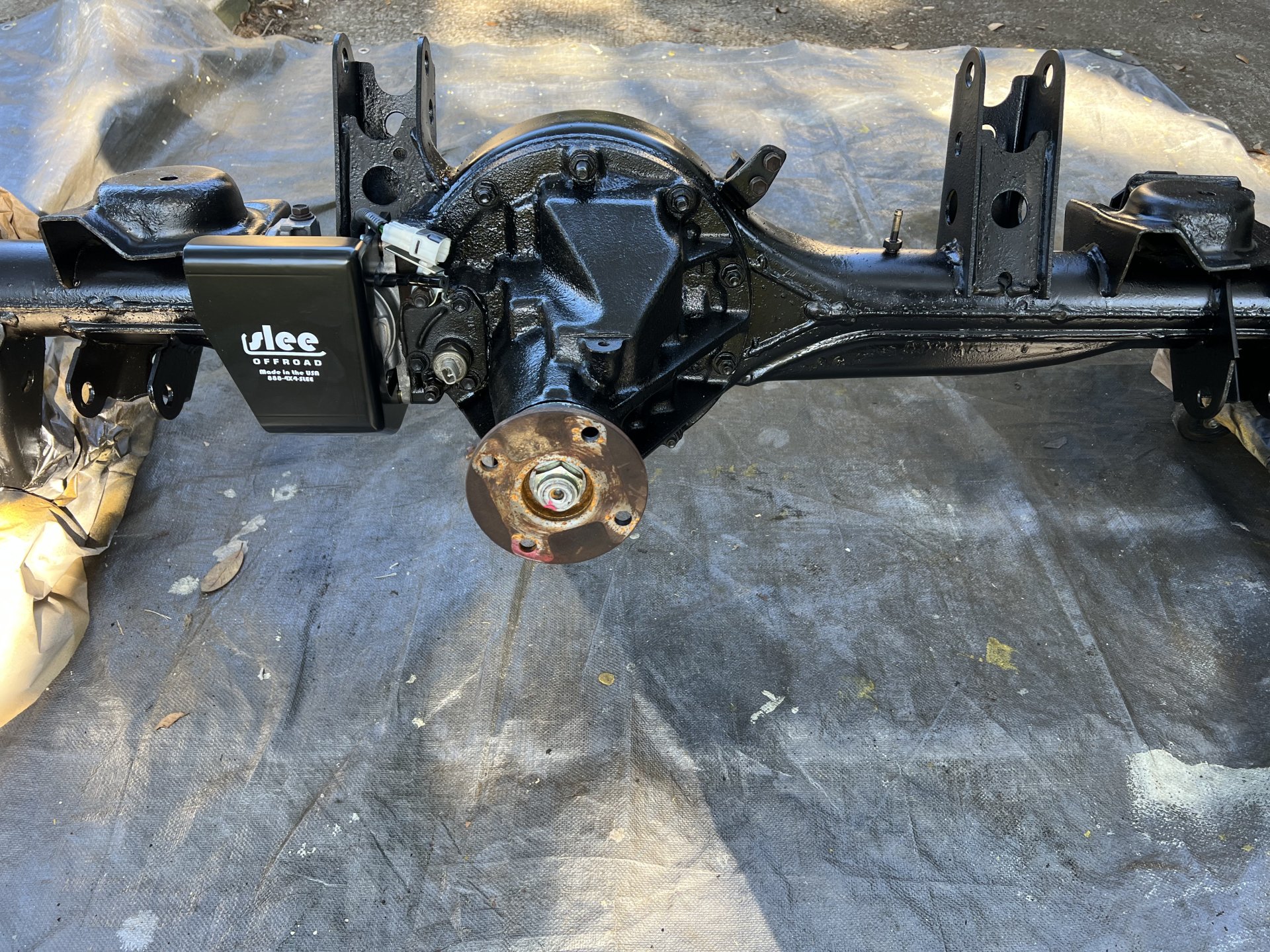

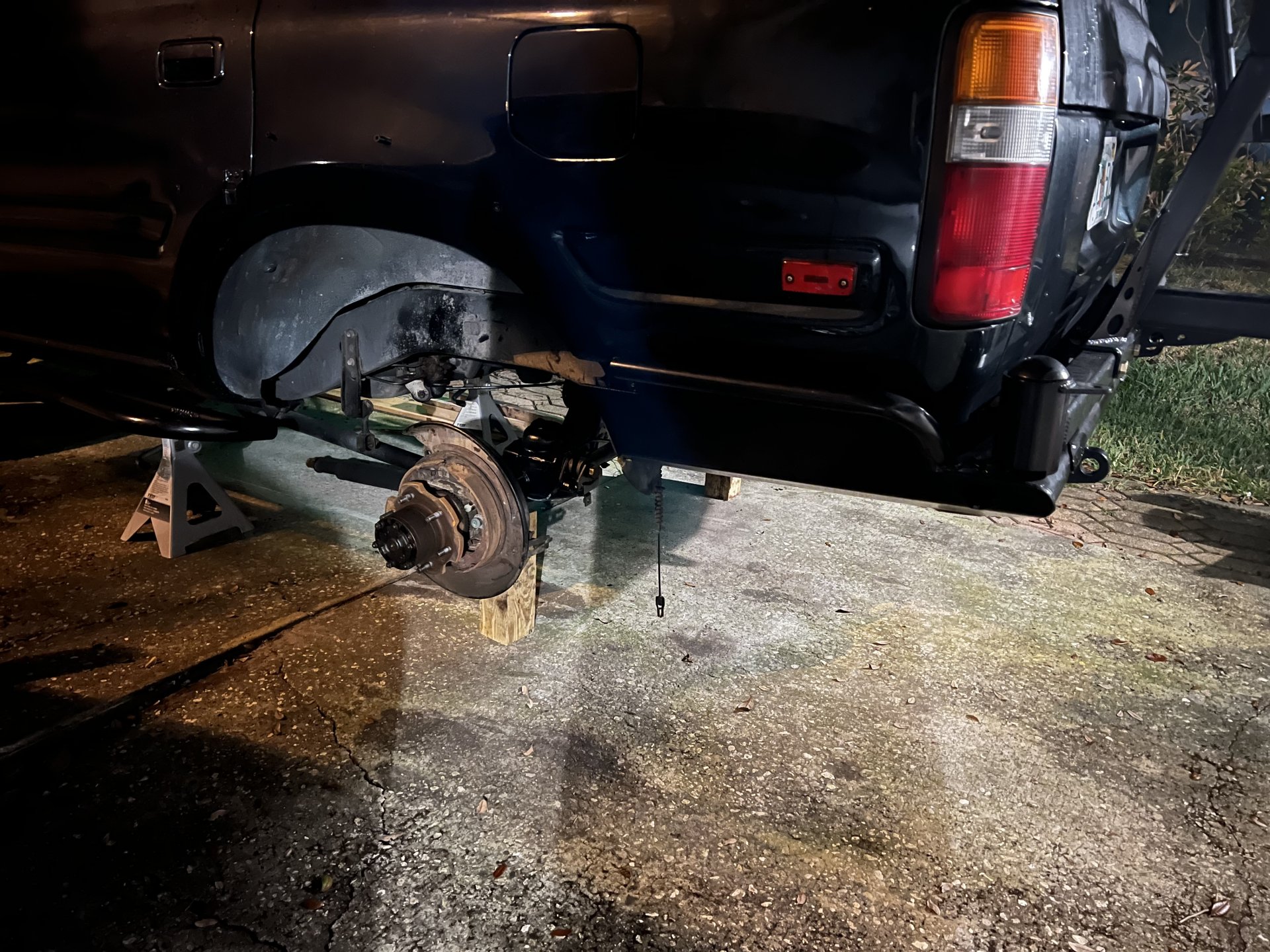

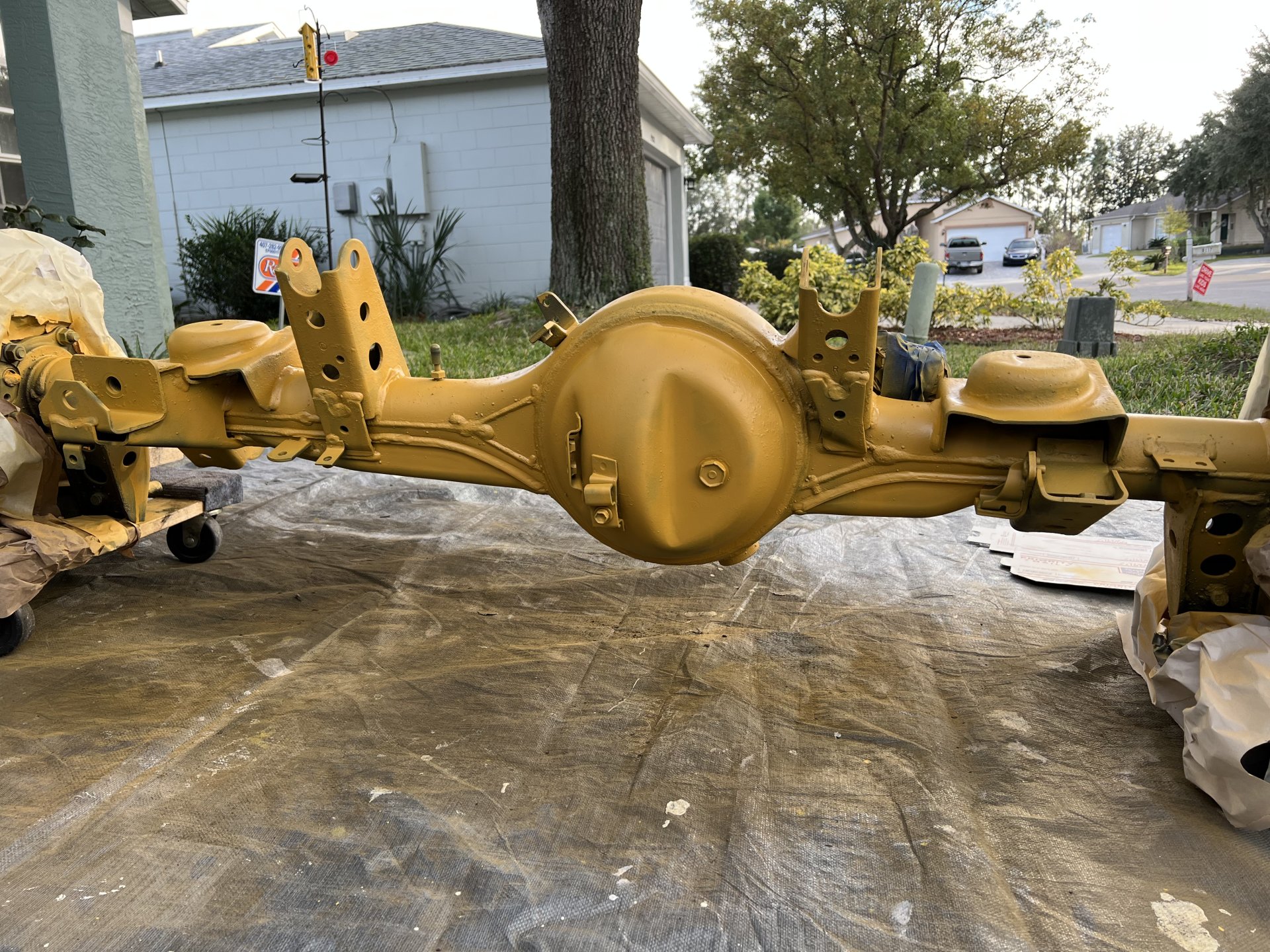

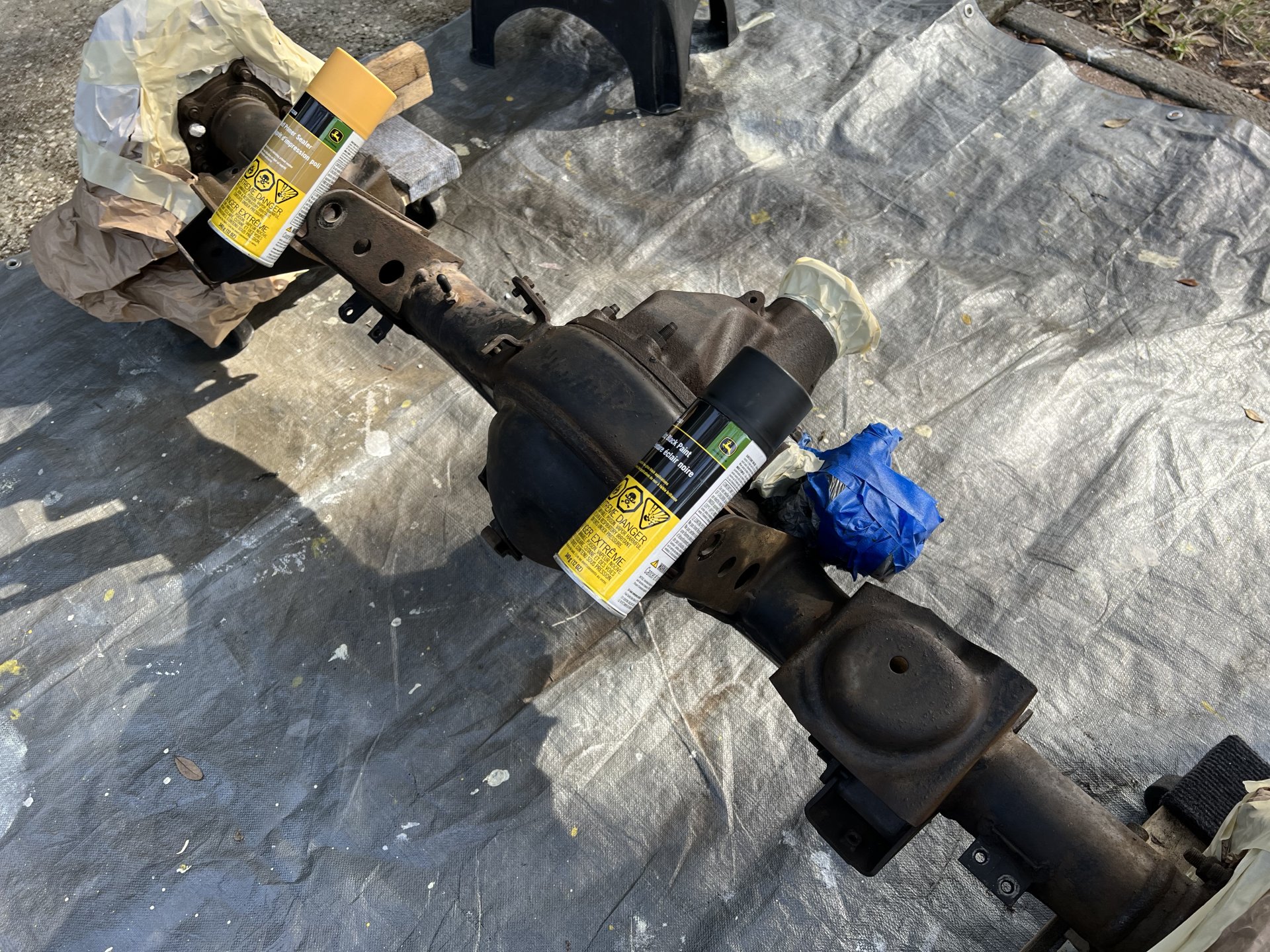

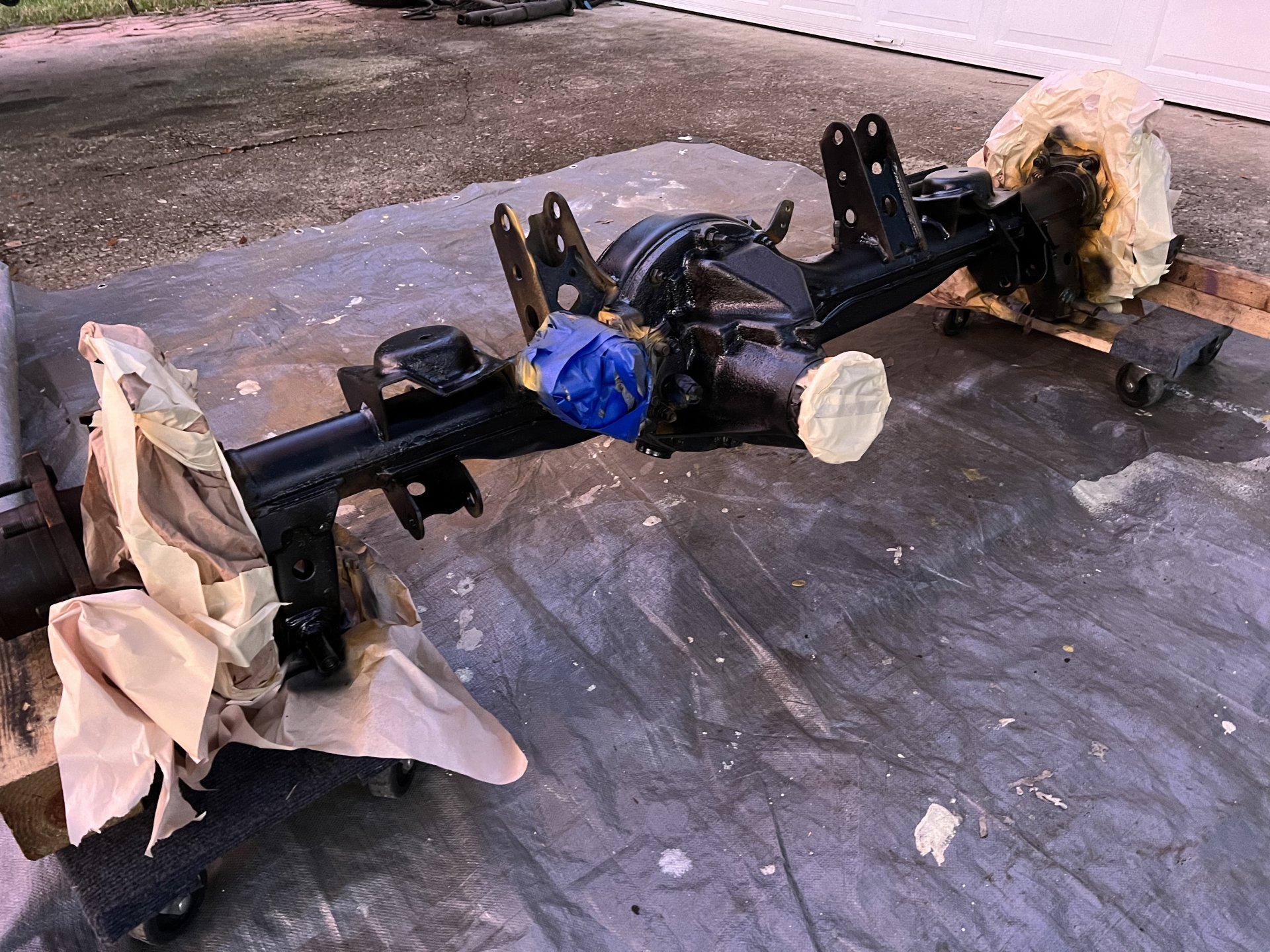

Then you earn
Diff Lock Label (Controlled item to order?)41991-60061


1638208067685

Equinsu ocha

Equinsu ocha

Joined
Oct 29, 2018
Messages
82
Location
Texas
hey I am doing this right now. But I am not modifying the diffs, I am swapping entire axle housings.

you need 4 harnesses, the ecu, the switch for the dash. 3 light bulbs for the dash and the axles (or 3rd members it sounds like since you want to keep/modify your existing axles)
I am also swapping the axles.

Last edited:
Godwin

Godwin

Resident Herpetologist
SILVER Star
Joined
Dec 4, 2004
Messages
5,813
Location
Alabama
If you don't mind a non-stock wiring approach you can build the harnesses using a switch, pair of relays, plus wire and associated materials. Might be cheaper and easier than sourcing OEM locker wiring paraphernalia. Wiring diagrams for the lockers can be found on-line. When installed the 80 series rear locked axle into my FJ60 I fabbed up the locker harness plus an led to indicate the locked state of the differential.

Widenbruck

Widenbruck

Joined
Sep 20, 2011
Messages
27
This thread is really timely for me as I am about to start the axle swapping process. I have a donor 95 with working locking diffs (it can be driven and I've tested them). I am transferring both axles to my non-locker 96. Thanks for all the info above, very useful. I assume the diff lock wire assembly is already present in my 96, please correct me if I am wrong. I am sure I will be asking a few questions as I go through this process.

EQr8D7zQrSCMxif4cLVKA

lp2k

lp2k

Had a couple of drinks.. saw a couple of things
Joined
Mar 31, 2012
Messages
1,366
Location
Gotha, Florida (near the dog)
I don’t think it is - I just confirmed in my 93 to my 94. If you had a non locked lx450 then yes, wires are there but only the main body harness, not the rear harness or the abs sensor harness

LINUS

LINUS

Waiting for the Great Pumpkin
Joined
Mar 29, 2003
Messages
6,114
Location
PNW - WA
@Widenbruck - you have the dash prewired & the FR locker connection on the firewall.

You either need swap floor harness or add the wires (swap make for 1:banana: -tech job.
Esp since you have locker axle shells too.

The main floor harness, the intermediary harness that ties both RR corners, and the FR & RR axle pigtails are the 4 harnesses you need.

Other than that, just the ECU/relay box, rotary knob & pull the cluster to add the bulbs & holders.

It’s like playing with dirty/greasy Legos - lemon squeezey having a donor rig.

Remember the lockers only engage in L range w/o CDL switch & pin 7 mod - if you haven’t played w/ the lockers / locked rig much yet, don’t worry if nothing happens in H range.

Once you verify you did the basic swap right, then add in the CDL & clip pin-7 wire (black w/ blue trace).
—Keep variables to a minimum incrementally so you can backtrack/isolate stuff. ;)

LINUS

LINUS

Waiting for the Great Pumpkin
Joined
Mar 29, 2003
Messages
6,114
Location
PNW - WA
Well lucky for him he's got a donor rig he can strip.

Seems like a lot of work when arb's are available. Or Eaton e-lockers.

I had ARB’s in a prev 80 (have/had 3) ‘97’s - 2LC’s & a 450).

ARB’s are good, save blowing the air/oil o-ring - but if aftermarket I’d go Harrop, no question.

But he’s got a donor rig so moot point.

D

Dusten

Joined
Nov 17, 2021
Messages
589
Location
Arlington, Wa
I had ARB’s in a prev 80 (have/had 3) ‘97’s - 2LC’s & a 450).

ARB’s are good, save blowing the air/oil o-ring - but if aftermarket I’d go Harrop, no question.

But he’s got a donor rig so moot point.

Agreed.

Tonkaboy

Tonkaboy

Joined
Aug 28, 2020
Messages
20
Location
SF Bay Area, California
Widenbruck

Widenbruck

Joined
Sep 20, 2011
Messages
27
@Widenbruck - you have the dash prewired & the FR locker connection on the firewall.

You either need swap floor harness or add the wires (swap make for 1:banana: -tech job.
Esp since you have locker axle shells too.

The main floor harness, the intermediary harness that ties both RR corners, and the FR & RR axle pigtails are the 4 harnesses you need.

Other than that, just the ECU/relay box, rotary knob & pull the cluster to add the bulbs & holders.

It’s like playing with dirty/greasy Legos - lemon squeezey having a donor rig.

Remember the lockers only engage in L range w/o CDL switch & pin 7 mod - if you haven’t played w/ the lockers / locked rig much yet, don’t worry if nothing happens in H range.

Once you verify you did the basic swap right, then add in the CDL & clip pin-7 wire (black w/ blue trace).
—Keep variables to a minimum incrementally so you can backtrack/isolate stuff. ;)
Thanks for the tips! I do have a CDL switch installed.

Cruiser804

Cruiser804

SILVER Star
Joined
Mar 11, 2006
Messages
1,817
This thread is really timely for me as I am about to start the axle swapping process. I have a donor 95 with working locking diffs (it can be driven and I've tested them). I am transferring both axles to my non-locker 96. Thanks for all the info above, very useful. I assume the diff lock wire assembly is already present in my 96, please correct me if I am wrong. I am sure I will be asking a few questions as I go through this process.

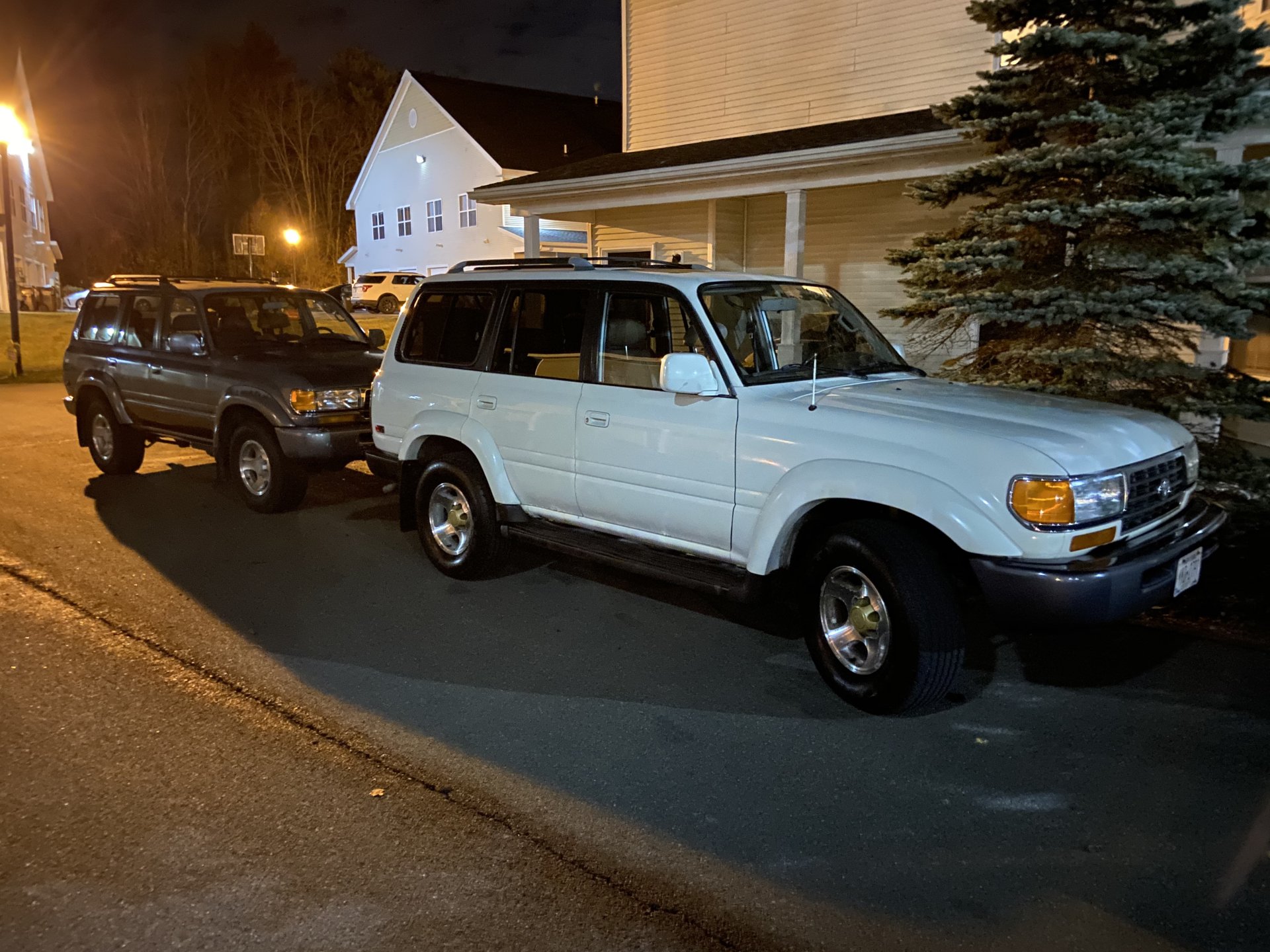

View attachment 2861760
Some of the wiring is there. The wiring behind the dash for the switch and ECU in the kick panel (IIRC). You will need to replace or augement the wiring harness that runs down the drivers side, the one from the jack and tool compartment to behind the reat bumper then bumper to actuator as well as the small harness from the engine compartment to the front actuator. I have a thread someone on here about all the.

residualboulders

residualboulders

Joined
Apr 2, 2003
Messages
913
Location
Wyoming
@LINUS tell me more about the harrop. I just bought a 94 80 with 99k miles. Not triple locked but I couldn't pass it up at that mileage. So i figured I'd add ARB air lockers. Will be adding a compressor anyway, but harrop elockers sounds interesting. I don't know much about them. Can they be installed in an 80 without factory elockers?

lp2k

lp2k

Had a couple of drinks.. saw a couple of things
Joined
Mar 31, 2012
Messages
1,366
Location
Gotha, Florida (near the dog)
@LINUS tell me more about the harrop. I just bought a 94 80 with 99k miles. Not triple locked but I couldn't pass it up at that mileage. So i figured I'd add ARB air lockers. Will be adding a compressor anyway, but harrop elockers sounds interesting. I don't know much about them. Can they be installed in an 80 without factory elockers?
They can be and if u want to see what is involved, look up otram Harrop on YouTube and he shows you how he does it

residualboulders

residualboulders

Joined
Apr 2, 2003
Messages
913
Location
Wyoming
They can be and if u want to see what is involved, look up otram Harrop on YouTube and he shows you how he does it
Thanks - I jumped the gun a little on that last post. Have since found several threads discussing it. I'll check out that video.

Funner

Funner

Joined
Jun 29, 2011
Messages
3,332
Location
Phoenix, AZ
I have done this too, but I swapped the entire axles. On my non locked 1995 80 the front locker harness and driver kick panel to passenger kick panel harness were both already in place. I needed the switch, locker ecu, the axles, and the wiring from ds kick panel to rear, and the harness from ds rear to the axle. Pretty sure that was it.
