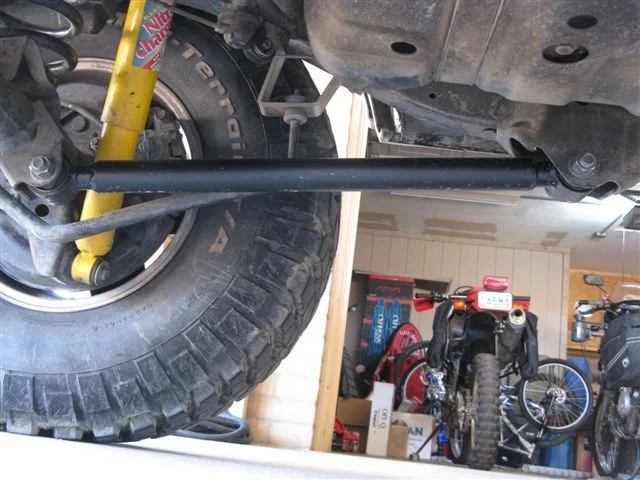

The RLCA (Rear Lower Control Arm) mod was respectably stolen from CSC’s own Mountain Cruiser.

1.75 x .188 (1.36ID) Dom tubing seamless
Factory RLCA on a ’96 are 1.34 x .170 seamed tubing
Factory length was maintained
8 rosettes welds per RLCA

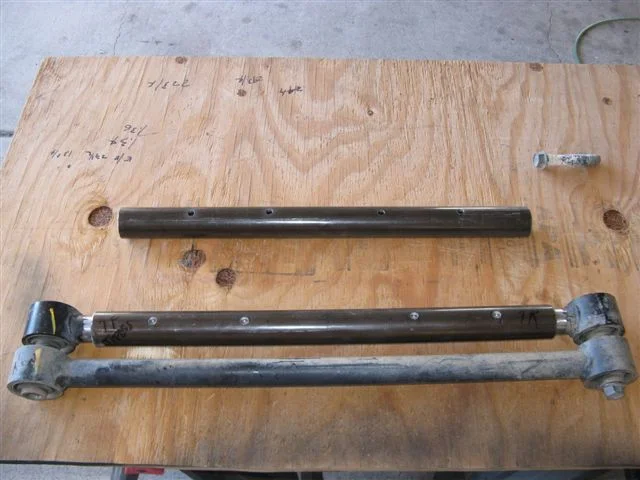

Cut factory RLCA in half -remeber you loose ~1/8 when cutting
I held the sleeve back 1” from the bushing holder
Wrapped the bushing with a wet rag to keep the bushing from cooking
Stitched welded tubing together to keep temps under control
Cleaned and smoothed the welded rosettes

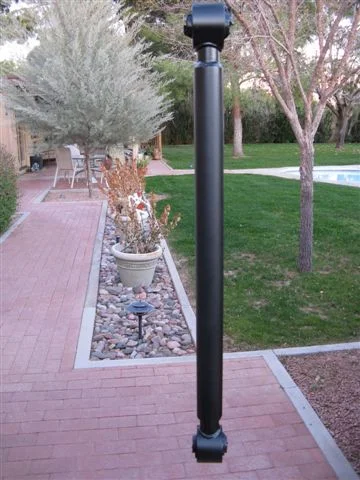

Primed and painted Kylon satin black
Reinstalled

In the past I have used angle iron with excellent results but I liked this new approached.
You pick up ~3/8” clearance over angle - Wooo
Total tubing thickness ~3/8” – strong enough for what I do
Ended up 1lb addition weight per RLCA over 1½ x ¼ angle iron
The ability to slide sideways easier when hung up – still up for debate as a pro or con
Cost maybe 5x over 1½ x ¼ angle iron
Most important - I like the look better

Material Cost – 4’ Dom seamless tubing $50 shipped

Contact Mountain Cruiser (Tony) if you would like to pay to have this mod done.
