Project Fauxverlander 200 Series Land Cruiser Build Thread

Discussion in '200-Series Cruisers' started by cruiseroutfit, Oct 26, 2015.

  1. cruiseroutfit

    cruiseroutfit Supporting Vendor Moderator

    Messages:
    8,028
    Likes Received:
    5,070
    Joined:
    Jan 9, 2003
    Location:
    Utah
    Introducing the Cruiser Outfitters Project Fauxverlander (Faux-Overlander) Build

    [​IMG]

    First, let's get the name out of the way. The 200 Series Land Cruiser has taken some serious heat from some in the Toyota off-road community, lobbing comments like "mall-crawler", "bloated with needless electronics" and "no different than a Sequoia". Well, let's set the record straight. The 200 Series platform is every bit of an off-road capable machine as the 100 Series Land Cruiser and it's predecessor the 80 Series and ironically the comments I'm hearing about the 200, are the same exact comments I recall hearing about the 100 which has now been acclaimed the "#1 Used Overland Vehicle". Oh my, have times changed. The US Spec 200 Series is a stalwart beast bedazzled with refinement, some hate the refinement such as the available air conditioned seats, refrigerated center console and off-road cameras and others will absolutely come to embrace it. I'm neither for it or against the refinement really, it's simply the only way I can have it in the US market so here I am. So for me, the name is more of a fun poke at the dissenters and a showpiece to customers as in fact a great platform for off-road travel and overland style adventures.

    Why the 200 Series? Great question. My 100 Series Land Cruiser (aka the Death Star) has been a fantastic rig, for the past 3 years it's taken me all over the western US and hauled team members and myself up and down Mexico's Baja peninsula supporting our Baja 1000 race endeavors. I wasn't exactly looking for a replacement but the 200 was starting to appear on my radar as a future candidate. I'd spent a bit of time in the Aussie spec VDJ200 featuring the twin-turbo 1VD-FTV V8 diesel. Back on US soil I continued to be impressed. I was spending more and more time with customer's 200 Series and hearing their continual accolades and add some trail time with my friend Greg in his 200, where despite being 100% stock he's maneuvered it through a snow and ice covered Beef Basin and Elephant Hill.

    The real driving force was my involvement as part of Canguro Racing where we have have been desert racing a 200 Series in races such as the Baja 1000, Vegas to Reno and Mint 400. As it works out with desert racing you spend a great deal of time behind the wheel, but 10x that many hours underneath the vehicle inspecting, repairing and prepping for the next big race. While parts wear out and things need to be overhauled, our race vehicle "Monica" has held up amazingly well to the many races under her belt. The engine, trans, t-case and axles are nearly stock and post-race tear downs and testing show the internals are holding up absolutely fine despite hard racing in dusty conditions pushing 37" tires over the roughest terrain found along a race course. I was sold.

    Rewind to last spring and a 200 that met my criteria popped up on my saved search query and I figured I would run down and take a look. My pal Dave came along with me, he had recent picked up a 2013 URJ200 and was fresh on the market offerings and condition having looked at many before settling on his Cruiser which he drove home from New York. The private seller was located in nearby Provo, Utah and had just listed it on a local classified website, I was the first to come take a look. At first glace I was mortified, the wheels were enough to turn a grown mans stomach. I was able to look past the wheels and the rest of the vehicle was in great condition, reasonably clean and the seller was the original owner and quite detail oriented. Following a short test drive I was ready to make it official but I wanted to sit on it for the night and we agreed to touch bases the next evening to finalize details.

    The next day he proactively called me while he was sitting in the showroom of a Infiniti dealership. His wife had suggested they stop by and look at a new vehicle replacement and they landed in a deal and were considering using the Cruiser as a trade-in. However he was willing to honor our previous nights discussion if I could be there in the next hour to ink the deal. On my way there he informs me I'll now be buying it from the dealership as a tactic to save him some sales tax on the new car. The deal was going a little sideways in my mind and I expressed a little hesitation, he was willing to sweeten the deal a little bit to make us both content and I was soon driving it home. The deal was done and I had to figure out what to do next.

    Basic stock specs of the 200 Series Land Cruiser:

    Model: 2008 URJ200
    Engine: 5.7L 3UR-FE - 381HP/401LbFt
    Trans/T-Case: AB60F 6-Speed Auto Trans/JF2A Full-Time 4wd T-Case w/locking differential
    Color: Classic Silver Metallic
    Suspension: IFS front (coil/strut) & 5 link rear (coil/shock)
    Features: Crawl Control, ATRAC, KDSS
    Curb Weight: 5690 lbs
    Payload: 1585 lbs
    Tow Capacity: 8500 lbs
    Fuel Capacity: 24.6 gal

    Compared to the 100 Series, the 200 received some major spec improvements in the engine division as well as the front suspension. The 200's 3UR-FE V8 features 381 horse power versus the lack luster 228 that the early 100's 2UZ-FE has. Likewise the torque saw a major improvement, from 302 pound-foot to an impressive 401. That said the 100 never felt really starved for power, I mean in Land Cruisers haven't ever been known as rocket ships... the 200 changes that. The suspension on the 200 also saw a considerable upgrade to the front end. While the torsion/shock combo on the 100 Series worked well and allowed for quick adjustment, spring rate offerings were limited on the torsion bars and suspension travel was limited as result of the design. The 200 has a standard strut/coil combination with an impressive amount of aftermarket components already available such as bypass shocks, remote reservoir options, heavy duty and high travel upper control arms and high travel CV axles.

    Next up, time to start planning the build.

    Volunteer, bryson, Reccymech and 22 others like this.
  2. MScruiser

    MScruiser obsessive-compulsive oppositional-defiant wise-ass

    Messages:
    5,676
    Media:
    206
    Albums:
    1
    Likes Received:
    6,405
    Joined:
    Jan 3, 2012
    Location:
    Jackson, MS
    I can't wait to see what you do. What are your plans?

  3. Littlehouse

    Littlehouse

    Messages:
    19
    Likes Received:
    3
    Joined:
    Jan 26, 2014
    Been waiting for this one!

  4. Willy beamin

    Willy beamin SILVER Star

    Messages:
    3,330
    Media:
    2
    Albums:
    2
    Likes Received:
    3,897
    Joined:
    Nov 11, 2013
    Location:
    louisville, KY
    What are the high travel cv's you speak of?
    Thanks

  5. Tapage

    Tapage Club 4X4 Panamá SILVER Star

    Messages:
    23,068
    Likes Received:
    1,219
    Joined:
    Apr 4, 2003
    Location:
    Panamá
    SC on your way ..?

  6. hankinid

    hankinid SILVER Star

    Messages:
    1,376
    Likes Received:
    224
    Joined:
    Jul 27, 2009
    Location:
    SW Idaho
    One of the mechanics at LTS in Boise (a great indy shop) did some wrenching on a 200-series that came in second-place in the Vegas-to- Reno race. Winner was a factory-sponsored 200.

    OP is dead-on as to ratio of ride time to wrench time. In my much younger days, I rode Barstow-to-Vegas once on a 40 inch Triumph...she had enough safety wire on her to build a small chicken coop. ;)

    Steve

    beno and hamishpotter like this.
  7. NLScooby

    NLScooby

    Messages:
    957
    Media:
    1
    Likes Received:
    726
    Joined:
    May 29, 2009
    Location:
    North Carolina
    Subscribed!

  8. hamishpotter

    hamishpotter SILVER Star

    Messages:
    1,572
    Likes Received:
    847
    Joined:
    Dec 27, 2013
    Location:
    NYC / CT
  9. beno

    beno Gihee Arakawa Moderator GOLD Star

    Messages:
    24,035
    Media:
    382
    Albums:
    29
    Likes Received:
    19,594
    Joined:
    Aug 28, 2004
    Location:
    Woodstock, NY
    This should be a good one.

    :)

  10. Rigger

    Rigger Ramble Tamble Staff Member Moderator

    Messages:
    4,950
    Media:
    4
    Albums:
    1
    Likes Received:
    2,305
    Joined:
    May 18, 2007
    Location:
    Wyoming
    Nice going Kurt! Waiting to see what happens next!

  11. hamishpotter

    hamishpotter SILVER Star

    Messages:
    1,572
    Likes Received:
    847
    Joined:
    Dec 27, 2013
    Location:
    NYC / CT
    Yes. Pls post some photos for your audience [emoji3]

    Sent from my SGH-M919

  12. BulletHead

    BulletHead Village Idiot SILVER Star

    Messages:
    995
    Likes Received:
    83
    Joined:
    Jun 24, 2005
    Location:
    Boston
    Keep dem dubs!!!

    InkMing likes this.
  13. M1911

    M1911

    Messages:
    698
    Likes Received:
    385
    Joined:
    Oct 7, 2009
    Location:
    In front of a monitor, somewhere in MetroWest, MA
    Oh God no.

  14. cruiseroutfit

    cruiseroutfit Supporting Vendor Moderator

    Messages:
    8,028
    Likes Received:
    5,070
    Joined:
    Jan 9, 2003
    Location:
    Utah
    Full build :D

    I'll be posting about the build plans and component consideration soon!


    Sorry, just referring to the factory CV's and the fact they have pretty decent travel without any mods.


    Perhaps one day but nothing on the immediate horizon.


    Not happening! :cool:

    M1911 and Desert Nomad like this.
  15. cruiseroutfit

    cruiseroutfit Supporting Vendor Moderator

    Messages:
    8,028
    Likes Received:
    5,070
    Joined:
    Jan 9, 2003
    Location:
    Utah
    Hmmm, I wonder what 200 that is? Our 200 (Monica) took 2nd in the 2014 B1k, taking second to the Toyota sponsored Tundra. We were the only 200 Series at the B1k, Mint 400 and Vegas 2 Reno (both this year and last) and we took 1st in Class this year. Is the mechanics named Brian?

  16. highrisk

    highrisk

    Messages:
    225
    Media:
    1
    Likes Received:
    184
    Joined:
    Apr 8, 2014
    Can't wait to see the pics

    cruiseroutfit likes this.
  17. arich

    arich Anthony. aka arich SILVER Star

    Messages:
    1,425
    Media:
    3
    Albums:
    1
    Likes Received:
    848
    Joined:
    Apr 20, 2004
    Location:
    New York
    follow.

    Tonytbts and cruiseroutfit like this.
  18. hankinid

    hankinid SILVER Star

    Messages:
    1,376
    Likes Received:
    224
    Joined:
    Jul 27, 2009
    Location:
    SW Idaho
    Brian is definitely the guy. I had a post-purchase inspection done by LTS on my '13 Cruiser and Brian did the work.

    We got to a bit of yakking in the shop as I asked, in his opinion, if the 200 were as sweet off-road as a 100 series... :princess: inherited my '01 LX. He opened up a few pics of Monica on his laptop, and I was more than impressed. :)

    Steve

  19. cruiseroutfit

    cruiseroutfit Supporting Vendor Moderator

    Messages:
    8,028
    Likes Received:
    5,070
    Joined:
    Jan 9, 2003
    Location:
    Utah
    Right on, Brian pitted (did the fueling) for us at the recent Vegas to Reno race and is coming to Baja with us next week too. Great guy!

  20. cruiseroutfit

    cruiseroutfit Supporting Vendor Moderator

    Messages:
    8,028
    Likes Received:
    5,070
    Joined:
    Jan 9, 2003
    Location:
    Utah
    Stage One - Maintenance & Baseline:

    [​IMG]

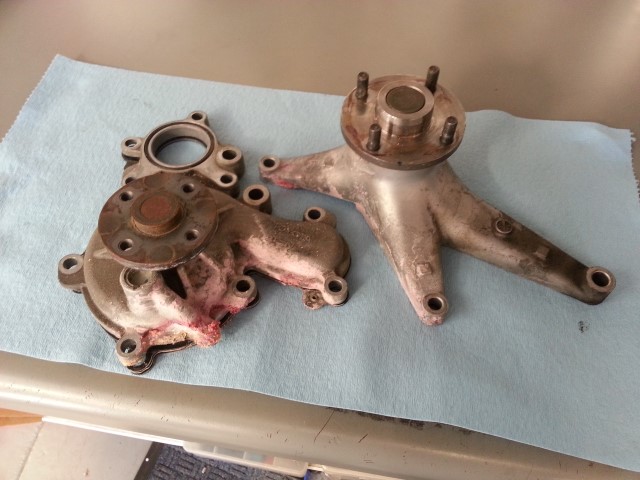

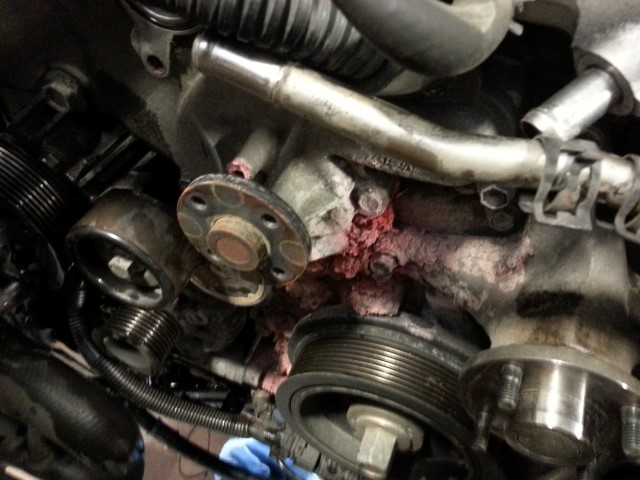

    All the signs of a leaking water pump.
    I purchased the 200 private party and while it came with decent service records, I wanted to baseline the fluids and swap the air, oil and cabin air filter, a fresh start. While climbing around the undercarriage during the oil change I noticed a trail of dried up pink coolant coming down the face of the motor. The leak was easily traced back up towards the top of the block, leaking from the weep hole of the water pump. I had an Aisin water pump and gasket on the shelf in the shop so the swap was really just a few hours of shop time and some coolant. We went ahead and swapped the fan bracket while doing the water pump, the bearing had been exposed to the leaking coolant and I didn't want to have to do the job twice. The 5.7L (3UR) is somewhat known for water pump weeps around the 100k mark and they give plenty of warning, don't really ever catastrophically fail and are easy enough to change... not a deal breaker.

    [​IMG]
    The old parts, ready for the scrap bin.

    I have had a slight side view mirror shake at high speeds that I need to resolve. Toyota has produced a Technical Service Bulletin kit to remedy this exact situation, I have the parts and need to get around to installing them. Lastly, I have a slight "thunk" coming from the rear driveline, also a somewhat common annoyance found on the 80, 100 and now the 200 Series Land Cruiser. Many (most?) live with it, an occasional re-grease will quiet the problem for quite some time. Others choose to replace the driveline and it's worn slip-joint assembly to resolve the thunk permanently. Again, Toyota has a TSB dealing with the thunk but my 2008 was outside the window of free replacement so I simply greased it up and went on my way. I'll revisit the rear drive line later if it presents a problem down the road.

    Stage Two - Upgrade & Refine: Developing the Build Plan

    Perhaps I over-think things? Perhaps I under-think them? I simply desire to make sure I'm adding things to the Cruiser that are worthwhile for my planned uses, stalwart and up to the rigors of the way I plan to use the vehicle and lastly a good aesthetic fit without any compromise for function. The build plan is pretty straight forward, repeat everything I liked about my 100 Series Land Cruiser build and table a few items that I haven't quite solidified my opinion on.

    [​IMG]
    The "Death Star" 100 Series. The vehicle the 200 will eventually replace - Photo by Bart W.

    Some of this is a direct repeat from my 100 Series build as the ideology remains exactly the same. I'm a big proponent of planning ones vehicle build long before you turn the first bolt. All to often I'm discussing a customers Land Cruiser plan and they ask "What would you do next?". It is by all means a valid question and I appreciate their trust in my opinion and product knowledge but while some items can suggested others need to be developed solely on the needs of the end user themselves. For example I can tell a customer they need to replace their shocks based on a few questions or suggest tie rod ends get replaced based on a quick inspection. However, questions like "What accessory should I do next?" are generally a launching pad for me to discuss a "build plan" with the customer. We do "build plans" on the phone with customers on a daily basis, rebuilding a Land Cruiser front axle and we'll go through our build sheet to make sure we are covering all your parts needs. Looking to install an Old Man Emu suspension and we'll spend 15-20 minutes talking about your past, current and future vehicle uses, loads, accessories, etc and from there we'll recommend the right components. But why not use this same logic on a complete vehicle build? Why not pull up a chair next to your rig in the driveway and start making notes. What do you want out of your rig? What didn't you like about the one you just sold or will be selling? What made you purchase this one? What needs do you need to build around? While it might sound a little naive for some, I think many can benefit. It doesn't matter whether your build is going to take a weekend or a few years, after all "A goal without a plan is just a wish" (stolen from Antoine de Saint-Exupery)

    Back to the 200 build. What did I need? What did want? What did I love about my 100 Series and what did dislike about it at the same time? Just like the 100, this vehicle will see far more time bombing down dirt roads in high range than it will crawling in technical rocks in low range. It will support 1-4 adults, their gear and food on anything from an overnight trip to a week+ self supported trip out out of country. I envision owning the vehicle for the next 3-5 years. While it won't necessarily be a daily driver, I want it to be comfortable, reliable and ready. My wife may use it from time to time on her mountain biking adventures and we might load the dog in the back and head to the hills for a short hike after work, versatility is fundamental. With that said I've decided to touch on a few of the major categories for my build plan and add a few notes about their importance for my needs.

    Armor & Protection: The rig would need protection, front, rear, sides and the belly. While one or several of those areas are easily ignored on the emotion of budget or lack of perceived need, if I was going to do it I was going to do it right and there wasn't a single piece of protection that wasn't used and appreciated on my 100 Series.

    Roof Rack: Like many I have mixed emotions on roof racks. They produce aerodynamic drag, noise and result in loss of clearance in tight trees. However, when storage space is at a premium or a roof-top-tent is an option, a roof rack is mandatory. When not in use a quality rack is generally easy to remove. Given my criteria to have one weeks worth of gear for 4 adults for a trip this month, a rack was included in my build plan.

    Suspension, Wheel & Tire: With the anticipated loads I expected to carry along with the additional height needed to allow a larger tire and additional ground clearance, a quality, reliable and sturdy suspension were mandatory. With the increased room I hoped to achieve with the suspension I wanted to run a strong wheel that met my aesthetic needs and a tire matched to the job. This truck will bounce between long stretches on the Interstate and hundreds of miles of dirt road, I needed a tire that was capable of providing reliability and function in both scenarios.

    Shower System: I've had lines of grungy camp mates lining up to take a quick rinse with hot water, a godsend after a few days in a dusty line of vehicles for men and women alike. While its an easy sell to the misses for those married folks, its also an easy sell to anyone that has every used one. I've installed one on each of my vehicles since, absolutely no reason this one would be different even if space under the hood would be a premium with the other plans.

    Snorkel/Waterproofing: Some love them, some hate them, I'm not hear to convince either way however for my needs and intended uses its a need. If your interested in more of my thoughts on snorkels, please see an article I wrote in the past for for Tacoma Magazine.

    Lighting: Both the interior factory lights as well as additional exterior auxiliary lighting would need to be improved and installed. Lights on the front bumper for added nighttime driving comfort as well as a manually switchable light for the rear of the vehicle that allows for use as a reverse light as well as a camp light.

    Storage: This is one area I really feel like I nailed in the 100. The rear drawers, fridge slide and cubby panels have proven super versatile, secure and tidy. I had my packing down to a science; bins, bags and gear fit in exact spots and I could load or unload in a haste and all the while it served as a stellar sleeping platform. I've covered a bit more of my packing protocol here.

    Winch: My travels often find me in some pretty remote locations, possibly in a group or possible solo with nothing but the wolves to keep me company. While we all hope for the best outcome to any situation, its naive to plan for anything but the worst. The winch would need to be matched for the demands and rated for the heavy rig.

    Wheel/Fuel Carrier: A full-size spare was mandatory for this build. Between the full-time 4WD which can be damaged but mis-matched tires and the need for comfortable road manners when we are days away from home, there was no other option. This dictates the need for a rear bumper tire carrier which also gives the added benefit of increased ground clearance under the vehicle or the future option for an secondary fuel tank. Given the criteria in my build plan for a tire carrier, a jerry can holder was also mandated to add to the fuel range or carry water outside what will become a stuffed cab. and increased.

    Communication & 12V Equipment: Both for personal uses out on the trial as well as this trucks service as a desert race chase, this vehicle needs a full communication suite consisting of a high output HAM unit (modded for use in the race circuit) and a CB radio for general trail duties on future trips. Our modern tech age dictates the need for addition 12V & USB outlets for charging phones, camp lights, GPS power, etc. These would be placed in strategic locations to allow use at the rear as well as by passengers inside the cab. With all the added electrical load as well as the potential for this vehicle to sit boondocked at a camp in the middle of nowhere for days, a dual battery system is included in my build plan. Dual batteries provide not only the added reserve capacity for electronics while the vehicle is not charging (not running) but also provide redundancy in the case of a battery failure and provide a needed second battery for welding with products such as the Ready Welder.

    12V Fridge: I could go on and on about my needs for a fridge but I've summed up my thoughts here: RME: 12V Freezer-Fridges - Do they bring the heat?

    This covers all the major components I planned to conquer within the scope of my "Phase 1". I'm literally planning to not have any other projects once phase 1 is complete. I'll use it for 6-12 months and if/when there are needs from there. Note: These are my build needs, yours may, could and should vary.

    Next Up: The fun begins; Choosing & ordering the build components :cool:

    [​IMG]

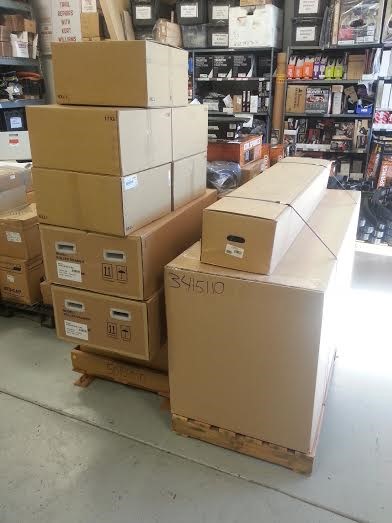

    Parts are starting to pile up!
