Fuel Line Information Question (1 Viewer)

This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

OwnerCS

GOLD Star
Joined
Feb 1, 2020
Threads
99
Messages
2,735
Location
USA
Making the jump between a Fuel Pump tube 77209-60160, the breather tube 95312-13028, fuel hose 95337-06009, clamps, and the tubes on the body.

I think I have everything that I need to reconnect the new fuel and breather tubes from the body to the new lines.

The one part that raises a question is the red clamp tip on the new Fuel Pump tube.

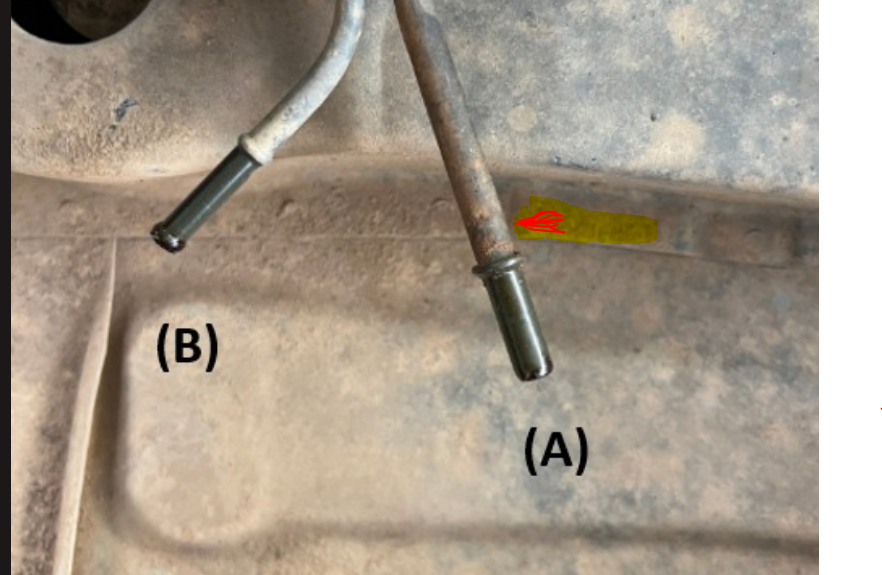

Does this red clamp just push over the metal tube (A) or (B) in the first picture? That's too simple. Pictures attached.







Subscribed, to learn something new. 😃

I'm reasonably sure the red clip connects to (A). I can see where the clip rubbed the dirt away from the fuel pump line.




I'm reasonably sure the red clip connects to (A). I can see where the clip rubbed the dirt away from the fuel pump line.



View attachment 3413797

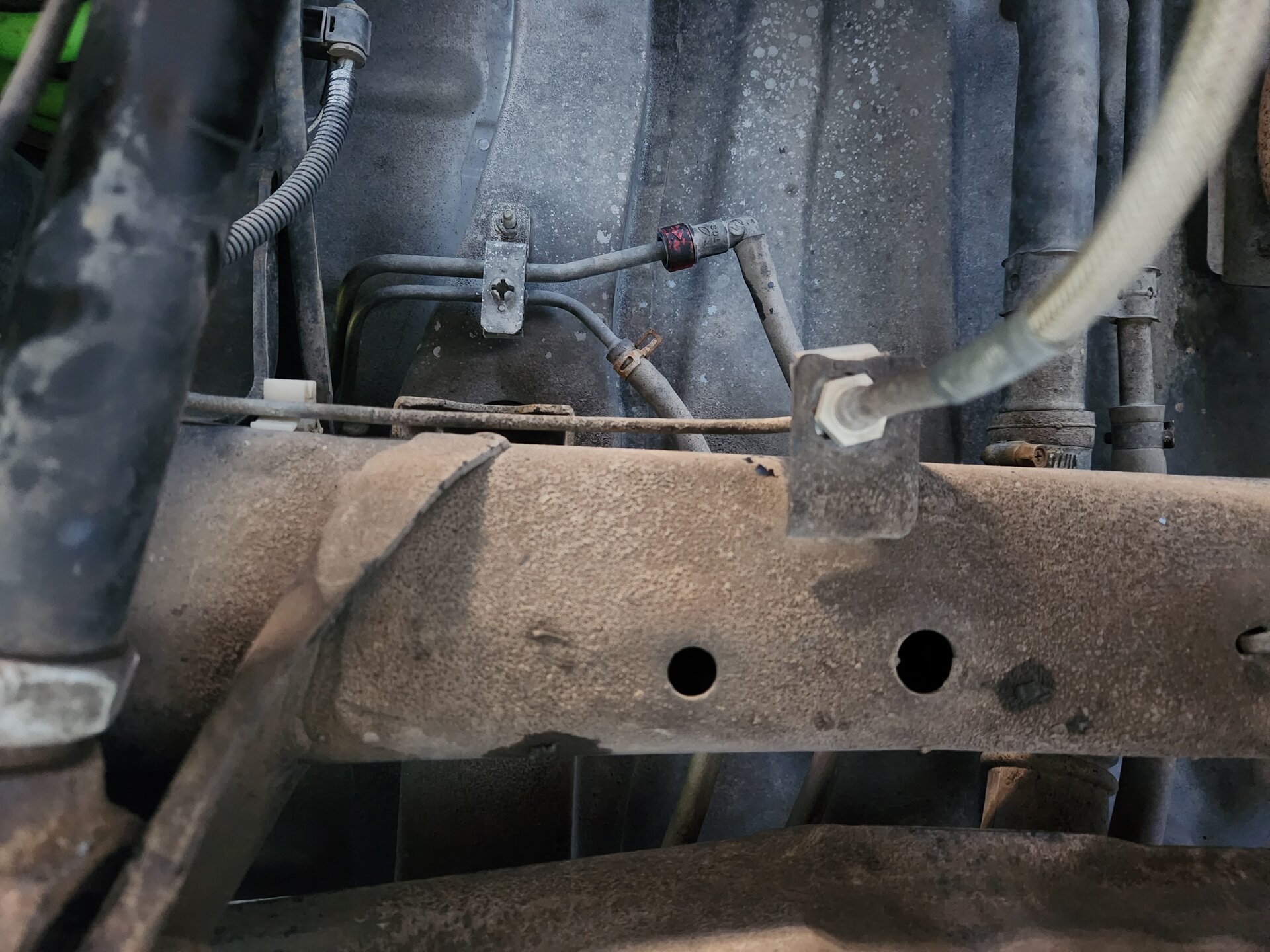

I was under my rig tonight and your question popped into my head when I saw the red fuel line connector. I tried to scrape off some grime to make the red more obvious, but if you can't see it I can add some graphics. '99 LC.


I was under my rig tonight and your question popped into my head when I saw the red fuel line connector. I tried to scrape off some grime to make the red more obvious, but if you can't see it I can add some graphics. '99 LC.

View attachment 3413933
Thank you for the picture. It is the link marked (A) in the picture.
