FJ62 compressor replacement and 134a conversion

Joined
Jan 20, 2010
Messages
56
After not having AC for the past 10 years, this summer has gotten to me and I wanted to get everything working again. This was somewhat of a project for me having never touched an AC system before, so I figured I should write up my notes to keep people from the same mistakes I made.



Supplies

  • R12 to R134a conversion fittings (I had big issues with these):
    • R134a systems use quick connect valves that don’t connect directly to R12 systems. These conversion fittings screw onto the R12 valve stems so that R134a quick connectors can be used with the existing system. On the FJ62, the high side is closer to the passenger wall and the low side is closest to the motor. Inside each valve stem is a schrader valve, the little bit that depresses to let refrigerant in or out.
    • Look at the conversion fittings you buy carefully. First, many adapters come with their own schrader valves in them, requiring you to use a valve removal tool to take the schrader valves out of your original valve stems before you screw the new adapter down. This prevents you from running into a situation where one valve is pressing into another. Mine came with a schrader in only the low side, so I removed the schrader core from the valve stem on my compressor. Second, the most common adapter sets sold at auto part stores have a high side adapter that is too long and will not screw down as far as it needs to. When this happens, the quick connect will not depress the schrader valve all the way, leaving the valve closed and preventing you from vacuuming or recharging. You need to find a shorter one or one with its own valve. I found a short one on Amazon without a valve. Take a look at the image below, the adapter that is too long is on the right, the short version which fits is on the left.
  • O-rings
    • Kits are cheap everywhere and come with a bunch of different sizes
    • Put oil, or even better Nylog Blue (blue is for 134a systems), on them before putting them in.
    • 3 for the condenser, 1 driver side, 2 passenger side
    • 2 for the receiver drier
    • 4 for the 2 hoses from the firewall to the compressor and drier
    • 1 for the hose from the compressor to condenser (I already counted the other side of the hose in the condenser count above)
    • 2 for the expansion valve
    • Sorry if I forgot any
  • Expansion Valve
    • I grabbed TEM 207306 from NAPA
    • I believe the Denso part is 475-0101.
    • The Denso 475-2087 listed on RockAuto is not the correct part. It has an extra port that doesn't connect to anything.
  • Receiver drier
    • You need a new one. Driers can't be flushed and will have old oil in them. The desiccant is probably used up anyway.
  • Compressor
    • Stock is a 10P15C. I grabbed a Four Seasons model 68302, Denso makes the OE. Mine required that I pull the upper manifold off the old compressor - make sure you mark down the direction when you replace it (valve cores should be pointing away from the flywheel). Depending on what oil comes in the compressor (four seasons comes with a shipping oil, not sure about the Denso) you probably want to drain the oil in the new compressor by flipping it upside down with the manifold off and spinning the flywheel a few times. Then replace with PAG 46 oil.
  • Evaporator
    • If you need it, I kept mine.
  • Condenser
    • Again if you need it. Mine stayed.
  • Belt
    • I grabbed an ACDELCO 17470
  • System flush
    • I rented a flush kit from Autozone that hooked up to a small compressor I bought at Harbor Freight. You can also get stuff that comes in a can at any auto parts store. I flushed the evaporator, condenser, and the two lines from the firewall to the compressor and drier. Make sure you vacuum the system for at least 30 min after using this stuff to get it all out of the system.
  • Manifold guages
    • I rented a set that was gummed up with oil. It took me 2 days to figure out that was the problem. Buying a new set at Harbor Freight was $50 and probably worth it considering the money your saving doing this yourself.
  • Vacuum pump
    • Available for rent at auto stores or for sale at Harbor Freight
  • PAG 46 oil
    • The system uses 5.5 oz. I added 3.5oz to the new compressor and 2oz to the receiver drier.
    • Note that if you're looking at the Technical Service Bulletin, it says to use 100cc (3.3oz) - this assumes you kept your old compressor and already have oil in the system.
  • R134a refrigerant
    • The Toyota Technical Service Bulletin calls for 800g (28.2 fl oz) of r134a refrigerant.


Steps

  1. Remove the cooling box and disassemble. Just getting this thing out is a bunch of work it helps to loosen the lower vent to get it out of the way.

  2. Remove and flush the evaporator core with flush solution, then with dry air (fancy people seem to use nitrogen) to get the flush out.

  3. Replace the expansion valve.

  4. Reassemble the cooling box. I found some 3/4in wide by 1/4in thick polyfoam at ACE hardware which seemed to be a drop in replacement for the foam on one side of the cooling box if you tear it up too much.

  5. Remove the compressor and receiver drier. I didn’t have to deal with getting the belt loosened as my AC belt had been cut off. You’ll have to pull the battery and battery tray to get the compressor out.

  6. Flush the lines from the firewall to the compressor and drier with flush then dry air

  7. Flush the condenser with flush then dry air

  8. Install the new compressor and receiver drier (add oil to the drier if you didn’t put all 5.5ccs into the compressor), and reinstall the cooling box. Put nylog blue on the screw threads and o-rings during reassembly.

  9. Vacuum the system for at least 30 min. I went overboard and did it for 2 hours. Let the system sit overnight to confirm you don’t have a leak.

  10. Tighten the AC idler pulley. I admittedly had to take it into a shop for this. The tightening bolt is accessed from underneath the car. You need a really long extension and socket. Turn counterclockwise to tighten. Remember to loosen the nut on the front of the pulley before adjusting.

  11. Charge the system and enjoy your AC.

Last edited:

g-man

SILVER Star
Joined
Sep 5, 2006
Messages
3,622
Location
Charlottesville VA
Good info here. I'll add to this if you order from Rockauto the Denso Compressor rockauto part# 4711372 is not correct for an 87 fj60. I had to send it back.

The correct one is listed below it ... Various MFR 6p148A 7511991 is a correct fit.

and the condenser is Denso 4770154.

Also I found the condenser connection to the dryer line was corroded in place. The dryer line is steel and the condenser line is aluminum. When I tried to take mine apart the aluminum stripped and material was left inside the threads of the steel female fitting. I removed the line from the dryer and put it in a vise and took map gas to it to remove the aluminum. Replaced the o-ring and was good to go.

EDIT: If you can't break the connection between the dryer line and the condenser at the front of the condenser then don't force it. Use a torch and heat it first. If you do ring it and strip the threads like I did, you'll have to remove the battery and maybe the tray to get the dryer off and remove the line from it.

Last edited:

4Cruisers

Supporting Vendor
SILVER Star
Joined
Apr 2, 2015
Messages
7,595
To add a handy reference:


Attachments

  • Toyota Technical Service Bulletin - R134a Retrofit.pdf
    157.4 KB · Views: 546

LandyCruiser

SILVER Star
Joined
Jun 2, 2021
Messages
135
Location
austin tx
After not having AC for the past 10 years, this summer has gotten to me and I wanted to get everything working again. This was somewhat of a project for me having never touched an AC system before, so I figured I should write up my notes to keep people from the same mistakes I made.



Supplies

  • R12 to R134a conversion fittings (I had big issues with these):
    • R134a systems use quick connect valves that don’t connect directly to R12 systems. These conversion fittings screw onto the R12 valve stems so that R134a quick connectors can be used with the existing system. On the FJ62, the high side is closer to the passenger wall and the low side is closest to the motor. Inside each valve stem is a schrader valve, the little bit that depresses to let refrigerant in or out.
    • Look at the conversion fittings you buy carefully. First, many adapters come with their own schrader valves in them, requiring you to use a valve removal tool to take the schrader valves out of your original valve stems before you screw the new adapter down. This prevents you from running into a situation where one valve is pressing into another. Mine came with a schrader in only the low side, so I removed the schrader core from the valve stem on my compressor. Second, the most common adapter sets sold at auto part stores have a high side adapter that is too long and will not screw down as far as it needs to. When this happens, the quick connect will not depress the schrader valve all the way, leaving the valve closed and preventing you from vacuuming or recharging. You need to find a shorter one or one with its own valve. I found a short one on Amazon without a valve. Take a look at the image below, the adapter that is too long is on the right, the short version which fits is on the left.
  • O-rings
    • Kits are cheap everywhere and come with a bunch of different sizes
    • Put oil, or even better Nylog Blue (blue is for 134a systems), on them before putting them in.
    • 3 for the condenser, 1 driver side, 2 passenger side
    • 2 for the receiver drier
    • 4 for the 2 hoses from the firewall to the compressor and drier
    • 1 for the hose from the compressor to condenser (I already counted the other side of the hose in the condenser count above)
    • 2 for the expansion valve
    • Sorry if I forgot any
  • Expansion Valve
    • I grabbed TEM 207306 from NAPA
    • I believe the Denso part is 475-0101.
    • The Denso 475-2087 listed on RockAuto is not the correct part. It has an extra port that doesn't connect to anything.
  • Receiver drier
    • You need a new one. Driers can't be flushed and will have old oil in them. The desiccant is probably used up anyway.
  • Compressor
    • Stock is a 10P15C. I grabbed a Four Seasons model 68302, Denso makes the OE. Mine required that I pull the upper manifold off the old compressor - make sure you mark down the direction when you replace it (valve cores should be pointing away from the flywheel). Depending on what oil comes in the compressor (four seasons comes with a shipping oil, not sure about the Denso) you probably want to drain the oil in the new compressor by flipping it upside down with the manifold off and spinning the flywheel a few times. Then replace with PAG 46 oil.
  • Evaporator
    • If you need it, I kept mine.
  • Condenser
    • Again if you need it. Mine stayed.
  • Belt
    • I grabbed an ACDELCO 17470
  • System flush
    • I rented a flush kit from Autozone that hooked up to a small compressor I bought at Harbor Freight. You can also get stuff that comes in a can at any auto parts store. I flushed the evaporator, condenser, and the two lines from the firewall to the compressor and drier. Make sure you vacuum the system for at least 30 min after using this stuff to get it all out of the system.
  • Manifold guages
    • I rented a set that was gummed up with oil. It took me 2 days to figure out that was the problem. Buying a new set at Harbor Freight was $50 and probably worth it considering the money your saving doing this yourself.
  • Vacuum pump
    • Available for rent at auto stores or for sale at Harbor Freight
  • PAG 46 oil
    • The system uses 5.5 oz. I added 3.5oz to the new compressor and 2oz to the receiver drier.
    • Note that if you're looking at the Technical Service Bulletin, it says to use 100cc (3.3oz) - this assumes you kept your old compressor and already have oil in the system.
  • R134a refrigerant
    • The Toyota Technical Service Bulletin calls for 800g (28.2 fl oz) of r134a refrigerant.


Steps

  1. Remove the cooling box and disassemble. Just getting this thing out is a bunch of work it helps to loosen the lower vent to get it out of the way.

  2. Remove and flush the evaporator core with flush solution, then with dry air (fancy people seem to use nitrogen) to get the flush out.

  3. Replace the expansion valve.

  4. Reassemble the cooling box. I found some 3/4in wide by 1/4in thick polyfoam at ACE hardware which seemed to be a drop in replacement for the foam on one side of the cooling box if you tear it up too much.

  5. Remove the compressor and receiver drier. I didn’t have to deal with getting the belt loosened as my AC belt had been cut off. You’ll have to pull the battery and battery tray to get the compressor out.

  6. Flush the lines from the firewall to the compressor and drier with flush then dry air

  7. Flush the condenser with flush then dry air

  8. Install the new compressor and receiver drier (add oil to the drier if you didn’t put all 5.5ccs into the compressor), and reinstall the cooling box. Put nylog blue on the screw threads and o-rings during reassembly.

  9. Vacuum the system for at least 30 min. I went overboard and did it for 2 hours. Let the system sit overnight to confirm you don’t have a leak.

  10. Tighten the AC idler pulley. I admittedly had to take it into a shop for this. The tightening bolt is accessed from underneath the car. You need a really long extension and socket. Turn counterclockwise to tighten. Remember to loosen the nut on the front of the pulley before adjusting.

  11. Charge the system and enjoy your AC.
Has anyone been able to find that short high side adapter?


dogcruiser

SILVER Star
Joined
Aug 20, 2020
Messages
120
Location
Winter Park, FL
Has anyone been able to find that short high side adapter?

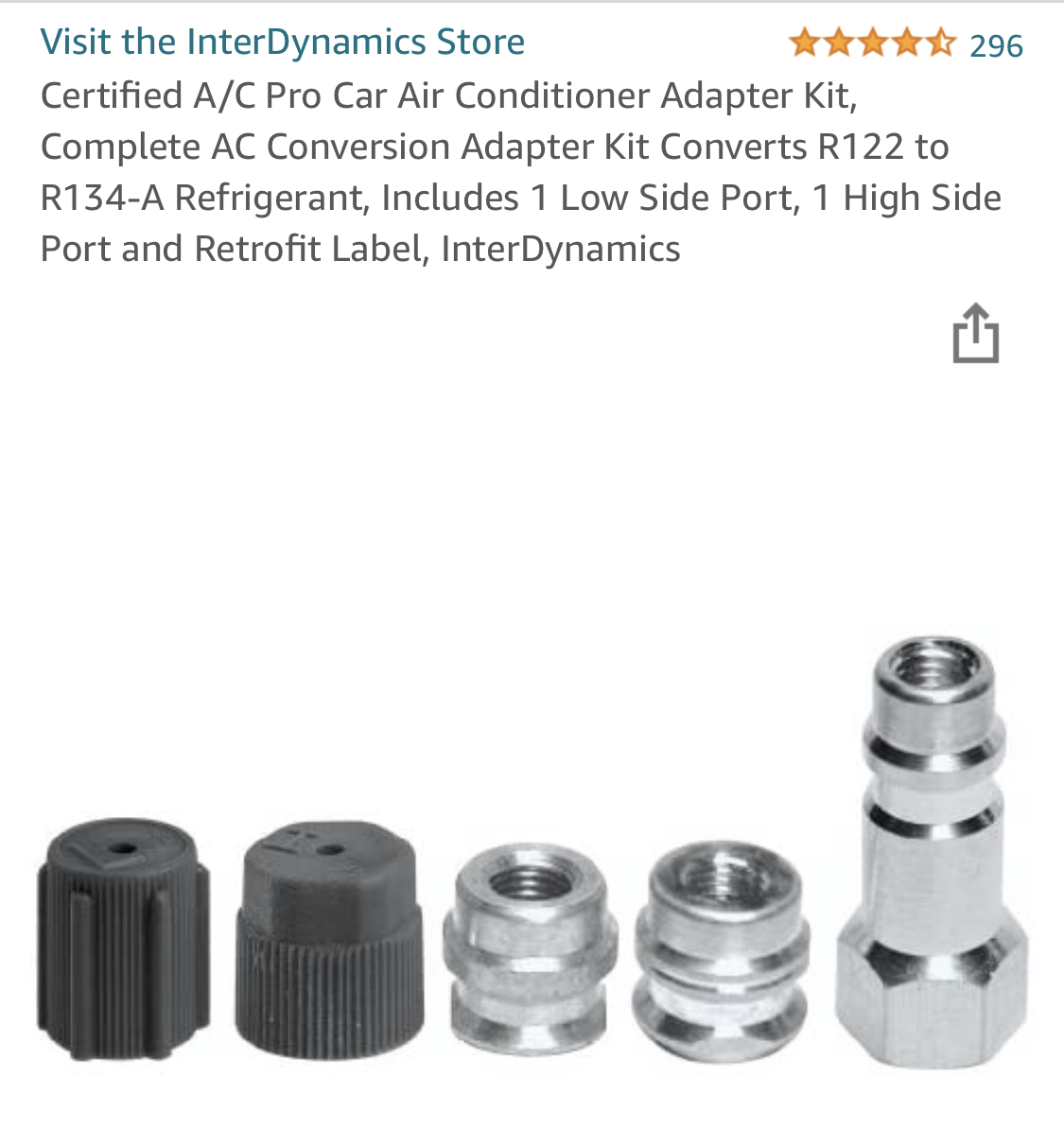

Warning: For anyone looking on Amazon for high side adapters, this kit is not what they show in the picture. I ordered it and the high side adapters are actually the typical longer length, not the stubby one shown in the photo. I returned it to Amazon

https://a.co/d/5hhRb2o


Last edited:

LandyCruiser

SILVER Star
Joined
Jun 2, 2021
Messages
135
Location
austin tx

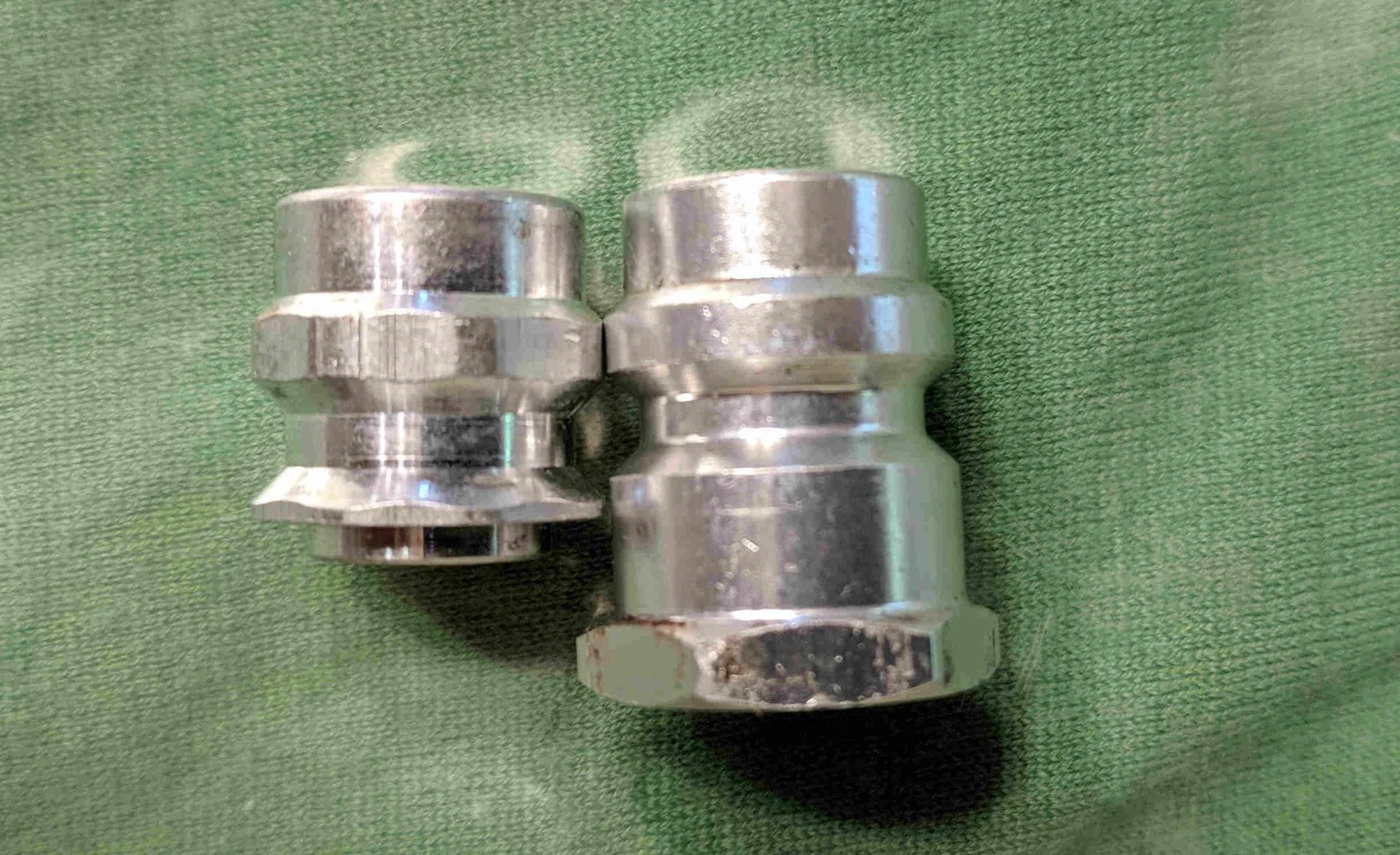

I found the stubby ones from an auto supplier in bulk, but for some reason @CenTXFJ60 and I cannot get vacuum to pull across the system. It’s got to be something with the fitting. As that’s where the stoppage seems to be



dogcruiser

SILVER Star
Joined
Aug 20, 2020
Messages
120
Location
Winter Park, FL
I found another thread that mentioned these adapters from Oreilly. I just put them on and I’m about to pull vacuum. 🤞
Low side
High side

They come with valve stems in them so I removed the old valve stems from the original ports, added some red Loctite and screwed these new ones on. Wish me luck.


LandyCruiser

SILVER Star
Joined
Jun 2, 2021
Messages
135
Location
austin tx
I found another thread that mentioned these adapters from Oreilly. I just put them on and I’m about to pull vacuum. 🤞
Low side
High side

They come with valve stems in them so I removed the old valve stems from the original ports, added some red Loctite and screwed these new ones on. Wish me luck.
Let me know how it goes! If it works I’ll pick up a pair today

Joined
Feb 23, 2020
Messages
49
Location
Houston, TX
Based on these adapters it should be clear if the system has already been converted, right? does anyone have pictures to differentiate the R12 system from the R134a system? I'm not sure if mine has already been converted.
thanks,
-Sammy

Joined
Feb 23, 2020
Messages
49
Location
Houston, TX
Based on these adapters it should be clear if the system has already been converted, right? does anyone have pictures to differentiate the R12 system from the R134a system? I'm not sure if mine has already been converted.
thanks,
-Sammy
ok, may have answered my own question with a google search. If I am looking at quick connects it's already the 134a, right? Otherwise I would be looking at male threaded sorta "flare" style connections?


dogcruiser

SILVER Star
Joined
Aug 20, 2020
Messages
120
Location
Winter Park, FL
ok, may have answered my own question with a google search. If I am looking at quick connects it's already the 134a, right? Otherwise I would be looking at male threaded sorta "flare" style connections?
That’s right. The quick connect adapters are for 134. The threaded adapters are R12


4Cruisers

Supporting Vendor
SILVER Star
Joined
Apr 2, 2015
Messages
7,595
Based on these adapters it should be clear if the system has already been converted, right? does anyone have pictures to differentiate the R12 system from the R134a system? I'm not sure if mine has already been converted.
thanks,
-Sammy
Another way to tell is by looking at the receiver/dryer - the original used in R12 systems have sight glasses on top.

Joined
Aug 9, 2020
Messages
58
Location
Los Angeles, CA
Reading this thread as I'm preparing on a conversion project before it turns to hell in SoCal. Can someone confirm that you have to get a new compressor in order to convert to r134a? I was going to just order off most of this parts list...

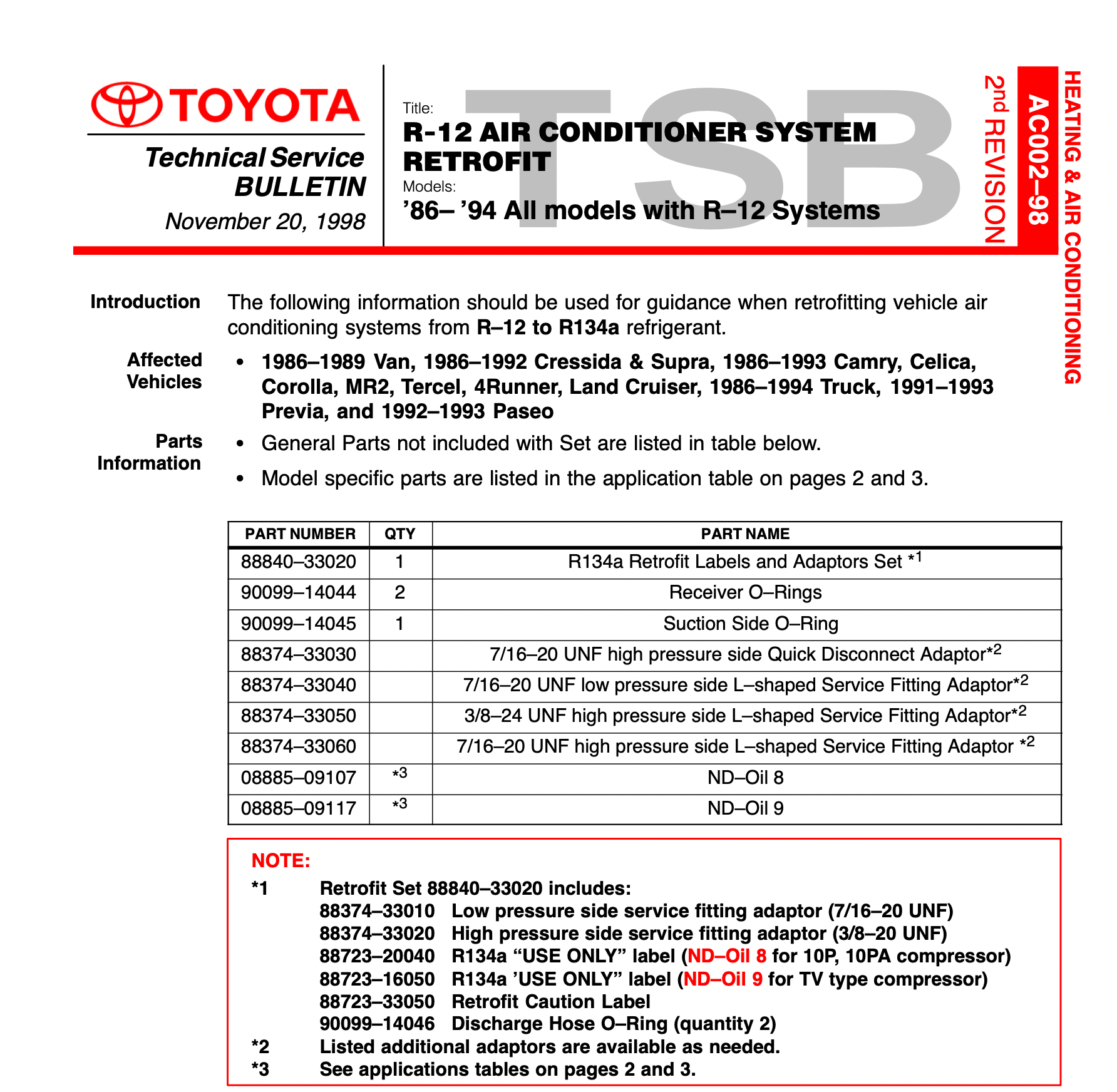

Screen Shot 2022-06-21 at 3.15.05 PM.png
