FJ25 (and some early 40) Part Numbers (1 Viewer)

[Cruiser_Nerd]

If you run across a part number.....post it here or PM me and I'll add it to the lists. Big disclaimer........many of these came off 40 year old packaging....combined with my lousy notetaking.....could mean I might have made a mistake. Just because there's a Toyota number doesn't mean it's available either..........

Feel free to comment and chat about part numbers here.......I don't mind, but will go through occasionally and weed out stuff that doesn't need to be permanent. ;p



[Cruiser_Nerd]

OEM FJ25 Parts: Toyota # and SOR #

Engine Group
Fan Belt 90916-02008 054-15A
Fuel Filter Element 04234-30010
Carburetor Float 21209-60010
Fuel Filter Ass’y (metal bowl) 23300-30012 028-03A
Fuel Filter Element 04234-30010
Oil Filter Element 04152-60060 026-01A
OIl Lines 90923-03001 026-15A
Radiator Cap (w/chain) 16401-50010
Rear Motor Mount 12371-60010 040-08A-OEM
Left Rear Motor Mount Bolt 90102-13009 040-09A
Right Rear Motor Mount Bolt 90102-13010 040-10A
Timing Cover Gasket 11328-61010
Valve Cover Gasket 11253-60010
Crankcase Gasket (timing gear) 11312-60012 11312-61011 034-25A
Timing Cover Seal 90311-45069 034-29A Beck-Arnley 052-2144
Crank Timing Gear 13521-60010
Camshaft Gear 13523-60030 (Steel replacement for fiber gear)
Intake / Exhaust Manifold Outer Gasket 17172-60011
Intake / Exhaust Manifold Inner Gasket 17173-60011
Valve Regrind Set 04112-60062 032-01A
Head Gasket 11115-60010
Octane Adjuster Cap 19221-30030
Octane Adjuster Cap Seal / Washer 90099-02019
Vacuum Advancer= 19220-60042
Lower radiator hoses on each end of the hard pipe: 90916-01021
Upper radiator hose 90916-01019
Thermostat 90916-03014
Exhaust Flange 17441-60010
Exhaust Gasket 90917-06042 046-01A
Exhaust Pipe (larger diameter) 17401-60010
Muffler (larger diameter) 17510-60070
Radiator Cap 16401-50010
Radiator Clamp 96111-10500

Chassis Group
Transfer Rear Output and Idler Shaft Bearings (Qty. 3) 97103-06306
Transmission Third Gear Synchro 33367-55010
Transfer Front Output Seal 90311-47029
Transfer Rear Output Seal 90311-35004
PTO Front and Rear Seal 90311-35004
Transmission Front Input Seal 90311-28004
Brake Hose (front and rear) 90947-02006 086-30-FJ25
Brake Shoe 47410-39010 081-15-SL
Tie Rod End (LH thread) 45046-39066 094-35E/25F
Tie Rod End (RH thread) 094-35F

Front Axle Inner Bush (left) 080-70A-L
Front Axle Inner Bush (right) 080-70A-R
Outer Axle Bush 90999-70027 080-28A
Big Lug Nuts 080-21-E-U (Don't know if this is still valid, check with SOR and Post #50 and #51 of this thread).
Pedal Pads 47121-55010 018-37-FJ25

Sheet Metal Group

Instrument Group

Electrical Group
Headlight Terminal Block 82670-30020 182-10
Grommet - firewall big on left side 90480-46041
Grommet - firewall small on left side 90480-15007
Grommet - firewall choke and hand throttle 90480-19048
Grommet - firewall big on right side 90480-46032



Body Group

Hood/Windshield Block 53334-60010
Hood Hook, OEM - 53506-60010
Round Mirror Head 87901-60020 166-01B
Door Weatherstrip (Soft Top) 68161-60020
L or R apron emblem 75305-60011
Right rear bumperette - painted silver 52152-60011
Left rear bumperette - painted silver 52153-60011
Pedal Pads (Yes the 25 was different, and this is it!) 47121-55010
Windshield Glass 56111-60011
Windshield Rubber Seal 56121-60011
Key / Locking Rubber Seal 56122-60011
Dust Proof Grommet (Goes on Steering Column and Firewall Rectangle type) 55122-60021



[Cruiser_Nerd]

FJ25 Substitute Parts

Engine Group
Carb Kit (wrong main metering rod/jet) 042-03A-WO 04211-60086 Keyster K11-4020A
Points 022-04A
Condenser 022-05A
Octane Adjuster Cover 022-38A
Plugs (Short Reach!!) Champion J8C, NGK B6S, ND W14-U
Rear Main Seal Fel-Pro BS16192 Victor JV636
Valve Stem Seal 050-05A
Air Intake Hose 2 3/4" McMaster-Carr 5314K39
Water Pump Bypass Hose SOR# 054-15-FJ25


Chassis Group
Inner Front Wheel Bearing Federal Mogul 26820 & 26882
Outer Front Wheel Bearing Federal Mogul BR2720 & BR2788
Rear Wheel Bearing Koyo R139B
Differential Carrier Bearing NSK 17831
Front Pinion Bearing Koyo 30206
Rear Pinion Bearing Koyo 31307
Pinion Seal National 224255 CR/SKF 16525
Pilot Bearing BCA 202SS
Transmission Input Bearing: SKF 6209NRJEM (6209 w/ a snap ring)
Transmission Output & Transfer Front Output Bearings: Nachi 6307ZZE (6307double shielded, remove one shield)
Transfer Rear Output, Intermediate Shaft Bearings: Nachi 6306
Transmission Countershaft Front: Bower - NTN M1206EL
Transmission Countershaft Rear: Bower - NTN M1207EL
PTO Front / Rear Seal SKF 13963
PTO Pillow Block Bearing BCA 205FF
Clutch Slave 018-05A
Master Cylinder Kit
(Clutch and Brake) 014-02-FJ25/018-02-FJ25
Wheel Cylinder Cups 1” Napa 1499
Center Arm Kit 096-0A-A
Steering Box Seal 098-01A
Clutch Disc
Chevy 11”, 10 spline, 1-1/8” input. Perfection - RCF606
Parking Brake Lining McMaster-Carr 6224K118

Sheet Metal Group

Instrument Group

Electrical Group
Repro tail light /lens SOR 148-01-AE / 148-02-AE
Repro bib light clear light / lens SOR 150-02B / 150-01A-C
’67 Front Parking Lamp 81610-60030 150-01A
(solder in third wire, use
w/red in rear clear in front)
Wiper Motor "AMCO" (Same as TNK) Made In Japan. 85110-60030
'70-'72 Ignition Switch use with spade terminals 84450-60040 Or adapt the cylinder to the old switch.

Body Group
Soft Top Fuel Filler Grommet McMaster-Carr 63595K41
Front Fender Left: 53820-90348 four hole mount, turn signal and extra holes
Front Fender Right: 53810-90341 four hole mount, turn signal and extra holes
Windshield Vent Gasket: 56413-60011 SOR 120-11-A (This is the FJ40 gasket which has the same outside dimension and mounting holes but the center needs to be cut out)

Oil Sender Tapped Hole - Adapter to NPT
(1/8” BSPT Male x NPT Female) McMaster-Carr 4860K141

Speed Bleeders Brake and Clutch - SB10125 Speed Bleeder Bleeding Brakes Bleeding Motorcycle Brakes Automotive Bleeder Screw Brake Bleeder



[zebrabeefj40]

Canister oil filter element # ???



[dekuiper]

This is from SOR...
026-01A 1 CAN OIL FILTER-1958-3/69 CANISTER*OEM $7.99



[foxfab]

tail light assemblies from Marks Offroad came in Toyota boxes with 81550-60020 P/N on them. Dunno if they're the right boxes though.



[Cruiser_Nerd]

Added Oil Filter Cartridge 04152-60060 026-01A


Mike, I had 81530-69010 for the tail light assembly, could very well have been superceded at some point though.



[foxfab]

exhaust pipe 17401-60010 came up as an invalid part # at A-1 toyota.



[Cruiser_Nerd]

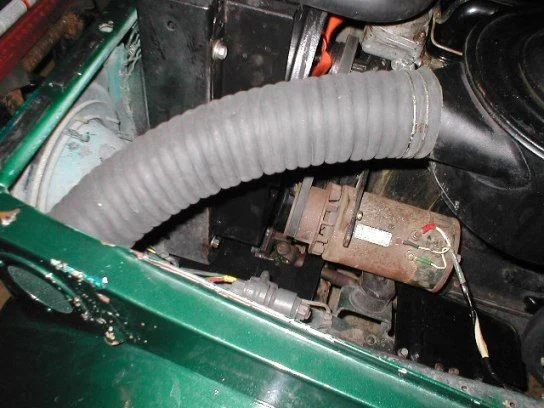

2 3/4" vacuum hose for air intake from McMaster-Carr 5314K39:



[Landpimp]

under $5 at the dealer, just FYI

This is from SOR...
026-01A 1 CAN OIL FILTER-1958-3/69 CANISTER*OEM $7.99



[Cruiser_Nerd]

under $5 at the dealer, just FYI

04152-60060 Does that still come with that little oil change hang tag?



[Landpimp]

yup, and the gasket, washer and something else.

04152-60060 Does that still come with that little oil change hang tag?



[Cruiser_Nerd]

OK, tried a laundry list of numbers and came up mostly dry.
......but a few were good:

47121-55010 Pedal Pads (Yes the 25 was different, and this is it!)
90480-46041 Grommet - firewall big on left side
90480-19048 Grommet - firewall choke and hand throttle
90480-46032 Grommet - firewall big on right side
90480-15007 Grommet - firewall small on left side



[Cruiser_Nerd]

Added those numbers, thanks Mike.



[foxfab]

Hood Hook, OEM - 53506-90900



[foxfab]

soft radiator hoses on each end of the lower hard hose: 90916-01021
soft upper radiator hose 90916-01019
bypass hose SOR# 054-15-FJ25



[Cruiser_Nerd]

Added the numbers from Mike.

Rear wheel bearings are R139B same as <'73 FJ40. I used SOR 88-100A-kit and everything fit fine.



[red66toy]

Don't know if they are the same but I found that the part number for the fuse block for my early 65 FJ40 is 82610-20011.



[red66toy]

That part number is for a 5 fuse block. My cruiser has a block with only five fuse spots in it. I just found out though that the fuse block is no longer available from toyota.



[foxfab]

Genuine Toyota Fenders - damn close to FJ25 fenders, some holes will need to be filled in and the mounting bracket is slightly different. The two lower holes are slotted for easier installation. Otherwise, they're the same.

Left: 53820-90348

Right: 53810-90341
