AHC Removal Help/Questions

Joined
Jul 12, 2010
Messages
1,009
Location
Raleigh, NC


Hey,

I have swapped everything to OME and I am looking to get the AHC parts off the vehicle. Most are in good shape, so I am trying to save what I can and pass on to some local guys who need help. As I am removing, I have hit a couple of snags and would love to get some insight before I move forward.

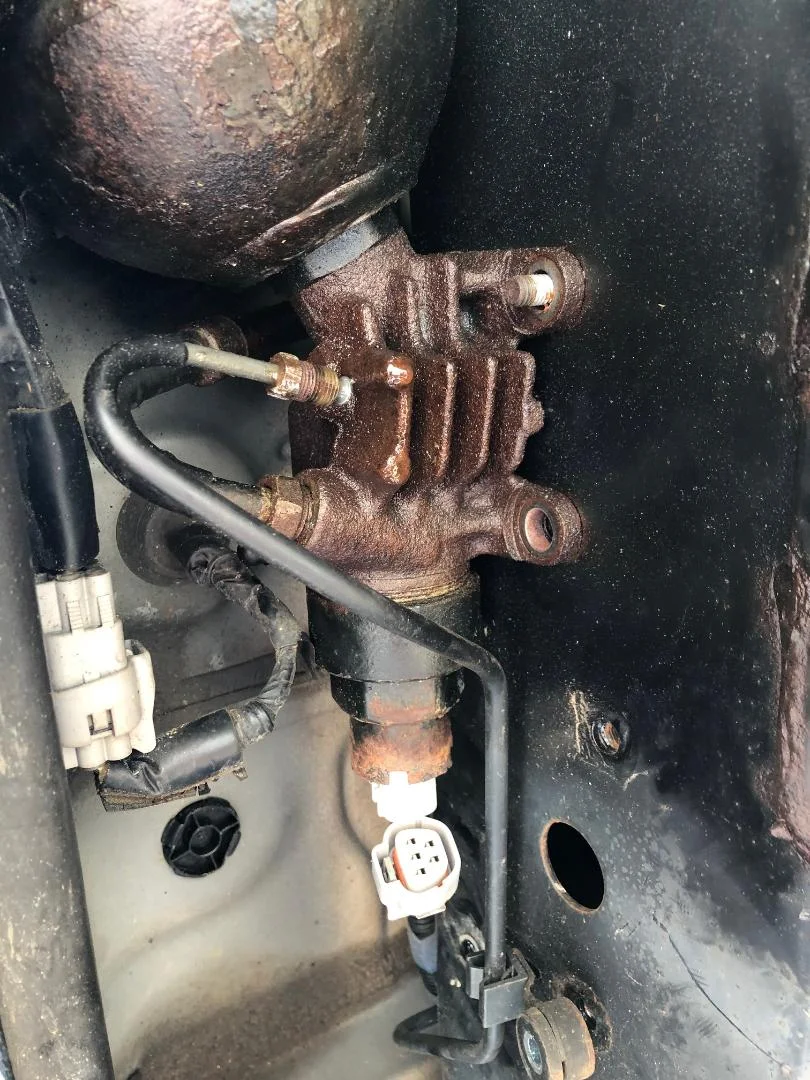

Any tips or tricks for getting these fittings loose? I would really like to save these, so any tips would be appreciated.

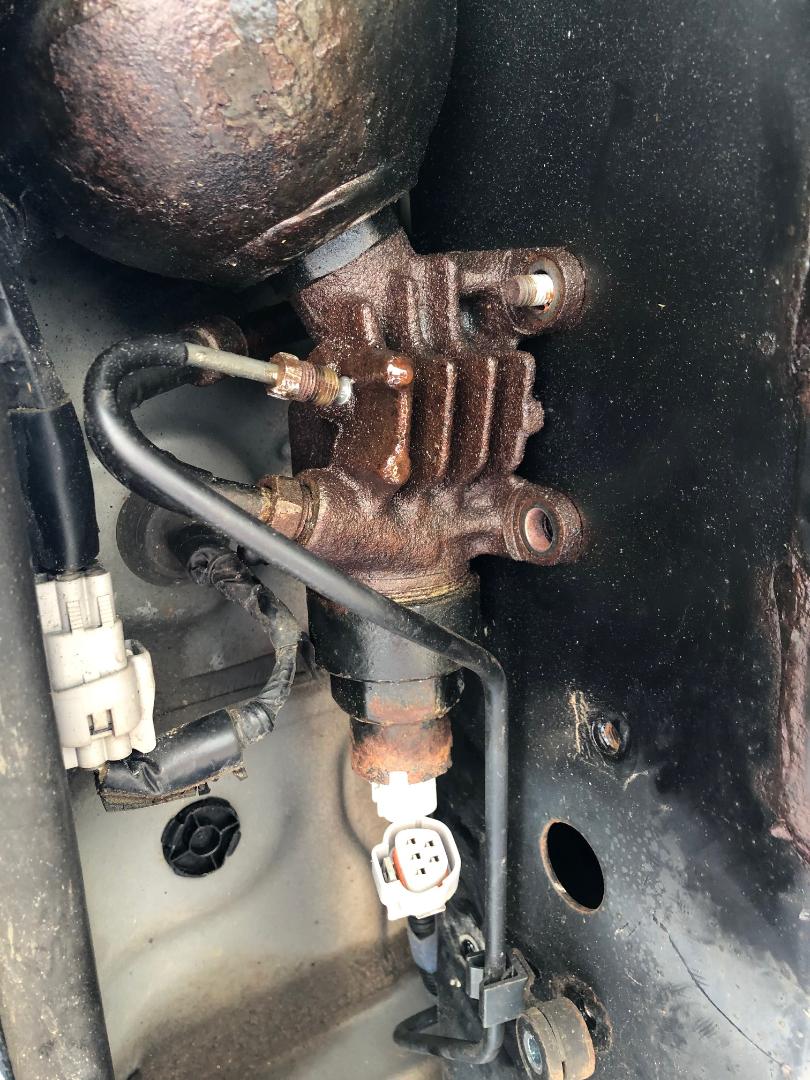

AHC 1.jpg


Is this part of the AHC? Can it be removed?

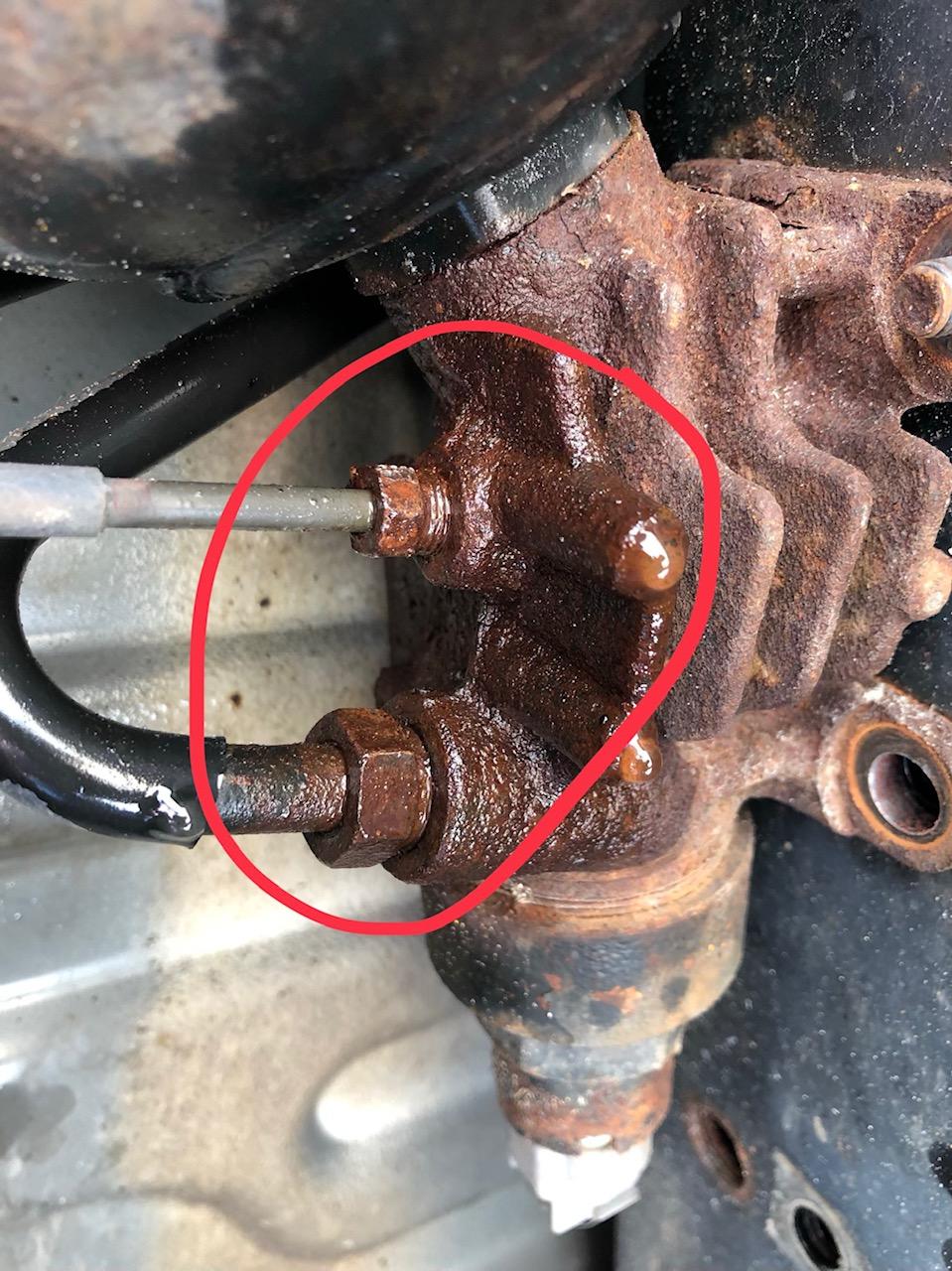

AHC 2.jpg

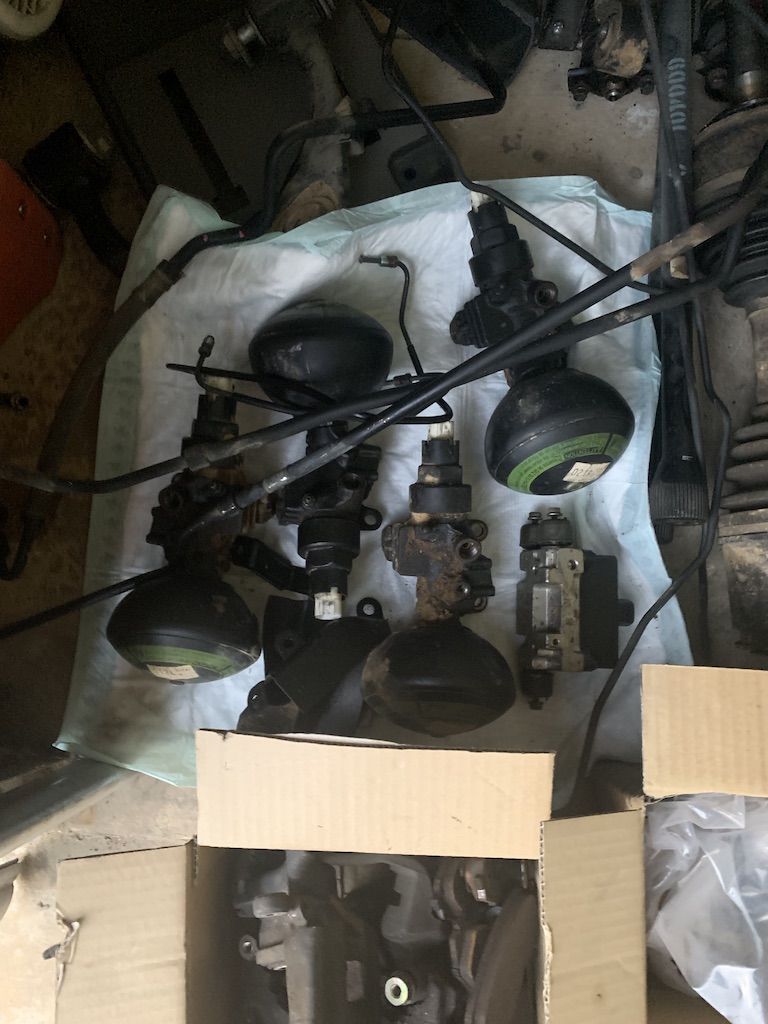

After I get all the hoses disconnected, how to I get these reservoir units off the truck? I have removed everything I can see from below, but it feels like there is something holding them from above. Can someone point me in the right direction (location, size, etc.)?

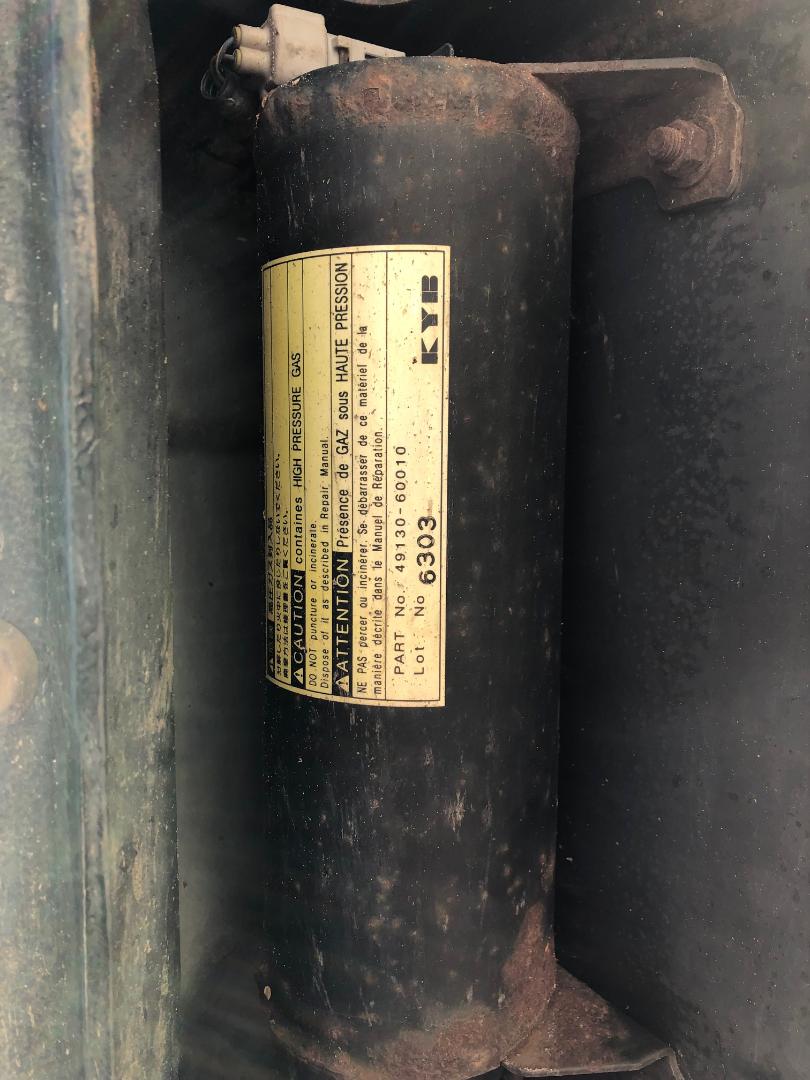

AHC 3.jpg


Thanks in advance for all the help and advice!

JB


ga12r1

Relatively Infamous
GOLD Star
SILVER Star
Joined
Nov 23, 2016
Messages
1,489
Location
Valdosta, Ga
So there is nothing on the top holding it on the frame?
If I remember correctly I think there is. Hidden bolts or nuts on the top of the frame. I know removing all of the AHC components on the frame was one of the toughest jobs I’ve ever done. Back when I did mine I posted that I didn’t see how there was anyway to do it without flex head ratchet wrench’s, and even then it was crazy getting to them. There was something around the passenger side rear wheel area that almost made me lose my mind. I can’t remember if it was a line or what. Completely removing everything is a PITA for sure, but it’s worth it.

Joined
Jul 12, 2010
Messages
1,009
Location
Raleigh, NC


If I remember correctly I think there is. Hidden bolts or nuts on the top of the frame. I know removing all of the AHC components on the frame was one of the toughest jobs I’ve ever done. Back when I did mine I posted that I didn’t see how there was anyway to do it without flex head ratchet wrench’s, and even then it was crazy getting to them. There was something around the passenger side rear wheel area that almost made me lose my mind. I can’t remember if it was a line or what. Completely removing everything is a PITA for sure, but it’s worth it.
Thanks for sharing. I think something is up there too.

Joined
Jun 10, 2003
Messages
456
Location
Mooresville, NC -- Lake Norman



Undo those lines with the open end of a box wrench. If they strip use vicegrips.

There is a 10mm bolt on top of those which is a major pain to remove but even harder is the clamp for the hardline if you decide to remove the lines.

Removing the AHC is the hardest thing I've ever done on a vehicle... and I used a lift.

@ga12r1 I bet the part driving you crazy is the 10mm bolt/phillips head bolt holding the hardlines.

I would never remove another AHC system without pulling the body...... or I'd just leave everything in place

Joined
Jul 12, 2010
Messages
1,009
Location
Raleigh, NC


Undo those lines with the open end of a box wrench. If they strip use vicegrips.

There is a 10mm bolt on top of those which is a major pain to remove but even harder is the clamp for the hardline if you decide to remove the lines.

Removing the AHC is the hardest thing I've ever done on a vehicle... and I used a lift.

@ga12r1 I bet the part driving you crazy is the 10mm bolt/phillips head bolt holding the hardlines.

I would never remove another AHC system without pulling the body...... or I'd just leave everything in place

Box wrenches are just chewing the little fittings. I may have to switch to vice grips for those. The larger ones may do better after some additional soaking.

Thanks for letting me know about the 10mm on top. I have some flex head ratcheting wrenches. Hope I can make it happen. It's not dire straits, but would like to have it hone.

Surprisingly enough, all the 100mm's holding the hardline have all broken loose. :meh:

Joined
Oct 17, 2004
Messages
241
Location
Flowood, MS



As you can see in the pic below, the top bolt is lined up with the hole opposite the globe for reference. You will have to do it by feel and use a stubby ratcheting wrench..

1965328

Joined
Feb 26, 2015
Messages
587
Location
423

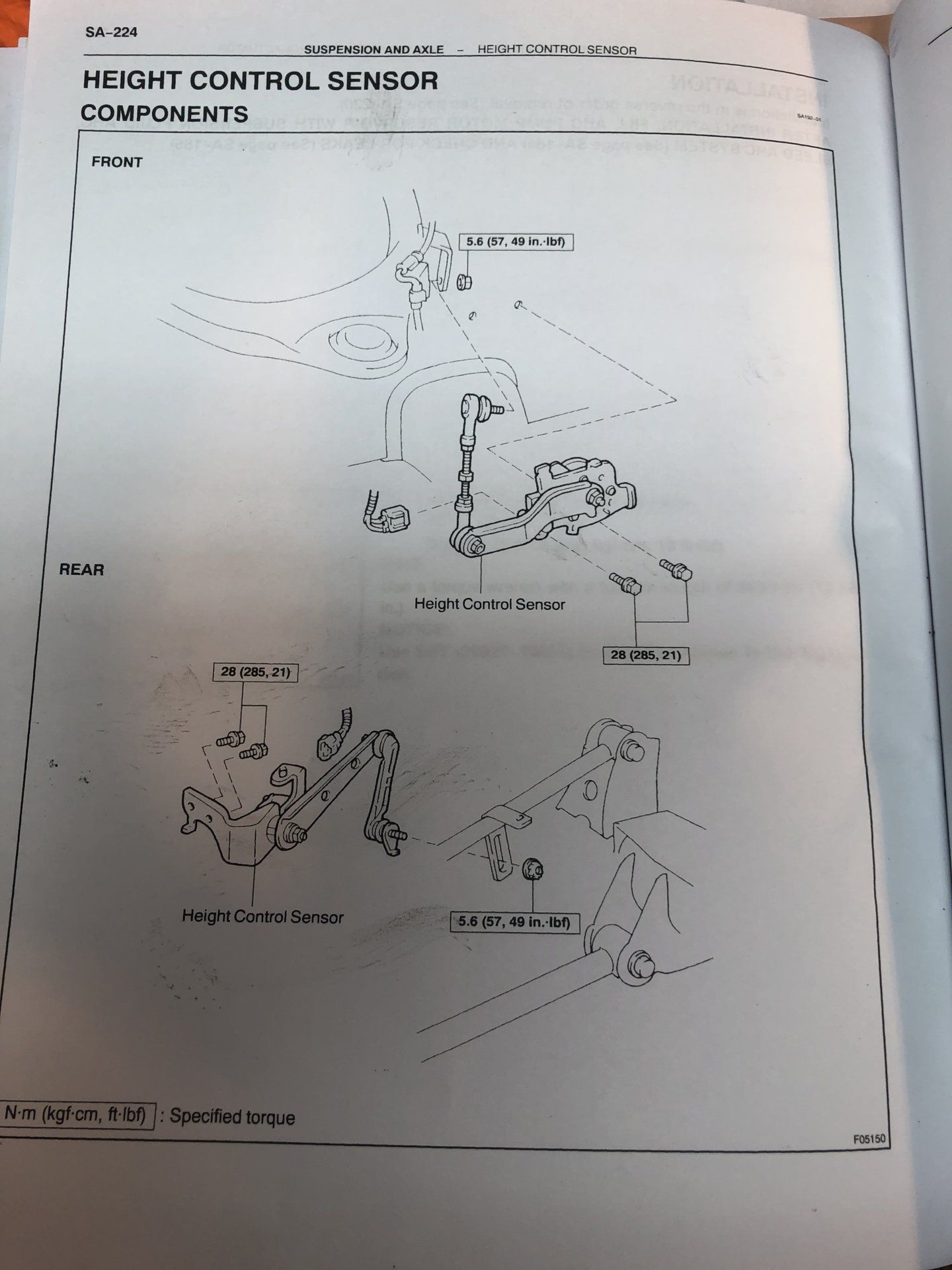

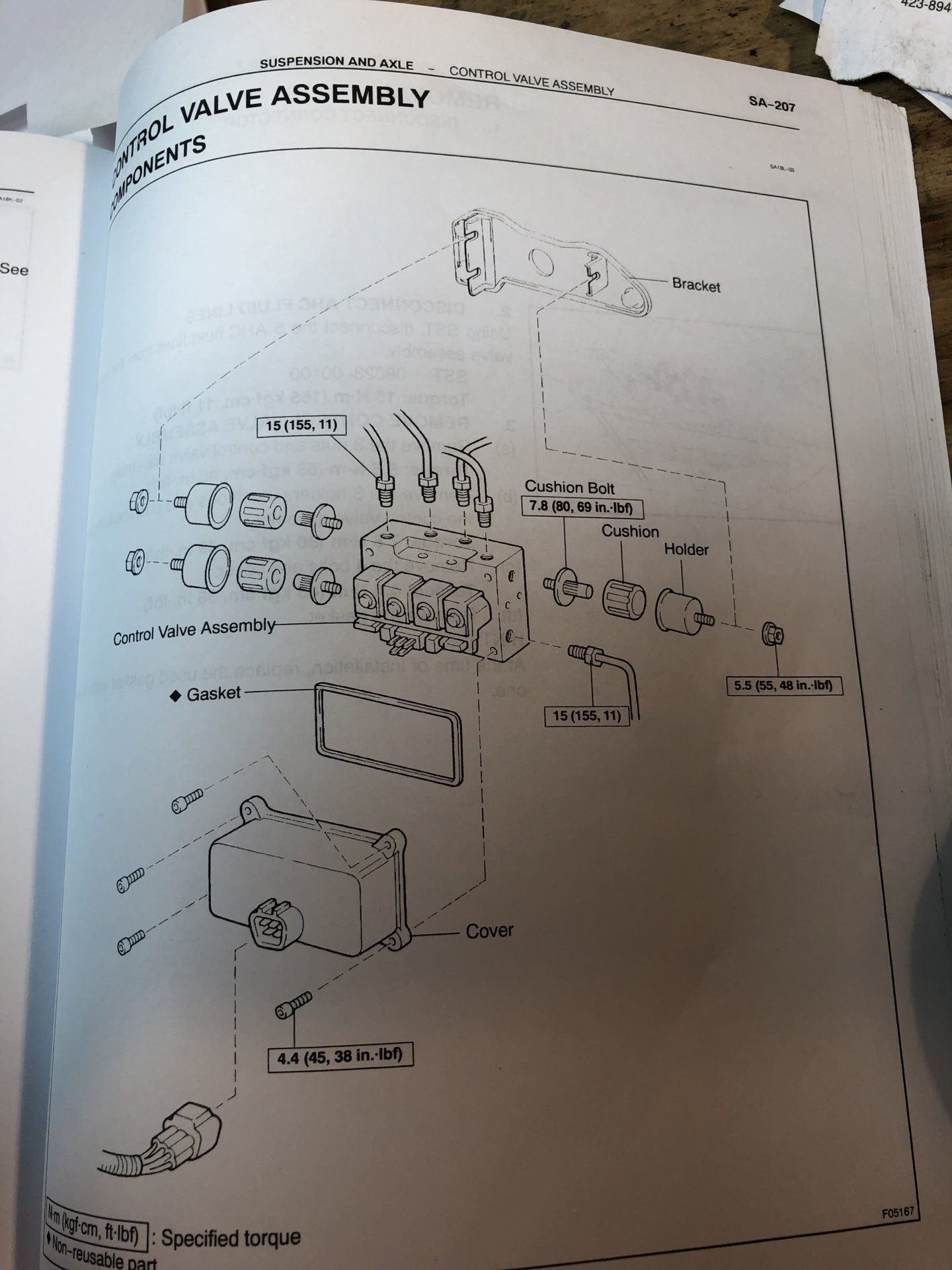

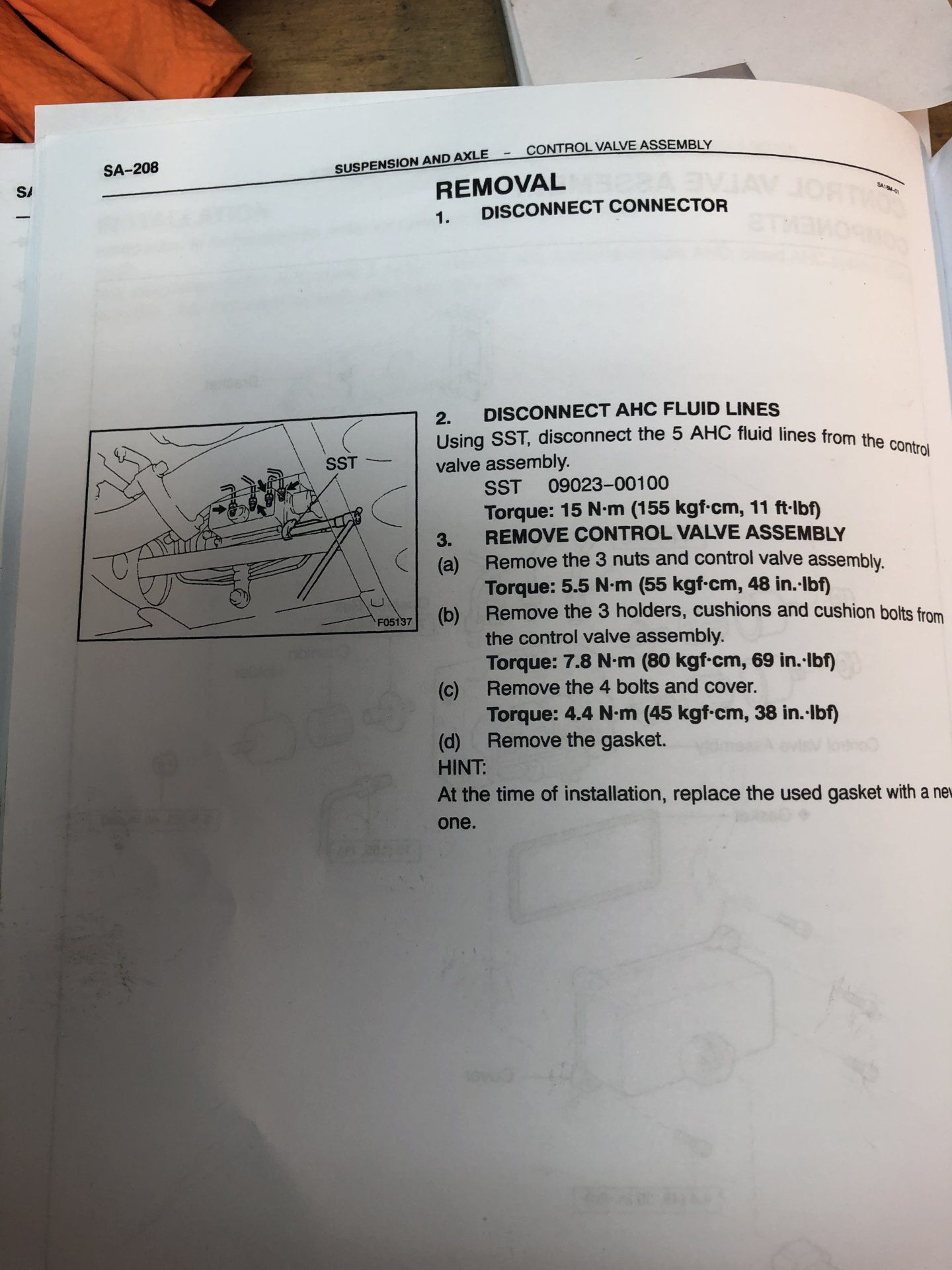

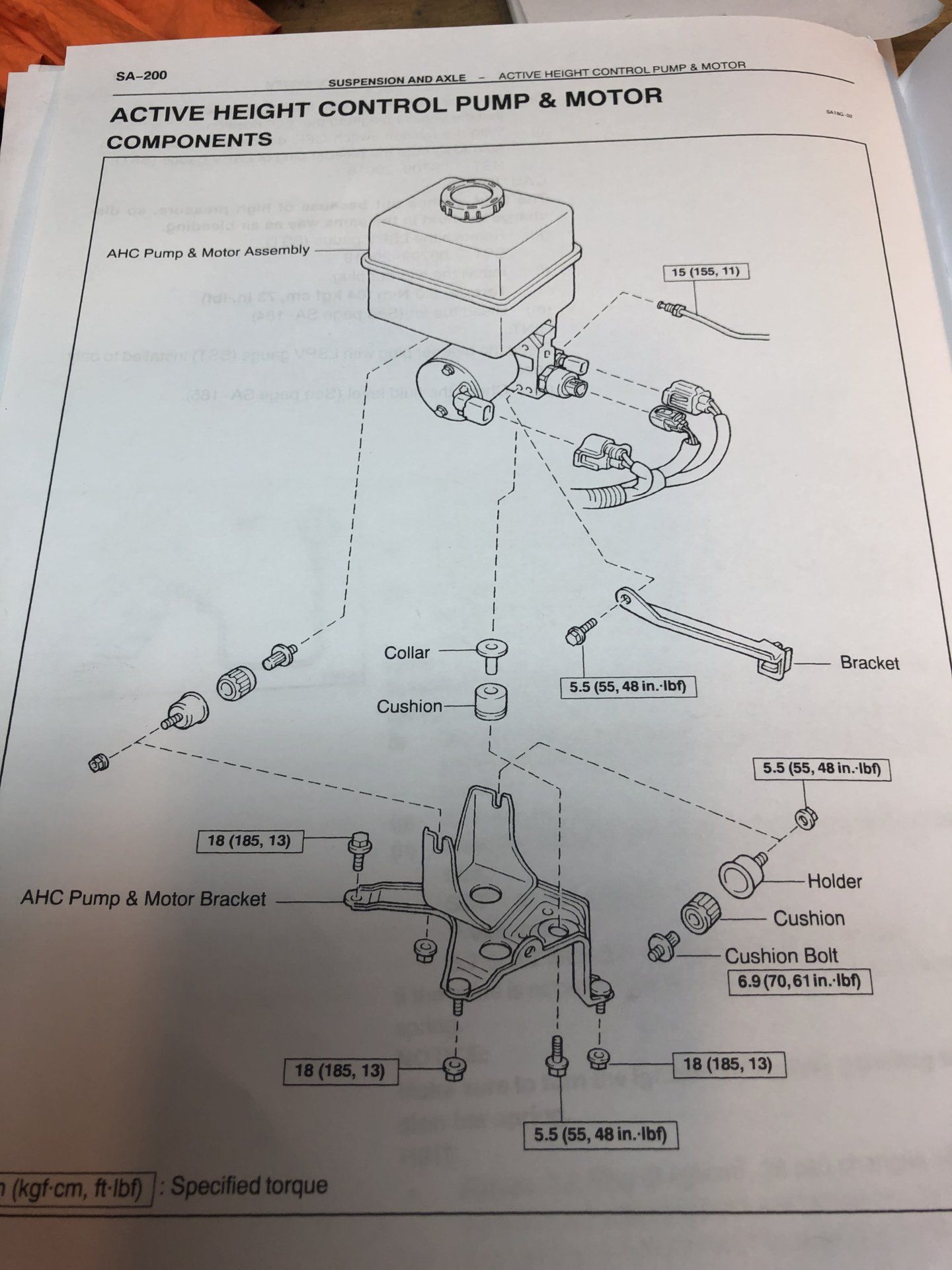

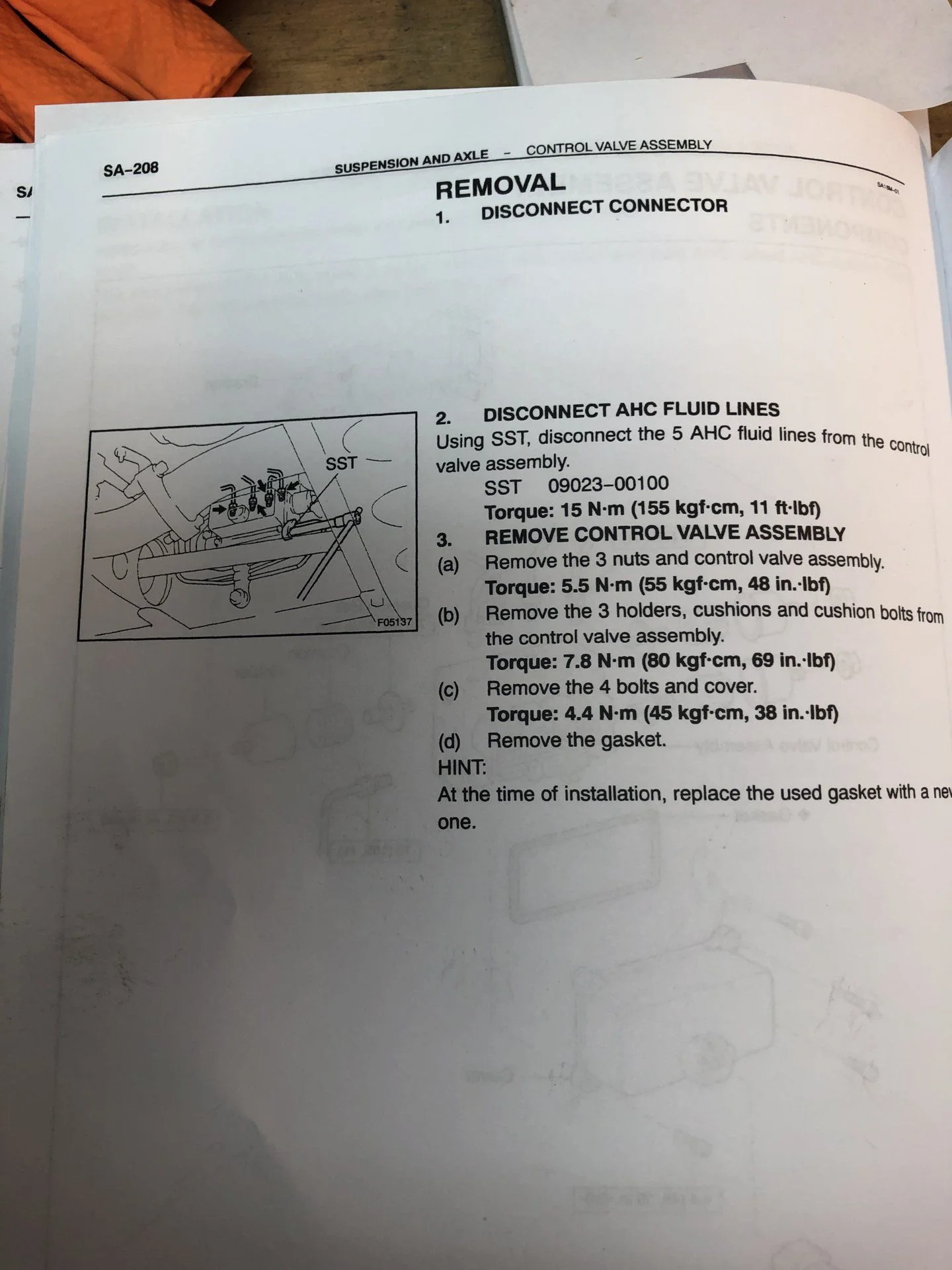

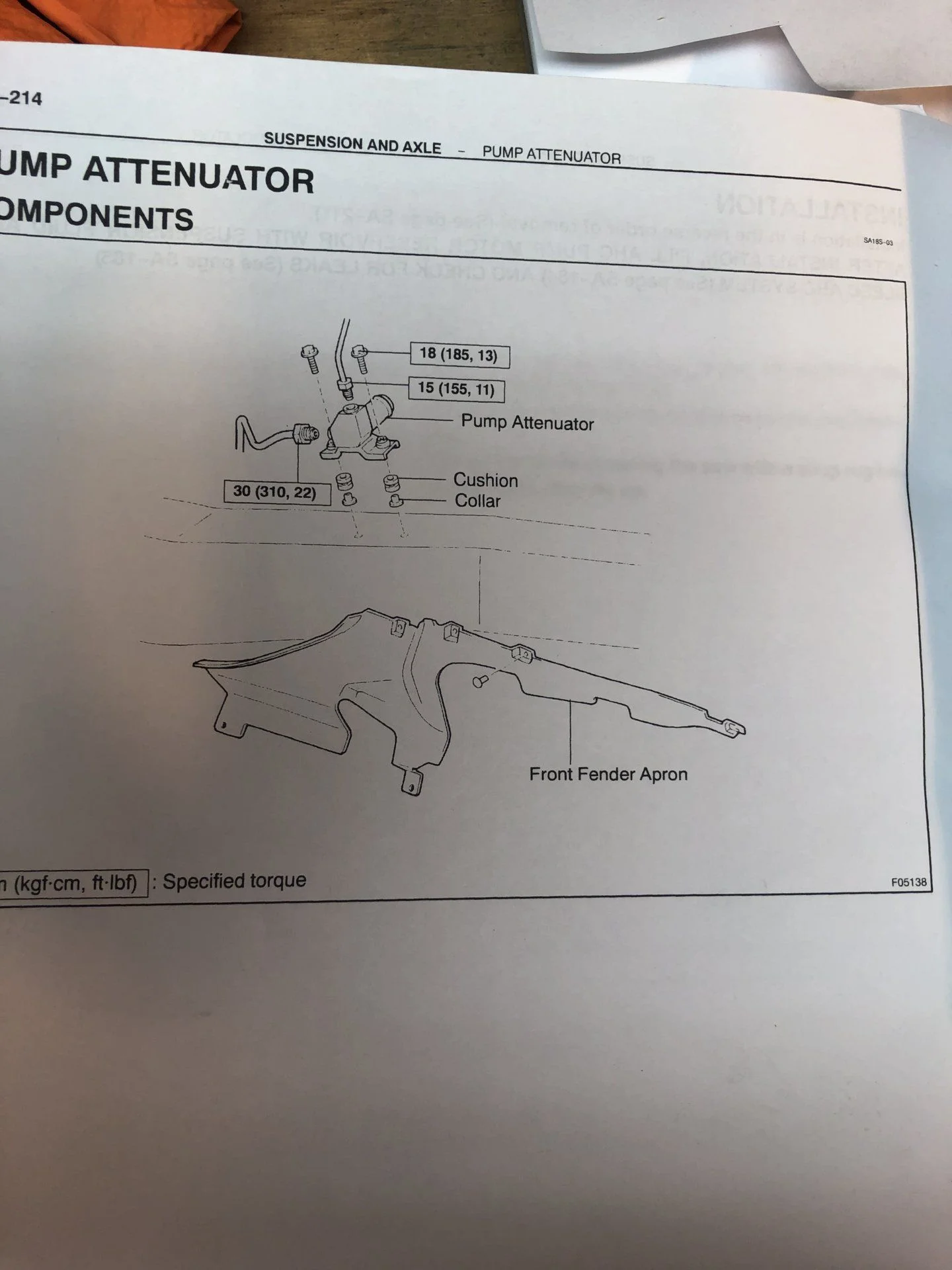

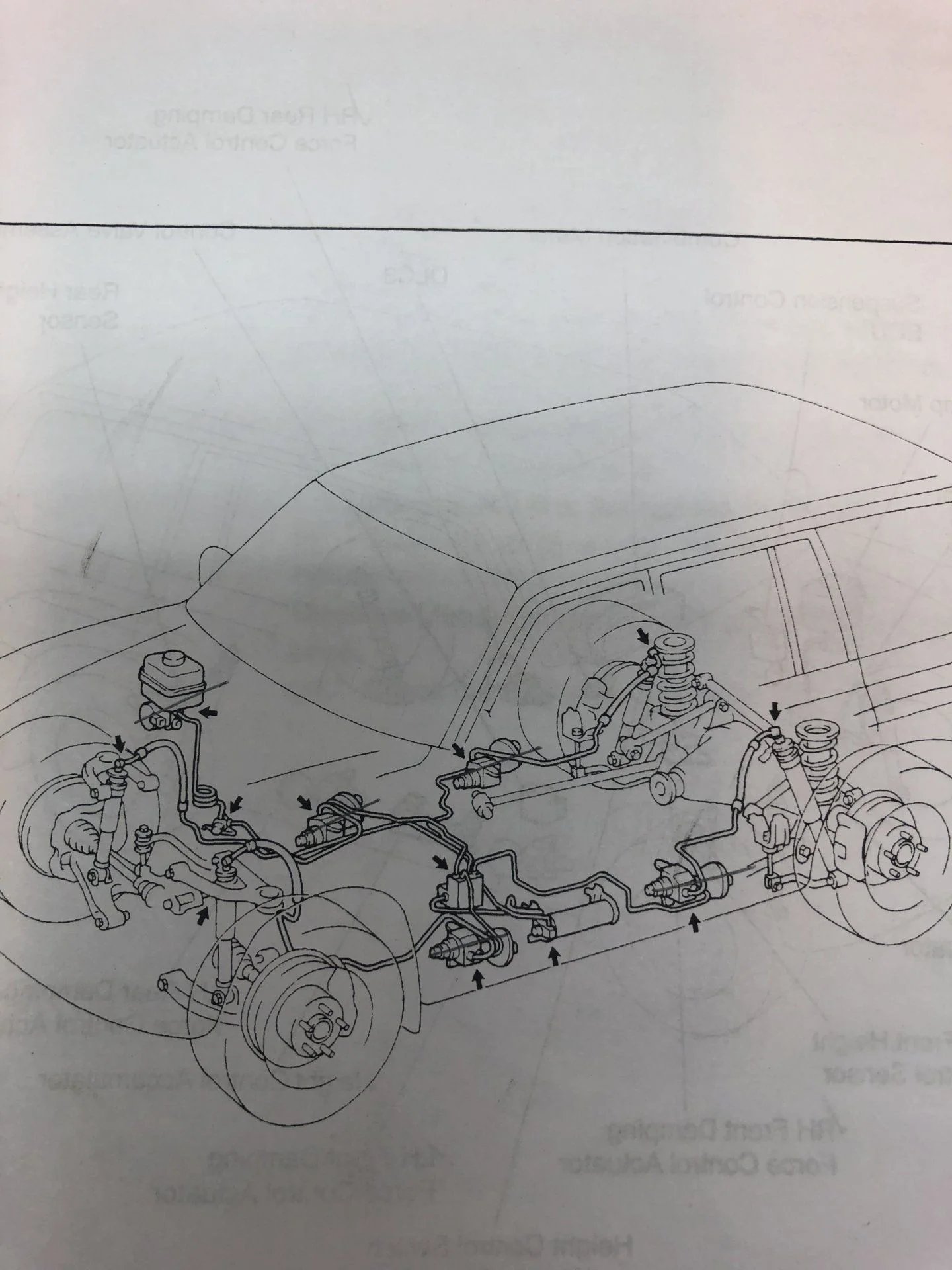

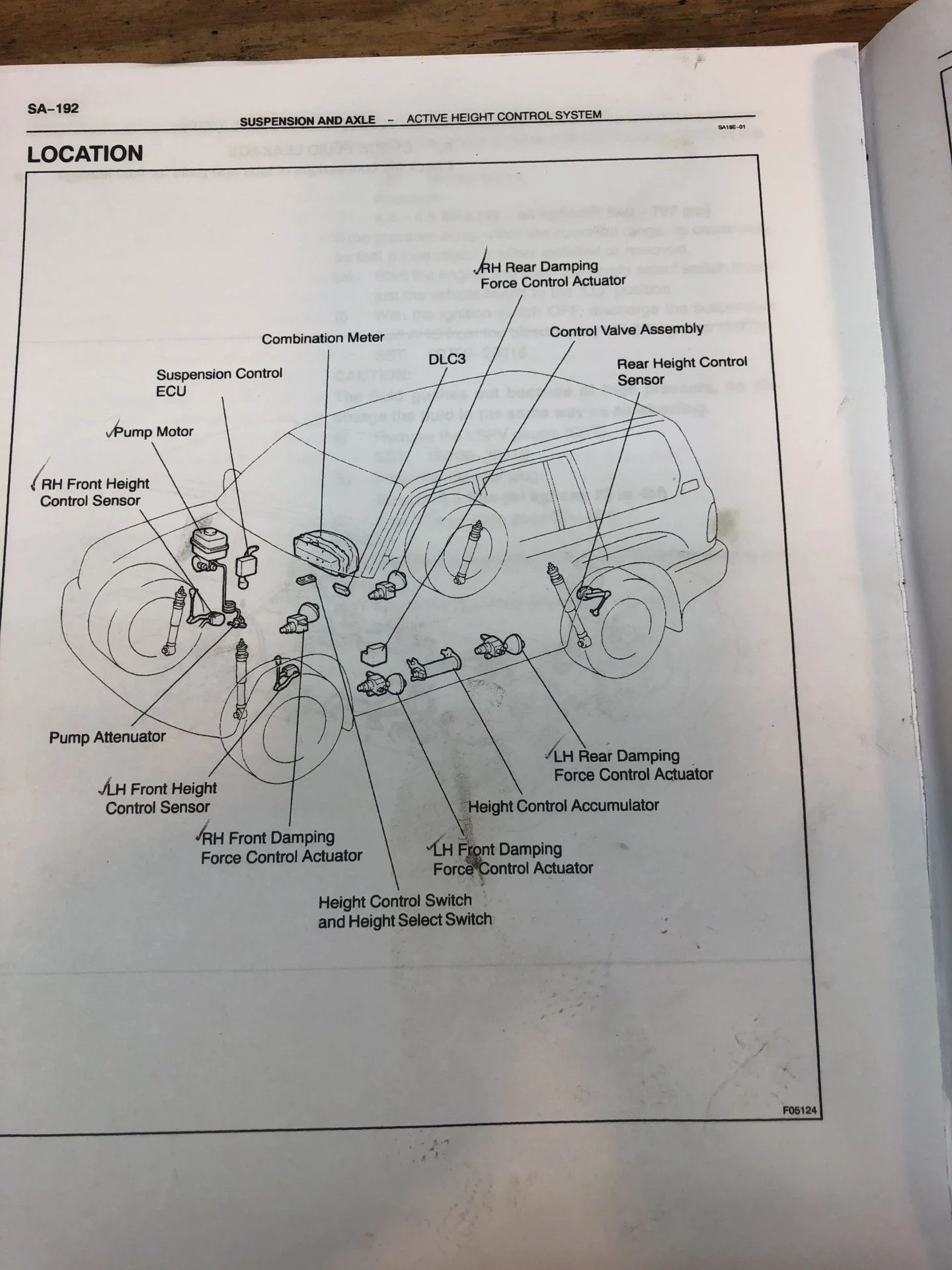

I’m currently working on removal of the AHC components on my wife’s 2002 LX. The FSM has been extremely helpful.

Let me know if you wants me to snap a few pics for reference.
