    Had a bad rt. caliper so decided to take the plunge and install 4Runner calipers, new rotors, and the backing plate eliminators I got from Mark Algazy of marksoffroad.net .

    Purchased Reman Toyota Calipers for '95 4Runner V6 - Part # 47750-35090-84, and 47730-35090-84 (Rh, Lh)

    New caliper bolts & washers, spring clips, disc pads and shims.

    Mountain Rotors - Made in Japan - and to the best of my knowledge are OEM. (Just say no to Chinese Rotors). Purchased online from partsgeek.com

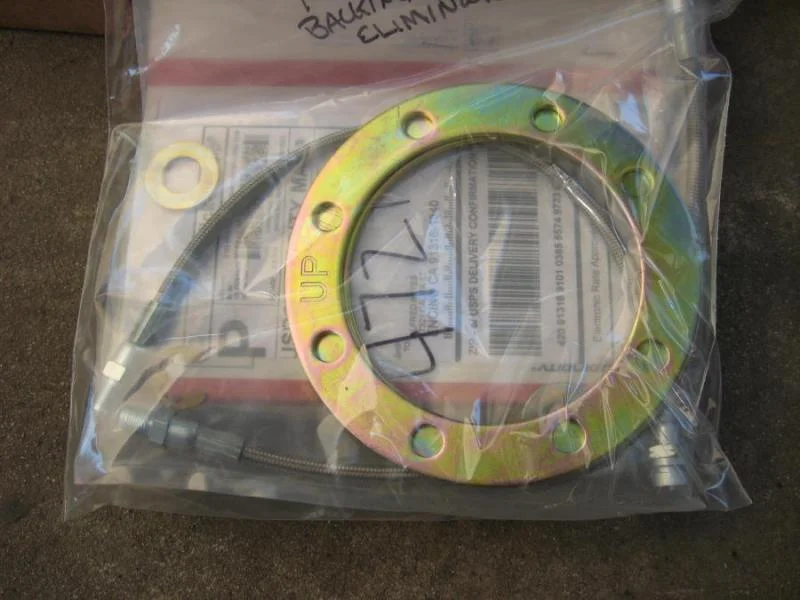

    parts0001.jpg parts0015.jpg parts0014.jpg

    Last edited: May 1, 2009
  2. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,100
    Likes Received:
    2,125
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia

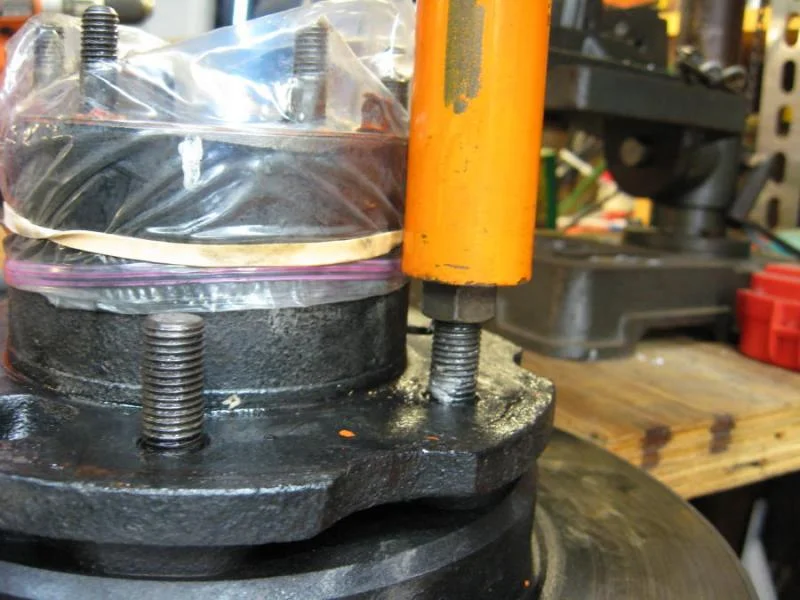

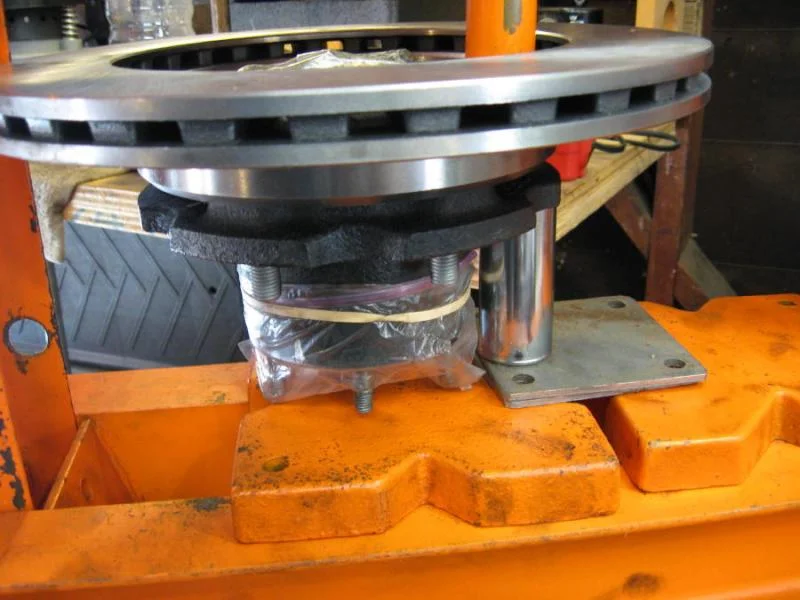

    Old studs being pressed out.

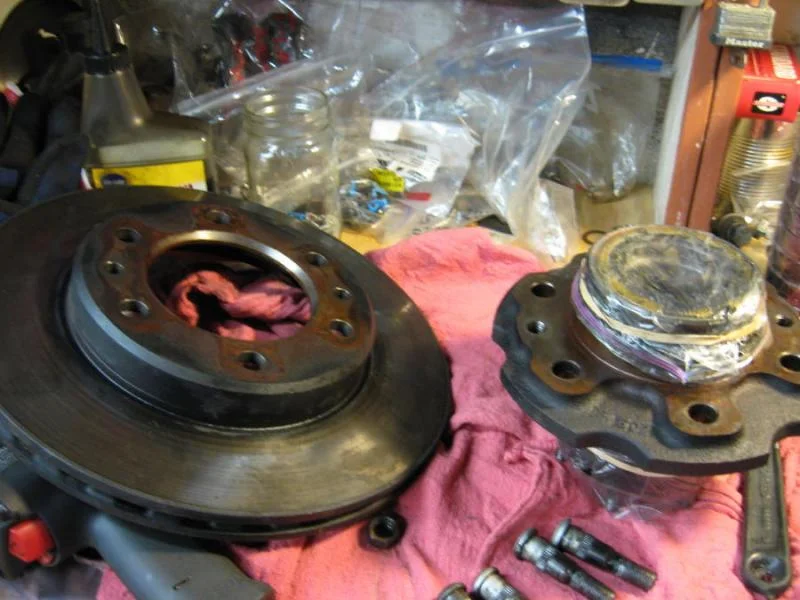

    Seperating hub and rotor.

    New studs being pressed in.
    hubrotor0002.jpg hubrotor0004.jpg hubrotor0008.jpg

    Aspergatory likes this.
  3. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,100
    Likes Received:
    2,125
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia
    Hubs and new rotors completed.

    I chased the caliper threads 'cuz they looked a little buggered.

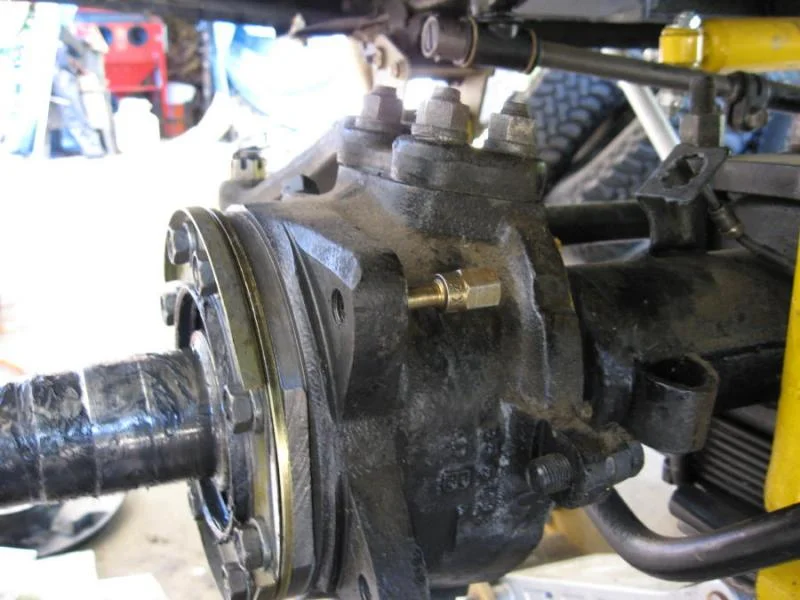

    Backing plate eliminator installed.
    hubrotor0021.jpg hubrotor0023.jpg hubrotor0025.jpg

    lechnito likes this.
  4. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,100
    Likes Received:
    2,125
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia

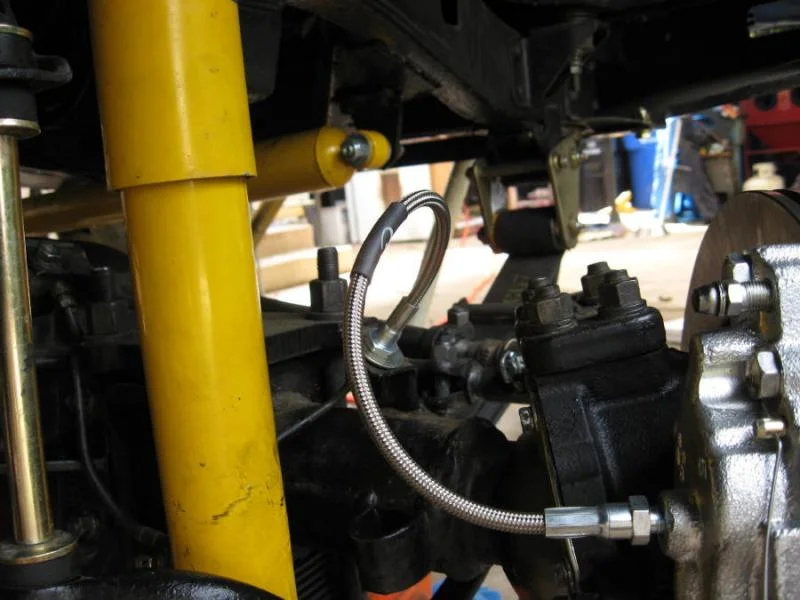

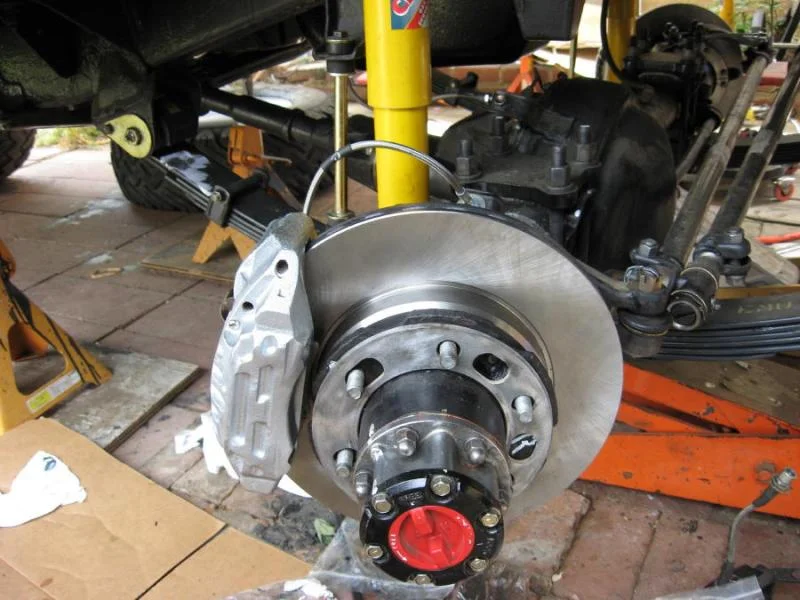

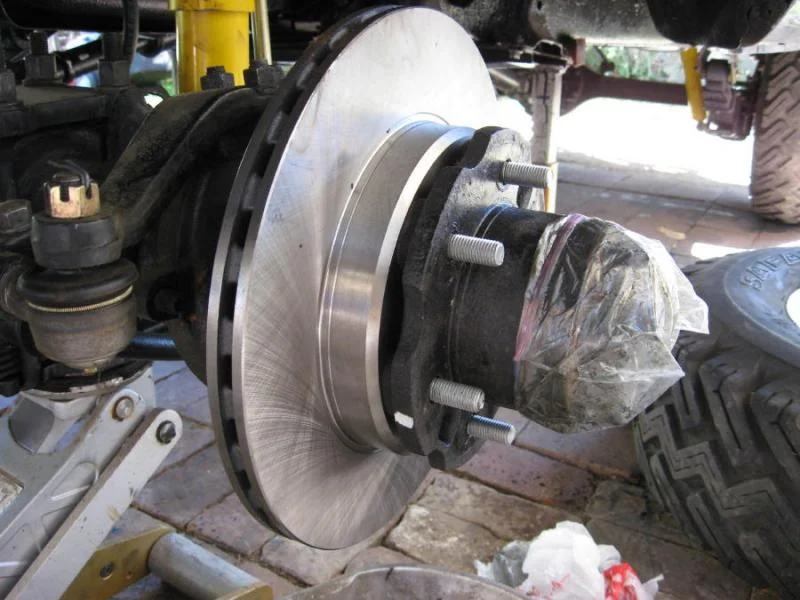

    Hubs and Rotors installed w/ new 4runner caliper.

    You need a longer brake line. These SS lines came with the kit.
    hubrotor0027.jpg rotor0010.jpg rotor0003.jpg

  5. Mace

    Mace rock scientist.. Staff Member s-Moderator

    Messages:
    21,294
    Likes Received:
    1,728
    Joined:
    Feb 17, 2002
    Location:
    Las Vegas
    Same caliper for both sides?

  6. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,100
    Likes Received:
    2,125
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia
    At this point I ran into some trouble:

    I had intended to keep the stock Master Cylinder as many posts had stated that it worked fine with the new caliper. I bled and bled and bled but couldn't seem to get the air out.

    After two days of bleeding brakes (and trying the neighbor-who-helped-me patience), I finally got the pedel to at least kind of have some firmness.

    But I like a firm pedal, and after reading various websites I decided to upgrade to a 1" Master Cylinder.

  7. Mace

    Mace rock scientist.. Staff Member s-Moderator

    Messages:
    21,294
    Likes Received:
    1,728
    Joined:
    Feb 17, 2002
    Location:
    Las Vegas
    Disks in the rear?

    BTW, if the bleed valve on the caliper is not at the top of the caliper, it will never let all the air out..

  8. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,100
    Likes Received:
    2,125
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia
    Corrected above - sorry :doh: -- hurrying to try and make it to the Trail crew lunch!

  9. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,100
    Likes Received:
    2,125
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia
    Still have drums in the rear.

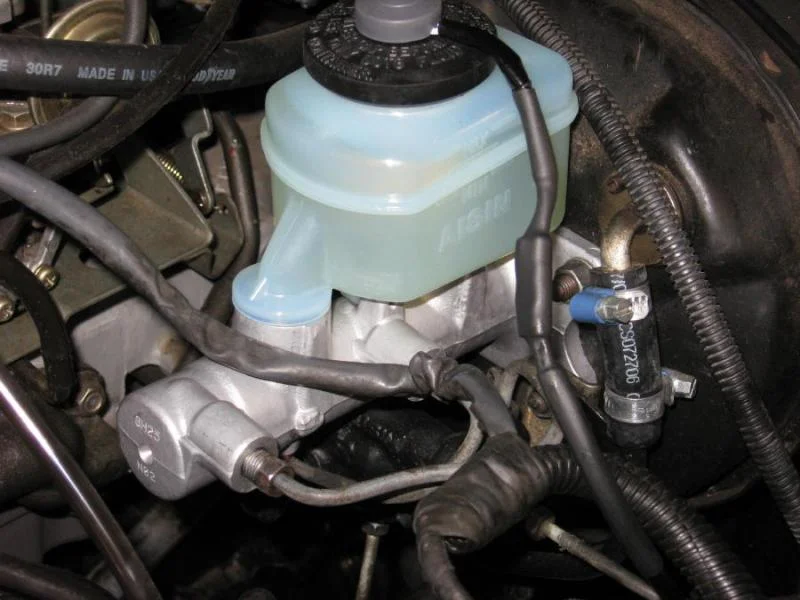

    Install of T100 MC from a '93 T100 1/2 ton. The FJ80 MC offered on various websites have the same body as the T100 MC only difference is the fluid level sensor is on the cap for the T100 - moulded into the side of the reservoir for the FJ80.

    If you get the one for the T100, it makes it much easier to keep the fluid level sensor, by just splicing on the connector from the stock MC.

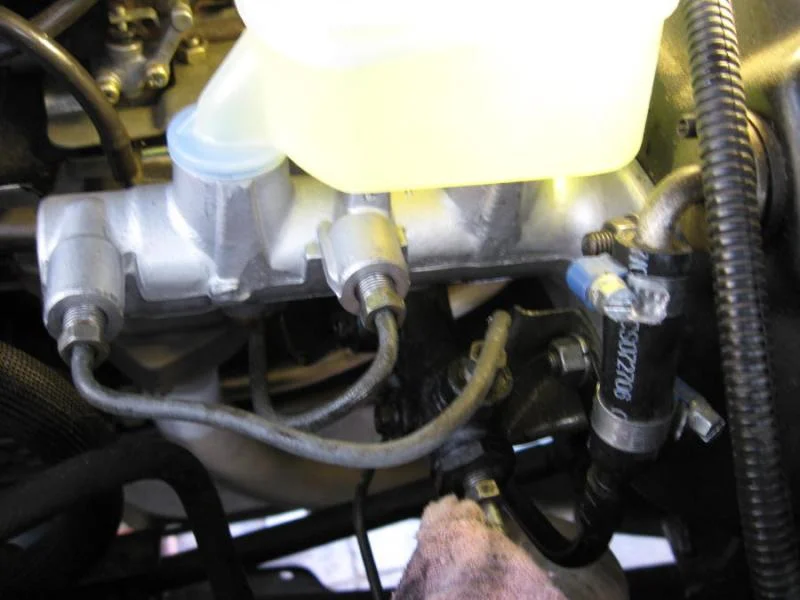

    Position of stock lines. Have to bend them a little to fit.

    Pedal is now firm and stops on quarter, if not a dime -

    Difference is really noticable. I can lock up the wheels now (33's), with very little effort.
    brake0009.jpg MC0002.jpg MC0009.jpg

  10. NLXTACY

    NLXTACY Wits' End Supporting Vendor

    Messages:
    22,009
    Media:
    23
    Albums:
    2
    Likes Received:
    12,536
    Joined:
    Dec 7, 2007
    Location:
    West Hills, CA
    Dont be late :flipoff2:

    BTW, two things:

    • Was hoping you would do a write up
    • You suck for not calling me to help out :D

  11. ntsqd

    ntsqd technerd

    Messages:
    5,266
    Likes Received:
    179
    Joined:
    Apr 26, 2007
    Location:
    Upper So. CA
    Interesting pad anti-rattle hardware. Never seen any like that before.

  12. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,100
    Likes Received:
    2,125
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia
    I didn't want to get another wrench-smack in the forehead :D

    :cheers:


    I started to grind the calipers, as they made contact with the rims I have, but then I used a 1/4 spacer and the wheels fit fine.

    Just a few more pix:

    • Part #'s for rotors, if somebody needs them.

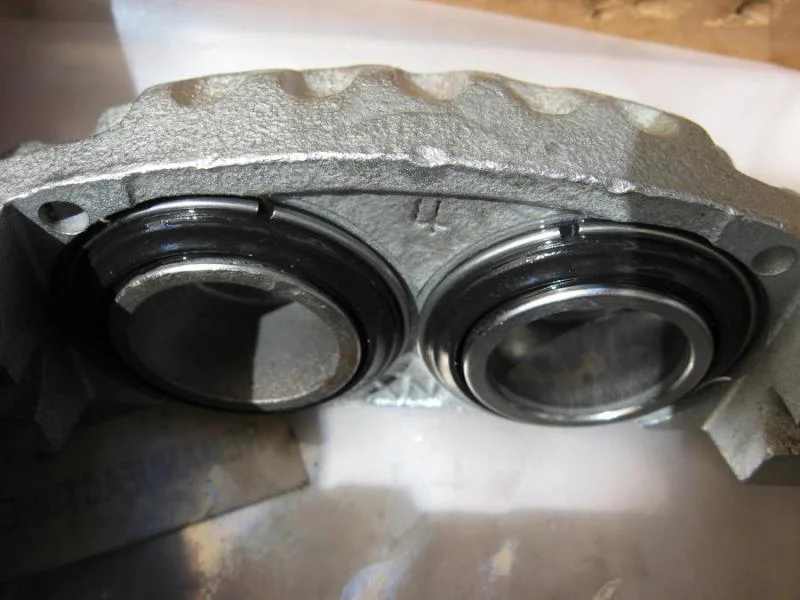

    • Size of 4Runner pistons

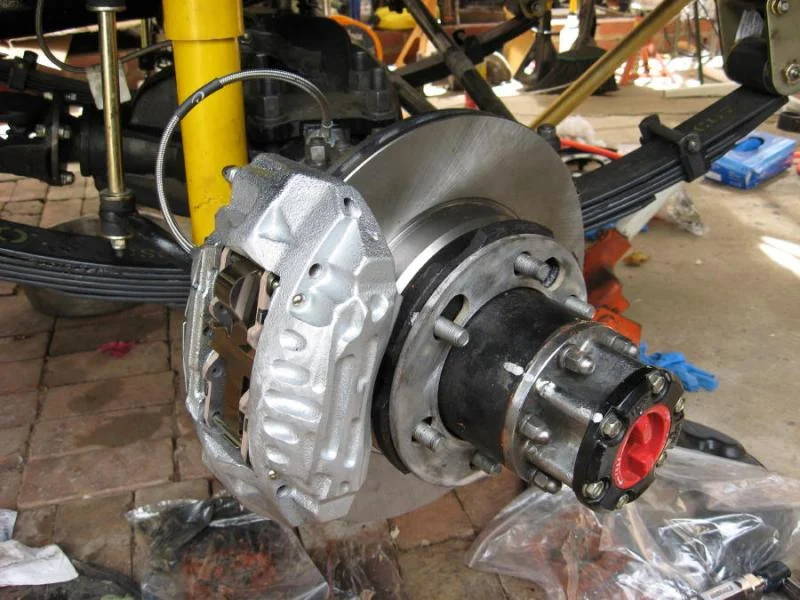

    • Finished product w/ 1/4 spacer.
    :bounce:
    parts0017.jpg parts0010.jpg rotor0009.jpg

  13. lonelydriver

    lonelydriver

    Messages:
    439
    Likes Received:
    2
    Joined:
    Nov 20, 2005
    Location:
    Pasadena, CA
    Sweet,

    I'm going to be doing the same thing, already got all the parts minus the calipers. Also running the same mountain rotors as well.

    Where did you get the calipers? Napa?

    Also where did you go to get the wheel studs pressed in and out of the hubs. Last time I had to use a sledgehammer on them and i didn't feel too confident with smashing the hub and stud with a sledge.

  14. klinetime574

    klinetime574 Positive Vibes SILVER Star

    Messages:
    5,285
    Likes Received:
    492
    Joined:
    Jul 23, 2006
    Location:
    Houston, TX
    Excellent Work and Write-Up Spike Strip!

  15. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,100
    Likes Received:
    2,125
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia
    Calipers are Toyota, remanufactured, from the dealer. They're nice, but you can probably get the pro grade Raybestos or Bendix, loaded, for a much better price. I just decided to go Toyota 'cuz I'm nuts.

    Also, marlincrawler.com has the loaded caliper for $119. V6 IFS Front Brake Caliper | Marlin Crawler, Inc.

    I have a press and popped 'em in and out myself.

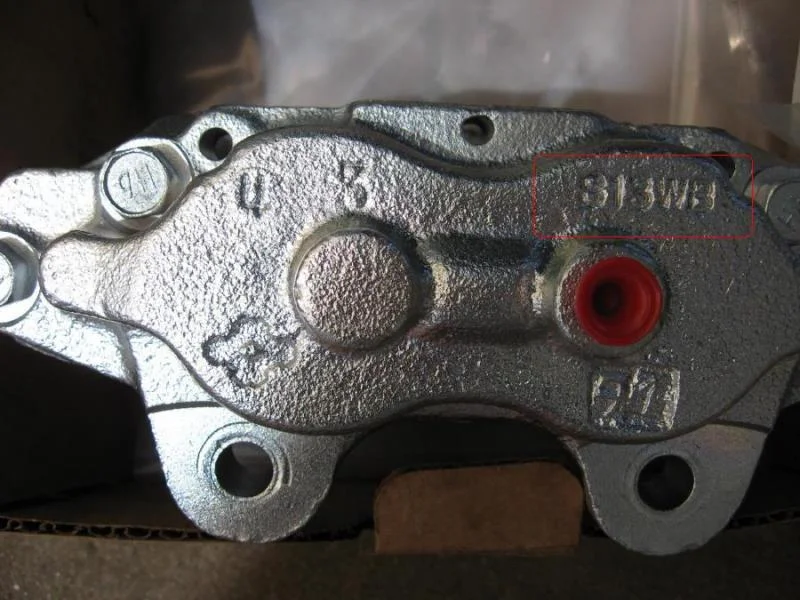

    As for caliper, just make sure you get the ones that have this casting:
    parts0009.jpg rotor0004.jpg

    Last edited: May 1, 2009
  16. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,100
    Likes Received:
    2,125
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia
  17. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,100
    Likes Received:
    2,125
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia

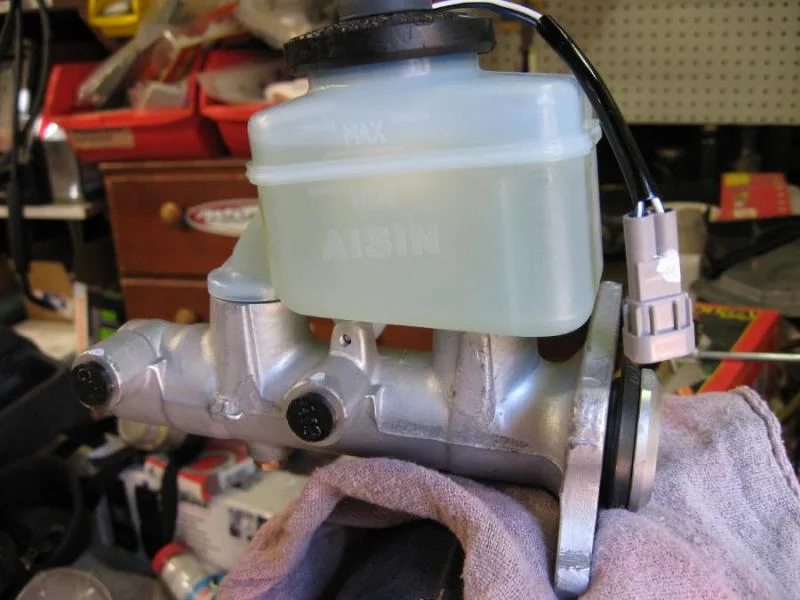

    If you go with a new 1" MC this is the style you want, with the lead for the Level Sensor on the cap. This one is for a '93 T100 1/2 Ton, Aisin part # BMT-051 (replacing Toyota Part # 47201-3D020)

    Some applications have the connector moulded into the side of the reservoir, which means you'll have to get a connector to match and splice into your loom.

    Don't forget to bench bleed before hooking it up!

  18. PurpleFJ62

    PurpleFJ62

    Messages:
    485
    Media:
    2
    Likes Received:
    1
    Joined:
    Nov 23, 2006
    Location:
    Dexter Michigan
    care to express any wisdom on the bench bleeding process, I have never done it before.

    Looks like a factory install...

    Where did you get those SS brake lines that go to your calipers?
    cheers

  19. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,100
    Likes Received:
    2,125
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia
    Bought the SS lines and backing plate eliminator from Mark A. at marksoffroad.net

    There's a few threads on Bench Bleeding on the forum, but it just involves filling the MC with fluid and using some brake fittings (I cut an old brake line) run plastic tubes into the reservoir and depress the piston until the air (no more bubbles) is gone. Sorry, no pix of that 'cuz my hands were full of brake fluid!

    Here's other solutions: https://forum.ih8mud.com/60-series-wagons/237817-bench-bleeding-brake-master-cylinder.html

  20. lehiguy
