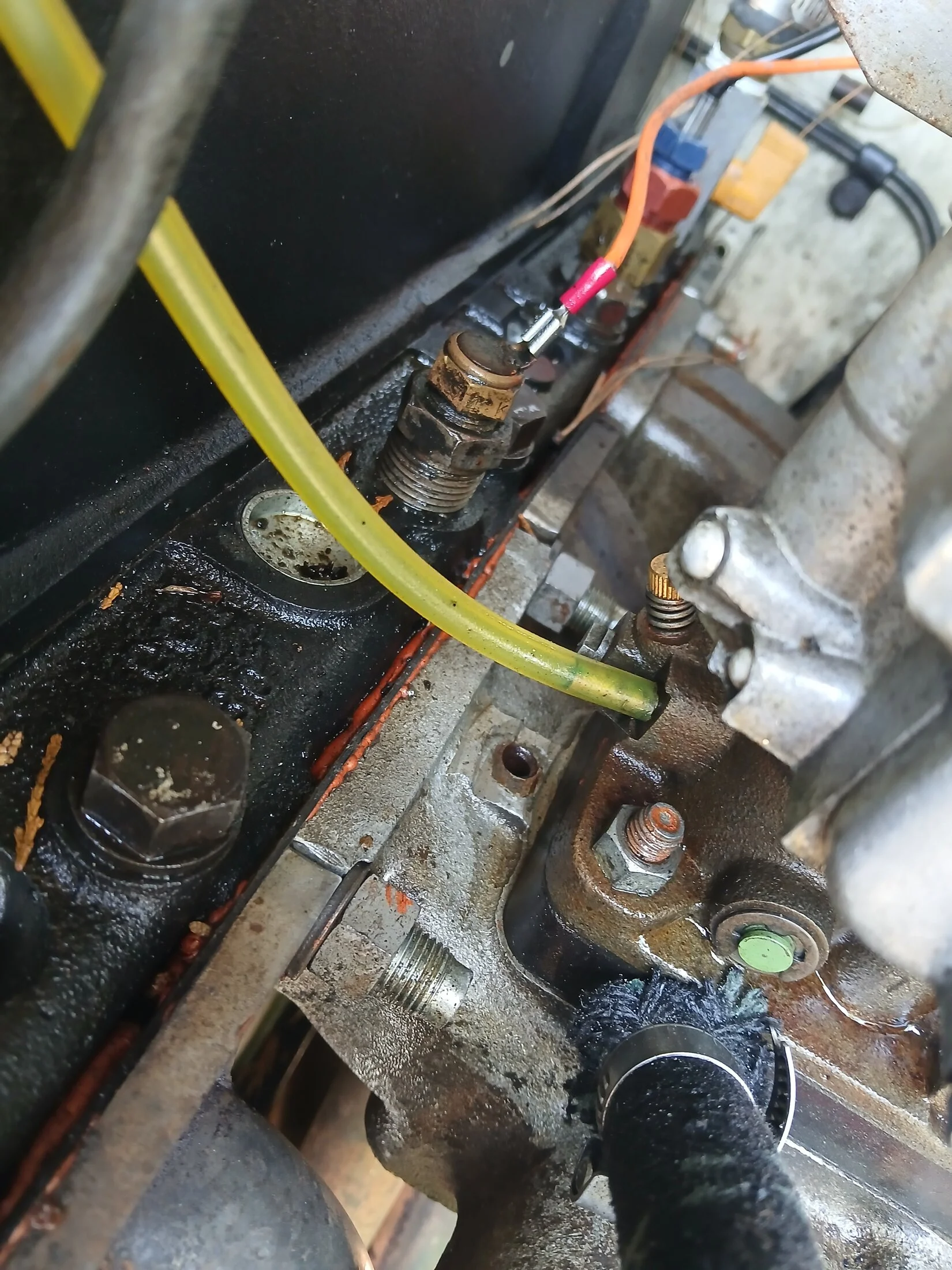

I’ve removed all emissions on a 1974 FJ40 and can’t recall exactly how I need to hook up vacuum for the carb diaphragm, and the vacuum advance. I’ve got a vacuum port on the bottom plate below the carb, and 2 coming off the intake manifold. Need to run one to the vacuum advance, and one to carb diaphragm. Any help would be appreciated. Thanks.
1974’ FJ40 Vacuum Questions
- Thread starter DaveyB
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

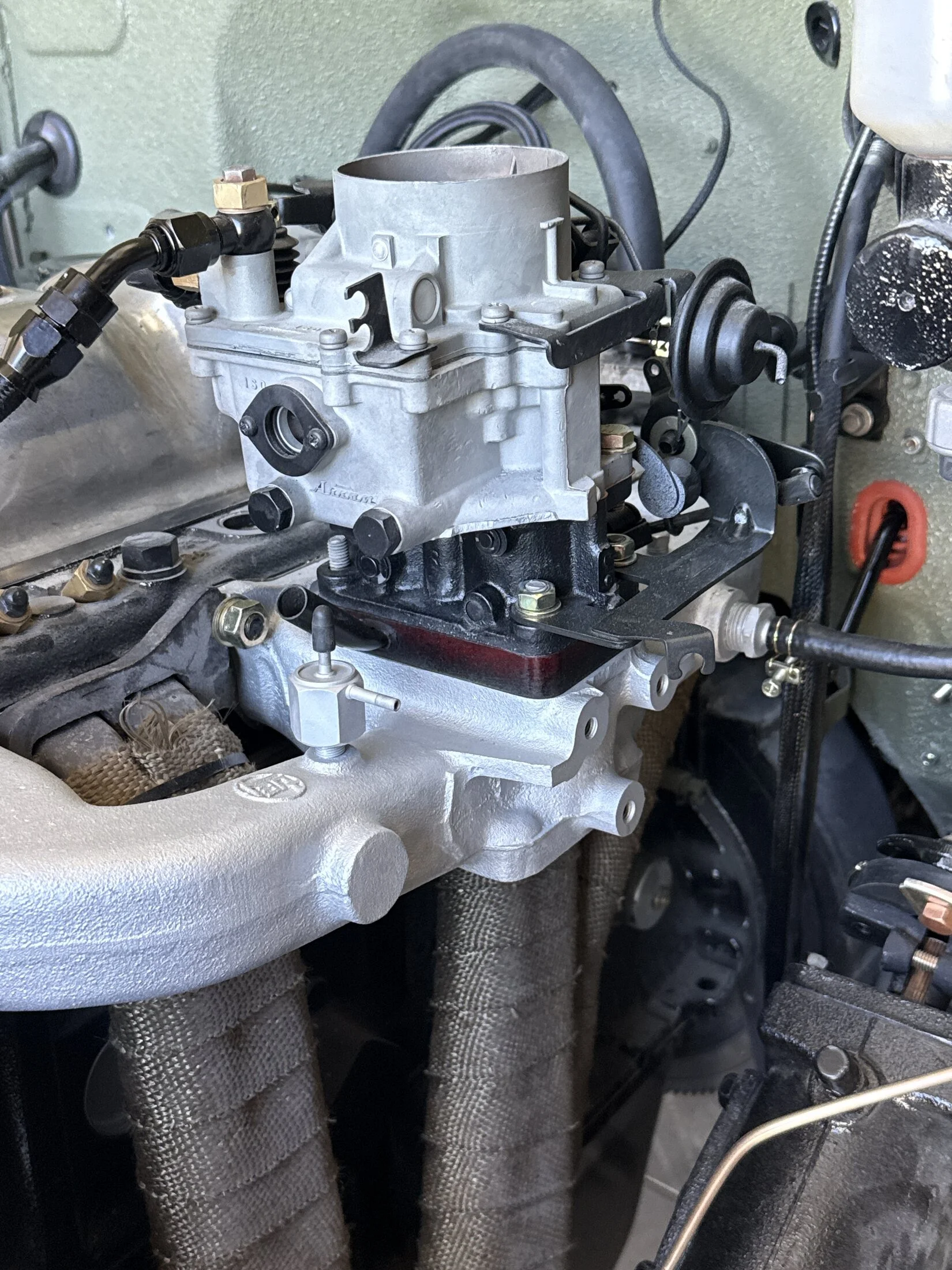

The carb diaphragm goes to the port driver side under the bracket, vac line to dizzy comes off passenger side carb base.
Cap the manifold ports or run one to a vacuum gauge.

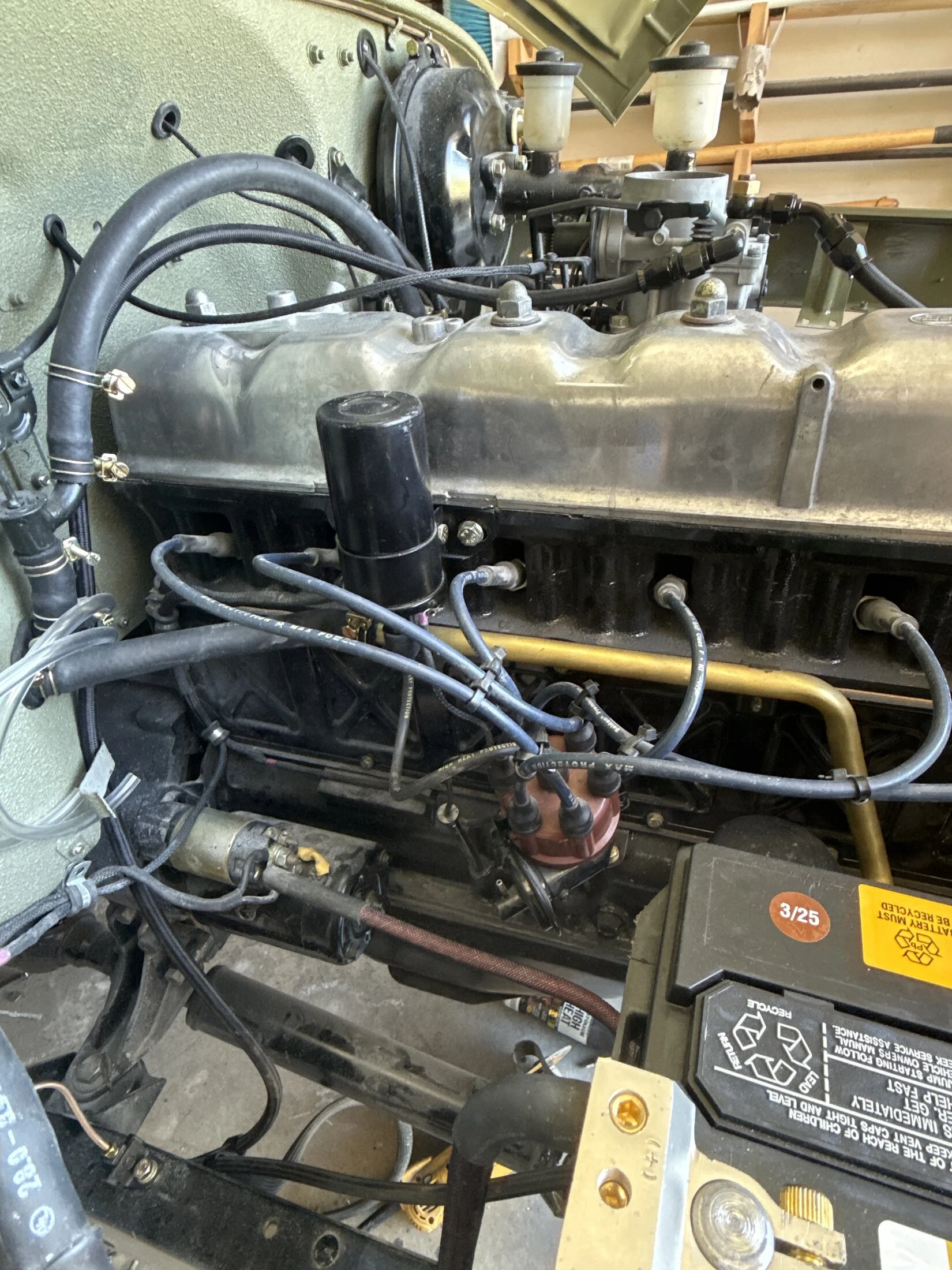

EDIT: That's a vacuum retard dizzy, best to not hook any vacuum to it.
- Thread starter
- #3
- Thread starter
- #5
Nice, any way to do it with what I’ve got? Is that manifold vacuum that much different? I guess I could get a vacuum gauge and see. Just trying to make it easy.
You could probably drill your own hole. But it has to go in at a certain angle to a certain spot. The Pros use a special jig, as I understand it.
Ported vacuum is very different from manifold vacuum. I have a gauge for each in dash...

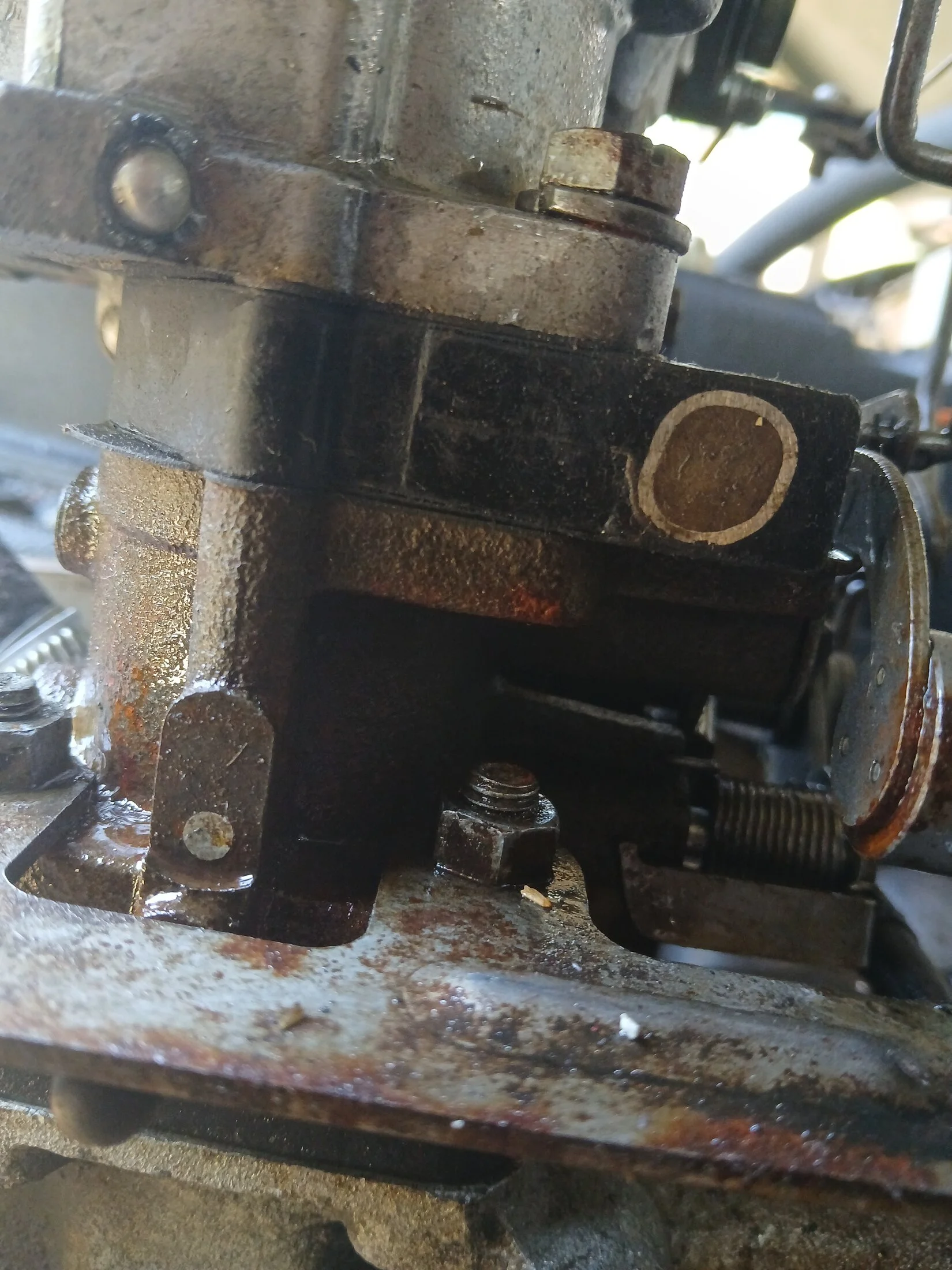

Also, not trying to be a pest but, wasn't there another spacer that goes between the carb base and middle section? Looking at your pics and my 10/'73 carb I don't see yours.it had a hardline for the EGR or something.
- Thread starter
- #9
Good to know. Thanks for the info. I’ll try running the dizzy without vacuum and see what it’s feeling like.What pighead said ^^^

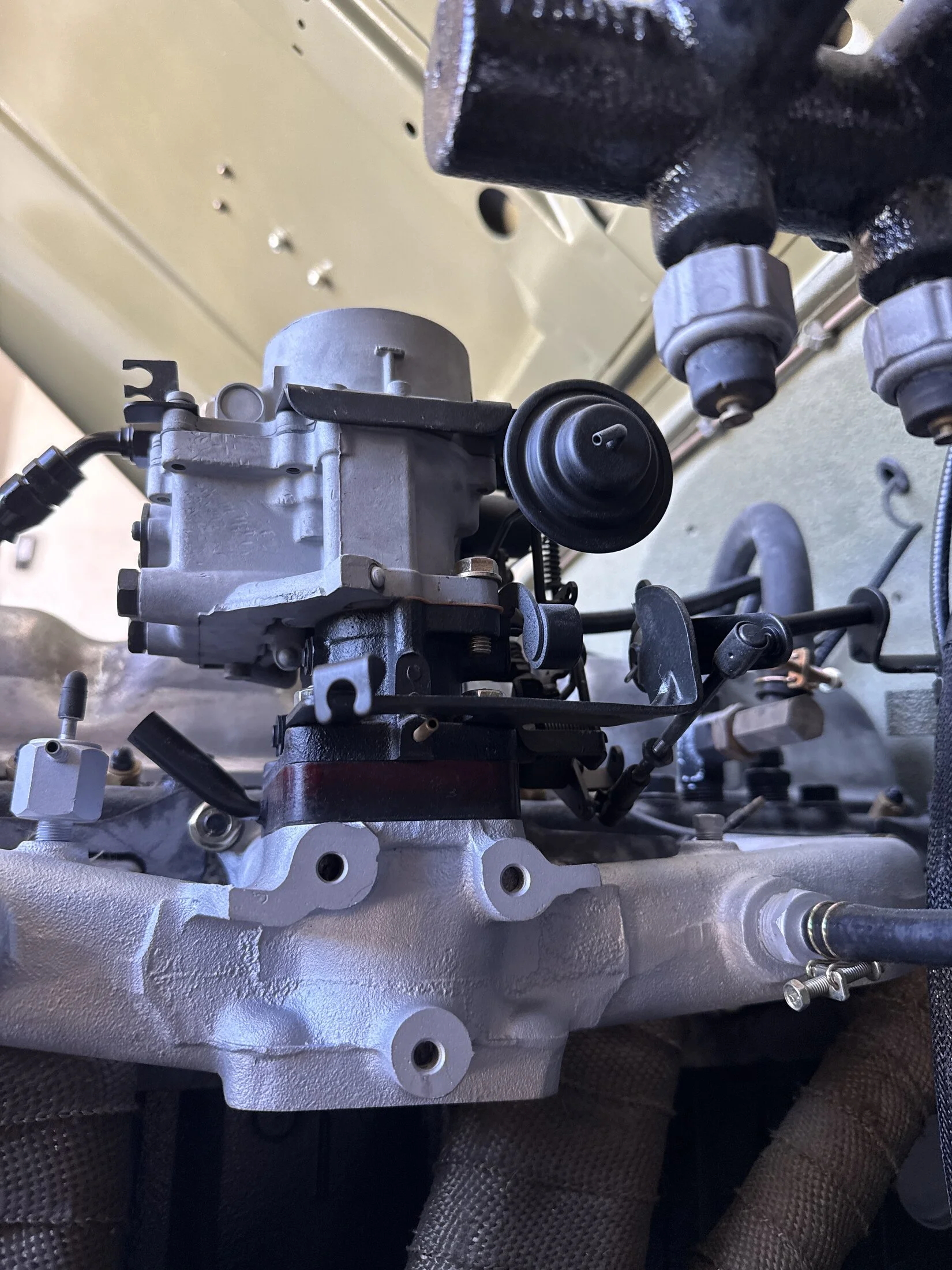

Carb choke diaphragm connects to driver side bottom of carb body. Just cap your distributor diaphragm as it's vacuum retard, not advance.

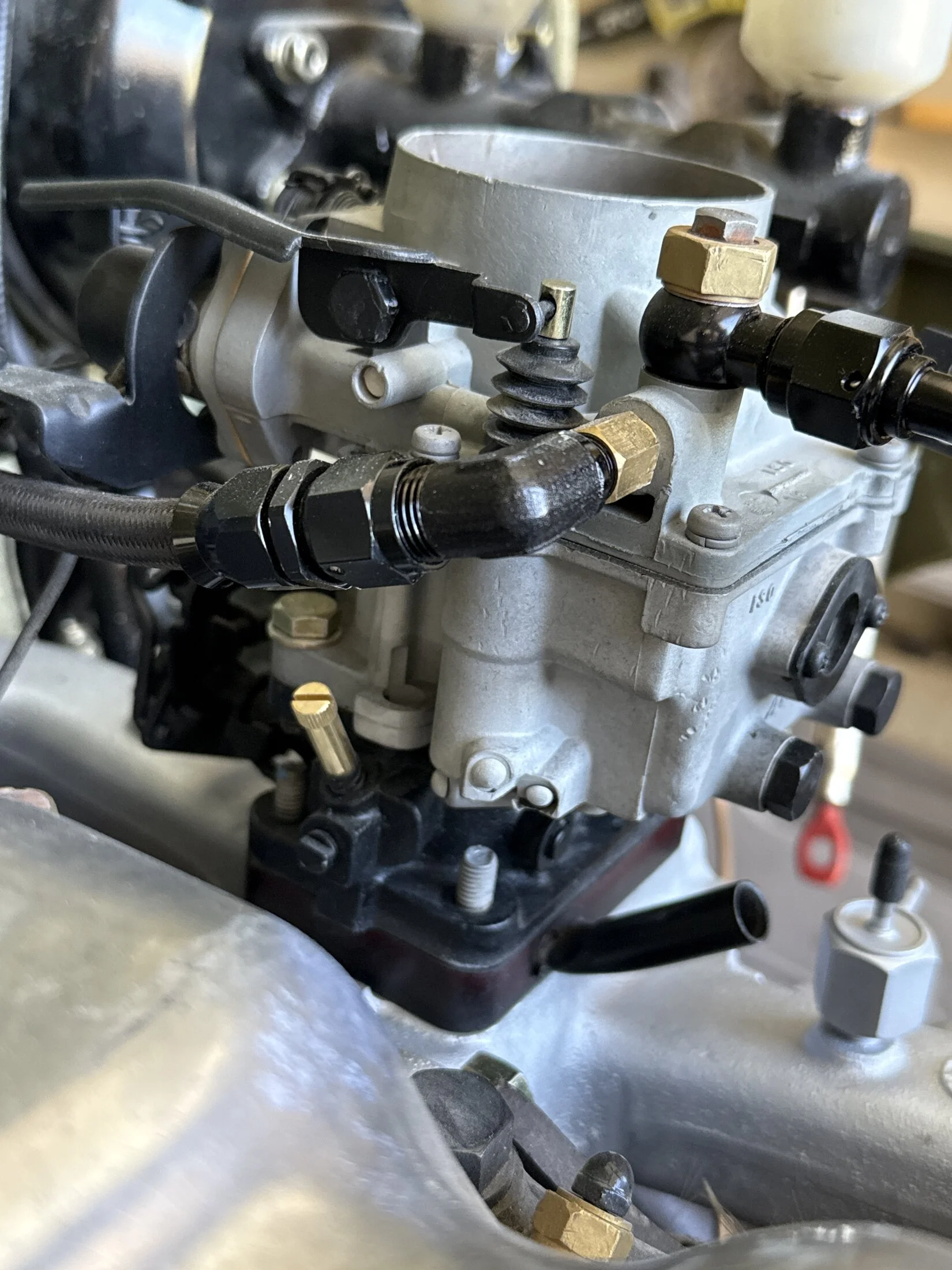

Here's mine for reference. This is a 71 carb I believe.
