I was in Vegas this week for a big insurance and risk management conference. We had dinner with one of our larger customers one night. First time meeting them, I was introduced to the future controller and before we even got in the restaurant, somehow he shared he had a '77 FJ40 that he wanted to get running again. I think his father-in-law or his grandfather is the original owner. Talk about a small world. We proceeded to talk Cruisers for a couple hours... He lives up in Rocklin, shared with him @Racer65's site as well as another person who I had bought a body panel from.
IRMI?

I'm with Amwins. Sounds like the making of a super nerdy insurance fj40 club!


ginmtb

'74 FJ40 - my first!
Joined
Jan 25, 2014
Messages
3,150
Location
Danville, CA

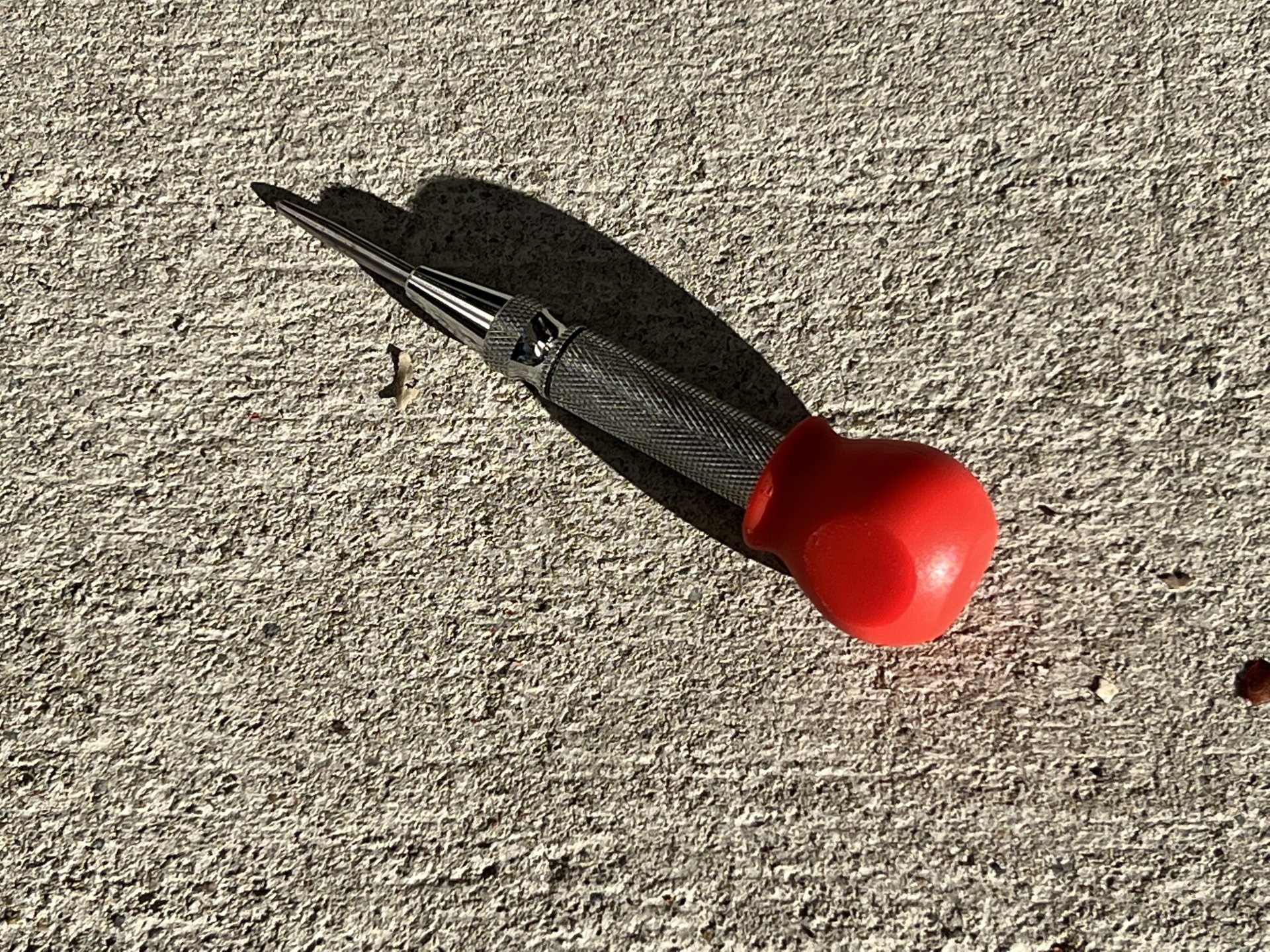

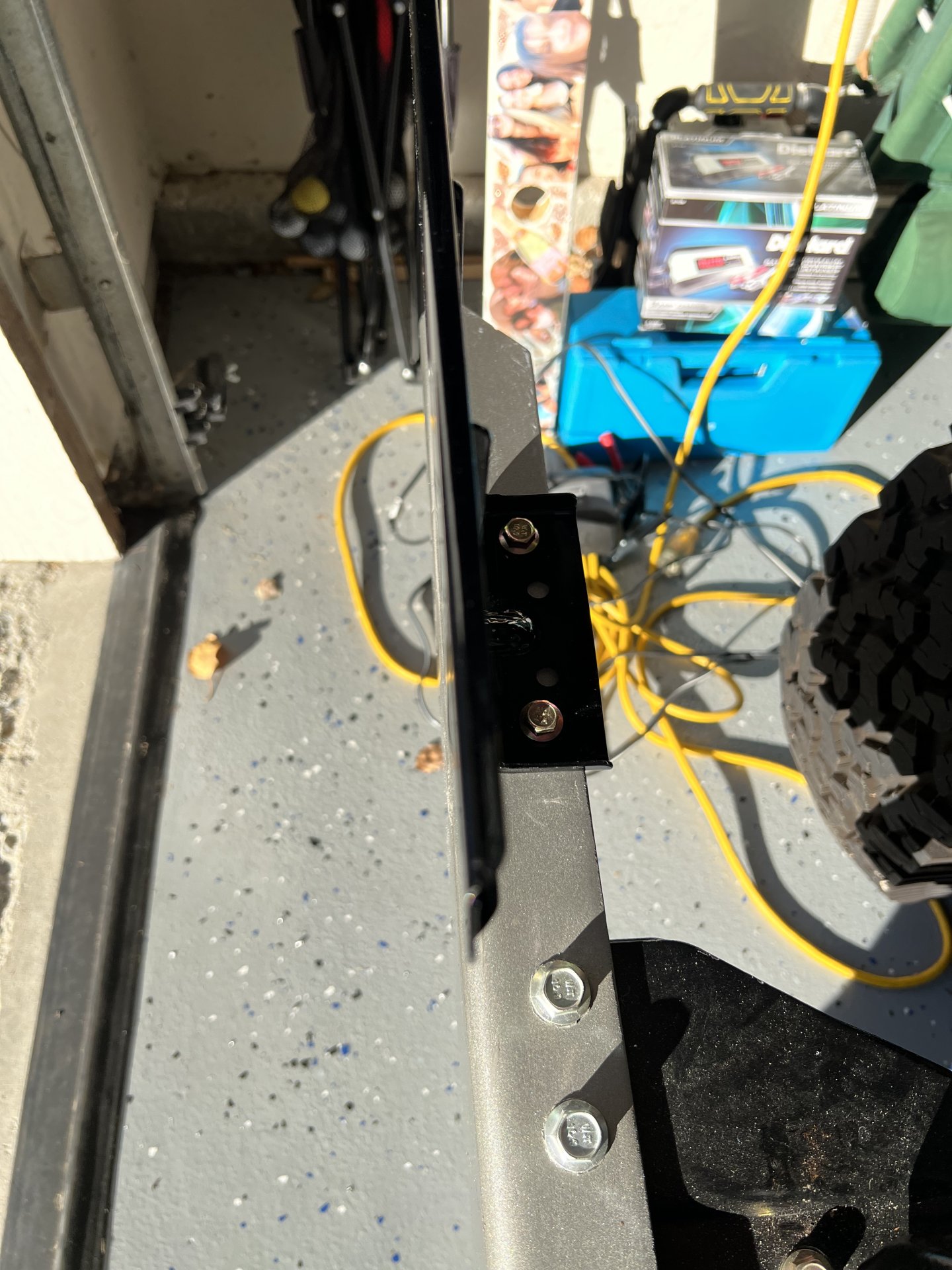

Okay got the plate bracket installed - now just need plate to arrive. My bumper is much narrower than stock so I tried to have it line up flush with front of bumper. Not much more I could do. And how in the world did I just discover the spring loaded center punch? That thing is awesome (simple pleasures in life lol).



ginmtb

'74 FJ40 - my first!
Joined
Jan 25, 2014
Messages
3,150
Location
Danville, CA

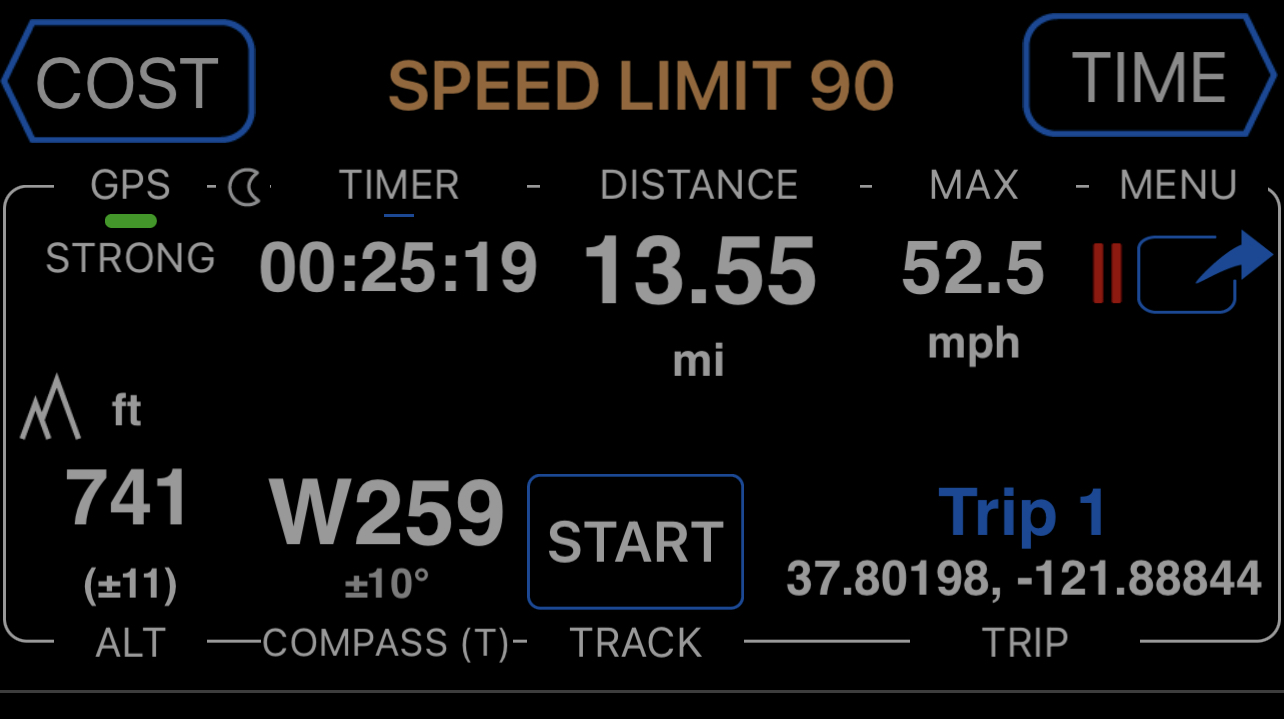

Decided to shake the cobwebs off and go out for a spin. Tires needed major air and I had to fill carb with fuel to start it since it had been sitting so long. But like the tractors these are drove like a champ on my little backroad loop.

Tried the horn just to see if anything fixed itself but no luck 😂.



ginmtb

'74 FJ40 - my first!
Joined
Jan 25, 2014
Messages
3,150
Location
Danville, CA

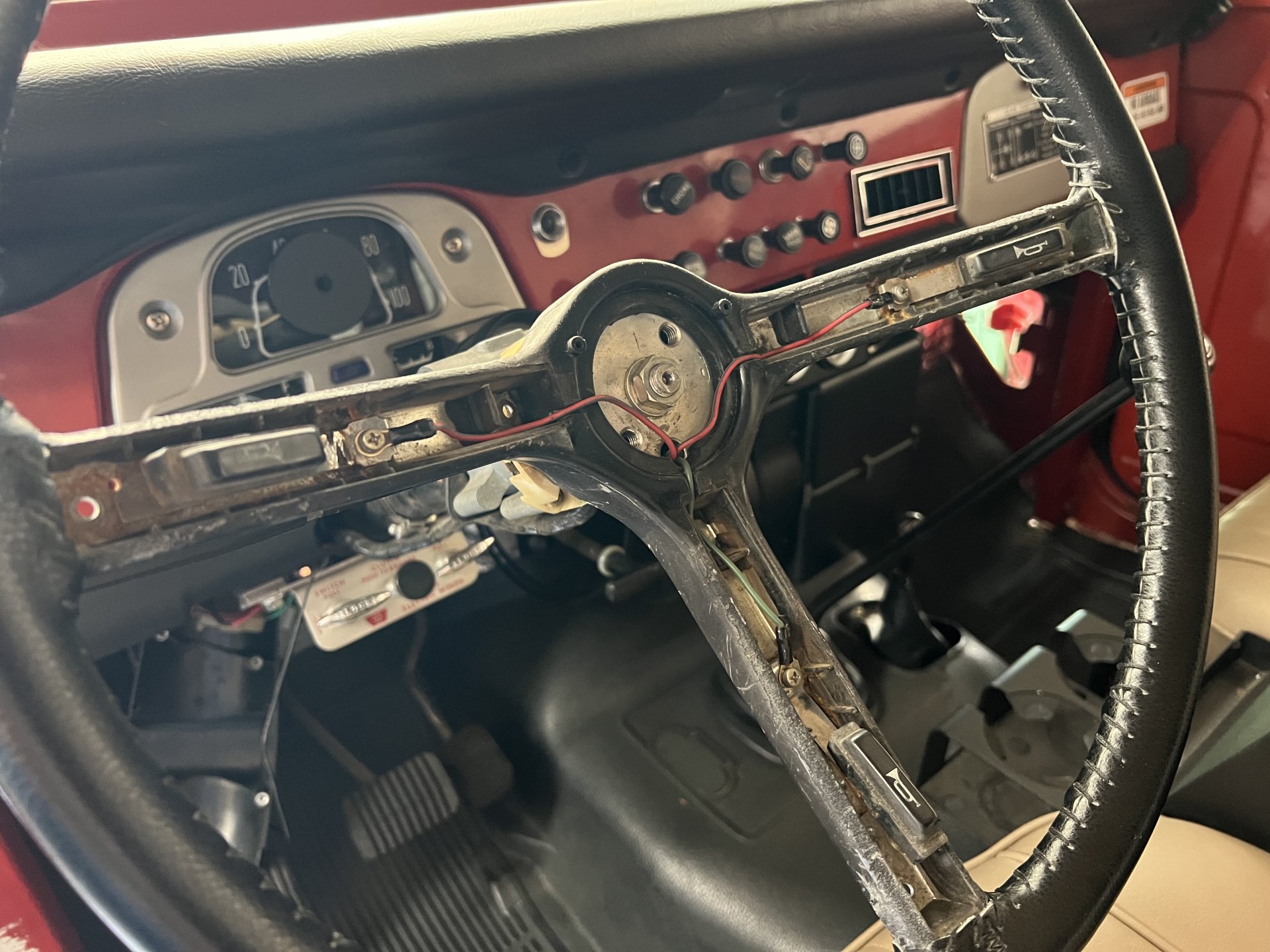

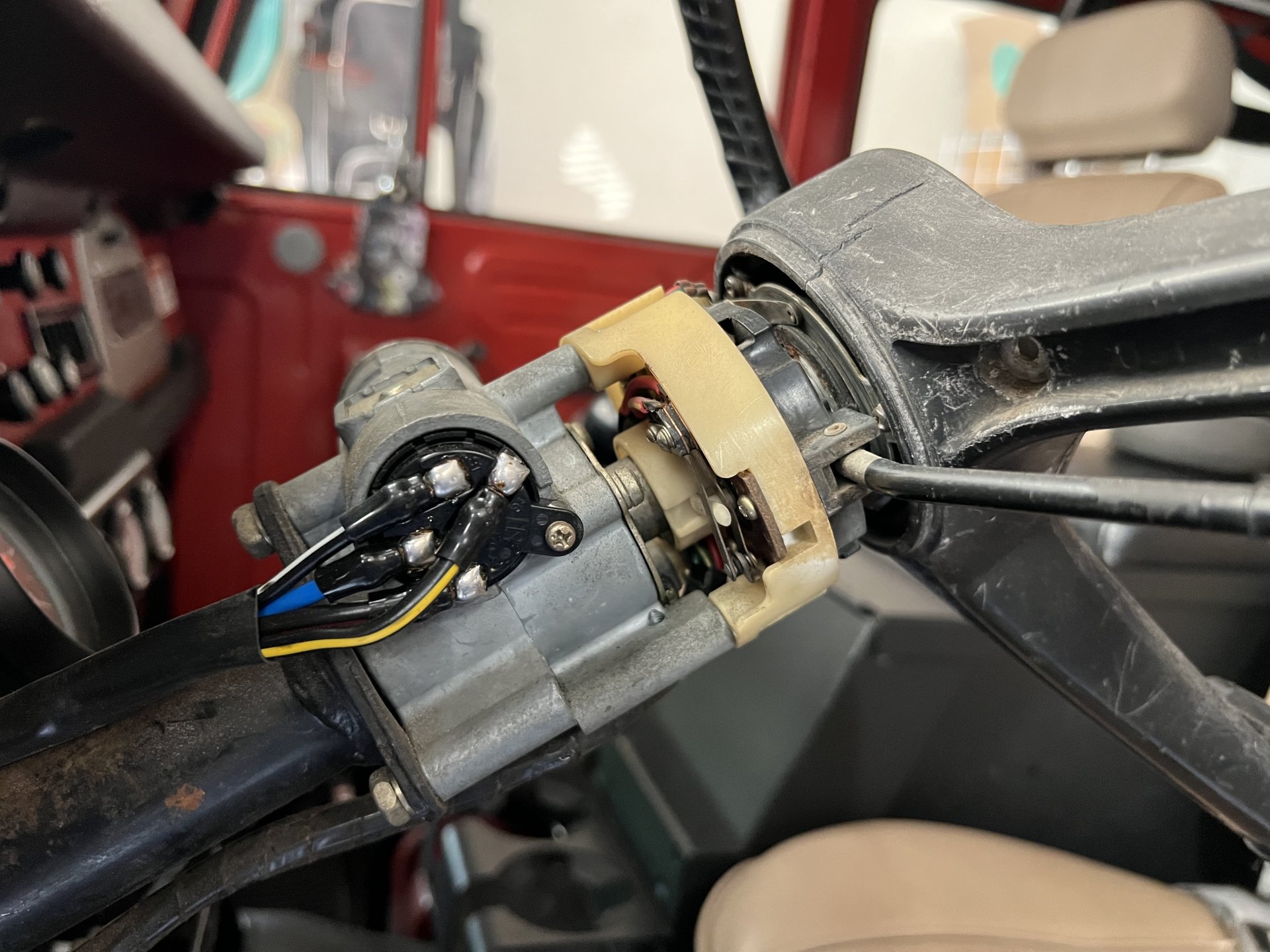

Man, problem with taking a long break from the cruiser is I don’t know what I have and where a lot of the stuff is! Decided to give a fresh shot at the horn issue and got the steering wheel all apart but now can’t find my puller… I used to get a click at the relay now I get nothing. Yay.

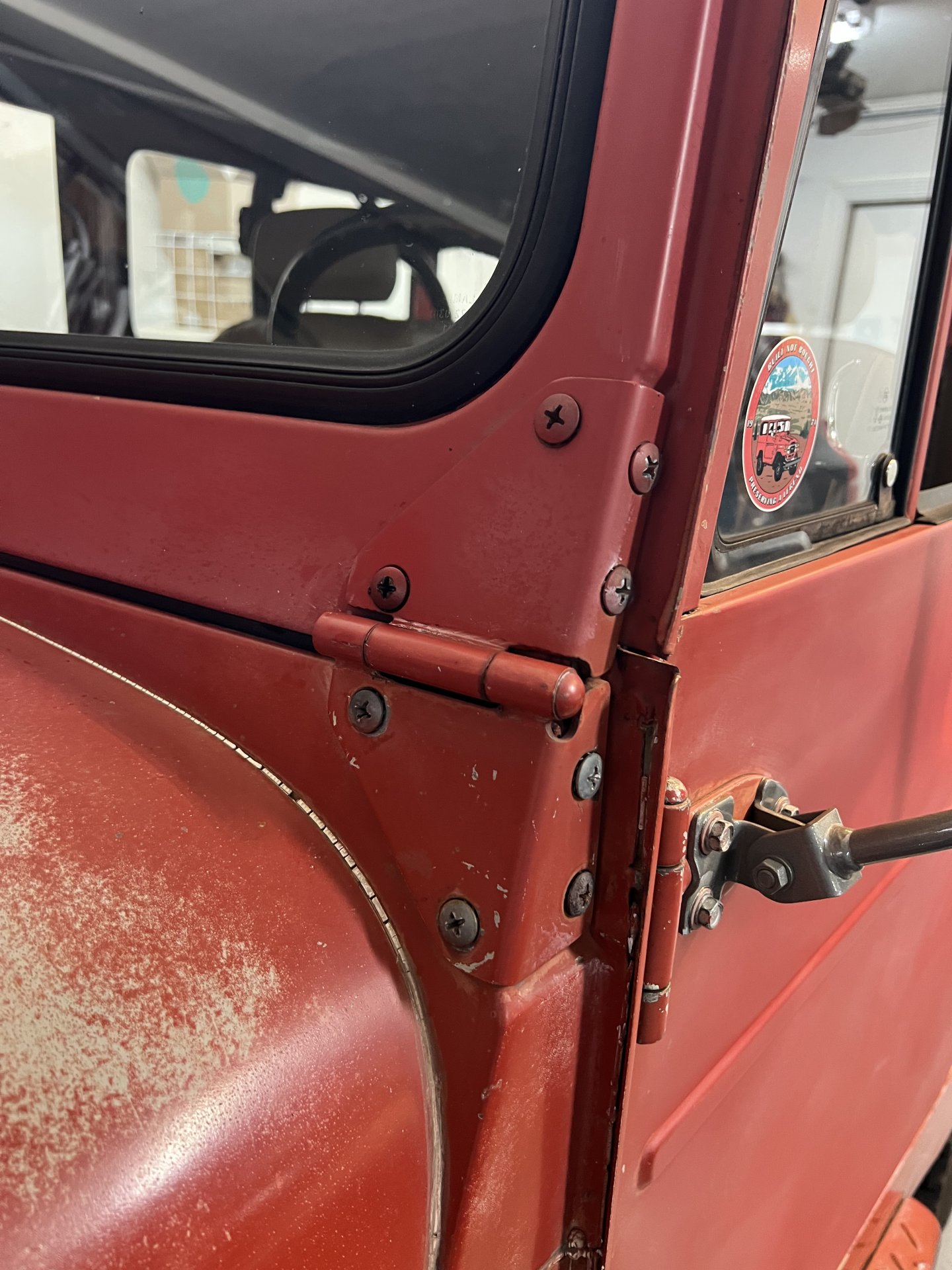

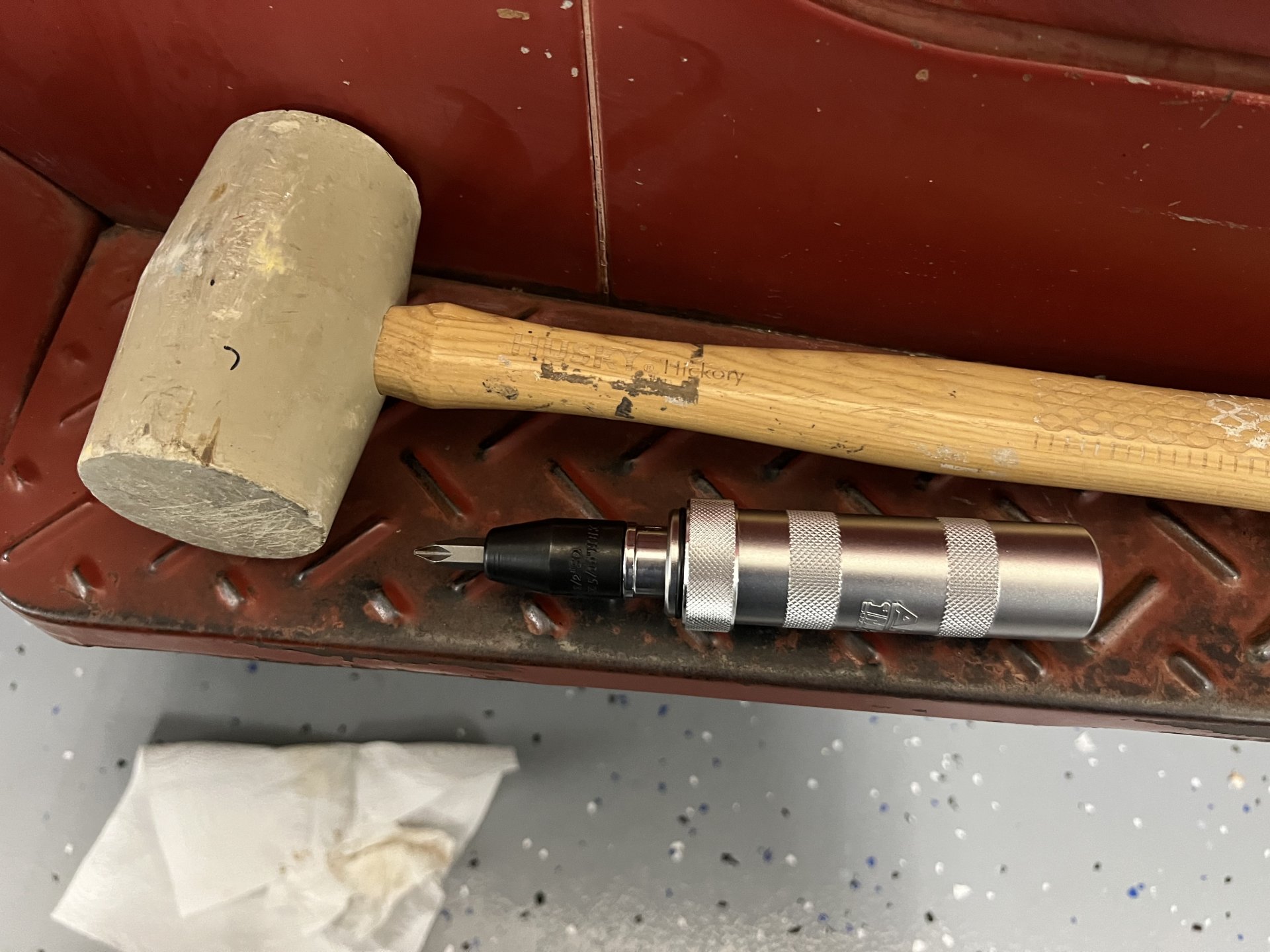

So also discovered a tool I bought to help free up stuck screws - worked great on the windshield hinge screws! But I can’t find the replacement screws I’m almost certain I bought…




Guess I have some Black Friday shopping to do for replacement screws… ;)


TheHardWay

Ain't as easy as it looks
SILVER Star
Joined
Dec 29, 2013
Messages
1,747
Location
Las Cruces, NM
Re your horn problem: this thread of my horn adventure may be of some help in yours



ginmtb

'74 FJ40 - my first!
Joined
Jan 25, 2014
Messages
3,150
Location
Danville, CA
Re your horn problem: this thread of my horn adventure may be of some help in yours

I will check it out thank you!!!

Joined
Oct 30, 2011
Messages
696
Location
Lakewood, WA
Man, problem with taking a long break from the cruiser is I don’t know what I have and where a lot of the stuff is! Decided to give a fresh shot at the horn issue and got the steering wheel all apart but now can’t find my puller… I used to get a click at the relay now I get nothing. Yay.

View attachment 3177241
View attachment 3177240

So also discovered a tool I bought to help free up stuck screws - worked great on the windshield hinge screws! But I can’t find the replacement screws I’m almost certain I bought…

View attachment 3177242
View attachment 3177243

Guess I have some Black Friday shopping to do for replacement screws… ;)
For what it is worth, I have never needed a puller to remove a cruiser steering wheel. Remove the nut, sit in the driver's seat then grab the wheel at the 9 and 3 o'clock position. Pull hard/rock it back and forth gently and it should pop off it's taper. Big ol steering wheel provides a lot of leverage and I have had success on 3 separate vehicles this way without ever damaging them. Good luck!


ginmtb

'74 FJ40 - my first!
Joined
Jan 25, 2014
Messages
3,150
Location
Danville, CA

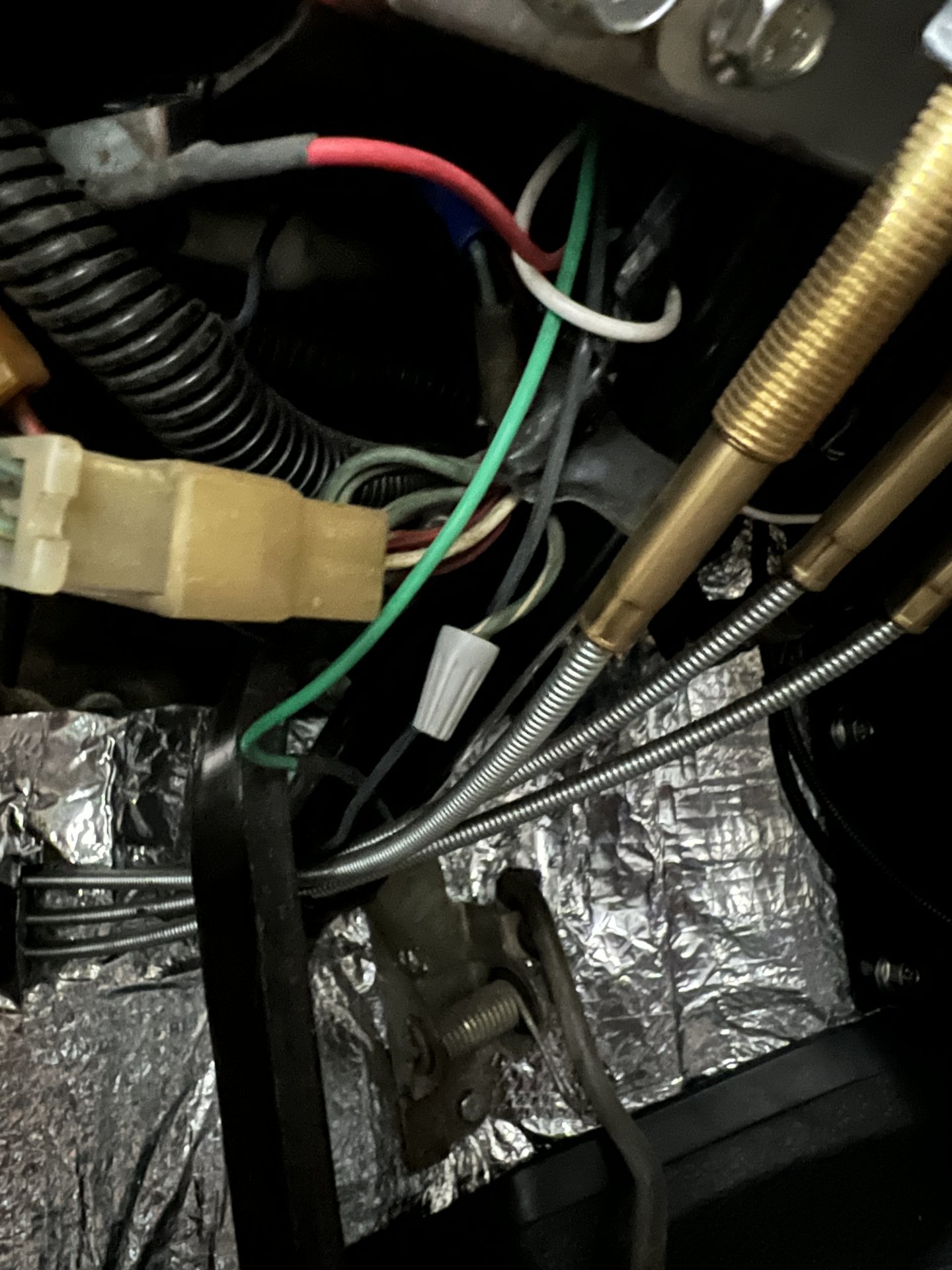

Okay, I think I have this horn situation figured out! Keep fingers crossed! Too late to test it though. But I decided to be more methodical this time (and not so ANGRY!) and I tested for continuity in all the wires that feed the relay and then found the wire that supplies the voltage to the relay. Here is what has thrown me off - there is a GR wire coming off the steering wheel horn buttons. I checked that wire again for continuity, which runs in a harness down the steering column to just under the dash and all good. Then I pulled apart the connector and there is no mating GR wire. The GR wire at the relay is hot so must run to fuse box (schematic shows a horn fuse but mine doesn't show "horn" at the fuse box). The GR wire from the steering wheel connects to a GY wire which goes to relay.

Steering wheel GR -> connector GY -> relay GY

So I have wires all messed up on the relay:

GW GY
GR

Should be:

GR GW
GY

It appears based on the schematic that the HBS on the relay is H=HORN, B=BATTERY, S=SWITCH. Makes total sense. I looked at an old post of mine and I had bad info:

Correct:


Incorrect:


Please let there be a god... 🤞

Last edited:

V8FJ4078

SILVER Star
Joined
Nov 25, 2006
Messages
416
Location
Lancaster/Lebanon

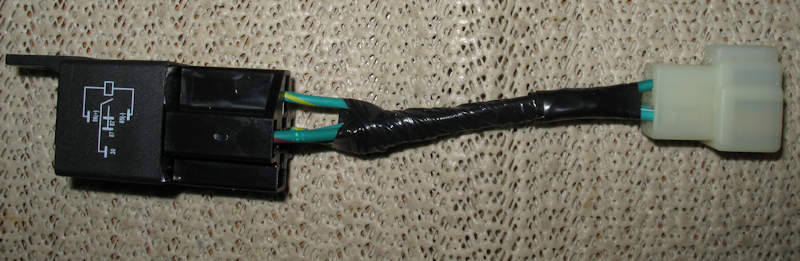

Okay rewired should be good! Nope. 👎🏽. No click at relay, wondering if relay is dead.

Horn works:


what's your positive battery cable clamp look like under the rubber cover?
I might need something like that!


ginmtb

'74 FJ40 - my first!
Joined
Jan 25, 2014
Messages
3,150
Location
Danville, CA

TheHardWay

Ain't as easy as it looks
SILVER Star
Joined
Dec 29, 2013
Messages
1,747
Location
Las Cruces, NM
Does the horn in your 75 work? (hint hint)


ginmtb

'74 FJ40 - my first!
Joined
Jan 25, 2014
Messages
3,150
Location
Danville, CA
Dang that tester is awesome! I got the knock off version (https://a.co/d/0vNP93g), about 1/2 the price. I determined the following tonight:
  1. Steering wheel shaft is properly grounded!
  2. The lone horn I have hooked up is properly grounded and there is continuity between the harness at the relay and the wire plugged to horn
  3. Other horn - nothing. I checked to see if the cut off GW wire under the dash ran to the other horn (also GW wire) but nothing there. I could probably just wire up two horns on the same working wire. Of course at this time, I'd take even one horn working lol.

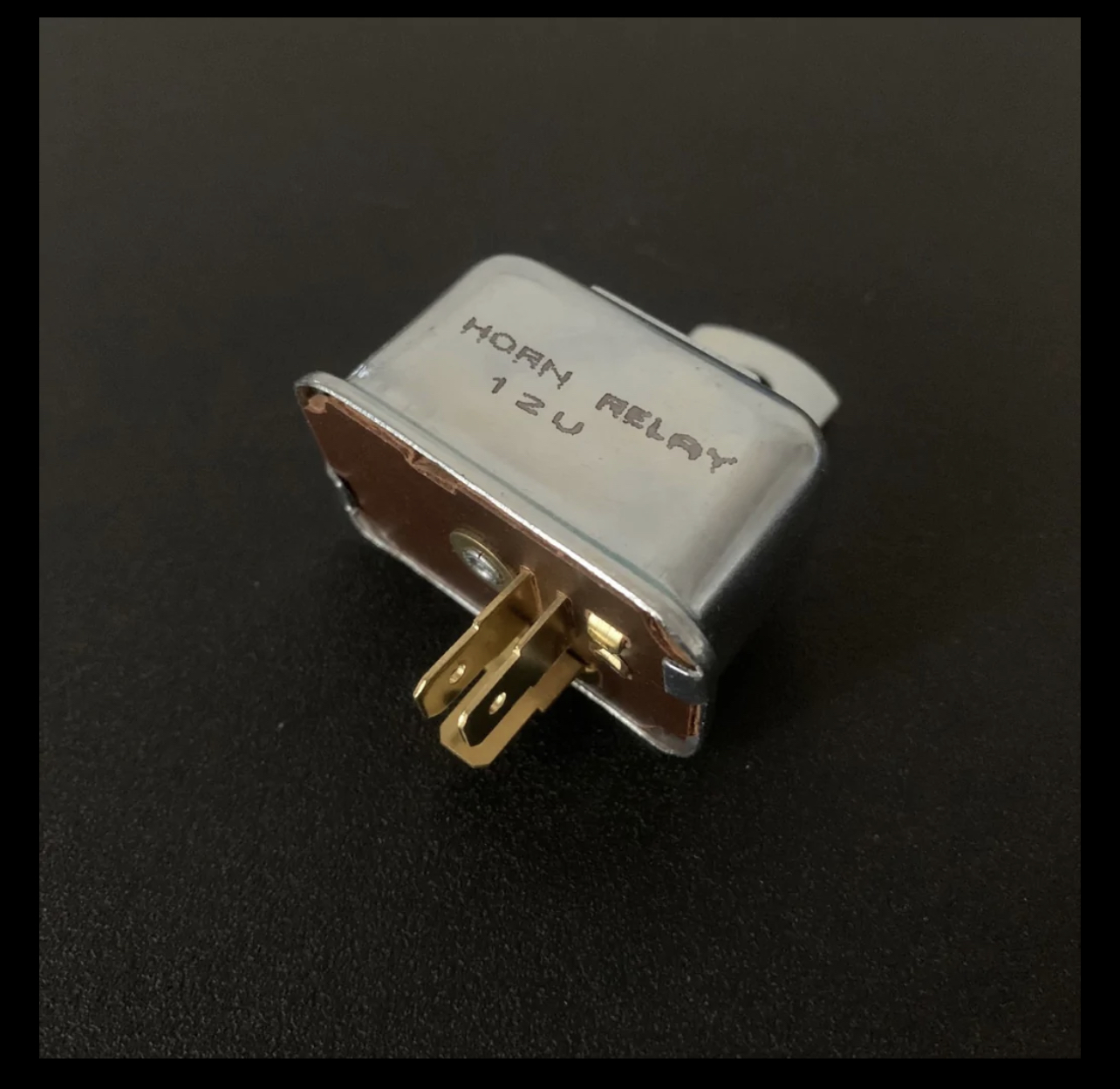

  4. Relay appears to be shot - grounded the S tab and put 12V on the B tab, no clickety-click!
Time to order a new relay!
